TP-Link TL-PA201 STARTER User manual

www.tp-link.com
Description：
TP-LINK Ethernet Powerline Adapter TL-PA201 provides another wire-free solution for the SOHO life.The device is a 200Mbps Powerline
Ethernet Adaptor which transforms your house’s existing electrical wiring into a ubiquitous networking infrastructure, it will easily
extend your Cable/xDSL broadband connection or existing LAN to any other electrical outlet in any room of your house without new
cabling.
With two adapters plugged into your existing power outlet, you could simply press the ‘pair’ button to building a connection without
other configuration.
Besides, with build-in QoS feature, TL-PA201 enables lag-free entertainment such as online/LAN gaming, audio/video streaming
simultaneously and the application with real-time requirements.
TL-PA201
200Mbps Ethernet Powerline Adapter
High speed data transfer
rate up to 200Mbps
with Wire-Free feature
Plug-and-Play conguration,
with push button ‘Pair’ to
connect two adapters easily
Built-in QoS feature to
meet the requirement of online
gaming & audio/video streaming

High speed data transfer rate up to 200Mbps
Easy Plug-N-Play operation, use existing
electrical wiring
Supports Push Buttons ‘Pair’ and ‘Reset’ on
the case
HomePlug AV standard compliant, works
with AC input of 100V~240V
Low power consumption
Intelligent channel adaptation maximizes
throughput under harsh channel conditions
Supports IGMP managed multicast IP
transmission, optimizes IPTV streaming
Built-in QoS, prioritize the data, enabling
smooth video streaming and lag-free
gaming.
128-bit AES encryption to secure powerline
communications
Transmission range up to 200m over
household power supply grid
www.tp-link.com
Features：Specifications：
Standards
Interface
Modulation Technology
Protocol Support
Security
Network Operating System Support
Plug Type
LEDs
Range
Power Consumption
Certications
Weight
Environment
Dimensions (LxWxH)
HomePlug AV 200Mbps
IEEE 802.3 10/100M Ethernet
Ethernet LAN Port * 1
OFDM
TCP/IP
128-bit AES
Windows 98 SE ,2000, XP, Vista
EU, UK, AU (replaceable)
Powerline, Power, Ethernet, HP 1.0 DET
200M in house
<6W
CE, RoHS compliant
165 grams
Temperature: +0℃ ~ +60℃
Humidity: 10% ~ 90% RH
104 x 71 x 38 mm
4.1 x 2.8 x 1.5 in.
-
-
-
-
-
-
-
-
Package:
Related Products:
200Mbps Ethernet Powerline Adapter TL-PA201
Quick Installation Guide
Ethernet Cable
Resource CD, including:
. TL-PA201 Ethernet Powerline Adapter Utility
. User Guide
. Other relevant contents
5-port Unmanaged 10/100M Desktop
Switch TL-SF1005D
108M Wireless ADSL2+ Router TL-W8920G
54M Wireless Access Point TL-WA501G
10/100M PCI Network Adapter TF-3239D

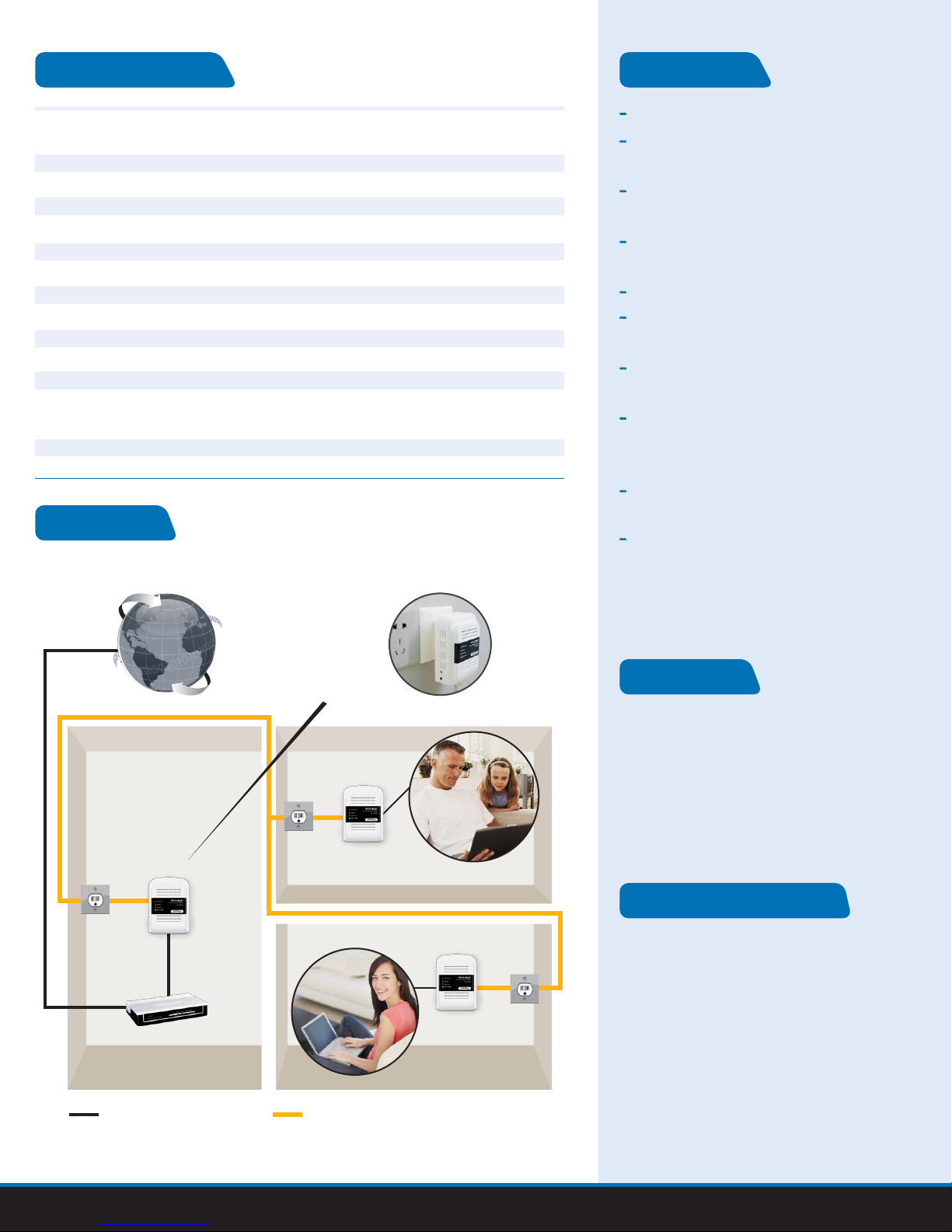

Diagram:
Specifications are subject to change without notice. is a registered
trademark of TP-LINK Technologies Co., Ltd. Other brands and
product names are trademarks or registered trademarks of their
respective holders. No part of the specificationsmay be reproduced
in any form or by any means or used to make any derivative such as
translation, transformation, or adaptation without permission from
TP-LINK Technologies Co., Ltd.
Copyright © 2008 TP-LINK Technologies Co., Ltd. All rights reserved.
Every AC outlet
becomes a network
entry point.
External ADSL2+ Router TD-8810
TL-PA201
TL-PA201
TL-PA201
ROOM 1 ROOM 2
ROOM 3
INTERNET
INTERNET
10/100M Ethernet Poweline
