TP-Link Omada MC1400 User manual

14-Slot Rackmount Chassis
Installation Guide
Package Contents: Chassis, AC Power Cord, Fourteen Retainer-plates, Installation Guide
Installation
Step 1: Install the Media Converters in the Chassis
Note:
It is recommended to use TP-Link media converters. Other vendors’ products may
be incompatible.
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com to join TP-Link
Community.
© 2023 TP-Link 7106510641 REV4.20.0
The pictures are for demonstration purposes only. The actual product may dier in appearance from the depicted.
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.

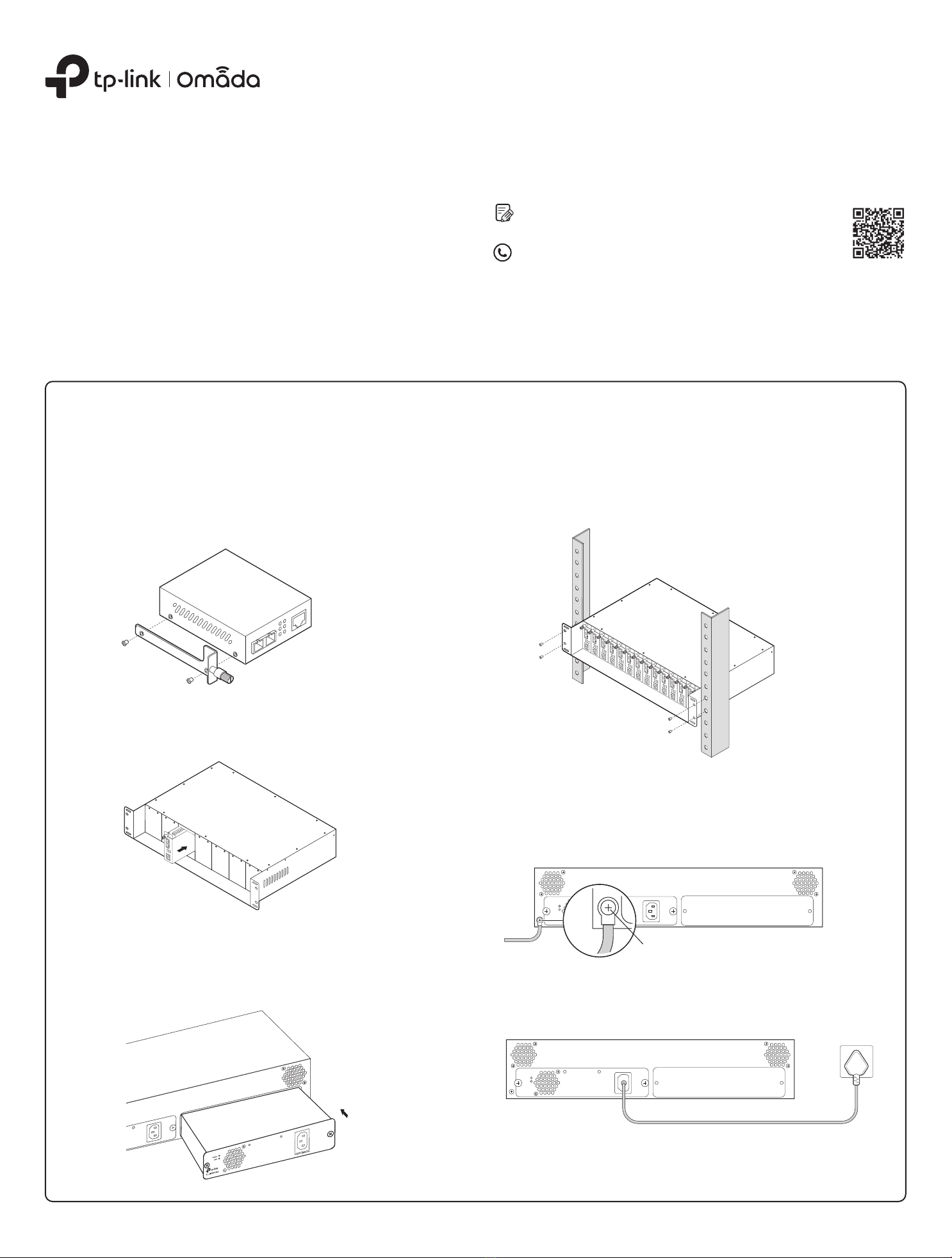

1. Tweak out the two screws on the media converter. Then install the
retainer-plate (provided with the chassis) to the media converter using
the screws removed from the media converter.
2. Remove the front metal plate of the slot on the chassis, then carefully
slide the media converter into the slot and lock it tightly with the
locking knob.
Step 2: (Optional) Install the Redundant Power Supply Module
Step 3: Mount the Chassis on the Rack
Step 4: Power On
Note:
1. The chassis supports EIA standard-sized, 19-inch racks.
2. For security reasons, it is recommended to install the chassis as shown below.
1. Electrically connect the Grounding Terminal on the rear panel of the
chassis to ground via the ground cable.
2. Connect the chassis to the AC outlet using the provided power cord.
Fasten the chassis to the rack with screws through the holes of the
brackets on each side.
Remove the protective cover on the power supply module slot of the chassis.
Then gently push in the module and plug it solidly into the connector.
Grounding Terminal
Chassis

EU Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential
requirements and other relevant provisions of directives 2014/30/EU,
2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at
https://www.tp-link.com/en/ce.
UK Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential
requirements and other relevant provisions of the Electromagnetic Compatibility
Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.
The original UK Declaration of Conformity may be found at
https://www.tp-link.com/support/ukca
CAN ICES-3 (A)/NMB-3(A)
Industry Canada Statement
FCC compliance information statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Product Name: 14-Slot Rackmount Chassis
Model Number: MC1400/FC1420
Responsible party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with
the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and
the equipment is properly maintained and operated.
Issue Date: 2023/09/14
This is a class A product. In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.
CE Mark Warning
Caution
Shock hazard
Disconnect all power sources
E
xplana�on of the symbols on the product label
S
ymbols may vary from products. The label is at the bottom of the product.
Symbol
Explanation
Class II equipment
Class II equipment with functional earthing
Alternating current
Direct current
Pola rity of d.c. power connector
For indoor use only
Dangerous voltage
Cauti on, risk ofelectric shock
Ene rgy e ciency Marking
Protective earth
Earth
Frame or chassis
Functional earthing
Cauti on, hot surface
Cauti on
Operator's manual
Stand-by
"ON"/"OFF" (push-push)
Fuse
Fuse is used in neutral N
Cauti on, avoid listening at high volume l evels for l ongperiods
Disconnection, allpower plugs
m Switch of mini-gap construction
µ
Switch of micro- gap construction (for US version)
Switch of micro-gap /micro - disconnection construction
(for other versions except US)
ε Switch without contact gap (Semiconductor switching device)
RECYCLING
This product bears the selective sorting symbol for Waste
electrical and electronic equipment (WEEE). This means that
this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.
User has the choice to give his product to a competent recycling
organization or to the retailer when he buys a new electrical or
electronic equipment.
