AC750 WiFi Range Extender
RE200
Quick Installation Guide
Specifications are subject to change without notice. TP-LINK is a registered
trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names
are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or
used to make any derivative such as translation, transformation, or adaptation
without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK
TECHNOLOGIES CO., LTD. All rights reserved.
www.tp-link.com
TP-LINK TECHNOLOGIES CO., LTD.

Contents
English ..................................................................................................................1
Français ................................................................................................................9

English
1

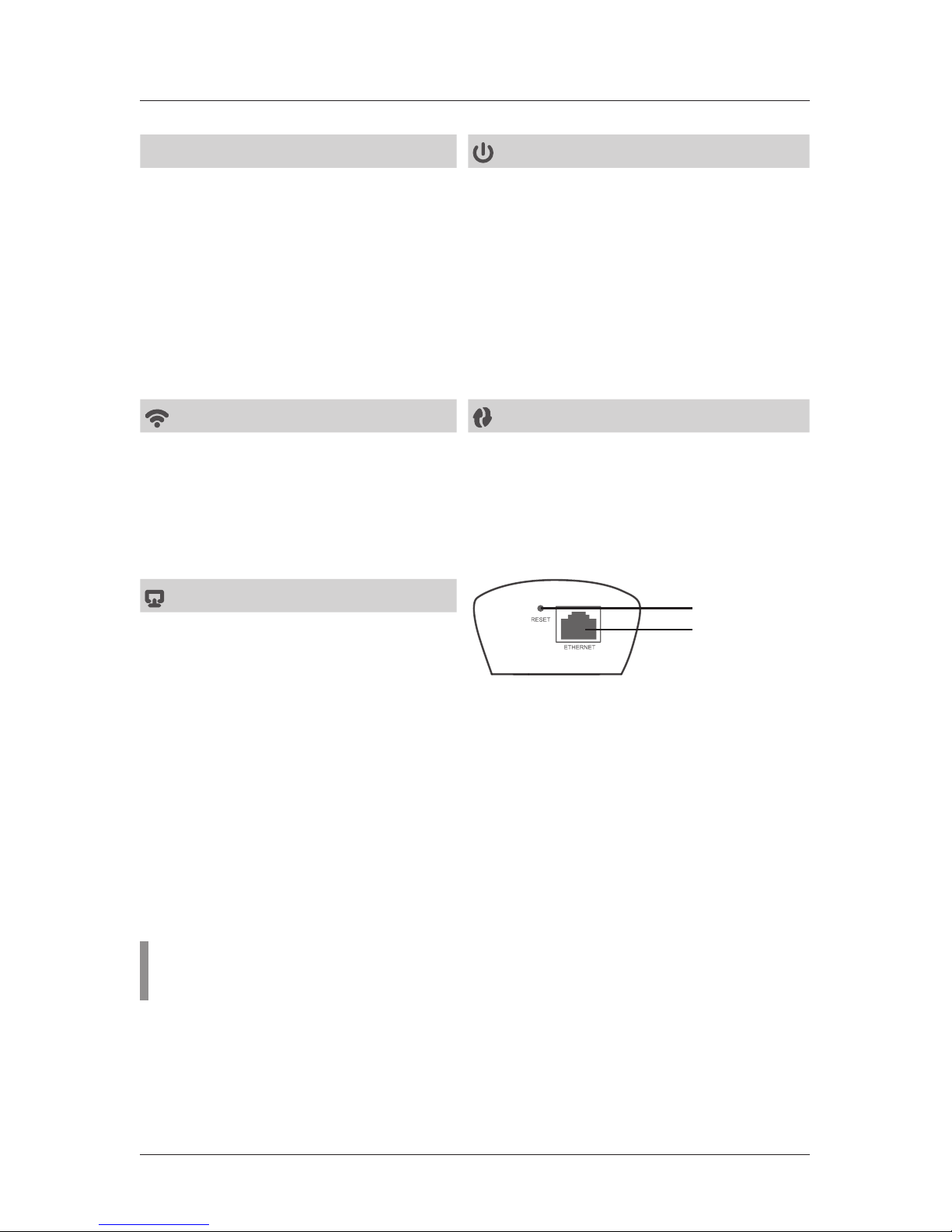

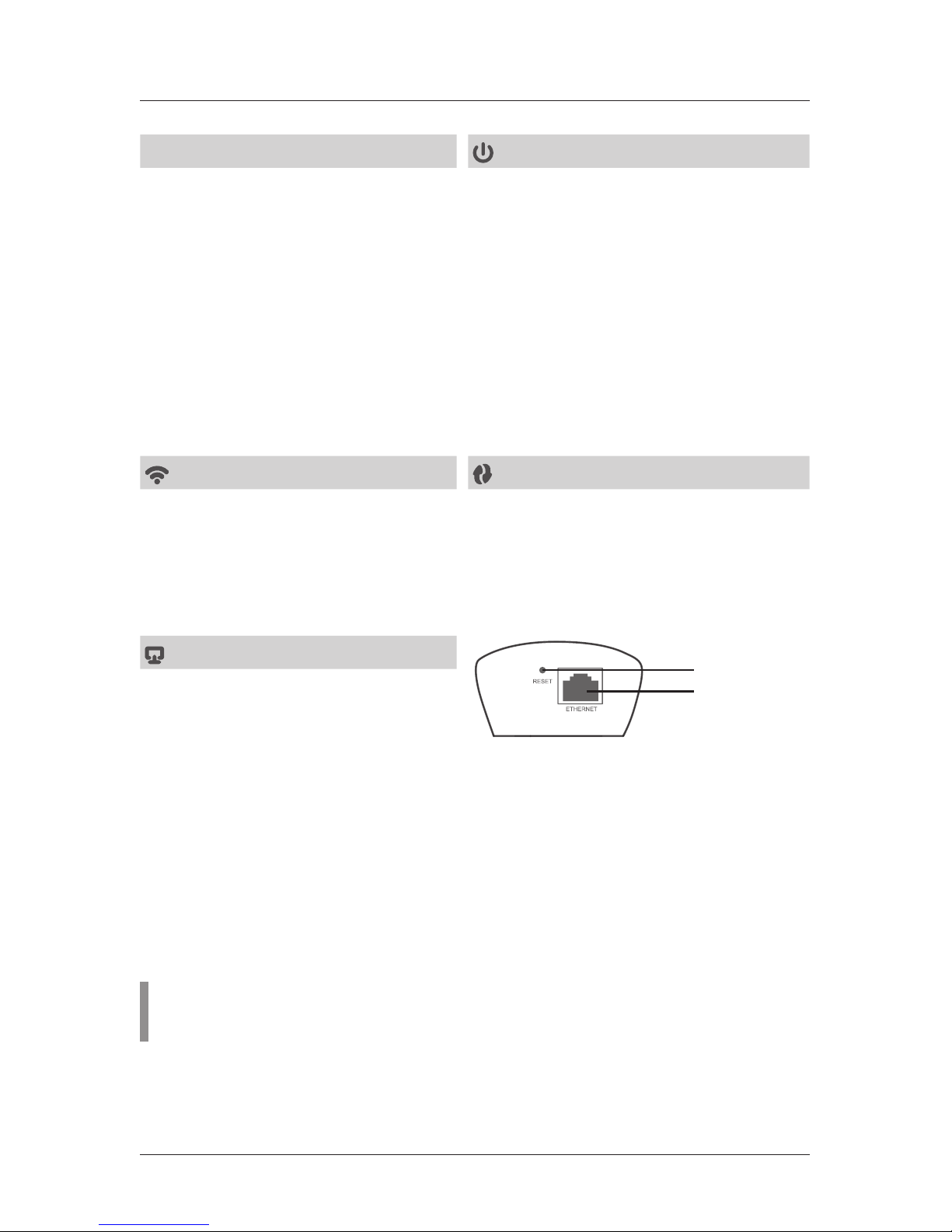

LEDs
5G and 2.4G (Power)
Red: The extender is connected
to the 2.4GHz/5GHz wireless
network of the router, but is too
away from it.
Green: The extender is
connected to the 2.4GHz/5GHz
wireless network of the router
and is in a good location.
Off: The extender isn't
connected to the router.
On: The exxtender is on.
Off: The extender is off.
(Wireless Signal) (RE)
On: The wireless function is
enabled.
Off: The wireless function is
disabled.
On: WPS connection is established.
Blinking: WPS connection is in
process.
Off: No active connection .
RESET: Press this button to reset
the extender to its factory defaults.
Ethernet port: Connect your
Ethernet-enabled device to this
port to enjoy the Internet.
(Ethernet)
On: A device is connected the
Ethernet port, but there is no
activity.
Flashing: A device is connected
to the Ethernet port, and is
active.
Off: No device is connected to
the Ethernet port.
Two easy setup options:
ONE: Using a Web Browser
TWO: Using WPS(Wi-Fi Protected Setup)
Reset
Ethernet port

English
2

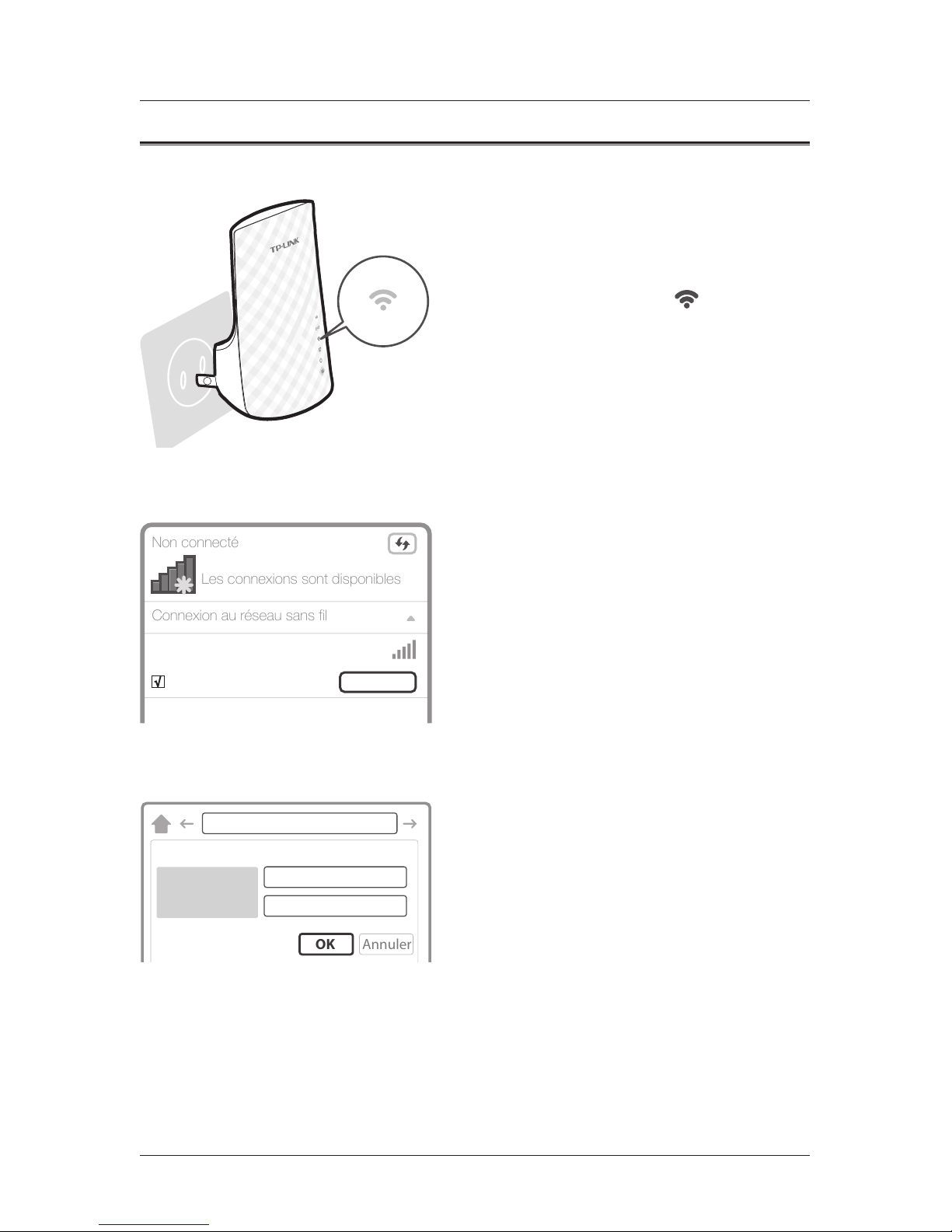

Option1: Using a Web Browser

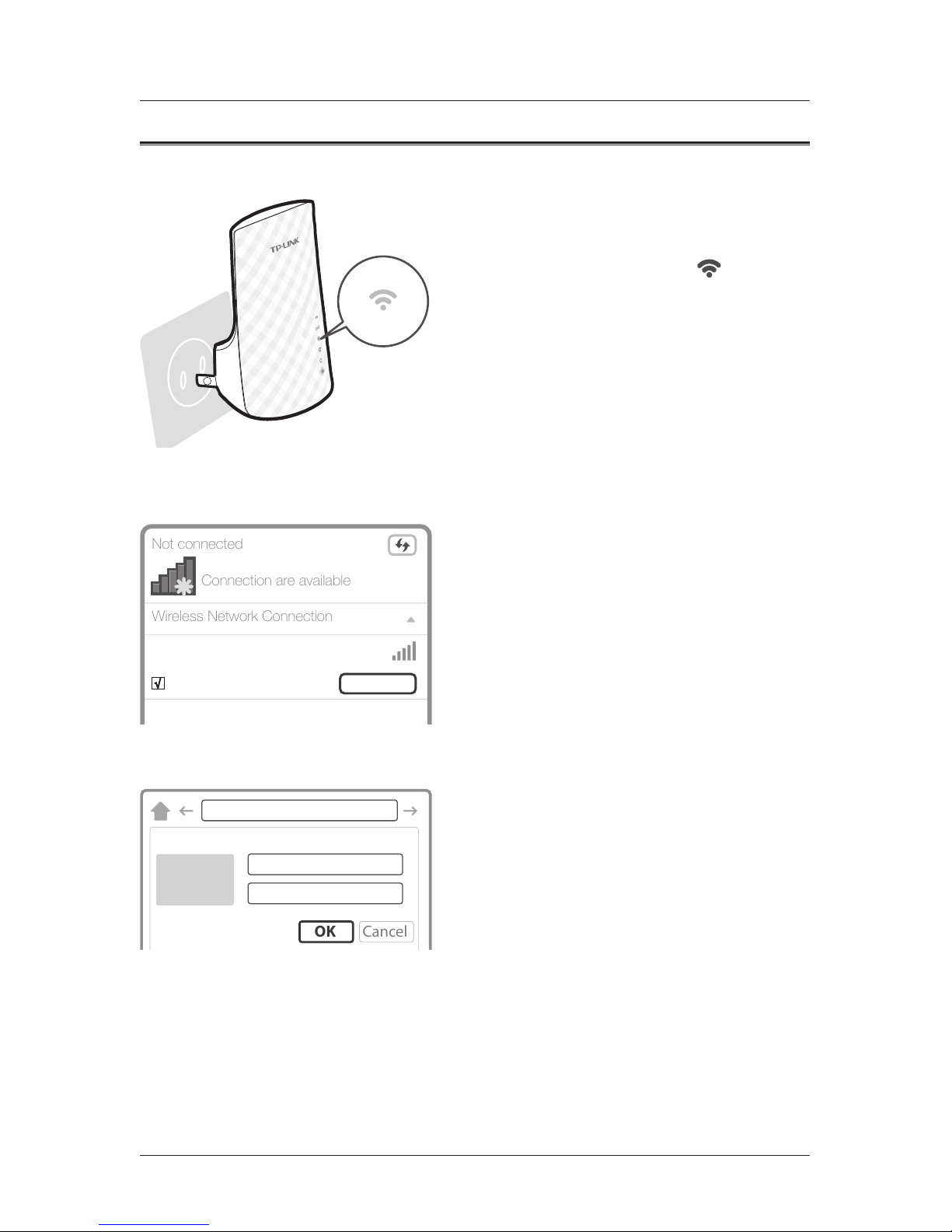

①Power on
②Connect
Unplug the Ethernet cable from
your computer (if any). Click the
Wireless Network Connection
icon on your taskbar and connect
to the extender's network
TP-LINK_Extender_2.4GHz/5GHz.
③Login
http://tplinkrepeater.net
admin
admin
Username:
Password:
OK
Cancel
④Configure
Go to Quick Setup Wizard to configure your extender.
Connection are available
Not connected
Wireless Network Connection
Connect automatically Connect
TP-LINK_Extender_XXGHz
√
Launch a web browser and type
http://tplinkrepeater.net in
the address bar. Use admin (all
lowercase) for both Username and
Password to log in.
Plug the extender into a power
outlet near your router, and wait
until the Wireless LED is lit and
solid green.

English
3

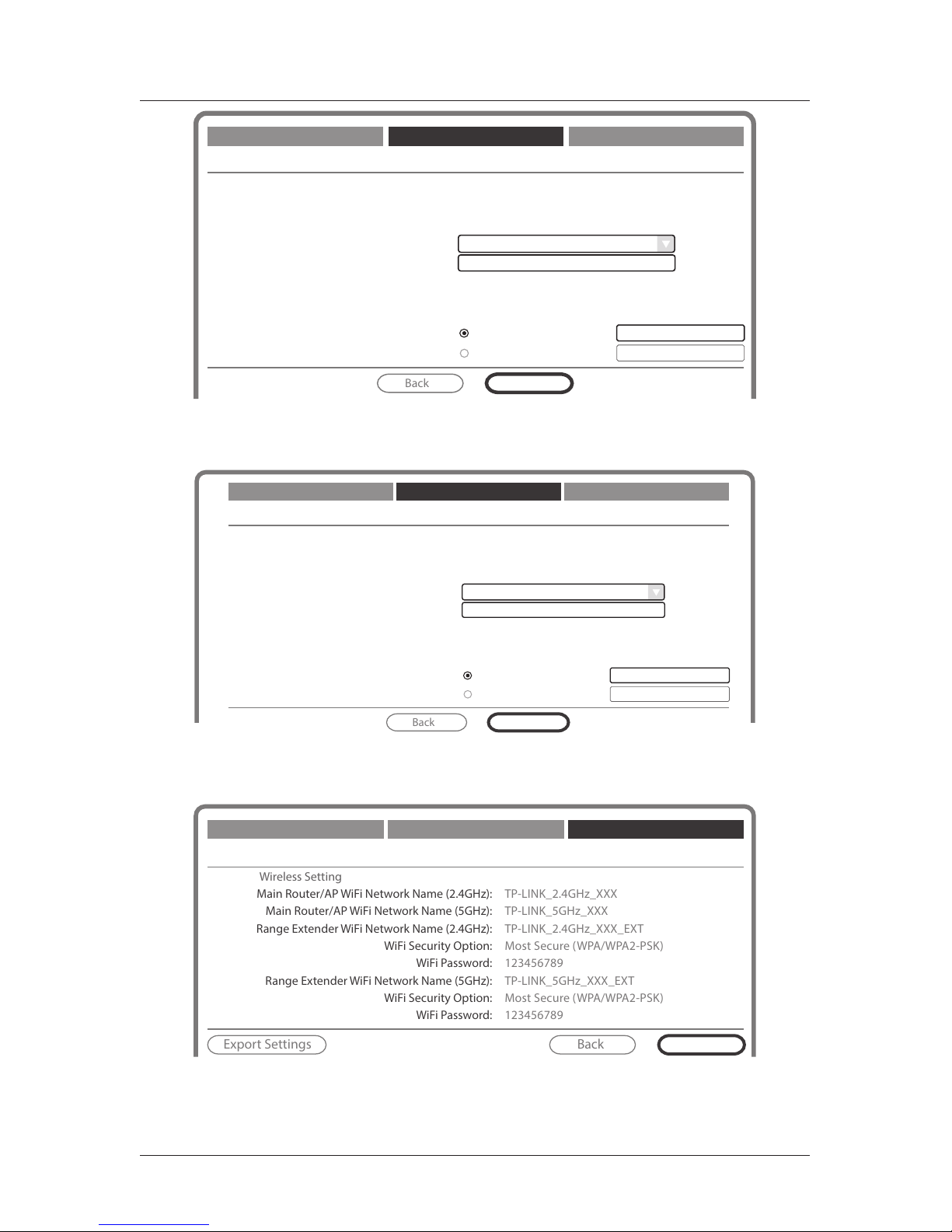

A. On the Start screen, click Next.
Please click Next to set up the Range Extender or click Exit to go to the Device Management Page.
Main Router/AP WiFi Network Name(SSID):
Exit
Next
Wi-Fi Network Name_2.4GHz:
Wi-Fi Network Name_5GHz:
Connection Status:
N/A
N/A
Disconnected
Wireless Settings Review SettingsStart
B. Select your router’s 2.4GHz wireless network name (SSID) and click
Next. If the SSID is hidden, select the Set SSID and MAC manually
option.
Signal MAC Channel Security
00-0A-EB-74-06-06 1 WPA-PSK
0C-72-2C-B3-A5-2C 1 WPA-PSK
Available Wireless Networks (2.4GHz): 24
Choose SSID
TP-LINK_2.4GHz_XXX
TP-LINK_XXX
Back
Rescan
Next
√
Wireless Settings Review SettingsStart
Set SSID and MAC Manually
C. Enter the router’s Wi-Fi password and either choose Copy from
Main Router or Customize to create a new network name for the
extender. Click Next.

English
4
TP-LINK_2.4GHz_XXX
00-0A-EB-74-06-06
Most Secure(WPA-PSK/WPA2-PSK)
123456789
Back
Next
TP-LINK_2.4GHz_XXX_EXT
Wireless Settings Review Settings
Start
Main Router/AP Network (2.4GHz)
Main Router/AP WiFi Network Name(SSID):
Main Router/AP MAC Address(BSSID):
WiFi Security Option:
Fill in the WiFi Password of your Main
Router/AP:
Range Extender Network (XXGHz)
Range Extender WiFi Network Name(SSID): Copy from Main Router/AP TP-LINK_2.4GHz_XXX
Customize
D. Select your router’s 5GHz wireless network. Click Next and repeat
step C. Click Next to continue.
TP-LINK_5GHz_XXX
00-0A-EB-74-06-06
Most Secure(WPA-PSK/WPA2-PSK)
123456789
Back
Next
TP-LINK_5GHz_XXX_EXT
Wireless Settings Review SettingsStart
Main Router/AP Network (5GHz)
Main Router/AP WiFi Network Name(SSID):
Main Router/AP MAC Address(BSSID):
WiFi Security Option:
Fill in the WiFi Password of your Main
Router/AP:
Range Extender Network (XXGHz)
Range Extender WiFi Network Name(SSID): Copy from Main Router/AP TP-LINK_5GHz_XXX
Customize
E. Verify your Wireless Settings and click Finish. Both 2.4G and 5G LEDs
should turn on and stay solid green.
Wireless Setting
Main Router/AP WiFi Network Name (2.4GHz):
Main Router/AP WiFi Network Name (5GHz):
Range Extender WiFi Network Name (2.4GHz):
WiFi Security Option:
WiFi Password:
Range Extender WiFi Network Name (5GHz):
WiFi Security Option:
WiFi Password:
TP-LINK_2.4GHz_XXX
TP-LINK_5GHz_XXX
TP-LINK_2.4GHz_XXX_EXT
Most Secure (WPA/WPA2-PSK)
123456789
TP-LINK_5GHz_XXX_EXT
Most Secure (WPA/WPA2-PSK)
123456789
Wireless Settings Review SettingsStart
Back
Finish
Export Settings
⑤Relocate
Plug in the extender about halfway between your router and the Wi-Fi

English
5
dead zone.
Wait for the extender to reconnect and the 2.4G/5G LED should turn
green. If not, relocate it closer to the router to achieve better signal
quality.

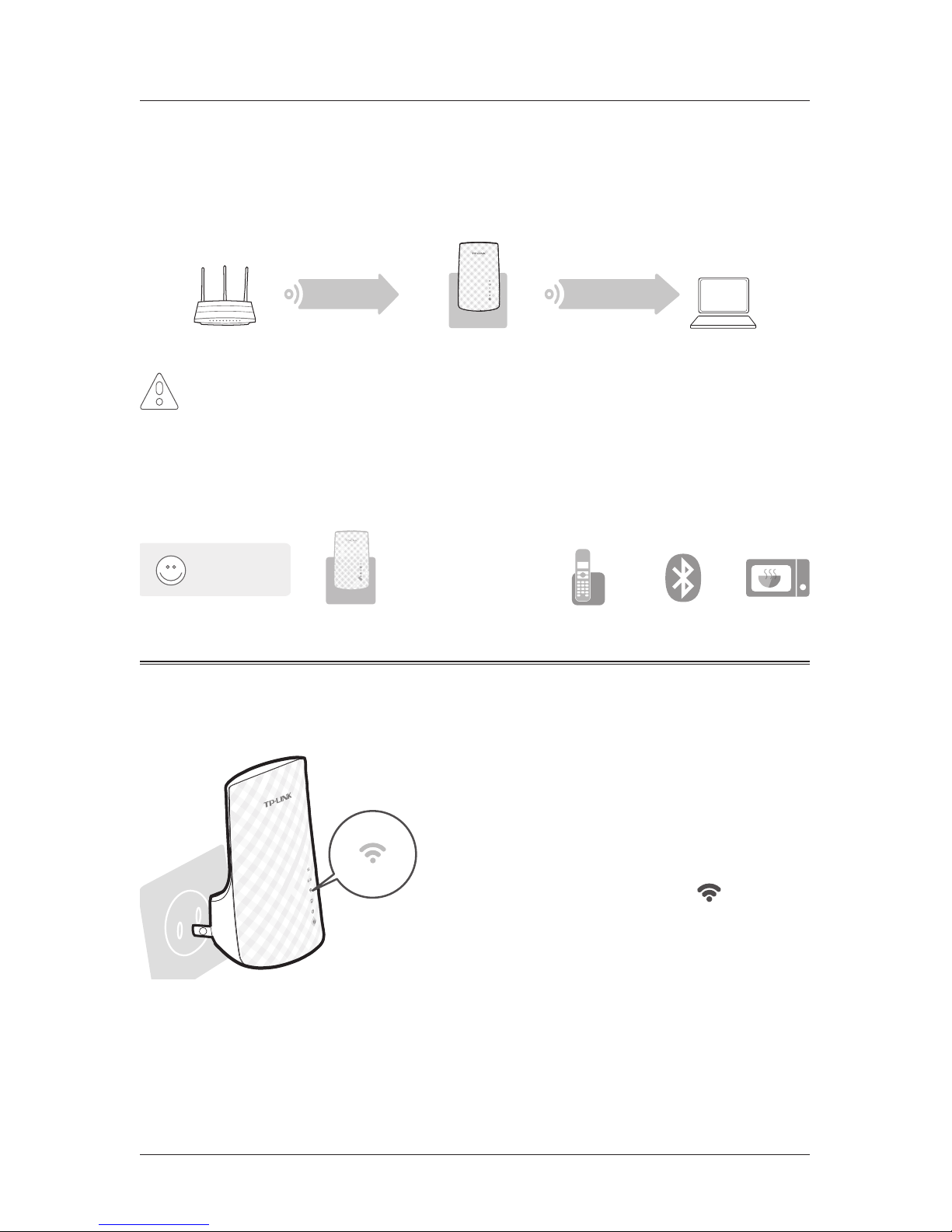

Ideal Extender PlacementRouter Clients
Extended Network
Host Network
Both extended networks share the same Wi-Fi passwords as those of your host
networks, but may have different wireless network names if you have customized
them during the configuration.
To minimize wireless interference, place your extender in an open
space area, away from other bluetooth devices or radioactive devices
such as cordless phones, microwaves, etc.
Enjoy! Keep away from
Option2: Using WPS(Wi-Fi Protected Setup)
Important:In order to use this option, your router must support WPS.
①Power on
Plug the extender into a power
outlet near your router, and wait
until the Wireless LED is lit and
solid green.
②Connect

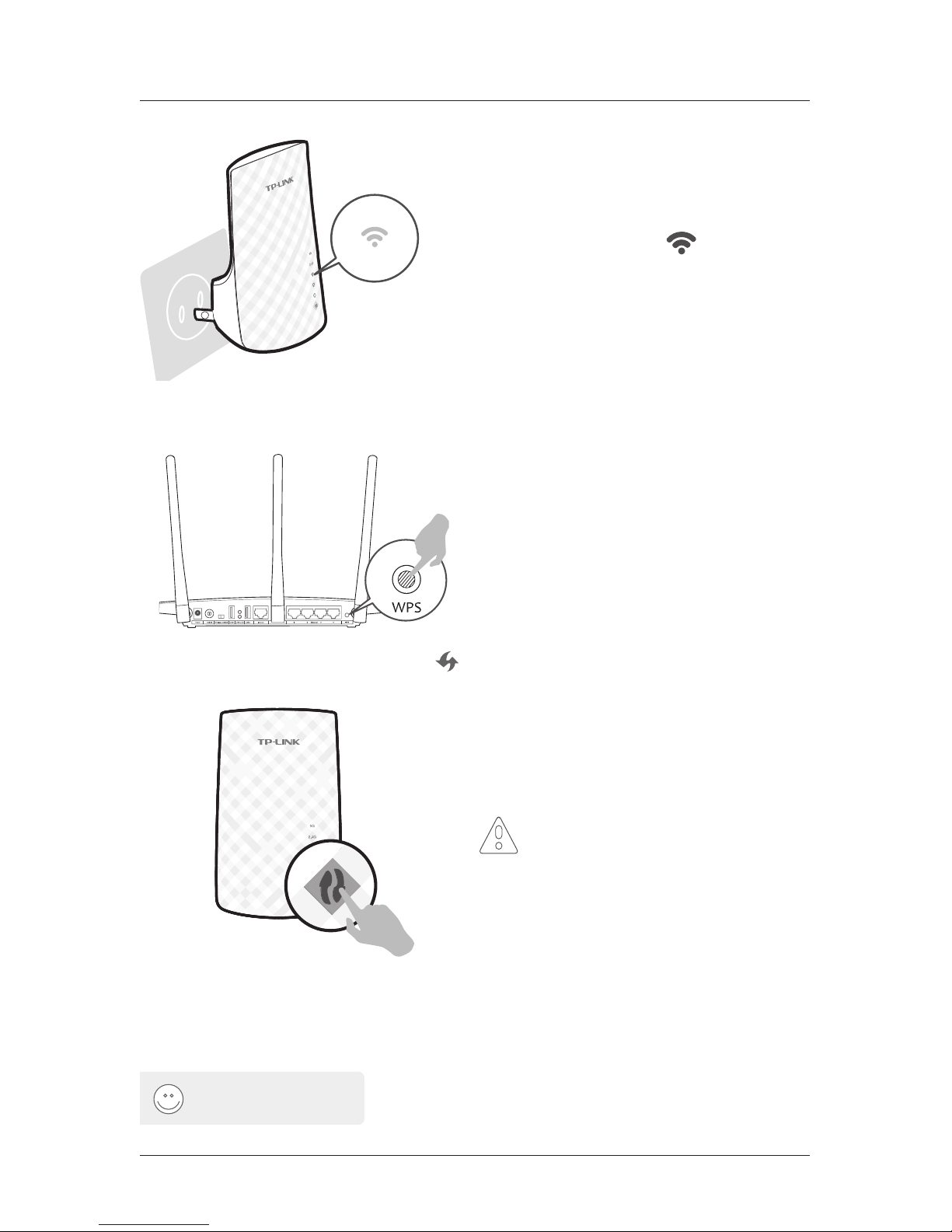

A. Press the WPS button on your router.

English
6

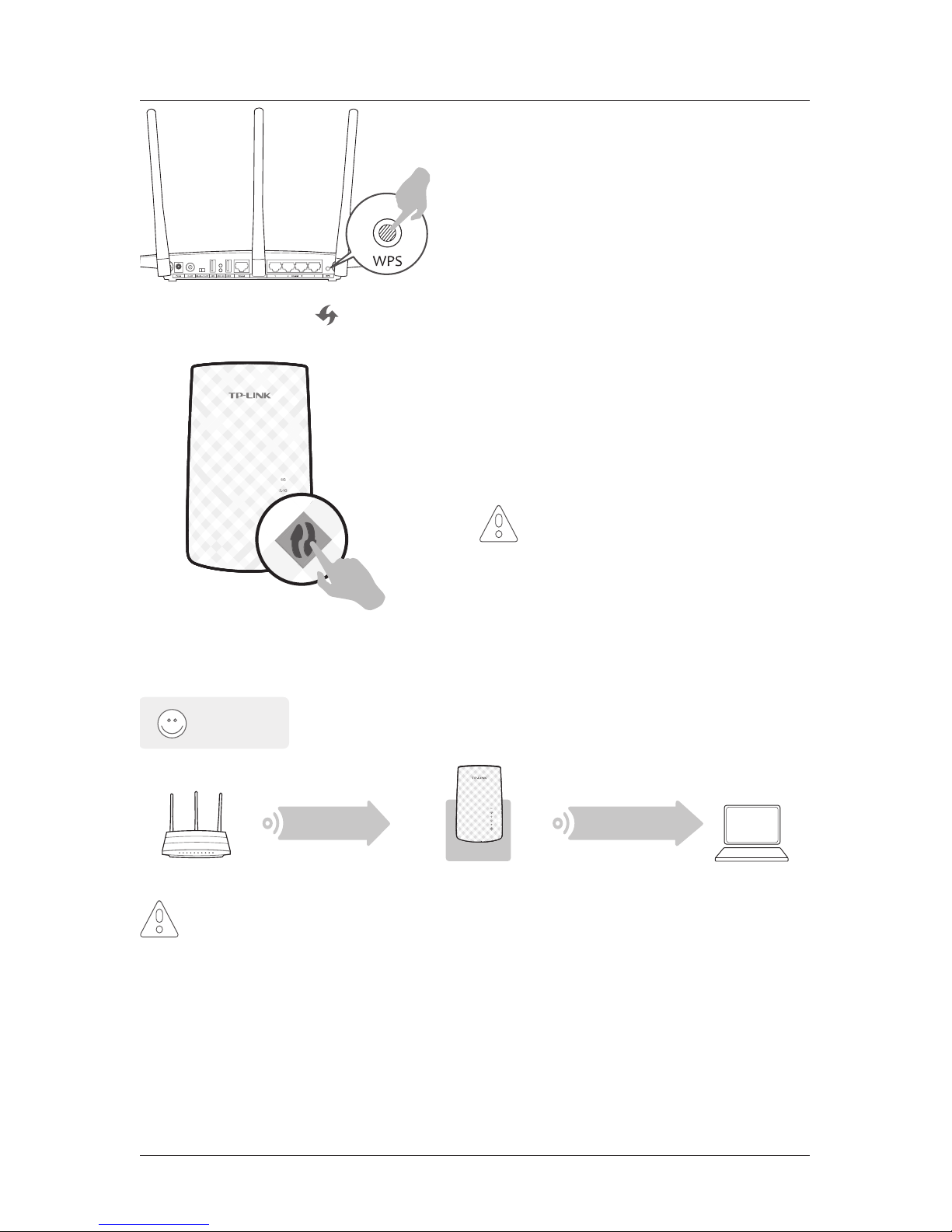

B. Press the WPS button on the extender. Once the connection is
established, the RE, 2.4G and 5G LEDs will turn solid green.
③Relocate
Refer to Step 5 of Option 1 to relocate your extender.
Enjoy!
Ideal Extender PlacementRouter Clients
Extended Network
Host Network
The extended networks share the same wireless network names (SSIDs) and
wireless passwords as those of the host networks.
Note: For more information about
using WPS on your router, please
refer to the router manufacturer's
user guide.
If either the 2.4G or 5G LED is not
on, repeat step Aand B to connect
the other band.
If the RE LED does not switch from
blinking to a solid green, please refer
to Option 1.

English
7

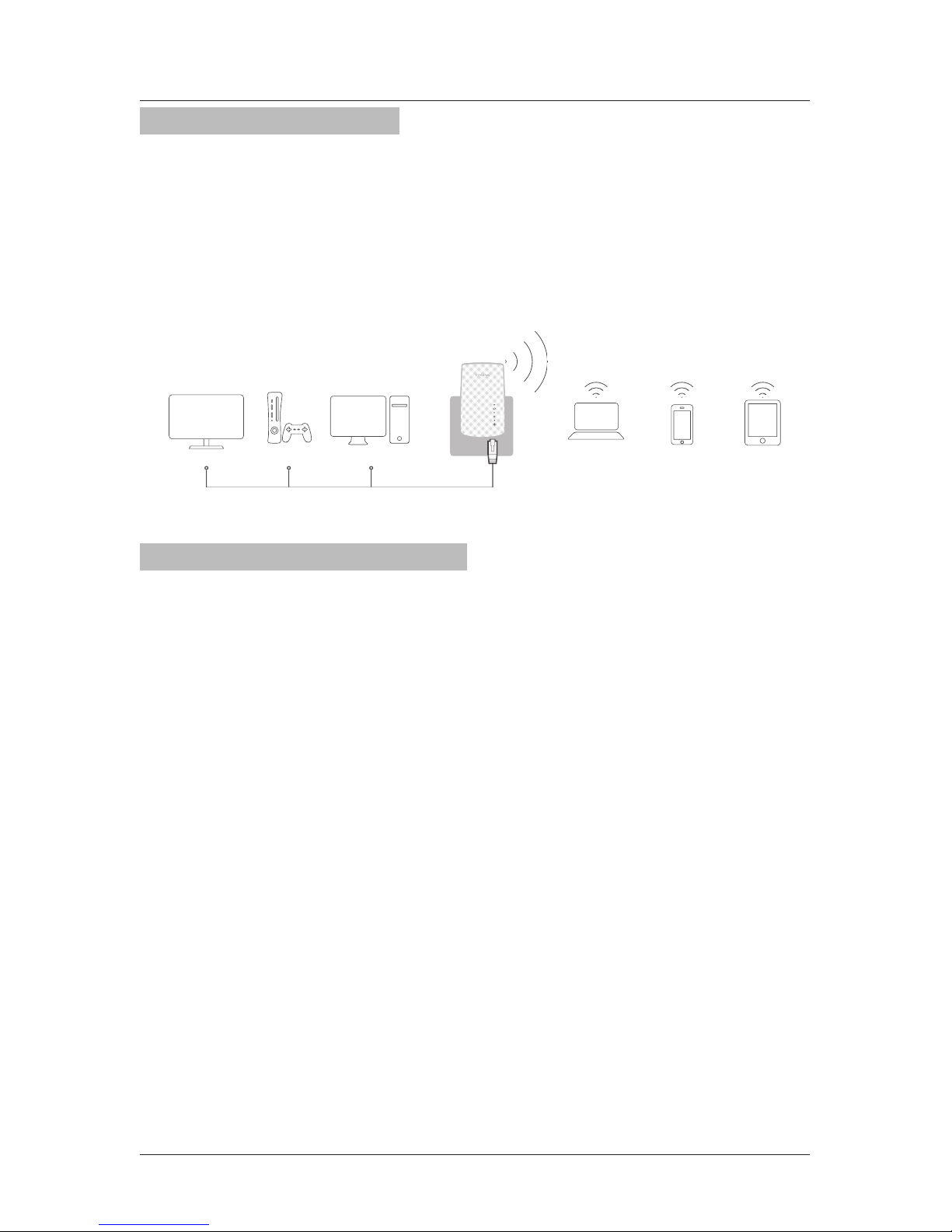

Entertainment Adapter
The extender can be used as a wireless adapter to connect any
Ethernet-enabled device, such as a Blu-ray player, game console, DVR,
or smart TV, to your wireless network.
First, connect the extender to your Wi-Fi network following the
instructions in Option 1 or Option 2, and then connect your Ethernet-
enabled device to the extender via an Ethernet cable.
Ethernet
Connection
Smart TV Game Console Desktop
Wireless
Connection
Laptop Smartphone Tablet
Troubleshooting and Support
1. My router has no WPS button, how do I connect the extender?
Your router does not support WPS, please use Option 1 to setup the
extender using a web browser.
2. Why does the RE LED not change from blinking to solid green after
completing Option 1?
•You may have entered the wireless password of your router
incorrectly during the configuration. Please login to the extender’s
web management page, and double-check your router’s wireless
password.
•If the RE LED still keeps blinking, please reset the extender and go
through the configuration again.
3. What should I do when the RE LED is on, but only one band is
connected?
It depends on your router capabilities. If either the 2.4G or 5G LED is
not on while the extender connected to your router/network, press
the WPS button on the router and the extender again to connect
the other band.
4. What should I do if I cannot access the web management page of
the extender?

English
8
•Make sure your computer is connected to the extender’s network.
•Change the computer’s fixed IP address to Obtain an IP Address
Automatically.
5. How do I restore the extender to its factory default settings?
With the extender powered on, use a pin to press and hold the
Reset button at the bottom of the unit, until all LEDs start flashing
once then release the button.
Technical Support
For detailed troubleshooting instructions, visit:
www.tp-link.com/en/support/faq
For all other technical support, please contact us at:
USA / Canada
Tell Free: [phone]
E-mail: [email protected]om(USA)
[email protected]om(Canada)
Support Availability:24 hours a day, 7 days a week
