TP-Link Archer C24 User manual

If your internet connection is through an Ethernet cable
directly from the wall instead of through a DSL / Cable /
Satellite modem, connect the Ethernet cable to the
router’s WAN port, then follow step 4 and 5 to complete
the hardware connection.
Quick Installation Guide
http://tplinkwi.net
New Password:
Conrm Password:
Let’s Get Started
2. Launch a web browser, and enter http://tplinkwifi.net or
http://192.168.0.1 in the address bar. Create a password
to log in.
Note: If the login window does not appear, please refer to FAQ > Q1.
3. Follow the step-by-step instructions to set up the internet connection.
Note: If you are not sure of the Connection Type, please click AUTO DETECT or contact
your ISP (Internet Service Provider) for help.
1. Connect your computer to the router (Wired or Wireless)
Congure the router
Wired
Turn o the Wi-Fi on your computer and connect it to the router
via an Ethernet cable.
*Images may dier from the actual product.
Modem
Router
Power adapter
Connect to the internet
Connect to the power socket
Turn on the modem and then wait
about 2 minutes for it to restart.
Connect the powered-o modem to the
router’s WAN port via an Ethernet cable.
Wireless
Connect your device to
the router’s Wi-Fi using
the SSID (network name)
and Wireless Password
printed on the label at
the bottom of the router. Wireless Password/PIN:XXXXXXXX
SSID:TP-Link_XXXX
SSID:TP-Link_XXXX_5G
AC750 Dual Band Wi-Fi Router
Tether App
The TP-Link Tether app provides a simple, intuitive way to
access and manage your router. Scan the QR code to
download Tether from the Apple App Store or Google Play.
Verify that the LED turns solid on before
continuing with the configuration.
Power o the modem, and remove
the backup battery if it has one.
Important
Connect the
power adapter
to the router.

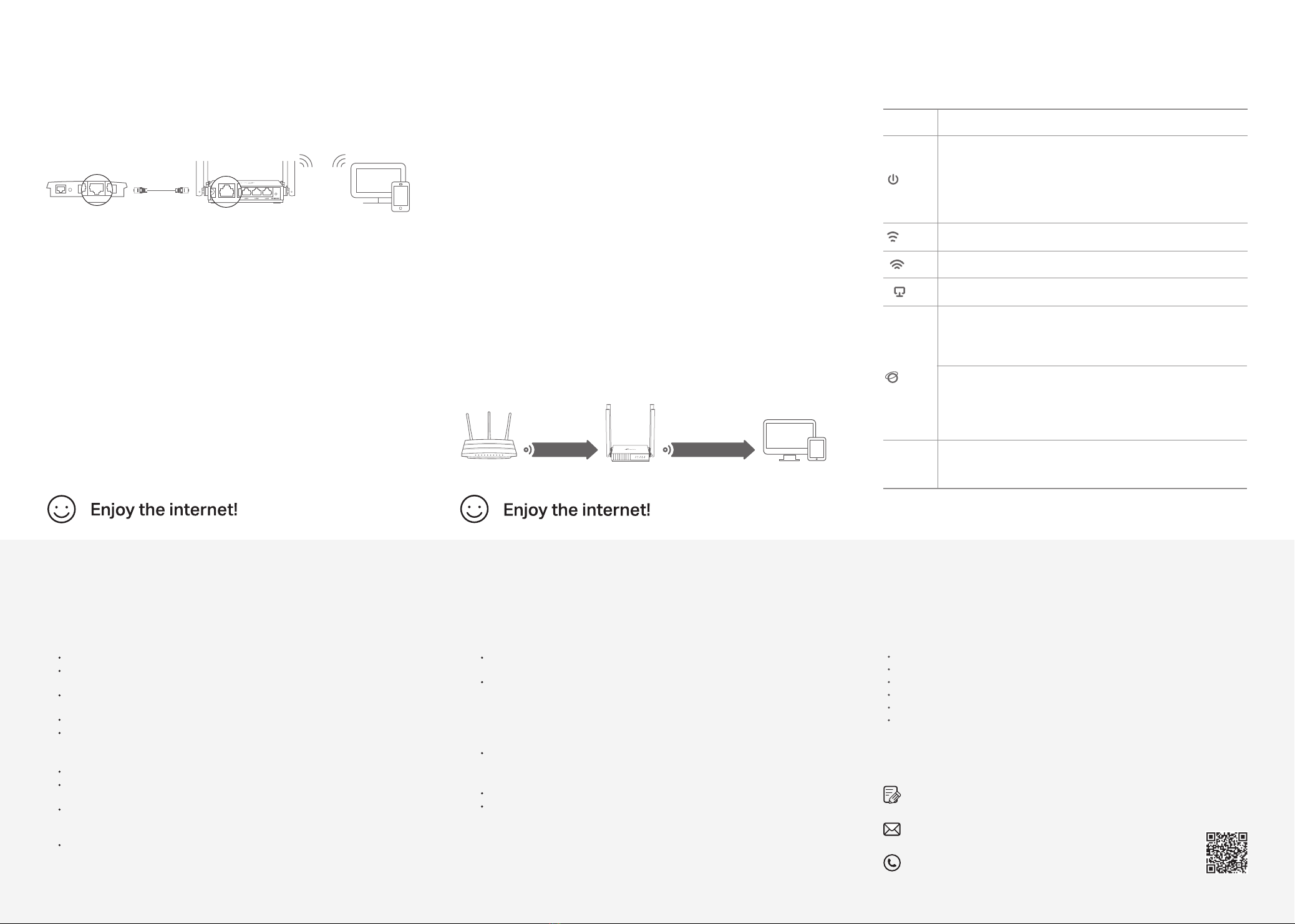

Range Extender Mode
1. Configure
a. Place the router next to your host router and power it on.
b.Connect a computer to the router via an Ethernet cable or wirelessly by
using the SSID (network name) and Wireless Password printed on the
label at the bottom of the router.
c. Launch a web browser and enter http://tplinkwifi.net in the address bar.
Create a password to log in.
d. Click Change Mode in the top right corner and select Range Extender
Mode. Wait for the router to reboot.
Note: You can also go to Advanced > Operation Mode to switch to Range Extender Mode.
e. Use http://tplinkwifi.net to log in to the web management page and follow
the step-by-step instructions to set up the internet connection.
In this mode, the router boosts the existing wireless coverage in your home.
Place the router about halfway between your host router and the Wi-Fi
“dead” zone. The location you choose must be within the range of your
existing host network.
2. Relocate
Access Point Mode
In this mode, the router transforms your existing wired network to a wireless
one.
a. Power on the router.
b.Connect the router's WAN port to your wired router’s Ethernet port via
an Ethernet cable as shown above.
c. Connect a computer to the router via an Ethernet cable or wirelessly by
using the SSID (network name) and Wireless Password printed on the
label at the bottom of the router.
d. Launch a web browser and enter http://tplinkwifi.net in the address bar.
Create a password to log in.
e. Click Change Mode in the top right corner and select Access Point
Mode. Wait for the router to reboot.
Note: You can also go to Advanced > Operation Mode to switch to Access Point Mode.
f. Use http://tplinkwifi.net to log in to the web management page and
follow the step-by-step instructions to set up the internet connection.
DevicesRouterWired Router
Ethernet4Ethernet3Ethernet1Ethernet2Internet
Ethernet4
Ethernet
Internet
WAN
Devices Host Router Router
Extended NetworkHost Network
Appearance
WPS/RESET
Button
Press for 1 second to enable the WPS function.
Press and hold the button until all LEDs turn o to reset the router to
its factory default settings.
Item Description
Power
Solid on:
Power is on.
Blinking slowly:
The system is starting up or rmware upgrade is in progress.
Blinking quickly:
WPS connection is in progress.
Green
2.4GHz Green Solid on: The 2.4GHz wireless band is enabled.
5GHz Green Solid on: The 5GHz wireless band is enabled.
LAN Green Solid on: At least one LAN port is connected.
Internet
Orange
Solid on:
Router Mode: The WAN port is connected, but internet is not
available.
Green
Solid on:
Router Mode: Internet is available.
Access Point Mode: The WAN port is connected.
Range Extender Mode: The router is connected to the host
network.
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device.
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended.
Do not use the device where wireless devices are not allowed.
Adapter shall be installed near the equipment and shall be easily accessible.
FAQ (Frequently Asked Questions)
©2019 TP-Link 7106508524 REV1.0.0
For technical support, the user guide and more information, please
visit https://www.tp-link.com/support/, or simply scan the QR code.
If you have any suggestions or needs on the product guides,
welcome to email [e-mail].
To ask questions and communicate with TP-Link users or engineers, please
visit https://community.tp-link.com to join TP-Link Community.
Q3. How do I restore the router to its factory default settings?
With the router powered on, press and hold the WPS/RESET button on the back
panel of the router until all LEDs turn o. The router will reboot.
Log in to the web management page of the router. Go to Advanced > System >
Backup & Restore (or System>Backup & Restore in Access Point Mode or Range
Extender Mode), and locate the Factory Default Restore section. Then Click
FACTORY RESTORE. The router will restore and reboot automatically.
Q4. What can I do if I forgot my web management password?
Refer to FAQ > Q3 to reset the router, then create a password to log in.
Q5. What can I do if I forgot my wireless network password?
The factory default wireless password is printed on the label of the router.
Connect a computer directly to the router using an Ethernet cable. Log in to the
router’s web management page, and go to Wireless to obtain or reset your wireless
password.
Q1. What can I do if the login window does not appear?
Reboot your router and try again.
If the computer is set to a static IP address, change its settings to obtain an IP
address and DNS server address automatically.
Verify that http://tplinkwifi.net or http://192.168.0.1 is correctly entered in the web
browser. Alternatively, enter http://192.168.1.1 in the web browser and press Enter.
Use another web browser and try again.
Disable and then enable the network adapter being used.
Q2. What can I do if I cannot access the internet when in Router mode?
Reboot your modem and router, then try again.
Check if the internet is working normally by connecting a computer directly to the
modem using an Ethernet cable. If it is not, contact your Internet Service Provider.
Log in to the web management page of the router, and go to the Network Map
page to check whether the WAN IP address is valid or not. If it is not, check the
hardware connection or contact your internet service provider.
For cable modem users, log in to the web management page of the router. Go to
Advanced > Network > Internet and locate the MAC Clone section. Select Clone
Current Device MAC, and click SAV E. Then reboot both the modem and the router.
