Quick Installation Guide
AC750 Wireless Dual Band Gigabit
ADSL2+ Modem Router
MODEL NO. Archer D2
7106505239 REV1.0.0

1
English
Connect the Hardware
1. Connect the splitter and power adapter as follows. Then press
the POWER ON/OFF button.
Note: If you don’t need the phone service, just directly connect the ADSL port to the
Phone Jack with a phone cable.
2. Check the following LED lights to ensure the hardware
connection is correct.
Note: Please wait 1-2 minutes until the ADSL LED is on.
Phone Jack
Splitter
PHONE
MODEM
LINE
ADSL
On
Power
On

2
English
&RQ¿JXUHWKH0RGHP5RXWHU
0HWKRG9LD:HE%URZVHU

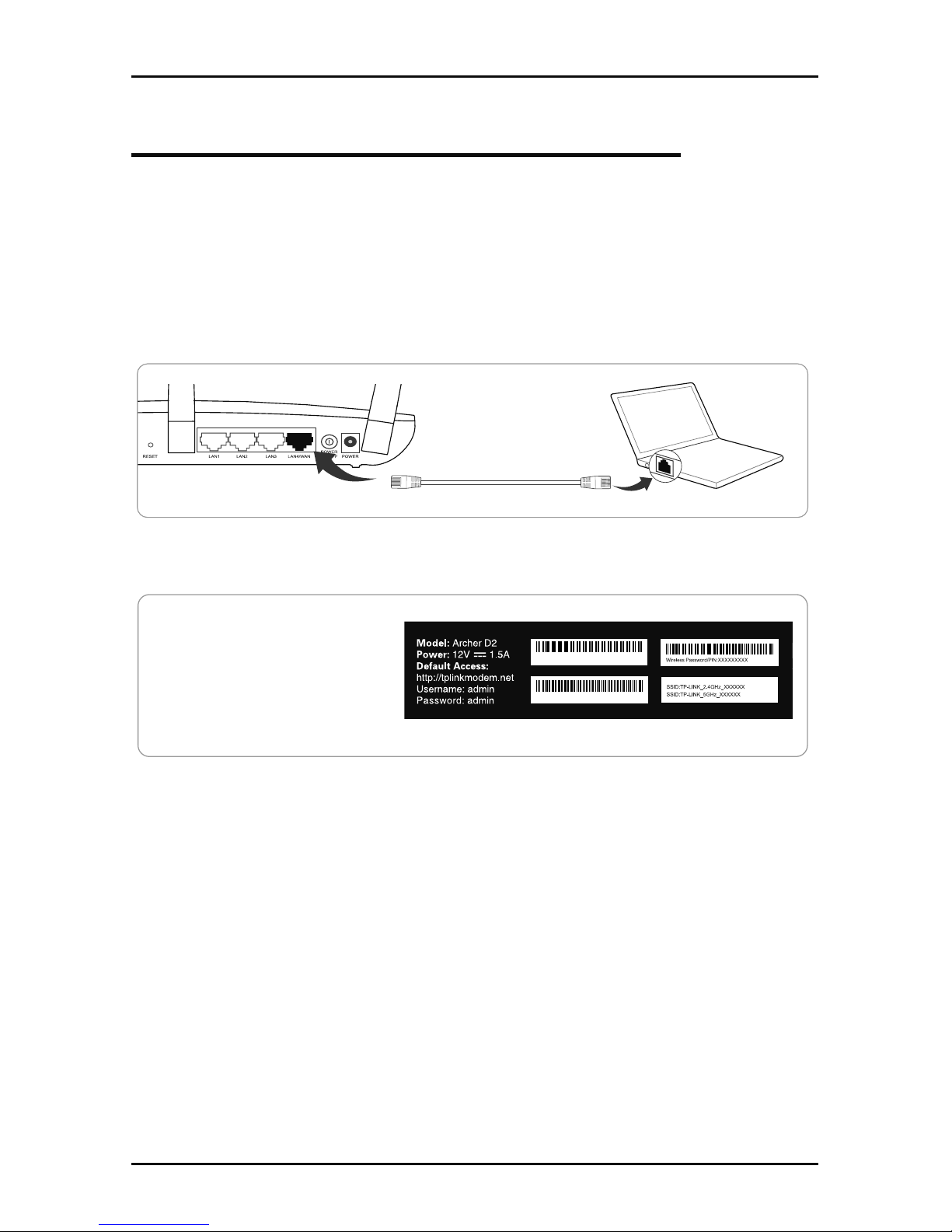

1. Connect your computer to the modem router (Wired or
Wireless).
:LUHG
Ethernet cable
:LUHOHVV
Connect wirelessly by using
the default network name
(SSID) and password on the
product label printed on the
bottom of the modem
router.
Model:Archer D2 ver:1.0
S/No.:XXXXXXXXXXXXX
MAC:XXXXXXXXXXXX
Wireless Password /PIN
2SHQDZHEEURZVHURQWKHFRPSXWHUDQGFRQ¿JXUHWKHPRGHP
router according to the following main clues.
a. Enter KWWSWSOLQNPRGHPQHWor in the address
bar. Type in DGPLQ for both the user name and password
and click /RJLQ.
Note: If the login window does not appear, please refer to FAQ->Q1.

3
English
Login
http://tplinkmodem.net
admin
admin
b. Choose 4XLFN6HWXS in the main menu and then click Next to start
WKHFRQ¿JXUDWLRQ,QWKHQH[WVFUHHQVHOHFW\RXU5HJLRQ and 7LPH
Zone from the drop-down list, and then click Next.
Region
Back Next
Quick Setup-Region and Time Zone
XXXXXX
XXXXXXXXXX
Time Zone
c. Select <HV to auto detect your connection type and then click
Next to continue.
Back Next
Quick Setup-Auto Detection
Yes.
No. I want to configure the Internet connection myself.
Auto-Detect Connection Type:
d. Enter the parameters provided by your ISP and then click
Next. Here we take PPPoEDVDQH[DPSOH

4
English
Back Next
XXXXXX
XXXXXX
XXXXXX
Quick Setup-PPPoE
DSL PVC:
Auto-detection has succeeded!
8/35
Encapsulation Mode: LLC
Connection Type: PPPoE
Username:
Password:
Confirm Password:
e. Click Next to continue.
Note: You may rename your 2.4GHz/5GHz wireless network name and create
your own password.
Wireless Network Name:
Password:
TP-LINK_XXGHz_XXXXXX
XXXXXXXX
2.4GHz & 5GHz Wireless Network Name and Password
Back Next
Channel:
Mode:
Security:
f. Click 6DYH and wait a moment for your settings taking effect.
Click )LQLVK to complete the setup.
Note: If you have changed your 2.4GHz/5GHz wireless network name and
password, you must sign in with the new names/passwords to regain access to
the Internet.
Finish
Quick Setup-Complete
Operation Mode Configuring: Success
WAN Connection Configuring: Success
Gateway and DNS Configuring: Success
Wireless Configuring: Success
Time Zone Configuring: Success Enjoy!
Now your wired and
wireless devices can
connect to the Internet !

5
English
0HWKRG9LD&'6HWXS:L]DUG
Note: If you are using a computer that cannot run the mini CD, please refer to Method 1
IRUFRQ¿JXUDWLRQ

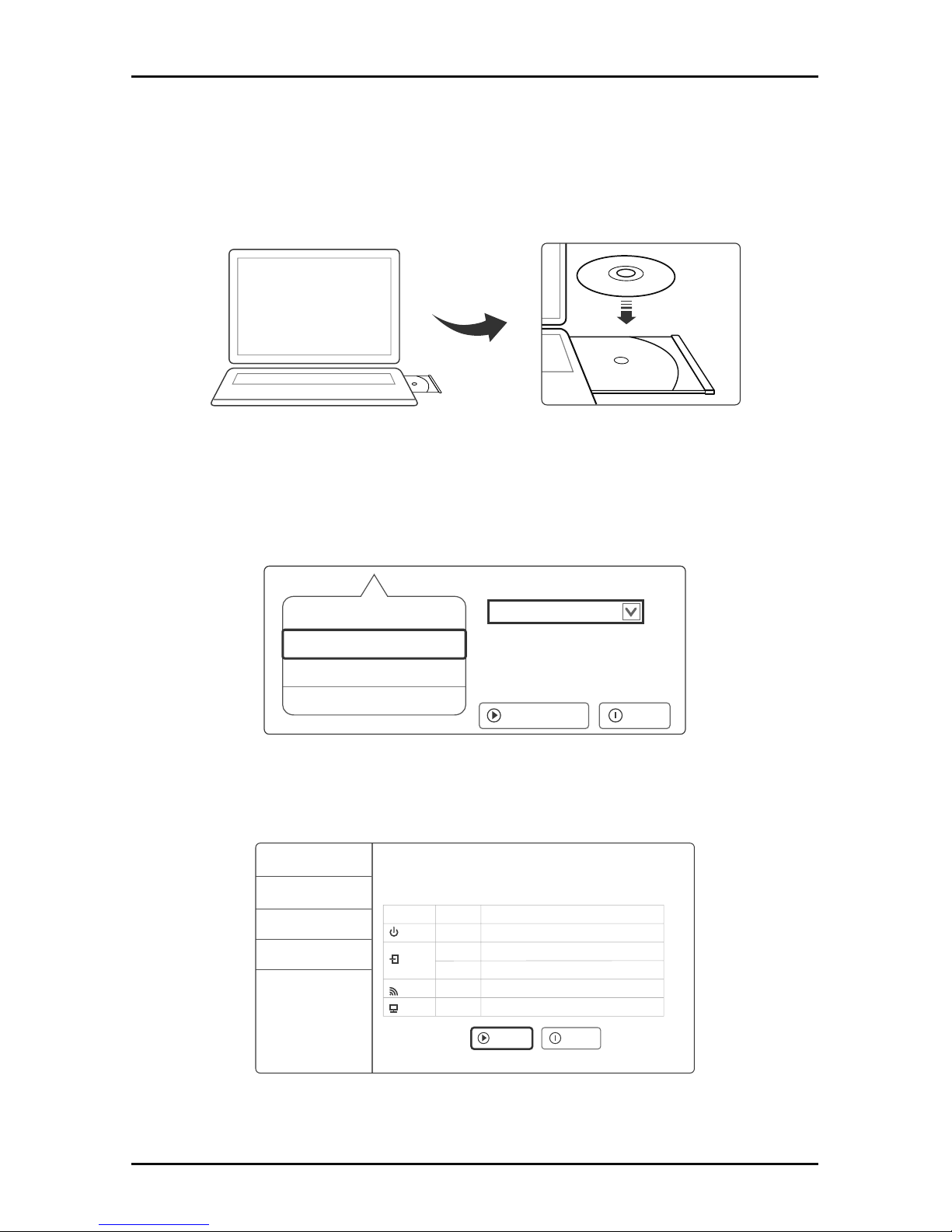

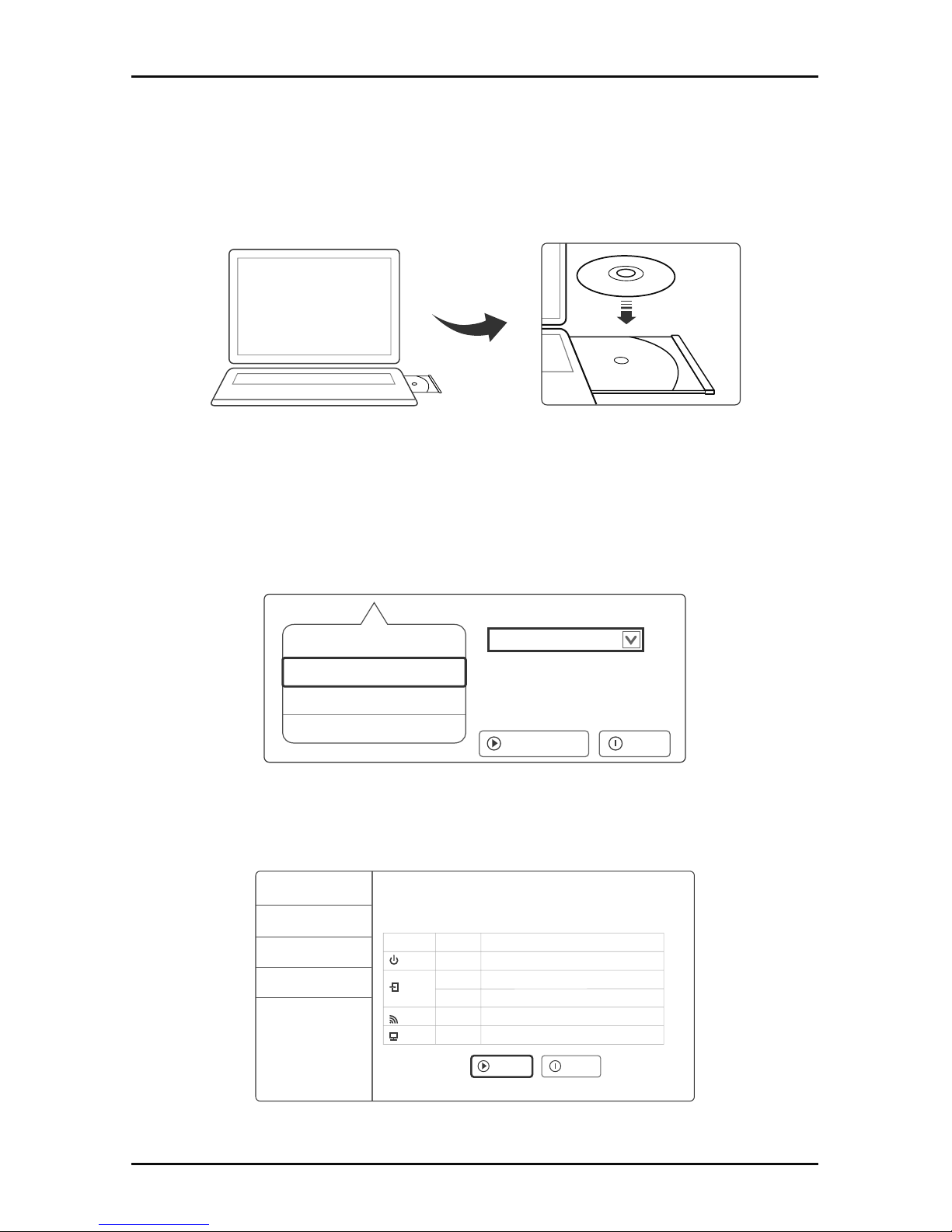

1. Insert the TP-LINK Resource CD into the CD-ROM drive.
2. Choose your language and select Archer D2. Then click 6WDUW
6HWXS)ROORZWKHSRSXSÀDVKYLGHRWRFRQQHFW\RXUGHYLFHV
Note: ,IWKHPDLQSDJHGRHVQRWGLVSOD\RQ\RXUFRPSXWHUEURZVHWKH¿OHVRQWKH&'
DQGGRXEOHFOLFN$XWRUXQH[H
Archer D2
Start Setup
User Guide
Printer Sharing Setup
Browse CD EXIT
Choose your language:
English
3. Please check the following LEDs. Then click NEXT and follow
the step-by-step instructions.
NEXT EXIT
Welcome
Install ADSL Device
Configure ADSL Device
Confirm Settings
LED Indicator Description
Name Status
on
on
on Wireless is enabled.
At least one LAN port is connected.
System start-up complete.
on
Flash
Indication
(Power)
(ADSL)
The ADSL negotiation is in progress.
ADSL line is synchronized and ready to use.
(LAN)
(WLAN)

6
English
4. Click ),1,6+ to complete the setup.
Enjoy!
Now your wired and
wireless devices can
connect to the Internet !
FINISH
Welcome
Install ADSL Device
Configure ADSL Device
Confirm Settings
Congratulations!
Tether App
After connecting to the Internet via Web Browser or via CD Setup
Wizard, TP-LINK's Tether App lets you manage the modem router
on smart devices. You can:
• View the information about clients.
• Block or Unblock client's access to the Internet.
• Use Parental Control to limit kid's access to the Internet.
&RQ¿JXUHVRPHEDVLFVHWWLQJVIRUWKHPRGHPURXWHU
Then, how to start?
1. Scan the QR code and download the
TP-LINK Tether App from App Store or
Google Play.
2. Ensure your smart device is wirelessly
connected to the modem router.
3. Launch the Tether App, and enjoy the
easy management of the modem router.

7
English

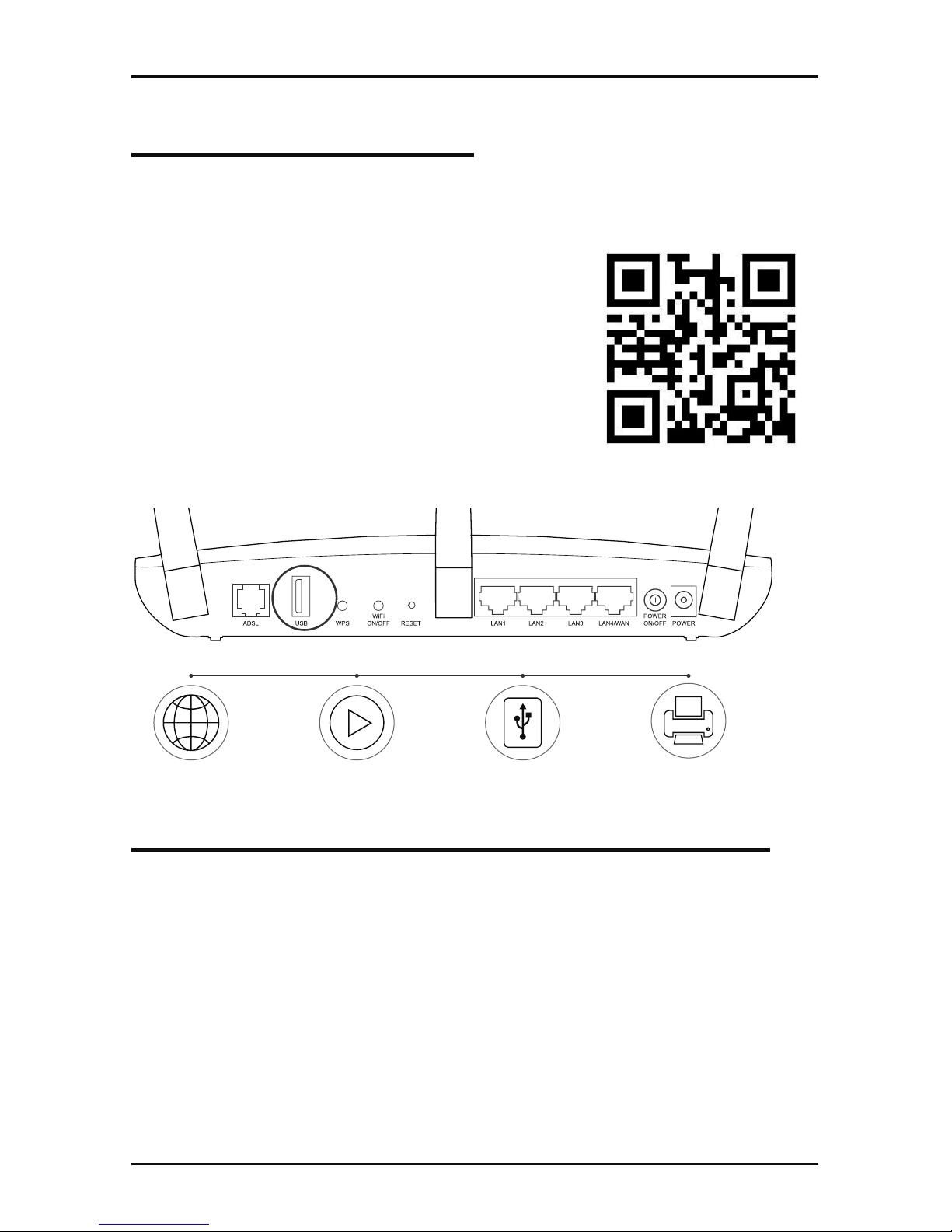

86%)HDWXUHV
The USB port can be used for media
sharing, storage sharing and print sharing
across your local network. You can also
VHWXSWKH)73VHUYHUWRDFFHVV\RXU¿OHV
remotely by connecting to the Internet.
Note: To learn more about the USB features, please
visit http://tp-link.com/app/usb, retrieve Resource CD or
simply scan the QR code.
USB sharing port
Remote
Access via
FTP Server
Media
Sharing
Local
Storage
Sharing
Printer
Sharing
)UHTXHQWO\$VNHG4XHVWLRQV)$4
4:KDWFDQ,GRLIWKHORJLQZLQGRZGRHVQRWDSSHDU"
$,IWKHFRPSXWHULVVHWWRDVWDWLFRU¿[HG,3DGGUHVVFKDQJHLWWRREWDLQ
an IP address automatically from the modem router.
A2. Verify http://tplinkmodem.net is correctly entered in the web browser
and press Enter.
A3. Use another web browser and try again.
A4. Reboot your modem router and try again.
A5. Disable the network adapter used currently then enable it again.

8
English
4:KDWFDQ,GRLI,FDQQRWDFFHVVWKH,QWHUQHW"
A1. Check your cables and make sure they are all plugged in correctly,
including the telephone line, Ethernet cables and power adapter.
A2. Check to see if you can log on to the Web-Management page of the
modem router. The default address of the Web-Management page is
http://tplinkmodem.net. If you can, try the following steps. (If you can
not, please set your computer to obtain an IP address automatically
from the modem router and then try to access the Internet again.)
A3. Consult your ISP and make sure all the VPI/VCI, Connection Type,
account username and password are correct. If they are not, please
replace them with the correct settings and try again.
A4. If you still cannot access the Internet, please restore your modem
URXWHUWRLWVIDFWRU\GHIDXOWVHWWLQJVDQGUHFRQ¿JXUH\RXUPRGHPURXWHU
following the instructions in this QIG.
$3OHDVHFRQWDFWRXU7HFKQLFDO6XSSRUWLIWKHSUREOHPVWLOOH[LVWV
4+RZGR,UHVWRUHWKHPRGHPURXWHUWRLWVIDFWRU\GHIDXOW
VHWWLQJV"

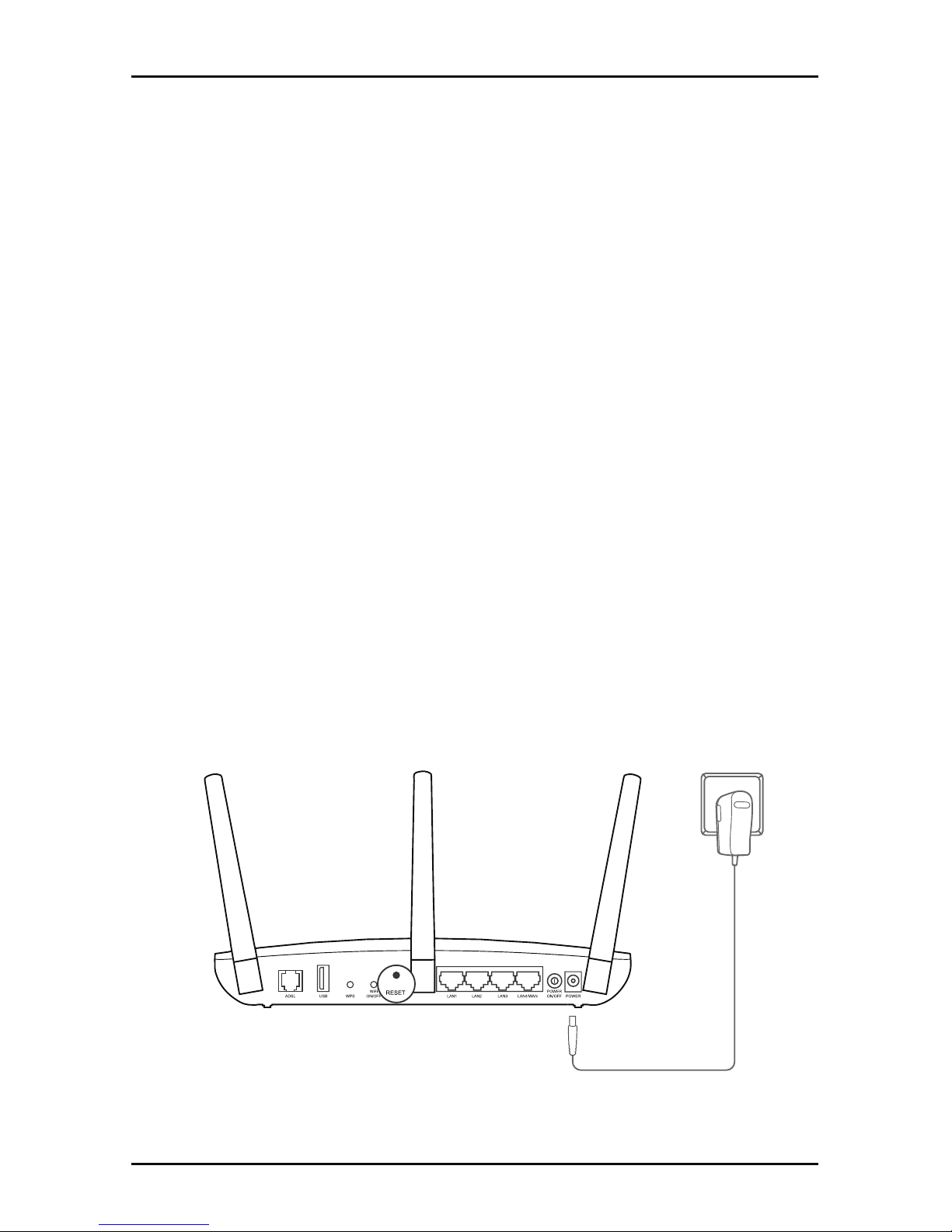

A1. With the modem router in the Power On mode, press and hold
down the RESET Button on the rear panel of the modem router for
DSSUR[LPDWHO\VHFRQGV
A2. Log in Web Management page of the modem router, and go to System
Tools->Factory Defaults, click Restore, then wait until the progress bar
ORDGLQJ¿QLVKHG
RESET Button Press & Hold 8 seconds

9
English
4:KDWFDQ,GRLI,IRUJHWP\SDVVZRUG"
Ɣ:HE0DQDJHPHQWSDJHSDVVZRUG
A1. Restore the modem router to its factory default settings and then use
the default User Name ‘admin’ and Password ‘admin’ to log in.
Ɣ:LUHOHVV1HWZRUNSDVVZRUG
A1. The factory default password can be found on the product label printed
on the bottom of the modem router.
A2. If you have changed your password, log on to the modem router’s Web
Management page, go to Wireless->Wireless Security to obtain or
reset your password.
Note: If your questions are not answered here, please refer to http://www.tp-link.com/en/
support/faq and click Contact Technical Support for further assistance.
/(',QGLFDWRUV
:36
2Q2II It turns on when a wireless device has been
successfully connected to the network via WPS. After
about 5 minutes, the WPS LED will turn off.
6ORZ)ODVK A wireless device is trying to connect to
the network via WPS. This process may take up to 2
minutes.
86%
On: 7KH86%GHYLFHLVLGHQWL¿HGDQGUHDG\WRXVH
)ODVK 7KH86%GHYLFHLVEHLQJLGHQWL¿HG
2IINo USB device is plugged in to the USB port.
LAN
On: At least one LAN port is connected.
2IINo LAN port is connected.
