TP-Link TXM431-LR User manual

Remove the SFPInstall the SFP
10GBase SFP+ LC Transceiver
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Insert the SFP into the SFP slot and rmly press it into place.
3. Remove the protective dust plug from the SFP.
4. Plug ber-optic cables into the SFP. Note that the SFP works without
any additional conguration.
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Disconnect the network ber-optic cables from the SFP.
4. Reinstall the protective dust plug in the SFP’s optical bores and place it
on antistatic mat or a static shielding bag.
3. Pull the safety latch downwards to release the SFP, and then pull it out
from the slot.
Installation Guide
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the SFP’s optical bores until you are ready to make a connection.
Caution:
DO NOT point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
©2020 TP-Link 7106508865 REV3.0.1
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.
If you have any suggestions or needs on the product guides,
welcome to email [e-mail].
To ask questions, find answers, and communicate with TP-Link
users or engineers, please visit https://community.tp-link.com
to join TP-Link Community.

Only use the same transceiver model between switches for fast and reliable connectivity.

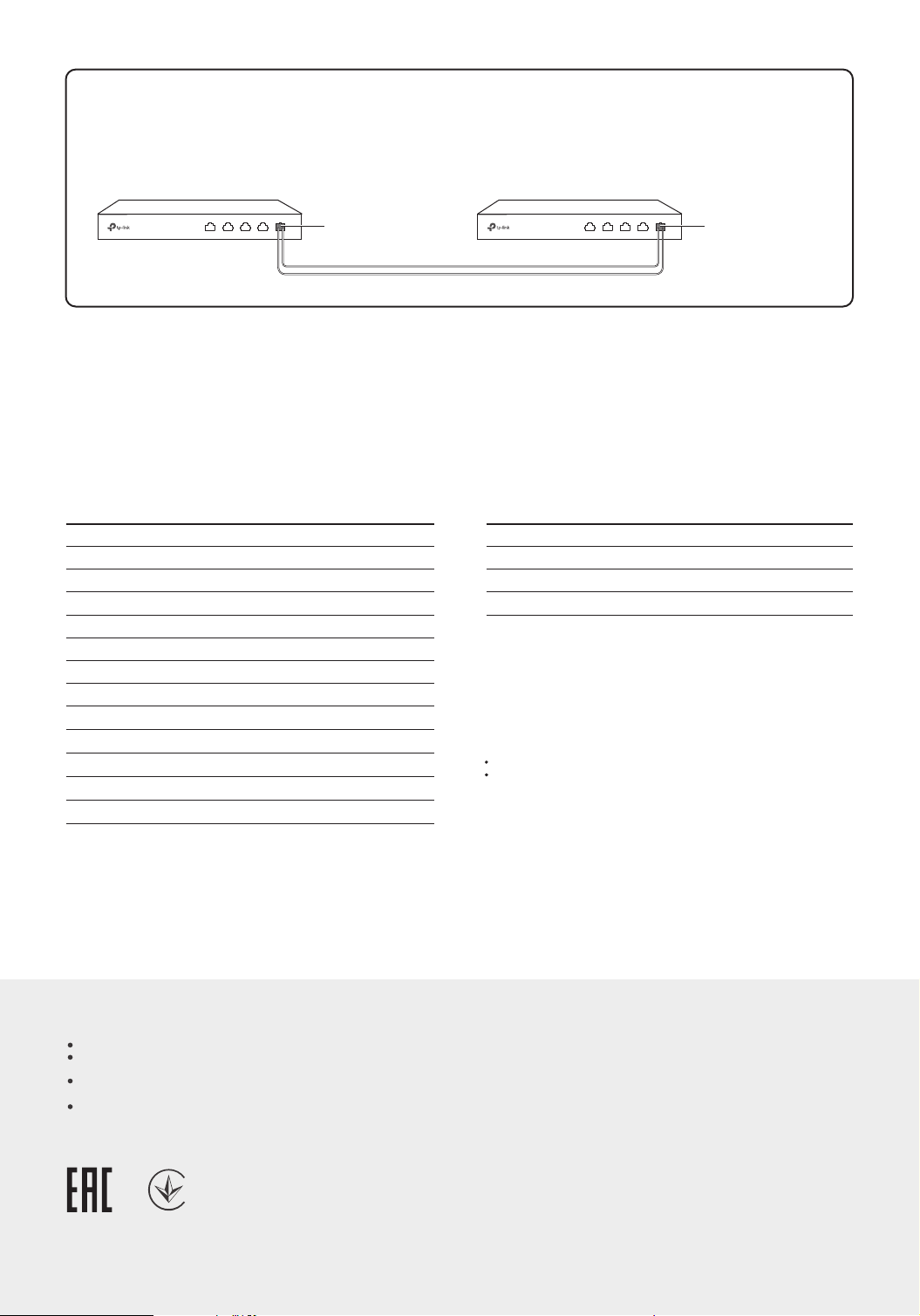

Connection
General Specications
Specications
Switch Switch
TXM431-LR
Fiber
TXM431-LR
TP-Link Compatible Products
Note:
The SFP modules may be incompatible with other vendors’ devices. We
recommend that you use only TP-Link SFP modules on your TP-Link devices.
TP-Link Switches with 10G SFP+ Slots
TX432
Port Type
Fiber Type
Data Rate
Wave Length 1310 nm
IEEE 802.3ae, TCP/IP
Single-mode Fiber
9/125 um Single-mode
10 km
10 Gbps
LC Duplex
3.3 V
FCC, CE
Standards and Protocols
Cable
Normal TXM431-LR
Max. Cable Length
Power Support
Safety & Emission
Ye s
Ye s
DDM
SFP+ MSA
Ye s
Hot Swappable
850 nm
Multi-mode Fiber
50/125 um Multi-mode
300 m
TXM431-SR Product Operating Temperature 0˚C to 70˚C (32˚F to 158˚F)
Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F)
Storage Humidity 5% to 90% RH, Non-condensing
Operating Humidity 10% to 90% RH, Non-condensing
Environmental and Physical Specications
For simplicity, we will take TXM431-LR as an example.
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need
service, please contact us.
Avoid using this product during an electrical storm. There may be a remote risk
of electric shock from lightning.
Do not point or stare directly into the beam or into the optical port of the
transceiver when it is operating, as this can injure your eyesight.
TP-Link hereby declares that the device is in compliance with the essential
requirements and other relevant provisions of directives 2014/30/EU,
2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at
https://www.tp-link.com/en/ce.
EU Declaration of Conformity
