Trak Machine Tools Airwolf 3D EVO22-T Operating instructions

Airwolf 3D EVO22-T
Additive Manufacturing Center
Site Preparation Guide
F16467-58 1 Rev 10/12/2021
Installation and Service Manual Link:
https://www.southwesternindustries.com/media/manuals/32502_manual.pdf
Floor Plan, Layout & Space Requirements
Machine Specifications
Printer Dimensions (with Door Closed)
28" x 24.5” x 36”
Printer Dimensions (with Door Opened)
28" x 49.5” x 36”
Printer Weight
75 lbs.
Shipping Dimensions
48" x 42" x 36"
Shipping Weight
200 lbs.
Airwolf 3D EVO22-T Additive Manufacturing Center
Airwolf 3D EVO22-T
Additive Manufacturing Center
Site Preparation Guide
F16467-58 2 Rev 10/12/2021
Electrical Requirements
Power Requirements
AC Input
100 –240 VAC 4 A, 50 –60 Hz
Maximum Power Output
221 W Max. 24VDC, 9.2 A
PC Requirements for Apex
Requirements
Windows
Mac OS
Operating System
Windows 8 or newer
Mac Version 2013 or later;
Mac OS X Yosemite or later (Sierra preferred)
Display Resolution
1024 x 768 or higher
1024 x 768 or higher
RAM
2GB or higher
8GB onboard memory
Hard Disk Space
500 MB free disk space
500 MB free disk space
Core Processor
Core i3 or higher/AMD Athelon 64bit or higher
Core i5 or higher
Environmental Requirements
Environmental Requirements
Ambient Operating Temperature + Relative Humidity
40°F –100°F, 0 –50%
Storage Operating Temperature + Relative Humidity
0°F –120°F, 0 –50%
Airwolf 3D EVO22-T
Additive Manufacturing Center
Site Preparation Guide
F16467-58 3 Rev 10/12/2021
Lifting, Moving, Uncrating, and Unpacking
CAUTION!
Proper equipment of sufficient capacity must be used when lifting and/or moving the printer.
1. Lifting/Moving while on a Pallet
•The best option for lifting the Airwolf EVO22-T 3D Printer is a pallet jack.
•The second-best option is using four (4) people (so that each person does not carry more than 50 lbs.).
2. Lifting & Moving after Uncrating
•Once the printer has been removed from the pallet, it must be moved by hand. Two (2) people are recommended to move the printer by
hand.
3. Uncrating & Unpacking
1. Cut off the straps that are holding the main box (which contains the actual Airwolf EVO22-T 3D Printer) and the secondary box (which
contains the 3D printer’s accessories) to the pallet.
2. Remove the plastic wrapping that surrounds both the main and secondary boxes together.
3. Remove the secondary box that contains the 3D Printer accessories, and put it aside for now.
4. Cut open the taped flaps that cover the main box by using a box cutter. Be careful not to cut too deeply as you might risk damaging
content inside the main box. In addition, preserve the main box in the case that it might be needed for returns and/or any possible
customer service issues that might arise regarding the Airwolf EVO22-T 3D Printer.
5. In addition to the Airwolf EVO22-T 3D Printer, there will be shipping documents that are included inside the main box. Remove these
documents, and put them aside for now.
6. The Airwolf EVO22-T 3D Printer will be lying horizontally on its side while inside the main box. Remove the protective foam parts that are
covering each of the 3D Printer’s corners prior to removing the printer out of the box.
7. Tilt the box on its side in order to remove the 3D Printer outside of the box. The Airwolf EVO22-T should now be standing upright. Use
two (2) people to slide the printer out of the box.
8. Lift the printer on top of a table, stand, or workstation.
9. Remove the protective plastic wrapping that surrounds the 3D Printer.
10. Please note that the 3D Printer’s glass component (which is wrapped in paper) is taped on the very top part of the printer itself. Remove
the tape holding the glass component, and put it aside for now.
Airwolf 3D EVO22-T
Additive Manufacturing Center
Site Preparation Guide
F16467-58 4 Rev 10/12/2021
11. Remove the tape that keeps the 3D Printer door closed, and open the printer door.
12. Remove the two (2) zip ties around the two (2) chamber heaters inside the 3D Printer.
13. Remove both the zip ties and the white clips that are attached to the left and right belts, which are located on the upper interior surface
of the 3D Printer (see image below):
NOTE –When removing the zip ties, be careful not to cut the left and/or right belts, as well as any internal cords within the 3D Printer.
Doing so will cause damage to the printer.
14. Remove the clip attached to the Z Stage Ball screw by pulling on the zip tie that is attached to the clip.

Popular 3D Printer manuals by other brands

Dremel DigiLab 3D45 quick start guide

Dremel

Dremel DigiLab 3D45 quick start guide

Scrib3D Advanced user manual

Scrib3D

Scrib3D Advanced user manual

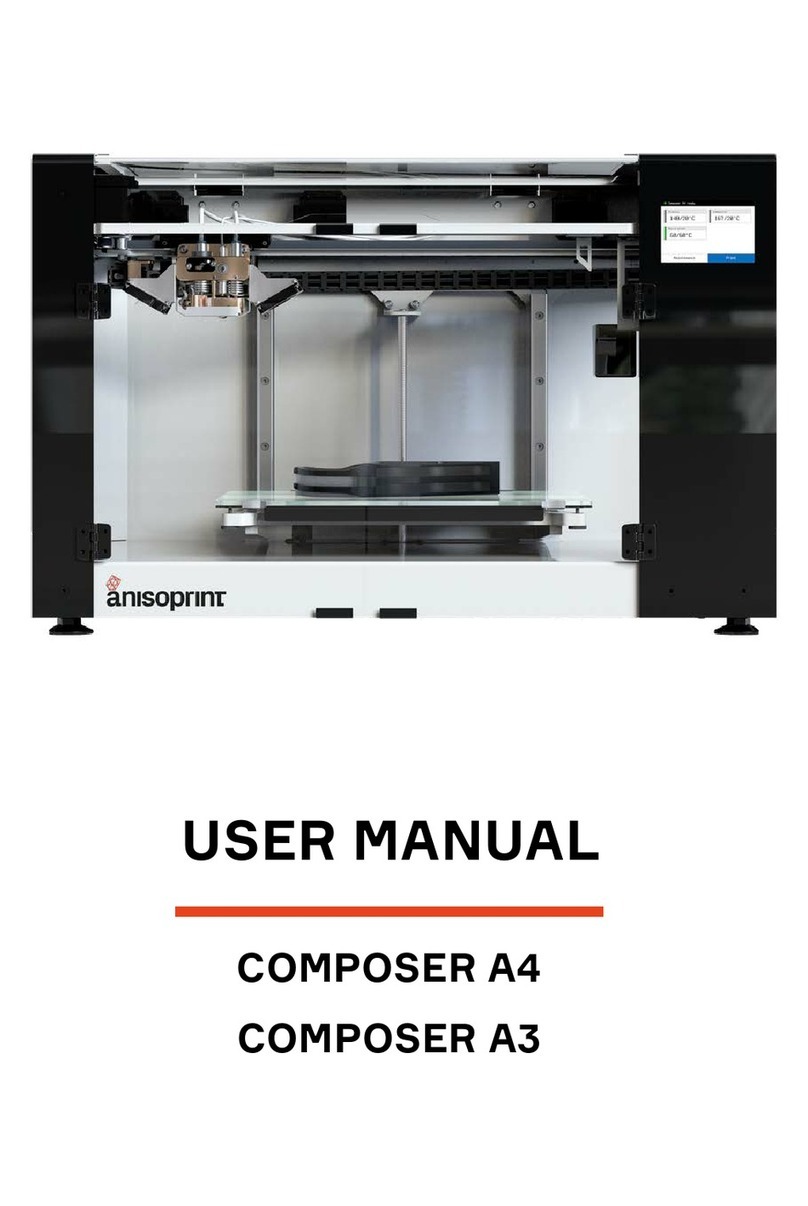

ANISOPRINT COMPOSER A4 user manual

ANISOPRINT

ANISOPRINT COMPOSER A4 user manual

3DGence INDUSTRY F340 user manual

3DGence

3DGence INDUSTRY F340 user manual

3DGence ONE user manual

3DGence

3DGence ONE user manual

Renkforce 1538778 Replacement instructions

Renkforce

Renkforce 1538778 Replacement instructions

MakerBot Replicator+ quick start guide

MakerBot

MakerBot Replicator+ quick start guide

ZYYX Fume Free quick start guide

ZYYX

ZYYX Fume Free quick start guide

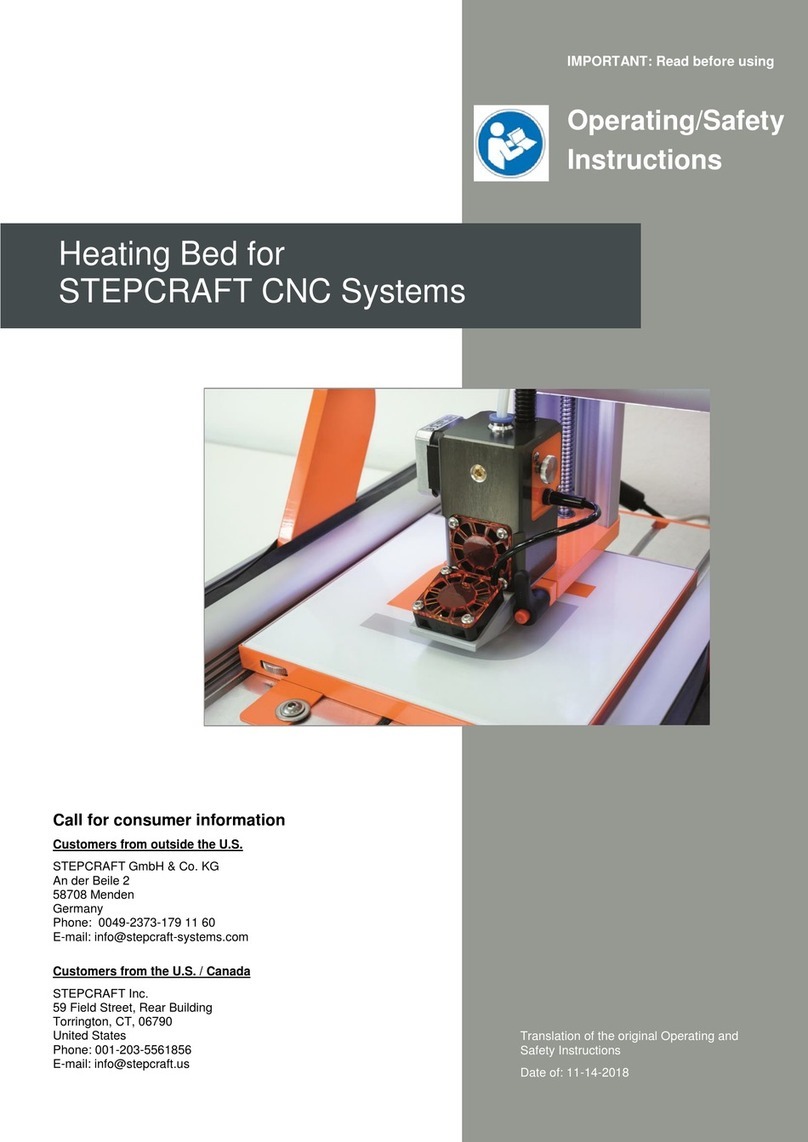

STEPCRAFT 10046 Operating/safety instructions

STEPCRAFT

STEPCRAFT 10046 Operating/safety instructions

KEYES ROSTOK Guide and manual

KEYES

KEYES ROSTOK Guide and manual

Geomagic Geomagic Phantom Premium 1.56DOF Device guide

Geomagic

Geomagic Geomagic Phantom Premium 1.56DOF Device guide

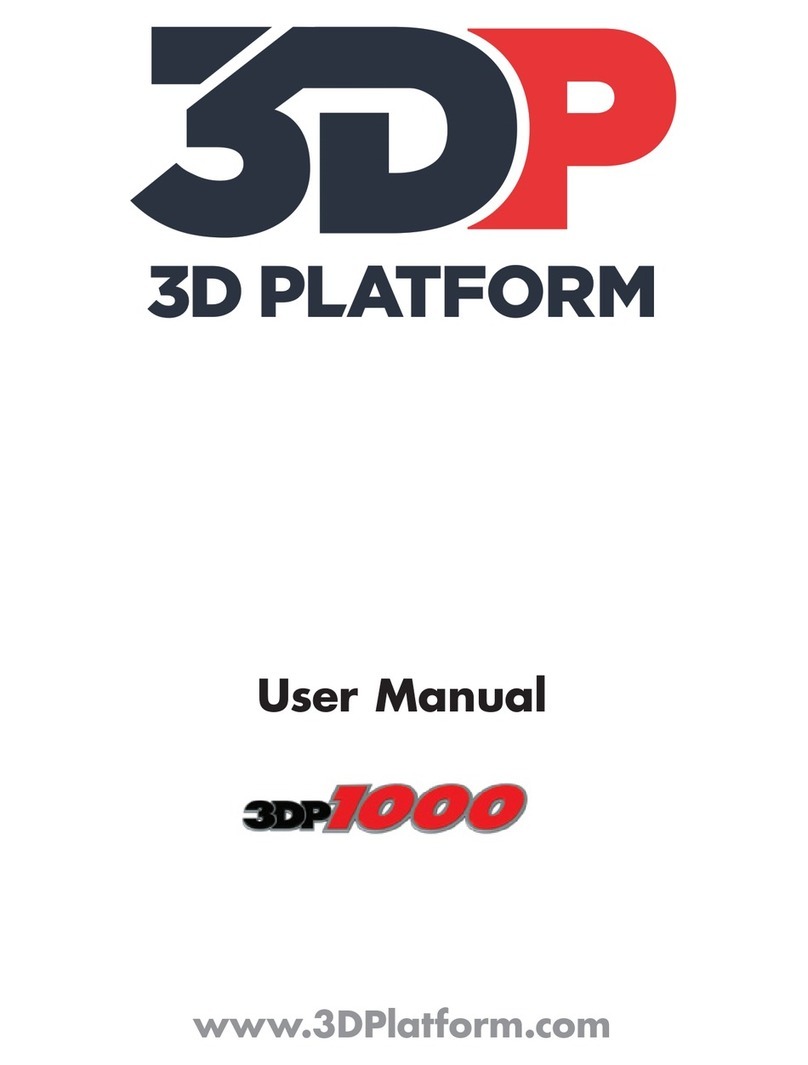

3D Platform 3DP1000 user manual
