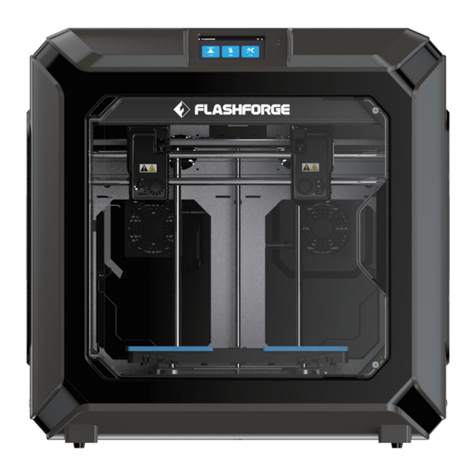

Flashforge THOR500T User manual

ZN/EN-A01
P20
Thor系列
最新版本说明书和切片软件可以在随机附带的存储卡中找到，或联系
设备销售商。
说明书/切片软件
User Guide
Slicing Software The latest version of User Guide and slicing software can be
found in the memory card, or contacting the equipment seller.

01
300T Type Unpacking
1. Put the printer box at a clean and flat place. 2. Take out the tool box.
3. Check parts of the tool box: tool kit, memory
card, screw bag, filament, ribbons, filament
fixed seat, filament support, T-type fixed seat
of Z-axis, T-type fixed seat of Z-axis+Sensor.
4. There is an unclogging pin tool, grease,
Allen wrench, stamping wrench, PTFE tube
inside the tool kit.
5. There are 4 screws of M5*25, 5 screws of M4*6,
4 screws of M4*8 and 8 set screws of M4*5
inside the screw bag.
6. Take out all the foam blocks in the middle and
filament below the foam.

02
7. Take out the filament shaft.
9. As is shown, hold the position that arrow
points, and lift the printer base out of the
carton.
11. Remove the extruder and put it on the build
plate. Be careful not to scratch the nozzle.
8. Remove foam blocks on both sides, and take
out upper holder of the printer.
10. Remove the foam block on one side that
has no extruder.
12. Remove the foam blocks left, unboxing
completed. Suggest to keep packing
materials well for further storage or
transportation.

03
400T / 500T Type Unpacking
1. Put the printer box at a clean and flat place. 2. Take out the tool box and filament.
3. Take out the upper holder of the printer and
put them at a clean place.
4. Take out the filament shaft.
5. Take out the extruder and put it on the build
plate.Be careful not to scratch the nozzle.
6. Take out the foam.

04
7. Take the build plate base out of the carton.
(Two-person operation is recommended)
9. Check parts of the tool box: tool kit, memory
card, screw bag, filament, ribbons, filament
fixed seat, filament support, T-type fixed seat
of Z-axis, T-type fixed seat of Z-axis+Sensor.
11. There are 4 screws of M5*25, 5 screws of M4*6,
4 screws of M4*8 and 8 set screws of M4*5
inside the screw bag.
8. Put build plate on the table and check all the
parts of the printer,no damage.
10. Take out the unclogging pin tool, grease, Allen
wrench, stamping wrench, PTFE tube inside
the tool kit.
Unboxing of profile machine completed.
Suggest to keep packing materials well for
further storage or transportation.

05
ZN/EN-A01
P18
Thor系列
最新版本说明书和切片软件可以在随机附带的存储卡中找到，或联系
设备销售商。
说明书/切片软件
UserGuide
SlicingSoftware Thelatest version of User Guide and slicing software can be
foundin the memory card, or contacting the equipment seller.
Kit Contents
3D Printer SD Card Filament Support
Quick Start Guide
Unclogging Pin Tool
Filament Fixed Seat Screw Bag
PTFE Tube Grease Ribbon
Power Cable Wrench Alen Wrench
Filament

06
1
2
3
4
5
6
7
8
9
16
15
11
10
12
18
19
13
14
17
1. Filament detector 2. Filament support 4. Extruder3. Filament Fixed Seat
16. Left Z-axis sensor 17. Left Z-axis motor 19. X-axis motor18. X-axis sensor
5. Right Z-axis motor 6. Build plate 7. Right Z-axis motor cable
8. Y-axis motor and Y-axis sensor 10. Touch screen9. Leveling sensor cable
11. Power cable interface 12. Power switch 13. Left Z-axis sensor cable
14. Left Z-axis motor cable 15. Left Z-axis motor cable and Left X-axis sensor cable
Getting to Know Your Thor

07
1. As is shown, take out the upper holder on the
table and remove protective foam.
2. As is shown, take out two T-type fixed seats,
and put one of the T-type fixed seats with
sensor on the left side.
3. Slightly unfasten the screw on the T-type
fixed seat, thus the T-type screws at the
back of the fixed seat is movable.
4. As is shown, adjust the direction of T-type
screws, and insert the T-type fixed seat with
sensor into the left side of the upper holder.
5. Slightly fasten the screw on the T-type fixed
seat that has been unfastened before.
But do not fasten with too much force.
6. Insert the T-type fixed seat into the right side
of the upper holder in the same way.
Hardware Assembly

08
7. As is shown, the upper holder should be fixed by L-type block and the printer. Adjust L-type block
positions on both sides to align the screw hole that the arrow points.
8. Insert upper holder into L-type block on both
sides.
9. Use 4 M5*25 screws to tighten the bottom,
two on each side.
10. Use 8 M4*5 set screws to fix L-type block,
four on each side.
11. As is shown, adjust 4 T-type screws (two on
each side) to screws holes of T-type fasteners
for subsequent fixing of T-type fixed seats on
both sides. (Find T-type screws in the sliding
slot on both sides).

09
12. Use 4 M4*8 screws to fix T-type fixed seats
on both sides, two on each side.
13. Tighten screws on the T-type fixed seats.
14. As is shown, clip the square clip into the groove at the bottom of extruder base, thus making the
back of extruder be close to extruder fixed seat.
15. Use 3 M4*6 screws to fix extruder. 16. Take out filament fixed seat, and get ready
for installing it on the top of the upper holder.
Attention please, make sure the side of spool
holder with the filament detector switch is
facing the front of the printer.

10
17. Use 2 M4*8 screws to fix filament fixed seat
in the back.
18. Clip extruder wiring hardness into clips on
the filament fixed seats.
19. Find [Z-axis motor cable] on both sides marked with [Z-Steeper], insert them into Z-axis motor
on both sides. Attention, the side of the plug with 2 protuberances should upwards.
20. Find [X-axis motor cable] marked with [X-Steeper], insert it into X-axis motor. Attention: X-axis
motor cable socket is under the motor, the side of the plug with 2 protuberances should upwards.

11
21. As is shown, find a shorter [Z-axis sensor
cable] on the left of the printer.
22. Insert Z-axis sensor cable into Z-axis sensor,
and sensor is inside the left T-type fixed seat.
Attention: The side of the plug with two
protuberances should be oriented to the right
of the printer.
23. As is shown, find [X-axis sensor cable]
marked with [X-Max], insert it into the X-axis
sensor socket at the back of X-axis motor.
Attention: The side of the plug with two
protuberances should be oriented to the back
of the printer.
24. Find a longer [filament detector sensor cable]
on the right of the printer, insert it into the
filament detector of the filament fixed seat.
25. Attention: The side of the plug with two
protuberances should be oriented to the
back of the printer.
26. As is shown, fix [Filament detector sensor
cable] with ribbons, hardware installation
completed.

12
Base line
1. Tighten the four nuts of the build plate
counterclockwise
2. Measure the height from the left side of the
X-axis to the bottom section with a ruler.
Base the height on the left, the height shall
not be lower than 120mm.
3. Then measure the height from the right side
of the X-axis to the bottom section. Both sides
must be of the same height.
4. Manually rotate the coupling under the screw
rod, adjust it and make sure both sides be at
the same height.
5. Insert power cable into supply socket on the
left of the printer.
6. Insert the power plug into supply socket, and
open the power switch.
Leveling Build Plate

13
Raise the build plate to reduce the distance
between nozzle and the build plate.
Rotate nut clockwise Rotate nut anticlockwise
Lower the build plate to increase the distance
between nozzle and the build plate.
Print Preheat Tools
Let us know the function of leveling nuts before leveling
There are four leveling nuts under the build plate of Thor series printer, adjust the distance
between build plate and nozzle by rotating leveling nuts.
How to use leveling nuts
7. Tap [Tools] on the touch screen, then tap [Home], the printer starts to do homing.
Tap [Yes] when zero returning finished and go back.

14
8. Put a A4 paper between nozzle and the build plate. Adjust the nut with one hand and feel the
friction by sliding A4 paper back and forth with the other hand.
[1]. If the paper slides through easily, the nozzle and the build plate are too far apart.Rotate the
nut clockwise to increase the distance between them.
[2]. If the paper cannot slide through, rotate the nut anticlockwise to decrease the distance
between them.
[3]. The distance between nozzle and the build plate is suitable when feeling sight friction when
sliding the paper. Move the extruder to the top of the second leveling point, and do leveling in
the same way. And so on, when finishing four leveling points, leveling completed.
The extruder of Thor series printer can be moved left and right, the build plate can be moved back
and forth. Please slide the extruder and the build plate manually to adjust the extruder on the top
of the leveling nut.

15
Extruder
100%
Cancel
Print Preheat Tools
1. Press the spring presser, insert filament
vertically into the extruder bottom from
filament intake.
2. Tap [Tools]
3. Tap [Filament].
5. When the extruder preheated to the target
temperature, loading starts until the extruder
provides a steady flow of filament. Then go
back to the home page.
Attention: If the extruder cannot load
filament for a long time,please check if
inserting filament into the extruder
bottom correctly.
4. Tap [Load]
Loading Filament

16
400_TEST
25℃ / 50℃
Build Time
Extruder
Build plate
178℃
0:00
400_TEST
400_TEST.gcode
1. Insert memory card into equipment card slot.
2. Tap [Build] in the main interface. 3. Tap memory card.
4. Select the stl. needs printing.
6. The extruder start s to heat, print starts when heating completed.
5. Tap [Build].
First Print
1. Ensure that the build plate has been leveled before
printing.
2. Ensure that the filament has been loaded in an
appropriate approach.
3. Load the filament for a while to extrude all the
melted filament you printed last time out of the
extruder.
4. Please clean nozzle before printing.
5. Do not leave the printer unattended during
operation.

17
Extruder
Done
Extruder
Unload started, press down on the
spring lever and withdraw filament
1. Plug filament guide tube out of the extruder
filament intake, make sure that filament
exposed 10cm for easily being pulled out.
2. Tap [Tools] on the touch screen.
3. Tap [Filament]. 4. Tap [Unload].
5. The extruder starts to heat. When extruder
heating to target temperature, press down
the spring presser, and press down filament
for 3 seconds in the meanwhile until you see
filament come out of the nozzle, then pull it
out quickly.
For the change filament in the daily use, please operate follow
the steps below:
Unloading Filament
Press here
Push filament down through for 3 seconds

18
1. Take out accessories. 2. As is shown, unfasten a nut and a spacer on
the top of the sensor.
3. Pass the sensor through the fixed seat. 4. Tighten the spacer and the nut back.
5. Put fixed seat on the right side of the extruder
and fix it with 2 screws.
6. Connect sensor plug with sensor cable at the
back of printer LCD.
Leveling accessories are not belong to the Standard accessories.
Please contact device distributors to purchase if necessary.
Leveling Accessories Assembly

19
7. Clip sensor cable into pulley clip on the top of filament fixed seat for sensor cable is too long.
Sensor
Height difference
Nozzle
8. After installation completed, please compare the height between the nozzle and the bottom
of the sensor. The sensor should be 1-2 mm higher than the nozzle. You can adjust the sensor
height by adjusting nuts on the sensor.
