Trane Mitsubishi Electric CITY MULTI Series Operating manual

TECHNICAL & SERVICE MANUAL
Indoor unit
[Model Name]
CONTENTS
1. SAFETY PRECAUTION.......................... 2
2. PARTS NAMES AND FUNCTIONS........4
3. SPECIFICATIONS.................................12
4. 4-WAY AIRFLOW SYSTEM..................18
5. OUTLINES AND DIMENSIONS............ 21
6. WIRING DIAGRAM............................... 22
7. REFRIGERANT SYSTEM DIAGRAM
......
23
8. MICROPROCESSOR CONTROL......... 24
9. TROUBLESHOOTING.......................... 31
10. DISASSEMBLY PROCEDURE........... 39
INDOOR UNIT
PARTS CATALOG (OCBT746)
R410A
August 2020
No. OCHT746
REVISED EDITION-A
Grille model
[Model Name]
TLP-41EAEU
WIRED REMOTE
CONTROLLER
(Option)
IR WIRELESS REMOTE
CONTROLLER
(Option)
ON/OFF TEMP
MENU ON
OFF
RETURN SELECT
HOLD
Model name
indication for
MAIN UNIT
Model name
indication for GRILLE
TPLFYP006EM140B
TPLFYP008EM140B
TPLFYP012EM140B
TPLFYP015EM140B
TPLFYP018EM141B
TPLFYP024EM140B
TPLFYP030EM140B
TPLFYP036EM140B
TPLFYP048EM140B
INDOOR UNIT FOR VRF SYSTEM
Revision:
• 5.OUTLINES AND
DIMENSIONS has been
revised.
• Some descriptions
have been modified
in
REVISED EDITION-A .
OCHT746 is void.

32 3
OCHT746A
1
CAUTIONS RELATED TO NEW REFRIGERANT
Cautions for units utilizing refrigerant R410A
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22, etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil, etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil, etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil, etc.
Do not use the existing refrigerant piping.
The old refrigerant and lubricant in the existing piping
contains a large amount of chlorine which may cause the
lubricant deterioration of the new unit.
Use “low residual oil piping”
If there is a large amount of residual oil (hydraulic oil, etc.)
inside the piping and joints, deterioration of the lubricant
will result.
Store the piping indoors, and keep both ends of
the piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
Use the specified refrigerant only.
SAFETY PRECAUTION

3
OCHT746A 3
[1] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.

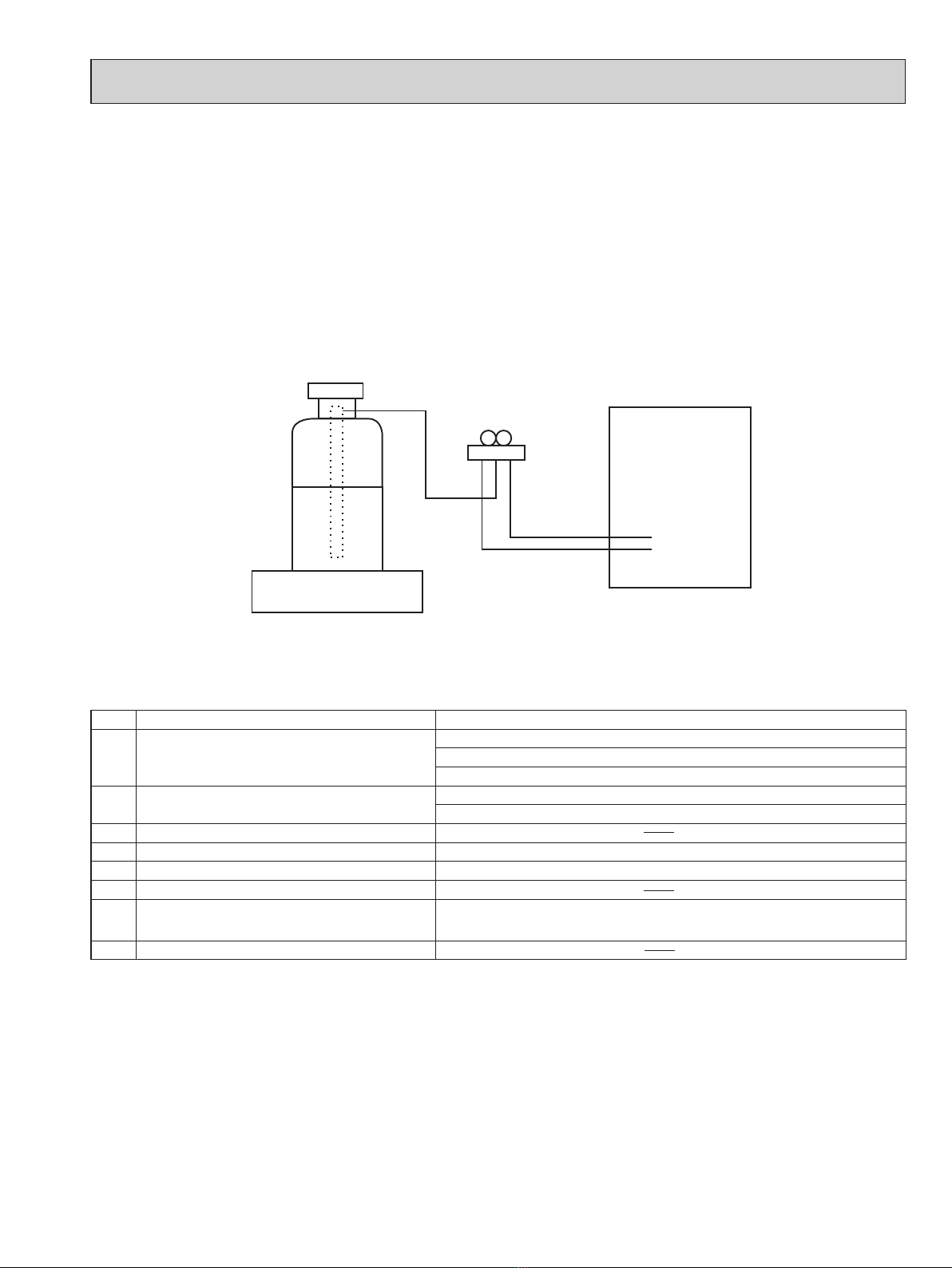

[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is a syphon type.
· Charging should be performed with the cylinder of syphon standing vertically. (Refrigerant is charged from liquid phase.)
Electronic weighing scale
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
No. Tool name Specifications
1Gauge manifold
· Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 768.7 PSIG [5.3 MPa.G] or over.
2Charge hose · Only for R410A
· Use pressure performance of 738.2 PSIG [5.09 MPa.G] or over.
3Electronic weighing scale
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment

55
OCHT746A 4
2PARTS NAMES AND FUNCTIONS

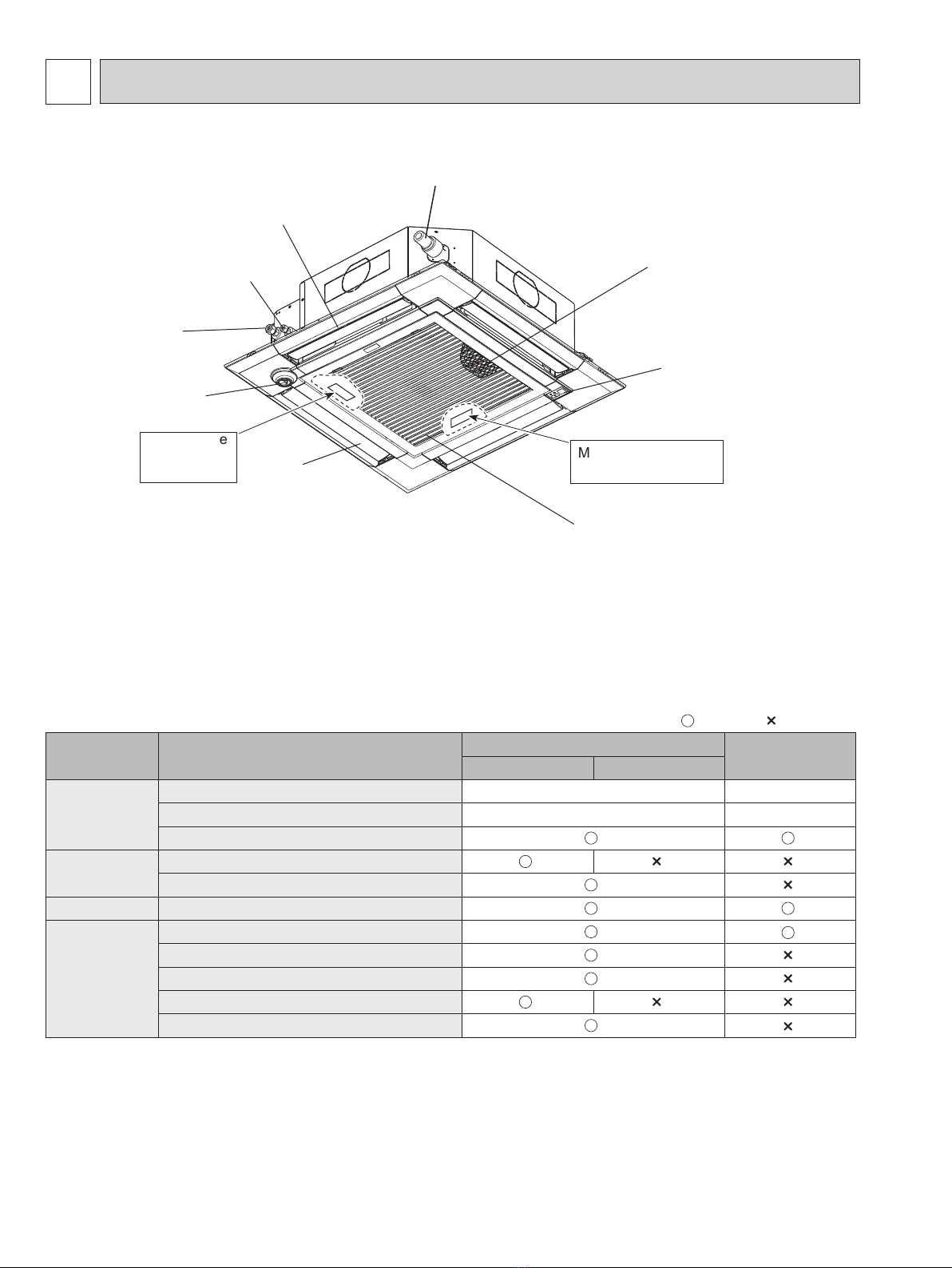

2-1. Indoor Unit
2-2. Wired Remote Controller <TAR-40MAA> <TAC-YT53CRAU>
: Supported : Unsupported
Function TAR-40MAA TAC-YT53CRAU
Slim CITY MULTI
Body Product size H × W × D (mm) 120 × 120 × 14.5 120 × 70 × 14.5
LCD Full Dot LCD Partial Dot LCD
Backlight
Energy saving Energy saving operation schedule
Automatic return to the preset temperature
Restriction Setting the temperature range restriction
Function* Operation lock function
Weekly timer
ON/OFF timer
High Power
Manual vane angle
*Some functions may not be available depending on model types.
Wired remote controller function
The functions which can be used are restricted according to each model.
Drain pipe
Filter
Vane
Gas pipe
Liquid pipe
Air outlet
Air intake
(Intake grille)
i-See sensor
(Option)
Signal receiver
(Option)
Model name
indication for
MAIN UNIT
Model name
indication for GRILLE

5
OCHT746A 5

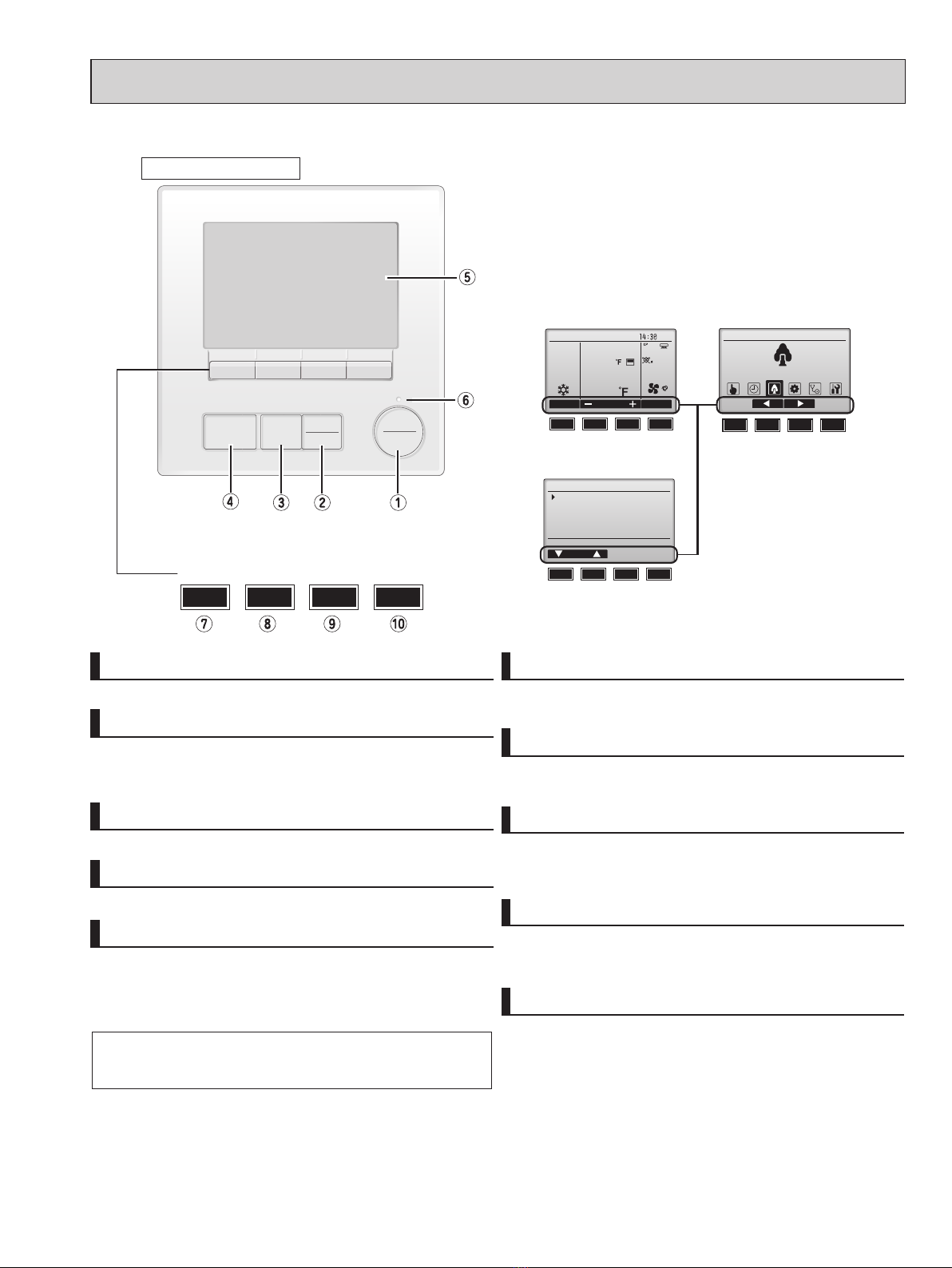

2-2-1. Wired Remote Controller <TAR-40MAA>
Function buttons
MENU
ON
OFF
RETURN SELECT
HOLD
When the backlight is off, pressing any button turns the backlight on
and does not perform its function. (except for the [ON/OFF] button)
The functions of the function buttons change depending on the
screen.
Refer to the button function guide that appears at the bottom of
the LCD for the functions they serve on a given screen.
When the system is centrally controlled, the button function
guide that corresponds to the locked button will not appear.
Press to turn ON/OFF the indoor unit.
This lamp lights up in green while the unit is in operation. It blinks
while the remote controller is starting up or when there is an error.
1[ON/OFF] button 6ON/OFF lamp
Press to save the setting.
When the Main menu is displayed, pressing this button will
enable/disable the HOLD function.
Main display: Press to change the operation mode.
Menu screen: The button function varies with the screen.
2 [SELECT] button
7 Function button [F1]
Press to return to the previous screen. Main display: Press to decrease temperature.
Main menu: Press to move the cursor left.
Menu screen: The button function varies with the screen.
3[RETURN] button 8Function button [F2]
4[MENU] button
9Function button [F3]
Press to bring up the Main menu.
Main display: Press to increase temperature.
Main menu: Press to move the cursor right.
Menu screen: The button function varies with the screen.
Operation settings will appear.
When the backlight is off, pressing any button turns the
backlight on and it will stay lit for a certain period of time de-
pending on the screen.
Main display: Press to change the fan speed.
Menu screen: The button function varies with the screen.
5Backlit LCD
0Function button [F4]
83
83
Fri
Room
Set temp.
Mode Temp. Fan
Cool
Main Main menu
Energy saving
Main menu: RETURN
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
Main menuMain display
Menu screen
7 8 9 0
7 8 9 0
7 8 9 0
Function guide
Auto
Controller interface

6 7
OCHT746A

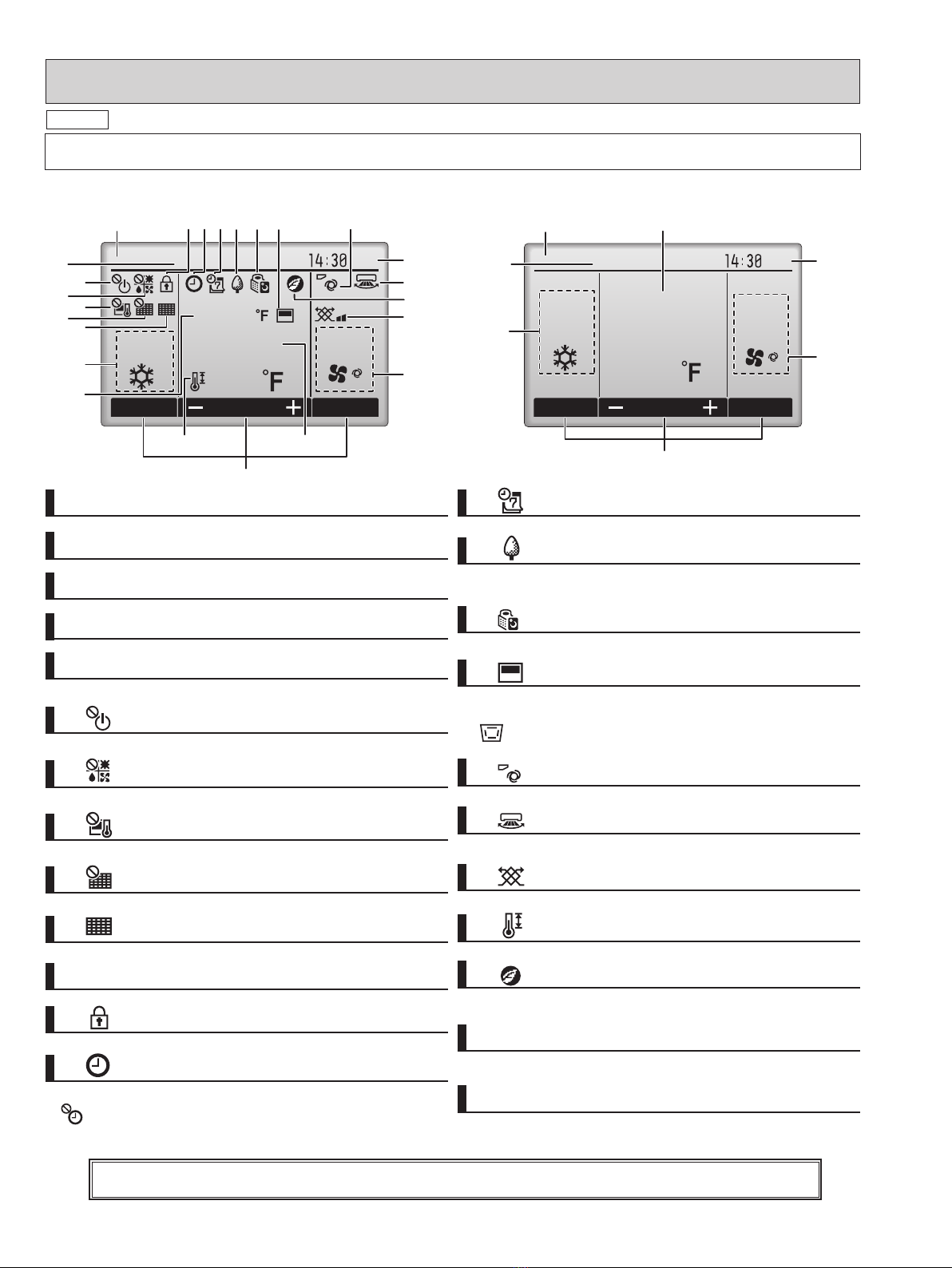

The main display can be displayed in two different modes: “Full” and “Basic”. The initial setting is “Full”. To switch to the “Basic”
mode, change the setting on the Main display setting. (Refer to operation manual included with remote controller.)
<Full mode> <Basic mode>
All icons are displayed for explanation.
Most settings (except ON/OFF, mode, fan speed, temperature) can be made from the Main menu. (Refer to Page 7.)
1Operation mode
2Preset temperature
3Clock
4Fan speed
Functions of the corresponding buttons appear here.
5Button function guide
Appears when the ON/OFF operation is centrally controlled.
Appears when the operation mode is centrally controlled.
Appears when the preset temperature is centrally controlled.
Appears when the lter reset function is centrally controlled.
Indicates when lter needs maintenance.
1Room temperature
Appears when the buttons are locked.
Appears when the Weekly timer is enabled.
Appears while the units are operated in the energy saving
mode. (Will not appear on some models of indoor units)
Appears when the built-in thermistor on the remote control-
ler is activated to monitor the room temperature (1).
appears when the thermistor on the indoor unit is acti-
vated to monitor the room temperature.
Appears when an energy saving operation is performed us-
ing a “3D i-See sensor” function.
Indicates the louver setting.
Indicates the ventilation setting.
Appears when the preset temperature range is restricted.
Indicates the vane setting.
6
7
8
9
0
2
4
5
7
8
9
)
!
Fri
Mode Temp. Fan
Room
Cool Set temp. Auto
83
83
1
2
3
4
5
6
78
90
1
2 34 5 6 7 8
9
)
@
!
#
$
Fri
Cool
Mode Temp. Fan
Set temp. Auto
$
83
5
4
3
2
1
#
Display
Appears when the On/Off timer or Auto-off timer function is enabled.
3
appears when the timer is disabled by the centralized control system.
6
Appears while the outdoor units are operated in the silent mode.
@
Appears for a certain period of time when a centrally-con-
trolled item is operated.
#Centrally controlled
A check code appears during the preliminary error.
$Preliminary error display

7
OCHT746A
Not all functions are available on all models of indoor units.
Energy saving
Main menu
Operation
Initial setting menu
Manual vane angle
ON/OFF timer
Auto return
Clock
Main/Sub
Temp. range
Auto-OFF timer
Schedule
Daylight saving time
Clock
Administrator password
Operation locked
3D i-See sensor
High power
Vane · Louver · Vent. (Lossnay)
Comfort
Timer
Energy saving
Basic setting
Display setting
Operation setting
Restriction
Weekly timer
OU silent mode
Timer menu
Main display
Display details
Contrast • Brightness
Language selection
Auto mode
Setback mode
Continue to the next page.

9
OCHT746A 8
Maintenance menu
Service menu
Drain pump test run
Serial No. input
Diagnosis
Initialize remote controller
Remote controller information
Initialize maintenance info.
Test run
Model name input
Function setting
Lossnay
Error history
Maintenance password
Dealer information input
Error information
Test run menu
Maintenance information
Filter information
Cleaning
Settings menu
Check menu
Other menu
Auto descending panel
Descending operation
Self check
Descending adjustment
Remote controller check
Continue from the previous page.
Not all functions are available on all models of indoor units.

9
OCHT746A
Main
menu Setting and display items Setting details
Operation Vane · Louver · Vent.
(Lossnay)
Use to set the vane angle.
• Select a desired vane setting from 5 different settings.
Use to turn ON/OFF the louver.
• Select a desired setting from "ON" and "OFF."
Use to set the amount of ventilation.
• Select a desired setting from "Off," "Low," and "High."
High power *3Use to reach the comfortable room temperature quickly.
• Units can be operated in the High-power mode for up to 30 minutes.
Comfort Manual
vane angle
Use to x each vane angle.
3D i-See sensor Use to set the following functions for 3D i-See sensor.
• Air distribution • Energy saving option • Seasonal airow
Timer Timer ON/OFF timer *1Use to set the operation ON/OFF times.
• Time can be set in 5-minute increments.
Auto-Off
timer
Use to set the Auto-Off time.
• Time can be set to a value from 30 to 240 in 10-minute increments.
Weekly timer *1, *2Use to set the weekly operation ON/OFF times.
• Up to 8 operation patterns can be set for each day.
(Not valid when the ON/OFF timer is enabled.)
OU silent mode *1, *3Use to set the time periods in which priority is given to quiet operation of
outdoor units over temperature control. Set the Start/Stop times for each day
of the week.
•Select the desired silent level from "Normal," "Middle," and "Quiet."
Energy
saving
Restriction Temp. range *2Use to restrict the preset temperature range.
• Different temperature ranges can be set for different operation modes.
Operation locked Use to lock selected functions.
• The locked functions cannot be operated.
Energy
saving
Auto return *2Use to get the units to operate at the preset temperature after performing
energy saving operation for a specied time period.
• Time can be set to a value from 30 and 120 in 10-minute increments.
(This function will not be valid when the preset temperature ranges are restricted.)
Schedule *1Set the start/stop times to operate the units in the energy saving mode for
each day of the week, and set the energy saving rate.
• Up to 4 energy saving operation patterns can be set for each day.
• Time can be set in 5-minute increments.
• Energy saving rate can be set to a value from 0% or 50 to 90% in 10% increments.
Main menu list
Continue to the next page.
*1Clock setting is required.
*22°F (1°C) increments.
*3This function can only be set when certain outdoor units are connected.

10 11
OCHT746A
Main
menu Setting and display items Setting details
Initial
setting
Basic
setting
Main/Sub When connecting 2 remote controllers, one of them needs to be designated as
a sub controller.
Clock Use to set the current time.
Daylight
saving time
Set the daylight saving time.
Administrator
password
The administrator password is required to make the settings for the following
items.
• Timer setting • Energy saving setting • Weekly timer setting
• Restriction setting • Outdoor unit silent mode setting • Night set back
Display
setting
Main display Use to switch between "Full" and "Basic" modes for the Main display, and use
to change the background colors of the display to black.
Display details Make the settings for the remote controller related items as necessary.
Clock: The initial settings are "Yes" and "24h" format.
Temperature: Set either Celsius (°C) or Fahrenheit (°F).
Room temp. : Set Show or Hide.
Auto mode: Set Auto mode display or Only Auto display.
Contrast •
Brightness
Use to adjust screen contrast and brightness.
Language
selection
Use to select the desired language.
Operation
setting
Auto mode Whether or not to use Auto mode can be selected by using the button.
This setting is valid only when indoor units with Auto mode function are
connected.
Setback mode Whether or not to use Setback mode can be selected by using the button.
This setting is valid only when indoor units with Setback mode function are
connected.
Mainte-
nance
Error information Use to check error information when an error occurs.
• Check code, error source, refrigerant address, model name, manufacturing number,
contact information (dealer's phone number) can be displayed.
(The model name, manufacturing number, and contact information need to be
registered in advance to be displayed.)
Filter information Use to check the lter status.
• The lter sign can be reset.
Cleaning Auto
descending
panel
Use to lift and lower the auto descending panel (Optional parts).
Service Test run Select "Test run" from the Service menu to bring up the Test run menu.
• Test run • Drain pump test run
Input maintenance Select "Input maintenance Info." from the Service menu to bring up the
Maintenance information screen.
The following settings can be made from the Maintenance Information screen.
• Model name input • Serial No. input • Dealer information input • Initialize
maintenance info.
Settings Function setting Make the settings for the indoor unit functions via the remote controller as
necessary.
LOSSNAY setting This setting is required only when the operation of CITY MULTI units is
interlocked with LOSSNAY units.
Check
Error history
Display the error history and execute "delete error history".
Diagnosis Self check: Error history of each unit can be checked via the remote controller.
Remote controller check: When the remote controller does not work properly, use
the remote controller checking function to troubleshoot the problem.
Others Maintenance
password
Use to change the maintenance password.
Initialize remote
controller
Use to initialize the remote controller to the factory shipment status.
Remote control-
ler information
Use to display the remote controller model name, software version, and serial
number.

11
OCHT746A

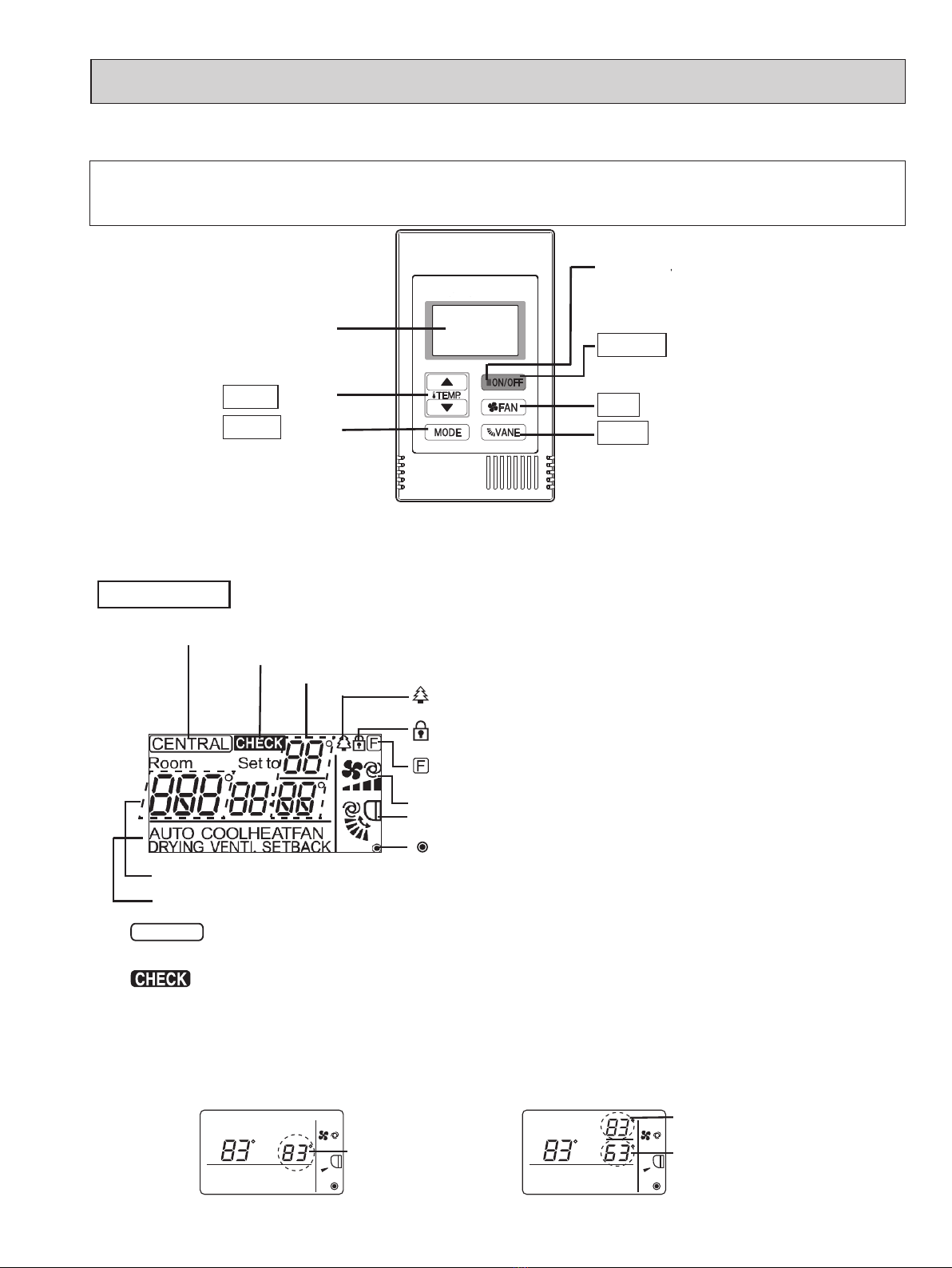

2-2-2. Wired Remote Controller <TAC-YT53CRAU>
.
Backlit LCD
ON/OFF lamp
ON/OFF button
FAN button
VANE button
Note: To set the functions that are not available on this controller (TAC-YT53CRAU) such as Louver,
use the centralized controller.
The lamp will light up in green when
turned on, and blink during startup
and when an error occurs.
Pressing this button starts and
stops the operation.
TEMP. button
MODE button
Note:
The phrase "Wired remote controller" in this manual refers only to the TAC-YT53CRAU.
If you need any information for the other remote controller, please refer to either the installation manual or initial setting manual which are included in
remote controller's box.
Display section
*2 icon
Check the error status, stop the operation, and consult your dealer.
Note: All icons are displayed for explanation purpose.
icon appears when indoor unit functions are set up.
(Refer to the Installation Manual.)
Fan speed icon
Vane icon
icon appears when the power is on.
Indoortemperature
Operation modes
CENTRAL icon *1
CHECK icon *2
Preset temperature *3
*1 icon
CENTRAL
*3 Preset temperature
* Centigrade or Fahrenheit is selectable. Refer to the Installation Manual for details.
In COOL, DRY, HEAT, or
AUTO (single set point) modes
In AUTO (dual set point) or
SETBACK modes
Room Set to
AUTO COOL HEATFAN
DRYING VENTI. SETBACK
Preset
temperature
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Heating preset
temperature
Cooling preset
temperature
Appears when one of the following local operations is prohibited: ON/OFF; operation mode; preset temperature; fan speed; vane.
For CITY MULTI, when an error occurs, power indicator will blink, and unit address (3 digits) and check code (4 digits) will blink.
icon appears while the unit is operated in the energy saving mode
icon appears when Operation lock setting is effective.

12
OCHT746A
3-1. SPECIFICATIONS
3SPECIFICATIONS
Model name TPLFYP006EM140B TPLFYP008EM140B TPLFYP012EM140B TPLFYP015EM140B
Power source 1-Phase 208–230 V, 60 Hz
Cooling capacity
(Nominal)
*1
*1
Btu/h 6,000
1.8
8,000
2.4
12,000
3.5
15,000
4.4
kW
Power input kW 0.02 0.03
Current input A 0.19 0.31
Heating capacity
(Nominal)
*2
*2
Btu/h 6,700
2.0
9,000
2.7
13,500
4.0
17,000
5.0
kW
Power input kW 0.02
Current input A 0.14 0.26
External nish Galvanized steel sheet
External dimension H × W × D in 10-3/16 × 33-1/16 × 33-1/16
258 × 840 × 840
mm
Net weight lbs [kg] 46 [21]
Grille External nish (Panel) TLP-41EAEU: Munsell 1.0Y 9.2/0.2
Dimension
H × W × D
in 1-9/16 × 37-13/32 × 37-13/32
40 × 950 × 950
mm
Net weight lbs [kg] 11 [5]
Heat exchanger Cross n
FAN Type × Quantity Turbo fan × 1
External static press. in. WG 0.000 (208 V)
0
Pa
in. WG 0.000 (230 V)
0
Pa
Motor type DC motor
Motor output kW 0.050
Driving mechanism Direct drive
Airow rate
(Low-Mid2-Mid1-
High)
cfm 300-424-459-494
8.5-12.0-13.0-14.0
142-200-217-233
494-530-565-600
14.0-15.0-16.0-17.0
233-250-267-283
530-547-565-600
15.0-15.5-16.0-17.0
250-258-267-283
m³/min
L/s
Sound pressure level
(Low-Mid2-Mid1-High)
(measure in anechoic room)
dB <A> 19-23-25-27 (208-230 V) 27-29-30-31 (208–230 V) 28-29-30-31 (208–230 V)
Insulation material PS
Air lter PP honeycomb (long life lter, anti-bacterial type)
Protection device Fuse
Refrigerant control device LEV
Connectable outdoor unit R410, CITY MULTI
Diameter of refrigerant
pipe (O.D.)
Liquid in [mm] 1/4 [6.35] Flare
Gas in [mm] 1/2 [12.7] Flare
Field drain pipe size in [mm] O.D 1-1/4 [32]
Standard attachment Document, accessory Installation Manual, Instruction Book
Optional parts Air outlet shutter plate PAC-SJ37SP-E
High efciency lter element PAC-SH59KF-E
Multi-function casement PAC-SJ41TM-E
Remarks Installation Details on foundation work, duct work, insulation work, electrical wiring, power source switch, and other items
shall be referred to the Installation Manual.
*1 Nominal cooling conditions *2 Nominal heating conditions
Indoor: 80°F D.B./67°F W.B 70°F D.B.
[26.7°C D.B./19.4°C W.B ] [21.1°C D.B.]
Outdoor: 95°F D.B. 47°F D.B./43°F W.B
[35°C D.B.] [8.3°C D.B./6.1°C W.B]
Pipe length: 25 ft [7.6m] 25 ft [7.6m]
Level difference: 0 ft [0 m] 0 ft [0 m]
Note: Specications are subject to change without notice.
Unit converter
kcal/h = kW × 860
Btu/h = kW × 3,412
cfm = m3/min x 35.31
lb = kg/0.4536
Above specication data is
subject to rounding
variation
.

OCHT746A 13
Model name TPLFYP018EM141B TPLFYP024EM140B TPLFYP030EM140B
Power source 1-Phase 208–230 V, 60 Hz
Cooling capacity
(Nominal)
*1
*1
Btu/h 18,000
5.3
24,000
7.0
30,000
8.8
kW
Power input kW 0.04
Current input A 0.43 0.45
Heating capacity
(Nominal)
*2
*2
Btu/h 20,000
5.9
27,000
7.9
34,000
10.0
kW
Power input kW 0.04
Current input A 0.38 0.40
External nish Galvanized steel sheet
External dimension H × W × D in 11-3/4 × 33-1/16 × 33-1/16
298 × 840 × 840
mm
Net weight lbs [kg] 55 [25]
Grille External nish (Panel) TLP-41EAEU: Munsell 1.0Y 9.2/0.2
Dimension
H × W × D
in 1-9/16 × 37-13/32 × 37-13/32
40 × 950 × 950
mm
Net weight lbs [kg] 11 [5]
Heat exchanger Cross n
FAN Type × Quantity Turbo fan × 1
External static press. in. WG 0.000 (208 V)
0
Pa
in. WG 0.000 (230 V)
0
Pa
Motor type DC motor
Motor output kW 0.120
Driving mechanism Direct drive
Airow rate
(Low-Mid2-Mid1-
High)
cfm 636-671-742-812
18.0-19.0-21.0-23.0
300-317-350-383
636-706-777-812
18.0-20.0-22.0-23.0
300-333-367-383
m³/min
L/s
Sound pressure level
(Low-Mid2-Mid1-High)
(measure in anechoic room)
dB <A> 28-30-32-34 (208–230 V) 28-31-33-35 (208–230 V)
Insulation material PS
Air lter PP honeycomb (long life lter, anti-bacterial type)
Protection device Fuse
Refrigerant control device LEV
Connectable outdoor unit R410, CITY MULTI
Diameter of refrigerant
pipe (O.D.)
Liquid in [mm] 1/4 [6.35] Flare 3/8 [9.52] Flare
Gas in [mm] 1/2 [12.7] Flare 5/8 [15.88] Flare
Field drain pipe size in [mm] O.D 1-1/4 [32] O.D 1-1/4 [32]
Standard attachment Document, accessory Installation Manual, Instruction Book
Optional parts Air outlet shutter plate PAC-SJ37SP-E
High efciency lter element PAC-SH59KF-E
Multi-function casement PAC-SJ41TM-E
Remarks Installation Details on foundation work, duct work, insulation work, electrical wiring, power
source switch, and other items shall be referred to the Installation Manual.
*1 Nominal cooling conditions *2 Nominal heating conditions
Indoor: 80°F D.B./67°F W.B 70°F D.B.
[26.7°C D.B./19.4°C W.B ] [21.1°C D.B.]
Outdoor: 95°F D.B. 47°F D.B./43°F W.B
[35°C D.B.] [8.3°C D.B./6.1°C W.B]
Pipe length: 25 ft [7.6m] 25 ft [7.6m]
Level difference: 0 ft [0 m] 0 ft [0 m]
Note: Specications are subject to change without notice.
Unit converter
kcal/h = kW × 860
Btu/h = kW × 3,412
cfm = m3/min x 35.31
lb = kg/0.4536
Above specication data is
subject to rounding
variation
.

14
OCHT746A
Model name TPLFYP036EM140B TPLFYP048EM140B
Power source 1-Phase 208–230 V, 60 Hz
Cooling capacity
(Nominal)
*1
*1
Btu/h 36,000
10.6
48,000
14.1
kW
Power input kW 0.07 0.11
Current input A 0.73 1.01
Heating capacity
(Nominal)
*2
*2
Btu/h 40,000
11.7
54,000
15.8
kW
Power input kW 0.07 0.11
Current input A 0.68 0.96
External nish Galvanized steel sheet
External dimension H × W × D in 11-3/4 × 33-1/16 × 33-1/16
298 × 840 × 840
mm
Net weight lbs [kg] 55 [25]
Grille External nish (Panel) TLP-41EAEU: Munsell 1.0Y 9.2/0.2
Dimension
H × W × D
in 1-9/16 × 37-13/32 × 37-13/32
40 × 950 × 950
mm
Net weight lbs [kg] 11 [5]
Heat exchanger Cross n
FAN Type × Quantity Turbo fan × 1
External static press. in. WG 0.000 (208 V)
0
Pa
in. WG 0.000 (230 V)
0
Pa
Motor type DC motor
Motor output kW 0.120
Driving mechanism Direct drive
Airow rate
(Low-Mid2-Mid1-
High)
cfm 777-883-989-1,095
22.0-25.0-28.0-31.0
367-417-467-517
777-953-1,095-1,236
22.0-27.0-31.0-35.0
367-450-517-584
m³/min
L/s
Sound pressure level
(Low-Mid2-Mid1-High)
(measure in anechoic room)
dB <A> 35-37-39-41 (208–230 V) 36-39-42-45 (208–230 V)
Insulation material PS
Air lter PP honeycomb (long life lter, anti-bacterial type)
Protection device Fuse
Refrigerant control device LEV
Connectable outdoor unit R410, CITY MULTI
Diameter of refrigerant
pipe (O.D.)
Liquid in [mm] 3/8 [9.52] Flare
Gas in [mm] 5/8 [15.88] Flare
Field drain pipe size in [mm] O.D 1-1/4 [32]
Standard attachment Document, accessory Installation Manual, Instruction Book
Optional parts Air outlet shutter plate PAC-SJ37SP-E
High efciency lter element PAC-SH59KF-E
Multi-function casement PAC-SJ41TM-E
Remarks Installation Details on foundation work, duct work, insulation work, electrical wiring, power source
switch, and other items shall be referred to the Installation Manual.
*1 Nominal cooling conditions *2 Nominal heating conditions
Indoor: 80°F D.B./67°F W.B 70°F D.B.
[26.7°C D.B./19.4°C W.B ] [21.1°C D.B.]
Outdoor: 95°F D.B. 47°F D.B./43°F W.B
[35°C D.B.] [8.3°C D.B./6.1°C W.B]
Pipe length: 25 ft [7.6m] 25 ft [7.6m]
Level difference: 0 ft [0 m] 0 ft [0 m]
Note: Specications are subject to change without notice.
Unit converter
kcal/h = kW × 860
Btu/h = kW × 3,412
cfm = m3/min x 35.31
lb = kg/0.4536
Above specication data is
subject to rounding
variation
.

OCHT746A 15

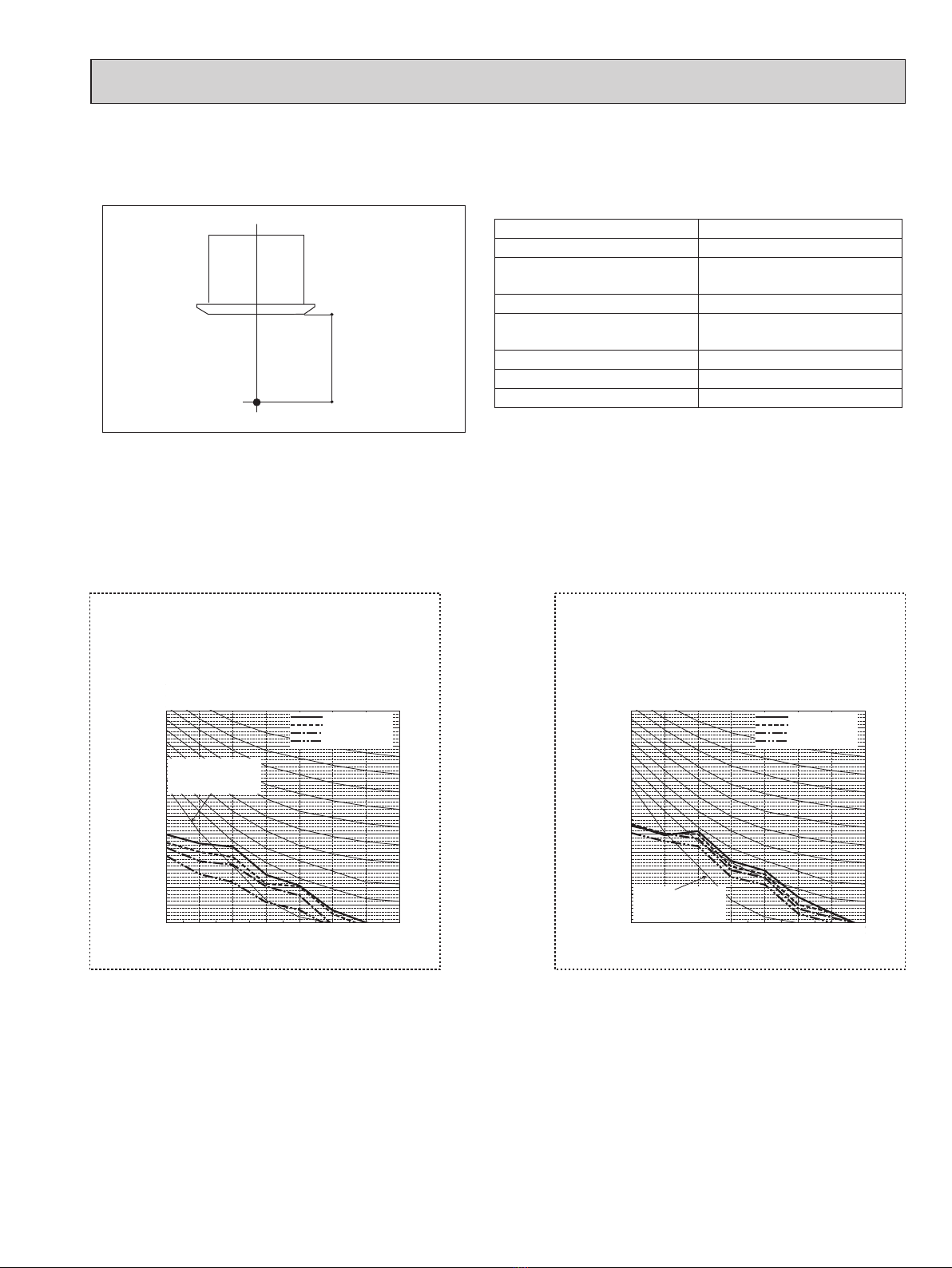

3-2. SOUND PRESSURE LEVEL
Note: Measured in anechoic room.
5 ft (1.5m)
Measurement location
Sound pressure level in anechoic room: Low-Mid2-Mid1-High
Sound pressure level dB (A)
TPLFYP006EM140B 19-23-25-27
TPLFYP008EM140B
TPLFYP012EM140B 27-29-30-31
TPLFYP015EM140B 28-29-30-31
TPLFYP018EM141B
TPLFYP024EM140B 28-30-32-34
TPLFYP030EM140B 28-31-33-35
TPLFYP036EM140B 35-37-39-41
TPLFYP048EM140B 36-39-42-45
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60 Hz
Middle2 60 Hz
Low 60 Hz
60 Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60 Hz
Middle2 60 Hz
Low 60 Hz
60 Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
TPLFYP008EM140B
TPLFYP012EM140B
External Static Pressure: 0 Pa [0.00 in.WG]
Power Source: 208-230 V 60 Hz
TPLFYP006EM140B
External Static Pressure: 0 Pa [0.00 in.WG]
Power Source: 208-230 V 60 Hz

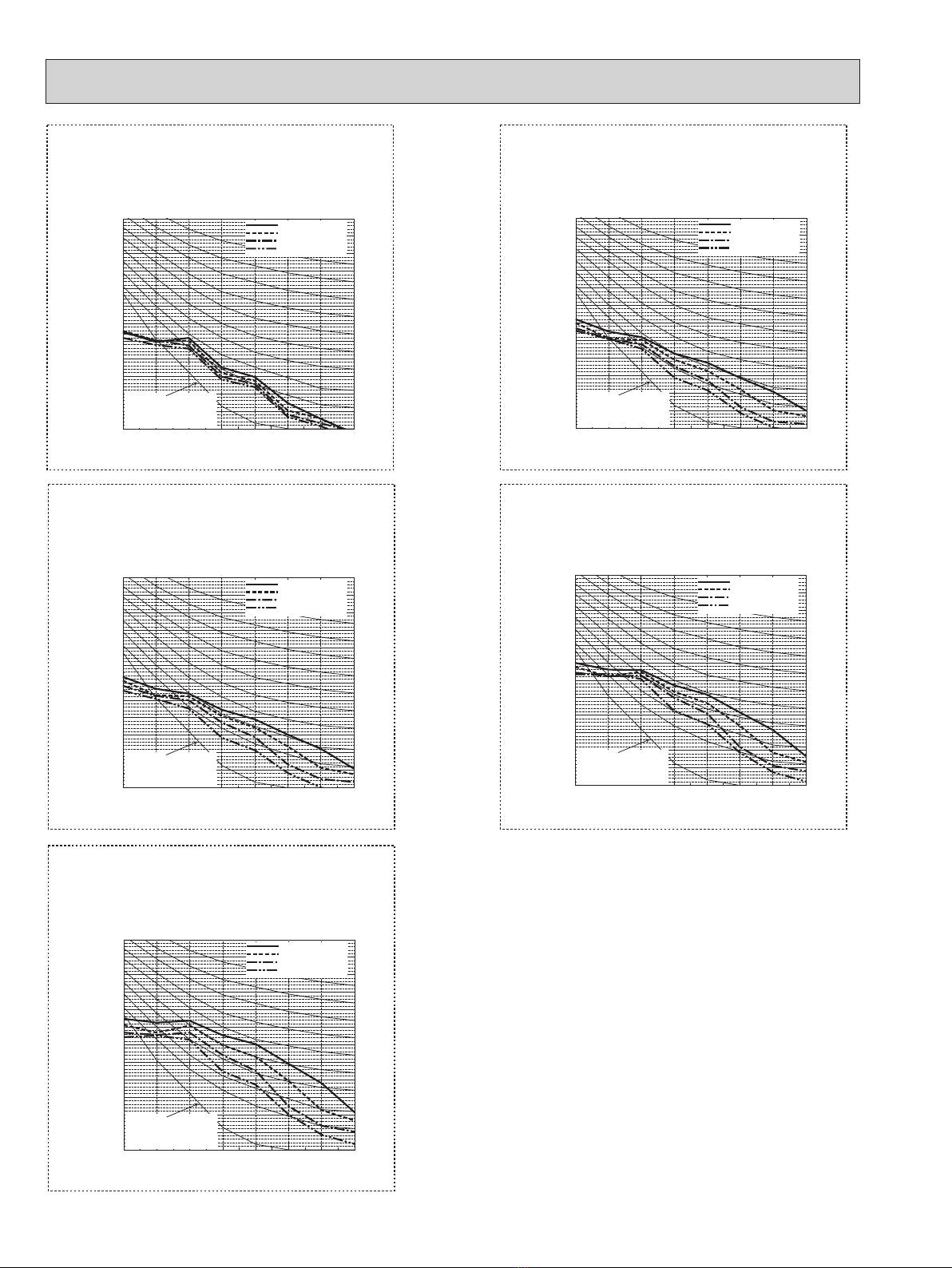

3-3. NC CURVES

16 17
OCHT746A
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60 Hz
Middle2 60 Hz
Low 60 Hz
60 Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
TPLFYP015EM140B
External Static Pressure: 0 Pa [0.00 in.WG]
Power Source: 208-230 V 60 Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60 Hz
Middle2 60 Hz
Low 60 Hz
60 Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
TPLFYP024EM140B
TPLFYP018EM141B
External Static Pressure: 0 Pa [0.00 in.WG]
Power Source: 208-230 V 60 Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60 Hz
Middle2 60 Hz
Low 60 Hz
60 Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
TPLFYP030EM140B
External Static Pressure: 0Pa [0.00 in.WG]
Power Source: 208-230 V 60 Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60 Hz
Middle2 60 Hz
Low 60 Hz
60 Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
TPLFYP036EM140B
External Static Pressure: 0 Pa [0.00 in.WG]
Power Source: 208-230 V 60 Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60 Hz
Middle2 60 Hz
Low 60 Hz
60 Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
TPLFYP048EM140B
External Static Pressure: 0 Pa [0.00 in.WG]
Power Source: 208-230 V 60 Hz

17
OCHT746A
3-4. ELECTRICAL PARTS SPECIFICATIONS
Model name
Parts name
Symbol
TPLFYP006EM140B
TPLFYP008EM140B
TPLFYP012EM140B
TPLFYP015EM140B
TPLFYP018EM141B
TPLFYP024EM140B
TPLFYP030EM140B
TPLFYP036EM140B
TPLFYP048EM140B
Room temperature
detection thermistor TH21
Resistance 30°F/15.8 kΩ, 50°F/9.6 kΩ, 70°F/6.0 kΩ, 80°F/4.8 kΩ, 90°F/3.9 kΩ, 100°F/3.2 kΩ
Pipe temperature
dection thermistor/liquid TH22
Resistance 30°F/15.8 kΩ, 50°F/9.6 kΩ, 70°F/6.0 kΩ, 80°F/4.8 kΩ, 90°F/3.9 kΩ, 100°F/3.2 kΩ
Pipe temperature
detection thermistor/gas TH23
Resistance 30°F/15.8 kΩ, 50°F/9.6 kΩ, 70°F/6.0 kΩ, 80°F/4.8 kΩ, 90°F/3.9 kΩ, 100°F/3.2 kΩ
Fuse
(Indoor controller board) FUSE UL 6.3 A 250 VAC
Fan motor MF 8-pole OUTPUT 50 W 8-pole OUTPUT, 120 W
Vane motor MV MSBPC20M04
12 VDC, 300 Ω/phase
Drain pump DP PMD-12D13ME-5
INPUT 3.9 W 36 ℓ/Hr
Drain oat switch FS Open/short detection
Linear expansion valve LEV
12 VDC Stepping motor drive port dimension ø3.2
(0–2000pulse)
EDM-40YGME
12 VDC Stepping motor drive
port dimension
ø 5.2 (0–2000pulse)
EDM-80YGME
Power supply terminal
block TB2 (L1, L2, GR) 330 V, 30 A
Transmission terminal
block TB5 (M1, M2, S) 250 V, 20 A
MA remote controller
terminal block TB15 (1, 2) 250 V, 10 A

1918
OCHT746A
44-WAY AIRFLOW SYSTEM
4-1. PLACEMENT OF THE AIR OUTLETS
• For this grille, the blowout direction comes in 11 patterns.
Also, by setting the remote controller to the appropriate settings, you can adjust the airflow and speed. Select the settings
from Table1 according to the location in which you want to install the unit.
1) Decide on the pattern of the airflow direction.
Blowout direction
pattern
4-direction<Table 1> 3-direction 2-direction
Note: For 3 and 2-direction settings, please use the air outlet shutter plate (option).
Pattern 1 Initial setting Pattern 4 One air outlet
fully closed
Pattern 6 2 air outlet
fully closed
2) According to the number of air outlets and height of the ceiling to install the unit, be sure to set up the switch (SW21) on
the indoor controller board to the appropriate setting.
• Correspondence of ceiling heights to numbers of air outlets
TPLFYP006EM140B
TPLFYP008EM140B
TPLFYP012EM140B
TPLFYP015EM140B
TPLFYP024EM140B
TPLFYP030EM140B
TPLFYP018EM141B
TPLFYP036EM140B
TPLFYP048EM140B
Silent Standard High ceiling Silent Standard High ceiling
SW21-1 SW21-2 SW21-1 SW21-2 SW21-1 SW21-2 SW21-1 SW21-2 SW21-1 SW21-2 SW21-1 SW21-2
OFF ON OFF OFF ON OFF OFF ON OFF OFF ON OFF
4 direction
SW21-3 OFF 8.2 ft [2.5 m] 8.9 ft [2.7 m] 11.5 ft [3.5 m] 8.9 ft [2.7 m] 10.5 ft [3.2 m] 14.8 ft [4.5 m]
SW21-4 ON
3 direction
SW21-3 OFF 8.9 ft [2.7 m] 9.8 ft [3.0 m] 11.5 ft [3.5 m] 9.8 ft [3.0 m] 11.8 ft [3.6 m] 14.8 ft [4.5 m]
SW21-4 OFF
2 direction
SW21-3 ON 9.8 ft [3.0 m] 10.8 ft [3.3 m] 11.5 ft [3.5 m] 10.8 ft [3.3 m] 13.1 ft [4.0 m] 14.8 ft [4.5 m]
SW21-4 OFF
SW21

19
OCHT746A
CN51
Multiple remote
controller adapter
PAC-SA88HA-E
Indoor controller board
Distance between indoor
controller board and relay
must be within 33 ft [10 m].
Be sure to secure insulation
material by tape, etc.
5Green
Yellow
Orange
Connector (5P)
Indoor unit side
Multiple remote
controller adapter
PAC-SA88HA-E
Be sure to secure insulation
material by tape, etc.
Installation at site
CN51
on
indoor
controller
board Red
Brown
1
~
CN51
MB
-
+
4-3. OPERATION IN CONJUNCTION WITH
DUCT FAN (Booster fan)
• Whenever the indoor unit is operating, the duct fan also
operates.
(1) Connect the optional multiple remote controller adapter
(PAC-SA88HA-E) to the connector CN51 on the indoor
controller board.
(2) Drive the relay after connecting the 12 VDC relay
between the Yellow and Orange connector lines.
MB: Electromagnetic switch power relay for duct fan.
X: Auxiliary relay (For 12 VDC, coil rating: 1.0 W or
smaller)
Unit : in (mm)
Branch duct hole
A
A
A
Drain pipe
Fresh air intake hole diagram
Refrigerant pipe
Branch duct hole diagram
(view from either side)
13-25/32 × 3-15/16
(350×100) cutout hole ø5-29/32 (ø150) cutout hole
ø6-7/8 (ø175) burring hole pitch
ø4-29/32
(ø125) burring hole pitch
ø3-15/16
(ø100) cutout hole
Ceiling
Fresh air intake hole
A
A
6-7/32 (158)
15-11/32
(390)
13-25/32
(350)
3-15/16
(100)
3-15/16 (100)
6-3/32 (155)
6-9/16 (167)
3-15/16
(100)
5-1/8 (130)
3-17/32
(90)
3-17/32
(90)
4-2. BRANCH DUCT HOLE AND FRESH AIR INTAKE HOLE
At the time of installation, use the duct holes (cut out) located at the positions shown in following diagram, as and when required.
• A fresh air intake hole for the optional multi function casement can also be made.
Note:
When installing the optional multi function casement, add 5-5/16” (135 mm) to the dimensions marked on the figure.
When installing the branch ducts, be sure to insulate adequately.
Otherwise, condensation and dripping may occur.

Static pressure [
Pa(in.W.G.o10-2)
]
Airflow rate
Static pressure [
Pa(in.W.G.o10-2)
]Static pressure [
Pa(in.W.G.o10-2)
] Static pressure [
Pa(in.W.G.o10-2)
] Static pressure [
Pa(in.W.G.o10-2)
]
Static pressure [
Pa(in.W.G.o10-2)
]
Airflow rate
Airflow rate
0 0.2 0.4 0.6 0.8 1 1.2 1.4 0 1 2 3 4 5 6
0 1 2 3 4 5 6
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8
0 1 2 3 4 5 6 7
0 1 2 3 4 5 76
2 - inlet
2 - inlet
2 - inlet
1 - inlet
1 - inlet
1 - inlet
2 - inlet
1 - inlet
10 20 30 40 [CFM]
Airflow rate
50 100 150 200
Airflow rate
10 20 30 40 50 60 50 100 150 200
[CMM]
[CFM]
[CMM]
[CFM]
[CMM]
[CFM]
[CMM]
50 100 150 200
Airflow rate
[CFM]
[CMM]
50 100 150 200 [CFM]
[CMM]
2120
OCHT746A
2TPLFYP018EM141B
TPLFYP024/030/036/048EM140B
Taking air into the unit
Multifunction casement + High efficiency filter
Multifunction casement + High efficiency filter

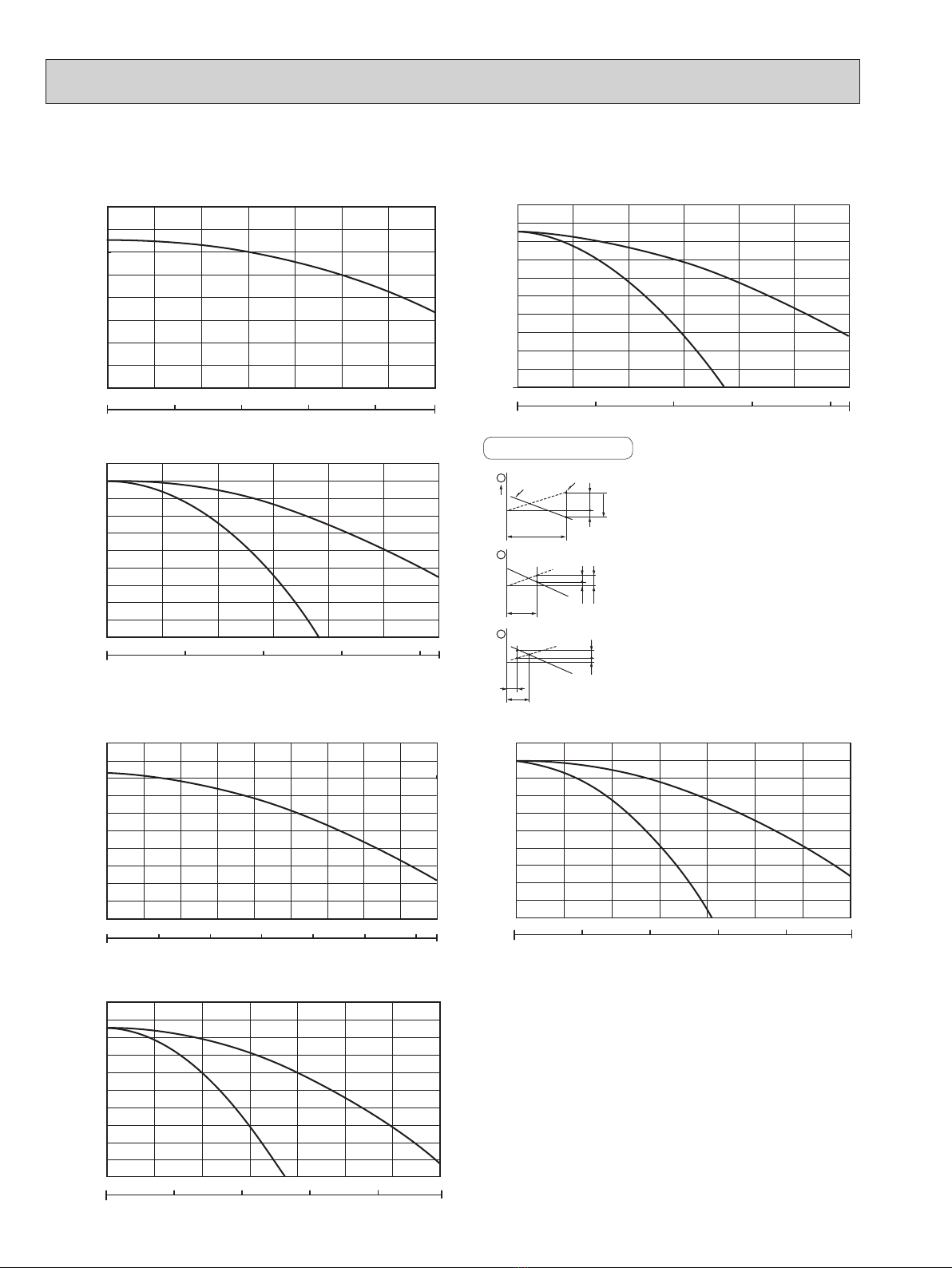

4-4. FRESH AIR INTAKE AMOUNT & STATIC PRESSURE CHARACTERISTICS
1TPLFYP006/008/012/015EM140B
Taking air into the unit Multifunction casement + Standard filter
Q
0
BA
C
1Curve in the
graphs.
Duct characteristics
at site
Q
A
E C
2
Q
Qa
A D
3
Q…Designed amount of fresh air intake
<CMM (CFM)>
A…Static pressure loss of fresh air intake
duct system with airflow amount Q
<Pa (in.W.G.o10-2)>
B…Forced static pressure at air condi-
tioner inlet with airflow amount Q
<Pa (in.W.G.o10-2)>
C…
Static pressure of booster fan with
airflow amount Q <Pa (in.W.G.o10-2)>
D… Static pressure loss increase amount of
fresh air intake duct system for airflow
amount Q <Pa (in.W.G.o10-2)>
E… Static pressure of indoor unit with
airflow amount Q <Pa (in.W.G.o10-2)>
Qa…Estimated amount of fresh air intake
without D <CMM (CFM)>
How to read curves
Multifunction casement + Standard filter
