Trane TVR Pro CO Series User manual

Service Manual
TVR Pro CO Series
Commercial Air Conditioners
R410A
4TVY0077HE000AA
4TVY0096HE000AA
4TVY0115HE000AA
4TVY0140HE000AA
4TVY0155HE000AA
4TVY0170HE000AA
4TVY0192HE000AA
4TVY0210HE000AA
4TVY0229HE000AA
4TVY0249HE000AA
4TVY0268HE000AA
4TVY0290HE000AA

1
CONTENTS
Part 1 General Information............................................................................ 3
Part 2 Component Layout and Refrigerant Circuits ................................... 12
Part 3 Control ............................................................................................... 24
Part 4 Field Settings..................................................................................... 35
Part 5 Electrical Components and Wiring Diagrams .................................. 39
Part 6 Diagnosis and Troubleshooting......................................................... 54

2

3
Part 1
General Information
1Indoor and Outdoor Unit Capacities ...................................................... 4
2External Appearance.............................................................................. 6
3Outdoor Unit Combinations................................................................... 8
4Nomenclature...................................................................................... 10

4
1Indoor and Outdoor Unit Capacities
1.1 Indoor Units
1.1.1 Standard indoor units
Table 1-1.1: Standard indoor unit abbreviation codes
Abbreviation
code Type
Abbreviation
code Type
Q1 One-way Cassette T1 High Static Pressure Duct
Q2 Two-way Cassette G Wall-mounted
Q4C Compact Four-way Cassette DL Ceiling & Floor
Q4 Four-way Cassette F Floor Standing
T2 Medium Static Pressure Duct
Table 1-1.2: Standard indoor unit capacity range
Capacity Capacity
index Q1 Q2 Q4C Q4 T2 T1 G DL F
kW HP
1.8 0.6 18 18 ————————
2.2 0.8 22 22 22 22 —22 —22 —22
2.8 1 28 28 28 28 28 28 —28 —28
3.6 1.25 36 36 36 36 36 36 —36 36 36
4.5 1.6 45 45 45 45 45 45 —45 45 45
5.6 2 56 56 56 —56 56 —56 56 56
7.1 2.5 71 71 71 —71 71 71 71 71 71
8.0 3 80 ———80 80 80 80 80 80
9.0 3.2 90 ———90 90 90 90 90 —
10.0 3.6 100 ———100 —————
11.2 4 112 ———112 112 112 —112 —
14.0 5 140 ———140 140 140 —140 —
16.0 6 160 —————160 —160 —
20.0 7 200 —————200 ———
25.0 9 250 —————250 ———
28.0 10 280 —————280 ———
40.0 14 400 —————400 ———
45.0 16 450 —————450 ———
56.0 20 560 —————560 ———
1.1.2 Fresh air processing unit
Table 1-1.3: Fresh air processing unit capacity range
Capacity 12.5kW 14kW 20kW 25kW 28kW 45kw 56kw
Capacity index 125 140 200 250 280 450 560
1.2 Heat recovery ventilator
Table 1-1.4: Heat recovery ventilator capacity range
Capacity 200m3/h 300m3/h 400m3/h 500m3/h 800m3/h 1000m3/h 1500m3/h 2000m3/h

5
1.3 Outdoor Units
Table 1-1.5: Outdoor unit capacity range
Capacity
Model Name
Combination Type
8HP
4TVY0077HE000AA
/
10HP
4TVY0096HE000AA
/
12HP
4TVY0115HE000AA
/
14HP
4TVY0140HE000AA
/
16HP
4TVY0155HE000AA
/
18HP
4TVY0170HE000AA
/
20HP
4TVY0192HE000AA
/
22HP
4TVY0210HE000AA
/
24HP
4TVY0229HE000AA
/
26HP
4TVY0249HE000AA
/
28HP
4TVY0268HE000AA
/
30HP
4TVY0290HE000AA
/
32HP
4TVY0310HE000AA
16HP+16HP
34HP
4TVY0325HE000AA
22HP+12HP
36HP
4TVY0347HE000AA
20HP+16HP
38HP
4TVY0365HE000AA
22HP+16HP
40HP
4TVY0384HE000AA
24HP+16HP
42HP
4TVY0404HE000AA
26HP+16HP
44HP
4TVY0423HE000AA
28HP+16HP
46HP
4TVY0445HE000AA
30HP+16HP
48HP
4TVY0459HE000AA
26HP+22HP
50HP
4TVY0478HE000AA
28HP+22HP
52HP
4TVY0500HE000AA
30HP+22HP
54HP
4TVY0517HE000AA
28HP+26HP
56HP
4TVY0536HE000AA
28HP+28HP
58HP
4TVY0558HE000AA
30HP+28HP
60HP
4TVY0580HE000AA
30HP+30HP
62HP
4TVY0600HE000AA
30HP+16HP+16HP
64HP
4TVY0614HE000AA
26HP+22HP+16HP
66HP
4TVY0633HE000AA
28HP+22HP+16HP
68HP
4TVY0655HE000AA
30HP+22HP+16HP
70HP
4TVY0672HE000AA
28HP+26HP+16HP
72HP
4TVY0691HE000AA
28HP+28HP+16HP
74HP
4TVY0713HE000AA
30HP+28HP+16HP
76HP
4TVY0735HE000AA
30HP+30HP+16HP
78HP
4TVY0746HE000AA
28HP+28HP+22HP
80HP
4TVY0768HE000AA
30HP+28HP+22HP
82HP
4TVY0790HE000AA
30HP+30HP+22HP
84HP
4TVY0804HE000AA
28HP+28HP+28HP
86HP
4TVY0826HE000AA
30HP+28HP+28HP
88HP
4TVY0848HE000AA
30HP+30HP+28HP
90HP
4TVY0870HE000AA
30HP+30HP+30HP
Notes:
1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also possible.

6
2External Appearance
2.1 Indoor Units
2.1.1 Standard indoor unit

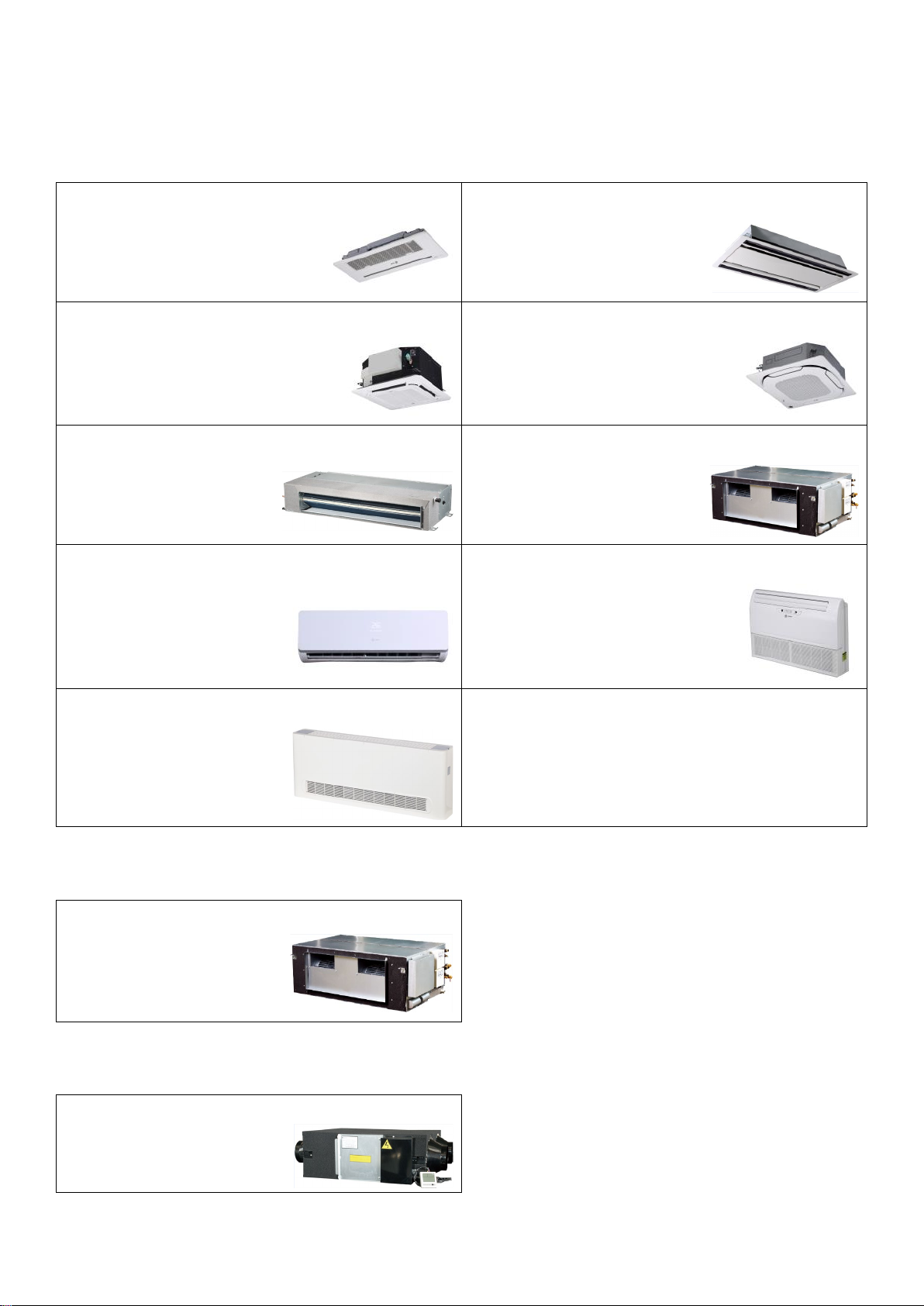

Table 1-2.1: Standard indoor unit appearance
One-way Cassette
Two-way Cassette
Q1
Q2
Compact Four-way Cassette
Four-way Cassette
Q4C
Q4
Medium Static Pressure Duct
High Static Pressure Duct
T2
T1
Wall-mounted
Ceiling & Floor
G
DL
Floor Standing
F
2.1.2 Fresh air processing unit
Table 1-2.2: Fresh air processing unit appearance
Fresh Air Processing Unit
FA
2.2 Heat Recovery Ventilator
Table 1-2.3: Heat recovery ventilator appearance
Heat Recovery Ventilator

7
2.3 Outdoor Units
2.3.1 Single units
Table 1-2.4: Single outdoor unit appearance
8/10/12/14/16HP
(with single fan)
18/20/22HP
(with dual fans)
24/26/28/30
(with dual fans)
2.3.2 Combinations of units
Table 1-2.5: Combination outdoor unit appearance
32HP
34/36/38/HP
40/42/44/46HP
48/50/52HP
54/56/58/60HP
62HP
64/66/68HP
70/72/74/76HP

8
Table continued on next page…
Table 1-2.5: Combination outdoor unit appearance
78/80/82HP
84/86/88/90HP
3Outdoor Unit Combinations
Table 1-3.1: Outdoor unit combinations
System capacity
Number
of units
Modules
1
Outdoor branch
joint kit
2
kW
HP
8
10
12
14
16
18
20
22
24
26
28
30
22.4
8
1
●
—
28.0
10
1
●
33.5
12
1
●
40.0
14
1
●
45.0
16
1
●
50.0
18
1
●
56.0
20
1
●
61.5
22
1
●
67.0
24
1
●
73.0
26
1
●
78.5
28
1
●
85.0
30
1
●
90.0
32
2
●●
TODK02UTHP
95.0
34
2
●
●
101.0
36
2
●
●
106.5
38
2
●
●
112.0
40
2
●
●
118.0
42
2
●
●
123.5
44
2
●
●
130.0
46
2
●
●
134.5
48
2
●
●
140.0
50
2
●
●
146.5
52
2
●
●
151.5
54
2
●
●
157.0
56
2
●●
163.5
58
2
●
●
170.0
60
2
●●
175.0
62
3
●●
●
TODK03UTHP
179.5
64
3
●
●
●
185.0
66
3
●
●
●
191.5
68
3
●
●
●
196.5
70
3
●
●
●
202.0
72
3
●
●●
208.5
74
3
●
●
●
215.0
76
3
●
●●
218.5
78
3
●
●●
225.0
80
3
●
●
●
231.5
82
3
●
●●
235.5
84
3
●●●

9
Table continued on next page…
Table 1-3.1: Outdoor unit combinations
System capacity Number
of units
Modules1Outdoor branch
joint kit
2
242.0
86
3
●●
●
TODK03UTHP
248.5
88
3
●
●●
255.0
90
3
●●●
Notes:
1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also possible.
2. For systems with two or more outdoor units, outdoor branch joints (sold separately) are required.

10
4Nomenclature
4.1 Indoor Units
4.1.1 Standard indoor units
4
T
V
E
0
0
0
7
E
F
0
0
0
A
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Legend
No. Code Remarks
1 4 R-410A
2 TTrane
3 V TVR
4
Indoor Unit Type
E: One - Way Cassette
G: Two - Way Cassette
B: Compact Four - Way Cassette
C: Four - Way Cassette
D: Medium Static Pressure Duct
A: High Static Pressure Duct
W: Wall - Mounted
C: Ceiling & Floor
S, N, U: Floor Standing
F: Fresh air processing unit
5 0 Currently not used
6 0
Btu/h x 1000
7 0
8 7
9 E TVR Ultra
10 F 380V50-60Hz/1P
11 0 Currently not used
12 0 Currently not used
13 0 Currently not used
14 A First design sequence
15 A First service sequence

11
4.2 Heat recovery ventilator
AC Series
T
E
R
V
0
1
2
0
A
B
0
A
A
1
2
3
4
5
6
7
8
9
10
11
12
13
Legend
No. Code Remarks
1 T
Energy recovery Fan
Trane TVR
2 E
3 R
4 V
5 0
CFM
6 1
7 2
8 0
9 A TVR
10 B 1: 380V/60Hz/1Ph
B: 380/50Hz/1Ph
11 0 Currently not used
12 A First design sequence
13 A First service sequence
4.3 Outdoor Units
4
T
V
Y
0
0
7
7
H
E
0
0
0
A
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Legend
No. Code Remarks
1 4 R-410A
2 T Trane
3 V Air Cooled
4 Y Cooling Only
5 0 Currently not used
6 0
Btu/h x 1000
7 7
8 7
9 H TVR Pro CO
10 E 380V50-60Hz/1P
11 0 Currently not used
12 0 Currently not used
13 0 0: Standard
C: Corrosion treatment
14 A First design sequence
15 A First design sequence

12
Part 2
Component Layout and
Refrigerant Circuits
1Layout of Functional Components ....................................................... 13
2Piping Diagrams .................................................................................. 16
3Refrigerant Flow Diagrams .................................................................. 20

13
1Layout of Functional Components
8-16HP
Figure 2-1.1: 8-16HP layout of functional components
Legend
No. Parts name
1 Compressor
2 Discharge temperature sensor
3 High pressure sensor
4 Oil separator
5 Heat exchanger
6 Electronic expansion valve (EXV)
7 Fan motor
8 Fan
9 Stop valve (liquid side)
10 Stop valve (gas side)
11 Accumulator
12 Low pressure switch
13 Solenoid valve
5
6
7
8
9
12
13
13
13
11
10
3
4
2
1

14
18-22HP
Figure 2-1.2: 18-22HP layout of functional components
Legend
No. Parts name
1 Compressor
2 Discharge temperature sensor
3 High pressure sensor
4 Oil separator
5 Heat exchanger
6 Electronic expansion valve (EXV)
7 Fan motor
8 Fan
9 Stop valve (liquid side)
10 Stop valve (gas side)
11 Accumulator
12 Low pressure switch
13 Solenoid valve
5
6
7
8
7
8
13
13
13
12
11
910
3
4
2 2
1
1

15
24-30HP
Figure 2-1.3: 24-30HP layout of functional components
Legend
No. Parts name
1 Compressor
2 D
ischarge temperature
sensor
3 High pressure sensor
4 Oil separator
5 Heat exchanger
6
Electronic expansion
valve (EXV)
7 Fan motor
8 Fan
9 Stop valve (liquid side)
10 Stop valve (gas side)
11 Accumulator
12 Low pressure switch
13 Solenoid valve
5
6
7
8
7
8
13
13
13
12
1111
910
3
4
22
1
1

16
2Piping Diagrams
8-16HP

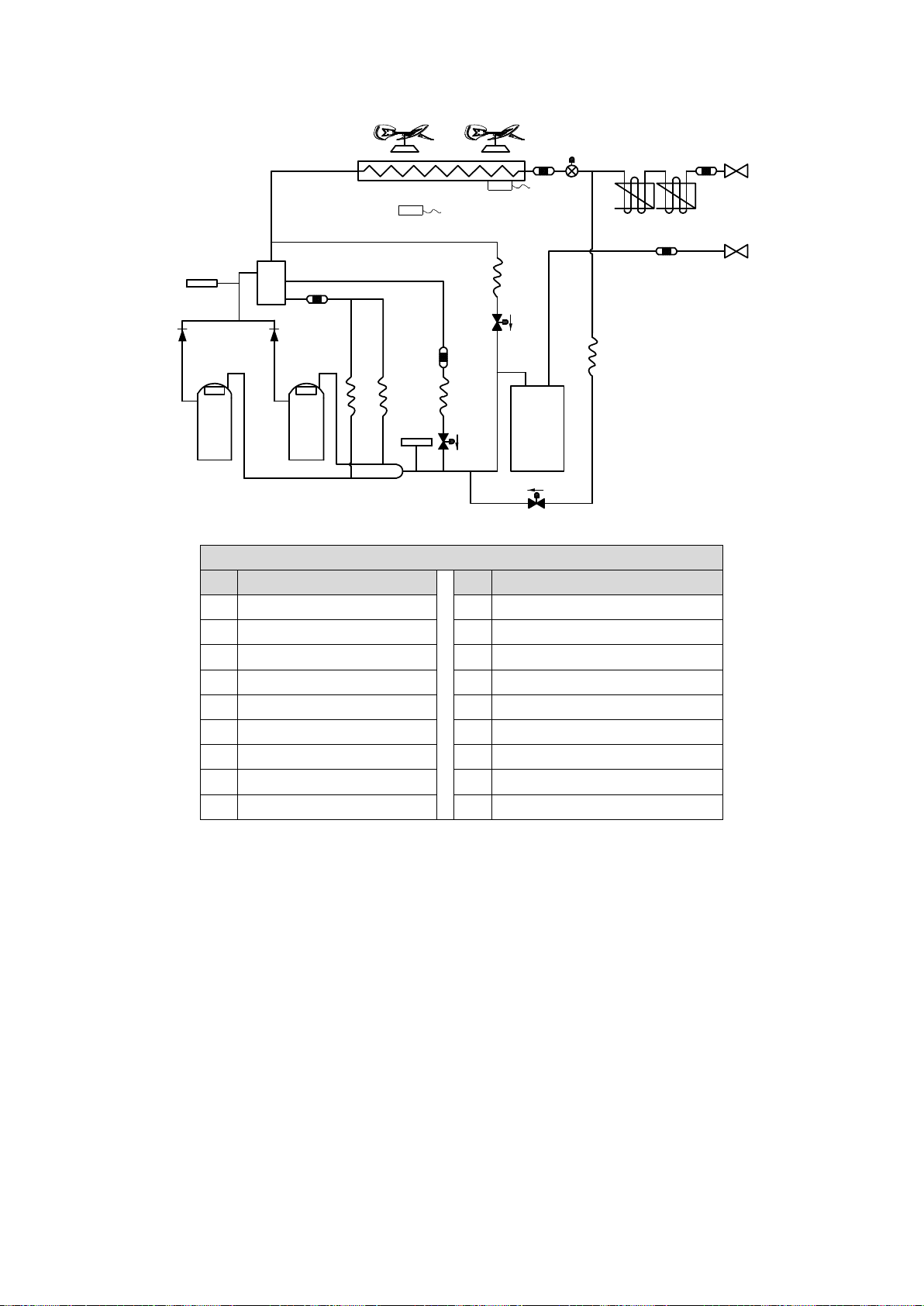

Figure 2-2.1: 8-16HP piping diagram
Legend
No. Parts name No. Parts name
1 Compressor 10 Stop valve (gas side)
2 Discharge temperature sensor 11 Accumulator
3 High pressure sensor 12 Low pressure switch
4 Oil separator 13 Solenoid valve
5 Heat exchanger T3 Heat exchanger temperature sensor
6 Electronic expansion valve (EXV) T4 Outdoor ambient temperature sensor
7 Fan motor SV2 Liquid injection valve
8 Fan SV4 Oil return valve
9 Stop valve (liquid side) SV7 Pressure valve
5
34
6
9
10
11
12
2
1
13 13
13
8
7EXVA
XX °C
T3
T4
XX °C
SV4
SV7
SV2

17
18-22HP
Figure 2-2.2: 18-22HP piping diagram
Legend
No. Parts name No. Parts name
1 Compressor 10 Stop valve (gas side)
2 Discharge temperature sensor 11 Accumulator
3 High pressure sensor 12 Low pressure switch
4 Oil separator 13 Solenoid valve
5 Heat exchanger T3 Heat exchanger temperature sensor
6 Electronic expansion valve (EXV) T4 Outdoor ambient temperature sensor
7 Fan motor SV2 Liquid injection valve
8 Fan SV4 Oil return valve
9 Stop valve (liquid side) SV7 Pressure valve
34
9
10
12
13
13
8
7
SV4
SV7
11
13
SV2
8
7
56
EXVA
XX°C
T3
T4
XX°C
2
1
2
1
16

18
24-30HP
Figure 2-2.3: 24-30HP piping diagram
Legend
No. Parts name No. Parts name
1 Compressor 10 Stop valve (gas side)
2 Discharge temperature sensor 11 Accumulator
3 High pressure sensor 12 Low pressure switch
4 Oil separator 13 Solenoid valve
5 Heat exchanger T3 Heat exchanger temperature sensor
6 Electronic expansion valve (EXV) T4 Outdoor ambient temperature sensor
7 Fan motor SV2 Liquid injection valve
8 Fan SV4 Oil return valve
9 Stop valve (liquid side) SV7 Pressure valve
13
SV7
13
SV2
34
12 11 11
13
SV4
2
1
2
1
9
10
8
7
8
7
56
EXVA
XX
°C
T3
T4
XX °C

19
Key components:
1. Oil separator:
Separates oil from gas refrigerant pumped out of the compressor and quickly returns it to the compressor. Separation
efficiency is up to 99%.
2. Accumulator:
Stores liquid refrigerant and oil to protect compressor from liquid hammering.
3. Electronic expansion valve (EXV):
Controls refrigerant flow and reduces refrigerant pressure.
4. Solenoid valve SV2:
Protects the compressor. If compressor discharge temperature rises above 100oC, SV2 opens and sprays a small
amount of liquid refrigerant to cool the compressor. SV2 closes again once the discharge temperature has fallen
below 90oC.
5. Solenoid valve SV4:
Returns oil to the compressor. Opens once the compressor has run for 200 seconds and closes 600 seconds later and
then opens for 3 minutes every 20 minutes.
6. Solenoid valve SV7:
Allows refrigerant to return directly to the compressor. Opens when indoor air temperature is close to the set
temperature to avoid frequent compressor on/off. Opens when superheat degree is insufficient to avoid liquid
hammer to compressor.
7. Low pressure switches:
Regulate system pressure. When system pressure falls below the lower limit, the low pressure switches turn off,
stopping the compressor. After 10 minutes, the compressor restarts.
