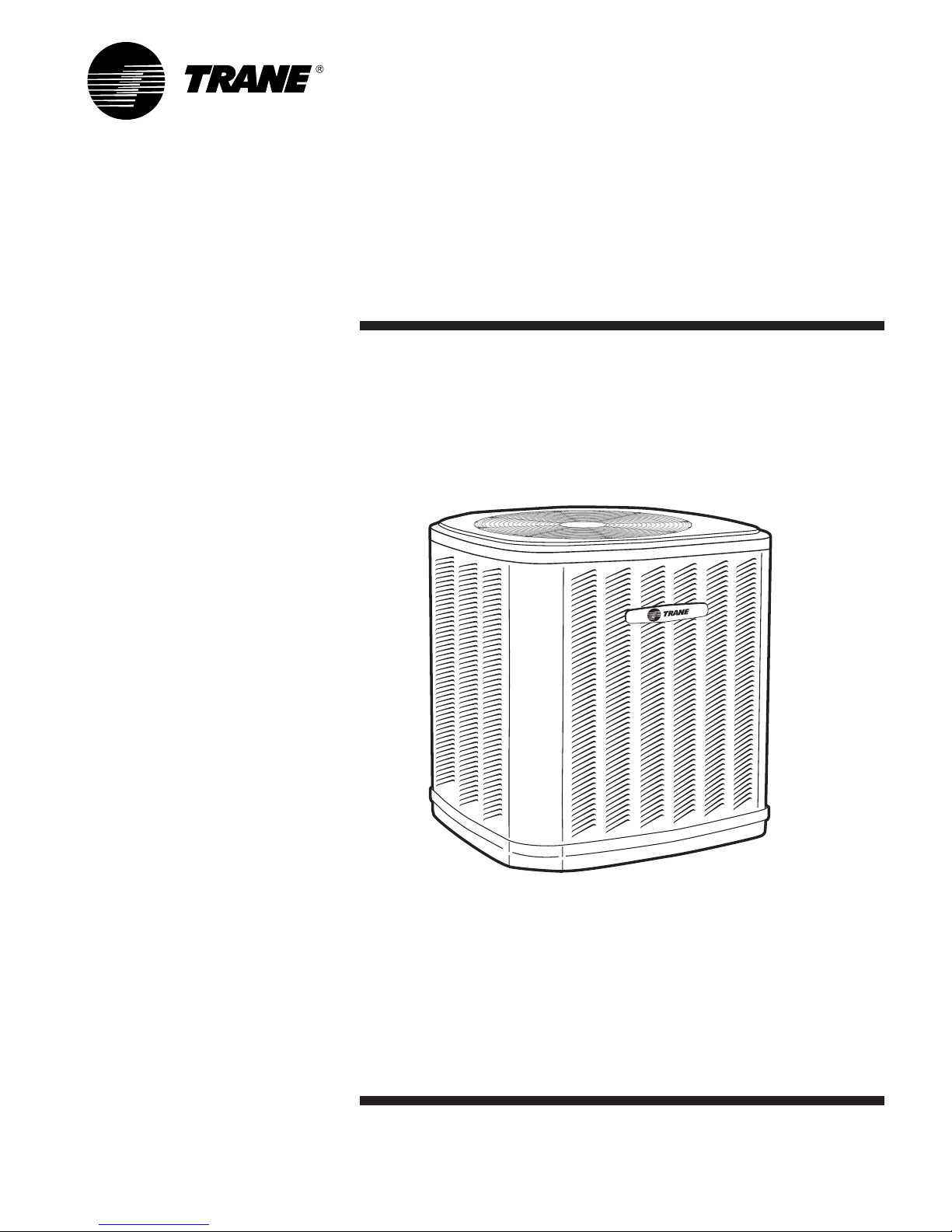

Trane XB 13 User manual

Split System
Cooling Product
& Performance Data
XB 13
2TTB3018-060
1½ – 5 Tons
PUB. NO. 22-1769-07

© 2012 Trane 2 22-1769-07
Features and
Benefits
• Efciencyupto13.25SEER
• AllaluminumSpine Fin™coil
• Fast,complete-drain,weatherproof
base
• WeatherGuard™fasteners
• Polyslategraycabinetwith
anthracitegraybadgeandcap
• Quick-Sess™cabinet,easyservice
accessandrefrigerantconnections
withfullcoilprotection
• Glossycorrosionresistantnish
• Internalhigh/lowpressure&
temperatureprotection
• Comfort "R"™ ModeApproved
• 018,024,030,042&048shipwith
startkit
• Liquidlinelter-drier
• S.E.E.TDesignTesting
• R-22refrigerant
• 100%lineruntest
• Lowambientcoolingto55°Fas
shipped
• Lowambientcoolingto30°Fwith
AY28X079
• Lowambientcoolingto0°Fwith
BAYLOAM103

22-1769-07 3
Contents
Features and Benefits 2
General Data 4
ProductSpecications 4
A-weightedSoundPowerLevel[dB(A)] 4
AccessoryDescriptionandUsage 5
AHRIStandardCapacityRatingConditions 5
Model Nomenclature 6
Electrical Data 7
Dimensions 12
Mechanical Specification Options 13

 4 22-1769-07
Product Specifications
Model No. 12TTB3018A1000C 2TTB3024A1000C 2TTB3030A1000C 2TTB3036A1000C
Electrical Data V/Ph/Hz 2200/230/1/60 200/230/1/60 200/230/1/60 208/230/1/60
Min Cir Ampacity 8 12 13 21
Max Fuse Size (Amps) 15 20 20 35
Compressor RECIP RECIP RECIP SCROLL
RL Amps - LR Amps 5.8 - 38.6 8.7 - 57.8 9.5 - 63 15.4 - 87
Outdoor Fan FL Amps 0.6 0.9 0.7 1.3
Fan HP 1/15 1/8 1/8 1/6
Fan Dia (inches) 19.0 19.0 23.0 23.0
Coil Spine Fin™ Spine Fin™ Spine Fin™ Spine Fin™
Refrigerant R-22 (Not factory supplied) 4/00-LB/OZ 5/02-LB/OZ 5/08-LB/OZ 6/05-LB/OZ
Line Size - (in.) O.D. Gas 35/8 3/4 3/4 7/8
Line Size - (in.) O.D. Liquid 31/4 5/16 5/16 3/8
Dimensions H x W x D (Crated) 30.1 x 26.7 x 30 37.2 x 26.7 x 30 38 x 30.1 x 33 38 x 30.1 x 33
Weight - Shipping 182 195 225 205
Weight - Net 163 175 197 178
Start Components YES YES YES NO
Sound Enclosure NO NO NO NO
Compressor Sump Heat NO NO NO NO
Optional Accessories: 4
Anti-short Cycle Timer TAYASCT501A TAYASCT501A TAYASCT501A TAYASCT501A
Evaporator Defrost Control A/C AY28X079 AY28X079 AY28X079 AY28X079
Rubber Isolator Kit BAYISLT101 BAYISLT101 BAYISLT101 BAYISLT101
Crank Case Heater Kit BAYCCHT300 BAYCCHT300 BAYCCHT300 BAYCCHT301
Hard Start Kit Scroll BAYKSKT260
Extreme Condition Mounting Kit BAYECMT001 BAYECMT001 BAYECMT001 BAYECMT001
Refrigerant Lineset 5TAYREFLN1* TAYREFLN2* TAYREFLN2* TAYREFLN3*
1Certified in accordance with the Unitary Air-Conditioner equipment certification program which is based on AHRI Standard 210/240.
2Calculated in accordance with N.E.C. Use only HACR circuit breakes or fuses.
3Standard line lengths - 60'. Standard lift - 60' Suction and Liquid line.
For Greater lengths and lifts refer to refrigerant piping software Pub# 32-3312-0†. (†denotes latest revision)
4For accessory description and usage, see page 5.
5* = 15, 20, 25, 30, 40 and 50 foot lineset available.
General
Data
A-weighted Sound Power Level [dB(A)]
MODEL SOUND POWER
LEVEL [Db(a)]
A-WEIGHTED FULL OCTAVE SOUND POWER LEVEL dB - [dB(A)]
63 125 250 500 1000 2000 4000 8000
2TTB3018A1 76 43.8 52.8 56.7 65.3 67.4 69.6 64.6 57.2
2TTB3024A1 78 50.9 55.9 63.2 71.2 72.0 70.5 64.3 56.8
2TTB3030A1 78 45.8 56.9 61.7 68.5 71.4 70.3 61.2 54.2
2TTB3036A1 76 44.8 60.5 61.4 69.2 72.1 65.2 57.3 51.3
2TTB3042A1 79 46.0 60.6 70.4 72.9 72.4 69.5 60.9 51.2
2TTB3048A1 79 49.3 57.7 71.0 72.2 72.7 70.5 63.7 53.7
2TTB3060A1 79 53.6 57.5 63.6 73.3 73.1 71.3 63.1 55.9
Note:TestedinaccordancewithAHRIStandard270.95.(NotlistedwithARI)

22-1769-07 5
General
Data
Product Specifications
Model No. 12TTB3042A1000C 2TTB3048A1000C 2TTB3060A1000C
Electrical Data V/Ph/Hz 2200/230/1/60 200/230/1/60 208/230/1/60
Min Cir Ampacity 21 25 33
Max Fuse Size (Amps) 35 40 50
Compressor RECIP RECIP SCROLL
RL Amps - LR Amps 15.4 - 93.5 18.6 - 93.4 25.3 - 146
Outdoor Fan FL Amps 1.4 1.4 1.3
Fan HP 1/6 1/6 1/4
Fan Dia (inches) 27.6 27.6 27.6
Coil Spine Fin™ Spine Fin™ Spine Fin™
Refrigerant R-22 (Not factory supplied) 6/13-LB/OZ 8/14-LB/OZ 8/11-LB/OZ
Line Size - (in.) O.D. Gas 37/8 1-1/8 1-1/8
Line Size - (in.) O.D. Liquid 33/8 3/8 3/8
Dimensions H x W x D (Crated) 38.4 x 35.1 x 38.7 46.4 x 35.1 x 38.7 46.4 x 35.1 x 38.7
Weight - Shipping 283 307 280
Weight - Net 249 271 244
Start Components YES YES NO
Sound Enclosure YES NO NO
Compressor Sump Heat NO NO NO
Optional Accessories: 4
Anti-short Cycle Timer TAYASCT501A TAYASCT501A TAYASCT501A
Evaporator Defrost Control A/C AY28X079 AY28X079 AY28X079
Rubber Isolator Kit BAYISLT101 BAYISLT101 BAYISLT101
Crank Case Heater Kit BAYCCHT300 BAYCCHT300 BAYCCHT300
Hard Start Kit Scroll BAYKSKT263
Extreme Condition Mounting Kit BAYECMT001 BAYECMT001 BAYECMT001
Refrigerant Lineset 5TAYREFLN3* TAYREFLN4* TAYREFLN4*
AHRI Standard Capacity Rating Conditions
AHRI STANDARD 210/240 RATING CONDITIONS —
(A) Cooling80°FDB,67°FWBairenteringindoorcoil,
95°FDBairenteringoutdoorcoil.
(B) HighTemperatureHeating47°FDB,43°FWBairentering
outdoorcoil,70°FDBairenteringindoorcoil.
(C)LowTemperatureHeating17°FDB,15°FWBairentering
outdoorcoil,70°FDBairenteringindoorcoil.
(D)Ratedindoorairowforheatingisthesameasforcooling.
AHRI STANDARD 270 RATING CONDITIONS —(Noise
ratingnumbersaredeterminedwiththeunitincoolingopera-
tion.)StandardNoiseRatingnumberisat95°Foutdoorair.
Accessory Description and Usage
Anti-Short Cycle Timer—Solidstatetimingdevicethat
preventscompressorrecyclinguntil5minuteshaveelapsed
aftersatisfyingcallorpowerinterruptions.Useinareawith
questionablepowerdelivery,commercialapplications,long
lineset,etc.
Evaporator Defrost Control—SPSTTemperatureactuated
switchthatcyclesthecondenseroffasindoorcoilreaches
freeze-upconditions.Usedforlowambientcoolingto30°F
withTXV.
Rubber Isolators—5largerubberdonutstoisolatecon-
densingunitfromtransmittingenergyintomountingframeor
pad.Useonanyapplicationwheresoundtransmissionneeds
tobeminimized.
Hard Start kit—Startcapacitorandrelaytoassistcompres-
sormotorstartup.Useinareaswithmarginalpowersupply,
onlonglinesets,lowambientconditions,etc.
Extreme Condition Mount Kit—Bracketkitstosecurely
mountcondensingunittoaframeorpadwithoutremoving
anypanels.Useinareaswithhighwinds,oroncommercial
rooftops,etc.

6 22-1769-07
T U D 1 B 0 8 0 A 9 H 3 1 A A
Furnace Configuration
TU = Upflow/Horizontal
TD = Downflow/Horizontal
Type
E = 80% Induced Draft Standard
D = 80% Induced Draft Premium
C = 90% Condensing Standard
X = 90% Condensing Premium
H = 95% Condensing Premium
Number of Heating Stages
1 = Single Stage
2 = Two Stage
M= Modulating
Major Design Change
Minor Design Change
Service Digit - Not Orderable
Heating Input in 1000’s (BTUH)
080 = 80,000 BTUH
Cabinet Width
A = 14.5" Cabinet Width
B = 17.5" Cabinet Width
C = 21.0" Cabinet Width
D = 24.5" Cabinet Width
Air Capacity for Cooling
Standard PSC Variable Speed High Efficiency
24 = 2 To ns V3 = 3 To ns H3 = 3 To ns
36 = 3 To ns V4 = 4 To ns H4 = 4 To ns
42 = 3.5 To ns V5 = 5 To ns H5 = 5 To ns
45 = 4 To ns
48 = 4 To ns
54 = 5 To ns
60 = 5 To ns
72 = 6 To ns
Voltage
9 = 115 Volts / 60 Hertz / Natural Gas
A = 115 Volts / 50 Hertz / Natural Gas
C = 115 Volts / Natural Gas with Communicating System Control
F = 115 Volts / Natural Gas with Integrated Electronic Filter
D = 115 Volts / Natural Gas with Communicating System Control and
Integrated Electronic Filter
Draft Inducer Speeds
1 = Single Speed
2 = Tw o Speed
V = Variable Speed
Gas Furnaces
G A M 5 A 0 B 3 6 M 3 1 S A A
Brand
T = Better
G = Good
Product Type
A = Air Handler
Product Tier
2 = Good, Entry Level Feature Set
4 = Better, Retail Replacement Mid Effy.
5 = Better, Entry Level High Effy., Multi-Speed
7 = Best, Retail Replacement High Effy.,
Variable-Speed
8 = Best, Retail Ultimate High Effy.,
Variable-Speed
Major Design Change
Minor Design Change
Unit Parts Identifier
Airflow Type & Capability
S = Low Effy PSC, 1-5 - nom. Tonnage (cfm/ton)
M = Mid Effy Multi-Speed, 1-5 - nom. To nnage (cfm/ton)
H = High Effy Multi-Speed, 1-5 - nom. To nnage (cfm/ton)
V = High Effy Variable, 1-5 - nom. To nnage (cfm/ton)
No Descriptor
0 = Air Handler / Coil
System Control Type
S = Standard - 24 VAC
C = CLII 13.8 VDC
Size (Footprint)
A = 17.5 x 21.5
B = 21.0 x 21.5
C = 23.5 x 21.5
Cooling Size: Air Handler or Coil
0-9 = AH Coil - 1000 BTU’s (18, 24, 30, 36, 42, 48, 60)
Power Supply
1 = 208-230/1/60
Convertability
M= Multi-poise 4-way
F = Upflow Front Return, 3-way
T = 3-way
Air Handler
4 T X C B 0 3 6 A C 3 H C A A
Series
T = Premium (Heat Pump or Convertible Coil)
C = Standard (Cooling Only)
Refrigerant Type
4 = R-410A
Coil Design
X = Direct Expansion Evaporator Coil
Coil Feature
C = Cased A Coil
A = Uncased A Coil
F = Cased Horizontal Flat Coil
Coil Width (Cased/Uncased)
A = 14.5" /13.3"
B = 17.5" / 16.3"
C = 21.0" / 19.8"
D = 24.5" / 23.3"
H = 10.5"
Refrigerant Line Coupling
0 = Brazed
Nominal Capacity in 1000's (BTUH)
Major Design Change
Efficiency
C = Standard
S = Hi Efficiency (derived from 10 SEER products)
Refrigerant Control
3 = TXV - Non-Bleed
Coil Circuitry
H = Heat Pump
C = Cooling
Airflow Configuration
A = Upflow Only
U = Upflow / Downflow
H = Horizontal Only
C = Convertible - Upflow, Downflow, Left or Right Airflow
Minor Design Change
Service Digit - Not Orderable
Heat Pump/
Cooling Coils
Model
Nomenclature
Refrigerant Type
2 = R-22
4 = R-410A
TRANE
Product Type
W = Split Heat Pump
T = Split Cooling
Product Family
Z = Leadership – Two Stage
X = Leadership
R = Replacement/Retail
M or B = Basic
A = Light Commercial
Family SEER
0 = 10 3 = 13 6 = 16
1 = 11 4 = 14 8 = 18
2 = 12 5 = 15 9 = 19
Split System Connections 1-6 Tons
0 = Brazed
Nominal Capacity in 000s of BTUs
Major Design Modifications
Power Supply
1 = 200-230/1/60 or 208-230/1/60
3 = 200-230/3/60
4 = 460/3/60
Secondary Function
Minor Design Modifications
Unit Parts Identifier
Outdoor Units
2T TB3036A1000AA

22-1769-07 7
Electrical
Data

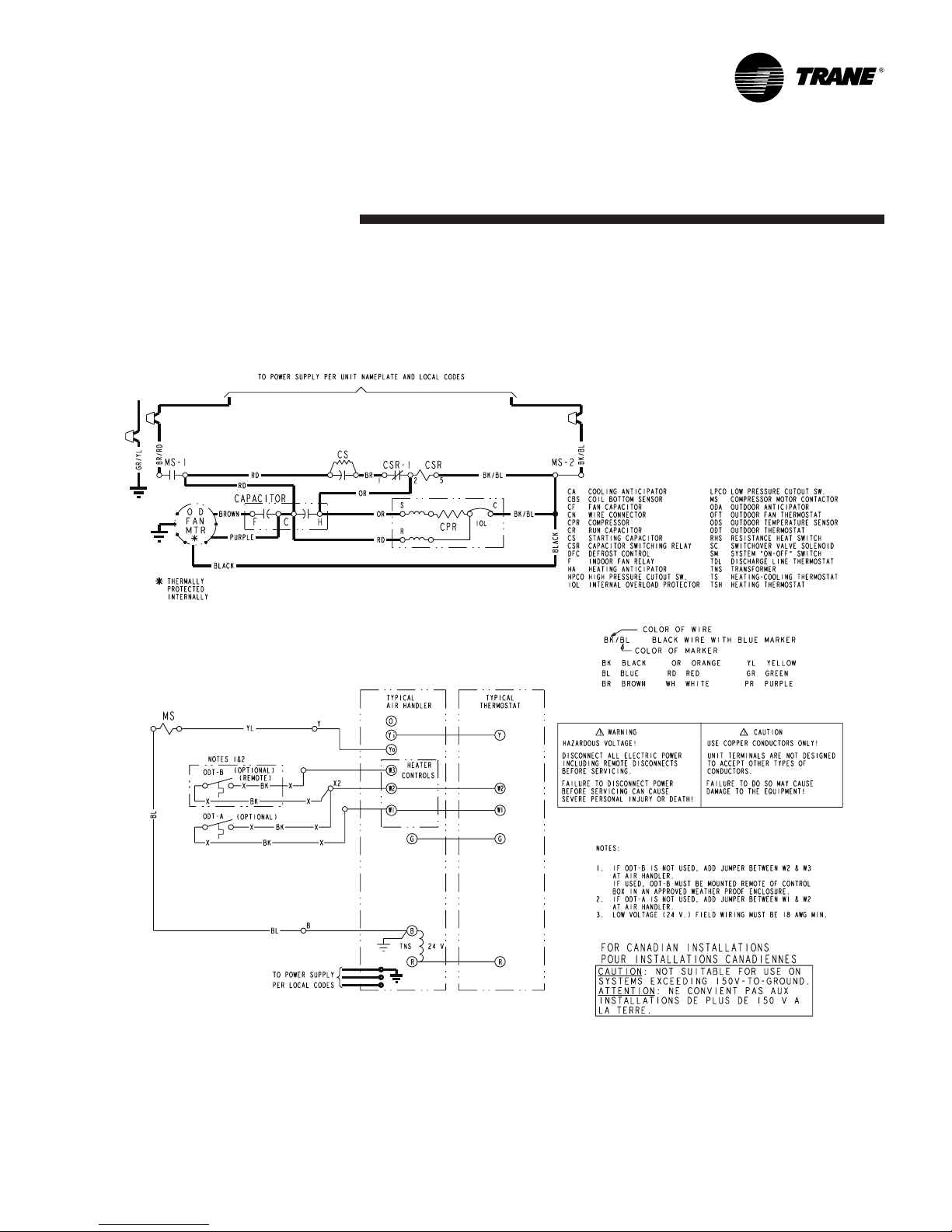

Schematic Diagrams
(SEELEGEND)
2TTB3018,024,030A

 8 22-1769-07

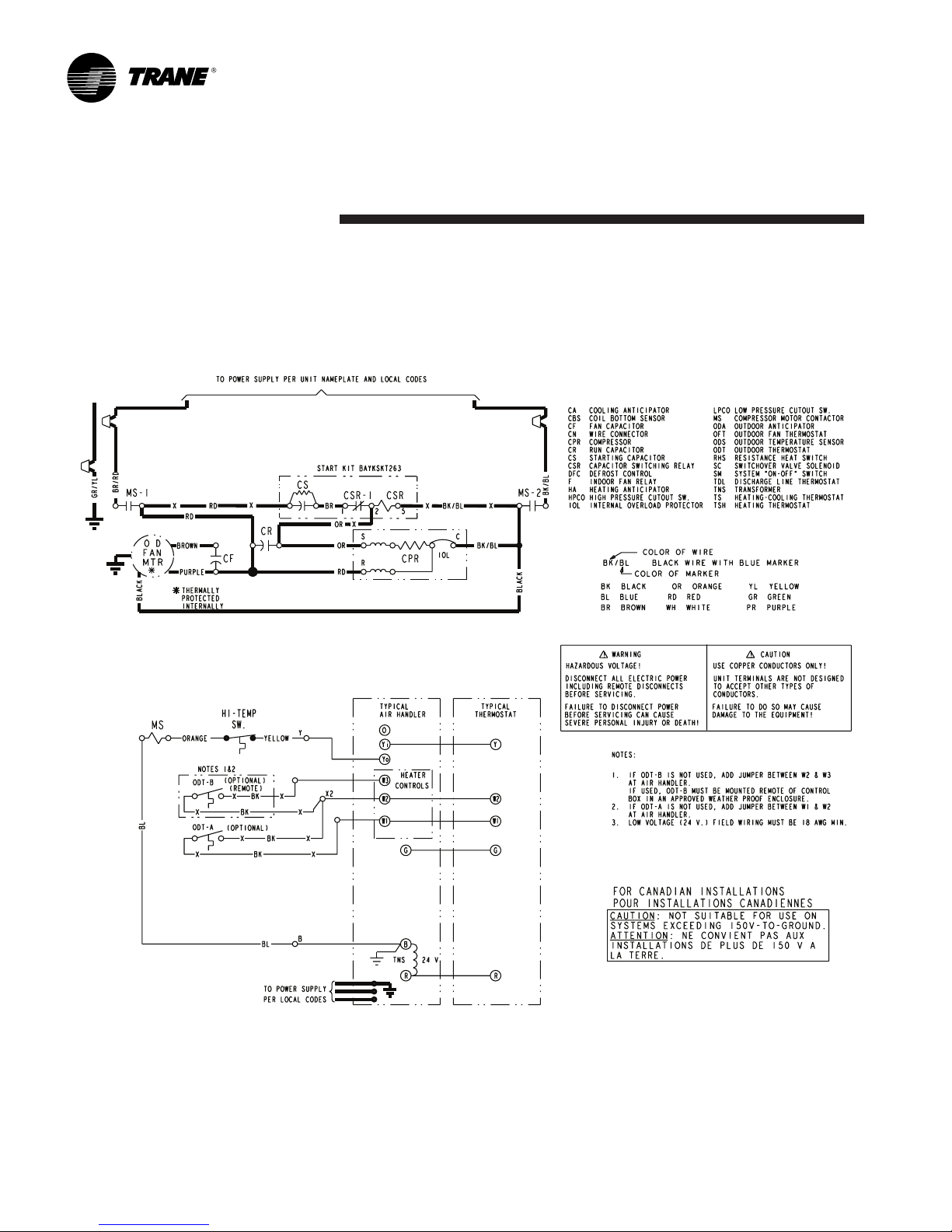

Electrical
Data
2TTB3036A1000C
Schematic Diagrams
(SEELEGEND)

22-1769-07 9
Electrical
Data
2TTB3042A1000C, 2TTB3048A1000C
Schematic Diagrams
(SEELEGEND)

10 22-1769-07
Electrical
Data
Schematic Diagrams
(SEELEGEND)
2TTB3060A1000C

22-1769-07 11
LEGEND
SYMBOLS
Electrical
Data

12 22-1769-07

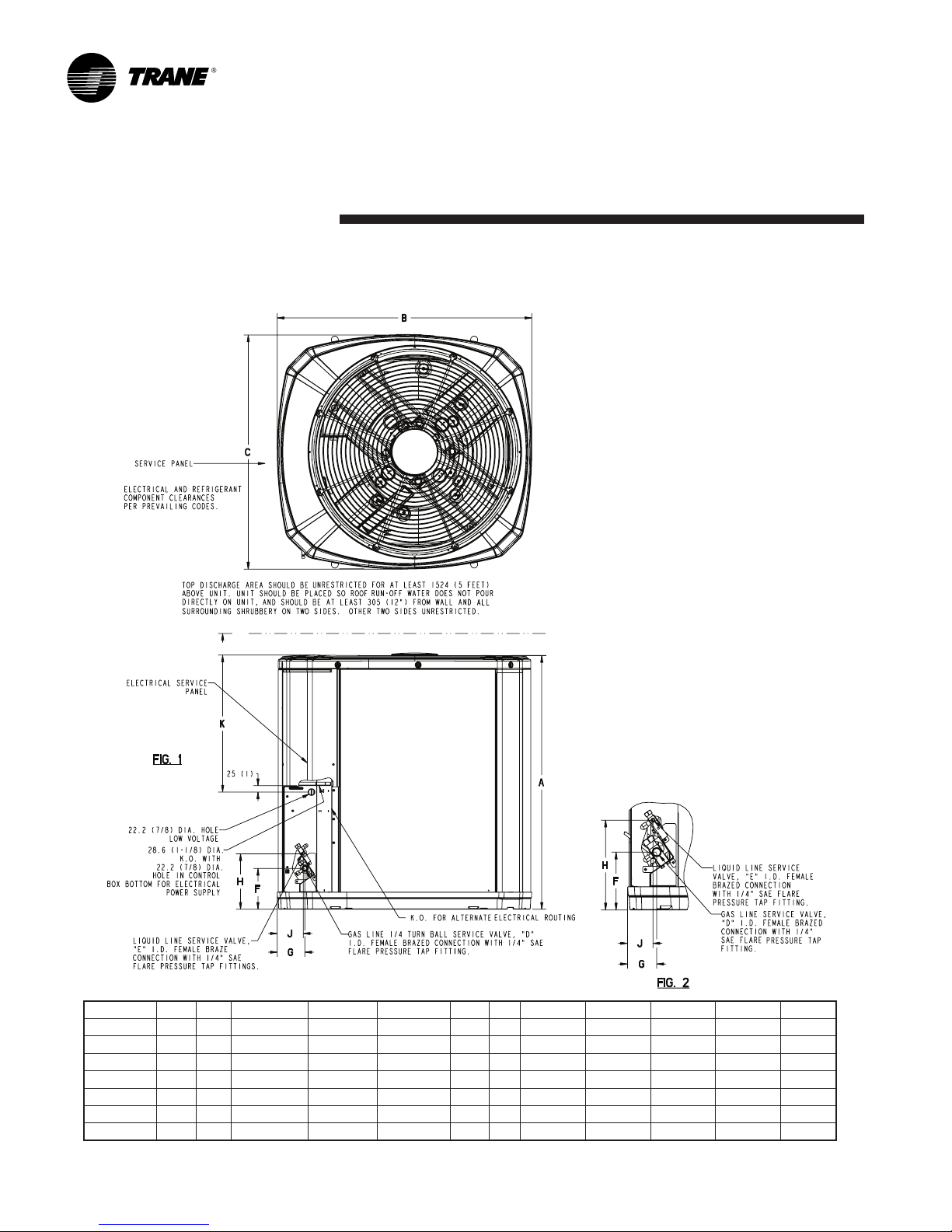

Dimensions
2TTB3 Outline Drawing
NOTE: ALL DIMENSIONS ARE IN MM (INCHES)
FromDwg.21D153074Rev.10
MODELS BASE FIG. A BC D E F G H J K
2TTB3018A 2 2 651(25-5/8) 724(28-1/2) 651(25-5/8) 5/8 1/4 127(5) 57(2-1/4) 181(7-1/8) 44(1-3/4) 457(18)
2TTB3024A 2 2 832(32-3/4) 724(28-1/2) 651(25-5/8) 3/4 5/16 137(5-3/8) 65(2-5/8) 210(8-1/4) 57(2-1/4) 457(18)
2TTB3030A 3 2832(32-3/4) 829(32-5/8) 756(29-3/4) 3/4 5/16 137(5-3/8) 86(3-3/8) 210(8-1/4) 79(3-1/8) 508(20)
2TTB3036A 3 2832(32-3/4) 829(32-5/8) 756(29-3/4) 7/8 3/8 137(5-3/8) 86(3-3/8) 210(8-1/4) 79(3-1/8) 508(20)
2TTB3042A 4 1841(33-1/8) 946(37-1/4) 870(34-1/4) 7/8 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)
2TTB3048A 4 11045(41-1/8) 946(37-1/4) 870(34-1/4) 1-1/8 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)
2TTB3060A 4 11045(41-1/8) 946(37-1/4) 870(34-1/4) 1-1/8 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)

22-1769-07 13
Mechanical
Specification Options
General
The2TTB3isdesignedtooperateat
outdoorambienttemperaturesashigh
as115°F.Coolingcapacitiesshallbe
matchedwithawideselectionofair
handlersandfurnacecoilsthatare
A.H.R.I.certied.Theunitshallbecerti-
edtoULStandard1995.Exteriormust
bedesignedforoutdoorapplication.
Casing
Unitcasingisconstructedofheavy
gauge,galvanizedsteelandpaintedwith
aweather-resistantpowderpaint.Corro-
sionandweatherproofCMBP-G30base.
Refrigerant Controls
Refrigerationsystemcontrolsinclude
condenserfanandcompressorcontac-
tor.Highandlowpressurecontrolsare
inherenttothecompressor.Another
standardfeatureistheliquidlinedryer.
Compressor
Thecompressorfeaturesinternalover
temperatureandpressureprotector,
totaldippedhermeticmotorandthermo-
staticallycontrolledsumpheater.Other
featuresinclude:centrifugaloilpump,
andlowvibrationandnoise.
Condenser Coil
TheSpineFin™coilshallbecontinuous-
lywrapped,corrosionresistantallalu-
minumwithminimumbrazedjoints.This
coilis3/8inchO.D.seamlessaluminum
gluedtoacontinuousaluminumn.
Coilsarelabtestedtowithstand2,000
poundsofpressurepersquareinch.The
outdoorcoilprovideslowairowresis-
tanceandefcientheattransfer.Thecoil
isprotectedonallfoursidesbylouvered
panels.
Low Ambient Cooling
Asmanufactured,thisunithasacool-
ingcapabilityto55°F.Theadditionof
anevaporatordefrostcontrolpermits
operationto40°F.Theadditionofan
evaporatordefrostcontrolwithTXVper-
mitslowambientcoolingto30°F.
Accessories
Thermostats — Heating/Cooling
(manualandautomaticchangeover).
Sub-basetomatchthermostatandlock-
ingthermostatcover.
Evaporator Defrost Control — See
LowAmbientCooling.
Outdoor Thermostat — Supplemen-
talheatoutdoorambientlockoutfrom
46to–10°F.

  08/12
Trane has a policy of continuous product and product data improvement and it reserves the right to change
design and specifications without notice.
Trane
www.trane.com
