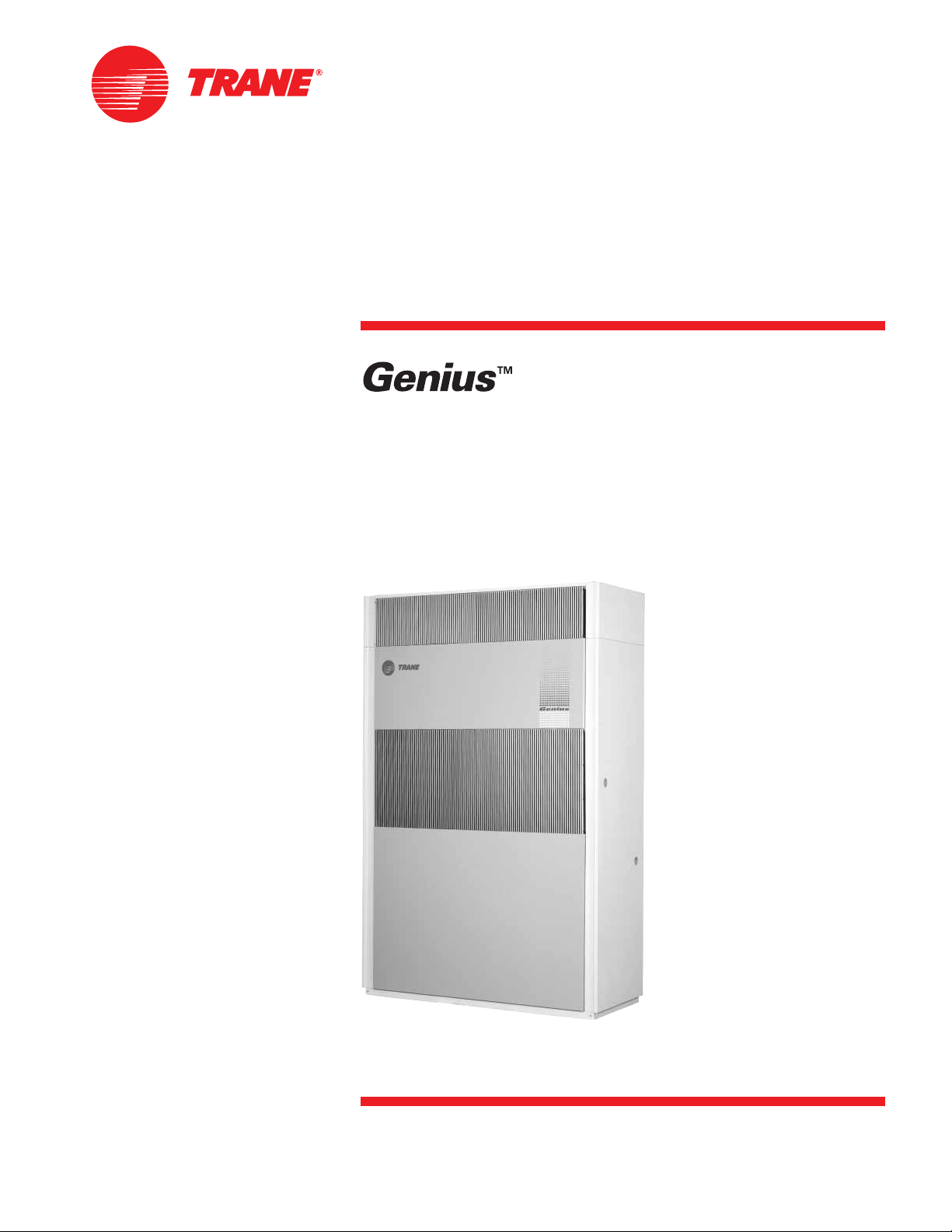

Trane Genius PKG-PRC007-EN User manual

Ver tic al
Self-Contained
Air Conditioning
Air and Water Cooled
5 - 15 Tons
60 Hz
PKG-PRC007-EN

PKG-PRC007-EN
©American Standard Inc. 2000
Introduction
The TRANE Company, a world leader in
the HVAC industry, has developed
another option to meet the needs of our
customers . . . the Genius! Built to
provide not only the indoor comfort but
also the confidence that the unit is
reliable, durable, easy to install and
maintain.
The Genius line has been designed to
satisfy the demands of the international
markets.
IAQ standards, microcontrols and
simplified maintenance were all
considered during its design.

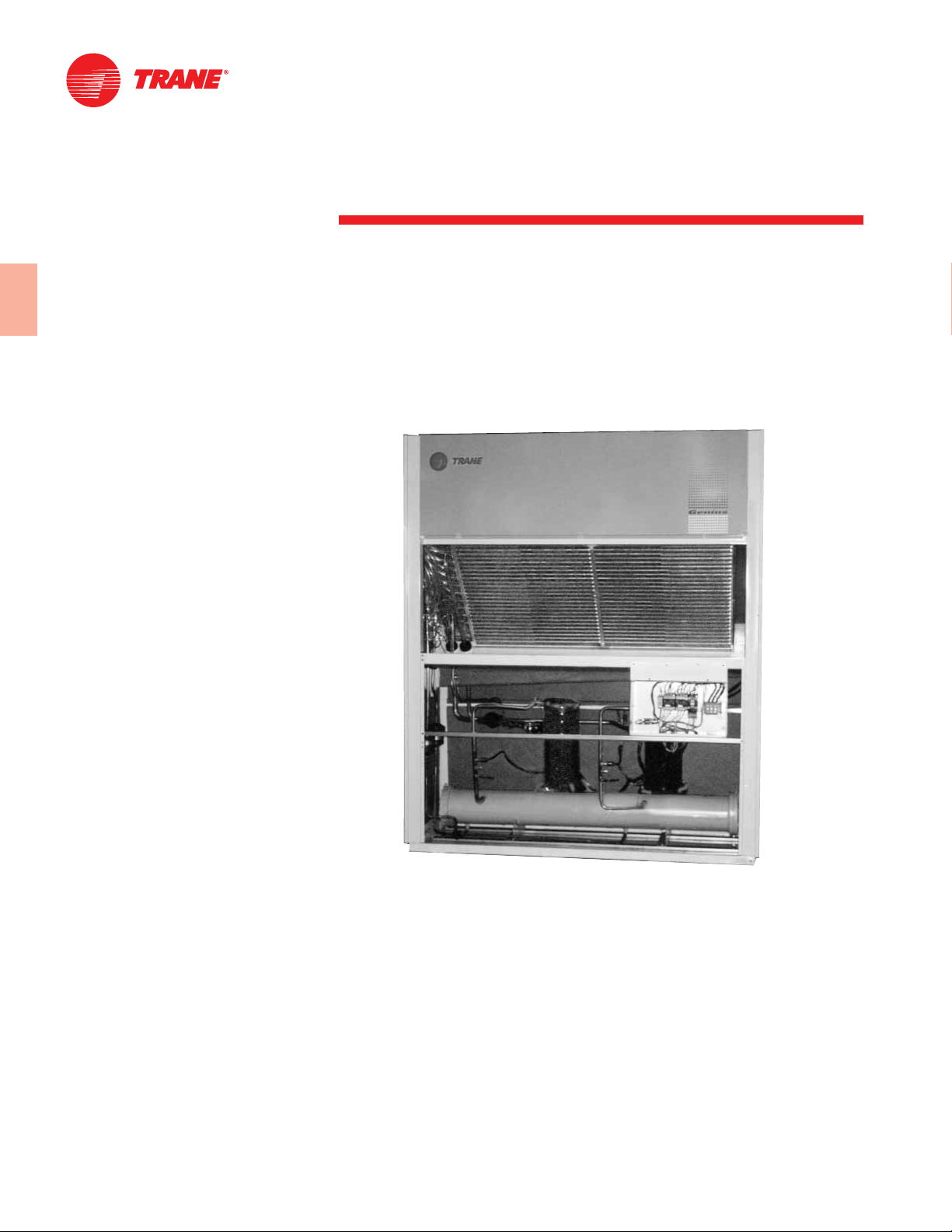

Water Cooled Unit

3
Contents
PKG-PRC007-EN
I ntroduction 2
Features and Benefits 4
Model Number Description 8
General Data 9
Selection Procedure 10
Performance Data 11
Controls 36
Electrical Data 37
Dimensions 47
Mechanical Specification 51

PKG-PRC007-EN4
Features and
Benefits
The Genius line was built to provide not
only ultimate indoor comfort but also
the comfort of knowing that our self-
contained units are reliable as well as
easy to install and maintain.
Genius is the most flexible vertical self-
contained of the market. Suitable to use
in offices, residences or restaurants.
Available as water cooled, integrated air
cooled (or package unit) or with remote
air coded condenser; the modern design
of the Genius line allows you, for the first
time, to select the color of the unit.
Why Consider Self-Contained
Floor-by-Floor Systems?
Improved Cash Management
•Factory installed options and testing:
Reduces field labor and installation risk
and improves system reliability
•Requires less sophisticated maintenance
than built-up systems
Tenant Satisfaction
•Complete HVAC system on each floor or
area minimizes tenant inconvenience
during routine maintenance.
•Tenants can control system after hours
to increase productivity and minimize
expense
Low First Cost
•Factory packaged controls and piping
reduce field labor, installation time and
cost
•Flexible arrangement to match most
building configurations
Lower Installed Cost
•Single point power connection
•Single point water connection
•Factory commissioned and tested
controls
•Factory installed options
Economical Operation
•Floor-by-floor system results in energy
savings since only air conditioners on
floors requiring cooling need to operate
•Annual system energy consumption
comparable to central chilled water
system but with significant energy
consumption reduction during partial
occupancy and after-hours
Assured Acoustical Performance
•Horizontal discharge plenum provides
smooth airflow, reducing static pressure
losses for optimum acoustical
performance.
•Scroll compressor design smooths gas
flow for quieter operation
Micro Controls
Trane was the first to introduce
Microelectronics to commercial unitary
products and has continued to expand
its application to other products.
The new self-contained with Micro
provides the highest performance,
reliability and best serviceability in the
industry. Trane, a world class
manufacturer can provide this winning
combination for your facility.
The Trane Micro, provided as a factory
installed option, was designed with two
thoughts in mind: reliability and comfort.
The Micro accurately orchestrates all
other system operations whether it is
heating or cooling.
Since it is factory mounted it will provide
smooth, trouble-free start-up.
The microprocessor provides powerful
operation and diagnostic information.
The micro eliminates the need for a field
installed anti short-cycle timer and time
delay relays, which are an integral part
of the micro controller.
The IAQ standard, the microelectronics
and the simplified maintenance
capability were all considered a priority
during the design phase of this self-
contained unit.
SRVE
(with discharge plenum)

5PKG-PRC007-EN
Features and
Benefits
Air Handling Section
In accordance to the ASHRAE Standard
62-89 for Indoor Air Quality, Trane has
developed an exclusive and innovative
design for the drain pan. This design
insures proper drainage, preventing
conditions of water stagnation that could
result in microbial growth.
All the air handlers feature a factory
installed belt drive and ball bearing
evaporator fan with adjustable shelves.
The unit can be installed indoors; the
condenser air can be ducted to the
outside or installed in a remote location.
For free horizontal application, the
optional discharge plenum with
aluminum grills insures a quiet
operation and maintains the aesthetics
of the units.
In the return section an optional
aluminum grill grants an easy and
elegant installation.
3 Filter Types
To meet Commercial and Industrial
needs you can select the filter media for
the application.
Nylon Electrostatic Filters
Wire Mesh Permanent Filters
Throwaway Filters
Many other options available as special
(Contact your local Trane
Representative).
Scroll Compressor
offers significant efficiency and reliable
benefits. With fewer moving parts than
comparable reciprocating compressors,
there is less internal friction and
therefore greater efficiency. A smooth
compressor cycle, due to the low torque
variation, creates less stress on the
motor for greater reliability and
efficiency.
How the Scroll Compressor Works
General
The compressor has two scrolls. The top
scroll is fixed and the bottom scroll
orbits. Each scroll has walls in a spiral
shape that intermesh.
Inlet — First Orbit
As the bottom scroll orbits, two
refrigerant gas pockets are formed and
enclosed.
Compression — Second orbit
The refrigerant gas is compressed as the
volume is reduced closer to the center of
the scroll.
Discharge — Third Orbit
The gas is compressed further and
discharged through a small port in the
center of the fixed scroll.

PKG-PRC007-EN6
Features and
Benefits
Integrated Self-Contained Systems:
Profitable, Simple
Integrated Comfort™System (ICS)
Trane’s Integrated Comfort™system
improves job profit and increases job
control by combining Trane self-
contained units and a Tracker®building
management system. This integrated
system provides total building comfort
and control. The primary motivation for
building owners/managers in making the
purchasing decision of an HVAC controls
system is no longer just saving energy; it
is having the ability to automate their
facilities and the convenience of interface
to control systems.
As an additional benefit the Micro
allows the Genius to be integrated to
the Tracker. This ability allows the
multiple units to be controlled and
diagnosed from a central location, from
across town or even across the country.
Just imagine the HVAC installed in your
facility capable of being scheduled,
monitored and let you know when it is
having problems.
Genius is three times ingenious in many
ways.
Available in 3 models
SRVE - Self-contained unit with
INTEGRATED air cooled condenser
SIVE - Self contained unit with REMOTE
air-cooled condenser
SAVE - Self-contained WATER-cooled
unit with shell and tube condenser
Available 3 Colors
The attractive highly functional design of
the Genius line offers the customers the
selection of three equipment colors to
blend with any architectural style:
Gray
Black
Red
3 Motor Sizes
The units have the capability to meet any
static pressure application up to 1.5”
with their 3 options:
- Low Static Motor Option
- Medium Static Option
- High Static Option
Programmable Thermostat (PT)
PT programming is very simple! PT has
a display that shows the hour, the day of
the week, the selected program and the
ambient temperature. PT can be
programmed for up to four setpoints for
each day of the week. Using the button
“timed-override” the customer can
prolong the machine operation beyond
the programmed schedule, according to
customer needs.
3 Filter Options
Three filter options exist which may be
installed in Genius units.
1. Permanent washable filters of
electrostatic fabric (standard).
2. Disposable 2” filters.
3. The combination of the two placed in
series.
3 Control Options
Standard Thermostat
All units are furnished with a standard
thermostat that can be installed
remotely or directly on the equipment.
Microcontrol
This state of the art control offers a
complete family of sensors and wall
mounted devices to compliment the
capabilities of the Trane Micro.

7PKG-PRC007-EN
Features
Summary
Quality and Reliability
•Galvanized steel casing
•Synthetic enamel paint
•Innovative Drain Pan
•Scroll Compressors
Flexibility
•Air or Water Cooled
•Free discharge plenum or ducted
discharge
•Voltages available:
220/3/60, 440/3/60, 380/3/60 and 380/50/3
Controls
•Thermostat unit mounted or remote
•Optional Programmable thermostat
•Optional Microprocessor
•ICS compatible, Tracker is your ideal
partner for small buildings applications.
Filters
•Throwaway
•Washable - Nylon type
•Washable - Aluminum Mesh
Wide range of Models available:
SRVE: Self Contained with Integral Air Cooled Condenser
SIVE: Self Contained with Remote Air Condenser
SAVE: Self Contained with Water cooled
Nominal Capacity: From 5 to 15 Tons
You can reach up to 1.5” esp with our Double Inlet Forward curved
Supply fan. It also has variable V-belt drives.
The case has been insulated with BIDIM insulation.
Other options:
Aluminum decorative grill
Plenum discharge box for free air discharge
Service Valves
Sight Glass
Solenoid Valve

PKG-PRC007-EN8

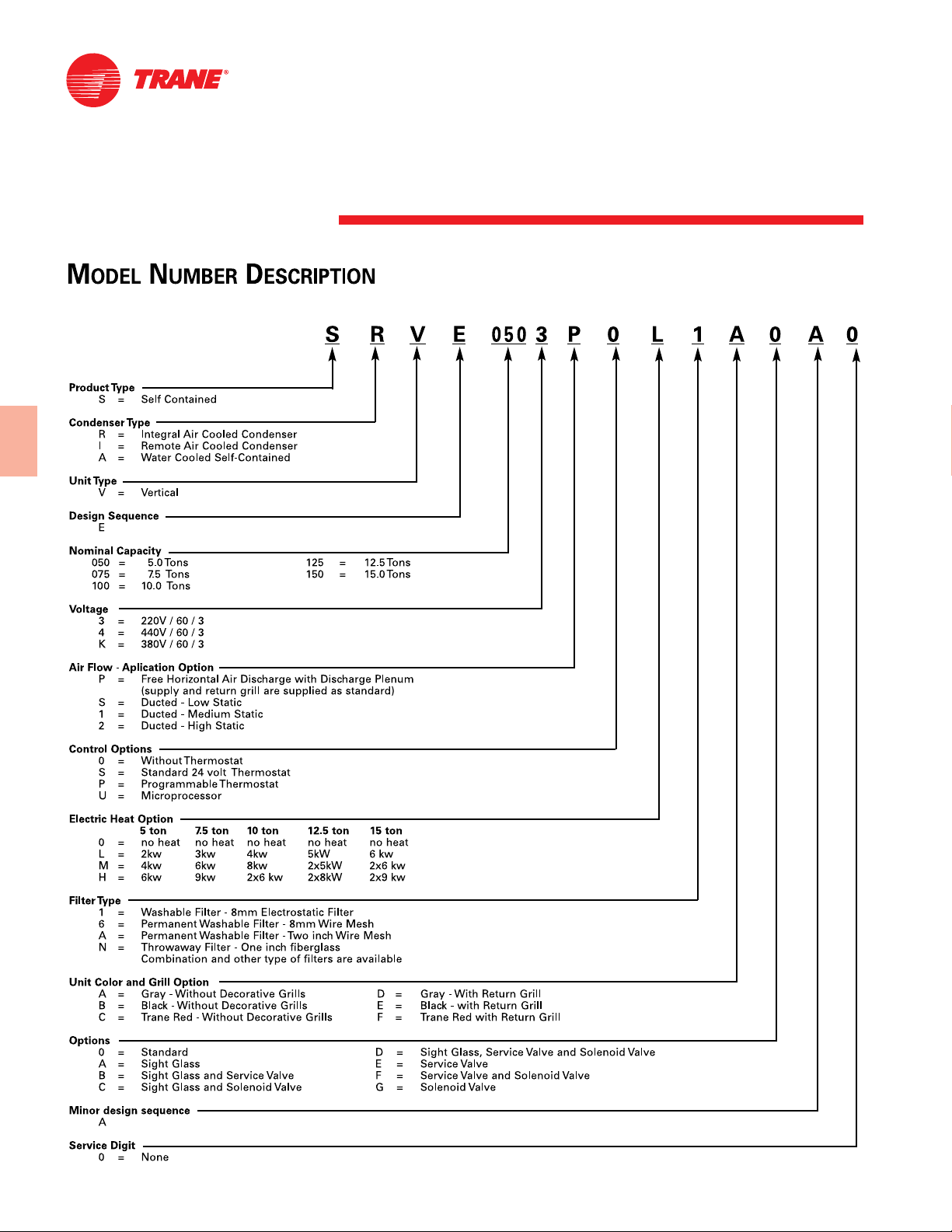

Model
Number
Description

9PKG-PRC007-EN
Table GD-1 — Genius – General Data
SAVE Model 050 T 075 T 100 2T 125 2T 150 2T
Nominal TR Capacity 5 7.5 10 12.5 15
Length (mm) 960 1190 1500 1700 1700
Depth (mm) 600 600 600 600 600
Height (mm) 2000 2000 2000 2000 2000
Height w/ Plenum Box (mm) 2295 2295 2295 2295 2295
Net Weight (kg) 247 288 376 440 461
SRVE Model 050 T 075 T 100 2T 125 2T 150 2T
Nominal TR Capacity 5 7.5 10 12.5 15
Length (mm) 960 1190 1500 1700 1700
Depth (mm) 720 720 830 1000 1000
Height (mm) 2000 2000 2000 2000 2000
Height w/ Plenum Box (mm) 2295 2295 2295 2295 2295
Net Weight (kg) 268 310 416 459 490
SIVE Model 050 T 075 T 100 2T 125 2T 150 2T
Nominal TR Capacity 5 7.5 10 12.5 15
Evaporator Units
Quantity/Model 1/SIVE050 1/SIVE075 1/SIVE100 1/SIVE125 1/SIVE 150
Length (mm) 960 1190 1500 1700 1700
Depth (mm) 600 600 600 600 600
Height (mm) 2000 2000 2000 2000 2000
Height w/ Plenum Box (mm) 2295 2295 2295 2295 2295
Net Weight (kg) 190 225 235 347 392
Condensing Units
Quantity/Model 1/CRCB050 1/CRCB075 1/CRCB100 1/CRCB125 1/CRCB150
Length (mm) 987 1241 1341 1646 1646
Depth (mm) 631 631 631 714 714
Height (mm) 890 890 941 1018 1247
Net Weight (kg) 93 124 139 180 212
Compressor
Quantity TR 1 / 5 1 / 7.5 2 / 5 5 + 7.5 2 / 7.5
Evaporator Coil
Rows 3 3 3 3 4
Finned Height (mm) 536 508 612 663 714
Finned Length (mm) 711 965 1143 1328 1321
Finned Clearance (m) 0.38 0.49 0.70 0.88 0.94
FPF ( Fins Per Foot) 132 132 132 132 132
Evaporator Fan
Quantity 1 1 2 2 2
Diameter x Length 270 x 270 321 x 321 270 x 270 321 x 321 321 x 321
Plenum Box Option (CV) 0.5 0.5 0.5 0.5 1.0
Standard Motor Option (CV) 1.0 1.5 1.5 2.0 3.0
Motor Option 1 (CV) 1.0 2.0 2.0 3.0 4.0
Motor Option 2 (CV) 1.5 3.0 3.0 4.0 5.0
Minimum Air Flow (m3/h) 3060 4590 6120 7650 9180
Maximum Air Flow (m3/h) 3825 5740 7650 9560 11475
Condenser Fan
(SRVE and CRCB)
Quantity 1 1 2 2 2
Diameter x Length 321 x 321 321 x 321 270 x 270 321 x 321 321 x 321
Motor (CV) 1.0 3.0 3.0 4.0 5.0
Air Flow (CFM) 5450 8315 9935 13930 17320
Water Condenser
(SAVE)
Minimum Water Flow GPM 1.4 2.0 2.7 3.4 4.1
Maximum Water Flow GPM 4.0 6.0 8.0 9.9 11.9
Maximum Pressure Drop (ca feet) 1.9 4.6 1.8 3.0 3.1
Condenser Coil
(SRVE, CRCB)
Rows 4 4 4 4 4
Finned Height (mm) 711 813 864 940 1168
Finned Length (mm) 762 1016 1143 1473 1473
FPF (Fins per Foot) 168 168 168 168 168
General
Data

PKG-PRC007-EN10
Selection
Procedure
The selection of a Genius self-contained
unit can be accomplished in three easy
steps.
1
LOAD: Determine the load requirements
for heating and cooling (include outside
air) using Trane’s load estimate forms,
TRACE®Easy/600 or any standard
method.
2
UNIT TYPE: Self-contained air
conditioners are available in either
water-cooled or remote air-cooled
models to match individual needs.
3
SELECT THE UNIT: The conditions under
which the unit must operate and the
design load will give the final selection.
SELECTION EXAMPLE
Design Conditions
Water-cooled unit
Entering air temperature — 80/67 F
Total gross capacity required —
55,000 BTUH
Entering water temperature — 85 F
Leaving water temperature — 92 F
Airflow — 1,950 CFM at 0.5” duct static
pressure.
Voltage
Unit Selection
Tentatively select a 5-ton unit — Model
SAVE050. Refer to Table PD-6 to obtain
gross total and sensible unit capabilities,
gpm, and leaving water temperature at
nominal conditions:
Total MBh — 60.6
Sensible MBh — 43.5
GPM — 14.5
LWT — 95
The SAVE-050 meets the total and
sensible design requirements.
Since the difference between entering
and leaving water is 7°F multiply the
capacities and water flow by correction
factors on Capacity Correction Factor
Table.
Cooling capacity multiplier 1.01
Sensible capacity multiplier 1.05
Water flow multiplier 1.39
60.6 x 1.01 = 61.21 MBh
43.5 x 1.01 = 43.94 MBh
14.5 x 1.39 = 20.16 GPM
Refer to Table PD-1 to determine
approximate brake horsepower and fan
rpm:
1035 rpm and 0.66 bhp.
Determine net capacities by subtracting
fan motor heat from gross capacities:
2.8 x 0.66 bph = 1.85 MBh
Net total capacity =
61.21 - 1.85 = 59.36 MBh
Net sensible capacity =
43.94 - 1.85 = 42.09 MBh
Supply air temperature DB
Qs= 1.085 x CFM x (Tr-TS)
42,090 = 1.085 x 1950 x (80-TS)
TS= 80 - 42,090
(1.085) (1950)
TS= 60.1°F
Air-Cooled
Design Conditions
— 80 F/67 F DB/WB return air
temperature
— 95 F Ambient
— 109300 BTUH Total Net
— 76500 BTUH Sensible Net
— 0.380 External Static Pressure
(evaporator fan)
— 4200 CFM
— 0.25 External static pressure
(condenser fan)
Required
1. Select unit
2. Fan speed and BHP for
a) Evaporator fan
b) Condenser fan
3. Supply air temperature DB
Solution
1. Select Unit
Initially Select a 10-Ton Unit
From Table PD-13
80/67 EAT
95 F AMB = 118.7 MBh Total Gross
4200 CFM 86.6 MBh Sensible
2. Fan speed and BHP determination
Total Static Pressure
Evaporator
0.380 esp
From Table PD-3
Evaporator
10-ton unit
4200 CFM = 1107 RPM
0.5 ESP = 1.63 BHP
Note: If values fall between cfm’s or
esp’s it is proper to interpolate between
values. Do not extrapolate beyond
values in catalog. Contact Trane
marketing department for assistance.
Fan Motor Heat Equation
Fan motor heat = 2.8 x 1.63 = 4.56 MBh
Net total capacity = 118.7 - 4.50
= 114.14 MBh
Net sensible capacity = 86.6 - 4.56
= 82.04 MBh
Conclusion:
Required — 109300 BTUH Total Net
76500 BTUH Total
Sensible Net
Provided — 114140 BTUH Total Net
82040 BTUH Total Net
The 10-ton unit is the proper choice for
this application.

11PKG-PRC007-EN
Three transmission options exist for the
evaporator fan motor: Std. option,
option 1, option 2. In addition, there is an
option for those cases in which the unit
is operated with a plenum box. The
motors for each transmission option can
be found in the general facts tables.
Performance
Data
Fan
Data
Table PD-1 — Fan Performance SRVE/SIVE/SAVE 5 Tons
External static pressure with permanent air filter inches of water (Pa)
.08 .16 .24 .31 .39 .50
Model Airflow (19.9) (39.8) (59.8) (77.2) (97.1) (124.5)
Option 5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1802 3060 815 0.40 852 0.43 888 0.45 923 0.48 957 0.51 990 0.54
MT 1.0 CV 1877 3188 843 0.45 879 0.48 914 0.51 948 0.53 981 0.57
MS: 78,5 A 106,5 1952 3315 869 0.50 904 0.53 938 0.56 971 0.59 1003 0.62
STD FS: 184 (8") 2028 3443 897 0.56 931 0.59 964 0.62 996 0.65
B: 1X A36 2102 3570 925 0.62 957 0.65 989 0.68
2178 3698 952 0.68 984 0.71
2253 3825 981 0.75
External static pressure with permanent air filter inches of water (Pa)
.94 1.10 1.26 1.42 1.57
Model Airflow (234.1) (273.9) (313.7) (353.6) (390.9)
Option 5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1802 3060 1289 0.91 1343 0.98 1395 1.05
MT 1.5 CV 1877 3188 1305 0.97 1358 1.05 1409 1.12
MS: 78.5 A 106.5 1952 3315 1267 0.95 1320 1.03 1372 1.11 1422 1.19
OP2 BS: 108 (5") 2028 3443 1284 1.02 1337 1.10 1387 1.18 1437 1.25
B: 1X A31 2102 3570 1302 1.09 1353 1.16 1403 1.24 1452 1.32
2178 3698 1269 1.08 1320 1.15 1371 1.23 1420 1.31 1467 1.39
2253 3825 1289 1.14 1340 1.22 1389 1.30 1437 1.39
MT = Motor (CV).
MS = Motor Sheave, variable pitch (mm).
FS = Fan Sheave (mm).
B = Belt.
External static pressure with permanent air filter inches of water (Pa)
.16 .24 .31 .39 .50 .63 .79 .94 1.10
Model Airflow (39.8) (59.8) (77.2) (97.1) (124.5) (156.9) (196.7) (234.1) (273.9)
Option 5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1802 3060 1055 0.61 1117 0.68 1176 0.75 1234 0.83
MT 1.0 CV 1877 3188 1013 0.60 1076 0.67 1136 0.74 1195 0.81 1251 0.89
MS: 78,5 A 106,5 1952 3315 1035 0.66 1096 0.73 1155 0.80 1212 0.88
OP1 FS: 133 (6") 2028 3443 1027 0.68 1058 0.72 1117 0.79 1175 0.86 1230 0.94
B: 1X A32 2102 3570 1020 0.71 1051 0.75 1081 0.78 1139 0.85 1195 0.93 1249 1.01
2178 3698 1015 0.74 1045 0.78 1075 0.81 1104 0.85 1160 0.92 1215 1.00
2253 3825 1012 0.78 1042 0.81 1071 0.85 1100 0.88 1128 0.92 1183 0.99 1237 1.07

PKG-PRC007-EN12
Performance
Data
Fan
Data
Table PD-2 — Fan Performance SRVE/SIVE/SAVE 7.5 Tons
External static pressure with permanent air filter inches of water (Pa)
.08 .16 .24 .31 .39 .50
Model Airflow (19.9) (39.8) (59.8) (77.2) (97.1) (124.5)
Option 7.5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
2703 4590 688 0.64 720 0.68 751 0.72 781 0.77 811 0.82 840 0.87
MT 1.5 CV 2815 4780 712 0.72 743 0.76 773 0.81 802 0.86 831 0.91 859 0.96
MS: 78,5 A 106,5 2927 4970 735 0.81 765 0.85 794 0.90 822 0.95 850 0.99 877 1.05
STD BS: 209 (9") 3041 5163 760 0.90 788 0.95 816 1.00 844 1.05 871 1.10
B: 1X A35 3154 5355 784 1.01 811 1.06 838 1.10 865 1.15
3267 5548 808 1.12 834 1.17 861 1.22
3380 5740 834 1.24 859 1.29
External static pressure with permanent air filter inches of water (Pa)
1.26 1.42 1.57
Model Airflow (313.7) (353.6) (390.9)
Option 7.5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP
2703 4590 1193 1.60
MT 3.0 CV 2815 4780 1159 1.61 1204 1.75
MS: 80 A 110 2927 4970 1171 1.74 1215 1.88
OP2 BS: 118 (5") 3041 5163 1184 1.86 1227 2.03
B: 1X B27 3154 5355 1198 2.01 1240 2.17
3267 5548 1169 1.97 1211 2.16 1253 2.34
3380 5740 1185 2.15 1227 2.32 1268 2.50
MT = Motor (CV).
MS = Motor Sheave, variable pitch (mm).
FS = Fan Sheave (mm).
B = Belt.
External static pressure with permanent air filter inches of water (Pa)
.24 .31 .39 .50 .63 .79 .94 1.10 1.26 1.42
Model Airflow (59.8) (77.2) (97.1) (124.5) (156.9) (196.7) (234.1) (273.9) (313.7) (353.6)
Option 7.5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
2703 4590 896 0.97 950 1.08 1002 1.19 1052 1.30 1100 1.41 1147 1.51
MT 2.0 CV 2815 4780 913 1.06 966 1.17 1017 1.28 1066 1.39 1113 1.50
MS: 78,5 A 106,5 2927 4970 931 1.16 982 1.26 1031 1.37 1079 1.49 1126 1.60
OP1 BS: 159 (7") 3041 5163 897 1.15 949 1.25 999 1.36 1047 1.47 1094 1.59 1140 1.72
B: 1X A32 3154 5355 891 1.21 917 1.26 968 1.36 1016 1.47 1064 1.59 1110 1.71 1154 1.83
3267 5548 886 1.27 912 1.32 937 1.37 986 1.47 1034 1.58 1080 1.70 1125 1.83
3380 5740 885 1.34 910 1.39 935 1.44 959 1.49 1007 1.59 1053 1.70 1098 1.83 1142 1.96

13PKG-PRC007-EN
Table PD-3 — Fan Performance SRVE/SIVE/SAVE 10 Tons
External static pressure with permanent air filter inches of water (Pa)
.08 .16 .24 .31 .39
Model Airflow (19.9) (39.8) (59.8) (77.2) (97.1)
Option 10 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
3604 6120 839 0.84 875 0.89 911 0.94 945 1.00 979 1.07
MT 1.5 CV 3754 6375 866 0.94 902 0.99 936 1.05 969 1.11 1002 1.17
MS: 78,5 A 106,5 3905 6630 895 1.04 929 1.10 963 1.16 995 1.23
STD BS: 184 (8") 4055 6885 924 1.16 957 1.22 989 1.28
B: 1X A35 4205 7140 954 1.29 986 1.35
4355 7395 984 1.42
4505 7650
External static pressure with permanent air filter inches of water (Pa)
.08 .16 .24 .31 .39 .50 .63 .79 .94 1.10 1.26
Model Airflow (19.9) (39.8) (59.8) (77.2) (97.1) (124.5) (156.9) (196.7) (234.1) (273.9) (313.7)
Option 10 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
3604 6120 1012 1.13 1075 1.26 1136 1.41 1195 1.55 1252 1.71 1307 1.87
MT 2.0 CV 3754 6375 1034 1.24 7096 1.38 1156 1.53 1213 1.68 1269 1.83
MS: 78,5 A 106,5 3905 6630 1027 1.29 1058 1.36 1118 1.51 1176 1.66 1232 1.81
OP1 BS: 133 (6") 4055 6885 1021 1.35 1051 1.42 1082 1.49 1140 1.64 1197 1.79
B: 1X A31 4205 7140 1017 1.42 1048 1.49 1078 1.56 1107 1.63 1164 1.78
4355 7395 1015 1.49 1045 1.55 1075 1.63 1104 1.70 1132 1.77
4505 7650 1013 1.56 1043 1.63 1072 1.70 1101 1.77 1130 1.84 1157 1.92
External static pressure with permanent air filter inches of water (Pa)
.63 .79 .94 1.10 1.26 1.42 1.57
Model Airflow (156.9) (96.7) (234.1) (273.9) (313.7) (353.6) (390.9)
Option 10 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
3604 6120 1360 2.01 1412 2.16
MT 3.0 CV 3754 6375 1322 1.98 1375 2.14 1425 2.29
MS: 80 A 110 3905 6630 1287 1.97 1340 2.12 1391 2.28 1441 2.43
OP2 BS: 118 (5") 4055 6885 1252 1.94 1305 2.10 1357 2.26 1407 2.42 1456 2.57
B: 1X B31 4205 7140 1220 1.93 1273 2.08 1325 2.24 1376 2.40 1425 2.56 1473 2.71
4355 7395 1188 1.92 1242 2.07 1295 2.23 1346 2.39 1395 2.54 1444 2.71
4505 7650 1212 2.06 1265 2.22 1316 2.37 1366 2.53 1414 2.69
MT = Motor (CV).
MS = Motor Sheave, variable pitch (mm).
FS = Fan Sheave (mm).
B = Belt.
Performance
Data
Fan
Data

PKG-PRC007-EN14
Performance
Data
Fan
Data
Table PD-4 — Fan Performance SRVE/SIVE/SAVE 12.5 Tons
External static pressure with permanent air filter inches of water (Pa)
.08 .16 .24 .31 .39 .50 .63
Model Airflow (19.9) (39.8) (59.8) (77.2) (97.1) (124.5) (156.9)
Option 12.5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
4505 7650 630 0.81 666 0.89 701 0.98 735 1.08 768 1.18 800 1.29 8.61 1.50
MT 2.0 CV 4694 7970 649 0.93 684 1.01 718 1.09 751 1.18 783 1.27 814 1.37
MS: 78,5 A 106,5 4882 8290 670 1.04 703 1.12 736 1.20 768 1.29 799 1.39 830 1.49
STD BS: 184 (8") 5069 8608 690 1.15 723 1.24 754 1.32 785 1.41 816 1.51 845 1.61
B: 1X A33 5256 8925 711 1.28 743 1.37 774 1.46 804 1.55 833 1.65 862 1.75
5445 9243 731 1.41 762 1.50 792 1.60 821 1.69 850 1.79
5630 9560 753 1.56 783 1.65 812 1.75 841 1.85
External static pressure with permanent air filter inches of water (Pa)
.39 .50 .63 .79 .94 1.10
Model Airflow (97.1) (124.5) (156.9) (195.7) (234.1) (273.9)
Option 12.5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
4505 7650 919 1.62 975 1.88 1029 2.06
MT 3.0 CV 4694 7970 874 1.57 931 1.79 985 2.00 1038 2.23
MS: 79 A 105 4882 8290 888 1.69 944 1.91 997 2.13 1049 2.35
OP1 FS: 169 (7") 5069 8608 902 1.82 957 2.04 1010 2.26 1060 2.48
B: 1X B32 5256 8925 918 1.97 971 2.18 1023 2.40
5445 9243 878 1.90 932 2.11 985 2.33 1035 2.55
5630 9560 868 1.95 896 2.06 949 2.27 1000 2.49
External static pressure with permanent air filter inches of water (Pa)
.94 1.10 1.26 1.42 1.57
Model Airflow (234.1) (273.9) (313.7) (353.6) (390.9)
Option 12.5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
4505 7650 1081 2.26 1131 2.52 1179 2.73
MT 4.0 CV 4694 7970 1089 2.44 1139 2.65 1187 2.81
MS: 79 A 105 4882 8290 1099 2.56 1148 2.77 1195 2.92
OP2 FS: 143 (6") 5069 8608 1109 2.69 1156 2.89 1203 3.13
B: 1X B29 5256 8925 1073 2.62 1121 2.84 1167 2.95 1213 3.20
5445 9243 1084 2.77 1131 2.98 1177 3.10
5630 9560 1050 2.71 1098 2.93 1144 3.15 1189 3.30
MT = Motor (CV).
MS = Motor Sheave, variable pitch (mm).
FS = Fan Sheave (mm).
B = Belt.

15PKG-PRC007-EN
Table PD-5 — Fan Performance SRVE/SIVE/SAVE 15 Tons
External static pressure with permanent air filter inches of water (Pa)
.08 .16 .24 .31 .39 .50
Model Airflow (19.9) (39.8) (59.8) (77.2) (97.1) (124.5)
Option 15 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
5406 9180 664 1.22 696 1.30 728 1.38 759 1.48 789 1.57 818 1.66
MT 3.0 CV 5632 9563 686 1.36 717 1.45 747 1.54 777 1.64 806 1.73
MS: 79 A 105 5857 9945 707 1.52 737 1.61 766 1.71 795 1.81
STD FS: 219 (9") 6080 10323 728 1.69 757 1.79 785 1.89 813 1.99
B: 1X B35 6302 10700 749 1.88 777 1.98 804 2.08
6530 11088 771 2.08 798 2.19
6758 11475 793 2.30
External static pressure with permanent air filter inches of water (Pa)
.16 .24 .31 .39 .50 .63 .79 .94 1.10 1.26
Model Airflow (39.8) (59.8) (77.2) (97.1) (124.5) (156.9) (196.7) (234.1) (273.9) (313.7)
Option 7.5 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
5406 9180 875 1.87 930 2.08 983 2.30 1033 2.52 1082 2.74
MT 4.0 CV 5632 9563 835 1.83 890 2.03 944 2.25 995 2.47 1045 2.69
MS: 79 A 105 5857 9945 824 1.91 852 2.01 906 2.21 958 2.43 1008 2.65 1057 2.87
OP1 FS: 169 (7") 6080 10323 841 2.09 868 2.19 921 2.40 972 2.61 1021 2.83 1069 3.06
B: 1X B31 6302 10700 832 2.19 858 2.28 885 2.39 936 2.59 986 2.80 1034 3.02
6530 11088 825 2.29 851 2.40 877 2.50 903 2.60 953 2.81 1002 3.02 1049 3.24
6758 11475 819 2.41 845 2.52 871 2.62 896 2.72 921 2.85 970 3.03 1017 3.23 1064 3.46
External static pressure with permanent air filter inches of water (Pa)
1.10 1.26 1.42 1.57
Model Airflow (273.9) (313.7) (353.6) (390.9)
Option 15 TR CFM (m3/h) RPM BHP RPM BHP RPM BHP RPM BHP
5406 9180 1130 2.95 1176 3.17
MT 5.0 CV 5632 9563 1093 2.91 1140 3.13 1185 3.37
MS: 79 A 105 5857 9945 1104 3.10 1150 3.33 1194 3.58
OP2 FS: 143 (6") 6080 10323 1115 3.29 1160 3.53 1204 3.80
B: 1X B29 6302 10700 1081 3.26 1126 3.50 1171 3.77 1214 4.02
6530 11088 1095 3.48 1139 3.74 1183 4.00 1225 4.27
6758 11475 1108 3.71 1152 4.00 1195 4.20 1236 4.45
MT = Motor (CV).
MS = Motor Sheave, variable pitch (mm).
FS = Fan Sheave (mm).
B = Belt.
Performance
Data
Fan
Data

PKG-PRC007-EN16
Table PD-6 — Gross Cooling Capacities SAVE-050 English
ENT Water Temp (°F)
75 85
Entering Wet Bulb Temperature (°F)
Ent. 61 67 73 61 67 73
DB
CFM (°F) TGC SHC GPM TGC SHC GPM TGC SHC GPM TGC SHC GPM TGC SHC GPM TGC SHC GPM
75 55.0 45.2 12.8 61.6 35.2 14.5 68.6 24.9 15.9 53.5 44.4 12.8 59.9 34.4 14.5 67.0 24.4 15.9
1800 80 55.2 53.1 12.8 61.5 43.4 14.5 68.6 33.1 15.9 53.7 52.3 12.8 59.9 42.6 14.5 66.8 32.4 15.9
85 56.7 57.8 13.2 61.5 50.1 14.5 68.5 39.8 15.9 55.4 56.5 13.2 59.8 49.4 14.1 66.8 39.2 15.9
90 59.2 60.4 14.1 61.5 56.7 14.5 68.5 46.5 15.9 58.0 59.1 14.1 59.9 56.0 14.5 66.7 45.9 15.9
75 55.7 46.6 13.2 62.3 36.0 14.5 69.4 25.2 15.9 54.1 45.9 13.2 60.7 35.3 14.5 67.7 24.6 15.9
1950 80 56.0 54.9 13.2 62.3 44.7 14.5 69.3 33.8 15.9 54.6 54.1 13.2 60.6 43.5 14.5 67.7 33.2 15.9
85 58.0 59.1 13.7 62.2 51.9 14.5 69.3 41.0 15.9 56.7 57.8 13.7 60.6 51.1 14.5 67.6 40.3 15.9
90 60.7 61.8 14.1 63.4 58.8 14.5 69.2 48.1 15.9 59.4 60.6 14.1 60.8 58.1 14.5 67.6 47.5 15.9
75 56.3 48.1 13.2 62.9 36.9 14.5 70.1 25.4 16.3 54.7 47.4 13.2 61.3 36.1 14.5 68.4 24.8 16.3
2100 80 56.9 56.6 13.7 62.9 46.0 14.5 70.0 34.5 16.3 55.4 55.7 13.2 61.3 45.3 14.5 68.3 33.9 15.9
85 59.1 60.3 14.1 62.8 53.6 14.5 70.0 42.1 16.3 57.9 59.0 14.1 61.2 52.8 14.5 68.3 41.5 15.9
90 61.9 63.1 14.5 63.1 60.8 14.5 69.9 49.7 16.3 60.7 61.8 14.5 61.6 60.0 14.5 68.2 49.0 15.9
75 56.9 49.5 13.7 63.5 37.6 15.0 70.8 25.6 16.3 55.2 48.7 13.2 61.9 37.0 14.5 69.0 25.0 16.3
2250 80 57.7 58.1 13.7 63.5 47.3 15.0 70.7 35.3 16.3 56.2 57.0 13.7 61.8 46.5 14.5 68.9 34.5 16.3
85 60.3 61.4 14.1 63.4 55.2 15.0 70.7 43.2 16.3 58.9 60.1 14.1 61.8 54.5 14.5 68.9 42.5 16.3
90 63.1 64.4 14.5 64.0 62.6 15.0 70.6 51.1 16.3 61.8 63.0 14.5 62.3 61.7 15.0 68.8 50.5 16.3
Table PD-6 — Gross Cooling Capacities SAVE-050 (Cont.)
ENT Water Temp (°F)
95
Entering Wet Bulb Temperature (°F)
Ent. 61 67 73
DB
CFM (°F) TGC SHC GPM TGC SHC GPM TGC SHC GPM
75 51.9 43.7 12.8 58.3 33.7 14.1 65.2 23.6 15.9
1800 80 52.2 51.5 12.8 58.2 41.9 14.1 65.1 31.8 15.9
85 54.2 55.2 13.7 58.2 48.6 14.1 65.1 38.5 15.9
90 56.8 57.9 14.1 58.3 55.2 14.1 65.0 45.3 15.9
75 52.5 45.2 13.2 59.0 34.5 14.5 65.9 23.8 15.9
1950 80 53.0 53.1 13.2 58.9 43.3 14.5 65.8 32.6 15.9
85 55.4 56.5 13.7 58.9 50.4 14.5 65.8 39.7 15.9
90 58.1 59.2 14.1 59.1 57.2 14.5 65.7 46.8 15.9
75 53.1 46.6 13.2 59.6 35.4 14.5 66.5 24.2 15.9
2100 80 54.0 54.6 13.7 59.5 44.5 14.5 66.5 33.3 15.9
85 56.5 57.6 14.1 59.5 52.2 14.5 66.4 40.8 15.9
90 59.3 60.5 14.5 59.9 59.1 14.5 66.4 48.3 15.9
75 53.7 48.0 13.2 60.2 36.2 14.5 67.2 24.4 16.3
2250 80 54.8 55.9 13.7 60.1 45.8 14.5 67.1 33.9 16.3
85 57.6 58.7 14.1 60.1 53.8 14.5 67.1 41.9 16.3
90 60.4 61.5 15.0 60.8 60.8 15.0 67.0 49.8 16.3
Notes:
TGC = Total Gross Capacity (MBh)
SHC = Sensible Heat Capacity (MBh)
Capacity Correction Factor Table
Delta T
Water Total Cap. Sens. Cap.
(°F) GPM MBh MBh
4.5 2.21 1.01 1.01
7.2 1.39 1.01 1.01
10.0 1.00 1.00 1.00
12.6 0.79 0.99 1.00
15.3 0.66 0.99 1.00
18.0 0.56 0.98 0.99
Performance
Data
Water Cooled
60 Hz

17PKG-PRC007-EN
Performance
Data
Water Cooled
60 Hz
Table PD-6 — Gross Cooling Capacities SAVE-050 Metric
ENT Water Temp (°C)
24.0 29.5
Entering Wet Bulb Temperature (°C)
Ent. 16.0 19.5 23.0 16.0 19.5 23.0
DB
m3/h (°C) TGC SHC l/s TGC SHC l/s TGC SHC l/s TGC SHC l/s TGC SHC l/s TGC SHC l/s
24 16.1 13.2 0.81 18.0 10.3 0.92 20.1 7.3 1.00 15.7 13.0 0.81 17.6 10.1 0.92 19.6 7.1 1.00
3060 27 16.2 15.6 0.81 18.0 12.7 0.92 20.1 9.7 1.00 15.7 15.3 0.81 17.6 12.5 0.92 19.6 9.5 1.00
29 16.6 16.9 0.83 18.0 14.7 0.92 20.1 11.7 1.00 16.2 16.6 0.83 17.5 14.5 0.89 19.6 11.5 1.00
32 17.4 17.7 0.89 18.0 16.6 0.92 20.1 13.6 1.00 17.0 17.3 0.89 17.6 16.4 0.92 19.6 13.4 1.00
24 16.3 13.7 0.83 18.3 10.6 0.92 20.3 7.4 1.00 15.8 13.4 0.83 17.8 10.3 0.92 19.8 7.2 1.00
3315 27 16.4 16.1 0.83 18.3 13.1 0.92 20.3 9.9 1.00 16.0 15.8 0.83 17.7 12.8 0.92 19.8 9.7 1.00
29 17.0 17.3 0.86 18.2 15.2 0.92 20.3 12.0 1.00 16.6 16.9 0.86 17.7 15.0 0.92 19.8 11.8 1.00
32 17.8 18.1 0.89 18.6 17.2 0.92 20.3 14.1 1.00 17.4 17.8 0.89 17.8 17.0 0.92 19.8 13.9 1.00
24 16.5 14.1 0.83 18.4 10.8 0.92 20.6 7.4 1.03 16.0 13.9 0.83 18.0 10.6 0.92 20.0 7.3 1.03
3570 27 16.7 16.6 0.86 18.4 13.5 0.92 20.5 10.1 1.03 16.2 16.3 0.83 18.0 13.3 0.92 20.0 9.9 1.00
29 17.3 17.7 0.89 18.4 15.7 0.92 20.5 12.3 1.03 17.0 17.3 0.89 17.9 15.5 0.92 20.0 12.2 1.00
32 18.1 18.5 0.92 18.5 17.8 0.92 20.5 14.6 1.03 17.8 18.1 0.92 18.0 17.6 0.92 20.0 14.4 1.00
24 16.7 14.5 0.86 18.6 11.0 0.94 20.7 7.5 1.03 16.2 14.3 0.83 18.1 10.8 0.92 20.2 7.3 1.03
3825 27 16.9 17.0 0.86 18.6 13.8 0.94 20.7 10.3 1.03 16.5 16.7 0.86 18.1 13.6 0.92 20.2 10.1 1.03
29 17.7 18.0 0.89 18.6 16.2 0.94 20.7 12.6 1.03 17.3 17.6 0.89 18.1 16.0 0.92 20.2 12.5 1.03
32 18.5 18.9 0.92 18.7 18.3 0.94 20.7 15.0 1.03 18.1 18.5 0.92 18.3 18.1 0.94 20.2 14.8 1.03
Table PD-6 — Gross Cooling Capacities SAVE-050 (Cont.)
ENT Water Temp (°C)
35.0
Entering Wet Bulb Temperature (°C)
Ent. 16.0 19.5 23.0
DB
m3/h (°C) TGC SHC l/s TGC SHC l/s TGC SHC l/s
24 15.2 12.8 0.81 17.1 9.9 0.89 19.1 6.9 1.00
3060 27 15.3 15.1 0.81 17.1 12.3 0.89 19.1 9.3 1.00
29 15.9 16.2 0.86 17.1 14.2 0.89 19.1 11.3 1.00
32 16.6 17.0 0.89 17.1 16.2 0.89 19.0 13.3 1.00
24 15.4 13.2 0.83 17.3 10.1 0.92 19.3 7.0 1.00
3315 27 15.5 15.6 0.83 17.3 12.7 0.92 19.3 9.5 1.00
29 16.2 16.6 0.86 17.3 14.8 0.92 19.3 11.6 1.00
32 17.0 17.4 0.89 17.3 16.8 0.92 19.3 13.7 1.00
24 15.6 13.7 0.83 17.5 10.4 0.92 19.5 7.1 1.00
3570 27 15.8 16.0 0.86 17.4 13.0 0.92 19.5 9.8 1.00
29 16.6 16.9 0.89 17.4 15.3 0.92 19.5 12.0 1.00
32 17.4 17.7 0.92 17.6 17.3 0.92 19.5 14.2 1.00
24 15.7 14.1 0.83 17.6 10.6 0.92 19.7 7.1 1.03
3825 27 16.1 16.4 0.86 17.6 13.4 0.92 19.6 9.9 1.03
29 16.9 17.2 0.89 17.6 15.8 0.92 19.6 12.3 1.03
32 17.7 18.0 0.94 17.8 17.8 0.94 19.6 14.6 1.03
Notes:
TGC = Total Gross Capacity (kW)
SHC = Sensible Heat Capacity (kW)
Capacity Correction Factor Table
Delta T
Water Total Cap. Sens. Cap.
(°C) l/s kW kW
2.5 2.21 1.01 1.01
4.0 1.39 1.01 1.01
5.5 1.00 1.00 1.00
7.0 0.79 0.99 1.00
8.5 0.66 0.99 1.00
10.0 0.56 0.98 0.99

PKG-PRC007-EN18
Table PD-7 — Gross Cooling Capacities SAVE-075 English
ENT Water Temp (°F)
75 85
Entering Wet Bulb Temperature (°F)
Ent. 61 67 73 61 67 73
DB
CFM (°F) TGC SHC GPM TGC SHC GPM TGC SHC GPM TGC SHC GPM TGC SHC GPM TGC SHC GPM
75 79.4 64.2 18.1 89.4 49.9 19.8 100.1 35.3 22.0 77.2 63.1 18.1 86.8 48.8 19.8 97.1 34.2 22.0
2700 80 79.8 75.6 18.1 89.3 61.6 19.8 100.0 47.0 22.0 77.7 74.3 18.1 86.7 60.6 19.8 97.0 46.0 22.0
85 82.5 81.7 18.5 89.1 71.5 19.8 99.9 56.8 22.0 80.6 79.8 18.5 86.6 70.4 19.8 97.0 55.8 22.0
90 86.5 85.7 19.4 89.4 81.1 19.8 99.7 66.6 22.0 84.5 83.7 19.4 86.8 79.9 19.8 96.9 65.5 21.6
75 80.5 66.3 18.1 90.4 51.1 20.3 101.2 35.7 22.5 78.1 65.2 18.1 87.9 50.0 20.3 98.3 34.5 22.0
2925 80 81.1 78.1 18.5 90.3 63.6 20.3 101.1 48.2 22.5 79.0 76.8 18.5 87.6 63.0 20.3 98.2 47.0 22.0
85 84.4 83.6 18.9 90.3 74.0 20.3 101.0 58.5 22.0 82.5 81.7 18.9 87.6 72.9 20.3 98.1 57.4 22.0
90 88.5 87.7 19.8 90.6 84.0 20.3 100.9 68.8 22.0 86.5 85.7 19.8 88.1 82.7 20.3 97.9 67.7 22.0
75 81.3 68.4 18.5 91.5 52.3 20.3 102.3 36.0 22.5 79.0 67.2 18.5 88.7 51.2 20.3 99.2 34.9 22.5
3150 80 124.4 80.3 18.5 91.4 65.5 20.3 102.2 49.1 22.5 80.2 78.9 18.5 88.6 64.4 20.3 99.1 48.1 22.5
85 86.1 85.3 19.4 91.3 76.4 20.3 102.1 60.1 22.5 84.1 83.3 19.4 88.6 75.4 20.3 99.0 59.0 22.5
90 90.3 89.5 20.3 91.8 86.7 20.3 102.0 71.0 22.5 88.3 87.5 20.3 89.3 85.4 20.3 98.9 69.8 22.0
75 82.2 70.2 18.5 92.3 53.4 20.7 103.1 36.3 22.5 79.7 69.2 18.5 89.6 52.3 20.3 100.1 35.2 22.5
3375 80 83.5 82.3 18.9 92.2 67.3 20.3 103.0 50.2 22.5 81.4 80.6 18.9 89.5 66.2 20.3 100.0 49.0 22.5
85 87.7 86.8 19.8 92.1 78.9 20.7 103.0 61.6 22.5 85.6 84.8 19.8 89.4 77.7 20.3 99.9 60.5 22.5
90 92.1 91.2 20.3 93.0 89.3 20.7 102.9 73.1 22.5 89.9 89.0 20.3 90.4 87.8 20.7 99.7 71.9 22.5
Table PD-7 — Gross Cooling Capacities SAVE-075 (Cont.)
ENT Water Temp (°F)
95
Entering Wet Bulb Temperature (°F)
Ent. 61 67 73
DB
CFM (°F) TGC SHC GPM TGC SHC GPM TGC SHC GPM
75 74.7 62.0 18.1 84.1 47.7 19.8 94.0 33.2 21.6
2700 80 75.4 73.0 18.1 84.0 59.4 19.8 94.0 44.9 21.6
85 78.5 77.8 18.5 84.0 69.2 19.8 93.9 54.6 21.6
90 82.5 81.7 19.4 84.3 78.6 19.8 93.8 64.4 21.6
75 75.6 63.0 18.1 85.0 48.9 19.8 95.1 33.5 22.0
2925 80 76.7 75.2 18.5 84.9 61.4 19.8 95.0 46.0 22.0
85 80.3 79.6 18.9 84.9 71.7 19.8 95.0 56.3 22.0
90 84.4 83.6 19.8 85.5 81.4 20.3 94.9 66.6 22.0
75 76.4 66.0 18.1 85.9 50.1 20.3 96.0 33.8 22.0
3150 80 78.0 77.1 18.5 85.8 63.2 20.3 95.9 46.9 22.0
85 81.9 81.2 19.4 85.8 74.1 20.3 95.8 57.9 22.0
90 86.1 85.3 20.3 86.7 83.9 20.3 95.7 68.8 22.0
75 77.2 68.0 18.5 86.6 51.1 20.3 96.8 34.1 22.5
3375 80 79.3 78.5 18.9 86.5 65.0 20.3 96.7 47.9 22.5
85 83.4 82.6 19.8 86.5 76.4 20.3 96.7 59.4 22.0
90 87.6 86.7 20.3 87.9 86.1 20.3 96.6 70.8 22.0
Notes:
TGC = Total Gross Capacity (MBh)
SHC = Sensible Heat Capacity (MBh)
Capacity Correction Factor Table
Delta T
Water Total Cap. Sens. Cap.
(°F) GPM MBh MBh
4.5 2.21 1.01 1.01
7.2 1.39 1.01 1.01
10.0 1.00 1.00 1.00
12.6 0.79 0.99 1.00
15.3 0.66 0.99 1.00
18.0 0.56 0.98 0.99
Performance
Data
Water Cooled
60 Hz

19PKG-PRC007-EN
Performance
Data
Water Cooled
60 Hz
Table PD-7 — Gross Cooling Capacities SAVE-075 Metric
ENT Water Temp (°C)
24.0 29.5
Entering Wet Bulb Temperature (°C)
Ent. 16.0 19.5 23.0 16.0 19.5 23.0
DB
m3/h (°C) TGC SHC l/s TGC SHC l/s TGC SHC l/s TGC SHC l/s TGC SHC l/s TGC SHC l/s
24 23.3 18.8 1.14 26.2 14.6 1.25 29.3 10.3 1.39 22.6 18.5 1.14 25.4 14.3 1.25 28.4 10.0 1.39
4590 27 23.4 22.2 1.14 26.2 18.1 1.25 29.3 13.8 1.39 22.8 21.8 1.14 25.4 17.8 1.25 28.4 13.5 1.39
29 24.2 23.9 1.17 26.1 21.0 1.25 29.3 16.6 1.39 23.6 23.4 1.17 25.4 20.6 1.25 28.4 16.3 1.39
32 25.3 25.1 1.22 26.2 23.8 1.25 29.2 19.5 1.39 24.8 24.5 1.22 25.4 23.4 1.25 28.4 19.2 1.36
24 23.6 19.4 1.14 26.5 15.0 1.28 29.7 10.5 1.42 22.9 19.1 1.14 25.7 14.6 1.28 28.8 10.1 1.39
4970 27 23.8 22.9 1.17 26.5 18.6 1.28 29.6 14.1 1.42 23.1 22.5 1.17 25.7 18.5 1.28 28.8 13.8 1.39
29 24.7 24.5 1.19 26.5 21.7 1.28 29.6 17.1 1.39 24.2 23.9 1.19 25.7 21.4 1.28 28.7 16.8 1.39
32 25.9 25.7 1.25 26.6 24.6 1.28 29.6 20.2 1.39 25.3 25.1 1.25 25.8 24.2 1.28 28.7 19.8 1.39
24 23.8 20.0 1.17 26.8 15.3 1.28 30.0 10.6 1.42 23.1 19.7 1.17 26.0 15.0 1.28 29.1 10.2 1.42
5355 27 36.5 23.5 1.17 26.8 19.2 1.28 29.9 14.4 1.42 23.5 23.1 1.17 26.0 18.9 1.28 29.0 14.1 1.42
29 25.2 25.0 1.22 26.7 22.4 1.28 29.9 17.6 1.42 24.6 24.4 1.22 26.0 22.1 1.28 29.0 17.3 1.42
32 26.5 26.2 1.28 26.9 25.4 1.28 29.9 20.8 1.42 25.9 25.6 1.28 26.2 25.0 1.28 29.0 20.5 1.39
24 24.1 20.6 1.17 27.1 15.7 1.31 30.2 10.6 1.42 23.4 20.3 1.17 26.2 15.3 1.28 29.3 10.3 1.42
5740 27 24.5 24.1 1.19 27.0 19.7 1.28 30.2 14.7 1.42 23.9 23.6 1.19 26.2 19.4 1.28 29.3 14.4 1.42
29 25.7 25.4 1.25 27.0 23.1 1.31 30.2 18.1 1.42 25.1 24.9 1.25 26.2 22.8 1.28 29.3 17.7 1.42
32 27.0 26.7 1.28 27.2 26.2 1.31 30.2 21.4 1.42 26.3 26.1 1.28 26.5 25.7 1.31 29.2 21.1 1.42
Table PD-7 — Gross Cooling Capacities SAVE-075 (Cont.)
ENT Water Temp (°C)
35.0
Entering Wet Bulb Temperature (°C)
Ent. 16.0 19.5 23.0
DB
m3/h (°C) TGC SHC l/s TGC SHC l/s TGC SHC l/s
24 21.9 18.2 1.14 24.6 14.0 1.25 27.5 9.7 1.36
4590 27 22.1 21.4 1.14 24.6 17.4 1.25 27.5 13.2 1.36
29 23.0 22.8 1.17 24.6 20.3 1.25 27.5 16.0 1.36
32 24.2 23.9 1.22 24.7 23.0 1.25 27.5 18.9 1.36
24 22.1 18.5 1.14 24.9 14.3 1.25 27.9 9.8 1.39
4970 27 22.5 22.0 1.17 24.9 18.0 1.25 27.8 13.5 1.39
29 23.5 23.3 1.19 24.9 21.0 1.25 27.8 16.5 1.39
32 24.7 24.5 1.25 25.1 23.8 1.28 27.8 19.5 1.39
24 22.4 19.4 1.14 25.2 14.7 1.28 28.1 9.9 1.39
5355 27 22.9 22.6 1.17 25.1 18.5 1.28 28.1 13.8 1.39
29 24.0 23.8 1.22 25.1 21.7 1.28 28.1 17.0 1.39
32 25.2 25.0 1.28 25.4 24.6 1.28 28.0 20.2 1.39
24 22.6 19.9 1.17 25.4 15.0 1.28 28.4 10.0 1.42
5740 27 23.2 23.0 1.19 25.3 19.0 1.28 28.3 14.0 1.42
29 24.4 24.2 1.25 25.3 22.4 1.28 28.3 17.4 1.39
32 25.7 25.4 1.28 25.7 25.2 1.28 28.3 20.7 1.39
Notes:
TGC = Total Gross Capacity (kW)
SHC = Sensible Heat Capacity (kW)
Capacity Correction Factor Table
Delta T
Water Total Cap. Sens. Cap.
(°C) l/s kW kW
2.5 2.21 1.01 1.01
4.0 1.39 1.01 1.01
5.5 1.00 1.00 1.00
7.0 0.79 0.99 1.00
8.5 0.66 0.99 1.00
10.0 0.56 0.98 0.99

PKG-PRC007-EN20
Table PD-8 — Gross Cooling Capacities SAVE-100 English
ENT Water Temp (°F)
75 85
Entering Wet Bulb Temperature (°F)
Ent. 61 67 73 61 67 73
DB
CFM (°F) TGC SHC GPM TGC SHC GPM TGC SHC GPM TGC SHC GPM TGC SHC GPM TGC SHC GPM
75 109.9 87.9 26.0 122.7 68.5 28.6 136.6 48.7 31.7 106.7 86.3 26.0 119.5 67.1 28.6 133.2 47.5 31.3
3600 80 110.1 103.3 26.0 122.6 84.1 28.6 136.5 64.4 31.7 107.1 101.7 26.0 119.4 82.7 28.6 133.1 63.1 31.3
85 112.7 112.7 26.9 122.5 97.1 28.6 136.4 77.4 31.7 110.1 110.1 26.9 119.3 95.8 28.6 133.0 76.1 31.3
90 117.7 117.7 27.8 122.5 110.0 28.6 136.3 90.3 31.7 115.3 115.3 27.8 119.3 108.6 28.6 132.9 89.0 31.3
75 111.2 90.7 26.4 124.2 70.1 29.1 138.2 49.2 31.7 108.0 89.2 26.4 120.9 68.7 29.1 134.7 47.9 31.7
3900 80 111.8 106.8 26.4 124.1 86.7 29.1 138.0 65.8 31.7 108.8 105.1 26.4 120.7 85.3 29.1 134.6 64.6 31.7
85 115.3 115.3 27.3 124.0 100.5 29.1 137.9 79.6 31.7 112.7 112.7 27.3 120.7 99.1 29.1 134.5 78.3 31.7
90 120.5 120.5 28.2 124.1 114.0 29.1 137.8 93.3 31.7 117.9 117.9 28.2 120.9 112.5 29.1 134.4 92.0 31.7
75 112.5 93.4 26.9 125.6 71.7 29.5 139.6 49.6 32.2 109.3 91.9 26.4 122.2 70.2 29.1 136.1 48.4 32.2
4200 80 113.3 110.1 26.9 125.5 89.2 29.5 139.5 67.2 32.2 110.3 108.2 26.9 122.1 87.9 29.1 136.0 65.9 32.2
85 117.6 117.6 27.8 125.3 103.8 29.5 139.4 81.7 32.2 114.9 114.9 27.8 122.0 102.4 29.1 135.9 80.4 31.7
90 123.0 123.0 28.6 125.7 117.8 29.5 139.3 96.2 32.2 120.4 120.4 28.6 122.5 116.3 29.5 135.8 94.9 31.7
75 113.6 96.0 26.9 126.7 73.1 29.5 140.8 50.1 32.6 110.3 94.6 26.9 123.3 71.8 29.5 137.3 48.7 32.2
4500 80 114.8 113.0 27.3 126.6 91.7 29.5 140.7 68.5 32.6 111.9 110.9 27.3 123.2 90.2 29.5 137.2 67.3 32.2
85 119.7 119.7 28.2 126.5 106.9 29.5 140.6 83.7 32.2 117.0 117.0 28.2 123.1 105.6 29.5 137.1 82.5 32.2
90 125.2 125.2 29.5 127.2 121.3 29.5 140.5 99.0 32.2 122.6 122.6 29.5 124.0 119.7 29.5 137.0 97.7 32.2
Table PD-8 — Gross Cooling Capacities SAVE-100 (Cont.)
ENT Water Temp (°F)
95
Entering Wet Bulb Temperature (°F)
Ent. 61 67 73
DB
CFM (°F) TGC SHC GPM TGC SHC GPM TGC SHC GPM
75 103.6 84.9 26.0 116.1 65.6 28.6 129.7 46.1 31.3
3600 80 104.1 100.0 26.0 116.0 81.4 28.6 129.6 61.8 31.3
85 107.6 107.6 26.9 115.9 94.3 28.6 129.5 74.8 31.3
90 112.7 112.7 27.8 116.1 107.0 28.6 129.4 87.7 31.3
75 105.0 87.7 26.4 117.5 67.3 29.1 131.1 46.7 31.7
3900 80 105.8 103.3 26.4 117.4 83.9 28.6 131.0 63.2 31.7
85 110.1 110.1 27.3 117.3 97.6 28.6 130.9 76.9 31.7
90 115.3 115.3 28.2 117.7 110.9 29.1 130.8 90.6 31.7
75 106.1 90.3 26.4 118.8 68.8 29.1 132.5 47.1 31.7
4200 80 107.3 106.2 26.9 118.6 86.4 29.1 132.4 64.6 31.7
85 112.3 112.3 27.8 118.6 100.9 29.1 132.3 79.1 31.7
90 117.6 117.6 29.1 119.3 114.5 29.1 132.2 93.5 31.7
75 107.0 93.0 26.9 119.8 70.4 29.5 133.6 47.5 32.2
4500 80 109.0 108.7 27.3 119.7 88.8 29.5 133.5 65.9 32.2
85 114.3 114.3 28.2 119.6 104.1 29.5 133.4 81.2 32.2
90 119.9 119.9 29.5 120.7 117.8 29.5 133.3 96.4 32.2
Notes:
TGC = Total Gross Capacity (MBh)
SHC = Sensible Heat Capacity (MBh)
Capacity Correction Factor Table
Delta T
Water Total Cap. Sens. Cap.
(°F) GPM MBh MBh
4.5 2.21 1.01 1.01
7.2 1.39 1.01 1.01
10.0 1.00 1.00 1.00
12.6 0.79 0.99 1.00
15.3 0.66 0.99 1.00
18.0 0.56 0.98 0.99
Performance
Data
Water Cooled
60 Hz
