Trane RT-SVX19A-E4 Owner's manual

Voyager™ II Rooftop units
Cooling only TKD/TKH 155 175 200 250
Reversible WKD/WKH 125 155 200
Gas-FiredYKD/YKH 155 175 200 250
R22 - R407C Refrigerant
Installation
Operation
Maintenance
RT-SVX19A-E4

Foreword
These instructions are given as a
guide to good practice in the
installation, start-up, operation, and
maintenance by the user, ofTrane
TKD/TKH, WKD/WKH andYKD/YKH
units.They do not contain full
service procedures necessary for
the continued successful operation
of this equipment.The services of a
qualified technician should be
employed through the medium of a
maintenance contract with a
reputable service company. Read
this manual thoroughly before unit
start-up.
TKD/TKH units are designed to
operate in cooling mode only, with
optional auxiliary heat (electric
heater or hot water coil).
WKD/WKH can operate in cooling
mode or heating mode by reversing
the refrigeration cycle with or
without auxiliary heat.
YKD/YKH units are designed to
operate In cooling mode and
equipped with a gas fired heating
module.
TKD/TKH, WKD/WKH andYKD/YKH
units are assembled, pressure
tested, dehydrated, charged and run
tested before shipment.
Warnings and cautions
Warnings and Cautions appear at
appropriate sections throughout
this manual.Your personal safety
and the proper operation of this
machine require that you follow
them carefully.The constructor
assumes no liability for installations
or servicing performed by
unqualified personnel.
WARNING! : Indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION! : Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury. It may also be
used to alert against unsafe
practices or for equipment or
property-damage-only accidents.
Safety recommendations
To avoid death, injury, equipment or
property damage, the following
recommendations should be
observed during maintenance and
service visits:
1. The maximum allowable
pressures for system leak testing
on low and high pressure side
are given in the chapter
"Installation". Always provide a
pressure regulator.
2. Disconnect the main power
supply before any servicing on
the unit.
3. Service work on the refrigeration
system and the electrical system
should be carried out only by
qualified and experienced
personnel.
Reception
On arrival, inspect the unit before
signing the delivery note.
In case of visible damage:The
consignee (or the site
representative) must specify any
damage on the delivery note,
legibly sign and date the delivery
note, and the truck driver must
countersign it.The consignee (or the
site representative) must notify
Trane Epinal Operations - Claims
team and send a copy of the
delivery note.The customer (or the
site representative) should send a
registered letter to the last carrier
within 3 days of delivery.
Reception in France only:
Concealed damage must be looked
for at delivery and immediately
treated as visible damage.
Reception in all countries except
France:
In case of concealed damage:The
consignee (or the site
representative) must send a
registered letter to the last carrier
within 7 days of delivery, claiming
for the described damage. A copy of
this letter must be sent toTrane
Epinal Operations - Claims team.
General information
RT-SVX19A-E42

Warranty
Warranty is based on the general
terms and conditions of the
manufacturer.The warranty is void if
the equipment is repaired or
modified without the written
approval of the manufacturer, if the
operating limits are exceeded or if
the control system or the electrical
wiring is modified. Damage due to
misuse, lack of maintenance or
failure to comply with the
manufacturer's instructions or
recommendations is not covered by
the warranty obligation. If the user
does not conform to the rules of
this manual, it may entail
cancellation of warranty and
liabilities by the manufacturer.
Refrigerant
The refrigerant provided by the
manufacturer meets all the
requirements of our units. When
using recycled or reprocessed
refrigerant, it is advisable to ensure
its quality is equivalent to that of a
new refrigerant. For this, it is
necessary to have a precise analysis
made by a specialized laboratory. If
this condition is not respected, the
manufacturer warranty could be
cancelled.
Maintenance contract
It is strongly recommended that you
sign a maintenance contract with
your local Service Agency.This
contract provides regular
maintenance of your installation by
a specialist in our equipment.
Regular maintenance ensures that
any malfunction is detected and
corrected in good time and
minimizes the possibility that
serious damage will occur. Finally,
regular maintenance ensures the
maximum operating life of your
equipment. We would remind you
that failure to respect these
installation and maintenance
instructions may result in
immediate cancellation of the
warranty.
Storage
Take precautions to prevent
condensate formation inside the
unit's electrical components and
motors when:
1. The unit is stored before it is
installed; or,
2. The unit is set on the roof curb
and temporary auxiliary heat is
provided in the building.
Isolate all side panel service
entrances and base pan openings
(e.g., conduit holes, S/A and R/A
openings, and flue openings) to
minimize ambient air from entering
the unit until it is ready for start-up.
Do not use the unit's heater as
temporary heat without completing
the start-up procedures detailed
under "Unit Start-Up".
TheTrane Company will not assume
responsibility for equipment
damage resulting from
accumulation of condensate on the
unit electrical components.
Training
To assist you in obtaining the best
use of it and maintaining it in
perfect operating condition over a
long period of time, the
manufacturer has at your disposal a
refrigeration and air conditioning
service school. The principal aim of
this is to give operators and
technicians a better knowledge of
the equipment they are using, or
that is under their charge. Emphasis
is particularly given to the
importance of periodic checks on
the unit operating parameters as
well as on preventive maintenance,
which reduces the cost of owning
the unit by avoiding serious and
costly breakdown.
General information
3RT-SVX19A-E4

RT-SVX19A-E44
Contents
Foreword 2
Warnings and Cautions 2
Safety recommendations 2
Reception 2
Warranty 3
Refrigerant 3
Maintenance contract 3
Storage 3
Training 3
Installation 6
Reception of units 6
Roof curb installation 7
Dimensions/Weights/Clearances 8
Installing the unit 10
Connection of duct network 11
Condensate drain piping 12
Gas pipework installation 13
Filter installation 14
Supply fan adjustment 15
Component air pressure drops 17
Supply fan performances 20
Electrical connection 26
Controls 31
Control wiring 31
CO2sensors 33
Remote potentiometer 36
Fire thermostat 37
Clogged filter detector 38
Smoke detector 38
High temperature safety thermostat 38
Remote fault relay 38
Thermostats 38
Communication Interfaces 39

Contents
5RT-SVX19A-E4
Unit Options 40
Hot water coil 40
Electric Heater 41
Soft Starter 41
0 - 25% fresh air hood 42
Barometric relief 43
Operation 44
Operation with a conventional thermostat 44
Setting the economizer 47
Test procedures 49
Test modes 50
Unit start-up 51
Cooling without an Economizer 54
Low Ambient Operation 55
Cooling with an Economizer 55
Economizer Set-Up 56
ReliaTel™ Control Heating Operation 56
Ignition Module 56
Final installation checklist 57
Maintenance 58
End user routine maintenance 58
Service technician maintenance 59
Troubleshooting 60

Installation
RT-SVX19A-E46
General information :The
installation must conform to all
local standards and regulations.
Reception of units
Rooftop unit
The unit is supplied on a wooden
frame. It is recommended to check
the machine's condition upon
reception.
There are two ways to handle the
unit:
1. Use the openings in the wooden
frame to handle the machine
using a fork lift, in accordance
with applicable safety
regulations.
2. Use a lifting beam correctly
adjusted to fit the unit
(Figure 1a).
Unit handling
The units are supplied on the truck
but are not unloaded. An opening is
provided on each corner of the unit
base to facilitate handling.
4 shackles and 4 slings are required.
Use a lifting beam to prevent the
cables pressing too hard on top of
the unit during lifting.
Figure 1a indicates the position of
the center of gravity and the lifting
recommendations.
Important: For unit to fit on the
roof curb the fork lift pockets must
be removed.

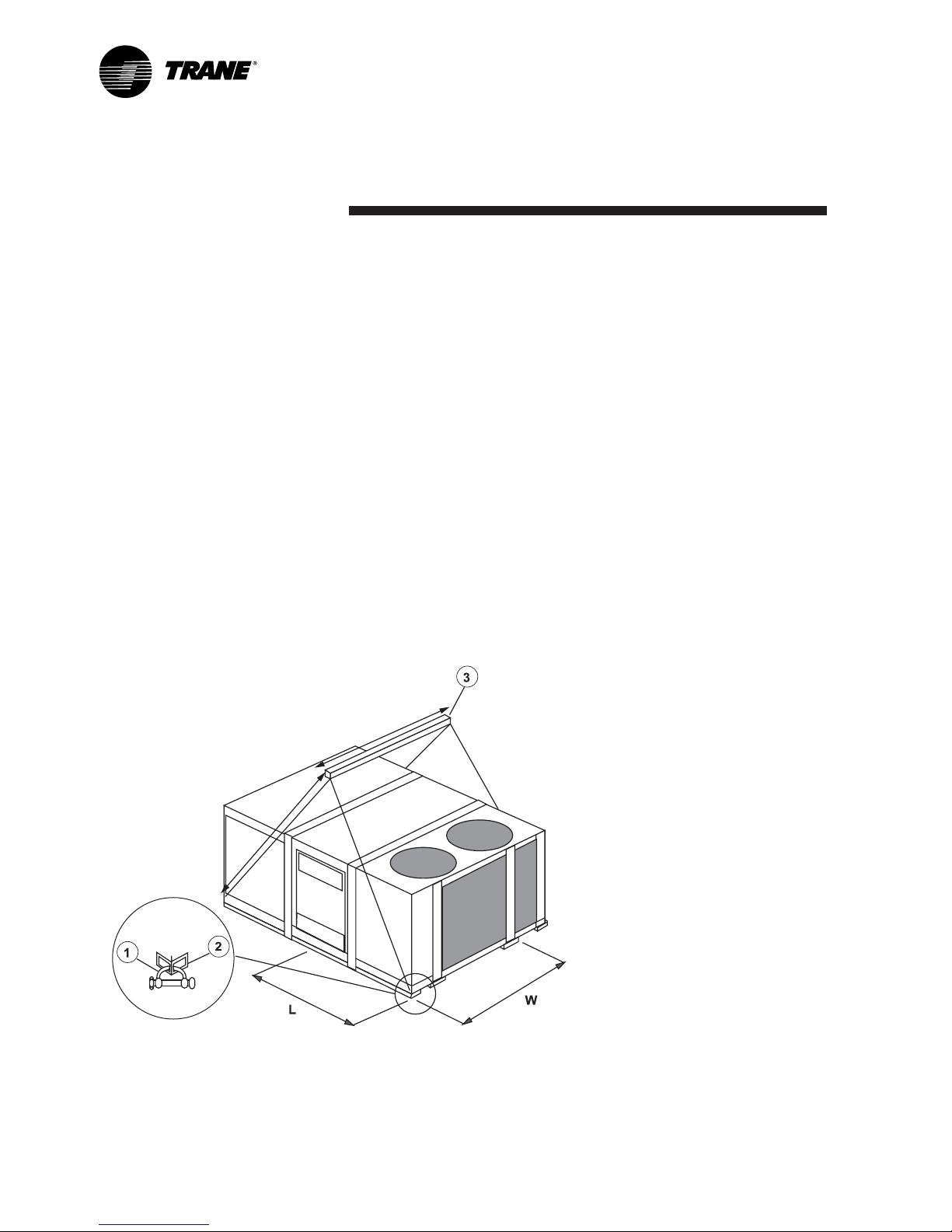

Figure 1a - Unit handling
1 = Clevis
2 = Base Rail
3 = Spreader Bar
L = Length (Center of Gravity)
W = Width (Center of Gravity)
Refer toTable 2 for weights and center of gravity.
A
B

Roof curb Installation
(TKD-WKD-YKD
accessories)
Roof curbs are available as an
accessory for "downflow" units to
support the unit and ensure the
water tightness between the rooftop
and the roof.Two types of roof
curbs are available:The standard
version to allow the installation of
the unit on a flat roof and the
adjustable version for a sloped roof
installation. (See Figure 1b for the
maximum slope correction of
adjustable roofcurb.)
The adjustable roof curbs are
supplied pre-assembled on a skid.
Two types of self-adhesive seals are
provided separately. (40 mm wide
for the perimeter, 20 mm wide for
the cross pieces). Make sure they
are properly installed where
indicated to assure an adequate
curb to unit seal.
Instructions for the roof curb
assembly and installation with curb
dimensions are provided with each
roof curb kit.
Table 1 - Sling lengths and maximum unit weight

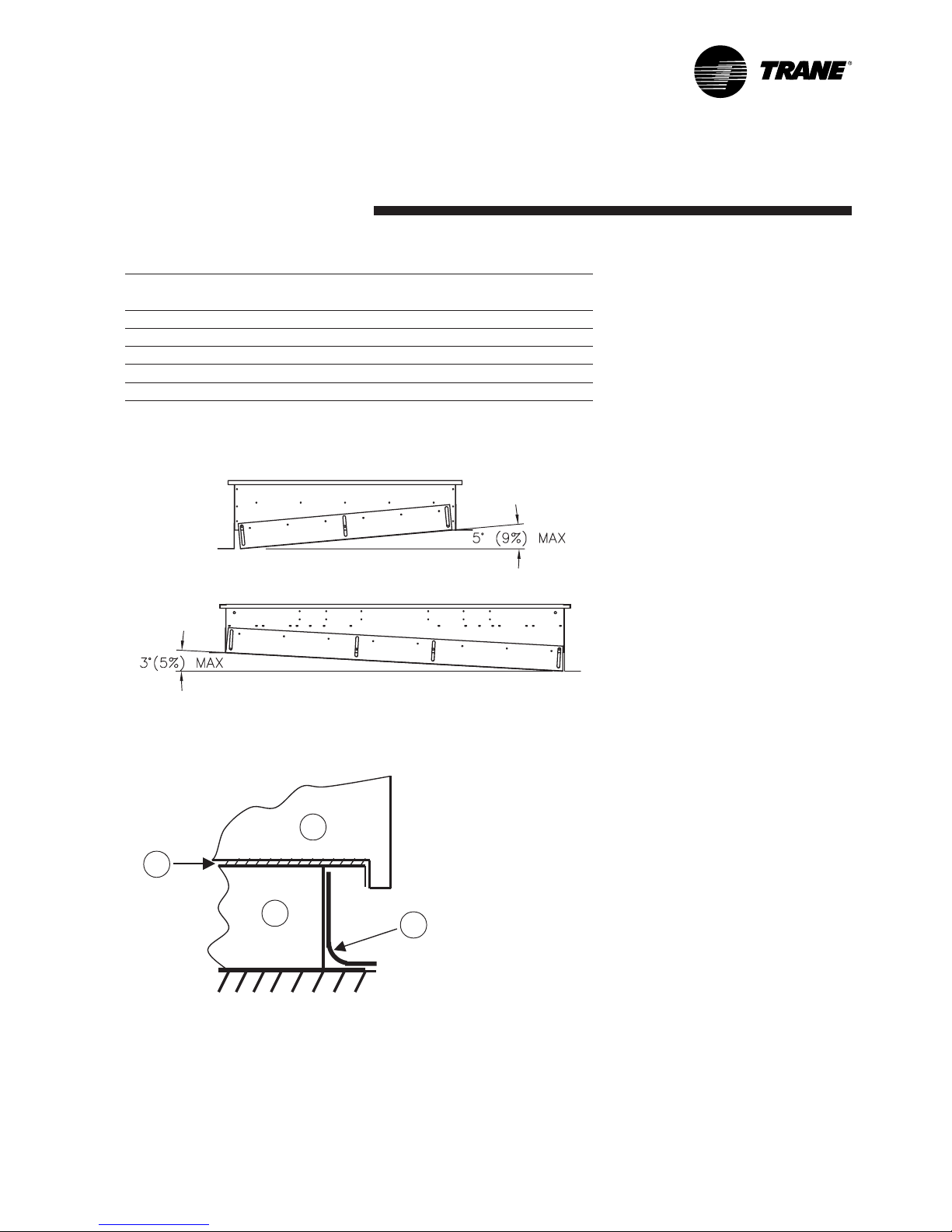

Figure 1b - Maximum slope correction of adjustable roof curb.

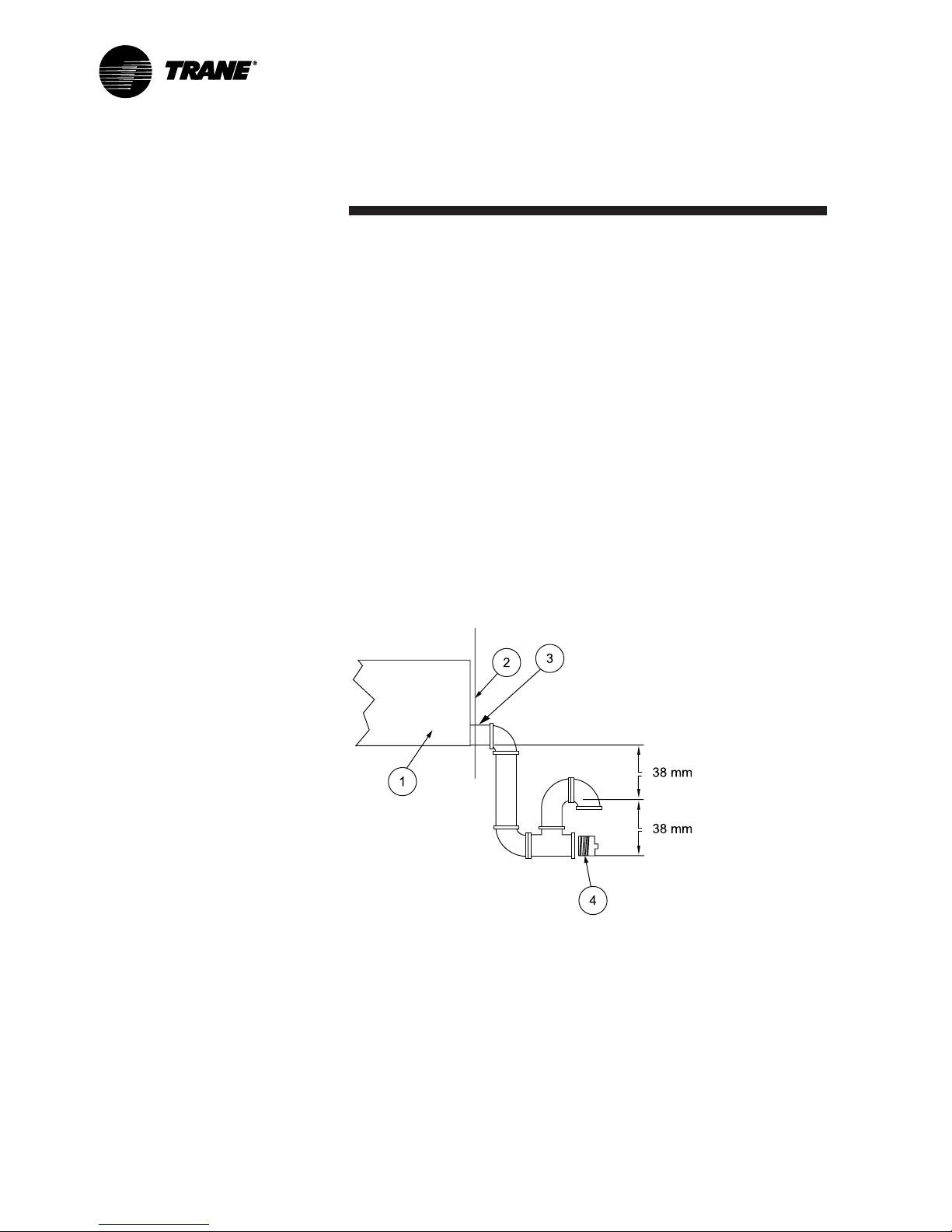

Figure 2 - Waterproofing
1 = Roofcurb
2 = Roof membrane
3 = Seal
4 = Rooftop
4
12
3
Unit size A (mm) B (mm) Maximm weight
kg
125 3000 1900 644
155 3000 1900 773
175 3000 1900 810
400 3500 2200 1001
500 3500 2200 1027
Installation
7RT-SVX19A-E4

Installation
RT-SVX19A-E48
Dimensions/Weights/Clearances
Figure 3 - Minimum clearances
Table 2 - Minimum clearances (mm)
The structure accommodating the unit(s) must be designed to support the
equipment in operation, as a minimum. Refer toTable 3a and the space
requirement plan.
Minimum clearance
UNIT 12345
YKD/YKH 155 1900 1800 1220 1000 1300
YKD/YKH 175 1900 1800 1220 1000 1300
YKD/YKH 200 1900 1800 1220 1000 1300
YKD/YKH 250 1900 1800 1220 1000 1300
TKD/TKH 155 1900 1800 1220 1000 1300
TKD/TKH 175 1900 1800 1220 1000 1300
TKD/TKH 200 1900 1800 1220 1000 1300
TKD/TKH 250 1900 1800 1220 1000 1300
WKD/WKH 125 1900 1800 1220 1000 1300
WKD/WKH 155 1900 1800 1220 1000 1300
WKD/WKH 200 1900 1800 1220 1000 1300

Installation
9RT-SVX19A-E4
Installation
Table 3a - Weigths & center of gravity (Figure 1)
1. Corner weights are given for information only. All models must be supported continuously by a curb or equivalent frame support.
Table 3b - Weights of Options & accessories
Notes :
Net weight should be added to unit weight when ordering factory installed accessories.
To estimate shipping weight add 2.3 kg to net weight.
UNIT Standard Roof Curb Adjustable Roof Curb Economizer Manual Outside Air Damper
Motorized
Outside Air
Damper Electric heater Hot water coil
YKD 155 93 220 30 15 27
YKD 175 93 220 30 15 27
YKD 200 107 260 37 15 34
YKD 250 107 260 37 15 34
YKH 155 30 15 27
YKH 175 30 15 27
YKH 200 37 15 34
YKH 250 37 15 34
TKD 155 93 220 30 15 27 14 85
TKD 175 93 220 30 15 27 14 85
TKD 200 107 260 37 15 34 18 110
TKD 250 107 260 37 15 34 18 110
TKH 155 30 15 27 14
TKH 175 30 15 27 14
TKH 200 37 15 34 18
TKH 250 37 15 34 18
WKD 125 93 180 20 15 27 18 85
WKD 155 93 220 30 15 27 18 85
WKD 200 107 260 37 15 34 18 110
WKH 125 20 15 27 18
WKH 155 30 15 27 18
WKH 200 37 15 34 18
Maximum weight Corner Weight (1) Center of Gravity
Shipping Net A B C D Length (L) Width (W)
UNIT (kg) (kg) (kg) (kg) (kg) (kg) (mm) (mm)
YKD/YKH 155 866 698 243 176 118 162 1143 737
YKD/YKH 175 902 735 251 188 127 169 1168 737
YKD/YKH 200 1128 920 324 242 151 203 1321 838
YKD/YKH 250 1154 946 327 251 159 208 1346 838
TKD/TKH 155 790 623 219 159 103 142 1143 711
TKD/TKH 175 827 660 227 172 112 149 1168 711
TKD/TKH 200 1050 841 297 221 138 185 1321 838
TKD/TKH 250 1075 866 300 230 145 206 1346 838
WKD/WKH 125 792 625 218 159 105 144 1143 711
WKD/WKH 155 809 642 228 162 105 147 1143 711
WKD/WKH 200 1080 871 291 226 155 199 1346 889

Installation
RT-SVX19A-E410
Installing the unit
1) Unit mounting on roof
Fix the rooftop curb on the joint
beam of the building's structure.
Make the rooftop curb's sealing
surface level using angle brackets
adjusted by screw bolts, located
around its perimeter. Place the
adhesive seals on the curb's sealing
surface (perimeter and cross
pieces). Make the rooftop leak-tight
around the curbs before installing
the unit, in compliance with current
construction standards.
Note:The unit must be installed
perfectly level to ensure
condensates flow from the
condensate tray.
The rooftop unit nests into the curb
and is supported by it. Position the
unit, taking care to comply with the
indicated directions: the unit's
discharge and intake openings must
match those of the curb.
2) Installing the unit on the ground
To install the unit on the ground, its
base must be level and supported
securely.
For horizontal discharge units, a
support is required such as a metal
or concrete slab whose height must
be determined according to the
amount of snow cover, to prevent
problems with condensation
drainage and obstruction of the
external coil. If necessary use an
anti-vibration material between the
rooftop unit's base and the support.
Note: Unit installation must comply
to local codes

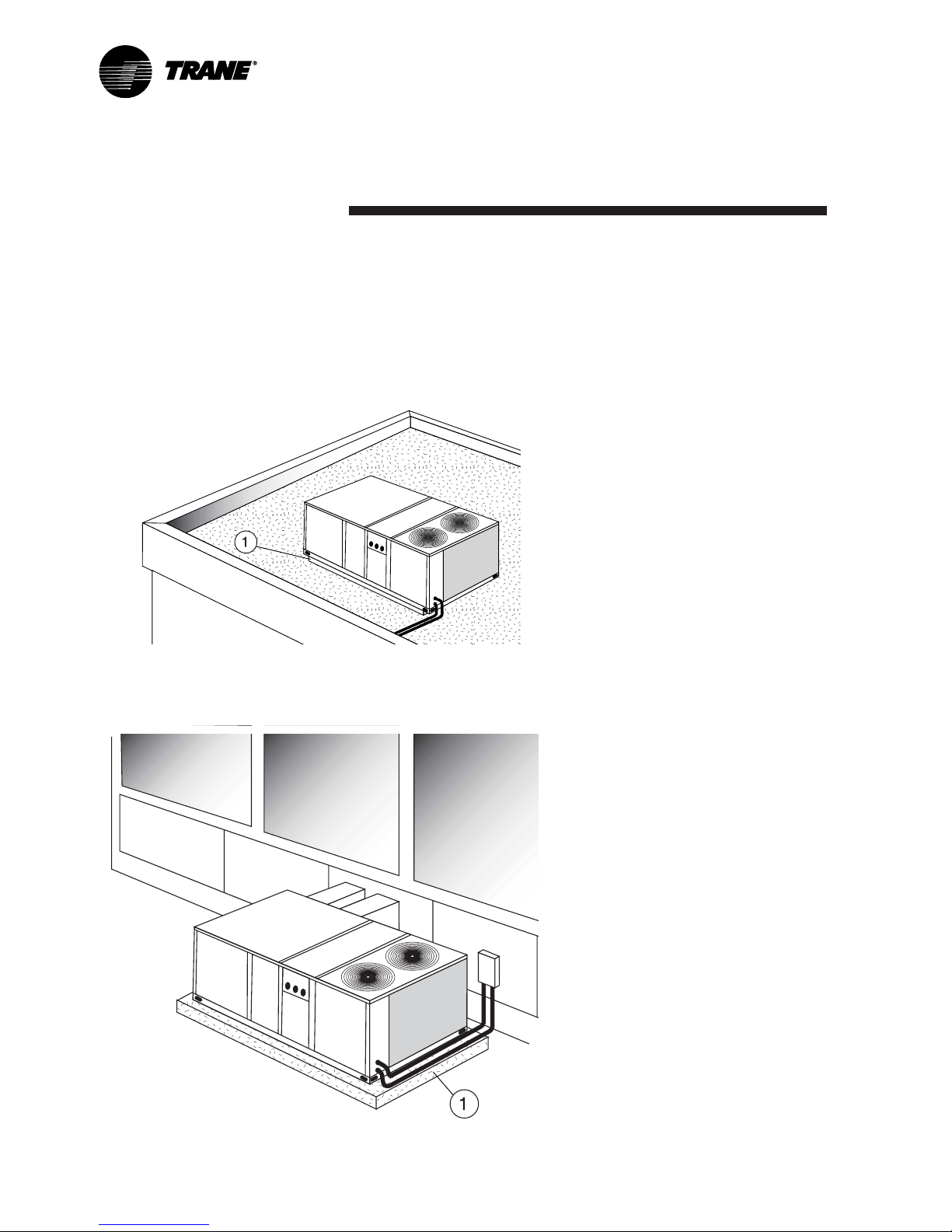

Figure 4
1 = Frame
Figure 5
1 = Concrete slab
RT-SVX19A-E4

Installation
11RT-SVX19A-E4RT-SVX19A-E4
Connection of duct
network
1) Downflow discharge units
(TKD,WKD,YKD)
Using the rooftop curb
• The rooftop curb must be
insulated on the outside walls at
the discharge and intake
openings to prevent
condensation in the ducts.
• The rims around the discharge
and intake openings make it
possible to attach the flanges on
the ends of the ducts. If you are
using rigid duct ends
recommended on the rooftop
curb plan, it is essential to fix
these components before
installing the unit.
• For the design of the duct
network, comply with
recommendations currently
applicable on the market, in
particular:
. Installation of a section of
flexible ducts to limit
transmission of the unit's
vibrations
. Use of movable vanes or
deflectors to reduce the sound
level.
2) Horizontal discharge units
(TKH,WKH,YKH)
• The intake and discharge ducts
must be insulated (thermal
insulation).
• The duct section located outside
must be leak-tight.
• Provide a flexible connector to
prevent transmission of the unit
vibrations.This flexible duct
must be installed inside the
building.
Note: In case of use ofTKH, WKH or
YKH units with economizer option,
temperature and humidity sensors
must be installed in return duct.
Economizer linkage is factory
mounted but the damper position
must be adjusted on site.

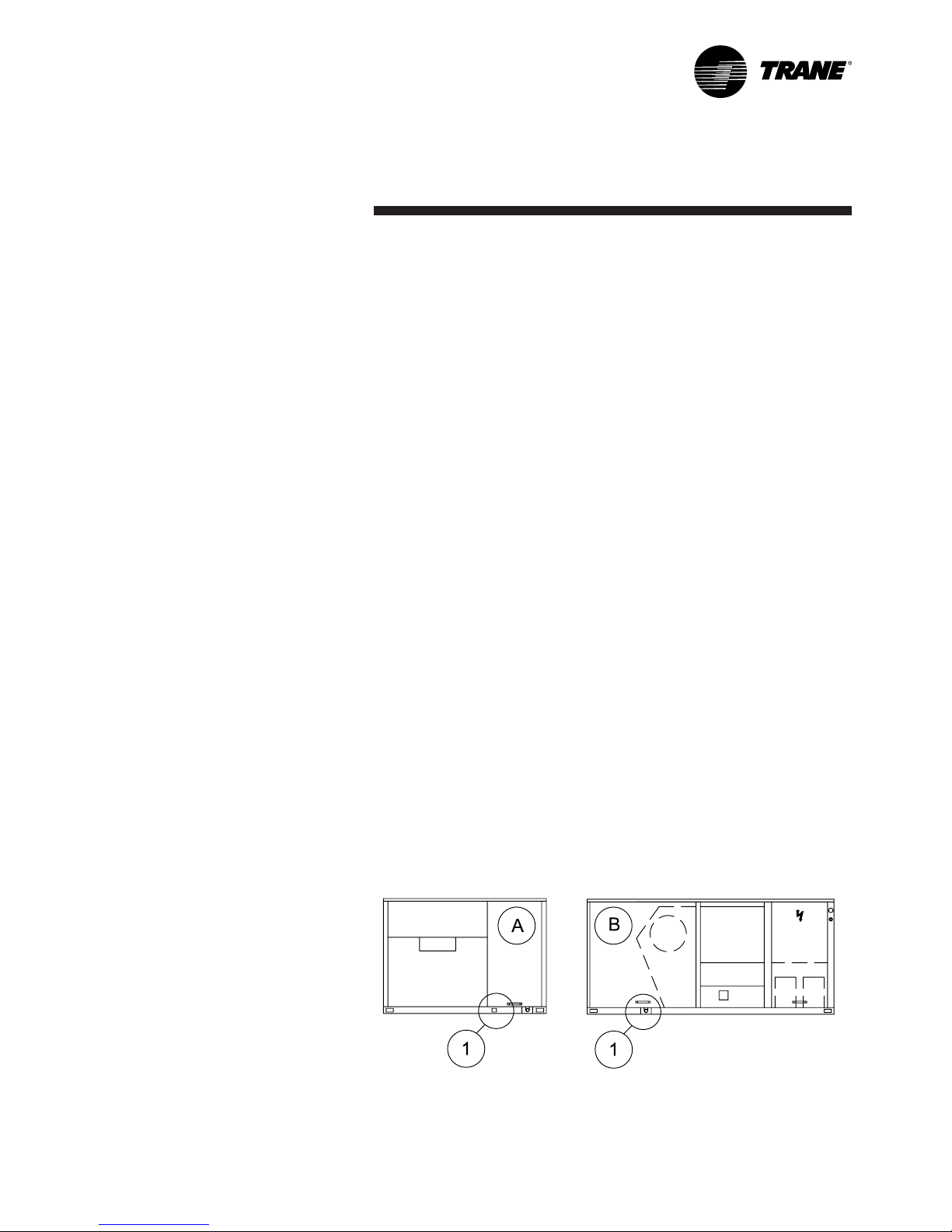

Figure 6 - Condensate Drain location
1 = Condensate drain connection
A =TKH/YKH 155, 175, 200, 250 - WKH 125,155, 200
B =TKD/YKD 155, 175, 200, 250 - WKD 125,155,200

Installation
RT-SVX19A-E412
Figure 7 - Condensate drain line connection
1 = Static pressure drain pan
2 = Panel enclosure
3 = 42mm PVC drain
4 = Cleanout plug
RT-SVX19A-E4
Condensate drain piping
A 42mm PVC condensate drain
connection with P-trap is provided.
Follow local codes and standard
piping practices when running the
drain line. Install a trap and be sure
to fill with water before starting the
unit. Pitch the line downward, away
from the unit to avoid long, level,
horizontal runs. Refer to Figure 7.

Installation
13RT-SVX19A-E4
Gas pipework installation
The installation must conform to all
standards and regulations.
The gas supply pipework and gas
stop valve to be installed near the
unit must be sized so as to assure
the gas pressure is sufficient at the
unit inlet when operating at full
load.
CAUTION! Should the pressure at
the unit valve gas inlet be higher
than 0.035 bar, an expansion valve
must be installed.
The pipework must be self-
supporting and the final connection
to the burner must be made by a
flexible pipe. Provide a dust
protection (filter) upstream the unit
connection.
CAUTION!The gas pipework must
not exert any stress on the burner
gas connection.
Note: Expansion valve must be
adapted to the type of gas used:
• G 20 : 20 mb
• G 25 : 25 mb
• G 31 : (Propane): 37 or 50 mb
Table 4 - Gas burner models
SeeTable 38 for burner
performance.
Gas leak check procedure
1. Vent the gas line
2. Gas supply line pressure test:
close valve 4 and open valve 2
3. Leak-check the gas pipe
Look for gas pipe leaks using
"Typol", "1000 bulles" or a similar
product. Do not use soapy water.
WARNING! Never use an open
flame to check for gas leaks.
Required gas pressure at the unit
inlet connection are given in
Table 37.
Note:To operate with propane gas,
the burner is fitted with a pressure
limiter (supplied byTrane)
Unit Burner size
YKD/H 155 G350A
YKD/H 175 G350A
YKD/H 200 G350A
YKD/H 250 G350A
Figure 8 -Typical gas supply Pipework
1 = Evaporator section
2 = Gas burner section
3 = Condenser section
4 = Gas supply connection
5 = Gas supply line
6,8 = Gas stop valve (Field supplied)
7 = Expansion valve (Field supplied)
9 = Filter (Field supplied)

Installation
RT-SVX19A-E414
CAUTION! Do not operate unit
without filters in place.
The maximum pressure drops
allowable on filters are:
EU2/G2: 120 Pa
EU4/G4: 150 Pa
Filter installation
To gain access to filters, remove the
supply fan access panel on
downflow units and the filter access
panel on the end for horizontal
units.
Each unit ships with 40 or 50 mm
thick filters. Number and size of
filters is determined by size and
configuration of the unit.
Table 5 - Filter arrangement
UNIT EU2/G2 EU4/G4
Qty Size Qty Size
YKH/YKD 155 2(508x508x50) 2(498x498x40)
4(508x635x50) 4(500x625x50)
YKH/YKD 175 2(508x508x50) 2(498x498x40)
4(508x635x50) 4(500x625x50)
YKH 200 8(508x635x50) 8(500x625x50)
YKD 200 4(508x508x50) 4(498x498x40)
4(508x635x50) 4(500x625x50)
YKH 250 8(508x635x50) 8(500x625x50)
YKD 250 4(508x508x50) 4(498x498x40)
4(508x635x50) 4(500x625x50)
TKH/TKD 155 2(508x508x50) 2(498x498x40)
4(508x635x50) 4(500x625x50)
TKH/TKD 175 2(508x508x50) 2(498x498x40)
4(508x635x50) 4(500x625x50)
TKH 200 8(508x635x50) 8(500x625x50)
TKD 200 4(508x508x50) 4(498x498x40)
4(508x635x50) 4(500x625x50)
TKH 250 8(508x635x50) 8(500x625x50)
TKD 250 4(508x508x50) 4(498x498x40)
4(508x635x50) 4(500x625x50)
WKH/WKD 125 2(508x508x50) 2(498x498x40)
4(508x635x50) 4(500x625x50)
WKH/WKD 155 2(508x508x50) 2(498x498x40)
4(508x635x50) 4(500x625x50)
WKH 200 8(508x635x50) 8(500x625x50)
WKD 200 4(508x508x50) 4(498x498x40)
4(508x635x50) 4(500x625x50)

Installation
15RT-SVX19A-E4
Supply fan adjustment
Use the following procedure to
determine the proper adjustment of
the supply fan for a specific
application.
1. Determine total external static
pressure about system and
accessories.
a. Obtain the design airflow rate
and the design external static
pressure drop through the
distribution system.
b. Add static pressure drop of the
accessories installed on the
unit. (Table 7,8 & 9)
c. Add the total accessory static
pressure drop (from step 1b) to
the design external static
pressure (from step 1a).The
sum of these two values is the
total system external static
pressure.
2. Using theTables 10 through 20 to
find the external static pressure
that most closely approximates
total system external static
pressure.Then locate the
appropriate airflow rate for your
unit.The value obtained
represents the brake horsepower
for the supply fan motor and the
fan RPM.
3. Adjust motor sheave according
toTable 6.
Table 6 - Motor sheave / Fan speed
Fan Speed (RPM)
Standard Drive
6 turns 5 turns 4 turns 3 turns 2 turns 1 turns
UNIT Open Open Open Open Open Open Closed
YKD/YKH 155 566 601 637 672 708 743 N/A
YKD/YKH 175 724 769 815 860 906 951 N/A
YKD/YKH 200 513 550 586 623 659 696 N/A
YKD/YKH 250 588 619 650 681 712 743 N/A
TKD/TKH 155 566 601 637 672 708 743 N/A
TKD/TKH 175 724 769 815 860 906 951 N/A
TKD/TKH 200 513 550 586 623 659 696 N/A
TKD/TKH 250 588 619 650 681 712 743 N/A
WKD/WKH 125 533 566 600 633 667 700 N/A
WKD/WKH 155 566 601 637 672 708 743 N/A
WKD/WKH 200 513 550 586 623 659 696 N/A
Fan Speed (RPM)
Oversized Drive
6 turns 5 turns 4 turns 3 turns 2 turns 1 turns
UNIT Open Open Open Open Open Open Closed
YKD/YKH 155 672 714 756 798 840 882 N/A
YKD/YKH 175 791 840 890 939 989 1038 N/A
YKD/YKH 200 680 711 742 773 804 835 N/A
YKD/YKH 250 690 722 754 786 818 850 N/A
TKD/TKH 155 672 714 756 798 840 882 N/A
TKD/TKH 175 791 840 890 939 989 1038 N/A
TKD/TKH 200 680 711 742 773 804 835 N/A
TKD/TKH 250 690 722 754 786 818 850 N/A
WKD/WKH 125 724 769 815 860 906 951 N/A
WKD/WKH 155 513 550 586 623 659 696 N/A
WKD/WKH 200 588 619 650 681 712 74 3 N/A

Installation
RT-SVX19A-E416

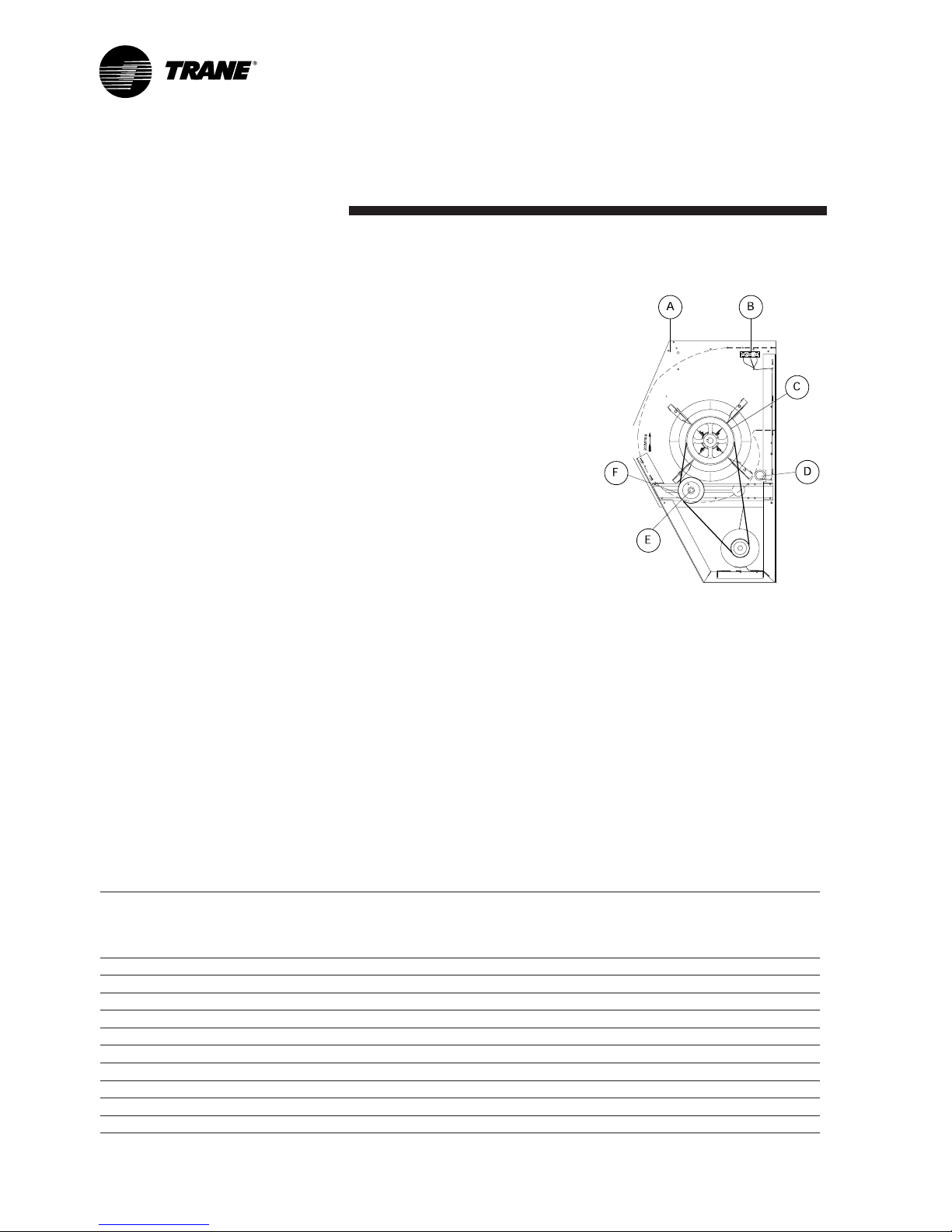

To increase airflow
Loosen variable sheave set screw
and turn sheave clockwise.
To decrease airflow
Loosen variable sheave set screw
and turn sheave counter-clockwise.
To increase belt tension
Loosen the nut (next to the idler
sheave) that secures the sheave in
place. With a wrench, apply
pressure clockwise on the outside
nut (round headed one), until
tension desired is reached. While
holding pressure with the tension
nut, retighten the nut next to the
idler sheave.
Figure 9 -Typical fan, motor, and sheave
assembly
A = Fan Housing
B =Terminal Block
C = Fan Sheave
D = Plastic Bushing
E = BeltTension Adjustment Bolt
F = Idler Pulley
Table 6b - Belt tensioning
TK* / YK* /
WK* Motor kW
Fan pulley
Ty p e /
diam. (mm)
Fan pulley
Ty p e /
diam. (mm)
Belt type
/ lengh (mm)
Belt
deflexion
(mm)
Deflexion
effort
mini kg
Deflexion
effort
maxi kg
Belt tension
mini
N
Belt tension
maxi
N
125 1,5 BK90 / 222 1VP44 / 105 BX68 / 1727 5,89 2,4 2,9 400 500
155 1,5 BK85 / 210 1VP44 / 105 BX68 / 1727 6 2,4 2,9 400 500
175 3BK130 / 324 1VP44 / 105 BX75 / 1905 6,05 2,4 2,9 400 500
200 3BK160 / 400 1VL40 / 95 BX90 / 2286 6,96 2,4 2,9 400 500
250 4,6 BK190 / 476 1VP50 / 121 BX96 / 2438 6,91 2,4 2,9 400 500
125 3BK130 / 324 1VP44 / 105 BX75 / 1905 5,85 2,4 2,9 400 500
155 3BK140 / 349 1VP44 / 105 BX77 / 1955 6,17 2,4 2,9 400 500
175 4,6 BK140 / 349 1VP56 / 136 BX75 / 1905 5,45 2,4 2,9 400 500
200 4,6 BK190 / 476 1VP56 / 136 BX96 / 2438 6,87 2,4 2,9 400 500
250 4,6 BK190 / 476 1VP56 / 136 BX96 / 2438 6,32 2,4 2,9 400 500

Installation
17RT-SVX19A-E4
Component air pressure drops
Table 7 - YKD/YKH Pressure drop through accessories
Filter Filter Economizer Economizer
Airflow EU2/G2 EU4/G4 100%
outside air
100%
return air
YKD/YKH 155
6800 13 27 8 6
7650 16 30 10 7
8500 19 34 12 8
9350 22 37 14 9
10200 26 40 16 10
YKD/YKH 175
7870 17 30 10 7
8860 21 34 12 8
9850 25 38 15 9
10840 30 43 17 11
11830 35 47 20 12
YKD 200
8970 12 26 29 6
10090 15 30 37 8
11210 19 33 45 9
12330 23 37 55 11
13450 27 41 65 13
YKH 200
8970 11 23 33 6
10090 14 26 41 8
11210 17 29 51 9
12330 20 33 61 11
13450 23 36 72 13
YKD 250
11280 18 32 46 10
12690 24 36 58 12
14100 29 41 71 14
15510 36 46 86 17
16920 43 51 102 19
YKH 250
11280 17 30 52 10
12690 21 34 65 12
14100 26 38 80 14
15510 31 43 96 17
16920 36 47 114 19

Installation
RT-SVX19A-E418
Table 8 - TKD/TKH Pressure drop through accessories
Filter Filter Economizer Economizer Electric Hot water coil
Airflow EU2/G2 EU4/G4 100%
outside air
100%
return air heater Downflow only
TKD/TKH 155
6800 13 27 8 6 7 33
7650 16 30 10 7 9 40
8500 19 34 12 811 48
9350 22 37 14 913 56
10200 26 40 16 10 16 65
TKD/TKH 175
7870 17 30 10 710 42
8860 21 34 12 813 51
9850 25 38 15 916 61
10840 30 43 17 11 19 72
11830 35 47 20 12 23 83
TKD 200
8970 12 26 29 613 33
10090 15 30 37 817 40
11210 19 33 45 921 48
12330 23 37 55 11 25 56
13450 27 41 65 13 30 65
TKH 200
8970 11 23 33 613 -
10090 14 26 41 817 -
11210 17 29 51 921 -
12330 20 33 61 11 25 -
13450 23 36 72 13 30 -
TKD 250
11280 18 32 46 10 20 49
12690 24 36 58 12 25 59
14100 29 41 71 14 32 71
15510 36 46 86 17 38 82
16920 43 51 102 19 46 95
TKH 250
11280 17 30 52 10 19 -
12690 21 34 65 12 24 -
14100 26 38 80 14 29 -
15510 31 43 96 17 35 -
16920 36 47 114 19 42 -

Installation
19RT-SVX19A-E4RT-SVX19A-E4
Table 9 - WKD/WKH Pressure drop through accessories
Airflow
Filter
EU2/G2
Filter
EU4/G4
Economizer
100%
outside air
Economizer
100%
return air
Electric
heater
Hot water coil
Downflow only
WKD/WKH 125
5720 9 21 6 5 4 37
6430 11 24 7 6 6 45
7140 14 27 9 6 7 53
7850 17 30 10 7 9 62
8560 20 33 12 812 72
WKD/WKH 155
6800 13 27 8 6 7 33
7650 16 30 10 7 9 40
8500 19 34 12 811 48
9350 22 37 14 913 56
10200 26 40 16 10 16 65
WKD 200
8970 12 26 29 613 33
10090 15 30 37 817 40
11210 19 33 45 921 48
12330 23 37 55 11 25 56
13450 27 41 65 13 30 65
WKH 200
8970 11 23 33 613 -
10090 14 26 41 817 -
11210 17 29 51 921 -
12330 20 33 61 11 25 -
13450 23 36 72 13 30 -

Installation
RT-SVX19A-E420
Supply fan performances
Table 10 - YK 155 External static pressure
Standard drive
Oversized drive
External Static Pressure (Pa)
275 300 325 350 375 400 425 450 475 500
m3/h RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW)
6800 699 1.47 719 1.55 739 1. 6 3 758 1. 7 1 777 1.79 795 1. 8 6 813 1.9 4 830 2.01 847 2.09 863 2.16
7650 729 1.82 749 1. 9 2 768 2.01 787 2.1 806 2.19 824 2.28 841 2.37 858 2.46 875 2.55
8500 764 2.25 782 2.35 800 2.45 818 2.55
9350
10200
External Static Pressure (Pa)
25 50 75 100 125 150 175 200 225 250
m3/h RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW) RPM (kW)
6800 564 1 587 1.07 610 1. 15 633 1. 2 3 655 1.31 677 1. 3 9
7650 560 1.14 583 1.23 605 1. 3 1 627 1. 3 9 648 1.48 669 1. 5 6 690 1. 6 5 710 1.74
8500 559 1. 3 1 584 1. 41 606 1.5 628 1. 6 649 1. 6 9 669 1. 78 689 1.8 7 708 1. 9 7 727 2.06 74 6 2.16
9350 610 1. 7 2 633 1. 8 3 654 1.94 675 2.04 694 2.14 713 2.24 732 2.34 750 2.45 767 2.55 785 2.65
10200 661 2.21 683 2.33 703 2.45 722 2.56
