Trane XL824 User manual

Trane XL824
Smart Control User Guide
The XL824 is an easy-to-use,
programmable control with a
color touch-screen.
When connected with Nexia™
Home Intelligence, you can
control your home’s heating
and cooling system and
up to 230 separate Z-Wave
devices from a smart phone,
PC or tablet from virtually
anywhere.
This guide will help you
congure and connect your
XL824 Smart Control quickly
and easily.
032-5090-02
Start using your
new XL824 now!
See “Start Here!”
on page 3.

page 2 824 User Guide
Thank you for choosing the Trane XL824 Smart
Control. The intuitive interface and powerful
features incorporated into the compact design
of the color touch-screen control represent the
latest in climate control technology from the
industry’s leader in residential HVAC systems.
This guide will introduce you to the unit’s many
features and get you started using your XL824
Smart Control right away.
To enjoy the full benet of your XL824 Smart
Control, it should be connected to a Nexia™
Home Intelligence account. Nexia is a cloud-
based platform that helps the smart products
in your home work together through a single,
convenient application. The XL824 can serve as
the central hub of an entire network of home
automation devices.
Nexia™ Home Intelligence allows you to:
• Monitor and control your HVAC system
using an internet-enabled smart phone,
tablet or computer from anywhere in the
world.
• Build a network of up to 230 Z-Wave
enabled products on one account.
• View weather information including
outdoor temperature, ve-day forecasts,
radar and weather alerts.
• Receive text and e-mail notications that
inform you of happenings in your home.
• Receive software updates automatically.
Congratulations!
Start Here!.................................................................. 3
Navigating the Control
Home Screen ............................................................4
Temperature Control Panel Screen...................5
Menu Screen.............................................................6
Settings Screen........................................................7
Scheduling
Schedule Screen...................................................... 8
Changing Periods.................................................... 9
Adding Periods ......................................................10
Deleting Periods....................................................11
Overriding Schedules..........................................12
Conguring 1-Touch Presets.............................13
Nexia™ Home Intelligence
Including/Excluding Z-Wave Devices ............15
Z-Wave Repeater Screen ....................................16
Security Settings
Screen Lock O......................................................17
Screen Lock On......................................................17
Guest Access...........................................................17
Other Features
Automatic Software Upgrades.........................18
Manual Software Upgrades...............................18
Smart Optimization..............................................18
Notices
FCC Notice ...............................................................19
ICC NOTICE ..............................................................19
Contents
Up to four smart controls of any combination of the 950,
850, XL824 and 624 are allowed on your Nexia™ Home
Intelligence account for no additional cost. A monthly
subscription charge may apply beyond this number of
devices.

032-5090-03 page 3
The User Setup
Wizard guides
you through
the XL824’s User
configurable
settings.
To complete the Setup Wizard and connect the
XL824 to Nexia™ Home Intelligence, you need:
• A high-speed connection to the Internet
(wired or wireless)
• Your wireless (WiFi) network name and
password
• An internet browser
• A valid e-mail address
To access the User Setup Wizard, press
MENU>SETTINGS>USER SETUP WIZARD.
When the Setup Wizard is activated, the process
cannot be cancelled. The Wizard will guide you
through the following steps:
Screen Settings
• Adjust the Screen brightness, backlight,
screen saver and color themes.
Schedule Settings
• Set the XL824 scheduling feature to
enabled or disabled. When Scheduling is
disabled, 1-Touch Presets are available.
Guided Scheduling (Scheduling Enabled)
• Automatically create schedules based on
answers to a series of questions.
1-Touch Presets (Scheduling Disabled)
• Congure heating and cooling target
temperatures for Home, Away and Sleep
conditions. The Presets are selectable from
the Home Screen.
Network Setup
Select your wireless network and enter your
password. If your wireless network is available
but not shown in the list, select Hidden Network,
and manually enter your network’s name (SSID).
NOTE: Wireless Setup is not required when the
XL824 is hard-wired to your home network.
Home networking troubleshooting tips can
be found at www.nexiahome.com/trane.
Nexia™ Home Intelligence Registration
(requires Internet connection)
• Your XL824 Control comes equipped with
remote access and other features from
Nexia™ Home Intelligence.
NOTE: If you are having diculty enrolling the
XL824 to your account, visit the troubleshooting
section on www.nexiahome.com/trane for help.
Weather (requires Nexia registration)
• Input the Zip Code of the Location for
appropriate weather information including
ve-day forecasts, radar display and
weather alerts.
That’s it! You can now begin enjoying the
benets of your new Trane XL824 Smart
Control!
Start Here!
User Setup
Wizard
Menu
Settings User Setup
Wizard
Accessing the User Setup Wizard

page 4 824 User Guide
Navigating the Control Home Screen
4:19 PM
37°
16%
Tue, Dec 16
System Idle
Following Schedule Home
Indoor Temp
76°
Menu Auto
System Mode
Circulate
Fan Mode
Auto
Air Cleaner
$
Away
78°
.
.
.70°
Outdoor Temp L 39° H 46°
Indoor Humidity
Status
+
Notications and System Alerts
appear here
Date and Time appear here
Heating and
Cooling Set Points
Press to see
System Status
Display
Press to set
Indoor Humidity
Target
Press Menu
for additional
menu screens
Press to change System
Mode (Auto/
Heating/Cooling/
O/Emergency Heat)
Press to change Fan
Mode (Auto/On/
Circulate)
Press to change Air
Cleaner Cycle options
(Auto/Quick/Allergy)
Press here for 5-Day
Weather Forecast, Radar
Display and Alerts
Network
Status
Press in this area
to open the
Temperature
Control Panel
Plus symbol
indicates
compressor and
auxiliary heat
called
simultaneously
Press to activate
Energy Savings
Mode, to dene
Away preset
see 1-touch
settings

032-5090-03 page 5
The Temperature Control Panel is where target
temperatures are manually set and adjusted.
Press in the INDOOR TEMPERATURE area
to reveal the Temperature Control Panel. Use
the UP and DOWN arrows to manually adjust
the target temperature. Press in the INDOOR
TEMPERATURE area again to commit the
changes and hide the Temperature Control Panel.
With Scheduling Disabled, the new target
temperature is permanently set and will remain
in eect until it is changed again or a 1-Touch
Preset is activated. See “Conguring 1-Touch
Presets” on page 13 for more information.
With Scheduling Enabled, the new target
temperature is set and, by default, will hold until
the next scheduled period occurs. The Hold Until
time is displayed on the Home Screen.
To make the new temperature permanent when
Scheduling is Enabled, press HOLD PERM after
setting the new temperature. See “Overriding
Schedules”on page 12 for more information.
To display and edit the current schedule, press
SHOW SCHEDULE when Scheduling is enabled.
Temperature Control Panel Screen
Hold
Until
Show
Schedule
Hold
Perm 82º
62º
Away
$
Home
Sleep
Press to
increase
the
set point
Press to
decrease
the
set point
Cooling Set Point
(press to change)
Displayed when
Scheduling is Enabled
Press to Permanently
Hold changes, Hold
Until a future date and
time or to Show
and edit
current
Schedule
Displayed when
Scheduling is Disabled
Press Away, Home or
Sleep to activate
1-Touch Presets
Heating Set
Point (press to change)
Status Area
Mode
Indicator

page 6 824 User Guide
Menu Screen
4:19 PMTue, Dec 16
Home Back
Disables the
touch screen for
30 seconds for
cleaning - use
only a soft damp
cloth to clean
screen
Enable and
Disable Smart
Optimization
Press to display your Dealer’s
contact information
Press to use Z-Wave
bridge/repeater functions (see
Nexia™ Home Intelligence
section of this document)
Press to access
all user settings
(see Settings
Screen)
Press to view or edit your schedule (when
scheduling is enabled) or edit 1-Touch
Presets (when scheduling is disabled)
Enable/Disable Scheduling at
Menu>Settings>Schedules
Press to view 5-Day Weather
Forecast, Radar and Weather
(requires Nexia registration)
Press to access Screen Lock and
Guest Access settings.
Press the Home Screen>Menu
button and hold for 5 seconds to
unlock screen
Press to access
System
Information,
Notications and
Alarms
Settings Schedules Weather Screen Lock Clean Screen
Nexia Smart
Optimization
ServiceSystem Info

032-5090-03 page 7
Settings Screen
4:19 PMTue, Dec 16
Home Back
78° 82°
$
Initiate User
Setup Wizard
Press to manually upgrade
sofware. See Software
Upgrades for more
information
Restore all user settings to
factory defaults
Press to set
Temperature
Scale, Deadband,
Calibration* and
Displayed
Outdoor
Temperature
Sensor souce
Press to Enable or
Disable Scheduling
Congure 1-Touch Presets (when
Scheduling is enabled, only Away
setting is available)
Press to modify screen brightness,
backlight timer, screensaver and
color theme
Manually set the
Date, Time and
Time Zone
Press to view
network
information
Set system maintenance
and service reminders
* Allow at least 1 hour for the Control to acclimate to the ambient room conditions.
Temperature display may be inaccurate during the acclimation period.
Thermostat Schedules 1-Touch
Presets
Display Date & Time
Network SW Upgrades Reminders Restore User Setup
Wizard

page 8 824 User Guide
Scheduling Schedule Screen
Schedule Mon Tu e Wed Thu Fri Sat Sun
6:00 am 8:00 am 6:00 pm 10:00 pm
78º
70º
85º 78º
70º
82º
62º62º
Wake
Add
Period
Day
Delete
Period
Away Home Sleep
Copy DayHome Guided
Schedule Back

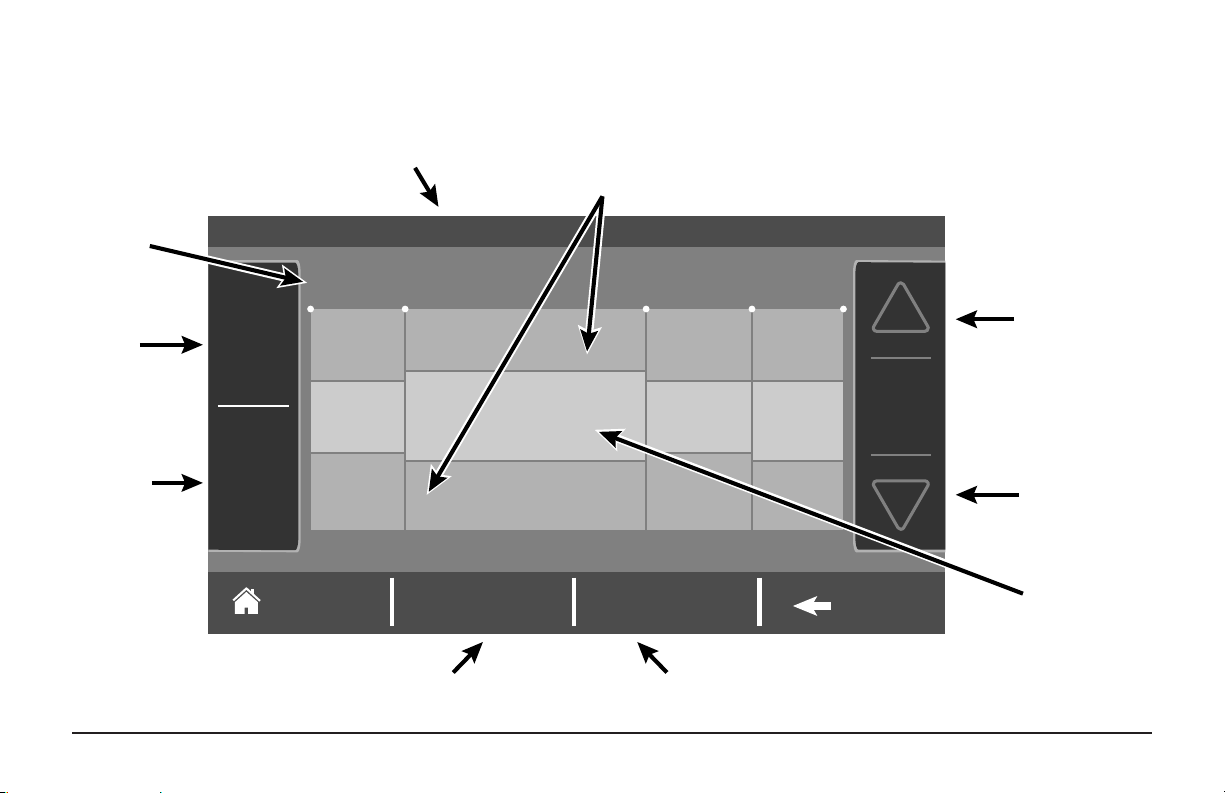

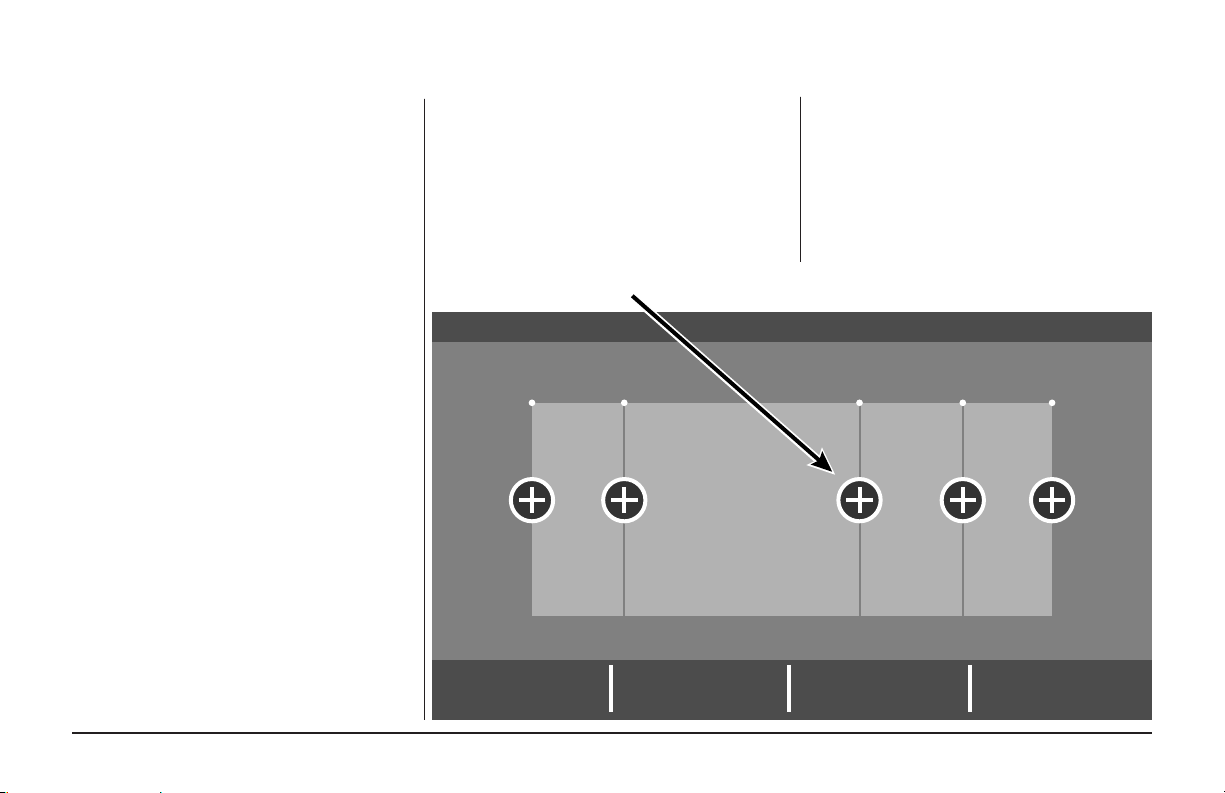

Press here
to add a
period
Press the
Time to
change start
or stop
times
Press here
to delete a
period
Use the Up
and Down
Arrows to
change
values
Press in the
gray area to
rename the
Period
Press here to copy this day’s
schedule to other days
Press here for the
Guided Schedule Tool
The current day is
highlighted Press in the red or blue area, then adjust the Set Point
using the up and down arrows
To access the Schedules Screen, navigate to Menu>Schedules or
select Show Schedules from the Temperature Control Panel.

032-5090-03 page 9
Changing Period Start or End Times
1. Press anywhere in the Period to make it
active. Other Periods will dim and the Start
and End times for this Period will be in a
black box.
2. Press the TIME START or TIME END and
adjust the time using the UP and DOWN
arrows. Note: The XL824 uses intelligent
technology and will not allow setting an
illogical start or end time. Periods must be
at least 30 minutes in duration.
Changing Period Set Points
1. Press the active Period’s Cooling or Heating
Set Point.
2. Adjust the Set Point using the UP or DOWN
arrows.
Changing the Period Name
1. Press the PERIOD NAME (Wake, Away, etc.).
2. Select a predened name or press NEW and
select NEXT.
3. If selecting a new name, enter the name
using the on-screen keyboard.
4. Press NEXT.
When all changes have been made, press APPLY
to save and exit, or press CANCEL to discard all
changes that were made to this Schedule.
Changing Periods
Schedule Mon Tue Wed Thu Fri Sat Sun
6:00 am 8:00 am 6:00 pm 10:00 pm
78º
70º
85º 78º
70º
82º
62º62º
Wake
Time
Start
Time
End
Away Home Sleep
Apply Cancel
Press Apply to save
changes and exit
Press to adjust
Start and End
Times
Press in the red or blue area, then adjust
the Set Point using the up
and down arrows
Press in the gray area
to rename the period
Use the Up and
Down Arrows to
change values

page 10 824 User Guide
The XL XL824 Smart Control is capable of
adjusting the temperature settings throughout
the day according to a user-programmable
schedule.
Each day of the week can have its own unique
schedule, and each day can have a maximum of
six Periods.
Important: Scheduling must be enabled
before a schedule can be dened. To verify
that Scheduling is enabled, navigate to
MENU > SETTINGS > SCHEDULES and verify
that ENABLED is highlighted.
To set or modify schedules, navigate to
MENU > SCHEDULES or select SHOW
SCHEDULES from the Temperature Control
Panel.
Periods dene the time of day when the target
temperature is adjusted. Each day can have from
1-6 Periods, and each day can have dierent
number of periods. The Scheduling Screen shows
the start time for each Period highlighted across
the top row.
Adding Periods
1. Press ADD PERIOD, the Add Period Screen
is displayed.
2. Press the green circle where you would like
to insert a Period.
3. Choose a name for the new Period or select
New to dene a custom name and press
NEXT.
4. If selecting a new name, enter the name
using the on-screen keyboard.
5. Press NEXT.
6. Add additional periods, the maximum per
day is 6.
7. Press APPLY to save your changes and
return to the Schedule Screen. The new
period should be displayed.
Adding Periods
Add Period
Apply Cancel
6:00 am 8:00 am 6:00 pm 10:00 pm
78º 85º 78º 82º
70º 62º 70º 62º
Wake Away Home Sleep
Press the green target to insert a new period
