Transcend TS-ASP3 User manual

TS-ASP3
USER’S MANUAL
Intel® Socket 370 CeleronTM/
Pentium® III FC-PGA Series

TS-ASP3 Motherboard
SupportingIntel® Pentium®III/Celeron™SeriesProcessor(CoppermineCore)
66/100/133MHz Front Side Bus
Intel®815EPChipset
Welcome!!
Congratulations on your purchase of this great value motherboard, with its range of special
features and innovative onboard functions, built around the advanced architecture of the new
Intel®815EChipset. Moredetailswillfollowlaterinthismanual.
Our Website
Pleasecomeandvisitusatourwebsiteonhttp://www.transcendusa.com/. You’llfindplentyof
interesting information about this and many other quality Transcend products.
Your User’s Manual
ThisUser’sManualisdesignedtohelp endusersand systemmanufacturerstosetupand install
themotherboard. Alloftheinformationwithinhasbeencarefullycheckedforaccuracy. However,
Transcend Information, Inc. (hereafter referred to as “Transcend”) carries no responsibility or
liabilityforanyerrors orinaccuracieswhichthismanualmaycontain. Thisincludesreferencesto
products and software. In addition, the information and specifications are subject to change
withoutprior notice.
Disclaimer
Transcend provides this manual “as is” without any warranty of any kind, either expressed or
implied, including – but not limited to – the implied warranties, conditions of merchantability or
fitnessforaparticularpurpose. Transcend,itsmanagement,employees,distributorsandagents
arein no wayliableforany indirect special,incidentalorconsequential damages, includingloss
of profits, loss of business, etc. This freedom from liability remains in effect even if Transcend
has been advised of the possibility of such damages arising from any defect or error in this
manual or product.
Trademarks
Allbrands, product names andtrademarksmentionedin this document arethepropertyof their
respective owners or companies and are used solely for identification or explanation. It is
Transcend policy to respect all product rights.
Copyright
This manual may not, in whole or in part, be photocopied, reproduced, transcribed, translated
or transmitted, in whatever form or language, without the written consent of the manufacturer,
exceptforcopies retained by the purchaser for personal archiving purposes.
Manual Version: 1.1
Release Date: January 2001
Copyright © 2000 Transcend Information, Inc.

TableofContents
CHAPTER 1 INTRODUCTION 1
1.1 EssentialHandlingPrecautions.........................................................................1
1.2 PackageContents ............................................................................................2
1.3 Specificationsand Features .............................................................................2
CHAPTER 2 HARDWARE INSTALLATION 5
2.1 Transcend TS-ASP3 Motherboard....................................................................5
2.2 Layout of Transcend TS-ASP3 Motherboard ....................................................6
2.3 JumperSetup ...................................................................................................7
2.3.1 66/100/133MHzSystemConfiguration ..................................................7
2.3.2 Using Jumper JP1 to clear CMOS.........................................................8
2.3.3 OnboardAudioSetting ..........................................................................9
2.3.4 Keyboard Wake Up .............................................................................10
2.3.5 VCC3Adjust........................................................................................11
2.4 ConnectorDescription ....................................................................................12
2.4.1 Primary/SecondaryIDEConnectors....................................................12
2.4.2 FloppyDiskDriveConnector...............................................................13
2.4.3 Fan Power Connectors........................................................................14
2.4.4 MemoryConfiguration .........................................................................15
2.4.5 PanelConnectors ................................................................................16
2.4.6 Wake-on-LANConnector.....................................................................18
2.4.7 Power Connector ................................................................................19
2.4.8 IrDA-CompliantInfraredModuleConnector.........................................20
2.4.9 Internal Serial Port Connector COMB .................................................21
2.4.10 Internal AudioConnector .....................................................................22

2.4.11 USB 3/4 Connector ................................................................................23
2.5 ExternalBackPanel I/O Ports............................................................................24
CHAPTER 3 BIOS SETUP 25
3.1 BIOSSetup .......................................................................................................25
3.2 TheMainMenu..................................................................................................25
3.3 StandardCMOSFeatures.................................................................................27
3.4 AdvancedBIOSFeatures..................................................................................3 0
3.5 AdvancedChipsetFeatures ..............................................................................33
3.6 IntegratedPeripherals.......................................................................................35
3.7 Power Management Setup................................................................................ 39
3.8 PnP/PCIConfigurationSetup ............................................................................ 42
3.9 PC Health Status...............................................................................................44
3.10 Frequency/VoltageControl................................................................................ 45
3.11 Load Fail-Safe Defaults ....................................................................................47
3.12 LoadOptimized Defaults................................................................................... 47
3.13 SupervisorPassword........................................................................................48
3.14 User Password .................................................................................................49
3.15 Save & Exit Setup .............................................................................................49
3.16 ExitWithout Saving ........................................................................................... 50
CHAPTER 4 SOFTWARE SETUP 51
4.1 INF Update for 815EP Chipset.......................................................................... 51
4.2 Intel Security Controller Driver .......................................................................... 52
4.3 AudioDriverSetup ............................................................................................53
CHAPTER 5 BIOS UPGRADE 56
5.1 How to Check Your BIOS File Name and Version .............................................56
5.2 How to Download the Correct BIOS File from the Web .................................... 56
5.3 How to Update Your Motherboard BIOS........................................................... 57

INTRODUCTION 1
CHAPTER 1 INTRODUCTION
1.1 Essential Handling Precautions
IMPORTANT. Read this page before unpacking your motherboard!
••
••
•Power Supply
Be careful! Always ensure that the computer is disconnected from the power supply when
workingon the motherboard and itscomponents.
•Static Electricity
Static electricity may cause damage to the delicate integrated circuit chips on your
motherboard. Before handling the motherboard outside of its protective packaging, ensure
that there is no static electrical charge in your body. A static discharge sufficiently strong
enoughto damage computer components isnot perceptible by a human. Toavoid this risk,
pleaseobservethesesimpleprecautionswhilehandling themotherboard andother computer
components:
1. Ifpossible, wearananti-staticwriststrapconnectedtoa natural earthground.
2. Touch a groundedoranti-static surface,ora metalfixturesuch as apipeor thechassisof
yoursystem, beforetouchingthemotherboard.
3. Whenyouhaveremovedthe motherboardfromitsanti-staticpackaging, tryto holditonly
bythe edges,without touchinganycomponents.
4. Avoidcontactingthe componentsonadd-oncards, motherboards,andmodules with the
gold-coloredconnectors which plugintothe expansion slots.
5. Itissafest to handlesystemcomponents onlybytheirmounting brackets.
6. Keepcomponentswhichare not connected to the system in the anti-staticpackaging
wheneverpossible.
Theseprecautions helptoreduce theriskofstaticbuild-up andensureany staticdischargeis
harmlesstoyourequipment.
••
••
•Battery Replacement
The battery which holds the system settings memory (CMOS RAM) on your motherboard
should not require replacement for at least five years, and probably much longer. In picture
2.2,itislocatednearthebottomrighthandcorner. Incorrectcomputertimeand/orlossoftime
mayindicate a weak motherboard batttery.

Please replace your battery only with the same type, or a similar type recommended by the
battery manufacturer. If the battery is replaced incorrectly, there is a risk of a short circuit or
explosion. Used batteries should be disposed of in accordance with the manufacturer’s in-
structionsandlocalenvironmental regulations.
••
••
•Electric Screwdrivers
To reduce the risk of damage to the motherboard due to excessive torque, avoid setting
electric screwdrivers above 7.5 kg/cm.
1.2 Package Contents
Thismotherboardpackage should contain the following items. Please check themassoon as
youunpack. If you find any damagedormissingitems,please contact your retailer.
- Motherboard
- 1 X CD-ROM
- 1 X FDD cable
- User’s Manual
- COM port cable x 1 (optional)
- Ultra DMA 66/100 cable x 1
- USB Cable x 1 (optional)
1.3 Specifications and Features
• •
• •
• CPU
-SupportsIntel®PentiumIII/CeleronTM Series
• •
• •
• Chipset
- TS-ASP3: Intel®815EP (MCH, ICH2); FSB: 66/100/133 MHz
• •
• •
• DRAM Memory
-Supports SynchronousDRAM
- 3 X 168-pin DIMM module sockets on board
-8~512MBmemorysize
-8/16/32/64/128/256/512MBDIMM
-64 data bits structureonly
2 INTRODUCTION

• •
• •
• I/O Bus Slot
-6XMaster/SlavePCIBusslots(PCI2.2compliant)
-1XCNR(CommunicationandNetworking Riser) slot
• Award BIOS
-Supports PC99, Plug-and-Play
-SupportsACPI, APM, DMI, Green Feature
• •
• •
• I/O Functions
-Supports PIO Mode 3, 4,5 ATAPI devicesand Ultra DMA/33/66/100
- Supports 2 high speed UART 16550 COM ports
- Supports SPP/EPP/ECP LPT port
-Supports3mode/1.44/2.88MBfloppydrive
- Supports PS/2 Mouse and PS/2 Keyboard
-SupportsIrDAport
- Supports 4 USB (Universal Serial Bus) ports
INTRODUCTION 3
- Supports Line-out, Line-in and MIC-in jack
- Supports Game/MIDI port
• Switching Voltage Regulator
- Intel VRM 8.4 compliant

4 INTRODUCTION
• PCB Dimensions
-ATX formfactor,4-layer PCB, 21.3 cm x 30.5 cm (8.4 inch x12inch)
• Other Features
-Year 2000 compliant
-Power failure resume
-FWH (Firmware Hub) supports securitymanageability
-BIOS Virus protection (warning)
- PS/2 Mouse and Keyboard Wake-Up
-Supports Wake-on-LAN function
-RemoteRing Wake-Up
-Time Wake-Up
- Board voltage monitors for CPU core, +3.3V, +/-5.0V, +/-12.0V, VTT, 3.3VSB/5VSB
-CPU overheat alarm
-CPUfanauto-off in sleep mode

HARDWARE INSTALLATION 5
CHAPTER 2 HARDWARE INSTALLATION

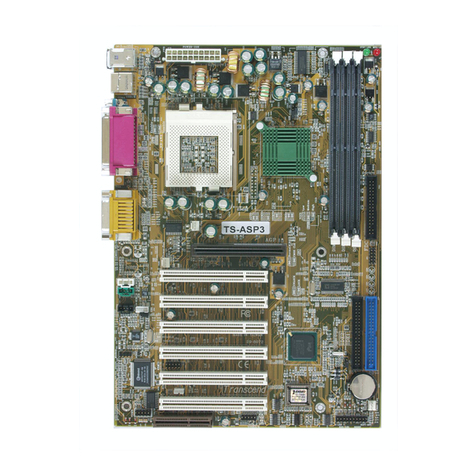

2.1 Transcend’s TS-ASP3 Motherboard
Wake on LAN
·
WOL Header
IrDA Header
USB3/4 CONNECTOR
COM Connector
AC97 CODEC
Winbond 83627 HF-AW
·
Game/ MIDI port & Audio Jack
·
Parallel printer port
·
2 x USB ports
·
PS/2 KB & PS/2 Mouse ports
Back
p
anel I/O
p
orts
·
Game/ MIDI port & Audio Jack
·
·
2 x USB ports
·
PS/2 KB & PS/2 Mouse ports
CPU
·
M Bits FWH Flash Memory
S
y
stem BIOS
·
2
S
y
stem BIOS
PCI IDE Connector
·
Bus Master
·
·
DMA Mode 2
·
PCI IDE Connector
·
Bus Master
·
PIO Mode 3/4/5
·
DMA Mode 2
·
Ultra DMA/33/66/100
FDD Connector
·
Floppy Disk Drive Connector
FDD Connector
(Line-out,Line-in,MIC-in)
Intel 815EP chi
p
set
TS-ASP3:Intel 815EP Chipset
·
LPC Su
p
er I/O
Expansion SlotsExpansion Slots
5
1 x CNR Slot
·
6 x PCI Slots
·
·
1 x AGP Slot
(Shared PCI)
·
Intel
®
FC-PGA Pentium III/
Celeron
TM
Socket 370 Series
(Coppermine Core)
Connector
··
Serial COM port B
3x168-pin SDRAM DIMM
Main Memor
y
·
·
Up to 512MB
·

6 HARDWARE INSTALLATION
2.2 Layout of Transcend TS-ASP3 Motherboard
Transcend
PCI Slot1 (PCI1)
PCI Slot2 (PCI2)
PCI Slot3 (PCI3)
PCI Slot6 (PCI6)
COMA
T:Port 1
B:Port 2
USB
Battery
DIMM1(64bit 168pin SDRAM Module)
DIMM2(64bit 168pin SDRAM Module)
DIMM3(64bit 168pin SDRAM Module)
PRN
CD2
KB MOUSE
815EP
MCH
STBY-LED MEM-LED
JP28
JP6
FC-PGA
Game + Audio
AUX
VIDEO
JP2
Panel
USB3/4
CNR
COMB
Case Fan
WOL
IrDA
Power-Fan
AGP
CPU-Fan
FDC
IDE2 IDE1
JP4
ICH2
FWH
PCI Slot5 (PCI5)
PCI Slot4 (PCI4)
MODEM
JP1
CD1

The JP4 Jumper allows you to set the FSB (Front Side Bus) to 66/100/133MHz configuration.
WhentheJumperis setto“Auto”,thefreqencyrange dependson yourCPUtype. When youset
theFSBto66MHz,youcanselect asystem busfrequency from66MHz to99MHz through“CPU
Host/PCI Clock”of “Frequency/Voltage Control”in the BIOS Setup menu. When you set the
FSBto100MHz,youcanselectasystembusfrequencyfrom100MHzto132MHz. Whenyouset
theFSB to 133MHz, youcanselecta system bus frequencyfrom133MHzto166MHz.
HARDWARE INSTALLATION 7
Transcend
66/100/133MHz FSB Confi
g
uration Jumper
66MHz
100MHz
133MHz
JP4
AUTO
BUS_Freq
2.3.1 66/100/133 MHz System Configuration
2.3 Jumper Setup

8 HARDWARE INSTALLATION
2.3.2 Using Jumper JP1 to clear CMOS
To clear the CMOS data, you should turn off your computer’s power and short pin1 and pin2
in JP1.
CLEAR
NORMAL
JP1
CMOS_CLR
Transcend
Clear COMS Jumper

To use an external CNR card, the onboard audio CODEC can be enabled or disabled via this
jumper. Please disable the onboard audio CODEC if you want to use a PCI Sound Card or an
CNR Audio Card. When you install a CNR card, remember that the onboard audio CODEC
usesthe primarychannel. Therefore,if youwantthe onboardCODECto work,youmust setthe
CNRtobesecondary.
HARDWARE INSTALLATION 9
Audio Selection Jumper
JP2
Audio
Enable
Disable
Transcend
1
2
3
1
2
3
1
2
3
2.3.3 Onboard Audio Setting (JP2 ON-BOARD AUDIO)

10 HARDWARE INSTALLATION
2.3.4 Keyboard Wake-Up (3-pin KB-AWK)
Thisfunctionmakesthe KeyboardPower Upthesystem. Setthisjumper to“Enable”ifyou’dlike
yourKeyboard to PowerUpyourcomputer. Then,goto the”PowerOnFunction”in the
“Integrated Peripherals”in BIOStochoosethesetting you prefer.
Transcend
Keyboard Wake Up
Disable
Enable
KB-AWK
JP6

VCC3 Adjust
JP28
VCC3
Low Load
Medium Load
Hi
g
h Load
Transcend
2.3.5 VCC3 Adjust
HARDWARE INSTALLATION 11
Keepthisselection fixed unless you are familiar with thesystem. Defaultis“Medium”.

12 HARDWARE INSTALLATION
2.4 Connector Description
2.4.1 Primary/Secondary IDE Connectors (Two 40-pin IDE)
Thismotherboardsupportstwo40-pin IDE connectors marked as IDE1 (primary channel) and
IDE2(secondary channel). Each channel supports twoIDEdevicesfora total of fourdevices.
ConnectyourHardDiskDrive(themainharddiskdrive(HDD) ifyou are using more than one)
to the “Master”connector (at the end of the cable) and connect it to IDE1 (see important note
below). Ifyour HDDsupportsUltra DMA/66,youmust usean80-wire cable,otherwisetheHDD
won’t be able to reach this speed.
If you intend to operate two IDE devices from the same channel, one device must be set to
“Master”mode,theotherto“Slave”mode. AHardDisk Drive, CDROMor other IDEdevicecan
have either setting depending on the device’s jumper. Please refer to the device’s manual for
moreinformation.
NOTE: The Connectors must be attached to the IDE channels correctly. Make sure that
the red stripe on one edge of the ribbon cable (this may be faint and could be a dotted
line) is the nearest to PIN1 (on the left as the motherboard is shown in the picture below).
IDE Connectors
PIN1
PIN1
Secondary IDE Connector
Primary IDE Connector
IDE2
IDE1
IDE
Transcend

HARDWARE INSTALLATION 13
2.4.2 Floppy Disk Drive Connector (34-pin FDC)
This connector supports the floppy disk drive ribbon cable which is one of the items in your
motherboardpackage. Afterconnectingthesingleendtotheboard,connectthetwoplugs atthe
otherendtothefloppydrive(s). Remember, as in the last section, the red stripe on the edge of
theribboncablemustbethenearestto PIN1oryourconnectionwon’twork. PIN1isonthe leftas
shownbelow.
Floppy Disk Drive Connector
PIN1
FDC
Floppy Disk Drive Connector
Transcend

14 HARDWARE INSTALLATION
2.4.3 Fan Power Connectors
Therearethreefanpowerconnectorsonthemotherboard: CPU-FAN,POWER-FAN,andCASE-
FAN. Each connector provides+12Vpower. Thecablescanonlybe attached a certain way. If
youtrytoputtheminthewrong way,theywon’t fit. Theseconnectorssupportcoolingfansof 500
mA (6W) or less.
CPU-FAN
POWER-FAN
CASE-FAN
Fan Power Connectors
GND
FAN
Rotation
+12V
Transcend

HARDWARE INSTALLATION 15
2.4.4 Memory Configuration
This motherboard must be installed with PC100/PC133 SDRAM DIMM. You can install either
single-sidedor double-sided memory modules inanycombinationofmemory capacities (listed
below)in any socket, but never exceed 512MBtotalmemorycapacity.
NOTE: This motherboard supports memory modules with 8/16/32/64/128/256/512MB.
Unbuffered Position
3.3V Position
168-pin Unbuffered SDRAM Module (DIMM1)
168-pin Unbuffered SDRAM Module (DIMM2)
168-pin Unbuffered SDRAM Module (DIMM3)
168Pin Memory DIMM Sockets
Transcend

16 HARDWARE INSTALLATION
Panel Connector
+++
S_LED
HDD_LED
NC
RESET
SOFT_OFF SPEAKER
++
KEY LOCK
1
19
20
2
POWER LED
Transcend
2.4.5 Panel Connectors
Power LED Lead (3-pin POWER LED)
This3-pinconnector attaches to the power LED.
Pin1 : +5V
Pin3 : NC
Pin5 : GND
Keylock Lead (2-pin KEYLOCK)
UsethekeylocktoenableordisabletheKeyboard.
Pin7 : KEYLOCK
Pin9 : GND
Speaker Lead (4-pin SPEAKER)
This4-pin connector connects tothecase-mounted speaker.
Pin13 : +5V
Pin15 : GND
Pin17 : NC
Pin19 : SPK
