Transition Networks ION001-A User manual

33419Rev.B https://www.transition.com/Page1of8
ION001‐A
Single‐SlotIONChassis
InstallGuide
Desktopinstallation
SupportsWMBPwallmountbrackets
UnmanagedChassis
SupportsanyIONslide‐incardthatrequires6Wattsorlessofpower(C4120‐1048isnot
supported)
Fan‐lessdesign
ExternalACpower
SupportsIPaddressablemanagedIONslide‐incards
Contents
Introduction..................................................................................................................................................1
OrderingInformation....................................................................................................................................2
OptionalAccessories(soldseparately).....................................................................................................2
KitContents...................................................................................................................................................2
PowerSupplyIncluded.................................................................................................................................2
Installation....................................................................................................................................................3
InstallingaSlide‐InCard...........................................................................................................................3
PoweringtheChassis................................................................................................................................4
GroundingtheChassis..............................................................................................................................4
Specifications................................................................................................................................................5
Troubleshooting............................................................................................................................................6
RelatedManualsandHelp............................................................................................................................6
ContactUs.....................................................................................................................................................7
ComplianceInformation...............................................................................................................................7
DeclarationofConformity........................................................................................................................7
FCCRegulations........................................................................................................................................8
CanadianRegulations...............................................................................................................................8
RecordofRevisions.......................................................................................................................................8

Introduction
TheTransitionNetworksION001‐ASingleSlotchassisisdesignedforinstallingasingleTransition
NetworksIONslide‐incard.TheION001‐Aisa1‐slotIONchassisthatisdesignfornetworkedge
deployments,allowingasingleIONcardtobedeployedasastand‐aloneunit.Thischassisprovidesa
methodofmountingonesingle‐wideIONslide‐inmediaconvertermoduleandincludesanexternalAC
powersupply.

TransitionNetworksION001‐AInstallGuide
33419Rev.C https://www.transition.com/Page2of8
Ordering Information
PartNumberDescription
ION001‐A1‐SlotChassisfortheIONPlatform,ACPowered.TheSingle‐SlotIONchassisis
intendedforinstallingany6WorlessIONslide‐incard.

Optional Accessories (sold separately)
PartNumberDescription
SPS‐2460‐SAExternalPowerSupply24‐60VDCand24‐42VACRMS.ForusewithallTNstand‐
alonemediaconvertersandsomechassis.
IONFPIONBlankfaceplate
WMBPWallMountBracket:5"[127mm]
SFPModulesSFPandSFP+modulessupportedonsomeslide‐incards;seetheTNSFPwebpage.
Kit Contents
TheION001‐Akitincludes:
□OneION001‐ASingleSlotchassis
□OnePowerSupply
□OnePowerCord
□Fourrubberfeet
□Onedocumentationpostcard
Power Supply Included
Toorderthecorrespondingcountryspecificpowersupply,addtheextensionfromthelistbelowtothe
endoftheSKU;Ex:ION001‐A‐NA:‐NA=NorthAmerica,‐LA=LatinAmerica,‐EU=Europe,‐UK=United
Kingdom,‐SA=SouthAfrica,‐JP=Japan,‐OZ=Australia;‐BR=Brazil.



TransitionNetworksION001‐AInstallGuide
33419Rev.C https://www.transition.com/Page3of8
Installation
Installing a Slide-In Card
CAUTION:Wearagroundingdeviceandobserveelectrostaticdischargeprecautionswheninstallingthe
slide‐incard,intothesingle‐slotchassis.Failuretoobservethiscautioncouldresultindamagetothe
slide‐incard.Note:ThemaximumpowerdeliverycapacityfortheION001‐ASingleSlotchassisis6
Watts.Toinstallaslide‐in‐cardintothesingle‐slotchassis:
1. Refertotheuserguidethatcamewiththeslide‐incardtoensurethatanyDIPswitchesor
jumpersonthemodule’scircuitboardaresetcorrectlyforthesiteinstallation.
2. Carefullyaligntheslide‐incardtothechassisinstallationguidesandslideitfullyintothe
installationslot,asshownbelow.
3. Ensurethattheslide‐incardisfirmlyseatedinsidethechassis.
4. Pushinandrotatetheattachedpanelfastenerscrewtosecuretheslide‐incardtothesingle‐
chassisframe.


TransitionNetworksION001‐AInstallGuide
33419Rev.C https://www.transition.com/Page4of8
Powering the Chassis
Tosupplypowertothesingle‐slotchassis:
1. ConnectthebarrelconnectoronthepoweradaptertotheION001‐AbackpanelPowerport.
2. ConnectthepoweradapterplugtoACpower.
3. Usethecabletiedowntosecurethepowersupplycordandthebarrelconnector.
4. Verifythatthesingle‐slotchassisispoweredbyobservingthelitLED(s)ontheinstalledslide‐in
card.Seetherelatedslide‐incardmanualforLEDandotherdetails.

ForanoptionalDCpowersourceseetheSPS‐2460‐SAExternalPowerSupply24‐60VDCand24‐42VAC
rms.Gotohttps://www.transition.comandclickSearchthentypeSPS‐2460‐SAintheSearchbox.
Grounding the Chassis
Thesingle‐slotchassiscomesequippedwithgroundinglugslocatedonitsbackpanel.Theyrequirea
groundingconductorwireterminatedwithatwo‐hole,compression‐type,groundingconnector(not
provided).Thegroundingwire(mustbeacopperconductor)isnotincludedwiththechassisandmustbe
providedbythecustomer/installer.Theelectrical‐conductingpathfromthesingle‐slotchassismust:
•Flowviathegroundinglugstothecommonbondingnetwork(CBN)fortelecominstallations,orto
analternativeapprovedgroundingsystem(ifrequired)fornon‐telecominstallations.
•Beofsufficientlylowimpedancetoconductfaultcurrentslikelytobeimposedontheconverter.
•Enableproperoperationofanyover‐currentprotectiondevices.
Ground Wire Size
ThewiresizeoftheProtectiveEarth(ground)conductorshouldbegreaterthanorequaltothewiresize
ofthepowersourceconductors.Thepower‐sourceconductorwiresizeisinstallationdependentand
sizedtoaccommodateacceptableIRlossesbetweenthepowersourceandthedevicepowerterminal.
Thedeviceterminalblockaccommodates#6wirelugs.A#6wirelugtypicallyterminates#16‐#20wire;
with#18mostcommon.
Connecting the Ground Wire
Theconductormustbefastenedtothegroundinglugswiththeenclosedantirotationstar‐washersand
lug‐nutfasteners.Thetorquerequirementfortheconnectorlug‐nutfastenerisspecifiedbythe
connector’smanufacturer.

TransitionNetworksION001‐AInstallGuide
33419Rev.C https://www.transition.com/Page5of8

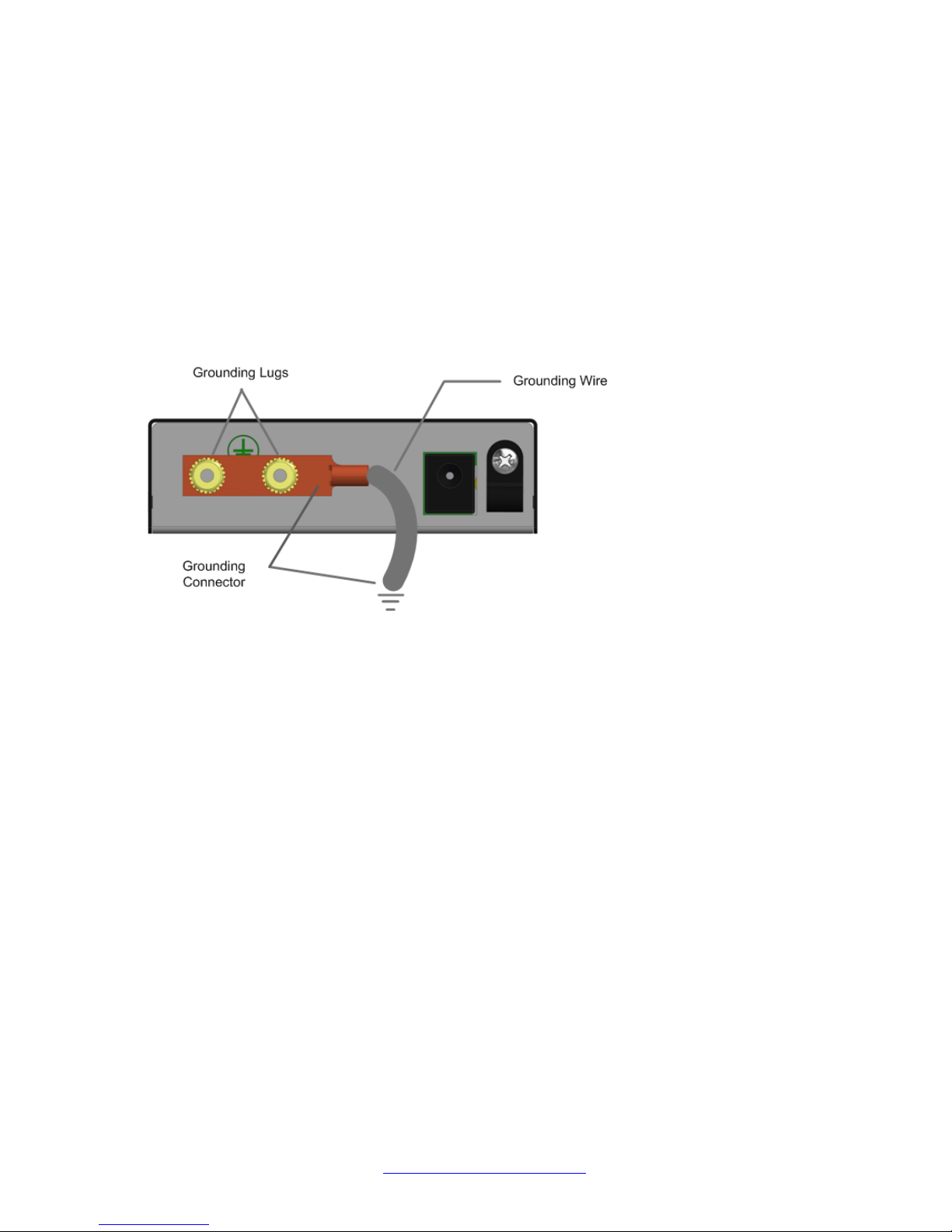

Grounding Method
Theconductormustbefastenedtothegroundinglugswiththeenclosedantirotationstar‐washersand
lug‐nutfasteners.Thetorquerequirementfortheconnectorlug‐nutfastenersisspecifiedbythe
connector’smanufacturer.Toproperlygroundthesingle‐slotchassis:
1. Obtainone(1)two‐hole,compression‐type,groundingconnector.
2. Attachthegroundingconductortothechassisbyplacingthetwo‐holeconnectorontothe
groundinglugsandfastenwiththeenclosedlockwashers/lug‐nutsatthepropertorque(perthe
manufacturer’sspecification).
3. Attachtheoppositeendofthegroundingconductortothecommon‐bondingnetwork(CBN)for
telecom,ortoearthground(ifrequired)fornon‐telecominstallations.
 
Specifications
ForusewithTransitionNetworksModelION001‐ASingleSlotchassisorequivalent.Note:TheION001‐A
SingleSlotchassisisClassAcompliant.
StatusLEDs  None,Powerindicatorisontheslide‐incard
Dimensions  Width:4"[102mm]Wx7.1”[180mm]Dx1.2”[30.48mm](H)
PowerSupply  ExternalAC/DCpowersupplyincluded,120‐240VACinput,12VDCOutput
(SeeselectedSlide‐InCardmanualforpowerconsumptiondata)
OperatingTemp.0°Cto50°C
StorageTemp.  ‐40°Cto+85°C
Humidity  5%to95%(non‐condensing)
Altitude  0–10,000ft.
Weight  2lbs.[0.9kg]
Compliance  ULlisted,EN55022,EN55024,CEMark,FCCClassA,CISPRClassA
MTBF   41,661(MIL‐HDBK‐217F)hours|114,580(Bellcore7V5.0)hours
Warranty  Lifetime
CAUTION:Copperbasedmediaports,e.g.,TwistedPair(TP)Ethernet,USB,RS232,RS422,RS485,DS1,
DS3,VideoCoax,etc.,areintendedtobeconnectedtointrabuilding(insideplant)linksegmentsthatare
notsubjecttolighteningtransientsorpowerfaults.Copperbasedmediaports,e.g.,TwistedPair(TP)
Ethernet,USB,RS232,RS422,RS485,DS1,DS3,VideoCoax,etc.,areNOTtobeconnectedto
interbuilding(outsideplant)linksegmentsthataresubjecttolighteningtransientsorpowerfaults.
Failuretoobservethiscautioncouldresultindamagetoequipment.

TransitionNetworksION001‐AInstallGuide
33419Rev.C https://www.transition.com/Page6of8
Troubleshooting
1.Isamediaconverterinstalledinthesingle‐slotchassis?
NO
•Installaslide‐incard,mediaconverterintothesingle‐slotchassis.SeetheInstallationsection.
•Proceedtostep2.
YES
•Proceedtostep2.
2.IsthePowerLEDonthemediaconverterlit?
NO
•IsthepoweradapterthepropertypeandcyclefrequencyfortheACoutlet?(SeetheSpecifications
section)
•IsthepoweradapterproperlyinstalledinthemediaconverterandinthegroundedACoutlet?
•ContactTechnicalSupport.SeeContactUsbelow.
YES
•Proceedtostep3.
3.Checkthepowerrequirementfortheinstalledslide‐incard:
•Powerrequirementmustbe6Worless.
•Foradditionalassistance,seeContactUsbelow.
Related Manuals and Help
A printed documentation card is shipped with each ION001-A chassis. ForTransitionNetworks
ApplicationNotes,Brocures,CaseStudies,DataSheets,Specifications,Webinars,Whitepapers,etc.go
tohttps://www.transition.com/support/library/(noregistrationrequired).
ForTransitionNetworksDrivers,Firmware,ReleaseNotes,Manuals(InstallGuides,QuickStartGuides,
UserGuides)gototheProductSupportwebpageathttps://www.transition.com/support/product‐
support/(logonrequired).
Other ION system and related device manuals include.
1. Product Documentation Postcard, 33504
2. ION Management Module (IONMM) Install Guide, 33420 and User Guide, 33457
3. ION System NID User Guides (33432, 33457, 33472, 33493, 33494, 33495, 33496, 33574)
4. SPS-2460-SA External Power Supply User’s Guide, 33455
5. Focal Point™3.0 Management Application User Guide, 33293
6. Release Notes (firmware version specific)
Note: Information in this document is subject to change without notice.

TransitionNetworksION001‐AInstallGuide
33419Rev.C https://www.transition.com/Page7of8
Contact Us
TechnicalSupport:Technicalsupportisavailable24‐hoursaday
USandCanada:1‐800‐260‐1312
International:00‐1‐952‐941‐7600
MainOffice
tel:+1.952.941.7600|tollfree:1.800.526.9267|fax:952.941.2322
[email protected]|[email protected]m|[email protected]
Address
TransitionNetworks
10900RedCircleDrive
Minnetonka,MN55343,U.S.A.
Web:https://www.transition.com

ComplianceInformation
Declaration of Conformity
 

TransitionNetworksION001‐AInstallGuide
33419Rev.C https://www.transition.com/Page8of8
FCC Regulations
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,
pursuanttopart15oftheFCCrules.Theselimitsaredesignedtoprovidereasonableprotectionagainst
harmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipment
generates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordance
withtheinstructionmanual,maycauseharmfulinterferencetoradiocommunications.Operationofthis
equipmentinaresidentialareaislikelytocauseharmfulinterference.Inwhichcase,theuserwillbe
requiredtocorrecttheinterferenceattheuser’sownexpense.
Canadian Regulations
ThisdigitalapparatusdoesnotexceedtheClassAlimitsforradionoisefordigitalappa‐ratussetouton
theradiointerferenceregulationsoftheCanadianDepartmentofCommunications.
Leprésentappareilnumériquen'émetpasdebruitsradioélectriquesdépassantleslimitesapplicables
auxappareilsnumériquesdelaClassAprescritesdansleRèglementsurlebrouillageradioélectrique
édictéparleministèredesCommunicationsduCanada.
CAUTION:RJconnectorsareNOTINTENDEDFORCONNECTIONTOTHEPUBLICTELEPHONE
NETWORK.Failuretoobservethiscautioncouldresultindamagetothepublictelephone
network.
DerAnschlussdiesesGerätesaneinöffentlickesTelekommunikationsnetzindenEGMitgliedstaaten
verstösstgegendiejeweligeneinzelstaatlichenGesetzezurAnwendungderRichtlinie91/263/EWGzur
AngleichungderRechtsvorschriftenderMitgliedstaatenüberTelekommunikationsendeinrichtungen
einschliesslichdergegenseitigenAnerkennungihrerKonformität.
InaccordancewithEuropeanUnionDirective2002/96/ECoftheEuropeanParliamentandofthe
Councilof27January2003,TransitionNetworkswillacceptpostusagereturnsofthisproductfor
properdisposal.Thecontactinformationforthisactivitycanbefoundinthe'ContactUs'portion
ofthisdocument.
RecordofRevisions

RevDateNotes
A6/9/10Initialrelease.
B11/29/16UpdatepowersupplyPN,tiedown,andcontactinformation.
C9/27/18Updatespecifications.


Trademarknotice:Alltrademarksandregisteredtrademarksarethepropertyoftheirrespective
owners.
Copyrightrestrictions:©2010‐2018TransitionNetworks.Allrightsreserved.Nopartofthisworkmay
bereproducedorusedinanyformorbyanymeans‐graphic,electronicormechanical‐withoutwritten
permissionfromTransitionNetworks.

