Transmedia FZ DVB 6 User manual

INTRODUCTION:
This is a special designed antenna for digital terrestrial TV broadcasting reception. It is the best solution for home reception and
digital portable TV reception. The antenna is an active antenna that can be used with TV or set-top-box which supports coaxial cable
powering, external powering via a power adapter is like wise supported. Includes complete accessories for wall or pole mounting.
With the anti-UV and water proof housing, it can be used both indoors and outdoors.
Technical Date:
Frequency range: VHF: 174-230 MHz•
UHF: 470-860 MHz
Gain: 30dB•
Max. Output level: 100dBV•

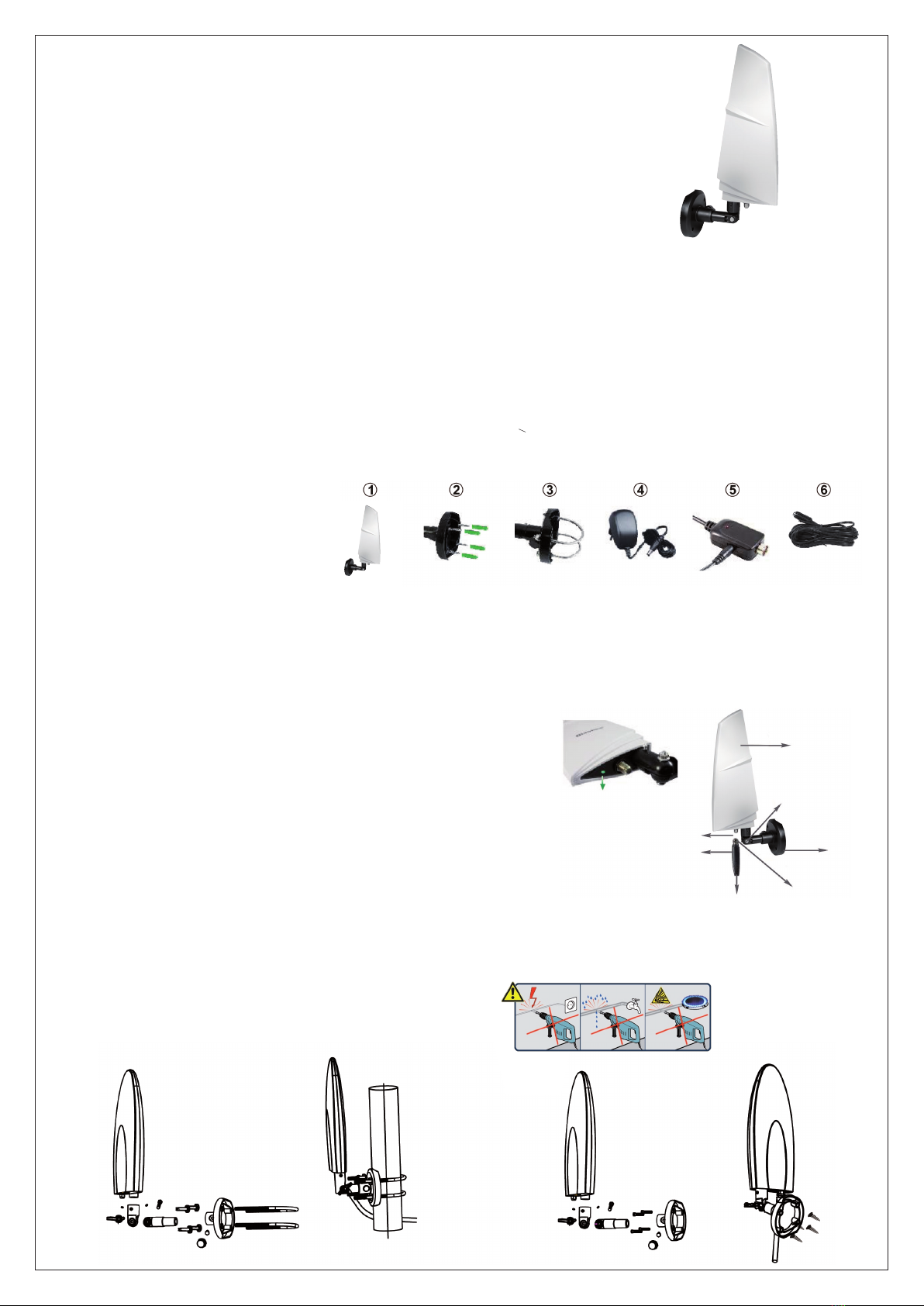

Included in Package:
Before starting the installation, please check the contents.
1. Antenna main unit
2. Wall mounting accessories
3. Pole mounting accessories
4. AC/DC power adapter
5. DC power insert
6. Coaxial cable
Product Features:
Green LED power-on indicator•
SMD circuit technology design•
Stylish and compact design•
Shielded for minimum interference•
Built-inhighgainandlownoiseamplier•
Operation Instruction:
Note: For the best reception, please check the following conditions.
1. Keep the antenna away from the sources of interference: big power
consumption devices, such as air conditioners, elevators, hair dryers and
microwave ovens... etc.
2. Place the antenna near windows when using the antenna in indoor
environments.
3. Install the antenna as high as possible: in digital terrestrital reception, if
there are some interceptions between antenna and transmission tower, it will
cause a temporary signal loss. If the antenna is installed as high as possible,
those interceptions will be reduced.
Mounting the antenna:
This antenna can be used both indoors and outdoors. With the included mounting accessories, it can be mounted on a wall or a pole.
(Fig.1) Usethepolemountingaccessoriestoxtheantennaonthepole.
(Fig.2) Usethewallmountingaccessoriestoxtheantennaonthewall.
Digital inDoor/outDoor tV antenna
Power supply: by DTV set-top box (DC 5V 40mA) or via AC/DC•
adapter (DC 12V 50mA)
Impedance:75Ω•
Connector: F connector•
Noisegure:<3dB•
Portable for mobile use (camping, boating, etc)•
Anti-UV coating and waterproof design for durability•
Powered by DTV set-top-box via coaxial cable•
Specially compatible with HDTV of various digital terrestrial signals•
and DAB radios.
Fig.1
Green LED light
Antenna body
F connector
female
F connector male
Fixing screw
Mounting Kits
Coaxial cable
Fig.2
FZ DVB 6
water-proof cap

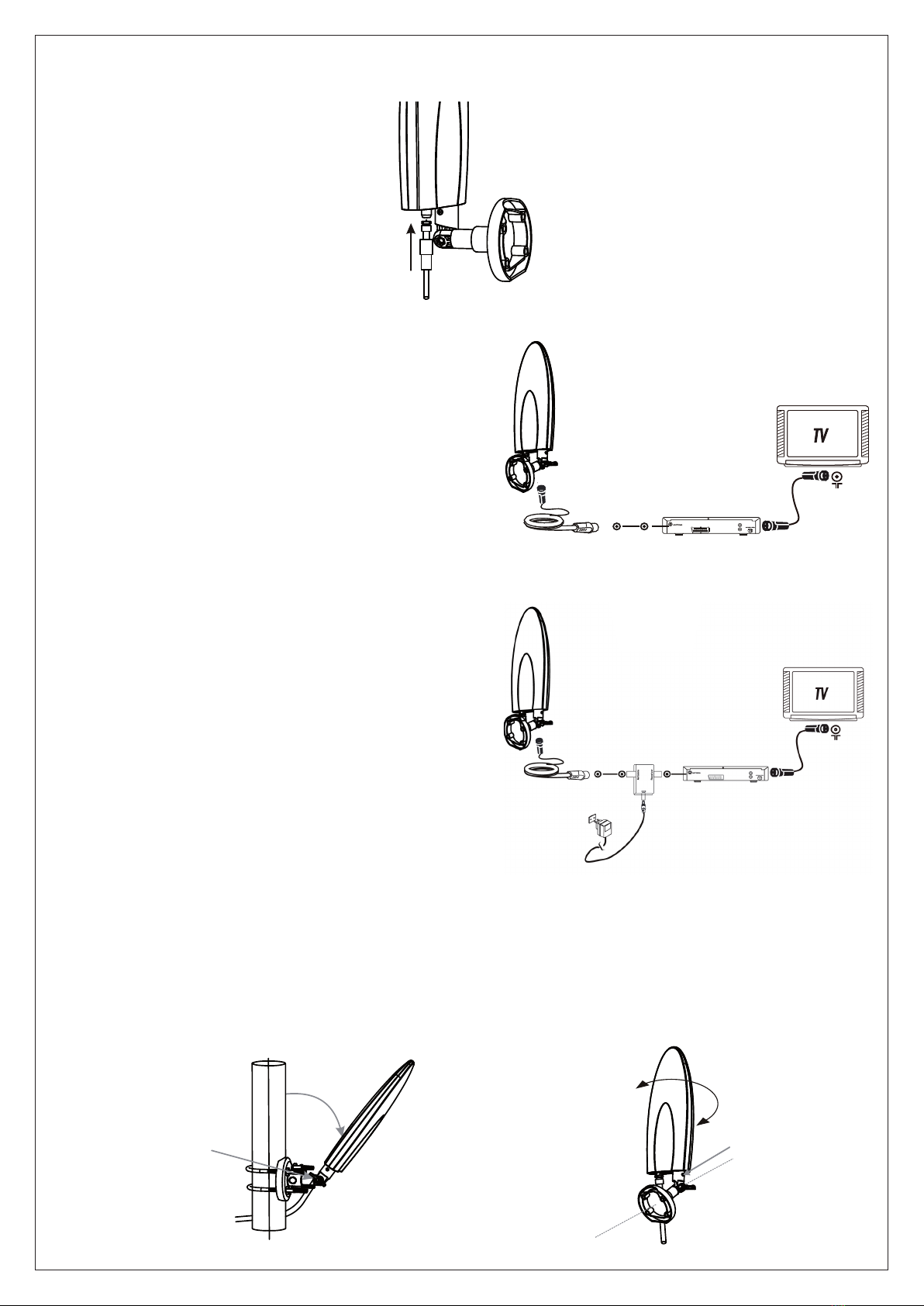

(Fig.3) Connect the „F“ male connector of the coaxial cable to the „F“ female connector of the antenna, and wear the water-proof
cap to the end of the connected „F“ connector.
Installation 1: Powered by DTV set-top-box (Fig. 4)
Please be noticed that, in this installation, you need to make sure
that your set-top-box can support coaxial cable 5V DC powering via
the IEC or F connector to antenna.
Step 1. Connect the coaxial cable with antenna and
DTV set-top-box.
Step 2. Connect the DTV set-top-box to your TV. Please make sure
the coaxial cable powering function of your STB is ON. (Please
check the operational manual of your STB for coaxial cable powering
function).
Step 3: Check the LED on the antenna. If the LED is not lighted on,
please repeat Step 2.
Step 4. Adjust the antenna in the best position for a clear TV picture,
thenxtheantenna.
Step 5. Organize the coaxial cable for neat, tidy and safety.
Installation 2: Powered by AC/DC-Adaptor (Fig. 5)
Step 1. Connect the coaxial cable with the antenna and the power
insert (the side with „antenna“ text mark).
Step 2. Connect the other side of power insert to DTV set-top-box.
Step 3. Connect the DTV set-top-box to your TV.
Step 4. Connect the power adapter DC output jack to the DC input
connector of the power insert, and then plug the AC/DC power
adapter into the AC power socket.
Step 5. Check the LED on the antenna. If the LED is not lighted on,
please repeat Step 4.
Schritt 6: Adjust the antenna in the best position for a clear
TVpicture,thenxtheantenna.
Schritt 7: Organize the coaxial cable for neat, tidy and safety.
Adjusting the reception :
Aftertheantennamountingandtheconnectiontothereceiverisnished,pleasemovetheantennatothepositionofthebest
receptionandxit.Pleasetakereferenceofthefollowing2differentpositioningwaystoadjusttheantennaposition.
(Fig.6) TurnthexingscrewAtoadjusttheantennapositioninverticaldirection.
(Fig.7) TurnthexingscrewBtoadjusttheantennapositionleftorrightinhorizontaldirection.
Installation 1: Powered by DTV set-top-box (Fig.6)
Please be noticed, in this installation, you need to make sure that your set-top-
box can
support coaxial cable 5V DC powering via the IEC or F connector to antenna.
Step1.Connect the coaxial cable with antenna and DTV set-top-box
Step2.Connect the DTV set-top-box to your TV. Please make sure the coaxial
cable powering function of your STB is ON. (Please check The operational
manual of your STB for coaxial cable powering function)
Step4.Adjust the antenna in the best position that can get clear TV picture,
then fix the antenna
Step5. Organize the Coaxial Cable for neat, tidy and safety.
Step3.Check the LED on the antenna. If the LED is not lighted on, pleace go
back to Step2.
Step1. Connect the coaxial cable with antenna and the power insert (the side
with “antenna” text mark).
Setp2. Connect the other side of power insert to DTV set-top-box.
Step3. Connect the DTV set-top-box to your TV
Step4. Connect the power adapter DC output jack to the DC input connector
of the Power insert, and then plug the AC/DC power adapter into the AC power
socket.
Step6. Adjust the antenna in the best position that can get clear TV picture,
then fix the antenna
Step6. Organize the Coaxial Cable for neat, tidy and safety.
Step5. Check the LED on the antenna. If the LED is not lighted on, pleace go
back to Step4.
Installation 2: Powered by AC/DC Adaptor (Fig.7)
5V 40mA
(Fig.6)
(Fig.7)
Fig.3
(Fig.3) connect the “F” male connector of the coaxial cable to the “F” female connector of the antenna, and wear the water-proof
cap to the end of the connected “F” connector.
Fig.4 Fig.5
Note: After the antenna mounting is finished, please move the antenna to a best reception position and then fix it.
Please take reference of following 2 different positioning way to adjust the antenna position.
(Fig.4) through the fixing screw A to adjust the antenna position in vertical direction
(Fig.5) through the fixing screw B to adjust the antenna position left or right in horizontal direction
Fixing screw A Fixing screw B
Installation 1: Powered by DT V set-top-box (Fig.6)
Please be noticed, in this installation, you need to make sure that your set-top-
box can
support coaxial cable 5V DC powering via the IEC or F connector to antenna.
Step1.Connect the coaxial cable with antenna and DTV set-top-box
Step2.Connect the DTV set-top-box to your TV. Please make sure the coaxial
cable powering function of your STB is ON. (Please check The operational
manual of your STB for coaxial cable powering function)
Step4.Adjust the antenna in the best position that can get clear TV picture,
then fix the antenna
Step5. Organize the Coaxial Cable for neat, tidy and safety.
Step3.Check the LED on the antenna. If the LED is not lighted on, pleace go
back to Step2.
Step1. Connect the coaxial cable with antenna and the power insert (the side
with “antenna” text mark).
Setp2. Connect the other side of power insert to DTV set-top-box.
Step3. Connect the DTV set-top-box to your TV
Step4. Connect the power adapter DC output jack to the DC input connector
of the Power insert, and then plug the AC/DC power adapter into the AC power
socket.
Step6. Adjust the antenna in the best position that can get clear TV picture,
then fix the antenna
Step6. Organize the Coaxial Cable for neat, tidy and safety.
Step5. Check the LED on the antenna. If the LED is not lighted on, pleace go
back to Step4.
Installation 2: Powered by AC/DC Adaptor (Fig.7)
5V 40mA
(Fig.6)
(Fig.7)
Fig.3
(Fig.3) connect the “F” male connector of the coaxial cable to the “F” female connector of the antenna, and wear the water-proof
cap to the end of the connected “F” connector.
Fig.4 Fig.5
Note: After the antenna mounting is finished, please move the antenna to a best reception position and then fix it.
Please take reference of following 2 different positioning way to adjust the antenna position.
(Fig.4) through the fixing screw A to adjust the antenna position in vertical direction
(Fig.5) through the fixing screw B to adjust the antenna position left or right in horizontal direction
Fixing screw A Fixing screw B
Installation 1: Powered by DTV set-top-box (Fig.6)
Please be noticed, in this installation, you need to make sure that your set-top-
box can
support coaxial cable 5V DC powering via the IEC or F connector to antenna.
Step1.Connect the coaxial cable with antenna and DTV set-top-box
Step2.Connect the DTV set-top-box to your TV. Please make sure the coaxial
cable powering function of your STB is ON. (Please check The operational
manual of your STB for coaxial cable powering function)
Step4.Adjust the antenna in the best position that can get clear TV picture,
then fix the antenna
Step5. Organize the Coaxial Cable for neat, tidy and safety.
Step3.Check the LED on the antenna. If the LED is not lighted on, pleace go
back to Step2.
Step1. Connect the coaxial cable with antenna and the power insert (the side
with “antenna” text mark).
Setp2. Connect the other side of power insert to DTV set-top-box.
Step3. Connect the DTV set-top-box to your TV
Step4. Connect the power adapter DC output jack to the DC input connector
of the Power insert, and then plug the AC/DC power adapter into the AC power
socket.
Step6. Adjust the antenna in the best position that can get clear TV picture,
then fix the antenna
Step6. Organize the Coaxial Cable for neat, tidy and safety.
Step5. Check the LED on the antenna. If the LED is not lighted on, pleace go
back to Step4.
Installation 2: Powered by AC/DC Adaptor (Fig.7)
5V 40mA
(Fig.6)
(Fig.7)
Fig.3
(Fig.3) connect the “F” male connector of the coaxial cable to the “F” female connector of the antenna, and wear the water-proof
cap to the end of the connected “F” connector.
Fig.4 Fig.5
Note: After the antenna mounting is finished, please move the antenna to a best reception position and then fix it.
Please take reference of following 2 different positioning way to adjust the antenna position.
(Fig.4) through the fixing screw A to adjust the antenna position in vertical direction
(Fig.5) through the fixing screw B to adjust the antenna position left or right in horizontal direction
Fixing screw A Fixing screw B
Fig.3
Fig.6 Fig.7
Fig.4
Fig.5
Fixing screw A Fixing screw B
