Travis Industries 31 DVI GSB2 User manual

31 DVI
GSB2 Insert
Owner’s Manual
WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Tested and Listed by
ANSI Z21.88-2014
CSA 2.33-2014
Direct Vent Fireplace Insert
Masonry or Factory-Built
(Metal) Wood-Burning
Fireplace
Residential or Mobile Home
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc. 12521 Harbour Reach Dr., Mukilteo, WA 98275 www.travisproducts.com
Copyright 2014, T.I. $10.00 4140813 100-01296

2Introduction
© Travis Industries 4140813 100-01296
Introduction
We welcome you as a new owner of a 31 DVI GSB2 Insert. In purchasing this fireplace insert you
have joined the growing ranks of concerned individuals whose selection of an energy system reflects
both a concern for the environment and aesthetics. It is one of the finest home heaters the world
over. This manual will explain the installation, operation, and maintenance of this heater. Please
familiarize yourself with the Owner's Manual before operating your heater and save the manual for
future reference. Included are helpful hints and suggestions that will make the operation and
maintenance of your new heater an easier and more enjoyable experience. We offer our continual
support and guidance to help you achieve the maximum benefit and enjoyment from your heater.
Important Information
No other 31 DVI Insert has the same serial number as
yours. The serial number is attached to the appliance
near the gas control valve.
This serial number will be needed in case you require
service of any type.
Model: 31 DVI GSB2
Serial Number:
Purchase Date:
Purchased From:
Register your warranty online at:
traviswarranty.com
Or, mail your warranty card to:
Travis Industries House of Fire
12521 Harbour Reach Dr.
Mukilteo, WA 98275
Save Your Bill of Sale.
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your heater. Do not mail your Bill
of Sale to us.
We suggest that you attach your Bill of Sale
to this page so that you will have all the
information you need in one place should the
need for service or information occur.
Listing Details
This appliance was listed by Intertek. The listing label is attached to the appliance near the gas
control valve. A copy is shown on page 33.
Massachusetts Approval
This manual has been submitted to the Massachusetts Board of State Examiners of Plumbers and
Gas Fitters.
National Fireplace Institute

Table of Contents 3
© Travis Industries 4140813 100-01296
Introduction ......................................................2
Important Information......................................2
Listing Details...................................................2
Features ............................................................6
Installation Options..........................................6
Heating Specifications.....................................6
Dimensions.......................................................6
Electrical Specifications (for optional blower)6
Fuel....................................................................6
Installation Warnings.......................................7
Packing List......................................................7
Additional Items Required...............................7
Items Packed with the Face ............................7
Order of Installation.........................................7
Top Convection Deflector ...............................8
Fireplace Requirements ..................................8
Factory-Built (Metal) Wood-Burning Fireplace
Requirements........................................................9
Fireplace Altered Tag.......................................9
Hearth Requirements.......................................9
Leveling Bolts.................................................10
Electrical Requirements................................10
Clearances......................................................11
Mantel Clearances..............................................11
Modifying the Face Connector for Discovery,
Rosario, and Artisan Faces...........................11
Gas Line Requirements.................................12
Gas Line Location...............................................12
Gas Inlet Pressure..............................................12
Vent Requirements ........................................13
Altitude Considerations.......................................13
Vent Restrictor....................................................14
Vent Installation ..................................................14
Vent Location......................................................15
Vent Configurations ............................................15
Vent Connector Removal and Installation...........16
Vent Connector Removal and Installation
(continued)..........................................................17
Surround Panel Installation..........................18
3-Piece Surround Panels....................................18
1-Piece Surround Panel......................................19
Routing the Power Cord..........................................19
Installation...............................................................19
Rheostat Installation .....................................20
On/Off Switch Installation.............................20
Glass Frame Removal and Installation........21
Glass Frame Removal and Installation
(continued) .....................................................22
Media Installation (Log, Stone, or Driftwood)22
Steps for Finalizing the Installation.............23
Air Shutter Adjustment........................................24
Before You Begin...........................................25
Location of Controls......................................25
Starting the Heater for the First Time..........26
Turning the Fireplace On and Off.................26
Comfort Control.............................................26
Adjusting the Flame Height..........................27
Adjusting the Blower Speed.........................27
Continuous/Intermittent Pilot Switch...........27
Normal Operating Sounds ............................28
Normal Operating Odors...............................28
Power Outages...............................................28
Maintaining Your Heater's Appearance.......29
Battery Replacement.....................................29
Power Backup Batteries......................................29
Control Panel Light Battery.................................29
Yearly Service Procedure .............................30
Troubleshooting Table..................................31
Replacement Parts List.................................31
Wiring Diagram ..............................................32
Safety Label........................................................33
CONDITIONS & EXCLUSIONS......................34
IF WARRANTY SERVICE IS NEEDED:.........34
LP Conversion Instructions..........................35

4Safety Precautions
© Travis Industries 4140813 100-01296
Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
Young children should be carefully supervised when they are in the same room
as the appliance. Toddlers, young children and others may be susceptible to
accidental contact burns. A physical barrier is recommended if there are at risk
individuals in the house. To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
Children and adults should be alerted to the hazards of high surface temperature
and should stay away to avoid burns or clothing ignition. Do not touch the hot
surfaces of the heater. Educate all children of the danger of a high-temperature
heater.
Due to the high temperature, the heater should be located out of traffic and away
from furniture and draperies.
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
Notify your insurance company before hooking up this fireplace.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.

Safety Precautions 5
© Travis Industries 4140813 100-01296
Safety Warnings (continued)
Because this heater can be controlled by a thermostat there is a possibility of the heater turning on
and igniting any items placed on or near the appliance.
Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
The viewing glass should be opened only for conducting service.
Allow the heater to cool before carrying out any maintenance or cleaning.
Operate the heater according to the instructions included in this manual.
If the main burners do not start correctly turn the gas off and call your dealer for service.
This unit is not for use with solid fuel.
Do not place anything inside the firebox (except the optional artwork).
Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this
appliance and shall be installed for the protection of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this
appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
might be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative
that control compartments, burners, and circulating air passageways of the appliance be kept clean.
Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).

6Features and Specifications
© Travis Industries 4140813 100-01296
Features
- Works During Power Outages (battery backup system)
- Blower Included
- Standing or Intermittent (GreenSmart 2) Pilot
- Convenient Operating Controls
- Variable-Rate Heat Output
Installation Options
Residential or Mobile Home
Fireplace Insert
Masonry or Factory Built (Metal) Wood-
Burning Fireplace
Natural Gas or Propane
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* 500 to 1,500 500 to 1,500
Maximum BTU Input Per Hour 31,000 31,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.
Dimensions
Electrical Specifications (for optional blower)
Electrical Rating ......................................................115 Volts, 1.5 Amps, 60 Hz (180 watt)
Fuel This heater is shipped in natural gas (NG) configuration but may be converted to use propane
(LP) using a conversion kit. The sticker on top of the gas control valve will verify the correct fuel.
18" (458mm) *
1-1/4" (32mm) *
19-1/2" (496mm) *
26-1/2" (674mm) *
See "Surround
Panels" for sizing
115 Lbs. (51K)
15-1/8" (385mm) *
Front
avant
Right
droit
Rear
arrie're
Left
a' gauche
* See "Fireplace Requirements" for sizing
details with 1-piece or 3-piece panels.
See "Surround
Panels" for sizing

Installation (for qualified installers only) 7
© Travis Industries 4140813 100-01296
Installation Warnings
Failure to follow all of the requirements may result in property damage,
bodily injury, or even death.
This heater must be installed by a qualified installer who has gone through
a training program for the installation of direct vent gas appliances.
The installation must conform with local codes or, in the absence of local
codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the
National Gas and Propane Installation Code, CSA B149.1..
In Manufactured or Mobile Homes must conform with Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1. This appliance may be installed in
Manufactured Housing only after the home is site located.
The heater is designed to operate on natural gas, or propane (LP).
All exhaust gases must be vented outside the structure of the living-area.
Combustion air is drawn from outside the living-area structure.
Notify your insurance company before hooking up this heater.
The requirements listed below are divided into sections. All requirements
must be met simultaneously. The order of installation is not rigid – the
qualified installer should follow the procedure best suited for the installation.
Packing List
Propane Conversion Kit
Cove Covers

"Fireplace Altered" tag (attach to the fireplace)
Button Plug for Surround Panels (see page 18)
Top Convection Deflector
Additional Items Required
Media Set (order one of the following):
Driftwood Log Set (sku 94500548) - See installation instructions included with the logs.
Fyre-Stone Stone Set (sku 94700732) - See instructions included with the stones.
Log Set (sku 94400991) – See instructions included with the logs.
Faceplate
Simpson Duravent 6-5/8" to 3" & 3" Co-Linear Adapter with flashing
3" Diameter Gas Liner (2)
Direct Vent Cap (Use Simpson Duravent High Wind Cap)
Gas Line Equipment (shutoff valve, pipe, etc.)
Items Packed with the Face
Face with attachment hardware (Note: use the cove covers included with the heater)
Face Installation Instructions
Order of Installation
1 If the heater is to use propane, install the propane conversion kit (see page 35).
2 Install gas line into the fireplace (do not connect to unit).
3 Position the heater.
4 Connect the gas line and gas vent to the appliance.
5 Install the optional surround panels and trim. Attach the on/off switch.
6 Follow the instructions under "Finalizing the Installation" on page 23.

8Installation (for qualified installers only)
© Travis Industries 4140813 100-01296
Top Convection Deflector
Install the top convection deflector as
shown to the right.
The deflector is shipped on top of the
insert. The screws are shipped inside
the owner's pack.
Fireplace Requirements
Insert must be placed within a code-conforming masonry fireplace or tested and listed factory-
built (metal) wood-burning fireplace. Repair any fireplace damage prior to installation.
Because the insert uses a circulation blower, clean the fireplace, smoke shelf, and chimney prior
to installation.
This heater may be placed in a bedroom. Please be aware of the large amount of heat this
appliance produces when determining a location.
Fireplace Sizing 3-Piece Panel 1-Piece Panel
Minimum Height 19-1/2” (496mm) 20-5/8” (524mm)
Minimum Width 26-1/2” (674mm) 29” (737mm)
Minimum Depth 15-1/8” (385mm)
or
15-5/8” (397mm)
Arched Faces
16-3/8” (416mm)
or
16-7/8” (429mm)
Arched Faces
Hearth Extension 1-1/4” (32mm) 0” (0mm)
The gas and electrical line should be installed prior to
installing the heater.
For tight fits (under 24”) see the section “Removing the
Vent Connector”
See “Leveling Bolts” for details on leveling the heater.
hAttach the “This fireplace has been altered…” plate to the fireplace (use two screws or other
suitable method). You may wish to place it in a location where it will be covered by the surround
panels.
a
b
c
e
f
g
d
h
a
b
c
d
e
f
g

Installation (for qualified installers only) 9
© Travis Industries 4140813 100-01296
Factory-Built (Metal) Wood-Burning Fireplace Requirements
NOTE: Any parts that are removed must be removed in a way that would allow them to be re-
installed if the insert is ever removed (removal of rivets or screws is acceptable).
The damper ("A") and grate (with log set) ("B") must be removed (see the illustration below)
The smoke shelf ("C"), internal baffles ("D"), screen ("E"), masonry lining or refractory ("G" & "I"), and
metal or glass doors ("F") may be removed (if applicable)
The fireplace must be permanently marked to
indicate that it has been altered and is no longer
suitable for burning solid fuel (wood), unless the
removed parts are re-installed. Cutting of any
metal or glass parts is prohibited.
The insulation ("H"), and any structured rigid frame
members must not be removed or altered (side and
top of door frame, side and top of the face of the
fireplace, metal sides, etc.).
The metal floor ("J") may be removed to allow
additional room for installation of the insert. If the
floor is removed the insert must be placed directly
on the metal base of the metal fireplace.
The surround panels should not seal ventilation
openings on the fireplace.
If the factory-built fireplace has no gas access hole(s) provided, an access hole of 1.5 inch (37.5 mm)
or less may be drilled through the lower sides or bottom of the firebox in a proper workmanship like
manner. This access hole must be plugged with non-combustible insulation after the gas supply line
has been installed.
Fireplace Altered Tag
Attach the "This fireplace has been altered..." plate to the fireplace (use two screws or other suitable
method). You may wish to place it in a location where it will be covered by the surround panels.
Hearth Requirements
The heater and face must not contact combustible surfaces. A non-combustible hearth extension is
not required. However, if the heater is installed next to the floor, we recommend a hearth to protect
the flooring surface from discoloration or other negative impact from the heater.






C
B
F
I
D
E
A












G




H

J

10 Installation (for qualified installers only)
© Travis Industries 4140813 100-01296
Leveling Bolts
This heater includes
front and rear leveling
bolts to accommodate
fireplaces with a step-
down firebox.
NOTE: To access the
rear leveling bolts,
remove the cover plates
and gaskets (replace
after adjustment).
Electrical Requirements
Route the power cord out of the access hole on the right side of the appliance.
Plug the power cord into a grounded 120 Volt outlet (do not remove the grounding pin).
The electrical connection may also be made using the optional Wiring Kit (SKU 97200315).
The appliance, when installed, must be electrically grounded in accordance with local codes or, in
the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1.













1/2”

Installation (for qualified installers only) 11
© Travis Industries 4140813 100-01296
Clearances
Due to the high temperature of the heater, it should be located out of traffic and away from furniture
and draperies.
Minimum
Clearances
k Sidewall to Insert 4-1/2"
115mm
l Side Facing
(non-combustible) 4-1/2"
115mm
m Top Facing*
(non-combustible) 35"
889mm
n Mantel*
(combustible or
non-combustible)
35"
889mm
x Hearth Extension
(3-Piece Panel) 1-1/4"
32mm
x Hearth Extension
(1-Piece Panel) 0"
0mm
Mantel Clearances
The maximum mantel depth is 12” (305mm).
NOTE: The combustible area above the facing must not protrude more than 3/4" (20mm) from
the facing. If it does, it is considered a mantel and must meet the mantel requirements listed in this
manual.
Modifying the Face Connector for Discovery, Rosario, and Artisan Faces
The Discovery, Rosario, and Artisan face require re-positioning of the face connector. See the
directions below for details.





























Side
Wall
Combustible or Non-Combustible Mantel
Combustible Top Facing



Non-Combustible
Facing
l
k
x
n
m
Face Connector
Bracket
Remove the face connector bracket
from the heater (on both sides). Re-attach the face connector to the heater using the forward mounting holes.

12 Installation (for qualified installers only)
© Travis Industries 4140813 100-01296
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff valve must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or media.
A carbon monoxide (CO) detector is required in the same room as the appliance.
The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1
and the requirements listed below.
A manual shutoff valve is required within 3’ of the heater. It should be placed upstream of the flex
line (if used) and may be installed behind the access door inside the heater. ).
The heater and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig. For pressures under 1/2
psig, isolate the gas supply piping by closing the manual shutoff valve.
Leak test all gas line joints and the gas control valve prior to and after starting the heater.
This heater is designed either for natural gas or for propane (but not for both). Check the sticker
on the top of the gas control valve to make sure the correct fuel is used (see illustration on page
4).
Installation must be performed by a qualified installer, service agency or the gas supplier (In
Massachusetts a licensed plumber/gasfitter).
Gas Line Location
The gas inlet accepts a ½” MPT.
Gas Inlet Pressure Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA)
Propane 13" W.C. (2.73 kPA)
If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is
adequately adjusted, and the total gas load for the residence does not exceed the amount
supplied.
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane
tank) should supply gas at the suggested input pressure listed above. Contact the local gas
supplier if the regulator is at an improper pressure.
2-3/4" (70mm)
Shutoff Valve (secured to
the fireplace insert)

Installation (for qualified installers only) 13
© Travis Industries 4140813 100-01296

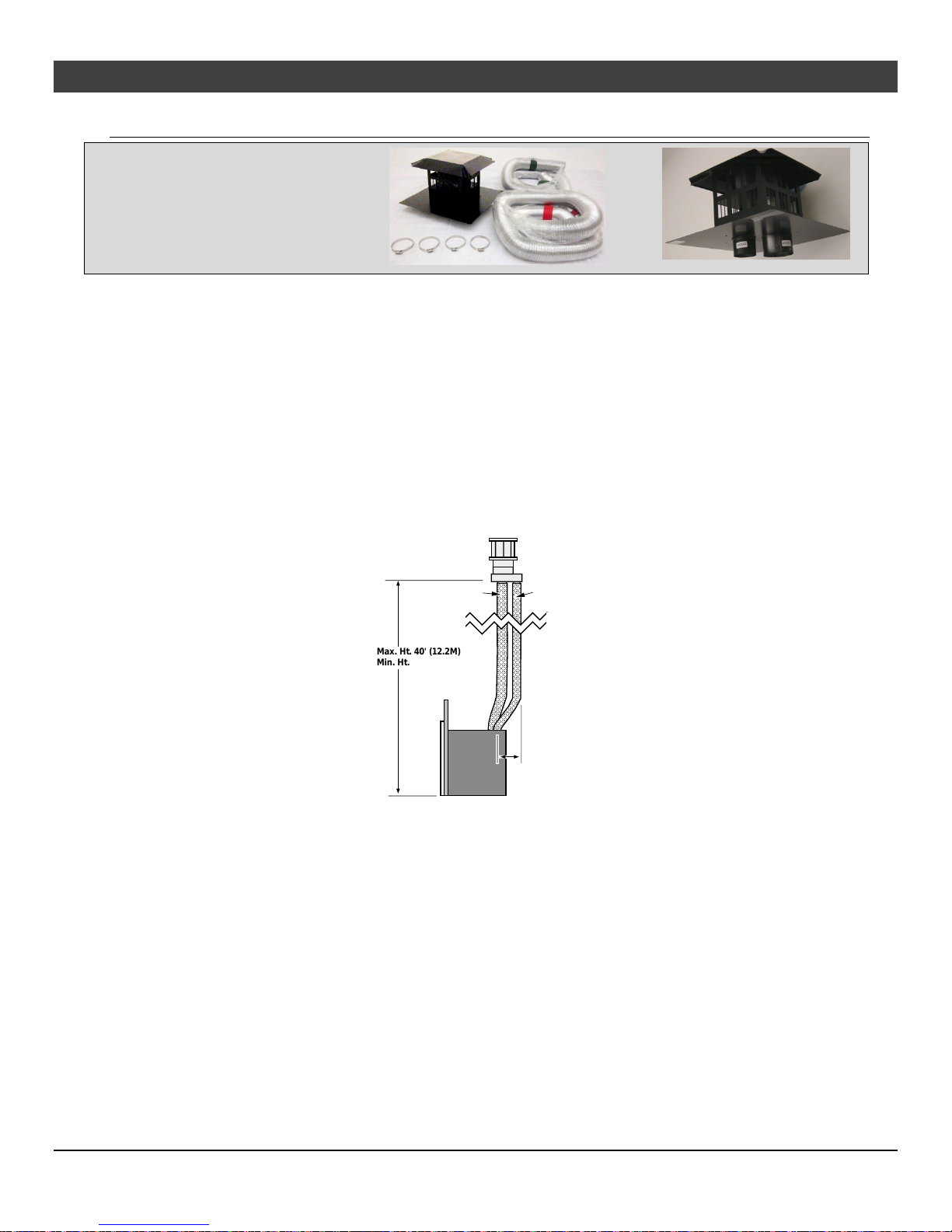

Vent Requirements
Travis Industries manufactures a
vent kit specifically for this insert
(sku 96200330). It includes 30’
(10M) of vent, hose clamps, and a
prairie cap. The flashing on the cap
is 18” (458mm) by 18” (458mm).
The gas appliance and vent system must be vented directly to the outside of the building, and never
be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent
gas appliance must use its own separate vent system.
Make sure the exhaust pipe on the heater connects to the exhaust portion of the cap. The
illustrations below show how the flex liners should be attached.
The exhaust vent must reline the entire length of the chimney and terminate above the chimney top.
Be careful not to crimp or rupture the liner when bending it into chimney offsets.
When installed, the vent must meet all of the vent manufacturer's requirements.
Use the following vent:
3” UL 441 or 1777 Gas Liner for Exhaust and Air Inlet
Duravent Chimney Liner Termination Kit (3” & 3” Co-Linear to 6-5/8” Co-Axial w Flashing)
Simpson Duravent High-Wind Vertical Termination Cap (46DVA-VCH) or Prairie Cap
Altitude Considerations
This heater has been tested at altitudes ranging from sea level to 6,000 feet (1,800 M). In this testing
we have found that the heater, with its standard orifice, burns correctly with just an air shutter
adjustment.
Failure to adjust the air shutter properly may lead to improper combustion which can create a safety
hazard. Consult your dealer or installer if you suspect an improperly adjusted air shutter.














Max. Ht. 40' (12.2M)
Min. Ht. 8' (2.5M)
Exhaust
Max. 2'
(610mm)
offset
Inlet

14 Installation (for qualified installers only)
© Travis Industries 4140813 100-01296

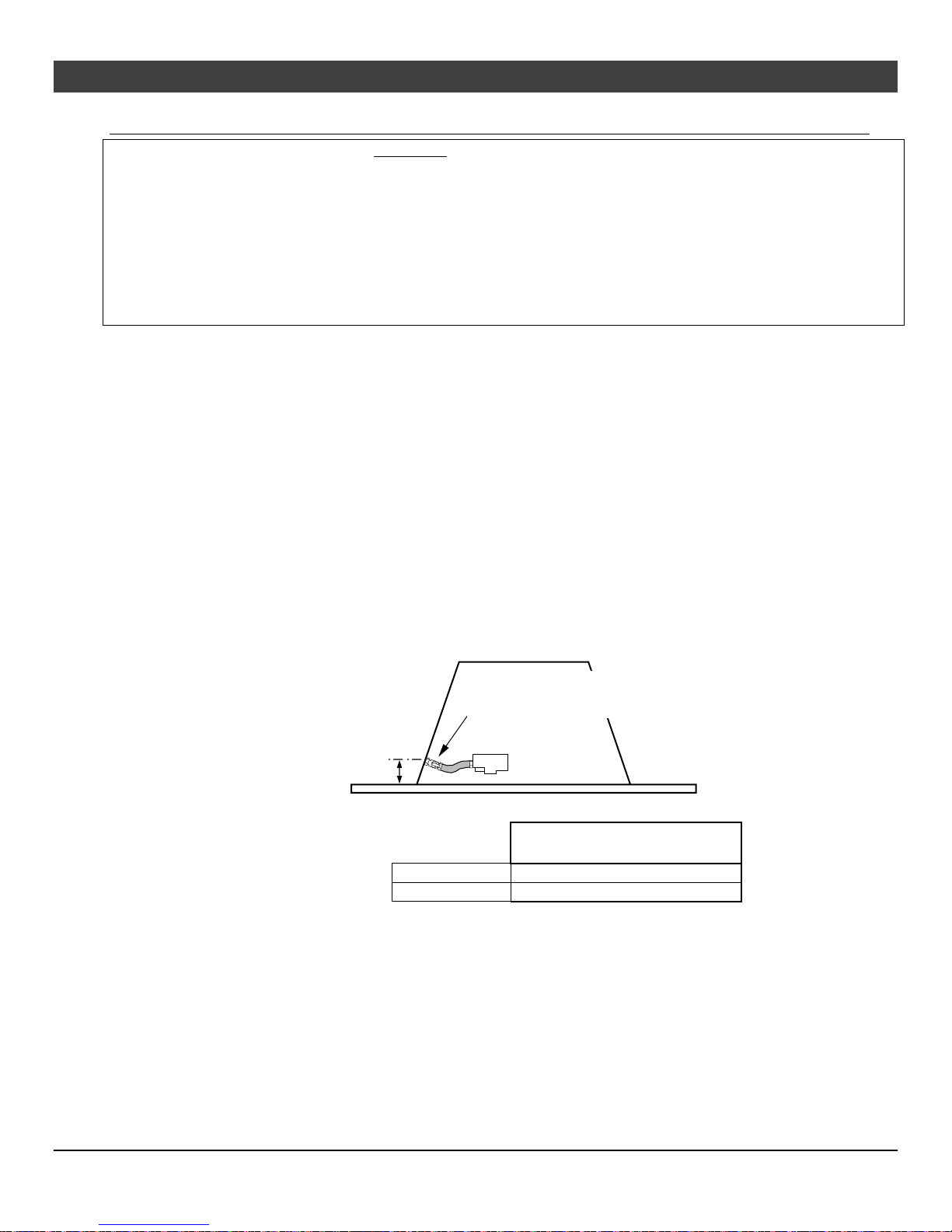

Vent Restrictor
WARNING: Restrictor adjustment should only be done by a qualified installer.
Only those installations determined to be over-drafting require this adjustment. The best indication of
over-drafting is a hyper-active flame pattern (flames that move too quickly). If the air shutter is
constricted, the flames become short and yellow, yet still very active. Over-drafting may affect the pilot,
but this is not the best way to determine over-drafting. Over-drafting is most likely in tall venting
configurations. Do not over-restrict the vent (this leads to ghosting or lifting flames - reduce restrictor
setting).
The restrictor is adjusted with the face removed. Start with the restrictor in position number 1. Monitor
the flame for 5 minutes before adjusting. Move the restrictor a maximum two positions at a time by lifting
the adjustment plate and moving it until the correct notch falls into the slot on the adjustment bracket (use
a glove if the heater is hot - see illustration below). Monitor the flame for 5 minutes to determine correct
restrictor position and repeat restrictor adjustment if necessary.
Vent Installation
Secure the vent to the fireplace insert and termination kit using screws.
Position 1 (factory setting).
Adjustment
Bracket
Adjustment
Plate #2#3
Position 2
#4 #5 #6
#1
Inlet (3" 76mm)
Exhaust (3" 76mm)
Inlet
Exhaust
Duravent
Chimney Liner
Termination Kit
3" (76mm) dia. Gas Liner

Installation (for qualified installers only) 15
© Travis Industries 4140813 100-01296
Vent Location
A vent restrictor is built into the appliance to adjust the flow rate of exhaust gases. This ensures
proper combustion for all vent configurations. Depending upon the vent configuration, you may be
required to adjust the restrictor position.
NOTE: The vent location changes based upon restrictor position. Position # 1 is shown below. Each
restrictor position moves the vent location forward (toward the fireplace opening) approximately ¼” (7mm).
Vent Configurations
CAUTION: The “Exhaust Only Re-line” is not covered under the appliance safety standard (ANSI Z21.88 CSA
2.33) used in the safety certification of this appliance. The Intertek safety certification does not apply to this
installation. Before installing the appliance using this method, contact the Authority Having Jurisdiction to
determine if this installation is acceptable in your area. This type of installation requires a minimum chimney
cross section of 48 square inches.
1-1/4”
Center Line Inlet (3” Dia.)
Exhaust (3” Dia.)
Fireplace
Opening
1-1/4”
2-5/8”
15-1/8”
6-1/8”
NOTE: Vent location changes based
upon restrictor position. Position # 1 is
shown to the right. Each restrictor
position moves the vent location forward
(toward the fireplace opening)
approximately 1/4”.













Factory Built (Metal) Wood-
Burning Fireplace
Inlet & Exhaust Re-Line































































































Exhaust Only Re-Line
Direct Vent Cap
Recommended Block-Off
Plate (non-combustible
metal and/or insulation).
Prevents odors from
chimney entering room.
6-5/8" to 3" & 3" Colinear
Adapter & Flashing


















A block-off plate must
seal the intake to the
chimney space. This
way air is drawn down
the chimney for
combustion air.
Block-Off Plate
(non-combustible
materials)
NOTE: You may use either re-line configuration with a masonry or zero-clearance fireplace.
Inlet
Masonry Fireplace
Any cracks or
damage inside the
chimney must be
repaired.
Exhaust
3" dia.
Gas Liner
Inlet
3" dia. Gas Liner
Exhaust
3" dia. Gas Liner

16 Installation (for qualified installers only)
© Travis Industries 4140813 100-01296
Vent Connector Removal and Installation
The vent connector is shipped attached to the insert, but may be removed to facilitate tight
installations. See the directions below for installation.
1. Route the flex vent through the chimney from above (leave an extra 3' at the top). Make sure the flex
is thoroughly stretched.
2. Remove the vent connector and attach it to the flex vent (see the instructions on the following page).
NOTE: be careful of the anti-seize on the connector – it will stain clothing, etc.
3. Pull on the flex vent until the vent connector is at the same height as the insert. Temporarily attach
the flex vent to the top of the chimney (leave extra slack).
4. Slide the insert into place, guiding the vent connector into the guides on top of the insert.
5. Attach the vent connector to the appliance (see the following page for details).
6. Remove any excess slack in the flex line and attach the vent termination.
4























































































































3







































































































































































































2
1







5









































































































6




2

Installation (for qualified installers only) 17
© Travis Industries 4140813 100-01296
Vent Connector Removal and Installation (continued)
Vent Connector Removal
Slide the
connector to the
rear. It will
"snap" out.
Pull the vent connector
rod forward.
Vent Connector Installation
Attach the flex vent to
the vent connector.
Slide the insert
into place, lining
up these guides
with the edges of
the vent
connector.
Push the vent
connector rod in, lift
slightly, and line it up
so the tabs on the end
of the rod engage the
hooks on the vent
connector
Pull on the vent connector rod until the
vent connector snaps into place. Slide
the vent connector rod in to conceal it.













































WARNING: The anti-seize on
the vent connector can stain
clothing, carpets, or other
items.

18 Installation (for qualified installers only)
© Travis Industries 4140813 100-01296
Surround Panel Installation
NOTE: The insert may be installed without surround panels.
3-Piece Surround Panels
PANEL SIZE WIDTH HEIGHT PART #
8” x 10” Rectangular 40-3/8” 28-7/8” 96100301
Arched (8" x 10") 40-3/8” 28-7/8” 98500605
10” x 13” Rectangular 44-3/8” 31-7/8” 96100302
4” x 6” Rectangular 37-1/8” 25” 96100300
1 Follow the directions to the
right to install the side panels.
2 Follow the directions below to
install the top panel.
COVER PLUGS FOR
ON/OFF SWITCH AND
RHEOSTAT
Install the button plug
and switch plug into the
surround panel trim to
conceal the mounting
holes (see the illustration
below).
Line up each side surround
panel and insert two screws from
the inside to secure in place.
5/16" Nutdriver
Pre-thread the holes on the surround
panels with the screws included in the
surround panel kit.
b
a
Run the power cord to
the right of the insert.
Top
Panel
Top Trim
"L" Bracket
Right Side Trim
"L" Bracket
Right Side
Trim
Top Trim
Trim Installation:
Insert one leg of each "L" bracket into the top
and side trim piece. Align the trim to form a
precise corner, then tighten the two set
screws with a small standard screwdriver.
Slide the trim over the panels. Place the
spring clips behind the panels at the locations
shown. This keeps the trim tight against the
panel.
Micro (1/16”)
Standard
Screwdriver

Spring
Clips
Optional Knock-Out
An optional knock-out is provided if the power cord is
routed behind the surround panel.
Install the top panel so
the tabs insert into the
joggle clips on the top
panel





b
a

Installation (for qualified installers only) 19
© Travis Industries 4140813 100-01296
1-Piece Surround Panel
DVS – 25” by 38” 96100318
DVS – 28-1/2” by 40” 96100324
NOTE: The panels may be cut down in size and placed within the fireplace opening.
Routing the Power Cord
Because this panel fits flush against the fireplace facing, the panel does not have a notch allowing the power
cord to exit the fireplace. We recommend using the insert wiring kit (sku 97200315) to route power to the
insert. Otherwise, route the power cord behind the panel to the right side (the panel or fireplace may be
notched, if required).
Installation
1. Attach the mounting brackets as shown below.
2. Attach the surround panel as shown below.

20 Installation (for qualified installers only)
© Travis Industries 4140813 100-01296
Rheostat Installation
The rheostat is installed in the control panel (1-piece panels) or on the surround panel (3-piece panels). If installing in
the surround panel, use the included extension wires (extension wires not required if mounted in control panel).
Attach the rheostat wires to the wiring harness and secure to either the control panel or surround panel. Make sure
the wires do not contact any hot or moving parts.
On/Off Switch Installation
The on/off switch may be installed in the surround panel (preferred for 3-piece panels) or control panel ( on 1-piece
panel or inside-fit panels). See below for installation details.
1 Disconnect the red and brown wires leading to the on/off switch.
2 Insert the wires through the rectangular mounting hole.
3 Attach the wires to the top and bottom posts on one side of the switch. It does not matter which
wire is on top.
4 Press the switch into the rectangular mounting hole until it locks into place.





Upper Right of Trim
(preferred)



Control Panel
(next to gas control valve)







