Travis Industries Maverick User manual

Maverick
TM

Firepit
Owner’sManual
WARNING: For Outdoor Use Only



WARNING: If the information in this manual is not followed exactly, an
uncontrolled fire may result, causing property damage, personal
injury or loss of life.






www.MaverickFirepit.com
$10.00Copyright2011,T.I.Part#100‐01265_000
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Educate children and adults of the dangers
of the firepit.
Children should be supervised when in the
same area as the firepit.
Do not let children play with the firepit.
Keep pets away from the firepit.

2Introduction
© Travis Industries, Inc. 4110603 100-01265_000
Overview
Thismanualdetailstheinstallation,operation,andmaintenancefortheMaverickFirepit.
Important Registration and Service Information
NootherMaverickFirepithasthesameserialnumberasyours.Theserialnumberisonthesafetylabel
attachedtothefirepit(underthefrontsupportbox).Thisserialnumberwillbeneededincaseyourequire
serviceofanytype.Toreceivefullwarrantycoverage,youwillneedtoshowevidenceofthedateof
purchase.Mailyourwarrantycardorvisitwww.traviswarranty.comtoregisteryourMaverickFirepit.Ifany
serviceissuesmayarise,contactyourdealerfordetails.Seepage13forwarrantyregistrationdetails.
Important Information
NootherMaverickFirepithasthesameserialnumberas
yours.Theserialnumberisonthelistinglabelthatis
chainedtothefirepit.Thisserialnumbermaybeneeded
incaseyourequireservice.
Model: Maverick Firepit
Serial Number:
Purchase Date:
Purchased From:
Registeryourwarrantyonlineat:
www.traviswarranty.com

Or,mailyourwarrantycardto:
Travis Industries House of Fire
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
SaveYourBillofSale.
Toreceivefullwarrantycoverage,youwillneedto
showevidenceofthedateyoupurchasedyour
heater.DonotmailyourBillofSaletous.

WesuggestthatyouattachyourBillofSaletothis
pagesothatyouwillhavealltheinformationyou
needinoneplaceshouldtheneedforserviceor
informationoccur.



Table of Contents 3
© Travis Industries, Inc. 4110603 100-01265_000
Contents
Overview 2
Important Registration and Service
Information 2
Important Information 2
Firepit Dimensions 5
Five-Foot Model.............................................5
Three-Foot Model ..........................................5
Packing List 5
Installation Warnings 6
Consult Local Regulations .............................6
Placement Requirements 6
Clearances:....................................................6
Before You Begin 8
Tools Needed.................................................8
Installation Instructions 8
Operating Instructions 11
Maintaining Your Firepit 11
Winterizing the Firepit ..................................11
Touching up the Paint..................................11
Replacement Parts 12
Troubleshooting 12



4Safety Precautions
© Travis Industries, Inc. 4110603 100-01265_000
! This firepit must be installed in accordance with all local codes, if any.
! This firepit must only be used outdoors in a well-ventilated area. It may not be used in a
building, garage, or other enclosed space.
Installation
Do not install in or on cars, trucks, recreational
vehicles or boats.
Install this firepit only on a hard, level, non-
combustible surface such as concrete, rock or
stone. Note that an asphalt or blacktop surface may
not be acceptable. Do not use on wooden decks.
Do not force parts together as this can cause
personal injury or damage the product.
Do not use this firepit until it is completely
assembled and all parts are securely fastened and
tightened.
If required in your area, do not use this firepit unless
spark guards are securely in place.
Condo/townhome dwellers: Check with your
management for requirements and fire codes for
using an outdoor firepit in your complex. If allowed,
use outside on the ground floor.
Do not use on or under balconies.
Contact your local building officials to obtain a
permit and information on any installation
restrictions or inspection requirements in your area.
Fuel
Use this outdoor firepit with dry, seasoned
cordwood, which will create less smoke and burn
hotter and more completely.
Do not use this firepit with solid fuel, such as
charcoal briquettes, lump charcoal, manufactured
logs, driftwood, trash, leaves, paper, cardboard,
plywood, or painted, stained or treated wood. When
using softwoods such as pine or cedar, be aware of
sparks.
Do not use gasoline, kerosene, diesel fuel, lighter
fluid, or alcohol to light or relight fires.
Do not overload the firepit. Do not add additional
wood until the fire burns down. NOTE: If any portion
of the bowl, lid, or spark guards of the firepit are
glowing red this indicates it is overloaded.
GeneralUsage
Keep the firepit clean and free of leaves and debris
to ensure safe operation. Do not operate the firepit
without first ensuring it is clean.
Keep a portable fire extinguisher or other approved
extinguishing equipment, such as a garden hose,
readily available when operating this firepit.
Do not store or use gasoline or other flammable
liquids or vapors within the vicinity (25 ft., or 7.6 m)
of this firepit.
The surfaces of this outdoor firepit are hot when in
use. To avoid burns, do not touch the firepit until it
has cooled completely (about 45 minutes), unless
wearing protective gear such as potholders, gloves,
and hot pads. Never touch ashes or coals to test if
they are hot.
Avoid breathing smoke from the fire and getting it
into your eyes.
Do not lean over the firepit when lighting or while it
is in use.
Do not place a hot spark guard or hot firepit tools
onto combustible surfaces such as grass, wooden
deck, or furniture.
Do not use this outdoor firepit for indoor heating. Toxic
carbon monoxide fumes can accumulate and cause
asphyxiation.
Keep all electrical cords away from a hot firepit.
Using alcohol, prescription or non-prescription drugs
may impair ability to properly assemble or safely
operate the firepit.
Donotoperatethefirepitif:
There is a lightning storm or a possible lightning
storm.
High wind conditions are present.
Do not place clothing or other flammable items on or
near the firepit.
If the firepit is not operating properly in any fashion
or if you are uncertain, call your dealer for a full
explanation of your firepit and what to expect.
Maintenance
Do not remove, replace, modify or substitute any
part of the firepit unless instructions are given in this
manual for routine maintenance and cleaning. A
trained technician must do all other work.
Allow the firepit, ashes, and coals to extinguish and
cool completely before moving, maintaining, or
cleaning.
Replace any screen or guard removed for servicing
before operating the firepit.
Do not use oven cleaner or abrasive cleaners as
they will damage the finish.
Check for signs of damage and creosote build-up
after storage or period of non-use. Do not operate
until necessary repairs or cleaning have been made.
ManualandWarranty
Operate the firepit according to the instructions
included in this manual. The instructions in this
manual must be strictly adhered to. Do not use
makeshift methods or compromise in the installation.
Improper installation will void the warranty and
safety listing.
Do not throw this manual away. This manual has
important operating and maintenance instructions
that you will need at a later time. Always follow the
instructions in this manual.
Death, serious injury, or damage to property may
occur if the above are not followed exactly.
Travis Industries, Inc. grants no warranty,
implied or stated, for the installation or
maintenance of your firepit, and assumes no
responsibility of any consequential damage(s).

Installation (for qualified installers only) 5
© Travis Industries, Inc. 4110603 100-01265_000
Firepit Dimensions
Five-Foot Model
Diameter–92inches(2337mm)
RadiusfromcentertoInnerRing–30inches(762mm)
RadiusfromcentertooutsideofOuterRing–44.5inches
(1131mm)
Innerdimension–5feet(1525mm)
Outerdimension–8feet(1830mm)
Height–12.5inches(318mm)
Figure1:Five‐FootModel
Three-Foot Model
Diameter–62inches(1576mm)
RadiusfromcentertoInnerRing–18inches(458mm)
RadiusfromcentertooutsideofOuterRing–30inches
(762mm)
Innerdimension–3feet(915mm)
Outerdimension–5feet(1525mm)
Height–12inches(306mm)
Figure2:Three‐FootModel
Packing List
Firepit:
(4)decorativecovers
(4)sections
(8)bolts
(16)washers
(8)nuts
NOTE:Thenutsandboltsattachingthefirepittothepalletareusedforinstallation.Donotthrowtheseaway
afterdetachingthefirepitfromthepallet.


6Installation (for qualified installers only)
© Travis Industries, Inc. 4110603 100-01265_000
Installation Warnings
! Failure to follow all the requirements may result in property damage, bodily injury, or death.
! This firepit must be installed by a qualified installer.
! The requirements listed below are divided into sections. All requirements must be met
simultaneously. The order of installation is not rigid – the qualified installer should follow the
procedure best suited for the installation.
Consult Local Regulations
Consultyourlocalcityorcountyregulationsforfirepitsbeforeproceedingwithinstallation.Localregulations
governbuildingandusingfirepitsonprivateandpublicproperty.Somecitiesandregionsrequireaburning
permitbeforestartinganoutdoorfire,andseasonalortimeofdayrestrictions.Somefirepitregulationsdictate
thetypeofmaterialsoutofwhichitshouldbeconstructed.Lawsmayalsogovernwhatcanbeburnedinafirepit
orhowashesaredisposed.
Placement Requirements
! For Outdoor Use Only. Install only in well-ventilated areas.
Donotlocatethefirepit:
Inhightrafficareas
Underorneartrees,plantsandbuildingswheredebrismayconstantlyfallintothefirepit.Excessivedebris
willrequirehighmaintenanceand/orcausemalfunctioningofthefirepit.
Inplaceswherepeople,children,andpetsmaycontactthefirepit.Guardsorfencesaroundthefirepitin
theselocationsarerecommended.
Clearances:
NOTE:Allclearancesaremeasuredfromtheoutsideedgeofthefirepit.
Thedistancefromanystructureorcombustiblematerialtothefirepitperimetershallbeaminimumof25ft.
(7.62M).Lesserclearancesshallbeusedonlywhereacceptabletothelocalauthorityhavingjurisdiction.
Thedistancefromanyoverhangingfoliage(trees,shrubs,andsoon)tothefirepitshallbeaminimumof15
feet(4.572M).

Installation (for qualified installers only) 7
© Travis Industries, Inc. 4110603 100-01265_000
Figure3:Clearances
NOTE:Heatfromthefirepitmayadverselyaffectnearbyfoliage.
25’ (7.62M)
15’ (4.57M)
Gravel
Soil Soil
3” (76mm) Non-combustible material for drainage

8 Installation (for qualified installers only)
© Travis Industries, Inc. 4110603 100-01265_000
Before You Begin
! Read this entire manual before you use your new firepit, especially the section "Safety
Precautions" on page 13. Failure to follow the instructions may result in property damage,
bodily injury, or death.
NOTE:Thesectionsofthefirepitareheavy,andmayrequiretwopeopletoliftthemintoplace.
Tools Needed
Two¾”wrenches
Installation Instructions
NOTE:Thenuts,bolts,andwashersattachingthefirepittothepalletareusedforinstallation.Donotthrow
theseawayafterdetachingthefirepitfromthepallet.
NOTE:The3‐footmodelisshippedin2halves,2sectionsperhalf.Youmaywanttoloosentheboltsbefore
assembling,toensurecorrectalignment.
1. Determinethelocationofthefirepit.Makesureallclearancesaremet(seepage6).
2. Preparethefirepitlocation.Werecommend3”(77mm)ofcompactedsandorgravelunderthefirepit,
extending12”(305mm)beyondtheoutsideedge.
3. Placesection1asshowninFigure5;placesection2asshowninFigure6.Thepipeattherightofeach
sectionfitsintotheholeattheleftofthenextsection,sothattheholesinthebracketsalign.
NOTE:Eachsectionofthefirepitisnumberedandmustbeassembledsequentiallytoensureproper
alignment.Youcanidentifyeachsectionbythenumberoftackweldsinsidethecornerbox(seeFigure
4).Section1has1tackweld;section2has2tackwelds,andsoon.
NOTE:Donotboltthesectionstogetheryet.
Figure4:LocationofTackWeld
Figure5:1stSection Figure6:1stand2ndSectionsAssembled


Installation (for qualified installers only) 9
© Travis Industries, Inc. 4110603 100-01265_000
4. Placesections3and4asshownbelow.
Figure7:ThreeSectionsAssembled Figure8:All4SectionsAssembled
5. Attachthesections,installingthebolts,washers,andnutsineachsection,butdonottightenyet.There
aretopandbottomboltsforeachsection.Seethephotosbelow.
Figure9:AttachingSections Figure10:AttachedSectionWithLooseBolts

6. Tighteneachboltwiththewrenchesinseveralturns,alternatingthebolts.Thiswillhelpalignthefirepit.
Figure11:¾”CrescentandRatchetWrenches Figure12:TighteningtheBolts



10 Installation (for qualified installers only)
© Travis Industries, Inc. 4110603 100-01265_000

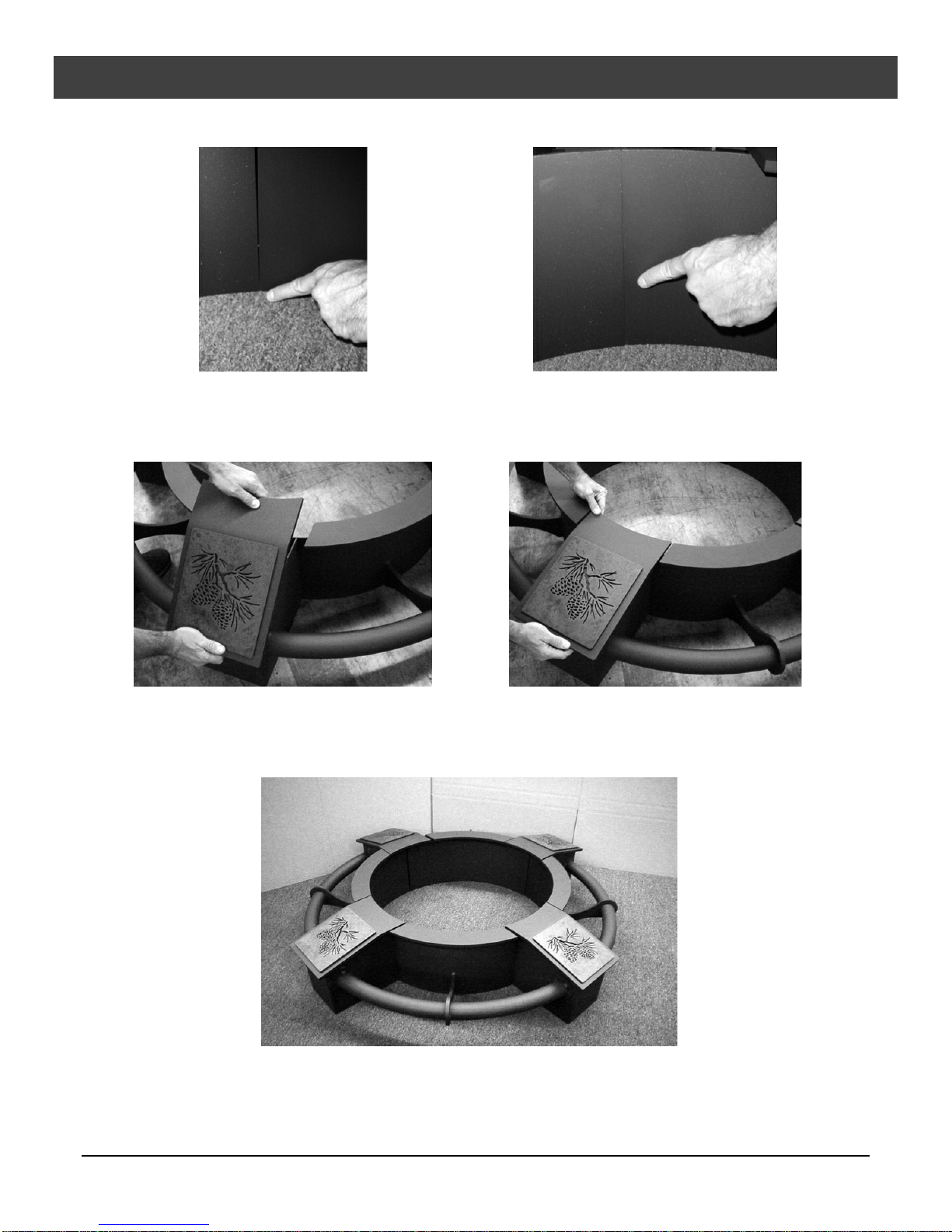

Whentightened,theinsidesofeachbracketsectionshouldbeflushwitheach,asshowninthephotosbelow.
Figure13:BottomofSectionIsFlush Figure14:TopandBottomofSectionsAreFlush
7. Attachthe4decorativebracketcoverstothelocationsprovided,startingatthebottomofeachsection,
asshownbelow.
Figure15:AttachingtheDecorativeCover Figure16:DecorativeCoverAttached

Thecompletedfirepitassemblyshouldlooklikethatinthephotobelow.
Figure17:CompletedFirepitAssembly


Operation & Maintenance 11
© Travis Industries, Inc. 4110603 100-01265_000
Operating Instructions
! Remove any cover from the firepit prior to operation.
! Inspect the firepit to make sure it is free of debris or objects that may have fallen into the
firepit prior to operation.
Startyourfirepitasfollows:
1. Placepaperandkindlinginthecenterofthefirepit.
2. Lightthepaper.
3. Addwoodtotheflame,startingwithsmallpiecesfirst.
4. Addwoodtothefirepitasdesired.Donotoverfillthefirepitbyallowingwoodabovethesides.
Maintaining Your Firepit
! Failure to inspect and maintain may lead to malfunctioning of the firepit and potentially
dangerous situations.
YourMaverickFirepitisdesignedtobecleanedandmaintainedeasily.
Inspectthefirepitbeforeeachuse.
Keepthefirepitclean,andremoveanydebristhatcollectsinoronthefirepit.
Thefirepitwilldevelopsurfacerustanddiscolorationovertime–thisisnormal.
Winterizing the Firepit
Inareaswherethefirepitmaynotbeusedinwinter,orforanextendedperiodoftime,youmaywishto
coverthefirepit.
Afteraperiodofstorageand/ornon‐use,checkforsignsofdamageandcreosotebuild‐up.Donotoperate
untilnecessaryrepairsand/orcleanupareexecuted.
Touching up the Paint
Thisfirepitmaybere‐paintedusingStove‐Brightmetallicblackpaintavailablefromyourdealer.


12 Operation & Maintenance
© Travis Industries, Inc. 4110603 100-01265_000
Replacement Parts
Part#DescriptionDiagram#

ReplacementpartscanbeobtainedfromyourMaverickFirepitretailer(seewww.maverickfirepit.com).
Troubleshooting
Problem:PossibleCause: Don'tCallforServiceUntilYou:

.

Warranty 13
© Travis Industries, Inc. 4110603 100-01265_000
To register your TRAVIS INDUSTRIES, INC. 90-Day Limited Warranty, complete the enclosed Warranty card and mail it within ten (10) days of the
appliance purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants
this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to
the original purchaser from the date of purchase as follows:
Check with your dealer in advance for any costs to you when arranging a warranty call. Mileage or service charges
are not covered by this warranty. This charge can vary from store to store.
90-DAY COVERAGE: PARTS
Firepit Assembly:
Firepit sections with box covers.
Exclusions: Paint and Finish
CONDITIONS & EXCLUSIONS
1. This firepit must be installed by a qualified installer. It must be installed, operated, and maintained at all times in accordance with the instructions in the Owner’s Manual.
Any alteration, willful abuse, accident, neglect, alteration, misapplication or misuse of the product shall nullify this warranty.
2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized TRAVIS dealer.
3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered under
warranty. Over-firing (operation when steel glows) of this appliance can cause serious damage and will nullify this warranty.
4. This warranty does not cover damage to the finish, such as scratches, dents, discoloration, rust or other weather damage, after purchase.
5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills or
mountains or other influences from mechanical systems such as fans, etc.
6. This Warranty is void if:
a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals.
b. The unit is subject to submersion in water.
7. Exclusions to this 90-Day Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation, alteration or
adjustment of the manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in transit, alteration, or act of
God.
8. This 90-Day warranty excludes damage caused by normal wear and tear, such as discoloration. Also excluded is damage to the unit caused by abuse, improper
installation, modification of the unit, drilling of the orifices, or the use of fuel other than that for which the unit is configured. Units are shipped for either natural gas or
propane. Confirm fuel configuration with your installer.
9. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential
damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.
11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the firepit without the express written
permission of TRAVIS INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.
12. Any statement or representation of TRAVIS products and their performance contained in TRAVIS advertising, packaging literature, or printed material is not part of this
90-Day warranty.
13. This warranty is automatically voided if the appliance’s serial number has been removed or altered in any way.
14. No dealer, distributor, or similar person has the authority to represent or warrant TRAVIS products beyond the terms contained within this warranty. TRAVIS
INDUSTRIES, INC. assumes no liability for such warranties or representations.
15. Travis Industries will not cover the cost of the removal or re-installation.
16. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.
17. THIS 90-DAY WARRANTY IS THE ONLY WARRANTY SUPPLIED BY TRAVIS INDUSTRIES, INC., THE MANUFACTURER OF THE APPLIANCE. ALL OTHER
WARRANTIES, WHETHER EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED AND PURCHASER’S RECOURSE IS EXPRESSLY LIMITED TO THE
WARRANTIES SET FORTH HEREIN.
IF WARRANTY SERVICE IS NEEDED:
1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your TRAVIS dealer WITHIN 30 DAYS, giving them proof of purchase,
the purchase date, and the model name and serial number.
2. Travis Industries has the option of either repairing or replacing the defective component.
3. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership
where you purchased the appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your appliance. At that time, you may
be asked to ship your appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge,
your TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 90-Day warranty. TRAVIS INDUSTRIES, INC. will
return your appliance, freight charges prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership.



14 Index
© Travis Industries, Inc. 4110603 100-01265_000
BeforeYouBegin.....................................8
Dimensions..............................................5
ImportantRegistrationand
ServiceInformation.............................2
InstallationWarnings..............................6
MaintainingYourFirepit.......................12
OperatingInstructions..........................12
Overview.................................................2
PackingList..............................................5
PlacementRequirements........................6
RecommendedOrderof
Installation...........................................8
ReplacementParts.................................13
Troubleshooting.....................................13
WinterizingtheFirepit...........................12

