Travis Industries 864 TRV User manual








































864 TRV GreenSmart™
Fireplace
Tested and Listed by
Report # B0516PRT-001
ANSIZ21.88
Built-In Direct Vent Fireplace
Natural Gas or Propane
Residential or Mobile Home
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of
life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Installation Manual
Installer: After installation give this manual to the home-
owner and explain operation of this heater.
Copyright 2010, T.I. $10.00 100-01220_000 4081126
www.travisproducts.com
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4090227 100-01220_000
Overview
This manual details the installation requirements
for the 864 TRV GS fireplace. For operating and
maintenance instructions, refer to the 864 TRV GS
Owner's Manual (part # 100-01219).
Listing Details
This appliance was listed by Intertek Test Labs to
ANSI Z21.88. The listing label is attached to the
appliance near the gas control valve. A copy is
shown to the right.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters
National Fireplace Institute
Report No. B0516PRT-001
Control No. 4000515
Vented Gas Fireplace Heater
864 TRV GS
Certified for USA and Canada
Testedto:ANSIZ21.88-2009/CSA2.33-2009“Vented Gas Fireplace Heaters”, CGA2.17-M91, UL 307b-1995 “Gas Burning Heating Appliances for Manufactured Homes”, and CSA P.4.1-09. This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSAB149.1. ThisappliancemustbeinstalledinaccordancewiththecurrentStandardCAN/CSAZ240 MH, Mobile Housing, in Canada or with the Manufactured Home Constructions and Safety Standard, Title 24 CFR, Part 3280, in the United States, or when such a standard is not applicable, ANSI/NCSBCSA225.1/NFPA501A, Manufactured Home Installation Standard. This vented gas fireplace heater is equipped at the factory for use with natural gas. If conversion to propane (LP) is desired, the optional factory conversion kit must be used. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured home (USA only) where not prohibited by local codes. See owner’s manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used. This vented gas fireplace heater is not for use with air filters. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. This appliance must be properly connected to a venting system in accordance with the manufacturer’s installation instructions. Use only approved coaxial direct vent system to vent this appliance to the exterior. See owner’s manual for approved brands of venting. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier.
CAUTION:
Hot while in operation. Do Not Touch. Severe burns may result. Keep children,
clothing, furniture, gasoline and other liquids having flammable vapors away. Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified service person.
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUEL
MINIMUM CLEARANCES TO COMBUSTIBLES
Fireplace to Adjacent Wall Wood Floor Beneath Fireplace Back to Enclosure
1” (25 mm)
0” (0 mm)
0.5” (13 mm)
Top to Enclosure (from stand-offs) Sides to Enclosure Base of Fireplace to an 8” Mantel* (*See manual for other mantel depths)
0” (0 mm)
0.5” (13 mm)
44.75” (1137 mm)
Input Rate on “HI” (BTU/Hr) Input Rate on “LO” (BTU/Hr) 31,000
8,000 31,000
10,000 Minimum Inlet Pressure (inches W.C.)
Maximum Inlet Pressure (inches W.C.) Manifold Pressure on “HI” (inches W.C.)
11”
13” 10”
5.5”
7”
3.5”
For natural gas when equipped with the following drill size orifice: DMS 49 Front - 49 Back For propane when equipped with the following drill size orifice: DMS 56 Front - 57 Back This appliance is equipped for use only at altitudes 0-2000 feet (0-610m) in the USA. In Canada, 0-4500 feet (0-1370m). For altitudes above 2000 feet, the vent configuration, orifice, or combination of both may need to be changed. See the owner’s manual for information on making these changes. Electrical Rating: 115V., 60 Hz, 1.5Amps Optional Blower: SKU # 99000162
L.P. N.G. L.P. N.G.
2010 2011 2012
Jan. Feb. Mar.
Apr. May Jun.
Jul. Aug. Sep.
Oct. Nov. Dec.
Manufacture Date:
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
www.travisproducts.com
0818

Table of Contents 3
© Travis Industries 4090227 100-01220_000
Introduction
Overview.............................................................................2
Listing Details......................................................................2
Safety Precautions
Safety Precautions..............................................................4
Features and Specifications
Features..............................................................................6
Installation Options..............................................................6
Heating Specifications.........................................................6
Dimensions .........................................................................6
Installation
Packing List.........................................................................7
Additional Items Required...................................................7
Installation Overview...........................................................7
Recommended Installation Procedure ................................7
Converting the Fireplace to Top Vent Configuration ...........9
Fireplace Placement Requirements....................................11
Clearances......................................................................11
Raised Fireplaces............................................................11
Min. Framing Dims. - Rear Vent Configuration...........................12
Min. Framing Dims. - Top Vent Configuration .................13
Nailing Brackets ..............................................................14
Corner Installations - Rear Vent Configuration................15
Corner Installations - Top Vent Configuration..................16
Gas Line Requirements ......................................................17
Fuel .................................................................................17
Gas Line Connection.......................................................17
Gas Inlet Pressure...........................................................17
Gas Line Location............................................................17
Electrical Connection (required)..........................................19
Optional Wall Switch or Thermostat Installation..................20
Vent Requirements .............................................................21
Vent Clearances..............................................................21
Altitude Considerations....................................................21
Approved Vent.................................................................22
Vent Installation...............................................................22
Approved Vent Configurations ............................................23
Restrictor Position ...........................................................23
Exhaust Restrictor Adjustment ........................................23
Intake Restrictor Adjustment ...........................................24
Diffuser Plate Adjustment................................................25
Rear Vent Config. W Horizontal Term. (no vertical rise) .....26
Rear Vent Config. W Horizontal Term. (w vertical rise).......27
Rear Vent Configuration with Vertical Termination..............28
Top Vent Configuration with Horizontal Termination...........29
Top Vent Configuration with Vertical Termination...............30
Termination Requirements..................................................31
Installation (continued)
Hearth Requirements.......................................................... 32
Facing Requirements.......................................................... 33
Drywall Installation ..........................................................33
Facing Overview .............................................................34
Optional Faceplates – Sizing Chart.................................34
Thin Facing Installation ...................................................35
Thick Facing Installation..................................................37
Thick Facing Installation with FPX Arched Faces............38
Mantel Requirements.......................................................... 40
Install Example - Build-Out (Dog-House) w Hor. Term. ...... 41
Install Example - Build-In w Hor. Term................................ 42
Finalizing the Installation
Steps for Finalizing the Installation ..................................... 43
Air Shutter Adjustment ....................................................44
Glass Frame Removal and Installation............................... 45
Log Set Installation ............................................................. 47
LP Conversion Instructions................................................. 54
Optional Equipment
Fireback Installation............................................................ 57
Grill Installation................................................................... 58
GreenSmart™ Remote Control Installation......................... 59
Index
Index................................................................................... 70

4 Safety Precautions
© Travis Industries 4090227 100-01220_000
Safety Warnings:
Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow
ANSI Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
Notify your insurance company before hooking up this fireplace.
The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.
Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
The viewing glass should be opened only for conducting service.
Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5
© Travis Industries 4090227 100-01220_000
Safety Warnings (continued):
Allow the heater to cool before carrying out any maintenance or cleaning.
Operate the heater according to the instructions included in this manual.
If the main burners do not start correctly turn the gas off and call your dealer for service.
This unit is not for use with solid fuel.
Do not place anything inside the firebox (except the optional artwork).
Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace
or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals
out of the room and away from hot surfaces.
Children and adults should be alerted to the hazards of high surface temperature and should stay
away to avoid burns or clothing ignition. Do not touch the hot surfaces of the heater. Educate all
children of the danger of a high-temperature heater.
Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).

6 Features and Specifications
© Travis Industries 4090227 100-01220_000
Installation Options
Residential or Mobile Home
Straight or Corner Placement
Flush or Recessed Face
Raised or Floor Placement
Internal or External Chase
Horizontal or Vertical Vent
Bedroom Approved
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* 450 to 1,400 450 to 1,400
Maximum BTU Input Per Hour 31,000 31,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.
** Efficiency rating is a product thermal efficiency rating determined under continuous operation
independent of installed system.

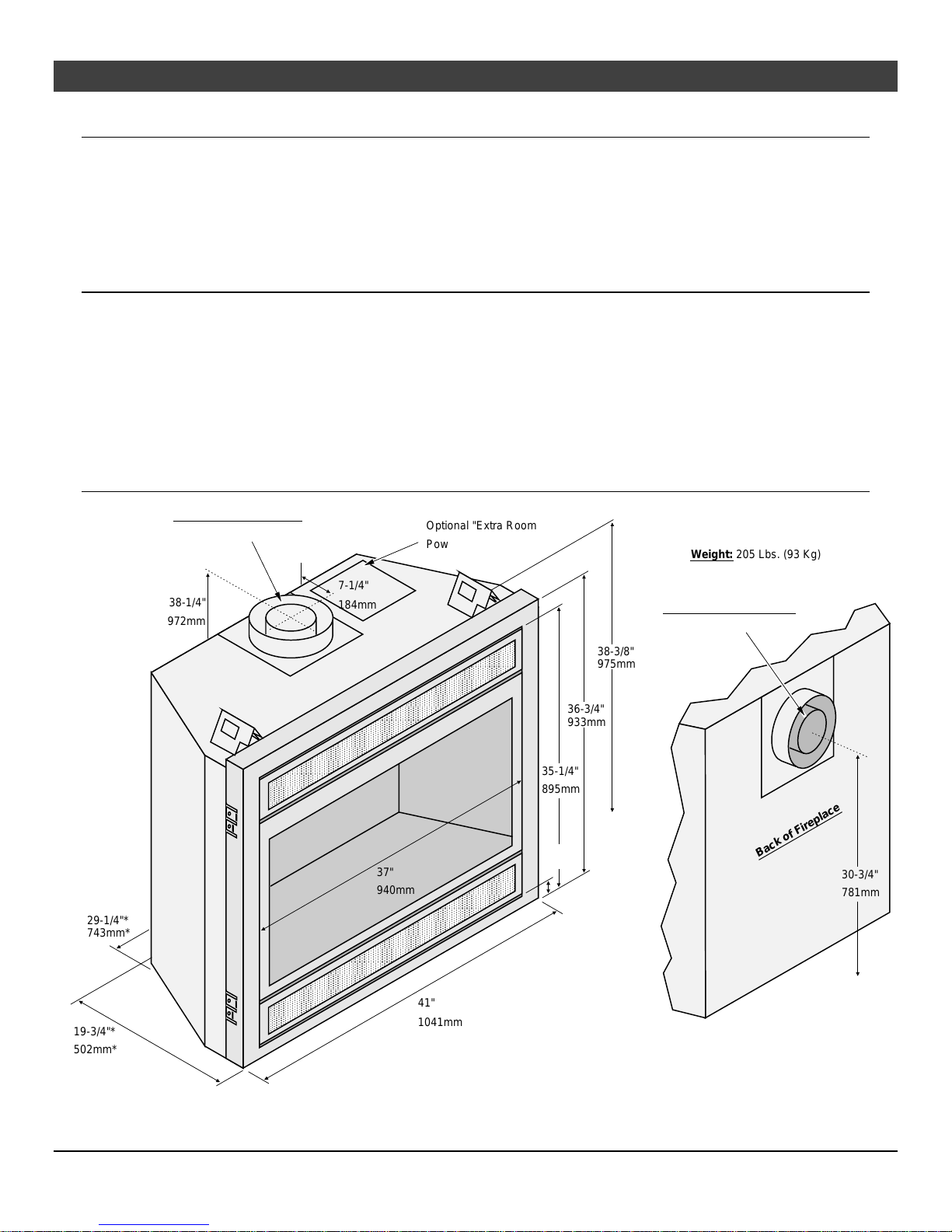

Dimensions
* Includes the required
1/2" (13mm) clearance.



















30-3/4"
781mm
Back of Fireplace
38-1/4"
972mm
36-3/4"
933mm
41"
1041mm
19-3/4"*
502mm*
38-3/8"
975mm
29-1/4"*
743mm*
Weight: 205 Lbs. (93 Kg)
37"
940mm
35-1/4"
895mm
7-1/4"
184mm
Optional "Extra Room
Power Heat Duct"
Connection
1"
25mm
Top Vent Configuration
8" (203mm) Ø Vent
Rear Vent Configuration
8" (203mm) Ø Vent

Installation (for qualified installers only) 7
© Travis Industries 4090227 100-01220_000
Packing List
Propane Conversion Kit
Log Set
Firestop (sku 93006094)
On/Off Switch, Cover Plate, and Wire
4 AA Batteries, 1 9Volt Battery
Additional Items Required
Direct Vent
Gas Line Equipment (shutoff valve, pipe, etc.)
Electrical Equipment (min. 14 gauge, grounded line)
Installation Overview
All requirements below must be met.











































See the section
"Approved Vent
Configurations"
See the section
"Electrical Connection"
See the section
"Mantel Requirements"
Insulation must not fill
the 1/2" (13mm)
clearance around the
back and sides of the
fireplace.
See the section
"Vent Requirements"
See the section "Minimum
Framing Dimensions"
Drywall
Top Vent
Configuration Rear Vent
Configuration
See the section
"Gas Line Installation"
1" Min.
25mm
Side
Wall










See "Optional Non-
Combustible Facing"
Drywall
See "Optional Non-
Combustible Hearth"
Nailing Brackets
Required Travis
Firestop (sku
93006094)
Recommended Installation Procedure
Frame the opening for the fireplace. Make sure to allow for vent installation.
This fireplace is designed to accommodate 1/2" (13mm) or 5/8" (16mm) drywall (see "Nailing
Brackets" on page 14 for details). Secure the fireplace to the framing.
Install the vent, gas line and electrical hook-up.
Install the drywall.
Install the hearth (if applicable).
Install the facing (if applicable).
Install the mantel (if applicable).
Finalize the installation (see page 43) and install the grill or face.

8 Installation (for qualified installers only)
© Travis Industries 4090227 100-01220_000
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54
as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment
and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Installation (for qualified installers only) 9
© Travis Industries 4090227 100-01220_000
Top Vent or Rear Vent Configuration
This appliance is shipped in the rear vent configuration. To change to the top vent configuration, follow
the directions below.
NOTE: the vent configuration affects several aspects of installation (framing, maximum vent rise,
maximum vent run). Make sure the vent configuration is correct prior to installation. You may wish to
configure the diffuser when changing the vent configuration.

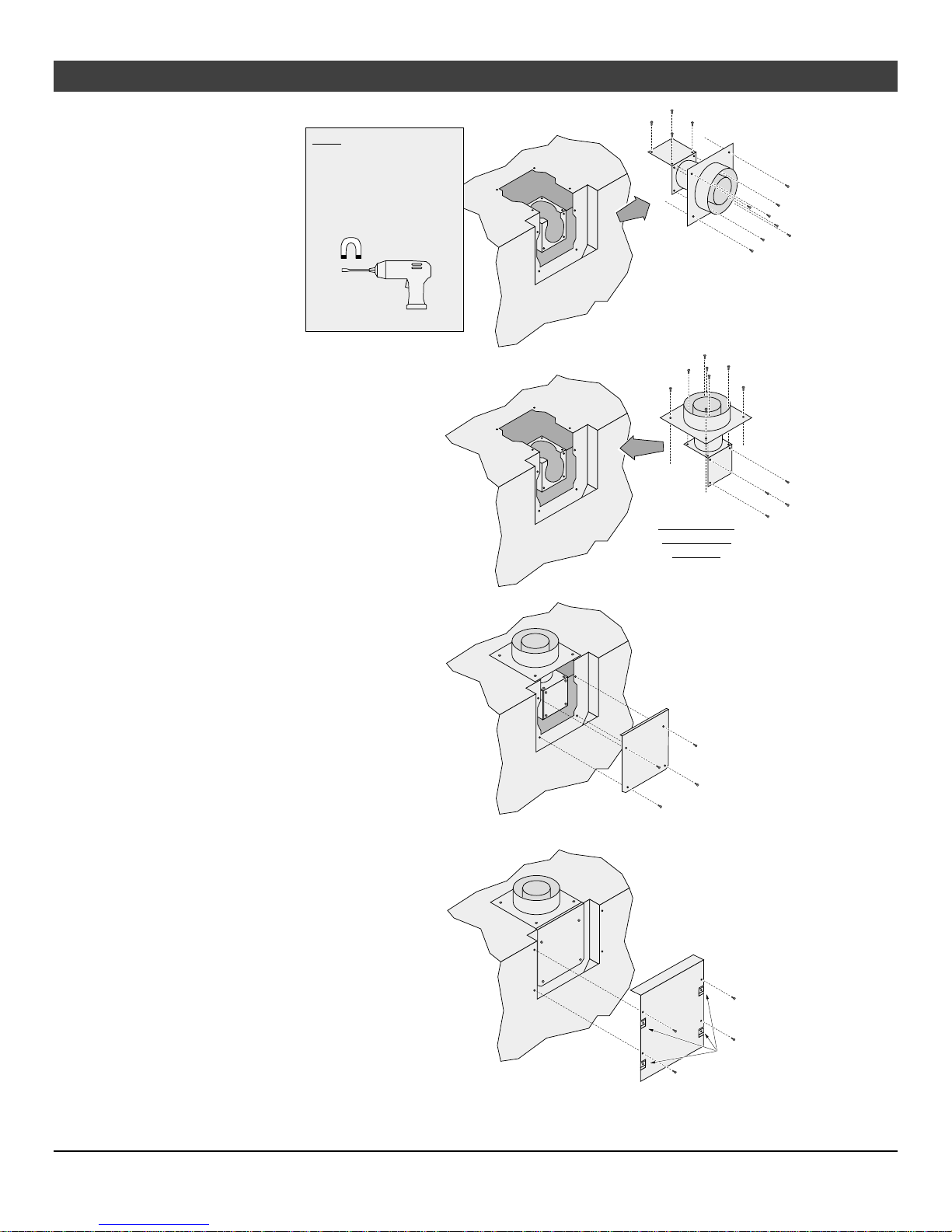

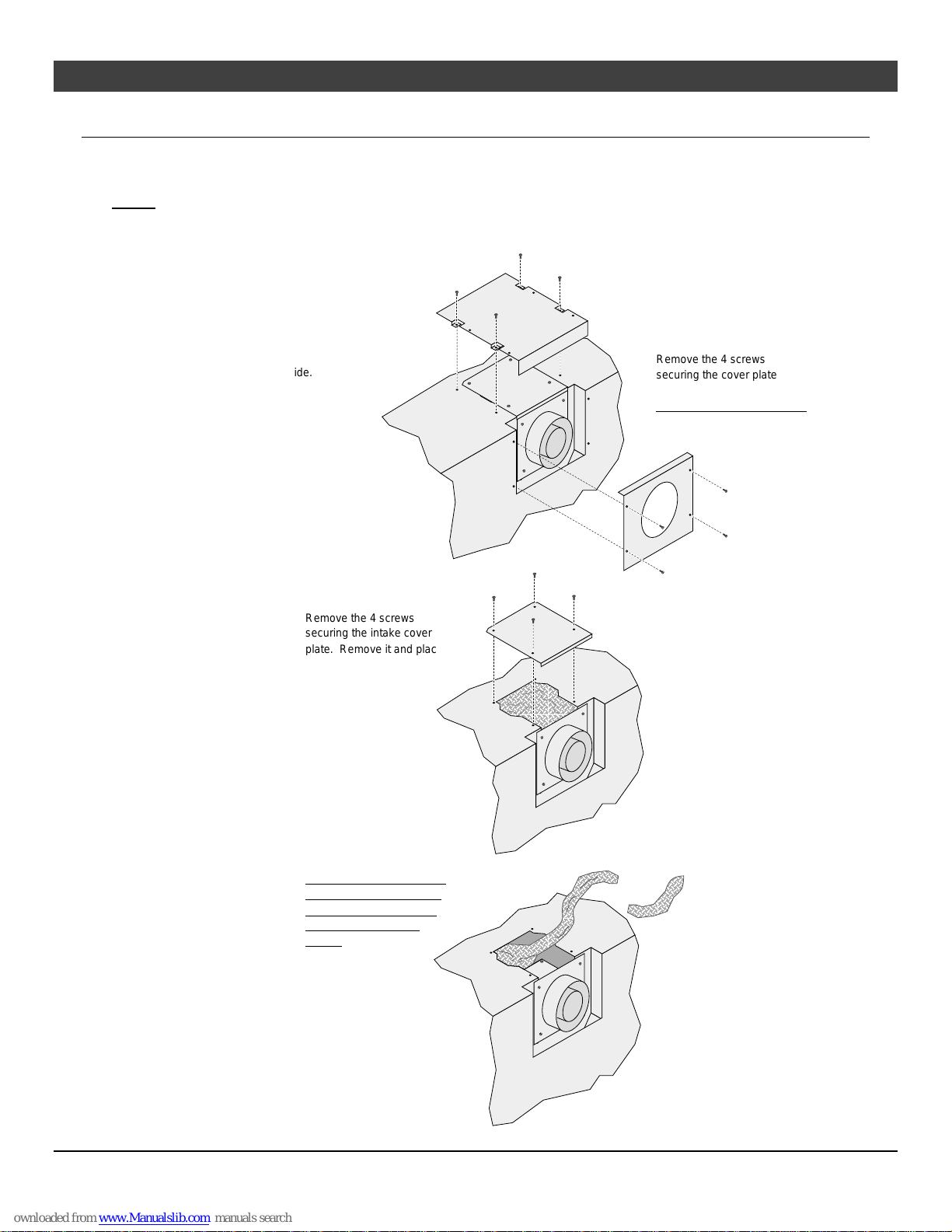

Converting the
Fireplace to Top
Vent
Configuration
Remove and discard all of
the insulation found near
the flue assembly (make
sure to remove every
piece).








Remove the 4 screws
securing the intake cover
plate. Remove it and place it
aside.






Remove the 4 screws
securing the cover plate.
Remove it and place it
aside.






Remove the 4 screws
securing the cover plate (with
hole).
This part may be discarded.
Top of Fireplace
Back of Fireplace




10 Installation (for qualified installers only)
© Travis Industries 4090227 100-01220_000
Converting the
Fireplace to Top
Vent (continued)
Remove the 12 screws
securing the flue assembly.
Attach the intake cover
plate with the screws
removed earlier.
Attach the cover plate with
the screws removed earlier.
NOTE: flatten the four legs
before insaling the cover
plate.
Rotate the flue
assembly so the
flue points
upwards. Secure
using the twelve
screws removed
earlier.
NOTE: Use a magnetic-
tipped nutdriver on these
screws - take care to prevent
the screws from falling into
the fireplace.
DO NOT OVER-
TIGHTEN THE
SCREWS.

Installation (for qualified installers only) 11
© Travis Industries 4090227 100-01220_000
Fireplace Placement Requirements
The fireplace requires a 1/2" (13mm) clearance from the angled sides and back of the fireplace to the
framing members. No material (insulation, framing, etc.) may be placed into this area.
Fireplace must be installed on a level surface capable of supporting the fireplace and vent
Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance
produces when determining a location.
Clearances
When installed, walls in front of the fireplace must be a minimum 1" (25mm) to the side of the
fireplace.
Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
Fireplace must be placed so the vents below and above the glass do not become blocked.
Raised Fireplaces
The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
(205 Lbs. 93 Kg) and vent.

12 Installation (for qualified installers only)
© Travis Industries 4090227 100-01220_000

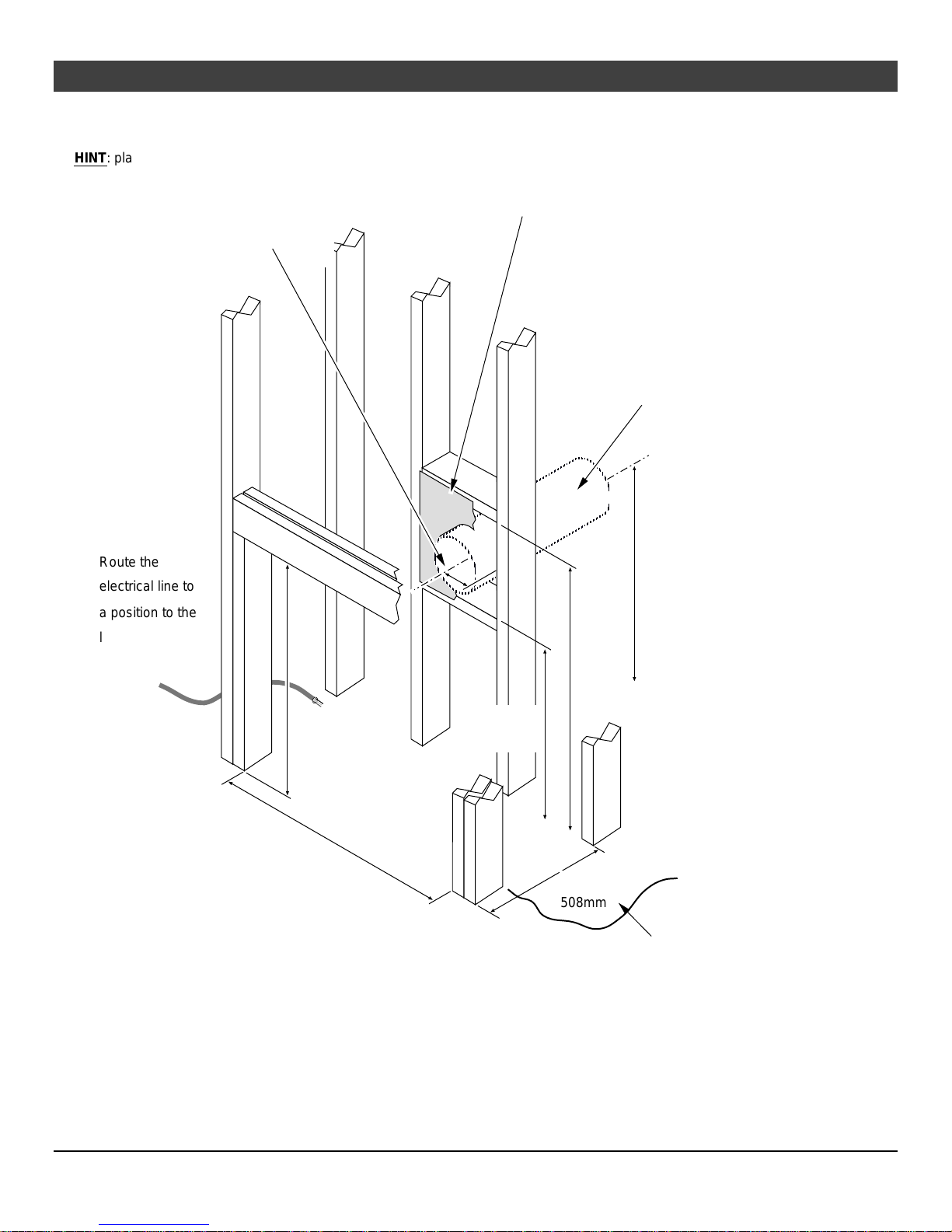

Minimum Framing Dimensions - Rear Vent Configuration
















Route the
electrical line to
a position to the
left rear of the
fireplace.
Vent Clearances 8" (203mm) dia. Vent:
1" (25mm) to the sides, 1" (25mm)
below, and 3" (76mm) above the vent to
combustibles.
Included Firestop (required)
Part # 93006094
Center of Rear Vent












30-3/4"
781mm
38"
965mm
41-1/4"
1048mm
38-1/2"
978mm
20"
508mm
HINT: place the fireplace so the center
line is at least 5" (127mm) from both
vertical framing members at the rear (this
allows the vent to pass through the
framing without modfications)
25-3/4"
654mm
The on/off switch/thermostat wire (if
used) should be routed to a location
near the right front of the fireplace.
Minimum enclosure height = 38-1/2" (978mm)

Installation (for qualified installers only) 13
© Travis Industries 4090227 100-01220_000

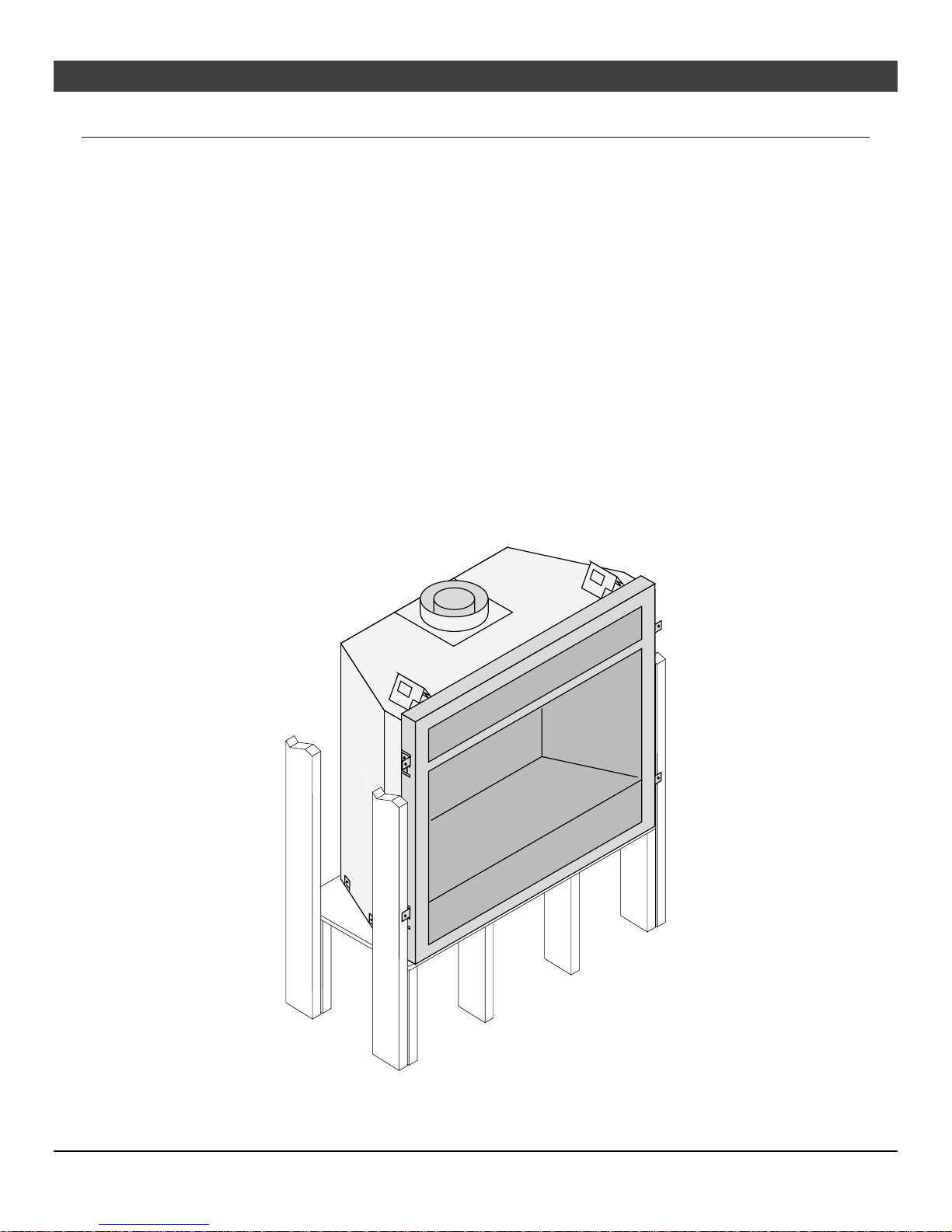

Minimum Framing Dimensions - Top Vent Configuration
Route the electrical line to
a position to the left rear
of the fireplace.
41-1/4"
1048mm
38-1/2"
978mm
20" (508mm)
The on/off switch/thermostat wire (if
used) should be routed to a location
near the right front of the fireplace.
Minimum enclosure height = 38-1/2" (978mm)

14 Installation (for qualified installers only)
© Travis Industries 4090227 100-01220_000

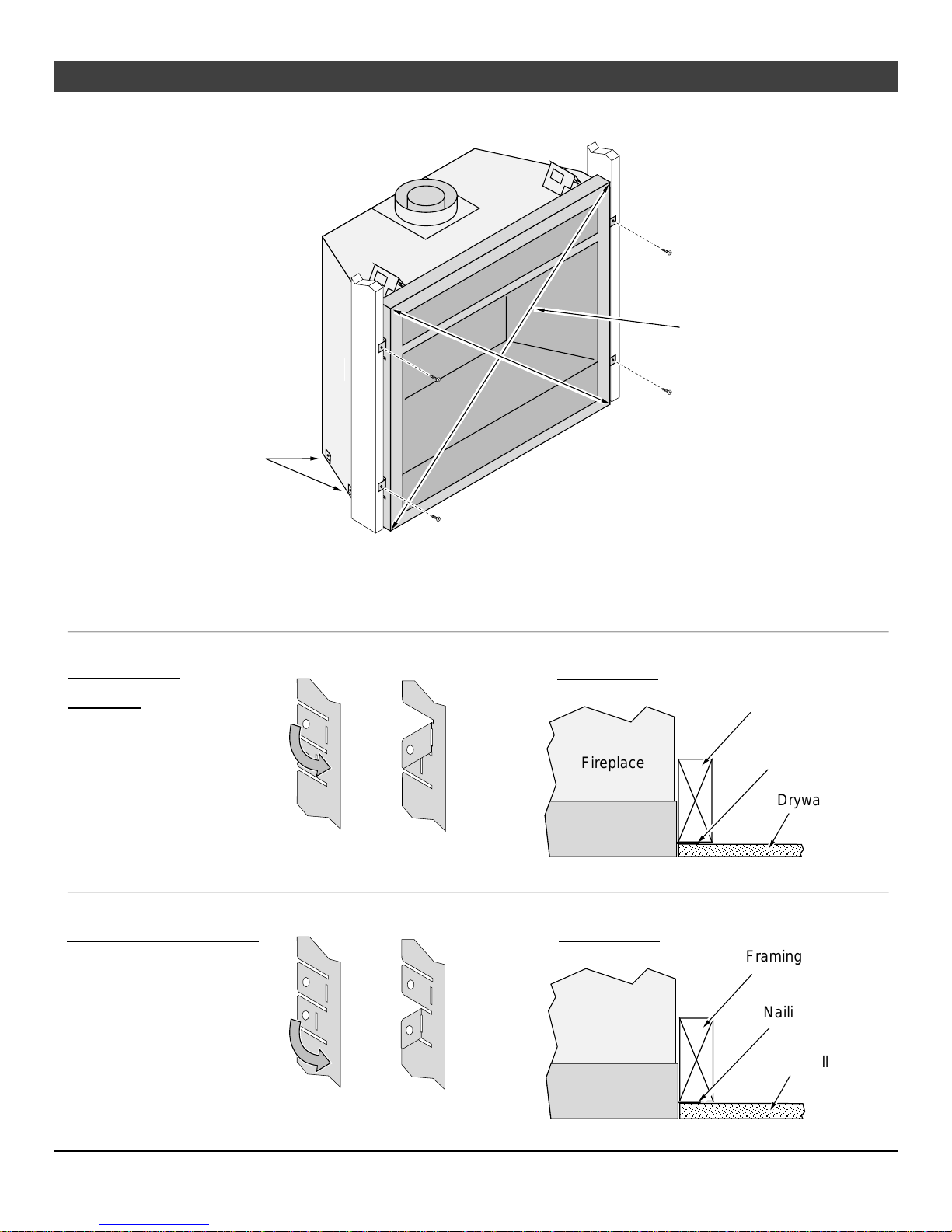

Nailing Brackets
NOTE: Additional nailing
brackets are provided along
the base of the fireplace.
Use these brackets if not
using the front brackets.
For installations using
5/8'' (16mm) drywall fold
the shorter tab out 90°F
(32.2°C). Use a
screwdriver if necessary.
For installations using 1/2''
(13mm) facing fold the larger
tab out 90°F (32.2°C). Use a
screwdriver if necessary.


Fireplace
Drywall
Framing
Nailing Bracket
TOP VIEW
1/2''(13mm)
Drywall
5/8''(16mm) Drywall
There are four nailing brackets
on the front of the fireplace.
Follow the directions below to
prepare the nailing brackets.
Once in place, nail or screw the
nailing brackets to the framing.


Fireplace
Drywall
Framing
Nailing Bracket
TOP VIEW
Make sure the fireplace is
square and plumb when
placed in the framing.
Measured corner-to-
corner, the fireplace
should be square (approx.
54-7/8'' (1394mm) for each
dimension). Use shims to
insure the fireplace is
square.

Installation (for qualified installers only) 15
© Travis Industries 4090227 100-01220_000
Corner Installations - Rear Vent Configuration
A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all
clearances still apply).
















7-1/2" (91mm)
Approximate
(varies due to vent
installation)


























48" Min.
1219mm
Minimum 1/2" (13mm) Clearance
NOTE:
Most installations use:
6" (152mm) Section for
2 X 6 Walls (51mm X 152mm)
4" (102mm) Section for
2x4 Walls (21mm X 102mm)
(Travis # 98900166)





Minimum 1" (25mm) Clearance

Travis Firestop
(sku 93006094)

16 Installation (for qualified installers only)
© Travis Industries 4090227 100-01220_000
Corner Installations - Top Vent Configuration
A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all
clearances still apply).















15-1/2"
394mm






























48" Min.
1219mm
Minimum 1/2" (13mm) Clearance







Installation (for qualified installers only) 17
© Travis Industries 4090227 100-01220_000
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff valve must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
A carbon monoxide (CO) detector is required in the same room as the appliance.
The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and
NFPA 54(88), in Canada follow CSA B149.1 and the requirements listed below.
The fireplace and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures
under 1/2 psig (kPA), isolate the gas supply piping by closing the manual shutoff valve.
Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
Fuel
This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of
the gas control valve to make sure the correct fuel is used.
Gas Line Connection
Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a
licensed plumber/gasfitter).
Gas Inlet Pressure Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA)
Propane 13" W.C. (2.73 kPA)
If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately
adjusted, and the total gas load for the residence does not exceed the amount supplied.
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should
supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an
improper pressure.

18 Installation (for qualified installers only)
© Travis Industries 4090227 100-01220_000
Gas Line Location
6-1/4"
159mm
10-3/4"
273mm
6-1/4"
159mm
10-3/4"
273mm
8-1/2" (216mm)
3" (77mm)
7" (178mm)
3" (77mm)

Installation (for qualified installers only) 19
© Travis Industries 4090227 100-01220_000
Electrical Connection (required)
The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified
installer and must meet all local codes.
Make sure the household breaker is shut off prior to working on any electrical lines.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
The electrical line must be a min. 14 gauge, and supply 120 Volts at 60 Hz (2 Amps).
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
abcd

20 Installation (for qualified installers only)
© Travis Industries 4090227 100-01220_000
Optional Wall Switch or Thermostat Installation
Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace. The switch and
wiring must be installed by a qualified installer.
This fireplace includes an optional wall switch (with wire)
to operate the fireplace burner without accessing the
internal on/off switch. A thermostat may be used instead.
Route the wire from inside the fireplace, through the
grommet on either side of the fireplace near the gas inlet
(see at right) to the switch. The wall switch (or thermostat)
may bypass the fireplace on/off switch or be installed in
parallel or series configuration (see below).
Caution: Label all wires prior to disconnection when
servicing controls. Wiring errors can cause
improper and dangerous operation.
Note: When using a GreenSmart™ remote, use the
receiver for on/off operation (do not use a wall
switch or thermostat).
Warning: Make sure all wiring is secure and does not
contact hot or moving components.
OPTIONAL WALL SWITCH
(included with fireplace)
Place "WARNING"
label on switch cover.
Parallel Connection Series Connection
On / Off Switch
ON On / Off Switch OFF On / Off Switch ON On / Off Switch OFF
Thermostat / External
Switch ON Heater is ON Heater is ON Thermostat / External Switch ON Heater is ON Heater is OFF
Thermostat / External
Switch OFF Heater is ON Heater is OFF Thermostat / External Switch OFF Heater is OFF Heater is OFF
To wire the heater in parallel, follow the directions below: To wire the heater in series, follow the directions below:
Thermostat
(or External Switch) Wires
ab
c
On / Off Switch
a
On / Off Switch
c
b
Thermostat
(or External Switch) Wires
