Travis Industries 21 TRV GreenSmart User manual

21 TRV
Fireplace
Tested and Listed by
OMNI-Test Laboratories, Inc.
Portland, Oregon
Report # 028-F-85-5
ANSI Z21.88a-2007 / CSA 2.33a-2007
• Built-In Direct Vent Fireplace
• Natural Gas or Propane
• Residential or Mobile Home
WARNING: If the information in these instructions is not followed exactly, a fire
or explosion may result causing property damage, personal injury or
loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
Installation Manual
Installer:After installation give this manual to the home-
owner and explain operation of this heater.
Copyright 2008, T.I. $10.00 100-01185_000 4080207 4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4080207 100-01185_000
Overview
This manual details the installation requirements for
the 21 TRV fireplace. For operating and
maintenance instructions, refer to the 21 TRV
Owner's Manual (part # 100-01186).
Listing Details
This appliance was listed by OMNI Test Labs to
ANSI Z21.88a-2007/CSA 2.33a-2007 - report #
028-F-85-5 – for US and Canadian installations.
The listing label is attached to the appliance near
the gas control valve. A copy is shown to the right.
ICBO Approval
This appliance was listed by OMNI Test Labs - ICBO
# TL130.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters
National Fireplace Institute

Table of Contents 3
© Travis Industries 4080207 100-01185_000
Introduction
Overview.................................................................2
Listing Details ..........................................................2
Safety Precautions
Safety Precautions ...................................................4
Features and Specifications
Features .................................................................6
Installation Options...................................................6
Heating Specifications...............................................6
Dimensions..............................................................6
Installation
Packing List.............................................................7
Additional Items Required...........................................7
Recommended Installation Procedure............................... 7
Installation Overview.................................................8
Massachusetts Requirements..................................10
Converting the Fireplace to Rear Vent Configuration ..... 11
Fireplace Placement Requirements.........................14
Clearances...........................................................14
Raised Fireplaces ..................................................14
Min. Framing Dims. - Rear Vent Configuration......................15
Min. Framing Dims. - Top Vent Configuration................16
Nailing Brackets ....................................................17
Corner Installations - Top Vent Configuration...............18
Corner Installations - Rear Vent Configuration..............18
Gas Line Requirements..............................................19
Fuel.....................................................................19
Gas Line Connection ..............................................19
Gas Inlet Pressure.................................................19
Gas Line Location..................................................19
Electrical Connection (required)...................................21
Wall Switch or Thermostat Installation...........................22
Wiring Diagram (Millivolt System)...............................22
Installation...........................................................22
Vent Requirements....................................................23
Vent Clearances....................................................23
Altitude Considerations...........................................23
Approved Vent ......................................................24
Vent Installation ....................................................24
Approved Vent Configurations.....................................25
Restrictor and Diffuser Position ................................25
Exhaust Restrictor Adjustment.................................25
Diffuser Plate Adjustment........................................26
Top Vent Config. W Horizontal Termination.....................27
Top Vent Config. W Vertical Termination ........................28
Rear Vent Configuration with Horizontal Termination.........29
Rear Vent Configuration with Vertical Termination............30
Termination Requirements ..........................................31
Installation (continued)
Hearth Requirements................................................. 32
Facing Requirements................................................. 33
Face Dimensions..................................................33
Facing Under 1” Thick............................................33
Facing Over 1” Thick .............................................33
Facing Fireplace Overview...................................... 34
Facing Detail Drywall Facing................................... 35
Facing Detail Tile Facing........................................ 36
Facing Detail Facing Over 1” Thick (Brick)................. 37
Mantel Requirements................................................. 38
Finalizing the Installation
Steps for Finalizing the Installation............................... 39
Starting the Pilot Flame...........................................39
Pilot Flame Inspection ............................................39
Air Shutter Adjustment............................................40
Glass Frame Removal and Installation .......................... 41
Log Set Installation................................................... 43
Finalizing the Installation
LP Conversion Instructions ........................................ 46
Aromatherapy Modification ........................................ 49
Omega Remote Notes.............................................. 50
Index
Index..................................................................... 52

4 Safety Precautions
© Travis Industries 4080207 100-01185_000
Safety Warnings:
• Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
• This unit must be installed by a qualified installer to prevent the possibility of an explosion.
• This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88).
• A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1,
or Standard for Gas Equipped Recational Vehicles and Mobile Housing, CSA Z240.4. This appliance
may be installed in Manufactured Housing only after the home is site located.
• All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
• Notify your insurance company before hooking up this fireplace.
• The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
• This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer. Check the label and flame adjust knob on the gas control valve.
• Contact your local building officials to obtain a permit and information on any installation restrictions or
inspection requirements in your area.
• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your
dealer and arrange for proper servicing.
• It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your
dealer for a full explanation of your heater and what to expect.
• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
• Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
• Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
• Light the heater using the built-in piezo igniter. Do not use matches or any other external device to
light your heater.
• Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
• The viewing glass should be opened only for lighting the pilot or conducting service.
• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5
© Travis Industries 4080207 100-01185_000
Safety Warnings (continued):
• Allow the heater to cool before carrying out any maintenance or cleaning.
• Operate the heater according to the instructions included in this manual.
• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for
service.
• The pilot flame must contact the thermopile and thermocouple. If it does not, turn the gas control
valve to "OFF" and call your dealer.
• This unit is not for use with solid fuel.
• Do not place anything inside the firebox (except the included fiber logs).
• If the fiber logs become damaged, replace with Travis Industries log set.
• Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
• Do not touch the hot surfaces of the heater. Educate all children of the danger of a high-temperature
heater. Young children should be supervised when they are in the same room as the heater.
• Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential
damage(s).

6 Features and Specifications
© Travis Industries 4080207 100-01185_000
Installation Options
• Residential or Mobile Home
• Straight or Corner Placement
• Flush or Recessed Face
• Raised or Floor Placement
• Internal or External Chase
• Horizontal or Vertical Vent
• Bedroom Approved
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* Up to 650 Up to 650
Maximum BTU Input Per Hour 16,500 16,500
* Heating capacity will vary with floor plan, insulation, and outside temperature.

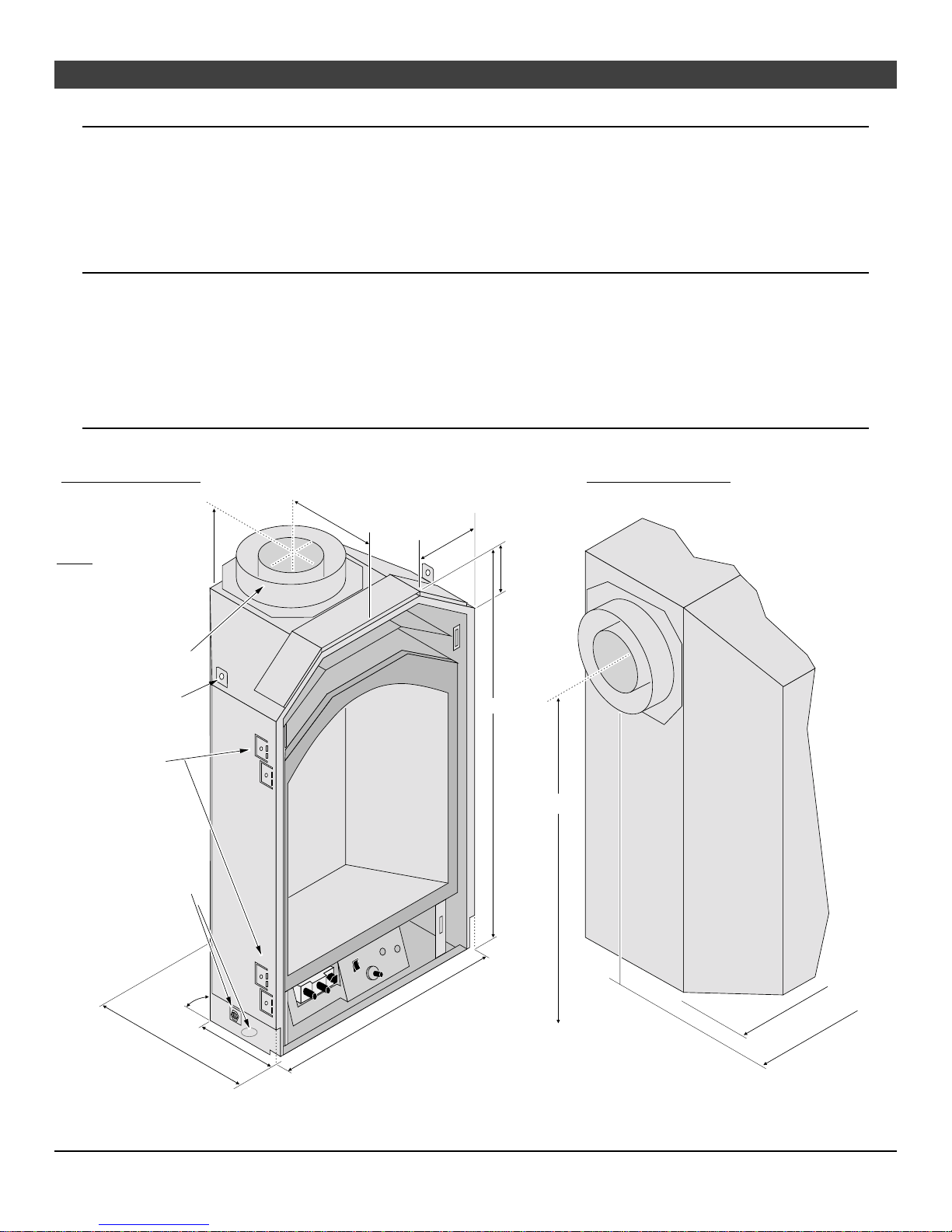

Dimensions
35-7/8”
8”External Diameter
13-1/2”
45°20-1/8”
NOTE: 1/2”clearance is
required to the angled
sides and rear of the
fireplace.
See “Gas Line
Requirements”for

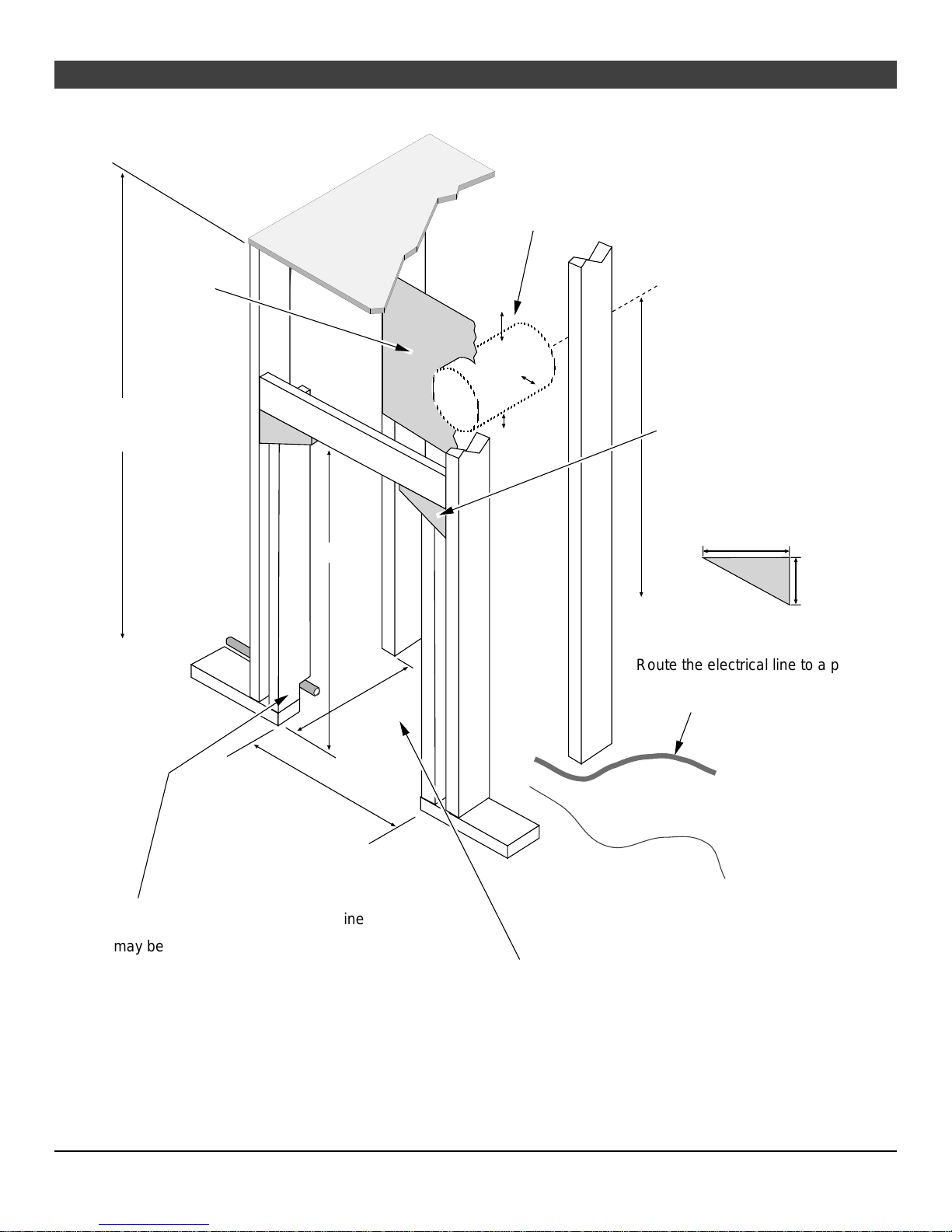

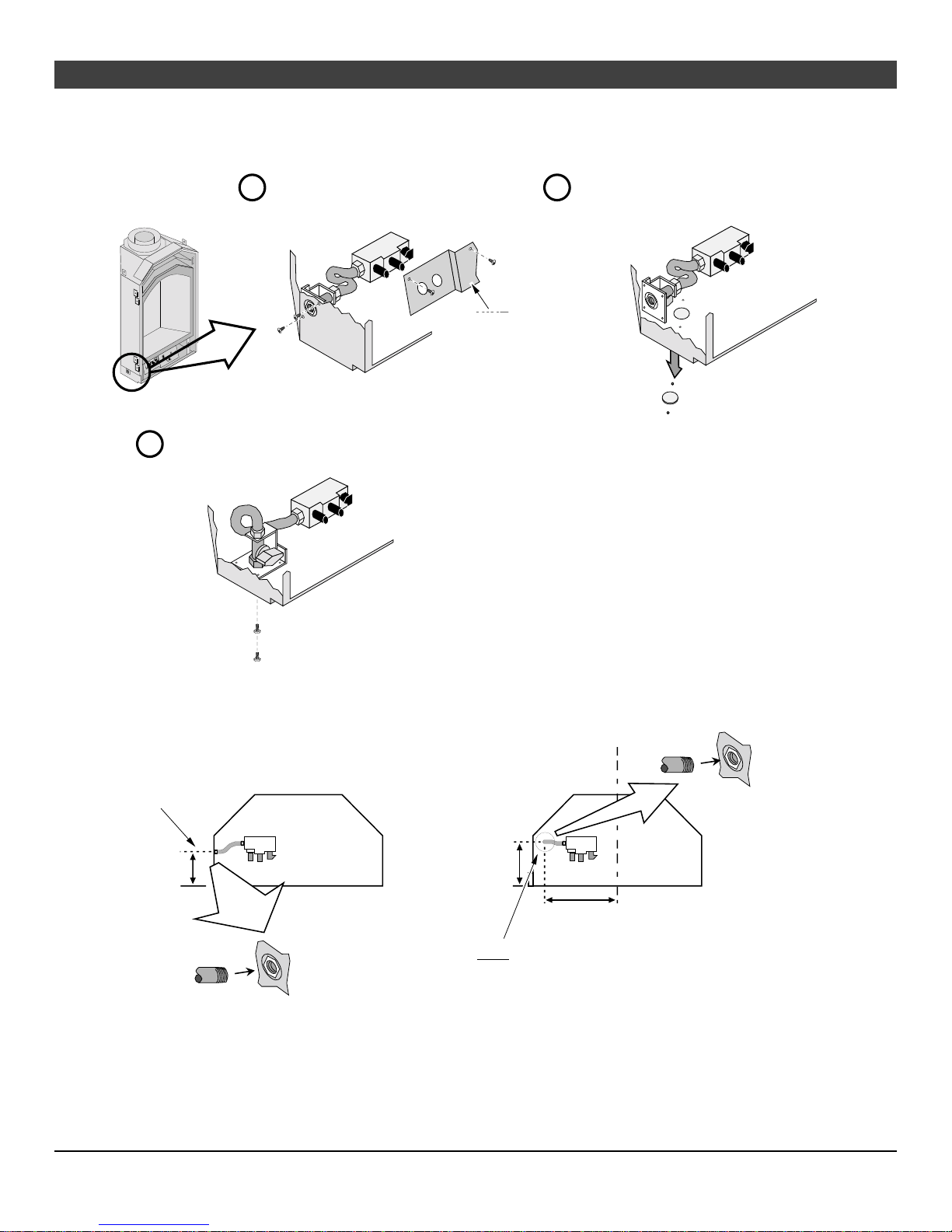

Details on the Gas Inlet
7-1/4”
4-7/8”
Nailing Brackets
4”
Front of
Fireplace
27-1/4”
14”
Rear Vent Configuration
8-1/2”
12-3/4”
Top Vent Configuration
Lifting Bracket (may
be bent down) 34-1/8”

Installation (for qualified installers only) 7
© Travis Industries 4080207 100-01185_000
Packing List
• Propane Conversion Kit
•Log Set
• Rear Vent Configuration Kit (insulation)
• Firestop
Additional Items Required
• Direct Vent
• Gas Line Equipment (shutoff valve, pipe, etc.)
• Electrical Equipment (min. 14 gauge, grounded line)
• Face
Recommended Installation Procedure
1 Install the optional equipment (do not install the logs) –we recommend the following order:
a) LP Conversion (if applicable) –NOTE: leave the burner removed until after the liner and
accent light are installed (if applicable). If using the Omega remote, install the modulating
regulator during LP conversion.
b) Liner (if applicable)
c) Accent Light (if applicable)
NOTE: Do not install the accent light wiring harness or rheostat if using the omega remote.
NOTE: Leave the control cover removed if using the blower
d) Blower
NOTE: Do not install the rheostat if using the omega remote.
e) Remote
2 Frame the opening for the fireplace. Make sure to allow for vent installation.
3 This fireplace is designed to accommodate 1/2" drywall or 1/2”drywall with 3/8”tile (see "Nailing
Brackets" on page 17 for details). Secure the fireplace to the framing.
NOTE: If the facing is not 1/2" or 7/8" thick, follow the directions below:
Place a strip of facing material to both sides of the fireplace opening (NOTE: the strips will
be removed after the fireplace is secured). The facing thickness must represent the total
thickness of the finished facing (e.g.: If tile is to be used, include the thickness of the
backboard, tile, and tile adhesive). Insert the fireplace into the framing. Slide it back until
the front edge of the fireplace is flush with the facing material. Secure the fireplace using
the plates located along the base of the fireplace.
4 Complete the gas line installation. Complete the electrical hook-up.
5 Complete the vent installation.
6 Install the hearth (if applicable).
7 Install the drywall and facing (if applicable).
8 Install the mantel (if applicable).
9 Finalize the installation (see page 39) and install the grill or face.

8 Installation (for qualified installers only)
© Travis Industries 4080207 100-01185_000

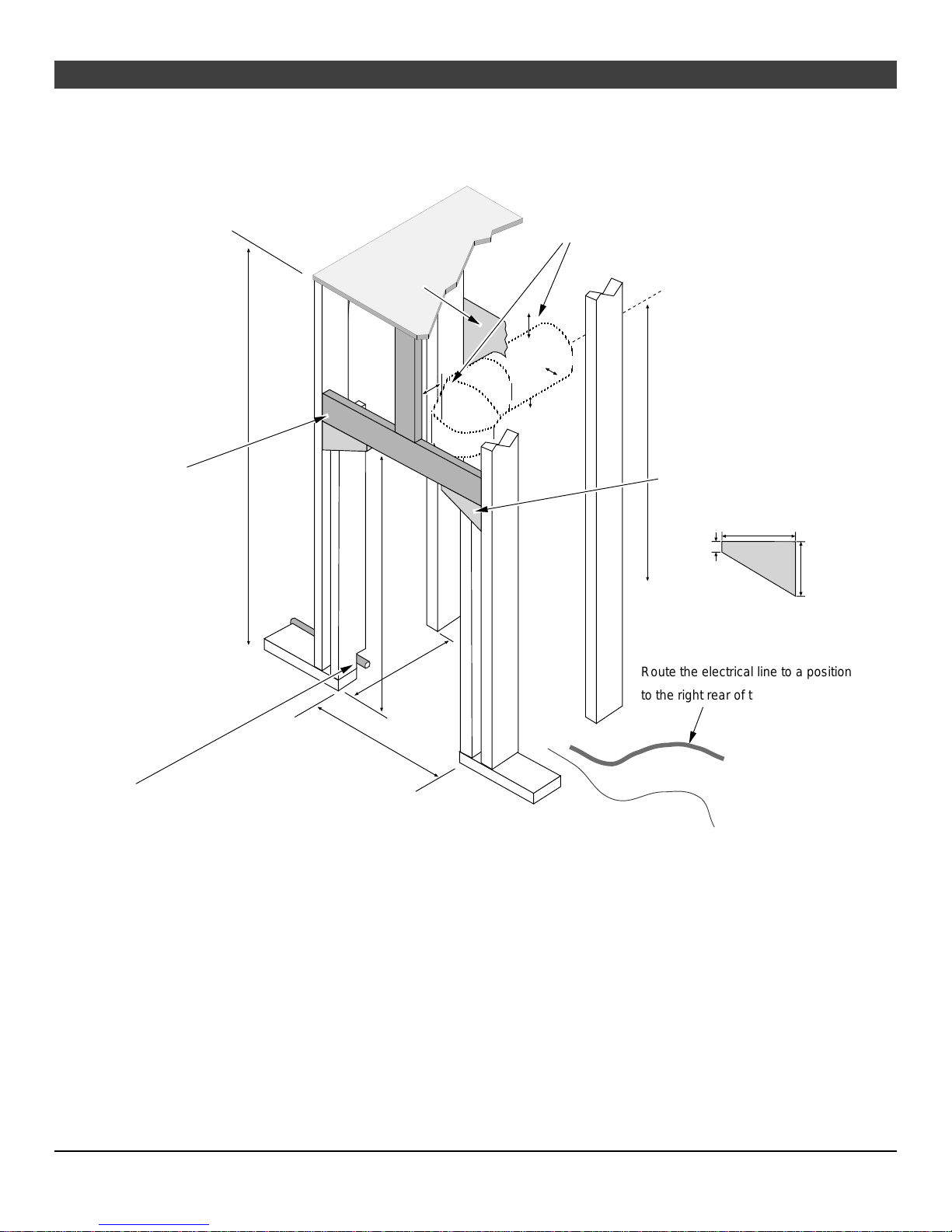

Installation Overview – Top Vent Configuration
• All requirements below must be met.
See the section
"Termination
Requirements"
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAAA
AAAA
AAAA
AAAA
AAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AAAAA
AAAAA
AAAAA
A
A
A
A
A
A
A
A
A
Drywall
Gas Line
(left side or beneath)
See the section
"Mantel Requirements"
Insulation or drywall must
not fill the 1/2" gap around
the sides of the fireplace.
See the section
"Vent Requirements"
See the section "Minimum
Framing Dimensions"
See the section
"Hearth Requirements"
See the section "Electrical Connection"
1" Min. Clearance from Face to Side Wall

Installation (for qualified installers only) 9
© Travis Industries 4080207 100-01185_000

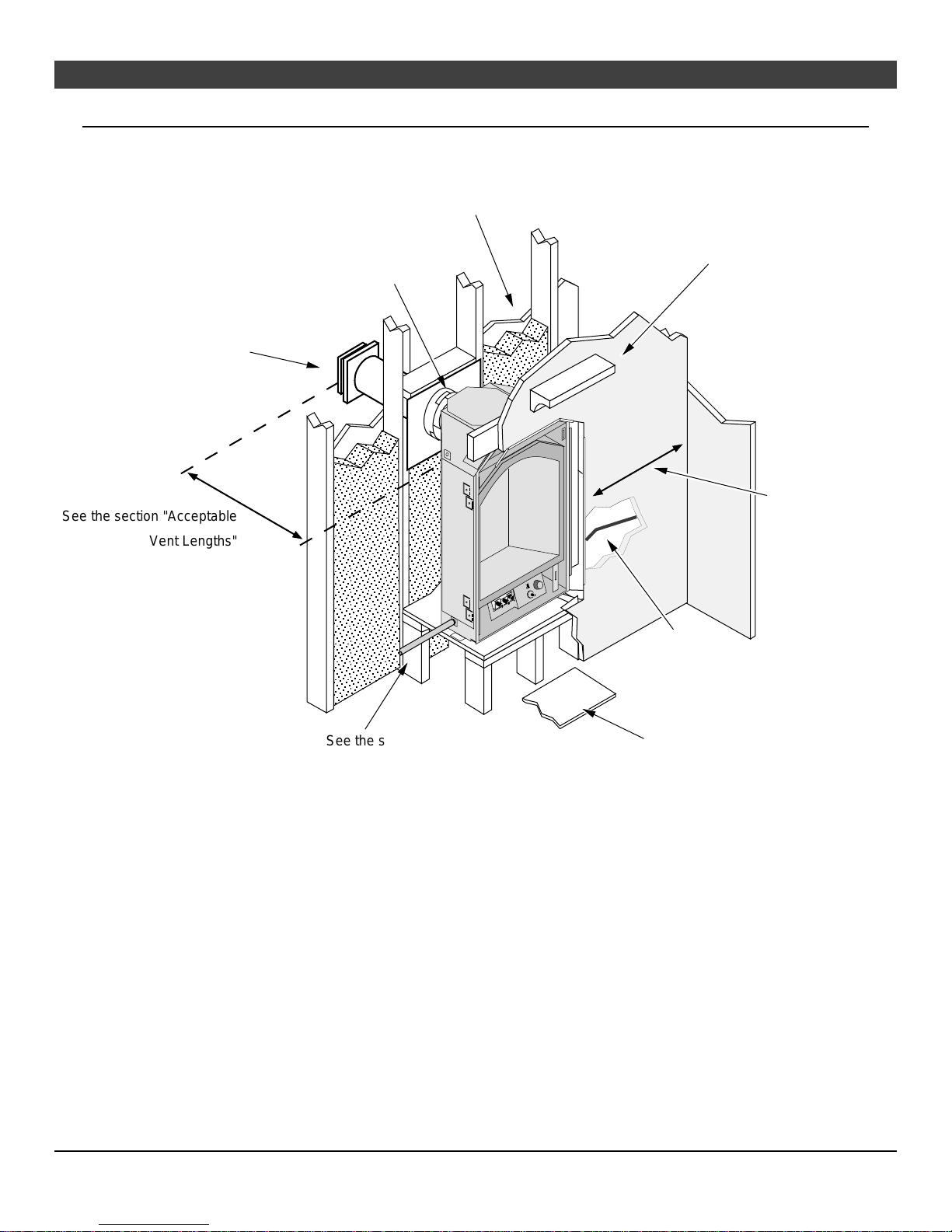

Installation Overview – Rear Vent Configuration
• All requirements below must be met.
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
See the section "Acceptable
Vent Lengths"
See the section
"Gas Line Installation"
See the section
"Electrical
Connection"
See the section
"Mantel Requirements"
1" Min.
(from face)
See the section
"Vent Requirements"
See the section "Minimum
Framing Dimensions"
See the section
"Hearth Requirements"
Drywall
See the section
"Termination Requirements"

10 Installation (for qualified installers only)
© Travis Industries 4080207 100-01185_000
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
•The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented”in the most current edition of NFPA 54 as
adopted by the Board; and
•Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the
equipment and the venting system shall include:
•Detailed instructions for the installation of the venting system design or the venting system components; and
•A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
•The referenced “special venting system”instructions shall be included with the appliance or equipment installation
instructions; and
•The “special venting systems”shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Installation (for qualified installers only) 11
© Travis Industries 4080207 100-01185_000
Top Vent or Rear Vent Configuration
This appliance is shipped in the top vent configuration. To change to the rear vent configuration, follow
the directions below.
NOTE: top or rear vent configuration affects several aspects of installation (framing, maximum vent rise,
maximum vent run). Make sure the vent configuration is correct prior to installation.
HINT : the diffuser is easiest to modify when converting the vent to rear-vent configuration. Refer to the
vent configuration charts to determine if the vent diffuser requires adjustment to position # 2.
Converting the Fireplace to Rear Vent Configuration
Remove the cover
plate, and heat shield.
Remove the outer flue
assembly. Place the screws
and components aside (for
all subsequent steps).
NOTE: Use a magnetic-tipped
nutdriver on these screws - take
care to prevent the screws from
falling into the fireplace.
Remove the inner flue assembly
and exhaust cover plate.
Cover Plate
Heat Shield
Exhaust Cover Plate
Inner Flue
Assembly

12 Installation (for qualified installers only)
© Travis Industries 4080207 100-01185_000
Converting the Fireplace to Rear Vent (continued)
Insert the large piece of insulation into
the intake duct. Note how the wider
portion goes to the sides. Tuck it into
the cavity so it lays flat.
Remove the flue collar suport, rotate it 180°, and re-attach it to the fireplace.
Insert the small piece of insulation into the exhaust
duct. Tuck it into the cavity so it lays flat.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
Attach the exhaust cover
plate, making sure the
attached gasket seals the
exhaust duct.
AAA
AAA
AAA
AAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA

Installation (for qualified installers only) 13
© Travis Industries 4080207 100-01185_000
onverting the Fireplace to Rear Vent (continued)
AAAA
AAAA
AAAA
Attach the cover plate to
the top of the fireplace.
NOTE: You will need to
tuck the front edge of the
cover plate under the upper
standoff.
Bend the heat
shield as shown
to the right.
Remove the 4 screws on the angled
top of the fireplace and attach the heat
shield with these screws.
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
Attach the inner flue
assembly with four
screws (make sure
the gasket is in place
while attaching).
NOTE: Install the flue
assembly with the diffuser
to the bottom.
Attach the outer
flue assembly
with four screws
(make sure the
gasket is in place
while attaching).
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
Flatten the exhaust restrictor following
the steps shown below.

14 Installation (for qualified installers only)
© Travis Industries 4080207 100-01185_000
Fireplace Placement Requirements
• The fireplace requires a 1/2" clearance from the angled sides and back of the fireplace to the framing
members. No material (insulation, framing, etc.) may be placed into this area. The stand-offs (and
nailing brackets) may contact the framing members but no material may be placed into this
area.
• Fireplace must be installed on a level surface capable of supporting the fireplace and vent.
• Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet).
• This heater may be placed in a bedroom.
Clearances
• Walls in front of the fireplace must be a minimum 1" to the side of the face.
• Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
• Fireplace must be placed so the vents below and above the glass do not become blocked.
Raised Fireplaces
NOTE: Looking Glass and Wilmington Faces require a raised fireplace - see "Dimensions" for
details.
• The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
(95 Lbs.) and vent.
Raised
Platform
Optional Hearth
Minimum
57"
Ceiling
Min. Enclosure Height
Top Vent = 48"
Rear Vent = 34-1/4"

Installation (for qualified installers only) 15
© Travis Industries 4080207 100-01185_000
Minimum Framing Dimensions - Top Vent Configuration
AAA
AAA
AAA
A
AAA
AAA
AAA
A
A
AA
AA
A
A
AA
AA
AA
AA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
Route the electrical line to a position
to the right rear of the fireplace.
Thermostat or Remote
Control Wire (right side)
If using an elbow directly off the
fireplace, the vent will be centered
41-3/4" above the base of the
fireplace.
The fireplace enclosure must
be a minimum 48" above the
base of the fireplace.
NOTE: Do not build into the
area above the fireplace
(except for the required
framing members).
20-1/4"
36"
48" Min.
13-1/2"
Firestop
(required)
HINT: We recommend
installing the shaded
framing after the fireplace
is in place.
WARNING: A cut-out for the gas line may be
required on the framing.
HINT: we recommend reinforcing the
upper corners of the fireplace opening.
6"
5"
1"
Vent Clearances:
1" to the sides, 1" below, and 3" above
the vent to combustibles.

16 Installation (for qualified installers only)
© Travis Industries 4080207 100-01185_000
Minimum Framing Dimensions - Rear Vent Configuration
AAAA
AAAA
A
A
AAA
AAA
AAA
AAAA
AAAA
AA
A
A
A
Route the electrical line to a position
to the right rear of the fireplace.
27-1/4"
Vent Clearances:
1" to the sides, 1" below, and 3" above
the vent to combustibles.
20-1/4"
34-1/4"
12-3/4"
Firestop
(required)
HINT: we recommend
reinforcing the upper corners of
the fireplace opening.
4-3/4"
3-5/8"
NOTE: The rear vent may require extra
clearance - make sure to accommodate the
vent when determining the framing.
Center of Rear Vent
A
AA
A
A
AA
A
A
A
A
WARNING: A cut-out for the gas line
may be required on the framing.
Thermostat or Remote
Control Wire (right side)
34-1/4" Minimum
Enclosure Height

Installation (for qualified installers only) 17
© Travis Industries 4080207 100-01185_000
Nailing Brackets
For installations using 1”
facing (1/2”drywall with
3/8”tile, 7/8”tile, etc.)
fold the upper tab out
90°.
For installations using
1/2”facing (1/2”drywall
or other facing) fold the
lower tab out 90°.
AA
AAAAAAAA
AAAAAAAA
Fireplace
Drywall
Framing
Nailing Bracket
TOP VIEW
Tile
AA
AAAAAAAA
AAAAAAAA
Fireplace
Drywall
AAAAAA
Framing
Nailing Bracket
TOP VIEW
1/2”Facing
7/8”to 1”Facing
There are four nailing brackets on
the sides of the fireplace. Follow
the directions below to prepare the
nailing brackets. Once in place,
nail or screw the nailing brackets to
the framing.
NOTE: There are alternative
nailing brackets on the back
corners of the fireplace if the
front brackets can not be used.
7/8”

18 Installation (for qualified installers only)
© Travis Industries 4080207 100-01185_000
Corner Installations - Top Vent Configuration
Typical 45°installation uses the framing dimensions shown in the illustration below (NOTE: all clearances apply).
AAA
AAA
AAA
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
5-1/2" Min.
6-1/2" Recommended
Min. 1/2"
Clearance
AAAAAAAAAAA
AAAAAAAAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAAAAAAA
22-1/4" Min.
24-7/8" Recommended
Corner Installations - Rear Vent Configuration
Typical 45°installation uses the framing dimensions shown in the illustration below (NOTE: all clearances apply).
A
A
A
A
A
A
A
A
A
A
A
A
6" Typical
6-1/2" Recommended
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAAAAAAAAAA
37" Min.
37-1/2" Recommended
Minimum 1" Clearance
NOTE:
Typical 9" Section

Installation (for qualified installers only) 19
© Travis Industries 4080207 100-01185_000
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
• Flexible connector must not be longer than 36 inches.
• Shutoff valve must be a “T”handle gas cock.
• Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
• Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
• A carbon monoxide (CO) detector is required in the same room as the appliance.
• The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and
the requirements listed below.
• The fireplace and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig. For pressures under 1/2 psig,
isolate the gas supply piping by closing the manual shutoff valve.
• Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
Fuel
• This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of
the gas control valve to make sure the correct fuel is used.
Gas Line Connection
• Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a
licensed plumber/gasfitter).
Gas Inlet Pressure Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA)
Propane 13" W.C. (2.73 kPA)
• If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately
adjusted, and the total gas load for the residence does not exceed the amount supplied.
• The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should
supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an
improper pressure.

20 Installation (for qualified installers only)
© Travis Industries 4080207 100-01185_000
Optional Gas Line Location
Remove the three knock-outs on the
bottom of the fireplace (one large, two
small).
Remove the two screws near the
gas inlet (save these screws).
Secure the gas inlet assembly using
the screws removed in step “a”.
ab
c
HINT: remove the
control cover for
easier access.
Gas Line Location
The left side gas inlet is
located 2-3/4" above the
base of the fireplace.
1/2" F.P.T.
4"
Gas Line (1/2" M.P.T.)
The base mount gas
inlet is flush with the
base of the fireplace.
NOTE: a 3" diameter hole is required to provide
clearance for the gas inlet screws.
4-1/4"
8-1/4"
1/2" F.P.T.
Gas Line
(1/2" M.P.T.)
