Travis Industries 36 CF II User manual

36 CF II Fireplace
• Operation
• Maintenance
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028- -57-5
AN I Z21.88b-2003
WARNING: If the information in these instructions is not followed e actly, a fire or
e plosion may result causing property damage, personal injury or loss of
life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
Owner's Manual
 Copyright 2010, T.I. $10.00 100-01198_001 4100519 4800 Harbour Pointe Blvd. W
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4100519 100-01198_001
Introduction
We welcome you as a new owner of a 36 CF II gas fireplace. This manual details operation and
maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before
operating your heater and save the manual for future reference.
Important Information
No other 36 CF II gas fireplace has the same serial
number as yours. The serial number is on the listing
label that is chained to the gas control valve. This
serial number may be needed in case you require
service.
Model: 36 CF II Fireplace
erial Number:
Purchase Date:
Purchased From:
Register your warranty online at:
traviswarranty.com
Or, mail your warranty card to:
Travis Industries House of Fire
4800 Harbour Pointe Blvd. W
Mukilteo, WA 98275
Save Your Bill of Sale.
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your heater. Do not mail your
Bill of ale to us.
We suggest that you attach your Bill of
ale to this page so that you will have all
the information you need in one place
should the need for service or information
occur.
Installation Warnings
• Installation requirements are printed in the 36 CF II Installation Manual (part # 100-01197).
All requirements in the installation manual must be met.
• Failure to follow all of the requirements may result in property damage, bodily injury, or
even death.
• This heater must be installed by a qualified installer who has gone through a training
program for the installation of direct vent gas appliances.
• This appliance must be installed in accordance with all local codes, if any; if not, follow
ANSI Z223.1 and NFPA 54(88).
• In Manufactured or Mobile Homes must conform with Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part 3280, or, when such a standard is not applicable,
the Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1. This appliance
may be installed in Manufactured Housing only after the home is site located.
• The fireplace is designed to operate on natural gas, or propane (LP).
• All e haust gases must be vented outside the structure of the living-area. Combustion
air is drawn from outside the living-area structure.
• Notify your insurance company before hooking up this fireplace.
• The ceramic firebacks must be installed in this fireplace prior to operation.

Introduction 3
© Travis Industries 4100519 100-01198_001
Table of Contents
Introduction and Important Information
Introduction.............................................................2
Important Information ...............................................2
Installation Warnings ................................................2
Features.................................................................3
Gas Input pecifications ........................................... 3
Safety Precautions
afety Precautions...................................................4
Operation
Before You Begin.....................................................6
Remote Control ....................................................... 6
tarting the Fireplace for the First Time....................... 8

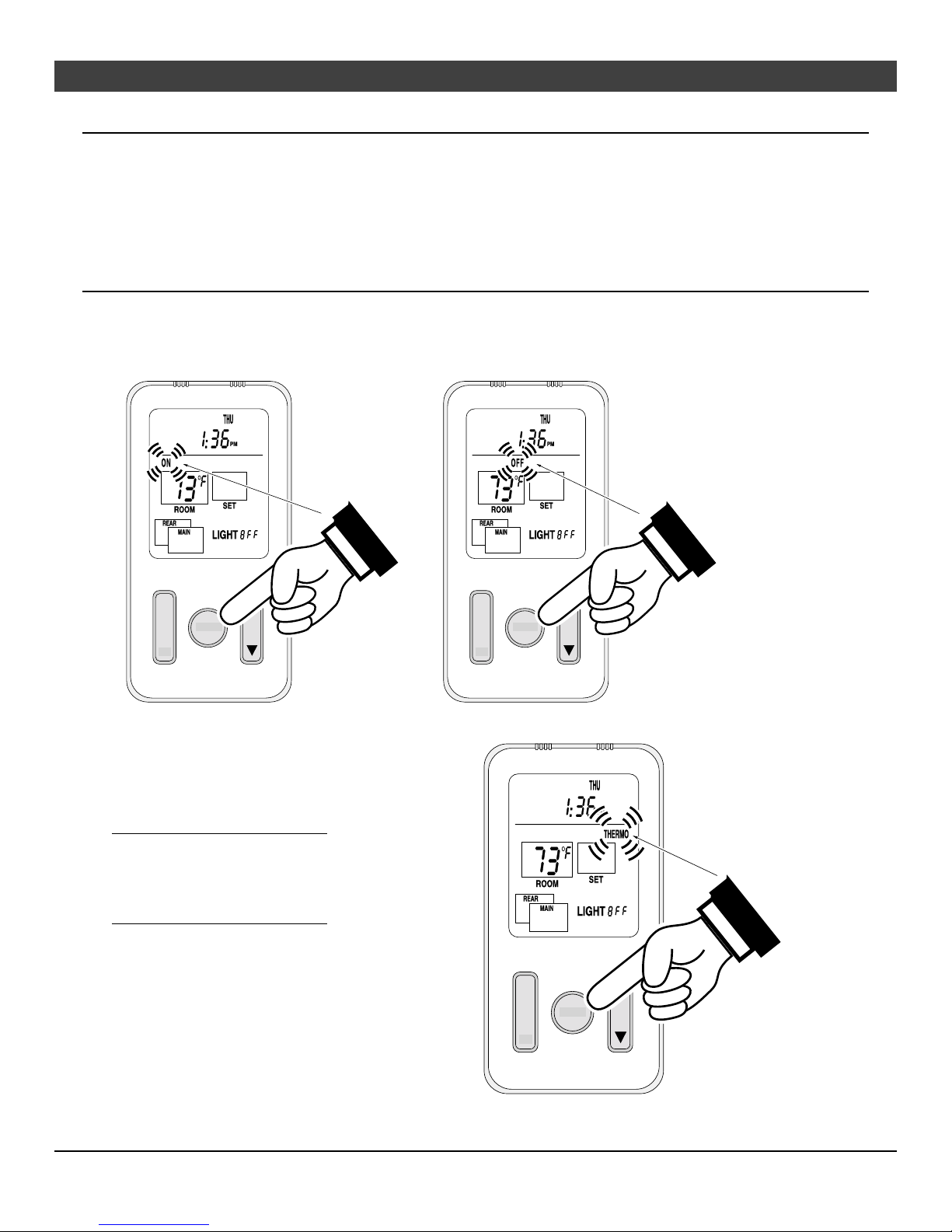

The Two Modes of Operation ......................................8

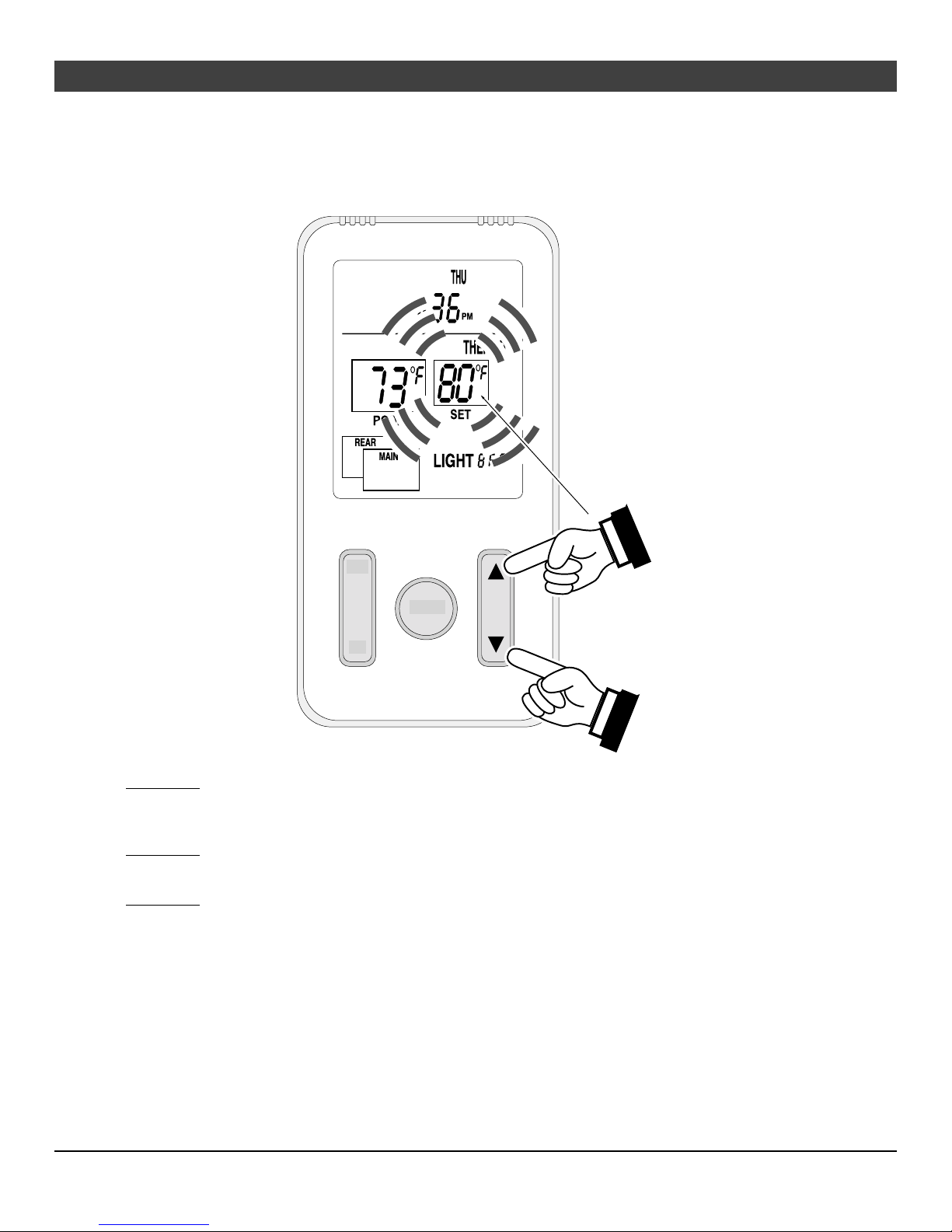

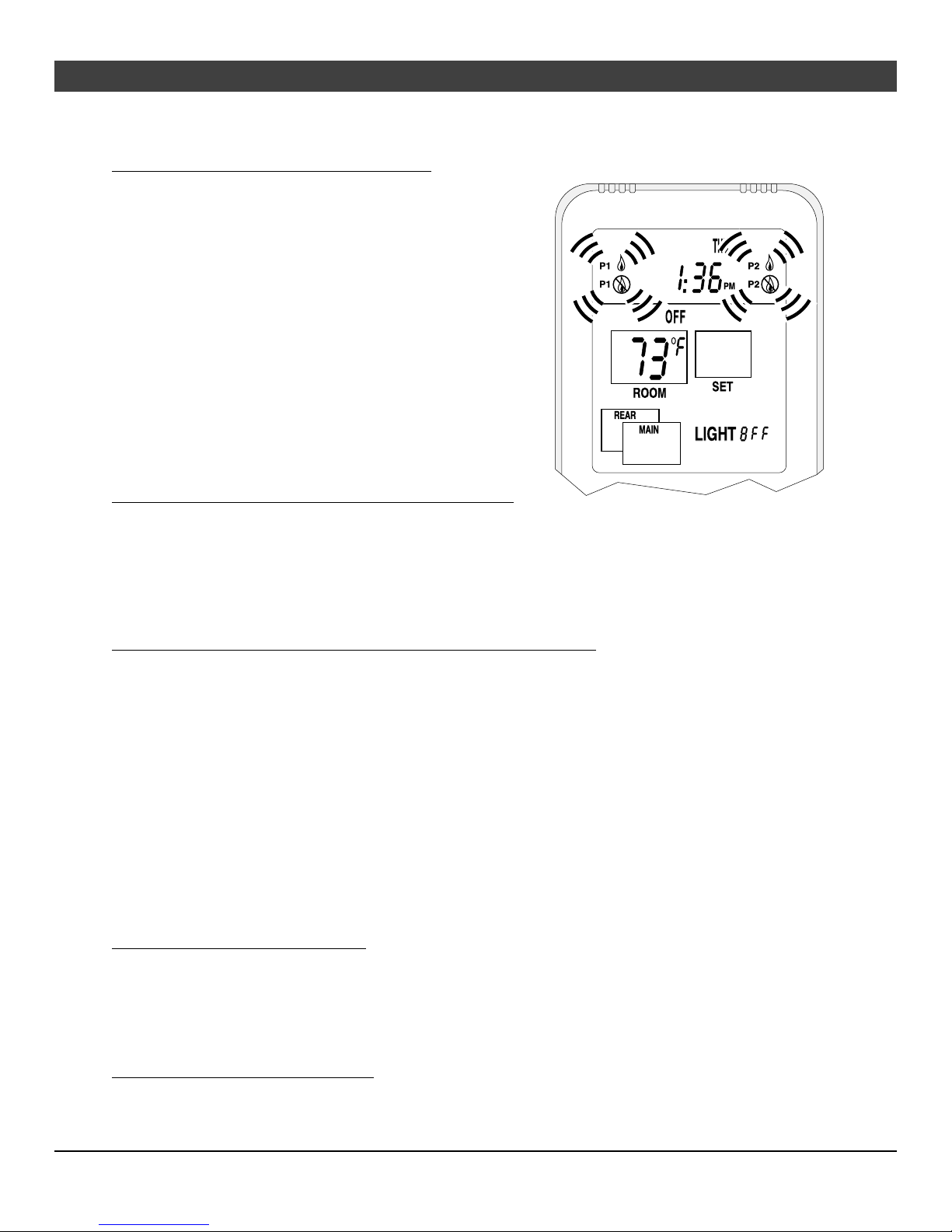

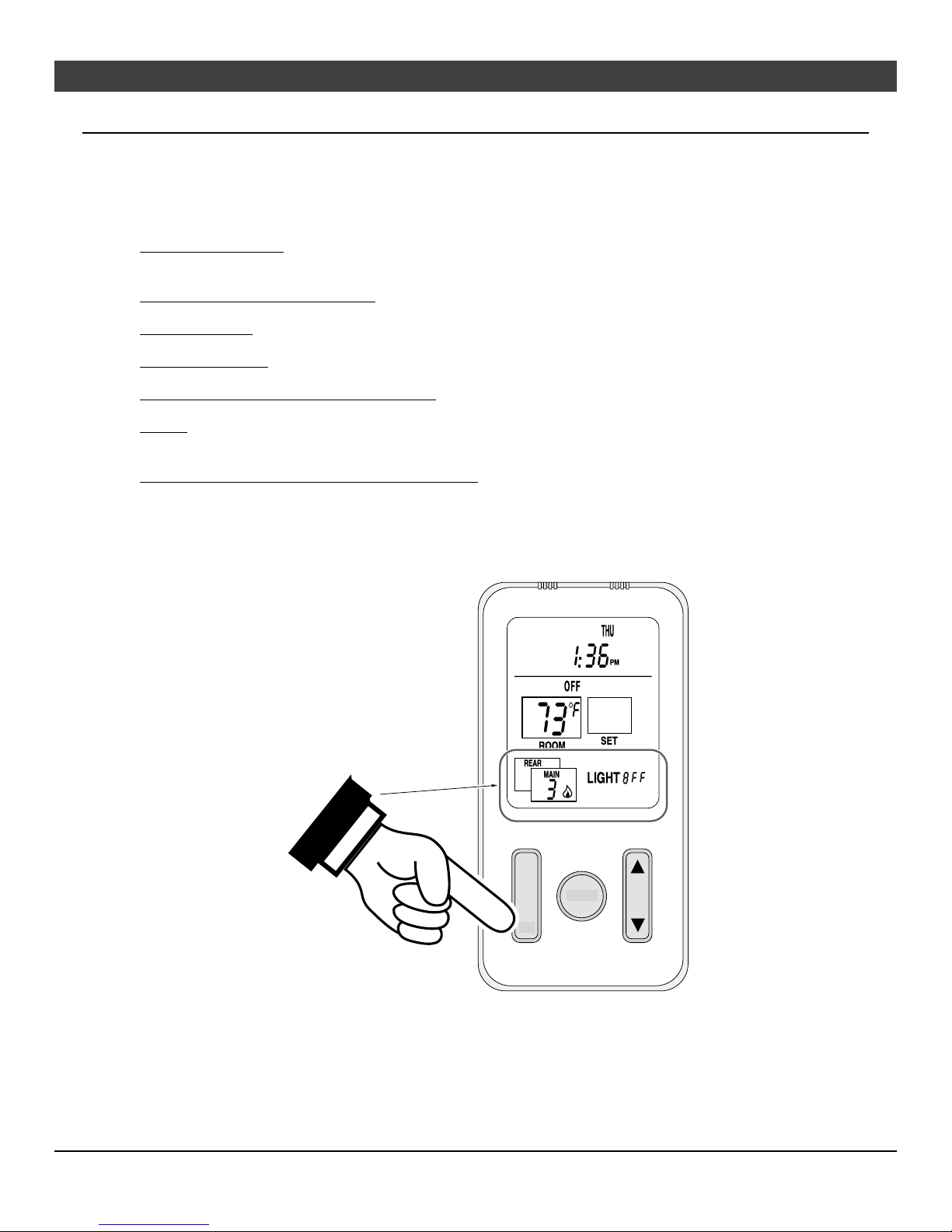

Remote Functions....................................................10
Continuous Pilot – For Very Cold Conditions ................13
Child Protection Feature............................................ 13
Heat Bypass ...........................................................13
Normal Operating Odors............................................ 13
Power Outages.........................................................13
Maintenance
Yearly ervice Procedure.......................................... 14
Glass Frame Removal and Installation........................ 15

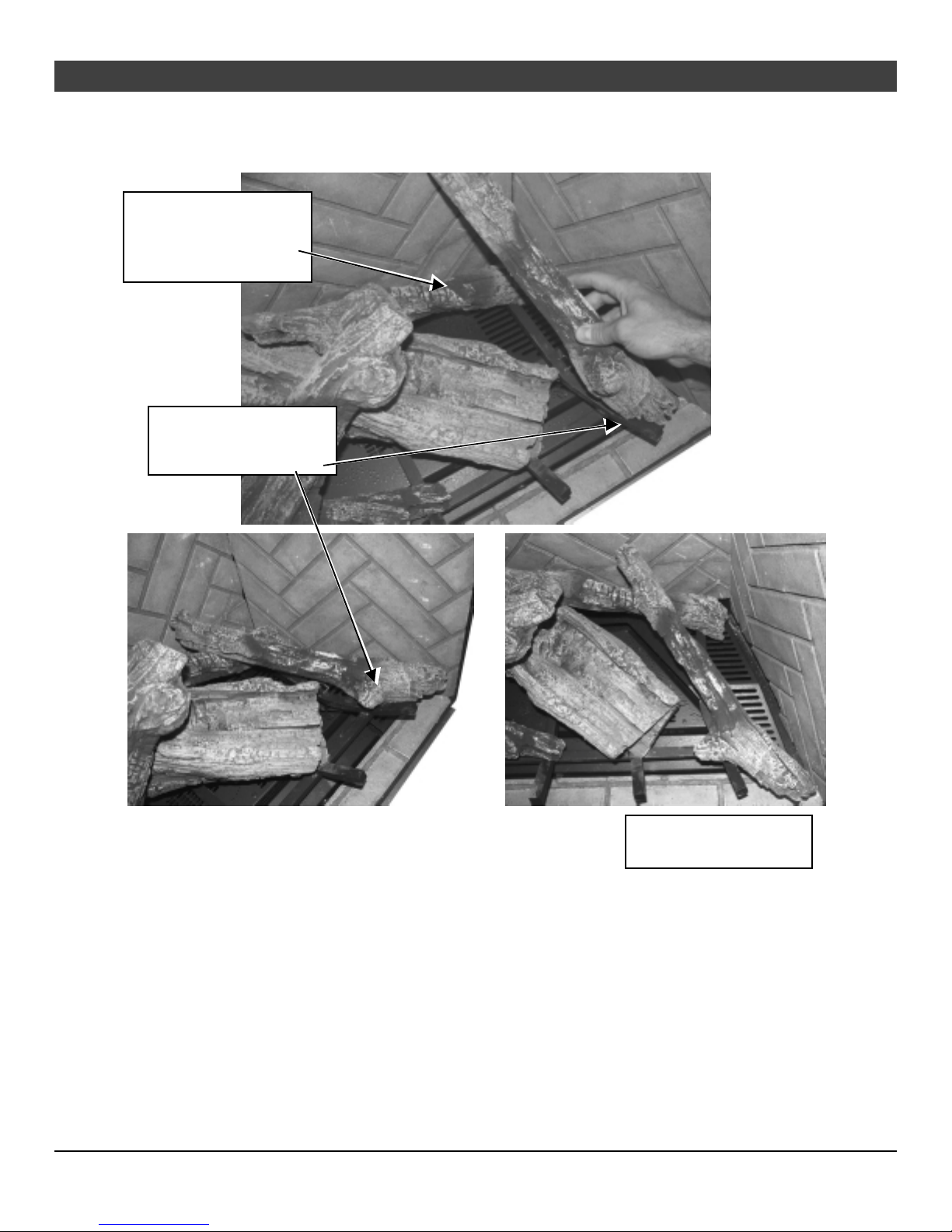

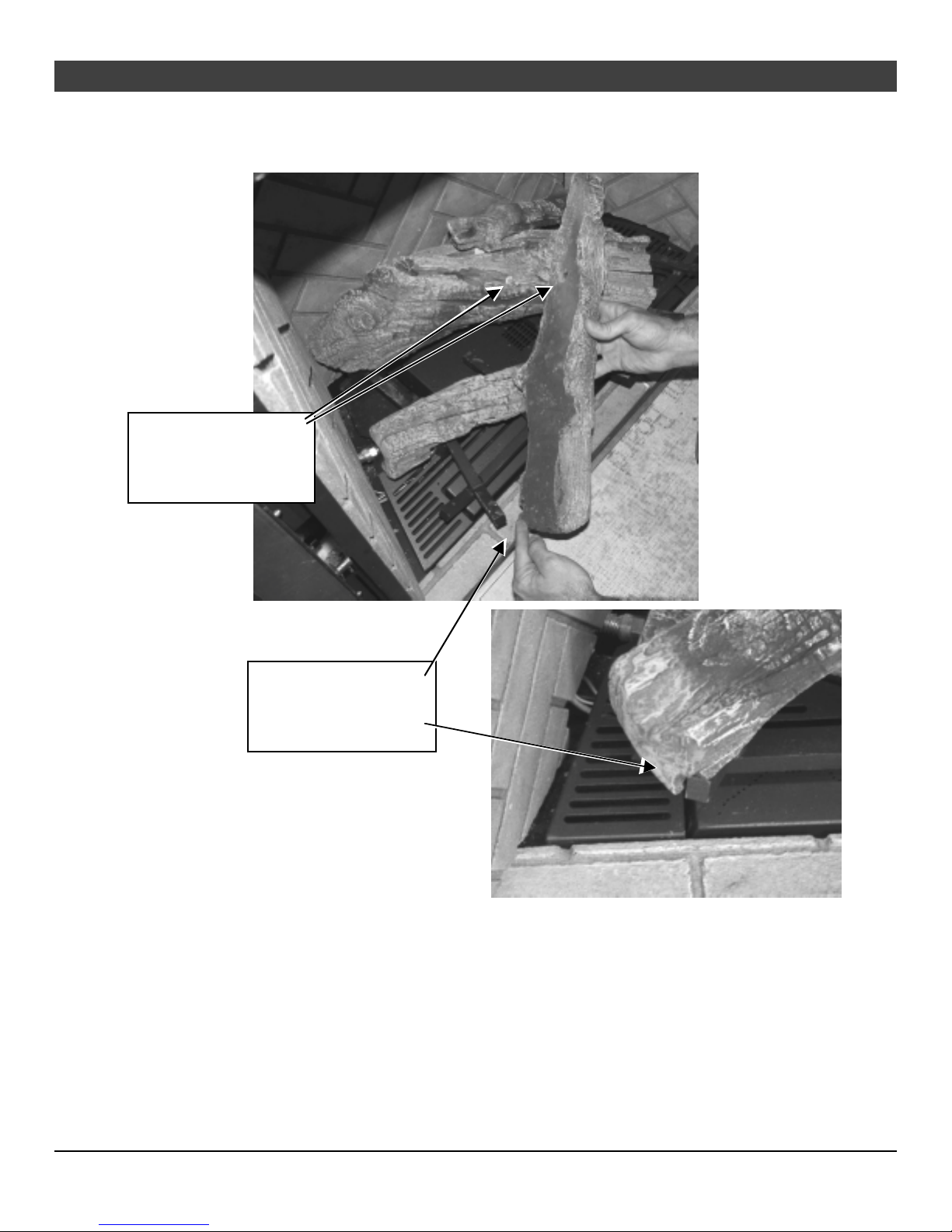

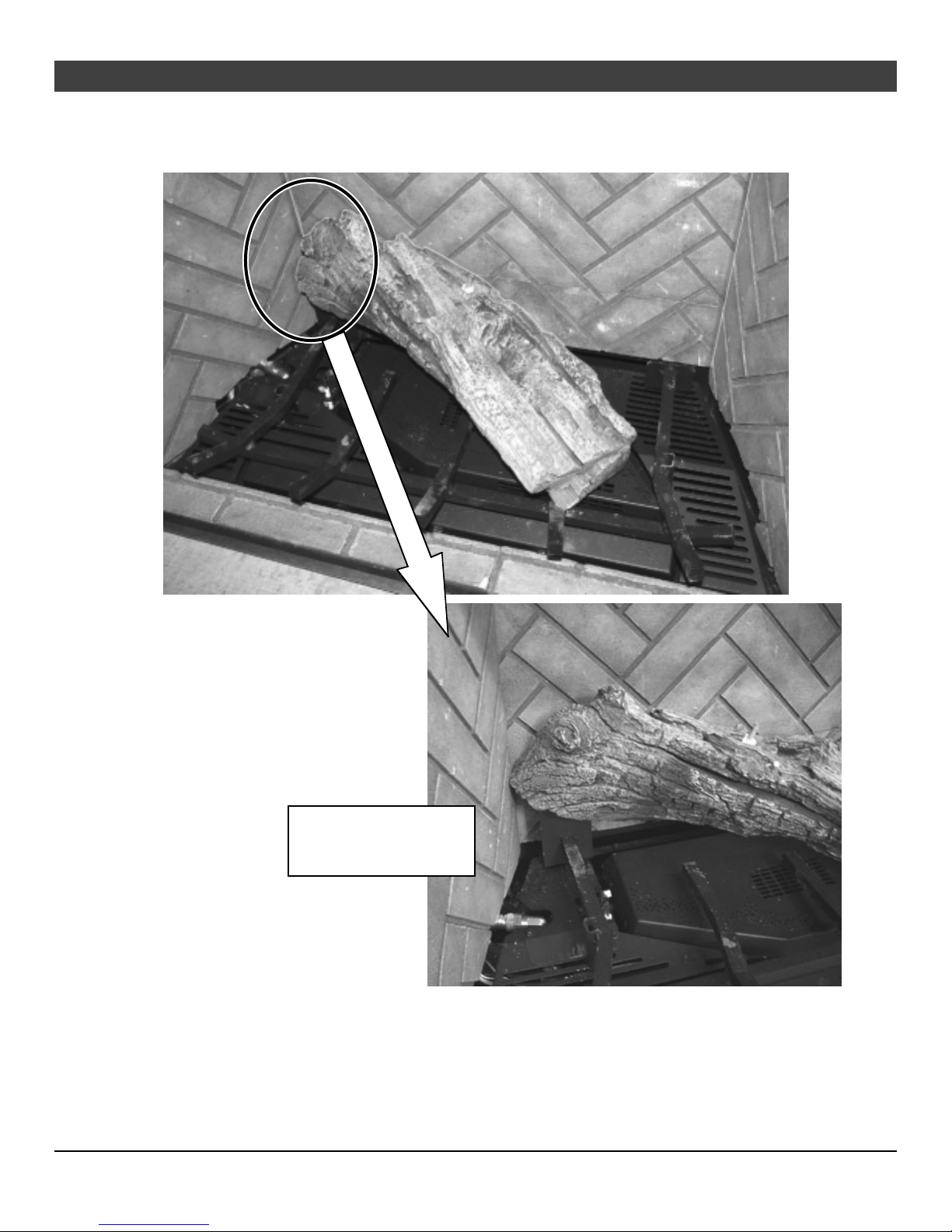

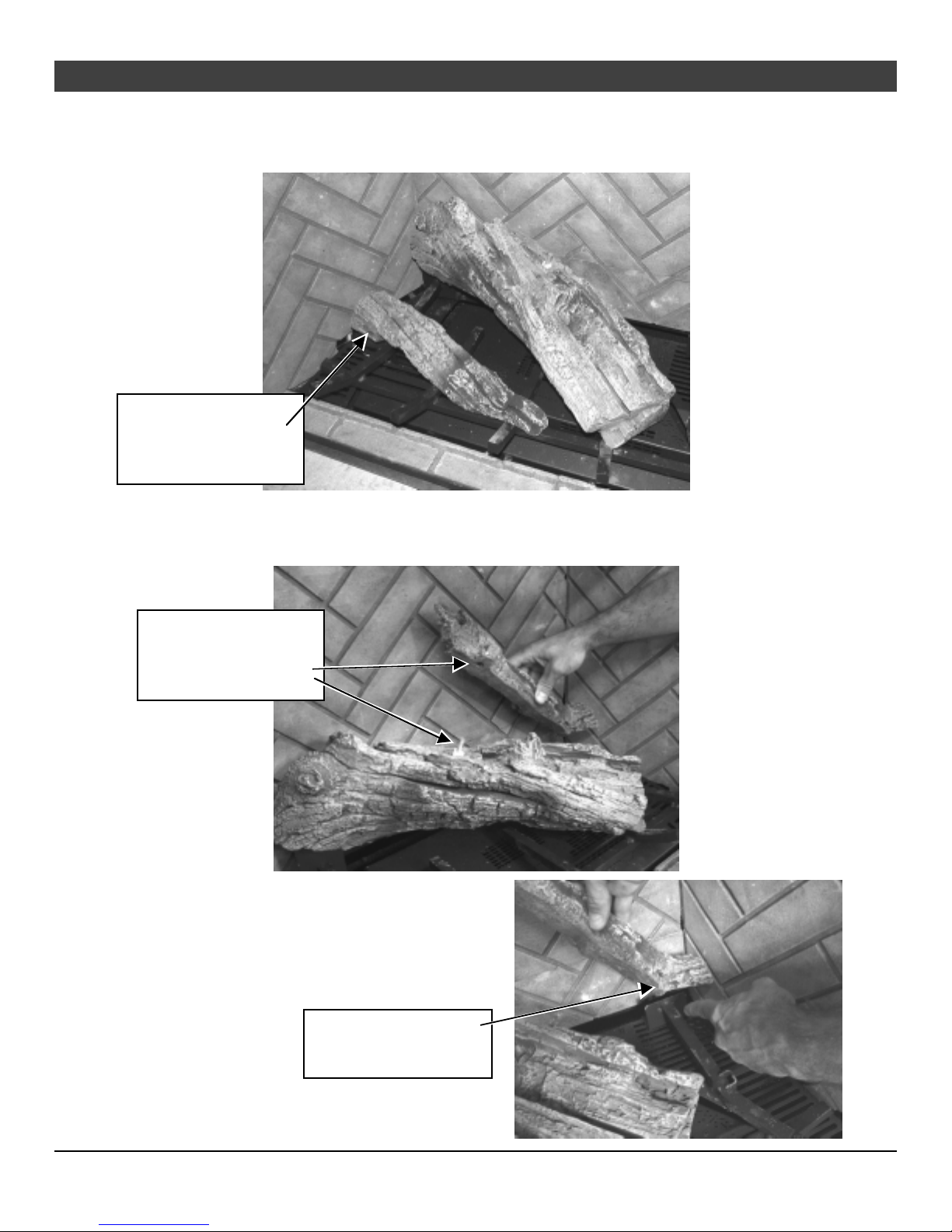

Log et Installation .................................................. 16
Wiring Diagram........................................................ 22
Replacement Parts List ............................................ 22
Warranty
Warranty ................................................................ 18
Optional Equipment
Optional Equipment List............................................ 24
Inde
Index...................................................................... 26
Features
• Works During Power Outages
• tandard Remote Control with Thermostat
• Realistic "Wood Fire" Look
• Convenient Remote Control
• Variable-Rate Heat Output
• Low Maintenance
Gas Input Specifications
Natural Gas Propane
Maximum BTU Input Per Hour 50,000 49,000
Minimum BTU Input on Low 28,500 26,900

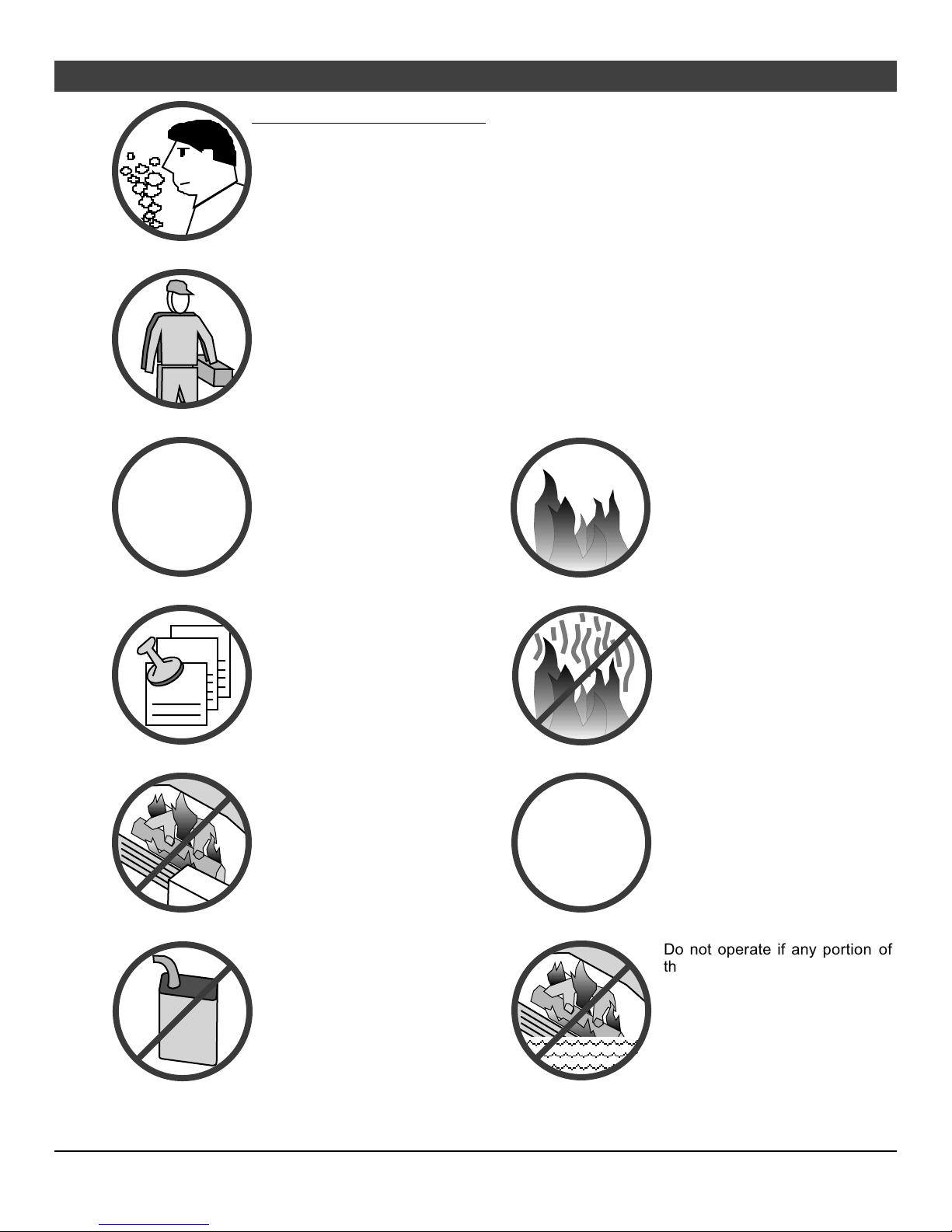

4 Safety Precautions
© Travis Industries 4100519 100-01198_001
IF YOU SMELL GAS:
* Do not light any appliance
* E tinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open windows and vacate building
* Call gas supplier from neighbor's house, if not reached, call fire department
This unit must be installed b
y
a qualified installer to prevent the possibilit
y
of an
explosion. Your dealer will know the requirements in your area and can inform you
of those people considered qualified. The room heater should be inspected and
cleaned before use and at least annually by a qualified service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding
material, etc.
The instructions in this manual must be strictl
y
adhered to. Do not use makeshift
methods or compromise in the installation. Improper installation will void the
warrant
y
and safet
y
listin
g
.
CH 4
- or -
83H
C
This heater is either approved
for natural gas (NG) or for
propane (LP). Burning the
incorrect fuel will void the
warranty and safety listing and
may cause an extreme safety
hazard. Direct questions
about the type of fuel used to
your dealer or installer
Operate the heater accordin
g
to the instructions included in
this manual.
If the main burners do not start
correctly turn the gas off to the
fireplace and call your dealer
for service.
Ok
Contact
y
our local buildin
g
officials to obtain a permit and
information on any installation
restrictions or inspection
requirements in your area.
Notify your insurance
company of this heater as
well.
If the flame becomes soot
y
,
dark orange in color, or
extremely tall, do not operate
the heater. Call your dealer
and arrange for proper
servicing.
It is imperative that control
compartments, screens, or
circulating air passageways of
the heater be kept clean and
free of obstructions. These
areas provide the air necessary
for safe operation. ?Do not operate the heater if it is
not operating properly in any
fashion or if you are uncertain.
Call your dealer for a full
explanation of your heater and
what to expect.
Gas
Do not store or use
g
asoline or
other flammable liquids in the
vicinity of this heater.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AA
AA
Do not operate if an
y
portion of
the heater was submerged in
water or if an
y
corrosion occurs.
Immediately call a qualified
service technician to inspect
the appliance and to replace
any part of the control system
and any gas control that has
been under water.

Safety Precautions 5
© Travis Industries 4100519 100-01198_001
Do not place clothin
g
or other
flammable items on or near
the heater. Because this
heater can be controlled by a
thermostat there is a possibility
of the heater turning on and
igniting any items placed on
or near it.
AA
AA
AA
AA
A
Li
g
ht the heater usin
g
the built-
in electronic igniter. Do not
use matches or any other
external device to light your
heater.
Allow the heater to cool before
carrying out any maintenance
or cleaning.
The viewin
g
g
lass should be
opened only for conducting
service. Do not operate with
cracked, broken, or removed
glass.
An
y
safet
y
screen or
g
uard
removed for servicing must be
replaced prior to operating the
heater.
Never remove, replace, modify
or substitute any part of the
heater unless instructions are
given in this manual. All other
work must be done by a trained
technician. Don't modify or
replace orifices.
Prior to removing the glass,
shut off gas to the appliance
(or remove the batteries from
the battery box and shut off
electricity to the fireplace).
This prevents any chance of
accidental burner ignition
when accessing the firebox.
This
Manual
Do not throw this manual awa
y
.
This manual has important
operating and maintenance
instructions that you will need
at a later time. Always follow
the instructions in this manual.
AA
AA
AA
AA
This unit is not for use with
solid fuel
Do not place an
y
thin
g
inside
the firebox (except the
included fiber logs).
If the fiber lo
g
s become
damaged, replace with Travis
Industries log set.
Instruct ever
y
one in the house
how to shut gas off to the
appliance and at the gas main
shutoff valve. The gas main
shutoff valve is usually next to
the gas meter or propane tank
and requires a wrench to shut
off.
Children and adults should be
alerted to the hazards of high
surface temperature and
should stay away to avoid
burns or clothing ignition.
Young children should be
supervised when they are in
the same room as the heater.
Travis Industries, Inc.
g
rants
no warranty, implied or stated,
for the installation or
maintenance of your heater,
and assumes no
responsibility of any
consequential damage(s).
Operate the heater accordin
g
to the instructions included in
this manual.
If the main burners do not start
correctly turn the gas off to the
fireplace and call your dealer
for service.

6 Operation
© Travis Industries 4100519 100-01198_001
Before You Begin
Read this entire manual before you use your new fireplace (especially the section " afety
Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage,
bodily injury, or even death.
Remote Control
The remote control controls all of the functions on the fireplace. It can be placed inside the
holder and hung on the wall or it can be placed near the fireplace.
Fn
Set
Mode
Setting Up the Remote (Time Day Swing ° F/ ° C)
The remote will need to be set up when first started or when the batteries were removed or
replaced. Follow the directions below to set the time, day, and other settings.
1. Press and hold the “ et” and “Up” arrow buttons for 5 seconds.
2. The “ROOM” temperature will blink. Use the arrow keys until °F (fahrenheit) or °C (celcius) is
displayed. Press the “ et” button to set the temperature scale.
3. The “ WING” number will blink. Use the arrow keys to select the desired swing amount (1, 2 or 3
°F, 1 or 2 °C). The swing number determines the amount of degrees the thermostat will wait
until turning on. The larger the number, the less often the thermostat will turn on and off. The
smaller the number, the more often the thermostat will turn on and off.
4. The day of the week will blink. Use the arrow keys to select the correct day. Press the “ et”
button to set the day.
5. The hour of the day will blink. Use the arrow keys to select the correct hour. Press the “ et”
button to set the hour.
6. The minute of the hour will blink. Use the arrow keys to select the correct minute. Press the
“ et” button to set the minute.
7. The AM / PM designation will blink. Use the arrow keys to select the correct setting. Press the
“ et” button to set AM / PM.

Operation 7
© Travis Industries 4100519 100-01198_001
Remote Synchronization
The remote control is shipped pre-synchronized to the fireplace. If, however, the remote does not
work with the fireplace, follow the directions below to synchronize the remote to the fireplace.
NOTE: The fireplace must have power and the transmitter must have batteries to complete this process.
WARNING: hut the gas off to the fireplace prior to conducting this process.
1 The “Learn” switch is accessed by removing the remote holder. Inside the junction box behind the
holder you will find the “Learn” switch (see the illustration below).
2 Press the “Learn” button once. The fireplace will beep once.
3 Press the “Mode” button on the remote. The fireplace will beep five times to indicate
synchronization.
Fn
Set
Mode
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
Beep
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
Beep, Beep,
Beep, Beep,
Beep
NOTE: Re-setting the Receiver Module
If the receiver module fails to synchronize with the remote after two attempts, you should re-set the
receiver module. To do this, hold down the LEARN button for approximately 10 seconds until the
receiver beeps 3 times. This indicates the receiver has been re-set and can be synchronized using
the instructions above.

8 Operation
© Travis Industries 4100519 100-01198_001
Starting the Fireplace for the First Time
• Burn the heater at a high setting for an extended period (up to 48 hours). This will cure the
painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is
normal. We recommend opening a window to vent the room.
• Condensation may appear on the glass each time you start the fireplace - this is normal.
• Blue Flames will occur on the fireplace when it first comes on. After fifteen minutes the flames
will turn a more realistic yellow and orange color.
The Two Modes of Operation
Manual Mode
In manual mode you can turn the fireplace on and off by pressing the “Mode” button until “ON” or
“OFF” appears on the remote.
Fn
Set
Mode
Fn
Set
Mode
Thermostat Mode
While in thermostat mode, the remote will
monitor the temperature and turn the fireplace
on and off to meet the desired temperature.
To turn on Thermostat Mode:
Press the “MODE” button on the remote until
“THERMO” appears on the LCD display.
To turn off Thermostat Mode:
Press the “MODE” button on the remote until
“THERMO” no longer appears on the LCD
display (the fireplace will be ON or OFF, see
“Manual Mode” above.
Fn
Set
Mode

Operation 9
© Travis Industries 4100519 100-01198_001
Adjusting the Target Temperature of the Thermostat:
Make sure the remote is in thermostat mode. Press the up and down arrow buttons until the
desired temperature is displayed in the “ ET” box (see illustration below).
Fn
Set
Mode
WARNING: While in thermostat mode the fireplace will turn on and off to meet the temperature
demands of the remote. Do not place any items near the fireplace or conduct service without
shutting off gas to the fireplace.
WARNING: If the remote is set to a high temperature the fireplace may remain on for an extended
period of time. This may be a concern to those using LP (propane).
WARNING: If the remote is used as a thermostat for extended periods, make sure the batteries are
charged. We recommend replacing the batteries at the beginning of the heating season. If the
batteries go dead while in thermostat mode, the fireplace will shut off after 2 hours.

10 Operation
© Travis Industries 4100519 100-01198_001
Remote Functions
Switching Between Remote Functions
By pressing the Function “FN” button, you can scroll through the following 7 functions on the
remote:
• MAIN (Main Burner)
This function will only appear when burner is on.
• REAR (Rear Burner – Not Used)
• FAN (Not Used)
• LIGHT (Not Used)
• AUX (Optional 120V Switch – Not Used)
• TIMER
This function allows the user to turn the fireplace on for a set period of time.
• PROGRAM (Programmable 7 day thermostat)
This function allows the user to program specific on/off, temperature, weekday and weekend
settings on the thermostat.
For a complete description of each function, refer to the sections on the following pages for each
individual function.
Fn
Set
Mode

Operation 11
© Travis Industries 4100519 100-01198_001
MAIN FUNCTION (Main Burner)
The burner flame height may be adjusted from low “1” to high “3”. Use the arrow keys to adjust the
setting. Once the desired setting is made, the remote will alter the setting after approximately 8
seconds (and the remote display will stop blinking).
NOTE: The fireplace must be on (either manual or thermostat) to adjust the main burner.
REAR FUNCTION (Rear Burner – Not Used)
This function is not used on this fireplace
FAN FUNCTION (not used for this fireplace)
This function is not used on this fireplace
LIGHT FUNCTION (not used for this fireplace)
This function is not used on this fireplace
AUX FUNCTION (not used for this fireplace)
This function is not used on this fireplace.
TIMER FUNCTION
The timer function allows you to turn the fireplace on from 10 to 180 minutes. Use the arrow keys
to select the desired time. The fireplace will then turn off after the specified time. Once the
desired setting is made, the remote will alter the setting after approximately 8 seconds (and the
remote display will stop blinking).
NOTE: The fireplace must be in manual mode, and on, for the timer function to work.

12 Operation
© Travis Industries 4100519 100-01198_001
PROGRAM FUNCTION (Programmable 7 day thermostat)
The program function operates as follows:
4 Each day has two periods (P1 , P2). Each period
has an “ON” time and an “OFF” time.
5 Each period is programmed for weekdays (Monday
through Friday) and weekends ( aturday and
unday).
6 Each period has a set temperature.
The remote comes pre-programmed for the following:
1 Monday through Friday P1 ON @ 6:00AM OFF @ 8:00AM 70°F.
2 Monday through Friday P2 ON @ 6:00PM OFF @ 9:00PM 70°F.
3 aturday and unday P1 8:00AM to 10:00AM 70°F.
4 aturday and unday P2 7:00AM to 10:00PM 70°F.
To adjust the program times and temperatures, do the following:
A Press the Function (“Fn”) Key until the program functions start to blink.
B Press the “ et” button for 5 seconds.
C The P1 “ON” time will blink. Use the arrows to select the desired time.
D Press the “ et” button. This sets the P1 “ON” time.
E The temperature will blink. Use the arrows to select the desired temperature.
F Press the “ et” button. This sets the temperature for P1.
G The P1 “OFF” time will blink. Use the arrows to select the desired time.
H Press the “ et” button. This sets the P1 “OFF” time.
I REPEAT TEP “C” through “H” for P2.
J REPEAT TEP “C” through “H” for the weekend P1 and P2.
NOTE: P2 must start after 4:00PM.
To Turn PROGRAM FUNCTION ON
A Press the Function (“Fn”) Key until the program functions start to blink.
B Press the “ et” button. The You will notice the P1 or P2 symbol will appear in the program
section of the remote next to the time. This indicates the remote is in PROGRAM
FUNCTION (Programmable thermostat).
To Turn PROGRAM FUNCTION OFF
A Press the Function (“Fn”) Key to select either manual or thermostat mode.

Operation 13
© Travis Industries 4100519 100-01198_001
Continuous Pilot – For Very Cold Conditions
This fireplace can be configured to run with an intermittent or continuous (standing) pilot. For
normal conditions we recommend using the intermittent pilot (pilot is on only when the main
burner is on). For extremely cold conditions we recommend using a continuous pilot (pilot is on all
the time). By having the pilot on continuously, a draft is established in the vent, allowing the main
burner to turn on with less air-flow disruption.
Setting the Fireplace to Continuous Pilot
Press and hold down the “ et” and “Down” arrow buttons. “Continuous Pilot” will appear on the LCD
screen, indicating that the fireplace is configured for a continuous pilot. To reconfigure the
fireplace for an intermittent pilot, press and hold down the “ et” and “Down” arrow buttons until
“Continuous Pilot” is no longer visible on the LCD screen.
Child Protection Feature
The remote can be disabled to prevent children from operating the fireplace. This is done by
holding down the “Fn” and “Up” button for 5 seconds until “CP” (Child Protection) appears on the
screen in the “ROOM” temperature box. If any button is pressed on the remote “CP” will appear on
the screen indicating the child protection feature is on. To turn this feature off, hold down the “Fn”
and “Down” button for 5 seconds until “CP” (Child Protection) disappears on the screen in the
“ROOM” temperature box
Heat Bypass
This fireplace is equipped with a heat bypass to adjust the amount of heat entering the room. The
bypass is located directly above the glass frame in the center of the fireplace.
Setting the Bypass to the Closed Position (more heat in the room)
Use a 1/4” nutdriver to turn the bypass clockwise.
Setting the Bypass to the Open Position (less heat in the room)
Use a 1/4” nutdriver to turn the bypass counter-clockwise.
Normal Operating Odors
This appliance has several areas that reach high temperatures. Dust or other particles on these
areas may burn and create an odor. This is normal during start-up. You may notice the smell is
more acute if the appliance was left idle for a long period.
Power Outages
This fireplace utilizes household power (110 VAC) to power the receiver module and pilot system.
A separate battery box is included to provide power in case of power outages. If you experience a
power outage and the unit does not operate, make sure to replace the AA batteries in the battery
box (see “Battery Installation” on page 21).

14 Maintenance
© Travis Industries 4100519 100-01198_001
Yearly Service Procedure
WARNING: Prior to removing the glass, shut off gas to the
appliance (or remove the batteries from the battery box and shut
off electricity to the fireplace). This prevents any chance of
accidental burner ignition when accessing the firebox.
• Failure to inspect and maintain the fireplace may lead to improper combustion and a potentially dangerous
situation. We recommend the following procedures be done by a qualified technician.
1. Remove the glass frame and log set (NOTE: the logs are very fragile - see page 16). If severely
deteriorated, replace. Check the logs for sooting. A small amount of soot along the bottom of the logs is
normal. If excessive sooting is found, the fireplace will require adjustment. Contact your dealer.
2. Inspect the burner and remove any debris.
• Make sure the burner is not warped, cracked, or damaged.
• Check the firebox and area around the pilot to make sure there is no warping or damage.
• If any problem is found, discontinue use and contact your dealer for service.
3. Replace the log set. Clean and replace the glasss. If the glass is damaged, replace. Make sure the
gasket along the perimeter of the glass contacts the face of the firebox and forms an air-tight seal. If it
does not, re-align or replace the gasket to insure an air-tight seal.
4. tart the burner. The flames should be orange/yellow and not touch the top of the firebox. If the pilot or
main burners do not burn correctly, contact your dealer for service.
5. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or
deterioration is found near the vent termination.

Maintenance 15
© Travis Industries 4100519 100-01198_001
Glass Frame Removal and Installation
WARNING: Prior to removing the glass, shut off gas to the
appliance (or remove the batteries from the battery box and shut
off electricity to the fireplace). This prevents any chance of
accidental burner ignition when accessing the firebox.
Warning: The appliance must be completely cool before removing the glass.
Warning: Do not strike or slam the glass.
The glass frame is held in
place with four latches.
Use the door latch tool to pull the latch forward
and away from the glass frame.
These tabs insert over posts
on the fireplace and help
guide the glass into place.
REPLACING THE GLASS
Slide the glass into place and secure the four latches.
Lift and remove the glass frame
cover. Four hooks on the sides of
the coverhold it in place.

16 Maintenance
© Travis Industries 4100519 100-01198_001
Log Set Installation
Overview
Below is a picture detailing log placement for this fireplace. Follow the directions on the following
pages to place the logs correctly.
Center Log
Upper Right Log
Left Upper Log
Left
Lower
L
Right Rear
Log

Maintenance 17
© Travis Industries 4100519 100-01198_001
Center Log
Place the center log as shown below.
The rear log contacts
the side and back
fireback.

18 Maintenance
© Travis Industries 4100519 100-01198_001
Left Lower Log
Place the left lower log as shown below.
Right Rear Log
Place the right rear log as shown below.
The left lower log
rests in front of the
burner holes and
obscures the pilot.
The right rear log has
a hole that inserts
over the pin on the
center log.
The right rear log has
a flat portion that rests
on the grate.

Maintenance 19
© Travis Industries 4100519 100-01198_001
Upper Left Log
Place the upper left log as shown below.
The upper left log has
a notch that fits over
the grate.
The upper left log has
a hole that inserts
over the pin on the
center log.

20 Maintenance
© Travis Industries 4100519 100-01198_001
Upper Right Log
Place the upper right log as shown below.
Ember Installation
Place the embers along the burner and floor firebacks - make sure they do not cover any burner
holes.
The right rear log has
a flat portion that the
upper right log rests
against.
The upper right log
has a notch that fits
over the grate.
Note how the upper
right log is positioned.
