DVS EF Fireplace
Owner's Manual
Featuring the
Burner
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028-S-16B-5
ANSI Z21.88
• Built-In Direct Vent Fireplace
• Natural Gas or Propane
• Residential or Mobile Home
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed as an OEM installation in a manufactured (mobile) home and
must be installed in accordance with the manufacturer’s instructions and the manufactured home
construction and safety standard, Title 24 CFR, Part 3280.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A
conversion kit is supplied with the appliance.
Installer: After installation give this manual to the home-owner
and explain operation of this heater.
Copyright 2007, Travis Industries, Inc. $10.00 100-01152
Travis Industries, Inc.
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2Introduction
Travis Industries 4031009 100-01152
Introduction
We welcome you as a new owner of a Travis Industries gas fireplace. In purchasing this fireplace you have joined
the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the
environment and aesthetics. The Travis Industries DVS EF Fireplace is one of the finest home heaters the world
over. This manual will explain the installation, operation, and maintenance of this fireplace. Please familiarize
yourself with the Owner's Manual before operating your heater and save the manual for future reference. Included
are helpful hints and suggestions that will make the operation and maintenance of your new fireplace an easier and
more enjoyable experience. We offer our continual support and guidance to help you achieve the maximum
benefit and enjoyment from your heater.
Important Information
No other DVS EF gas fireplace has the same serial
number as yours. The serial number is below and to
the left of the gas control valve.
This serial number will be needed in case you require
service of any type.
Model: DVS EF Fireplace
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card
Today, and Save Your Bill of
Sale.
To receive full warranty coverage,
you will need to show evidence of
the date you purchased your
heater. Do not mail your Bill of
Sale to us.
We suggest that you attach your
Bill of Sale to this page so that you
will have all the information you
need in one place should the need
for service or information occur.

Table of Contents 3
© Travis Industries 4041213 100-01152
Introduction
Introduction & Important Information................2
Safety Precautions
Safety Precautions......................................4
Features & Specifications
Features ....................................................6
Installation Options......................................6
Heating Specifications..................................6
Dimensions.................................................6
Installation
Installation Warning......................................7
Packing List................................................7
Additional Items Required for Installation..........7
Installation Overview....................................7
Fireplace Placement Requirements..................8
Minimum Framing Dimensions ....................8
Clearances ............................................8

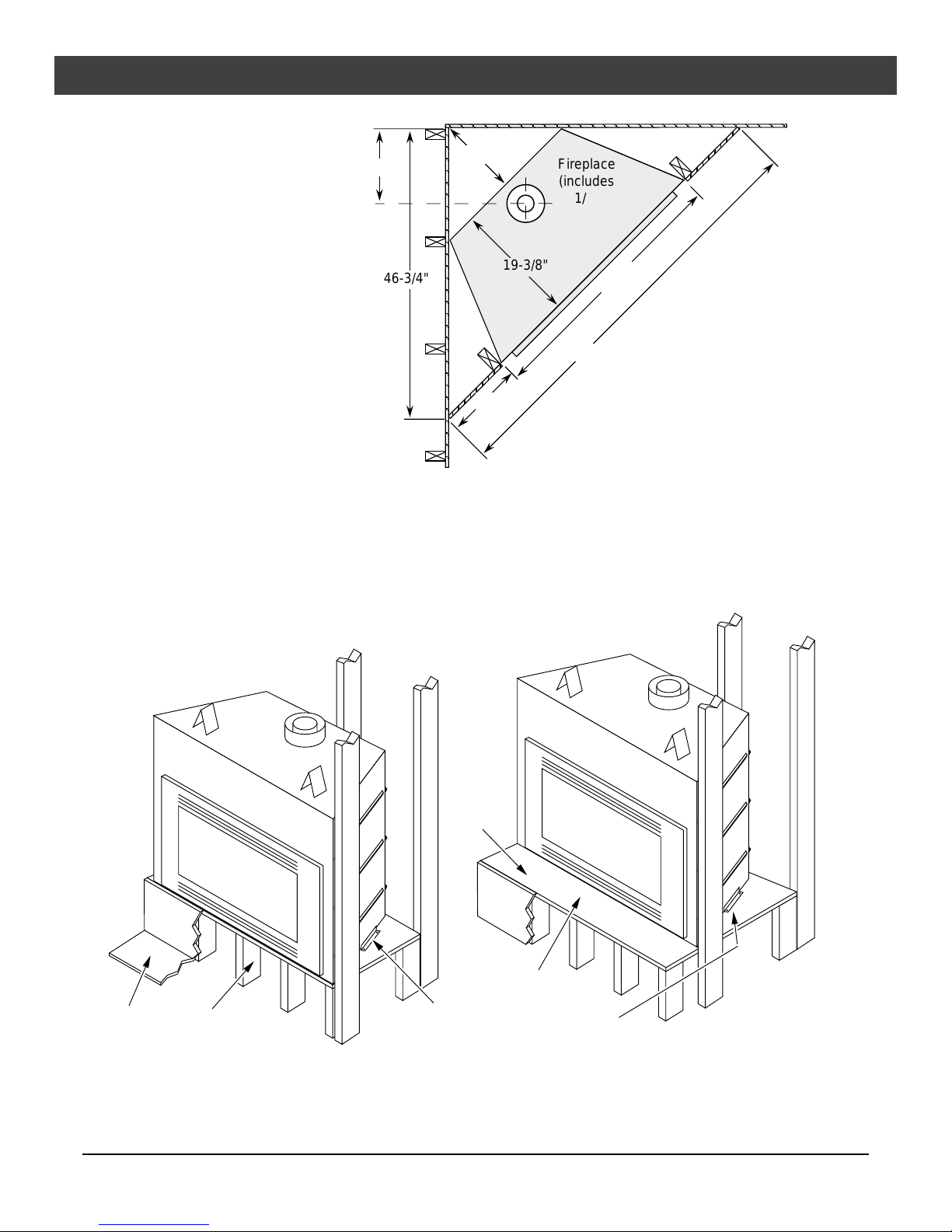

Corner Installations .................................9
Raised Fireplaces....................................9
Hearth Requirements....................................10
Facing Requirements....................................11
Facing Over 1" Thick.....................................11
Facing Detail...............................................12
Face Dimensions .........................................13
Modifying the Face Angle...............................14
Facing & Hearth Examples.............................15
Mantel Requirements....................................16

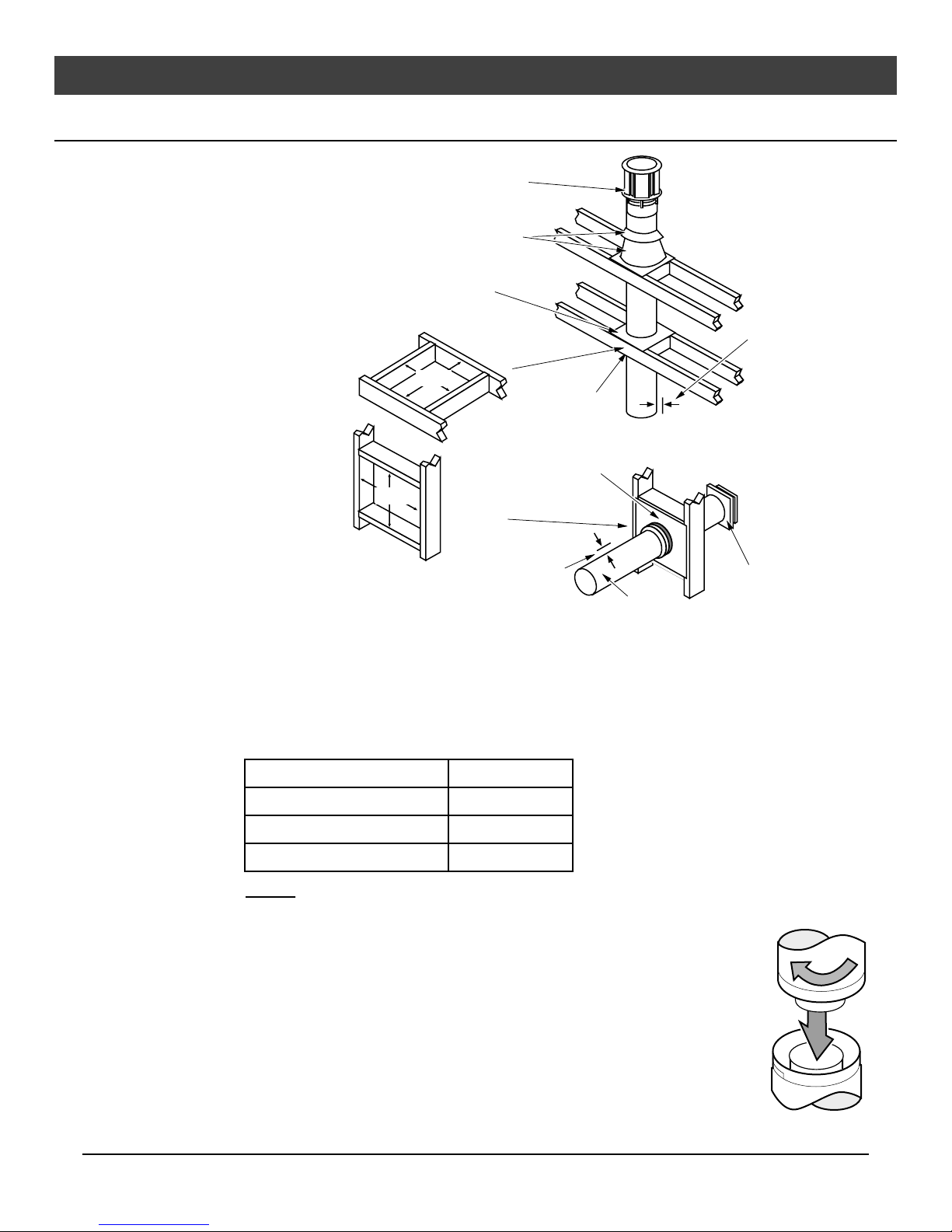

Vent Requirements.......................................17
Altitude Considerations ............................17
Clearances ............................................17
Use of 8” Dia. Pipe...................................17
Vent Installation......................................17
Approved Vent Configurations........................18
Restrictor Position...................................18
Measuring Vent Lengths...........................18
Vertical Terminations (with/ without offsets)..19
Horizontal Terminations............................20
Vertical Terminations (with 2 90° Elbows)......21
Vent Termination Requirements ......................22
Gas Line Requirements.................................23
Fuel......................................................23
Gas Line Connection................................23
Gas Inlet Pressure ..................................23
Electrical Connection....................................24
Finalizing the Installation
1 Glass Removal (& installation)......................25
2 Log & Coal Installation................................26
3 Purge Gas Line and Replace the Glass ..........27
4 Faceplate Installation.................................27
5 Leak Test.................................................27
6 Pilot Adjustment (if necessary).....................27
7 Air Shutter Adjustment (if necessary)............27
8 Check Flame.............................................28
9 Explain Operation to Home-Owner.................28
Operation
Before You Begin.........................................29
Location of Controls .....................................29
Starting The Pilot .........................................30
Starting the Fireplace for the First Time.............31
Turning the Fireplace On and Off.....................31
Adjusting the Flame Height.............................31
Adjusting the Blower Speed............................32
Normal Operating Sounds..............................32
Normal Operating Odors................................32
Maintenance
Yearly Service Procedure..............................33
Troubleshooting Table...................................34
How this Fireplace Works...............................35
What Turns the Main Burners On and Off......35
What Prevents Gas Buildup.......................35
Wiring Diagram ............................................36
Replacement Parts List.................................36
Safety Label
Safety (Listing) Label....................................37
Warranty
Warranty....................................................38
Optional Equipment
LP Conversion Kit ........................................39
Index
Index.........................................................42

4Safety Precautions
© Travis Industries 4041213 100-01152
IF YOU SMELL GAS:
Do not light any appliance
Extinguish any open flame
Do not touch any electrical switch or plug or unplug anything
Open windows and vacate building
Call gas supplier from neighbor's house, if not reached, call fire department
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
Your dealer will know the requirements in your area and can inform you of those people
considered qualified. The room heater should be inspected and cleaned before use and
at least annually by a qualified service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods
or compromise in the installation. Improper installation will void the warranty and safety
listing.
For LPG only | Pout 11” W.C.
Look for this label:
If the label is present, the
heater is equipped for LP
(propane). If the label is
absent, the heater is equipped
for NG (natural gas).
This heater is either approved for natural gas
(NG) or for propane (LP). Burning the
incorrect fuel will void the warranty and safety
listing and may cause an extreme safety
hazard. Direct questions about the type of
fuel used to your dealer. Check the label and
flame adjust knob on the gas control valve.
Ok
Contact your local building
officials to obtain a permit and
information on any installation
restrictions or inspection
requirements in your area.
Notify your insurance company
of this heater as well.
If the flame becomes sooty, dark
orange in color, or extremely tall,
do not operate the heater. Call
your dealer and arrange for
proper servicing.
It is imperative that control
compartments, screens, or
circulating air passageways of
the heater be kept clean and
free of obstructions. These
areas provide the air necessary
for safe operation. ?Do not operate the heater if it is
not operating properly in any
fashion or if you are uncertain.
Call your dealer for a full
explanation of your heater and
what to expect.
Gas
Do not store or use gasoline or
other flammable liquids in the
vicinity of this heater.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AA
AA
Do not operate if any portion of the
heater was submerged in water or if
any corrosion occurs. Immediately
call a qualified service technician to
inspect the appliance and to replace
any part of the control system and
any gas control wash has been
under water.

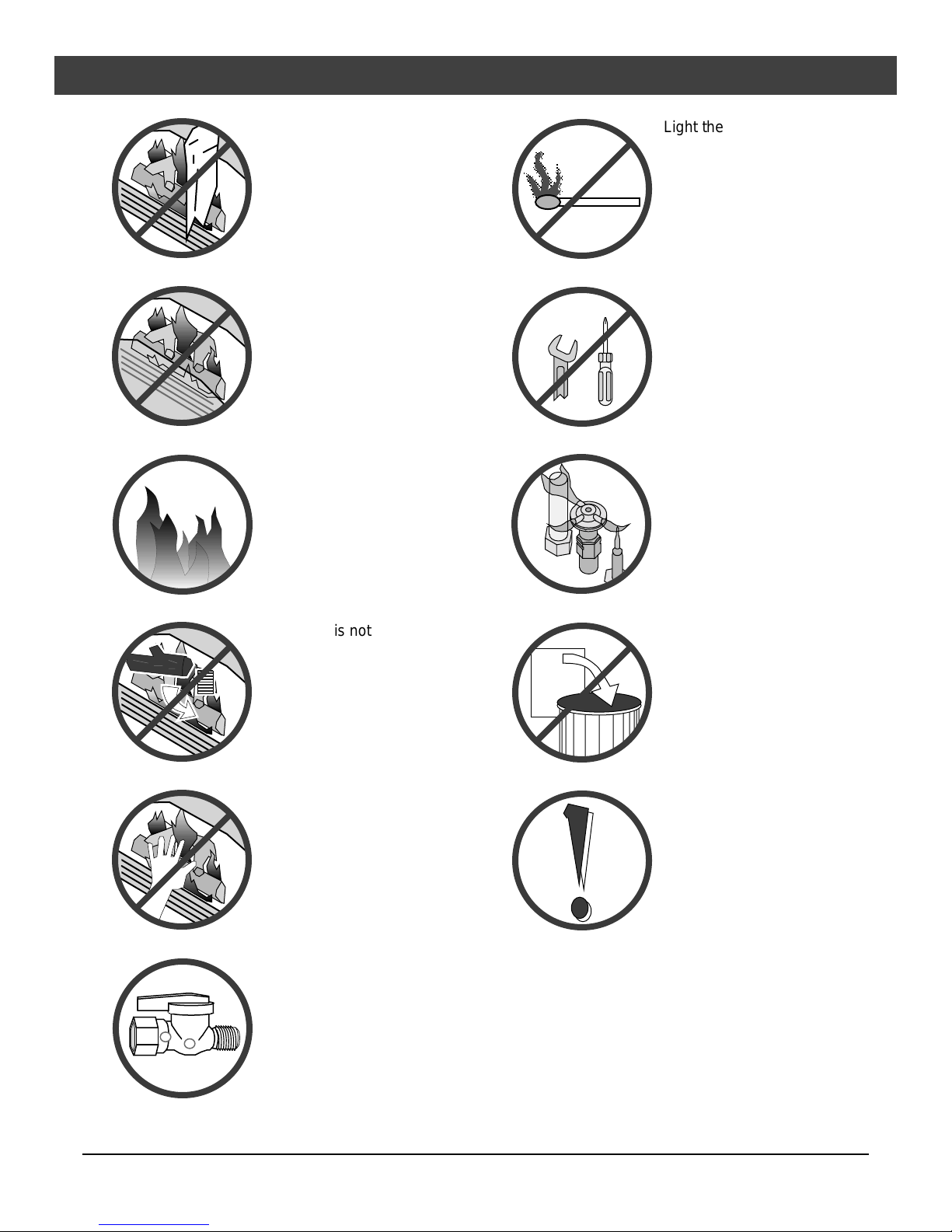

Safety Precautions 5
© Travis Industries 4041213 100-01152
Do not place clothing or other
flammable items on or near the
heater. Because this heater can
be controlled by a thermostat
there is a possibility of the heater
turning on and igniting any items
placed on or near it.
AA
AA
AA
AA
A
Light the heater using the built-
in piezo igniter. Do not use
matches or any other external
device to light your heater.
Never remove, replace, modify
or substitute any part of the
heater unless instructions are
given in this
The viewing glass should be
opened only for lighting the
pilot or conducting service. Do
not operate with cracked,
broken, or removed glass.
Any safety screen or guard
removed for servicing must be
replaced prior to operating the
heater.
manual. All other work must be
done by a trained technician.
Don't modify or replace orifices.
Allow the heater to cool before
carrying out any maintenance or
cleaning.
Operate the heater according to
the instructions included in this
manual.
If the main burners do not start
correctly turn the gas off at the
gas control valve and call your
dealer for service.
The pilot flame must contact the
thermopile and thermocouple
(see the illustration to the left). If
it does not, turn the gas control
valve to "OFF" and call your
dealer.
AA
AA
AA
AA
This unit is not for use with solid
fuel
Do not place anything inside the
firebox (except the included
fiber logs).
If the fiber logs become
damaged, replace with Travis
Industries log set.
This
Manual
Do not throw this manual away.
This manual has important
operating and maintenance
instructions that you will need at
a later time. Always follow the
instructions in this manual.
Children and adults should be
alerted to the hazards of high
surface temperature and should
stay away to avoid burns or
clothing ignition. Young children
should be supervised when
they are in the same room as the
heater.
Travis Industries, Inc.
grants no warranty, implied
or stated, for the
installation or maintenance
of your heater, and
assumes no responsibility
of any consequential
damage(s).
Instruct everyone in the house
how to shut gas off to the
appliance and at the gas main
shutoff valve. The gas main
shutoff valve is usually next to
the gas meter or propane tank
and requires a wrench to shut
off.

6Features and Specifications
© Travis Industries 4041213 100-01152
Features:
- Works During Power Outages (millivolt system)
- High Efficiency
- Optional Thermostat or Remote Control
- Realistic "Wood Fire" Look
- Quiet Blower for Effective Heat Distribution
- Convenient Operating Controls
- Variable-Rate Heat Output
- Low Maintenance
Installation Options:
- Residential or Mobile Home
- Straight or Corner Placement
- Flush or Recessed Face
- Raised or Floor Hearth
- Internal or External Chase
- Horizontal or Vertical Vent
- Bedroom Approved
Heating Specifications: Natural Gas Propane
Approximate Heating Capacity (in square feet)* 500 to 1,500 500 to 1,500
BTU Input Per Hour (from high to low) 31,000 –18,600 31,000 - 16,000
Steady State Efficiency** (with blowers on) Up to 80% Up to 80.5%
AFUE (Annual Fuel Utilization Efficiency) 71.3% 71.8%
* Heating capacity will vary with floor plan, insulation, and outside temperature.
** Efficiency rating is a product thermal efficiency rating determined under continuous operation
independent of installed system.
Vent has an external
diameter of 6-5/8"
Weight: 165 Lbs.
Dimensions:
Electrical access panel is 6"
behind the front, along the base.
1/2"
Stand-offs
* Includes the 1/2"
clearance
Nail Down
Plate (used
to secure
the fireplace
to the floor)
See "Gas Line Connection"
on page 22 for more details
2"
37"*
28-1/8"*
28-1/2"
14-1/2"
29-1/8"
20-3/8"
1-1/2"
1"
34-3/4"
2-5/8"
7-3/4"
19-3/8"*
2"
4-7/8"

Installation (for qualified installers only) 7
© Travis Industries 4041213 100-01152
Installation Warnings:
•Failure to follow all of the requirements may result in property damage, bodily
injury, or even death.
•This heater must be installed by a qualified installer who has gone through a
training program for the installation of direct vent gas appliances.
•This appliance must be installed in accordance with all local codes, if any; if not,
follow ANSI Z223.1 and NFPA 54(88).
•In Manufactured or Mobile Homes must conform with Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations,
ANSI/NCSBCS A225.1. This appliance may be installed in Manufactured Housing
only after the home is site located.
•The fireplace is designed to operate on natural gas, or propane (LP).
•All exhaust gases must be vented outside the structure of the living-area.
Combustion air is drawn from outside the living-area structure.
•Notify your insurance company before hooking up this fireplace.
•The requirements listed below are divided into sections. All requirements must be
met simultaneously. The order of installation is not rigid –the qualified installer
should follow the procedure best suited for the installation.
Packing List
•Propane Conversion Kit
•Log Set (3 Logs, 2 Twigs, Bag of Coals, Coal Trays)
•Restrictor Adjuster Rod
•Flex Tube with Pipe Adapter
Additional Items Required
•Faceplate
•Direct Vent (Simpson Dura-Vent Ph. # 800 835-4429)
•Gas Line Equipment (shutoff valve, pipe, etc.)
•Electrical Equipment
Installation Overview
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
Non-combustible facing (see
"Facing Requirements")
See "Horizontal
Termination
Requirements"
See "Electrical
Connection"
See "Mantel Requirements"
Insulation must not fill
the spaces between
the stand-offs
See "Fireplace Placement Requirements"
The faceplate
must be 6"
minimum from
side walls.
See "Vent Requirements"
See "Minimum
Framing
Dimensions"
See "Hearth Requirements"
Drywall
Nail Down Plate
See "Gas Line
Installation"
See
"Acceptable
Vent Lengths"
Optional thermostat or remote control wire.

8Installation (for qualified installers only)
© Travis Industries 4041213 100-01152
Fireplace Placement Requirements
Setting Up the Standoffs
Standoff
a
Replace the screw to
secure the standoff.
Bend the standofff in
the sequence shown.
1/4" Nutdriver
Remove the screw
below the standoff.
b
1
2
3
c
The standoffs are shipped in the flat position. Make sure to follow the instructions
below before installing the fireplace.
AFTER
BEFORE
WARNING: Failure to set up the standoffs will result in an extreme fire hazard.
Minimum Framing Dimensions
- A 1/2" clearance is required along
the sides and back of the fireplace.
The 1/2" stand-offs on the sides
and 6-1/4" stand-offs on the top of
the fireplace are designed to
separate the fireplace from the
framing members. These stand-
offs may contact the framing
members but no material may be
placed between the stand-offs.
- Fireplace must be installed on a
level surface capable of
supporting the fireplace and vent
- Fireplace must be placed directly
on wood or non-combustible
surface (not on linoleum or
carpet)
- This heater may be placed in a
bedroom. Please be aware of
the large amount of heat this
appliance produces when
determining a location.
Gas Line (the inlet is 7-3/4" behind the
framing and 2-5/8" above the base of the
fireplace (see "Gas Line Connection" for
details).
37-1/4"
19-5/8"
35"
Route the electrical line (and optional
thermostat or remote control wire) to
the right of the fireplace.
NOTE: when venting to the rear, allow a
min. 8-5/8" gap centered behind the
fireplace (for the vent and wall thimble).
36" From Base of Fireplace.
NOTE: when using an elbow off the top of the
fireplace, allow for a 2" clearance above the
vent (1" to the sides and bottom).
Clearances
•When installed, walls in front of the fireplace must be a minimum 6" to the side of the faceplate.
•Due to the high temperature of the fireplace, it should be located out of traffic and away from furniture
and draperies.
•Fireplace must be placed so the vents below and above the glass do not become blocked

Installation (for qualified installers only) 9
© Travis Industries 4041213 100-01152
Corner Installations
A typical 45°installation uses the
minimum framing dimensions shown
in the illustration to the right (Normal
clearances still apply).
AAA
AAA
AAA
AAA
AAA
A
A
A
A
A
A
A
A
A
A
AAAAAAAAAAA
46-3/4" 19-3/8"
Fireplace
(includes
1/2"
standoffs)
13"
14-3/8"
65-3/4"
37"
13-5/8"
Raised Fireplaces
•The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
(250 Lbs.) and vent.
•The fireplace may be raised a maximum 34" (this is to ensure the mantel clearance does not infringe
upon the ceiling).
Raised fireplace Raised fireplace with
raised hearth.
Raised
Platform Nail the nail down plates to the floor
(or raised platform)
Raised Hearth
Hearth
Raised
Platform

10 Installation (for qualified installers only)
© Travis Industries 4041213 100-01152
Hearth Requirements
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
Do not build
the hearth
above this
ledge.
12”Min.
2 Pieces of 1/2”
Cement Board
Tile, Marble,
Brick, or other
Non-Combustible
Decorative Trim
(may be combustible)
Min. 1-1/4”
Max. 1-7/16”
Floor Mounted
Fireplaces
Raised
Fireplaces
A
A
A
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Fireplace Stand
Tile, Marble,
Brick, or other
Non-Combustible
Non-
Combustible
Hearth
(Min. 1-1/4”)
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
A
A
A
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
12”Min.
2 Pieces of 1/2”
Cement Board
Min. Hearth Width:
The hearth must extend the width of the
face - see “Face Dimensions”for sizing.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
Non-
Combustible
Hearth
(Min. 1-1/4”)
Raised Hearth
Floor Hearth
Min. Hearth Width:
The hearth must extend the width of the
face - see “Face Dimensions”for sizing.

Installation (for qualified installers only) 11
© Travis Industries 4041213 100-01152
Facing Requirements
NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing. If it
does, it is considered a mantel and must meet the mantel requirements listed in this manual.
Adhesive
WARNING: Do not use adhesive to secure the cement board or facing. The high
temperatures of the fireplace may cause adhesives to emit odors. Use mastic or thin set (or
other non-combustible, non-odorous adherent) to attach the facing to the cement board.
NOTE: Screws may be used to secure the cement board to the fireplace. Do not penetrate
the fireplace more than 3/4”
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
6" Min.
(both sides)
Non-combustible Facing
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
The fireplace requires a concrete board (or other
non-combustible) extending from the header to
the floor and to the framing members on both
sides. Do not use sheetrock, plywood or other
combustible material.
Arch Face
Rectangular Face
12" Min.
Header
Bottom of
Faceplate
NO DRYWALL
1-1/2"
Base of
Fireplace
See “Face Dimensions”
for face sizing.
Facing Over 1" Thick
WARNING:
Faces that attach with latch-hooks
(Avalon Rosario, Avalon Cambridge,
Avalon Salish Bay, Avalon Rawhide,
Lopi Discovery, Lopi Heritage Bay, FPX
Architectural Faces (all styles),
require a 5/8” gap above the
facefor face installation and removal.
•If the facing material is over 1" thick
(e.g. brick, river rock), install the facing
around the perimeter of the face. You
may wish to make a facing support (see
the illustration to the right). If using an
arch face, you may wish to order the
optional set-up face:
Arch Set-Up Face is available from
Travis Industries (Part # 98500697)
•Artisan faces vary in size. Use the face
being installed to create a template.
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AA
AA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
Make a facing support using
2x4’s. It should be 1/8”larger
than the finished face. NOTE:
The bottom of the face is 1-1/2”
above the base of the fireplace.
1-1/2”
Note: if using a brick hearth, the fireplace will need to be raised to accommodate the 1-1/2”gap betwen the
face and the base of the fireplace. For 2-1/2”thick brick this works out to approximately 1-1/8”.
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAA
AAA
AAA
The brick facing must meet the same requirements
listed in “Facing Requirements”.
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Center
Line
AA
AA
AA
AA
AA
AA
AA
AA
AA
Rectangular Faces
Use the optional Arch
Set-Up Face available
from Travis
Industries.
Arch Faces
Face Sizing:
See “Face
Dimensions”for
sizing.

12 Installation (for qualified installers only)
© Travis Industries 4041213 100-01152
Facing Detail
Access Door
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
1-1/2"
Face 1"
1-7/16”Lopi Discovery
1-7/16”Avanti DVS
7/16”FPX Rect. and Arched
Glass
1/8"
Air Space
The overlap is 1-1/2" along
the top of the face.
NOTE:
Do not tuck tile underneath the face on the bottom (there
will be a 1/8" air space below the access door). You may
do this on the sides and top, but not on the bottom.
AA
AA
AA
29-1/8”
20-3/8”
1"
1-1/2"
Make sure these shaded areas are faced over
when using the arched face. Rectangular faces
do not require this area to be faced.
2”4-7/8”
•To achieve a facing that is flush with the drywall to the side of the fireplace, recess the framing directly
next to the fireplace. See the illustration below.
Fireplace
1"
1/2" Drywall
AAAA
AAA
1/2" Concrete Board
3/8" Tile
This 2x4 is recessed 3/8"
to make a flush facing
Fireplace 1/2" Drywall
AAA
AAAA
1/2" Concrete Board
3/8" Tile The tile overlaps the drywall
for an overlap facingFaceplate
1"
TOP
VIEW
Faceplate

Installation (for qualified installers only) 13
© Travis Industries 4041213 100-01152
Lopi
Discovery
DVS
21-9/16”
32”
Avalon
Rosario
DVS
21-9/16”32”
FPX Rectangular DVS
30”
22”
Lopi Heritage Bay
DVS
31-5/8”
21-1/2”
5-7/8”
Avalon Salish Bay
DVS
5-3/8”
22-1/2”
30-1/2”
22”
3-1/2"
30”
Radius = 34”
FPX Arched
FPX Artisan
NOTE: artisan faces
vary in size.
2”
Avalon Cambridge DVS
33-7/8”
33”
FPX
Architectural Faces
29-7/8”
22-3/4”
21-1/2”
32”
21-1/2”
2-3/8”
2-1/2”
23-5/8”
11-1/8”
Avalon
Craftsman Face
Lopi Bedford Face
34-1/8”
22-3/4”
(+ 5/8”for
installation)
33-1/8”
2-1/4”
Face Dimensions
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
32”
22-1/2”
Avalon
Victorian
Avalon
Rawhide
22 1/2”
32”
Modifying the Face Angle for Rectangular Faces
•If using a rectangular face (faces other than the Craftsman or FPX Arched), adjust the face angles at
the top corners of the glass (see the illustration below).
AAAAAAA
AAAAAAA
A
A
A
A
A
A
Remove these four
screws from the face
angle.
Phillips
Screwdriver
Bend the face angle up and replace
the two screws on the upper section.
AAAAAAA
AAAAAAA
A
A
A
A
A
A
AAAAAAA
AAAAAAA
AA
AA
AA
AA
AA
AA
Re-bend the face angle at the
inward location and re-attach the
lower portion with one screw.
AAAAAAA
AAAAAAA
AA
AA
AA
AA
AA
AA
Straighten the face angle.
b
ad
c
Front of
Fireplace
Glass

14 Installation (for qualified installers only)
© Travis Industries 4041213 100-01152
Facing and Hearth Examples
AA
AA
AA
AA
AA
AAA
A
A
A
A
A
A
AAA
AAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAA
DVS Fireplace
Face
3/8" Thick
Tile
Two 1/2"
Cement
Boards
Wood Sub
Floor
1-1/2"
Side View
A
A
A
A
A
A
A
A
A
A
2x4 and Plywood
Platform
Side of
Fireplace
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Note how the tile facing fits behind
the face on the side and top and
butts up to the set-up face on the
bottom.
When fully installed, there will be a 1/8" air
space below the access door on the face.
Do not block this space (it is required for
access door opening and air flow).
Three-Dimensional View
Tile
Cement Board
2x4 and
Plywood
Platform
SUGGESTION:
Base of Fireplace
Base of Fireplace
1/2" Cement
Board & 3/8" Tile
(tucked behind
the face)
NOTE:
AAAAAAA
Face
Make your platform height a dimension that will
accommodate the size tiles you are using and
the 1-1/2" between the base of the fireplace
and the bottom of the face.

Installation (for qualified installers only) 15
© Travis Industries 4041213 100-01152
Facing and Hearth Examples (continued)
AAAAAAAAAAAAAAAAAA
AAAAAAAA
DVS Fireplace
Face
3/8" Thick
Tile
Two 1/2"
Cement Boards
Wood Sub
Floor
1-1/2"
A
A
A
A
A
A
A
A
1/2" Cement Board & 3/8" thick tile
(tucked behind the face)
Side View
Three-Dimensional View
Side of
Fireplace Note how the
tile face fits
behind the set-
up face on the
side and top.
When hearth installation is
correctly completed, there will
be a 1/8" air space below the
access door on the face. Do
not block this air space (it is
required for access door
opening and proper air flow).
3/8" Tile
Two 1/2"
Cement
Boards
WARNING:
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
Base of Fireplace
Base of
Fireplace
There will be a 1/16" clearance
between the face and the top of
the tile on the hearth.
Wood Sub Floor
Do not install cement board underneath the fireplace. To do so
would leave a large gap underneath the face.
NOTE:
AAAAAAAA
AAAAAAAA
Face

16 Installation (for qualified installers only)
© Travis Industries 4041213 100-01152
Tile Hearths
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAA
32 DVS Fireplace
Face
3/8" Thick
Tile, Marble,
or Granite
Two Layers of
1/2" Cement
Board
Wood Sub Floor
1-1/2"
Facing installs behind the face
Base of Fireplace
12" Min.
AAAAAAAA
Min. 1-3/8"
Thick
Hearth
The front and side edges can be trimmed in various ways:
Min. 1-3/8" Thick Hearth
Bull-Nose Tile
AAAAA
AAAAA
AAAAA
AAAAA
(Cut to 1-3/8")
AAAA
AAAA
AAAA
Edge Tile
(Cut to 1-3/8")
AAAAA
AAAAA
AAAAA
AAAAA
A
A
Wood Molding
(Cut to 1-3/8")
Mantel Requirements
•The combustible area above the facing must not protrude more than 3/4" from the facing. If it does, it
is considered a mantel and must meet the mantel requirements listed in this manual.
Combustible or Non-Combustible Mantels
Combustible or Non-Combustible Mantel
Max. Mantel
Depth is 8”
Base of Fireplace
17”Minimum
1-1/2”
See “Face Dimensions”
for face sizing.
Bottom of Faceplate

Installation (for qualified installers only) 17
© Travis Industries 4041213 100-01152
Vent Requirements
•Always maintain the
required 1" clearance (2"
clearance above the vent
when an elbow is placed
directly off the top of the
fireplace) to combustible
materials to prevent a fire
hazard. Do not fill air
spaces with insulation.
•The gas appliance and vent
system must be vented
directly to the outside of
the building, and never be
attached to a chimney
serving a separate solid
fuel or gas-burning
appliance. Each direct
vent gas appliance must
use it's own separate vent
system.
•In addition to the
requirements below, follow
the requirements provided
with the vent.
Altitude
Considerations
Use a firestop spacer whenever
passing through a ceiling
(Duravent Part #963)
Vertical Termination
(Duravent Part # 991)
Use a roof flashing and storm collar
whenever passing through the roof
(Duravent Part #953 & #943 or #943S)
8-5/8"
(220 mm)
Use a support box
on exposed vent
Vertical Vent
Requirements
Use a firestop whenever
passing through a wall
Horizontal Termination
(Duravent Part #984)
Maintain a minimum 1" clearance from
vent to any combustible (2" above the
vent when an elbow is placed directly
off the top of the fireplace).
Minimum
Framing for
wall thimble
Horizontal Vent
Requirements
Minimum framing
for fire stop
8-5/8"
(220 mm)
Maintain a minimum 1"
(25 mm) clearance from
vent to any combustible
(vent is 6 5/8" (170 mm)
diameter)
6-5/8" Diameter
- This heater has been tested at altitudes ranging from sea level to 8,000 feet (2,400 M). In this testing we have found that
the heater, with its standard orifice, burns correctly with just an air shutter adjustment.
- Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.
Consult your dealer or installer if you suspect an improperly adjusted air shutter.
Approved Vent
•Use of of the following 6-5/8" diameter co-axial gas direct vent systems:
Manuafacturer Series
Simpson Dura-Vent Model GS
Selkirk Hearth Products Direct-Temp
American Metal Products Ameri-Vent
NOTE: Always use the high-wind cap for the type of vent you are using (if applicable)
•Slide the vent sections together and turn 1/4 turn until the sections lock in place.
•Screws are not required to secure the vent. However, three screws may be used to secure
vent sections together if desired.
•High temperature sealant is recommended at the appliance starter section connection (use
high-temperature silicone or Mill-Pac®).
•If disassembly is required, at time of re-assembly check to see if the vent creates a tight fit. If
it does not, apply high temperature sealant to the joints of the affected sections.
•Horizontal sections require a 1/4" rise every 12" of travel
•Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape)

18 Installation (for qualified installers only)
© Travis Industries 4041213 100-01152
Approved Vent Configurations
Restrictor Position
A vent restrictor is built into the appliance to adjust the flow rate of exhaust gases. This ensures proper combustion for
all vent configurations. Depending upon the vent configuration, you may be required to adjust the restrictor position.
The charts for acceptable vent configurations describe which position the vent restrictor must be in.
To Adjust the Restrictor:
Withe the fireplace cool, use the
bent rod included in the owner’s
pack to adjust the plate.
To Access the Restrictor:
1
2
NOTE: The fireplace is
shipped with the restrictor in
position #1 (fully open).
Determine the correct restrictor position (see the charts under
"Approved Vent Configurations" - the stock position is #1).
Lift up the adjustment plate and move it so the correct notch falls into
the slot on the adjustment bracket.
This restrictor is in position 1. This restrictor is in position 2.
AAAAAA
AAAAAA
AAAAAA
AAAAAA
To adjust, use the rod included in the owner’s
pack to lift up on the adjustment plate.
Adjustment Plate
Adjustment Bracket Position #3 is
this notch.
Measuring
Vent
Lengths
A maximum of two 90°
elbows may be used.
NOTE: do not use a
90°elbow between
two horizontal
sections.
NOTE: one
additional 45°elbow
may be used between
two horizontal
sections.
- or –
Two 45°elbows may
be used between
vertical sections.
Vent
Horizontal
Run
Vent
Height 30-1/2"
Vent Height is calculated to
the top of the vent on
horizontal terminations and
to the top of the termination
on vertical terminations.
Elbows add 3" to
the length of the
vent system.
Side
View
9-5/8"
3"
1-1/2"
Vent Length
(3', 4', etc.)
Vent sections overlap each
other by 1-1/2"
1-1/2"
8-3/4" wide with
1-1/2" to 3-3/8" of
overlap
12-3/8" tall with 1-
1/2" of overlap

Installation (for qualified installers only) 19
© Travis Industries 4041213 100-01152
Vertical Terminations using 0 or 2 45° Offsets
•The termination must fall within the
shaded area shown in the chart. Use
the indicated restrictor position.
Offset
Length
Horizontal
Offset
Vertical
Rise
Offset Length Hor. Offset Vert. Rise
None 5" 1'
1' Section 1' 1' 7"
2' Section 1' 9" 2' 4"
3' Section 2' 5" 3'
4' Section 3' 2" 3' 8"
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
5 feet
11' (min.)
15 feet
20 feet
25 feet
30 feet
0 feet
35' (max.)
0 feet
3 feet
6 feet
5 feet
0 feet
0 feet
The maximum offset
length is three 4'
sections.
Restrictor
Position # 3
3 feet
6 feet
11' (min.)
15 feet
20 feet
25 feet
30 feet
35' (max.)
8' 7"
(max.)
8' 7"
(max.)

20 Installation (for qualified installers only)
© Travis Industries 4041213 100-01152
Venting Configurations with a Horizontal Termination
The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
5 feet
0 feet
0 feet
0 feet
NOTE:
Horizontal sections require a 1/4" rise every 12" of travel.
The maximum vertical height is 11' - two 4' sections
The maximum horizontal length is 16' - four 4' sections
16 ' (Max)
Restrictor
Position # 1
5 feet
11' Max
10 feet
16 ' (Max)
5 feet
10 feet
5 feet
0 feet
11' Max
Restrictor
Position # 2
NOTE:
Restrictor positions are based upon lab tests. The
ideal restrictor position may vary slightly, especially
when the termination is near a demarkation line.
WARNING:
When using an elbow directly off the
top of the fireplace, a 2" clearance
above the vent is required.
