Travis industries 94900746 User manual

Tempest Lantern

Owner’s Manual

Natural Gas (sku# 94900746) - Propane (sku# 94900756)

Tested and

listed by

Portland

ANSI Z21.97-2017 / CSA 2.41-2017, CSA 2.17-2017

Outdoor Decorative Gas Appliances

Report # 0028GM083S

WARNING: For Outdoor Use Only. Installation and service must be performed by a

qualified installer, service agency or the gas supplier.

WARNING: If the information in this manual is not followed exactly, a fire or explosion

may result causing property damage, personal injury, or loss of life.

WARNING: Do not store or use gasoline, or other flammable vapors and liquids, in the

vicinity of this or any other appliance.

An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other

appliance.

DANGER: FIRE OR EXPLOSION HAZARD

If you smell gas:

Shut off gas to the appliance.

Extinguish any open flame.

If odor continues, leave the area immediately.

After leaving the area, call your gas supplier or fire department.

Failure to follow these instructions could result in fire or explosion, which could cause

property damage, personal injury, or death.

CARBON MONOXIDE

HAZARD

This appliance can produce

carbon monoxide which has

no odor.

Using it in an enclosed

space can kill you.

Never use this appliance in

an enclosed space such as a

camper, tent, car or home.

Hot glass will

cause burns.

Do not touch

glass until

cooled.

Never allow

childern to

touch glass.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

Part # 100-01535

Introduction

Overview

This manual details the installation, operation, and

routine maintenance for the Tempest Lantern.

Listing Details

This Lantern was tested to ANSI Z21.97-2017 / CSA

2.41-2017 “Outdoor Decorative Gas Appliances”,

CSA 2.17-2017 - “Gas-Fired Appliances for Use at

High Altitudes”, AGA 8-96-1997 “Requirement for

Gas-Fired Decorative Appliances”. The listing label

is chained to the appliance. A copy is shown to the

right.

Important Registration and Service

Information

No other Tempest Lantern has the same serial

number as yours. The serial number is on the safety

label attached by a chain near the control panel.

This serial number will be needed in case you

require service of any type. To receive full warranty

coverage, you will need to show evidence of the date

of purchase. Mail your warranty card or visit

traviswarranty.com to register your Tempest Lantern.

If any service issues may arise, contact your dealer

for details.

Table of Contents 3

Table of Contents

Overview ........................................................................................... 2

Listing Details.................................................................................... 2

Important Registration and Service Information ................................ 2

Gas Specifications:............................................................................ 5

Dimensions: ...................................................................................... 5

Installation Warnings:........................................................................ 6

Packing List....................................................................................... 6

Additional Items Required ................................................................. 6

Recommended Order of Installation.................................................. 6

Placement Requirements .................................................................. 7

Clearances: ....................................................................................... 7

Gas Line Requirements..................................................................... 8

LP and NG Configuration .................................................................. 8

Gas Line Connection......................................................................... 8

Piezo Ignitor Knob............................................................................. 8

Post Mount and Control Cover Installation ........................................ 9

Lantern Assembly.............................................................................. 10

Post or Pier Mounted Lantern (Optional)........................................... 11

Wall Mounted Lantern (Optional) ...................................................... 12

Before You Begin .............................................................................. 13

Operating Instructions ....................................................................... 13

Maintaining Your Lantern .................................................................. 15

Winterizing the Lantern. .................................................................... 15

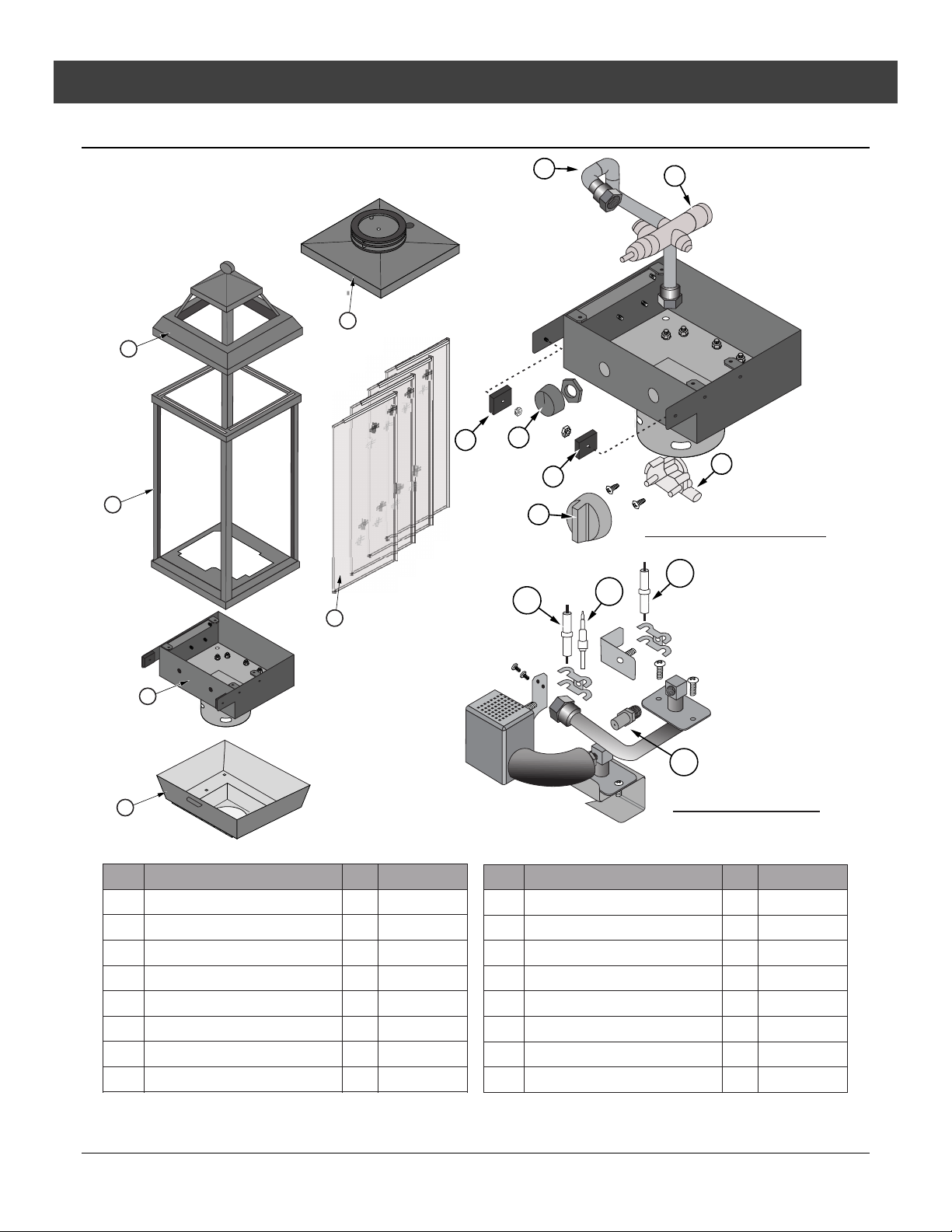

Replacement Parts............................................................................ 16

Troubleshooting Table....................................................................... 17

4Safety Precautions

! This appliance must be installed in accordance with all local codes, if any; if not, follow

ANSI Z223.1.

! This appliance must only be used outdoors in a well-ventilated area. It may not be used

in a building, garage, or other enclosed space.

• This appliance is not for use with solid fuel.

• The Lantern must be kept clean and free of leaves and debris to insure safe operation.

• Any hose or gas-supply line that is damaged or shows evidence of excessive abrasion or wear must be

replaced prior to use of the Lantern.

• If using a gas supply line to the Lantern, make sure it is properly located away from any walkway or in an

area where it may be subject to accidental damage

• Educate all children and adults of the dangers of the Lantern. Young children should be supervised when

they are in the same area as the Lantern. Do not let children play with the Lantern.

• Do not place clothing or other flammable items on or near the Lantern.

• Any screen or guard removed for servicing must be replaced prior to operating the Lantern.

• This unit must be installed and repaired by a qualified installer to prevent the possibility of an explosion.

Your dealer will know the requirements in your area and can inform you of those people considered

qualified. The Lantern should be inspected before use and at least annually by a qualified service person.

More frequent cleaning may be required due to excessive debris from leaves, dirt, insects, etc.

• Do not use this appliance if any part has been under water. Immediately call a qualified service

technician to inspect the appliance and to replace any part of the control system and any gas control that

has been under water.

• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or compromise

in the installation. Improper installation will void the warranty and safety listing.

• This appliance is approved for either natural gas (NG) or propane (LP). Burning the incorrect fuel will

void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about the

type of fuel used to your dealer. A label is placed on the control panel to show which fuel the Lantern is

designed for (in addition, NG units have 25 burner holes, LP units have 49 burner holes).

• Contact your local building officials to obtain a permit and information on any installation restrictions or

inspection requirements in your area.

• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the Lantern. Call your

dealer and arrange for proper servicing.

• Do not operate the Lantern if it is not operating properly in any fashion or if you are uncertain. Call your

dealer for a full explanation of your Lantern and what to expect.

• Do not store or use gasoline or other flammable liquids in the vicinity of this Lantern.

• Never remove, replace, modify or substitute any part of the Lantern unless instructions are given in this

manual for routine maintenance and cleaning. A trained technician must do all other work. Do not modify

or replace orifices.

• Allow the Lantern to cool before carrying out any maintenance or cleaning.

• Operate the Lantern according to the instructions included in this manual.

• If the burner does not start correctly turn the gas off at the gas control valve and call your dealer for

service.

• Do not use this appliance to cook food.

• Instruct everyone in the house how to shut gas off to the Lantern and at the gas main shutoff valve. The

gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to shut off.

• Do not operate the Lantern during a lightning storm or a possible lightning storm.

• Do not operate the Lantern during high wind conditions.

• Do not install in or on recreational vehicles and/or boats.

• Do not throw this manual away. This manual has important operating and maintenance instructions that

you will need at a later time. Always follow the instructions in this manual.

• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of

your Lantern, and assumes no responsibility of any consequential damage(s).

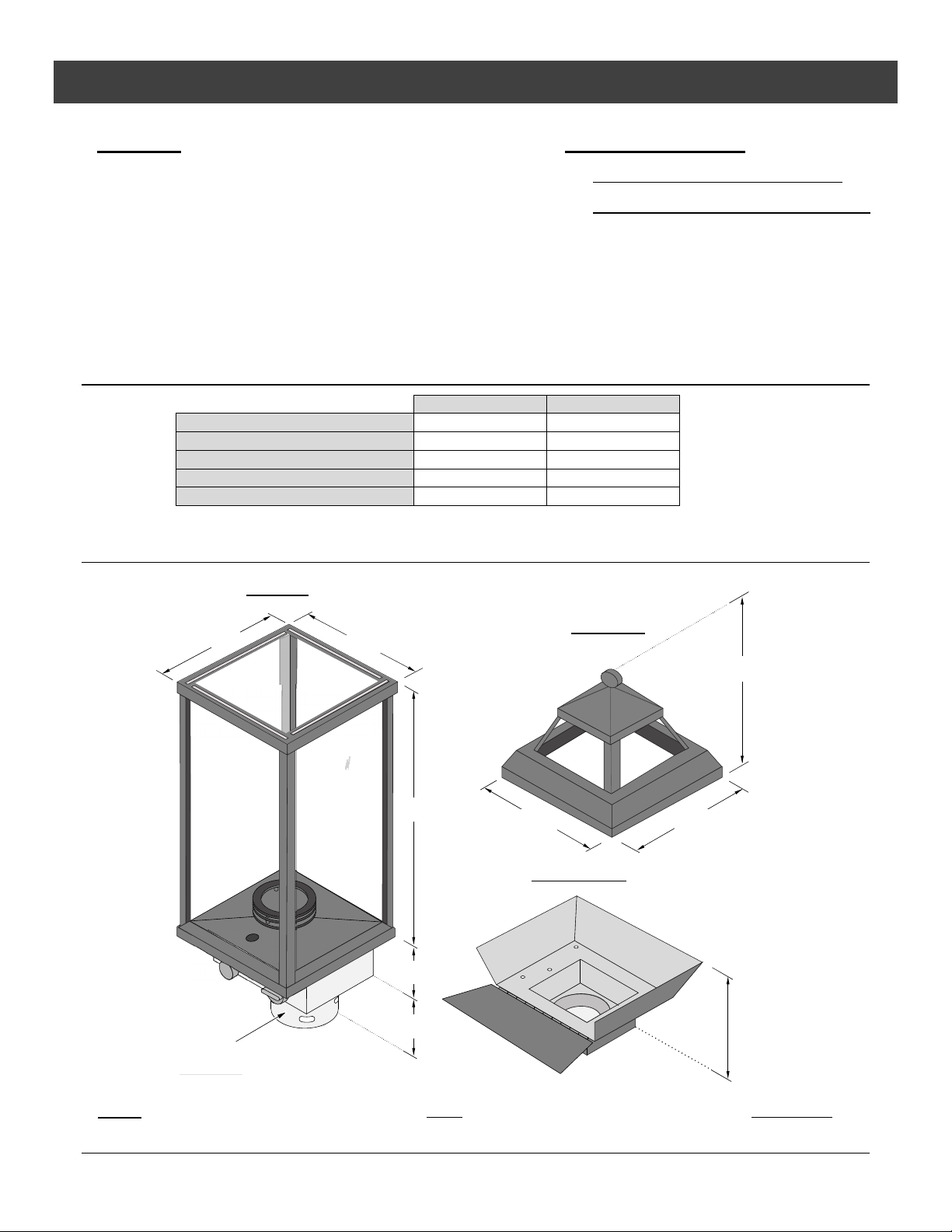

Features and Specifications 5

Features:

- Maximum 20,000 BTU Input

- Removable Rain Cap

- Tempered Glass (easy to remove and clean)

- Stainless Steel Construction

- Automatic Gas Shutoff Valve for Safety

- Rotary Piezo Igniter for Easy Lighting

- Wet Weather Lighting Port for Positive Ignition

Installation Options:

- For Outdoor Installation Only

- For Fixed Line Installations Only

- Wall Mount

- Post Mount

- Pier Mount

Gas Specifications:

NG LP

Input Rating (Btuh) 20,000 20,000

Orifice Size (DMS) #50 #55

Burner Ports 25 Holes 49 Holes

Manifold Pressure 7" wc 11" wc

Max. Inlet Pressure 7" wc 11" wc

Dimensions:

NOTE: Side clearances are measured from the glass – Top clearances are measured from the glass frame.

Lanter

Rain Cap

Base Cover

Mounting

Bracket

(102mm

)

8-1/4"

(210mm)

9-5/8"

(245mm)

9-5/8"

(245mm)

19-1/8"

(486mm)

9-1/2"

(242mm)

9-1/2"

(242mm)

2-1/2"

1-1/4"

(64mm)

(34mm)

6Installation (for qualified installers only)

Installation Warnings:

! This appliance is designed for outdoor use only, in well-ventilated areas.

! Failure to follow all of the requirements may result in property damage, bodily

injury, or even death.

! This Lantern must be installed by a qualified installer.

! This appliance is designed to operate on natural gas, or propane (LP).

! Notify your insurance company before hooking up this appliance. All relevant

information on the Tempest Lantern is located on page 2, Important Information.

You can fax them page 2.

! The requirements listed below are divided into sections. All requirements must be

met simultaneously. The order of installation is not rigid – the qualified installer

should follow the procedure best suited for the installation.

Packing List

Main Assembly

Burner Top

Rain Cap

Control Cover (pre-installed)

Glass (4 Pieces)

Piezo Ignitor Knob

Additional Items Required

This Lantern Requires One of the Following Base Assemblies:

Wall Mount Kit

Post Mounting Kit

Pier Mounting Kit

Recommended Order of Installation

1. Determine the location of Lantern. Make sure all clearances are met, (see page 7).

2. With the Lantern head location identified, prepare and mount the Lantern head support (pillar,

post, or wall mount). This order of installation may need to be modified due to individual

installation conditions. NOTE: sections 4, 5, 6 and 7 of this page detail gas connections to the

Lantern head.

3. GAS SUPPLY: The Lantern requires 20,000 BTU input (natural gas or LP). A shut off valve and

12 inches of flex line are provided to assist connection from the supply line to the Lantern head.

The shutoff valve accepts ½” MPT (male pipe thread). Before turning gas on to the Lantern, leak-

test all gas line connections.

4. For outside post and pillar installations route a ½”stainless steel flexible gas line from the shut off

valve to the Lantern head (you will have to provide this gas line).

For wall mount applications; if using flex line to pass through the wall of a building the flex line

must be enclosed in conduit for protection, or local code may require you to hard pipe the

connection from the control module to the Lantern head.

5. Attach the Lantern head to the mount. Attach the gas line. Leave the control covers loose to

allow for leak testing access. Install the Lantern assembly.

6. Bleed the gas line and start the Lantern. Leak test the gas line. Verify the Lantern works

correctly and there are no gas leaks. Attach the control covers.

7. Give the manual to the home owner and explain the operation of the Lantern.

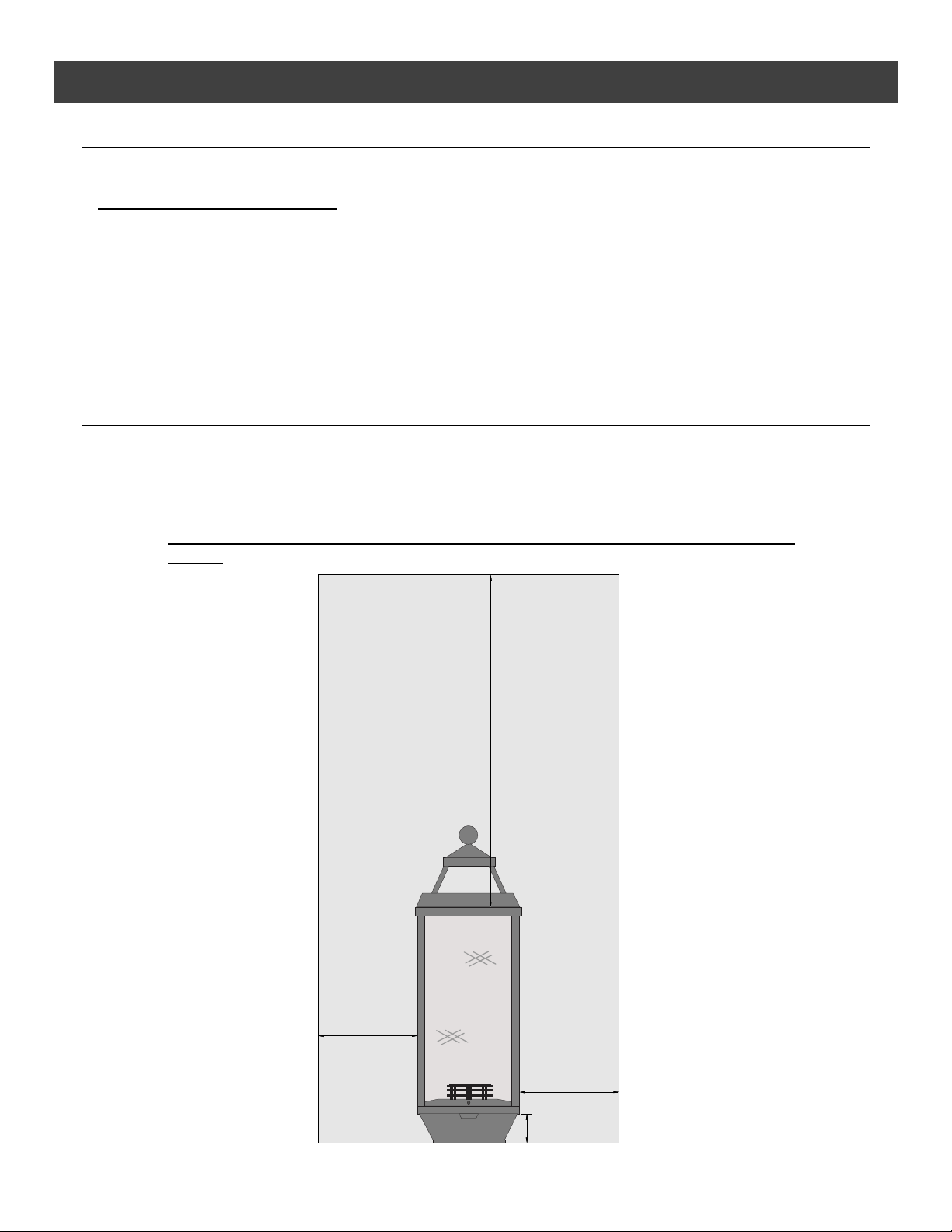

Installation (for qualified installers only) 7

Placement Requirements

! For Outdoor Use Only. Install in well-ventilated areas.

Do Not Locate the Lantern:

In high traffic areas.

Under or near trees, plants and buildings where debris may constantly fall into the

Lantern. Excessive debris will require high maintenance and/or cause malfunctioning of

the Lantern.

In places where people, children, and pets may contact the Lantern. Guards or fences

around the Lantern in these locations are recommended.

In places where the controls beneath the Lantern may be submerged under water.

Submerging of any part of its controls will require complete replacement of the controls.

Clearances:

The distance from ground level to the top of the Lantern shall be a minimum of 7 ft. (2.1M)

where installed within 2 feet (0.6M) of public walkways (e.g.: sidewalk, shared walkway

between two homes, or pathway in commercial applications). Lesser clearances shall be

permitted to be used only where acceptable to the authority having jurisdiction.

Keep combustibles away from the shaded heat zone of the Lantern (see illustration

below).

26" (660mm)

8" (203mm)

Measured from

Glass Surface

8" (203mm)

2-1/2" (64mm)

Installation

(for qualified installers only)

Gas Line Requirements

MASSACHUSETTS INSTALLATIONS - WARNING:

THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE

COMMONWEALTH OF MASSACHUSETTS.

OTHER MASSACHUSETTS CODE REQUIREMENTS:

Flexible connector must not be longer than 36 inches.

Shutoff valve must be a “T” handle gas cock.

Only direct vent sealed combustion products are approved for bedrooms or bathrooms.

Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.

A carbon monoxide (CO) detector is required in the same room as the appliance.

The gas line must be installed in accordance with all local codes or, in the absence of local codes,

with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, International Fuel Gas Code, Natural Gas

and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2, as

applicable. Consult your local gas supplier or propane gas dealer for code regulations and

recommended procedures.

The Lantern and gas control valve must be disconnected from the gas supply piping during any

pressure testing of that system at test pressures in excess of 1/2 psig. For pressures less than 1/2

psig, isolate the gas supply piping by closing the manual shut-off valve.

Leak test all gas line joints and the gas control valve prior to and after starting the Lantern.

LP and NG Configuration

This Lantern is shipped either for natural gas or for propane. The Lantern is not convertible from one

fuel to another. Check the sticker on the control panel to make sure the correct fuel is used. The

Lantern has unique orifices and burners for each fuel. See the table below for details.

NG LP

Input Rating (BTU/h) 20,000 20,000

Orifice Size (DMS) #50 #55

Burner Ports 25 Holes 49 Holes

Manifold Pressure 7" wc 11" wc

Max. Inlet Pressure 7" wc 11" wc

Gas Line Connection

A manual shutoff valve is required on the gas supply to the Lantern. It should be placed upstream of the

flex line. A shut-off valve is included with the optional wall-mount kit.

NOTE: This version of the tempest Lantern may not be connected to a portable LP cylinder.

Piezo Ignitor Knob

The Piezo ignitor knob is shipped in the hardware pack that comes with the Lantern. The

know installs by simply pushing it straight onto the ignitor shaft found in the control area of

the lantern.

Installation (for qualified installers only) 9

Post Mount and Control Cover Installation

A post mount and control cover are pre-attached to the Lantern for use with the optional post (3” round lamp

post) or pier mount. If using the wall mount, use the control cover included with the wall mount kit.

(a) Detach the control cover

from the Lantern assembly.

Keep the two thumb screws

used to attach the cover.

(b) Slide the control cover over

the post.

HINT: Use low-tack tape to

protect the post from

scratches.

NOTE: When installing the

post, make sure the post is

positioned with the

mounting holes 45° offset

from the front. The post

mount has obround holes

that allow 20° of rotation

(10° in each direction).

WARNING: Take care

when handling the Lantern

assembly to not damage

the gas line.

(d) Attach the Lantern to the

post using the included ¼-

20 screws.

(e) Attach the control cover to

the Lantern with the two

thumb screws.

! The safety label slides

into place between the

control cover and the

Lantern body.

Front

45 deg.

Installation

(for qualified installers only)

Lantern Assembly

(a) Place the burner top over the

main assembly. Make sure the

burner top is fully seated.

! Make sure the igniter element

lines up with the hole on the

burner top.

(b) Slide the glass panels into place

by aligning each panel with one

of the slots in the top plate of the

Lantern. Support the glass

panels as you lower them into

place to avoid damaging them.

HINT: Make sure the glass is

clean before installing and

handle with soft gloves or other

non-marking material (e.g. paper

towel).

the Lantern glass assembly. The

cap will friction fit to assembly.

Installation (for qualified installers only) 11

Post or Pier Mounted Lantern (Optional)

The tempest Lantern may be mounted to a 3” diameter post using the included post mount. This post may be

surface mounted on a deck or similar platform with the optional post base kit. If the post is placed in a remote

location, it may be sunk into the ground using concrete or other suitable means. See the post or post base kit

for assembly and installation instructions.

Post Mount

(included with torch)

Post Base

(separate kit)

Deck Mount (post or pillar)

Gas

Line

Deck Surface

(or equivalent)

Post Mount

(included with torch)

Free-Standing Post Mount

Gas

Line

3 Inch Diameter Post

Gravel (or equivalent)

Concrete Footing

3 Inch Diameter Post

Operation

Wall Mounted Lantern (Optional)

The tempest Lantern may be mounted to an external wall an optional wall mount kit. Make sure that all

clearances are can be maintained in your application. See the wall mount kit for assembly and installation

instructions.

Operation 13

Before You Begin

! Read this entire manual before you use your new Lantern, especially the section "Safety

Precautions" on page 4. Failure to follow the instructions may result in property damage,

bodily injury, or even death.

! Remove any cover from the Lantern prior to operation (the optional stainless-steel rain cap

may be left in place.

! Inspect the Lantern to make sure it is free of debris or objects that may have fallen into the

Lantern prior to operation.

! Inspect the Lantern, burner, and supply lines for any damage prior to operation. The

burner must be replaced prior to the appliance being put into operation if it is evident that

the burner is damaged. Use only Travis Industries replacement burners.

! It may be difficult to see the burner operating in direct sunlight.

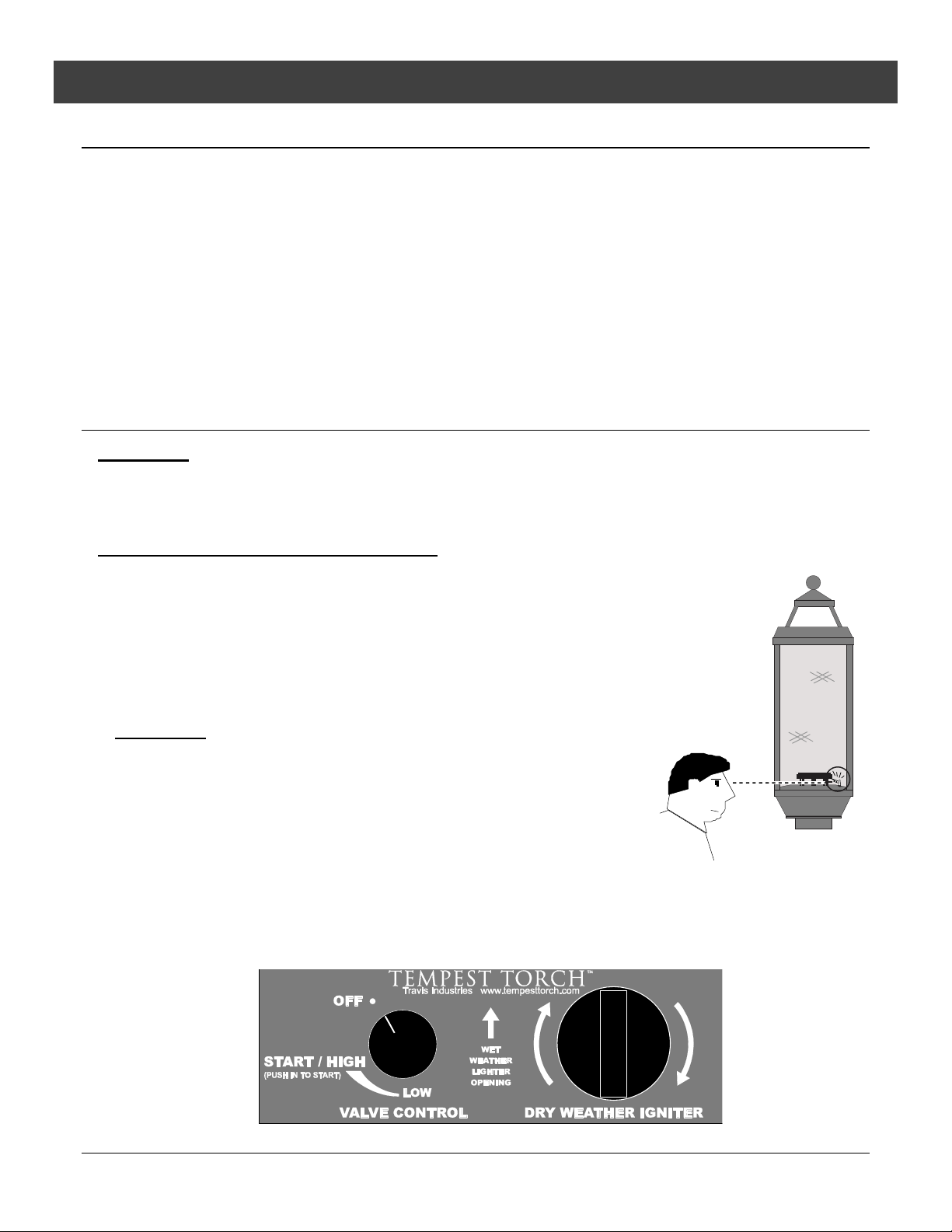

Operating Instructions

WARNING: Do not continue to push in the valve control in if the Lantern does not light.

By pushing the valve control in, you are allowing gas to flow to the Lantern,

creating an explosion hazard. If the Lantern does not light, push the valve

control in and rotate the valve to the OFF position.

Lighting the Lantern – DRY WEATHER

NOTE: If re-lighting, make sure the Lantern remains off for

a minimum of 5 minutes before re-lighting.

1. Push valve control in and turn counter-clockwise to

START/HIGH position, then release.

2. Turn the DRY WEATHER IGNITER clockwise to create

spark (continue turning while performing step #3).

WARNING: Make sure the igniter is sparking before

continuing to step 3. The spark is best viewed

by adjusting your viewing angle so eye level is

level with the burner top (see the illustration to

the right). The spark typically jumps from the

spark electrode to the burner ring.

3. Push and hold valve control in. Lantern must light within 5 seconds. After Lantern

lights continue to hold valve control in for 15 seconds. Note – if Lantern does not

light use a wand lighter in the wet weather lighter opening and perform step #3 to

light.

14 Operation

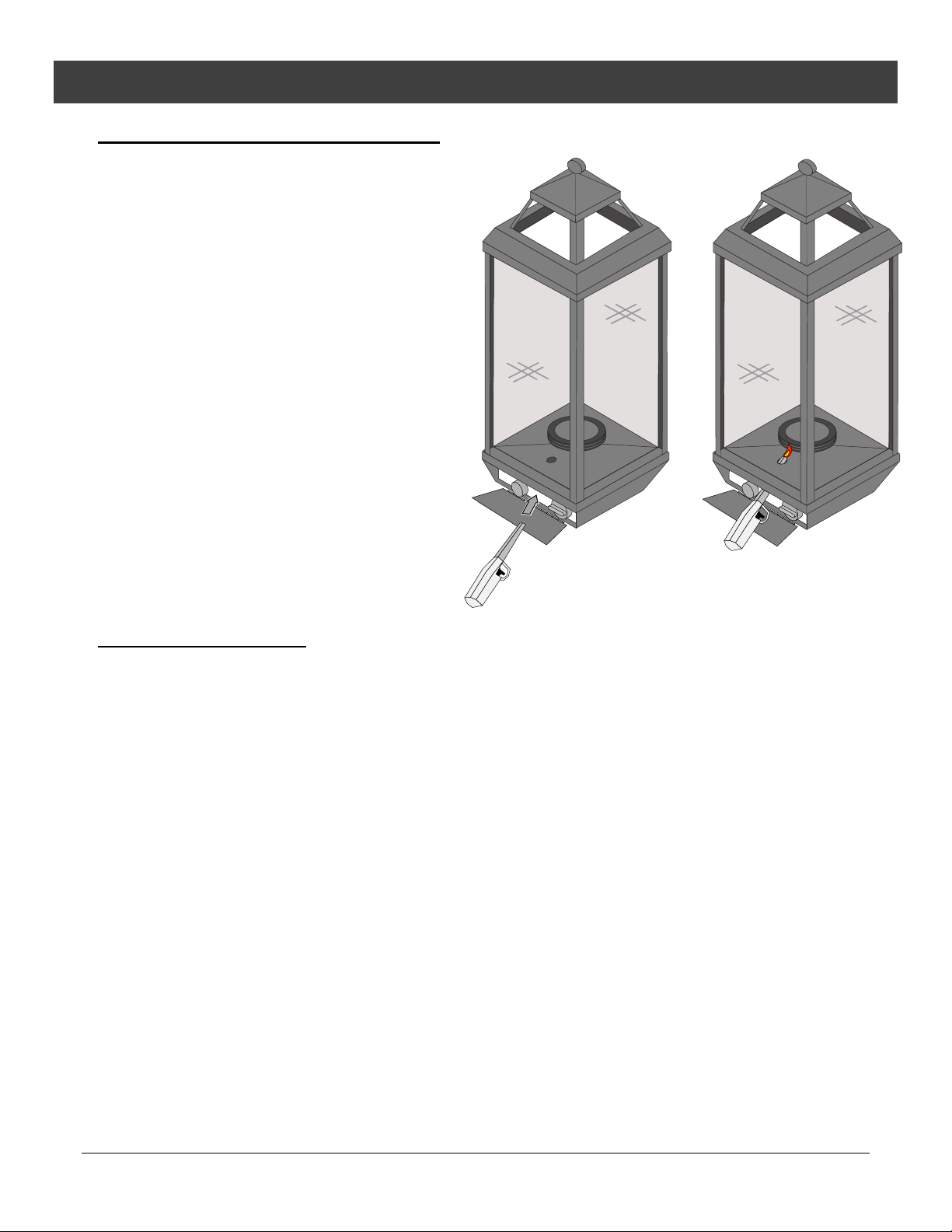

Lighting the Lantern – WET WEATHER

1. Push valve control in and turn

counter-clockwise to

START/HIGH position, then

release.

2. Insert a wand lighter through the

WET WEATHER LIGHTER

OPENING.

3. With the wand lighter lit, push and

hold valve control in. Lantern

must light within 5 seconds.

Remove the wand lighter. After

Lantern lights continue to hold

valve control in for 15 seconds.

Note – if Lantern does not light

with a wand lighter directly next to

the burner with the valve control

pressed in in the START/HIGH

position, gas is not reaching the

Lantern.

Turning the Lantern Off

1. Push valve control in and turn clockwise to the OFF position. Note – if excessive

wind or rain extinguishes the flame the safety control automatically turns gas off.

Maintenance 15

Maintaining Your Lantern

! Failure to inspect and maintain may lead to malfunctioning of the appliance

and potentially dangerous situations.

Inspect Lantern prior to each use.

Keep Lantern clean, remove any debris that collects in or on Lantern. Inspect for

spiders and insects, they may clog burner ports or air inlets and need be

removed before using.

Have the appliance inspected by a qualified service technician annually.

The stainless steel burner top will discolor – this is normal.

Your Tempest Lantern is designed to be cleaned and maintained easily. The most

common maintenance that your Lantern will require is glass cleaning. Perform this

maintenance by removing the rain cap (lift straight up) and carefully sliding each glass

panel up and out of the glass retainer assembly. Clean with glass cleaner or warm

soapy water.

The glass on your Tempest is tempered and designed for safety. If it breaks it will

shatter into small square pieces similar to a car windshield. It is special glass and if you

break one or need to replace a piece use only 3/16” thick tempered glass supplied by

your Tempest Lantern dealer.

To inspect for or clean debris out of the inside of your Lantern remove one piece of

glass. This will provide access to the inside of your Lantern. Once your glass piece is

out remove the pyramid shaped piece with the rings on the top by lifting it straight up,

once you are clear of the burner elements turn it sideways and remove through the

glass opening. This will provide you a clear view of all the Lantern components, visually

check for and remove all foreign objects, vegetation, bugs, debris. When reassembling

make sure you orient the Pyramid plate correctly, the burner elements that stick up

through this plate are delicate. Once oriented, slide the plate straight down onto the

burner assembly making sure the edges are seated all the way down.

Winterizing the Lantern.

In areas where the Lantern may not be used in winter, or for an extended period of time, you may wish to shut off

gas to the Lantern. This will insure the Lantern is not accidentally turned on or started with debris or snow inside

the Lantern.

WARNING: Do not cover the Lantern. A cover could combust if it is in place when the Lantern is turned on,

creating a severe safety hazard.

16 Maintenance

Replacement Parts

Replacement parts can be obtained from your Tempest Lantern retailer (see www.tempesttorch.com).

ID# Description Qty. Part #

1 Rain Cap 1 250-05512

2 Glass Frame Assembly 1 250-05513

3 Lower Base Assembly 1 250-05518

4 Base Cover 1 250-05514

5 Flame Spreader Assy - NG 1 250-01790

5 Flame Spreader Assy - LP 1 250-01791

6 Glass 4 250-01251

7 Piezo Knob, Black 1 250-01255

ID# Description Qty. Part #

8 Piezo Igniter w/ Screws 1 250-01254

9 Magnet w/ Nut 1 250-01268

10 Gas Valve w/ Nut 1 250-01253

11 Flex Pipe 3/8”od x 8” BLK 1 250-00666

12 Orifice, Burner - #55 1 250-00409

12 Orifice, Burner - #50 1 250-00753

13 Pilot Electrode S.I.T. Pilot 2 93006523

14 Thermo-Couple - S.I.T. Pilot 1 250-04425

11 10

BOTTOM PAN ASSEMBLY

BURNER ASSEMBLY

Maintenance 17

Troubleshooting Table

Problem: Possible Cause: Don't Call for Service

Until You:

Lantern Does Not Light Check shut-off valve.

Gas is Off

Verify shutoff valve is turned ON.

Turn Gas On

Igniter Does Not Spark Igniter is wet Use the wet-weather starting

instructions.

Flames are too short

(under 6")

The gas supply pressure to the appliance is

too low.

Depleted LP cylinder.

Gas supply lines or gas regulators do

not have enough capacity. This

maybe due to other appliances in the

house using up the available capacity,

e.g. pool heaters, furnaces, hot water

tanks, etc.

Flames are not Spiral Lantern was just turned on

Windy Condition

It takes 5 to 10 minutes for the

Lantern to start up and the flame to

form a spiral.

Wind will influence the flame shape

Glass is Sooting Wrong fuel type for Lantern

Burner or burner orifice may be dirty or

blocked

Windy Condition

Make sure LP head with LP gas and

NG head with NG gas

Contact your dealer for details on

removing any debris (spider webs,

etc.) from the burner and orifice area.

Wind will influence the flame quality

and, if persistent, may lead to sooting

on the glass.

Lantern makes Clicking

Sounds

Glass is moving inside the glass frame and

the stainless steel parts are expanding and

contracting with heat

THIS IS NORMAL

18 Warranty

To register your TRAVIS INDUSTRIES, INC. 1 Year Limited Warranty, complete the enclosed Warranty card and mail it within ten (10) days of the

appliance purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants

this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to

the original purchaser from the date of purchase as follows:

Check with your dealer in advance for any costs to you when arranging a warranty call. Mileage or service charges

are not covered by this warranty. This charge can vary from store to store.

Year 1 COVERAGE: PARTS & LABOR

Burner Assembly:

Burner, Venturi, Flame Spreader, Orifice, Gas Control Assembly: Gas valve, cover plate and hardware, thermocouple, pilot hood, pilot gas line,

piezo igniter, tip switch and wiring, LP regulator (if applicable)

Glass:

Glass (breakage from thermal shock only)

Accessories:

Wall mount bracket, in-ground post, and pier post

One-Way Freight Allowance:

One-way freight allowance on pre-authorized repair done at factory is covered.

Exclusions: Paint and Finish

CONDITIONS & EXCLUSIONS

1. This new gas appliance must be installed by a qualified gas appliance technician. It must be installed, operated, and maintained at all times in accordance with the

instructions in the Owner’s Manual. Any alteration, willful abuse, accident, neglect, alteration, misapplication or misuse of the product shall nullify this warranty.

2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized TRAVIS dealer.

3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered under

warranty. The installer must ensure the appliance is burning as per the rating tag at the time of installation. Over-firing (operation above the listed BTU rate) of this

appliance can cause serious damage and will nullify this warranty.

4. This warranty does not cover damage to the finish, such as scratches, dents, discoloration, rust or other weather damage, after purchase.

5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills or

mountains or other influences from mechanical systems such as fans, etc.

6. This Warranty is void if:

a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals.

b. The unit is subject to submersion in water.

7. Exclusions to this 1 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation, alteration or

adjustment of the manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in transit, alteration, or act of

God.

8. This 1 Year warranty excludes damage caused by normal wear and tear, such as discoloration. Also excluded is damage to the unit caused by abuse, improper

installation, modification of the unit, drilling of the orifices, or the use of fuel other than that for which the unit is configured. Units are shipped for either natural gas or

propane. Confirm fuel configuration with your installer.

9. Damage to stainless steel surfaces caused by fingerprints, scratches, melted items , or other external sources left on the stainless steel from the use of cleaners is not

covered in this warranty.

10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential

damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.

11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the gas appliance without the express

written permission of TRAVIS INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.

12. Any statement or representation of TRAVIS products and their performance contained in TRAVIS advertising, packaging literature, or printed material is not part of this

1 year warranty.

13. This warranty is automatically voided if the appliance’s serial number has been removed or altered in any way.

14. No dealer, distributor, or similar person has the authority to represent or warrant TRAVIS products beyond the terms contained within this warranty. TRAVIS

INDUSTRIES, INC. assumes no liability for such warranties or representations.

15. Travis Industries will not cover the cost of the removal or re-installation.

16. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.

17. THIS 1 YEAR WARRANTY IS THE ONLY WARRANTY SUPPLIED BY TRAVIS INDUSTRIES, INC., THE MANUFACTURER OF THE APPLIANCE. ALL OTHER

WARRANTIES, WHETHER EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED AND PURCHASER’S RECOURSE IS EXPRESSLY LIMITED TO THE

WARRANTIES SET FORTH HEREIN.

IF WARRANTY SERVICE IS NEEDED:

1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your TRAVIS dealer WITHIN 30 DAYS, giving them proof of purchase,

the purchase date, and the model name and serial number.

2. Travis Industries has the option of either repairing or replacing the defective component.

3. If your dealer is unable to repair your appliance's defect during the warranty period, they will process a warranty claim through TRAVIS INDUSTRIES, INC. The dealer

will require you to supply a copy of your receipt showing the date of the appliance's purchase and the serial number on your appliance. The appliance will then be

shipped, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace the appliance free of charge if it is

found to be defective in material or workmanship within the time frame stated within this warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight

charges prepaid (years 1 to 3 only) by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership.

Index 19

20 Index

AdditionalItemsRequired................................................................................................................................................................6

BeforeYouBegin............................................................................................................................................................................13

Clearances.........................................................................................................................................................................................7

Dimensions.......................................................................................................................................................................................5

GasLineConnection.........................................................................................................................................................................8

GasLineRequirements.....................................................................................................................................................................8

GasSpecifications.............................................................................................................................................................................5

InstallationWarnings........................................................................................................................................................................6

LanternAssembly...........................................................................................................................................................................10

LightingtheLantern–DRYWEATHER............................................................................................................................................13

LightingtheLantern–WETWEATHER............................................................................................................................................14

Listing Details...............................................................................................................................................................................2

LPandNGConfiguration...................................................................................................................................................................8

MaintainingYourLantern...............................................................................................................................................................15

OperatingInstructions....................................................................................................................................................................13

OrderofInstallation..........................................................................................................................................................................6

Overview........................................................................................................................................................................................2

PackingList.......................................................................................................................................................................................6

PiezoIgnitorKnob.............................................................................................................................................................................8

PlacementRequirements.................................................................................................................................................................7

PostMountandControlCoverInstallation......................................................................................................................................9

PostorPierMountedLantern........................................................................................................................................................11

Registration...................................................................................................................................................................................2

ReplacementParts..........................................................................................................................................................................16

TroubleshootingTable....................................................................................................................................................................17

TurningtheLanternOff..................................................................................................................................................................14

WallMountedLantern....................................................................................................................................................................12

WinterizingtheLantern..................................................................................................................................................................15

This manual suits for next models

Table of contents
