Traxxas 7185A User manual

HKC20057-R00 Rev. 200724
Power TapPower Tap
High-Current Connector
on the ESC

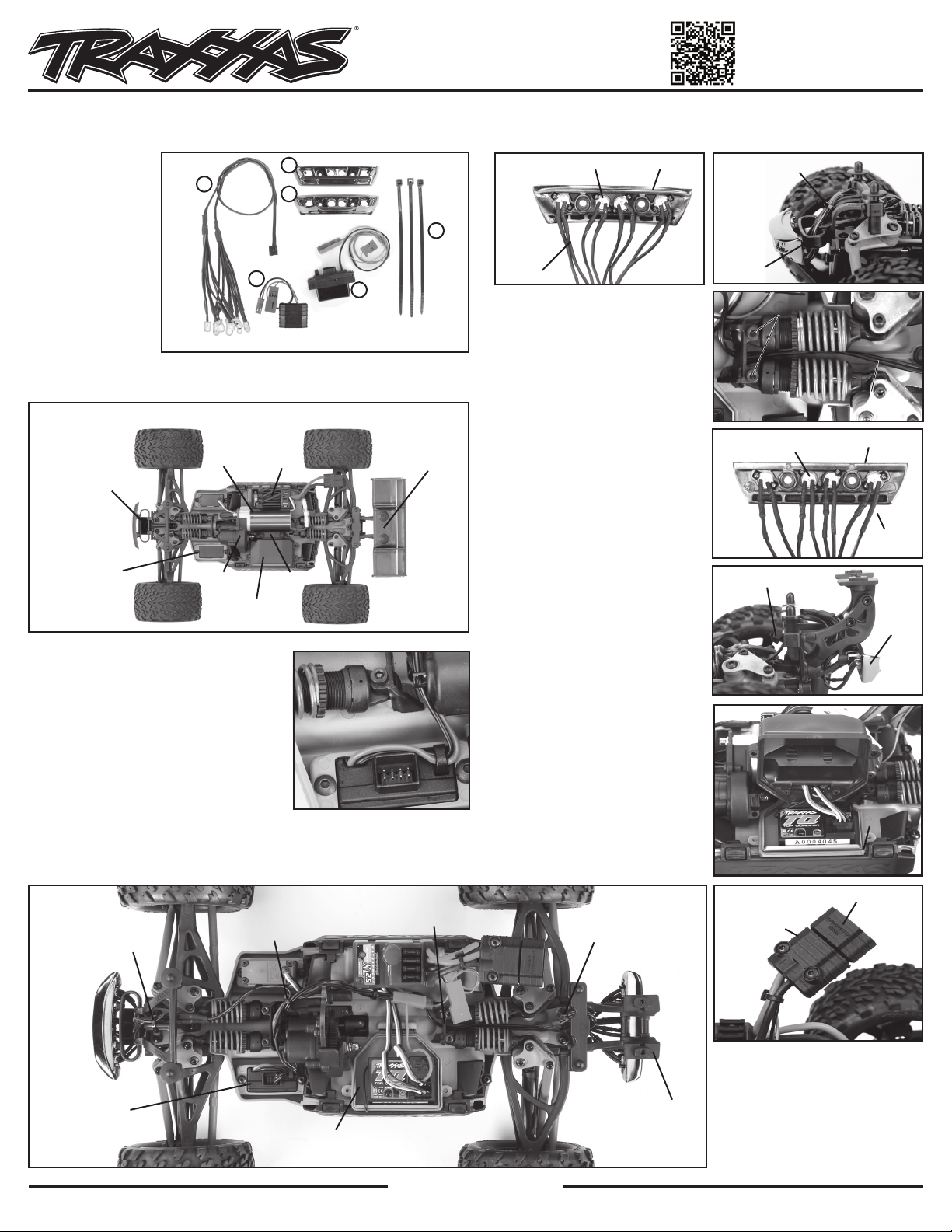

1/16 E-Revo LED Light Kit Instructions
Covers Part(s) #7185A, 7186A
Kit Contents:
1- LED lighting module
(included with part
#7185A only)
2- Power tap
3- LED harness
4- Front bumper
5- Rear bumper
6- Zip ties (3)
Tools Needed:
• 2.5mm hex driver
• 2.0mm hex driver
• 1.5mm hex driver
• Wire cutter (to trim
zip tie excess)
Note: Ensure vehicle battery is unplugged before beginning installation. Retain and reuse all parts and fasteners (unless otherwise noted).
Your model may differ slightly from the one shown in the illustrations.
Rear bumper
(under wing)
Wire clamp
Receiver box cover
Gear cover
Servo guard /
cover plate
Front bumper
ESC
Motor
Remove These Parts to Allow Installation of the
LED Light Kit
A
Tip: Sort the hardware by assembly as you remove them so you can easily locate the
correct hardware during reinstallation. (A)
Receiver box
(Receiver box cover and wire clamp removed
from the wiring layout for clarity)
Zip tie
C
LED harness
LEDs Front bumper
Front
bumper
mount
Zip tie
F
LED Harness Installation
1. Remove the parts shown in Fig. A.
2. Install the LED lighting module and route the
wires through the loop guide (B).
3. Route the short end of the LED harness through
the front body mount (D).
4. Snap the LEDs into the new front bumper (C).
5. Route the wires against the front bumper; then,
install the bumper on the front bumper mount.
Secure the harness to the front body mount with
a zip tie (trim excess) (C, D).
6. Continue to route the LED harness down the center of the chassis as shown in Fig. J.
Plug the LED harness connector into the LED lighting module. Route the module wires
and the LED harness around the transmission and secure them with a zip tie
(trim excess) (J).
JJ
Wiring LayoutWiring Layout
Zip tie
Zip tie
7. Fully loosen the two rear shock mount
screws, raise the rear shock mount
slightly, and route the long end of the
LED harness under the shock mount
(between the shocks). Tighten the rear
shock mount screws; then, continue
routing the LED harness toward the
rear bumper (E).
CAUTION: Do not pinch the wiring
between the shock mount and the chassis.
8. Snap the LEDs into the new rear
bumper (F).
9. Route the wires against the rear
bumper; then, install the bumper on the
rear bumper mount. Secure the harness
to the rear body mount with a zip tie
(trim excess) (F, G). Plug the LED harness
connector into the LED lighting module.
10. Thread the red wire from the LED
lighting module through the opening
in the receiver box cover and plug the
connector into any available channel in
the receiver box (DO NOT use the V/T or
RPM ports) (H).
Note: If you install the included power
tap, the red female connector from the
power tap can be used to connect the
temperature/voltage sensor (part #6523,
sold separately) to the electronic speed
control (ESC).**
11. Reinstall the ESC, the receiver box cover,
the wire clamp, the motor, and the gear
cover.
Note: Ensure that the blue o-ring is properly
seated in the groove around the receiver
box cover. Check for proper adjustment of
the gear mesh. Refer to the vehicle Owner’s
Manual for detailed instructions.
12. Plug the battery into the High-Current
Connector on the ESC (I).
13. The lights will turn on when the ESC is
turned on.
Receiver box coverReceiver box cover
D
Wing removed to show
rear bumper location
Rear bumper
LEDs
LED
harness
HH
Blue O-ringBlue O-ring
TRAXXAS.com
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: [phone], Fax: [phone], e-mail: [email protected]
LED lighting module
Rear shock mount
Rear shock mount screwsRear shock mount screws
LED harnessLED harness
EE
G
Zip tie
Rear
bumper
I
LED lightingLED lighting
modulemodule
Loop guideLoop guide
BB
1
4
3
5
6
* Larger red connector for telemetry use only
*
2
Visitez Traxxas.com/manuals pour télécharger
les instructions dans votre langue.
Visite la página Traxxas.com/manuals para
descargar el instrucciones en su idioma.
Auf Traxxas.com/manuals, können Sie
anleitung in Ihrer Sprache downloaden.
HKC20057-R02 Rev 201026

Installation of the power tap
Note: If the wiring from your speed control is not equipped with the 2-pin male
connector (black wire with red connector), you must install the included power tap on
the High-Current Connector.
High-Current
Connector
ESC
Power Tap
ESC Wiring
During installation, be sure that
the terminals of the High-Current
Connector and the power tap
make full contact.
ESC Wiring
Power Tap
2.6x8mm BCS
ESC Power
Tap Cover
ESC Wiring
Temperature/Voltage
Sensor (part #6523,
sold separately)**
**TQi Radio System required for functionality. Visit Traxxas.com for more information.
TRAXXAS.com
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: [phone], Fax: [phone], e-mail: [email protected]
Wire colors mismatched
CAUTION: RISK OF DAMAGE TO
ACCESSORIES!
Note the polarity and wire color on the
pre-installed wires on the power tap. Ensure the polarity is correct during
installation on the High-Current Connector: red (+) (positive), black (-) (negative).
