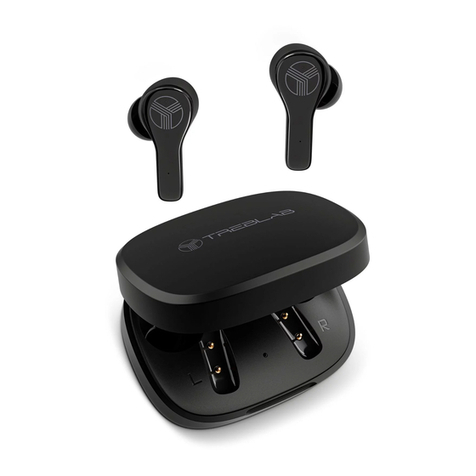

TREBLAB WX8 User manual

User’s Manual
Please read this manual
before using the product
True wireless earbuds
W X8

IN THE BOX
1.
5.
2. 4.
3.
6.
1. Charging case
2. Earbuds
3. Round Treblab
logo sticker
4. User’s manual
5. Charging cable
6. Silicone L, M, S ear-tips

Thank you for choosing TREBLAB WX8!
Our earbuds provide superior sound quality and mobility
combined with light-weight construction and the
convenience of hands-free wireless operation. Before
using this product, please read this manual.
STATUS LED
TOUCH PANEL
PRESSURE RELIEF HOLE
CHARGING CASE INDICATOR
CHARGING PINS
MICROPHONE
CHARGING CONTACTS

Put the earbuds back to the case or tap on
the Touch panels of both earbuds and hold
for 4 sec when no media is played.
EARBUDS FUNCTION
Function
Power On
Power Off
Pause / Play
Next track
Previous track
Volume +
Operation
Take the earbuds out of the case or tap on
the Touch panelsof both earbuds and hold
for 2 sec.
Tap on either earbud’s Touch panel once.
Double-tap on the right earbud’s Touch panel.
Double-tap on the left earbud’s Touch panel.
Tap on the right earbud’s Touch panel and
hold until you reach the required volume level.

Volume -
Answer a phone
call
Reject a phone
call
Hang up
Voice assistant
activation
Disconnect
Factory reset
Tap on the left earbud’s Touch panel and
hold until you reach the required volume level.
Tap on either earbud’s Touch panel during
the incoming call.
Tap on either earbud’s Touch panel and hold
for 1 sec during the incoming call.
Tap on either earbud’s Touch panel and hold
for 1 sec when on a call.
Tap on either earbud’s Touch panel three
times.
Tap on either earbud’s Touch panel five
times when the earbuds are connected to
the source device.
Tap on either earbud’s Touch panel five
times when the earbuds are not connected
to the source device.

WEARING METHOD
Using the correct size ear-tips is critical for the maximum
external noise isolation and a snug secure fit. It is also
common to have different sized ear canals so try one
ear-tip on at a time to find the best fit for each side.

To get the best possible fit with your WX8 earbuds,
gently push the earbuds into your ears and adjust
the headset until it fits comfortably. You should notice
a drop in ambient noise when the ear-tip has been
placed correctly. With a proper fit, you'll notice more
range when listening to music.
To change the silicone ear-tips:
1. Turn out the ear-tip upper cover.
2. Rotate and firmly push the ear-tip
tube to cover the ear-tip pillar.
3. Turn the ear-tip upper cover back
on the nozzle.

CHARGING
The WX8 model comes with a protective film on
the charging contacts of both earbuds that is
used for presale protection. Please remove the
film carefully to charge the earbuds.

1. To charge the case
When the charging case runs out of power, the orange
charging case indicator will start flashing. To charge
the case connect it to a power source using the
supplied Type-C cable or put it on a wireless charger.
The orange charging case indicator will turn on and
will go off when the case is fully charged. It takes
up to 1.5 hours to fully charge the case either via
cable or wirelessly.
Be sure to use a 5V DC, 0.5 - 1A adapter or charger.
Using a power source with lower power will increase
the overall charging time.
2. To charge the earbuds with the charging case
When the earbuds’ battery is low, you’ll hear the “Battery
low” voice prompt.

To charge the earbuds, put both earbuds into the
respective slots in the charging case. The earbuds
will turn off automatically and start taking the charge.
The earbuds’ white LED indicators will turn on. It
takes about 1.5 hours to charge the earbuds fully.
When the earbuds are fully charged, the LED indicators
will go off.
SETTING UP YOUR TREBLAB WX8
To turn the earbuds ON
1. Take the earbuds out of the case, the earbuds will
turn on automatically.
2. Another option to turn them on is to tap on the
Touch panels of both earbuds and hold for 2 sec. You
will hear the “Power On” and “Pairing” voice prompts.

The white LEDs will light up on both earbuds and, a
few seconds later, the white LED will start flashing on
one of the earbuds.
3. You will hear the “Connected” voice prompt after
connecting to the device.
To turn the earbuds OFF
1. Put both earbuds into the slots in the charging case.
2. Alternatively, tap on the Touch panels of both
earbuds and hold for 4 sec when there is no media
played. You will hear the “Power OFF” voice prompt.
The white LEDs will light up for 1 sec and go off on both
earbuds.

PAIRING
You can pair the WX8 earbuds with your device either
together or separately. Using only one earbud at a time
will help you to extend the overall playtime. Please
read the instructions below to make the pairing process
smooth and easy.
To pair both earbuds
1. Open the case lid and take the earbuds out of the
case. The white LEDs will light up on both earbuds
and, a few seconds later, the white LED will start flashing
on one of the earbuds.
2. Activate Bluetooth on the device, scan/search for
TREBLAB WX8, and click CONNECT.
3. If prompted by your device to connect, select Yes.

4. You will hear the “Connected” voice prompt indicating
that the earbuds are connected. The LED will start
flashing every 5 seconds on both earbuds.
When you turn the earbuds on, they will try to reconnect
to the recently connected device. If the reconnection
does not happen automatically, the earbuds will try
to find the next device in the pairing list. You can only
connect and play audio from one device at a time.
But you can save up to 6 connected devices in the
pairing list.
NOTE:
The earbud, which LED is flashing white during the
painting, is the main one. For better performance, keep
your smart device closer to the main earbud.

To pair one earbud only
1. Take one earbud out from the charging case. The
earbud should start flashing white indicating that it
is in the pairing mode.
2. Activate Bluetooth on the device, scan/search for
TREBLAB WX8, and click CONNECT.
3. If prompted by your device to connect, select Yes.
4. You will hear the “Connected” voice prompt indicating
that the earbuds are connected. The LED indicator will
go off.

AUDIO PLAYBACK
To pause and resume the playback, tap on either
earbud’s Touch panel once.
To change tracks on WX8, double-tap on the right
earbud’s Touch panel to play the next track and
double-tap on the left earbud’s Touch panel to play the
previous track.
To adjust the volume, tap on the right earbud’s Touch
panel and hold to increase the volume and tap on the
left earbud’s Touch panel and hold to decrease the
volume.

PHONE CALLS MANAGEMENT
The TREBLAB WX8 can be used to make and receive
calls when connected via Bluetooth. Audio playback
will be paused during the calls.
To answer a call:
To reject a call:
To end a call:
Tap on either earbud’s Touch panel
once during the incoming call.
Tap on either earbud’s Touch panel
and hold for 1 sec during the incoming call.
Tap on either earbud’s Touch panel
and hold for 1 seconds when on a call.

VOICE ASSISTANTS SUPPORT
TREBLAB WX8 earphones are compatible with Siri,
Google Voice Assistant and others. To use the voice
assistant, tap on either earbud’s Touch panel three
times.
RESET TO THE FACTORY SETTINGS
You can reset the WX8 earbuds to the factory default
settings by cleaning up the pairing list with the last 6
connected to WX8 devices.
Make sure that the earbuds are disconnected from
the source device. Tap five times on both earbuds’
Touch panel. The white LEDs will light up on both
earbuds and you will hear the “Power Off” voice prompt.
The earbuds’ memory is returned to the factory settings
now.

TROUBLESHOOTING
Can’t turn the earbuds
ON
Earbuds do not charge
Please make sure the earbuds are
charged, if not – charge them and
try again.
Please check if there is a protective
tape on the charging contacts of
both earbuds. If yes, please remove
it and try to charge the earbuds
once again.
Clean the charging contacts on
the earbuds with a slightly damp
cotton swab when they are turned
off (we recommend using water or
a specially designed cleaning fluid
sold for electronics).
Check if the earbud slots in the
charging case are free of debris.

Device doesn’t find
TREBLAB WX8
Try charging the case with another
Type-C cable, power source, adaptor
(if available).
Make sure the WX8 buds are not
paired with any other device, as
they can pair only with one device
at a time.
If WX8 are in pairing mode and one
of the earbuds flashes white, but
still is not found by your device,
please restart your device and the
headset.
Reset your earbuds to the factory
settings by following the steps from
the previous section. Try to pair
again.
