TREBLAB XR700 User manual

N,
L == =)
XR700
USER’S MANUAL
WIRELESS
EARPHONES

XR700
o0
00
000
000
L)

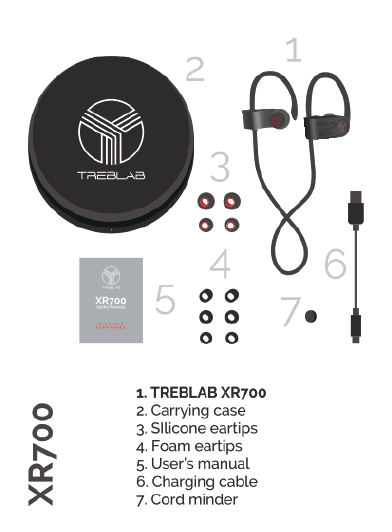

1. TREBLAB XR700
2. Carrying case
3 Sllicone eartips
4. Foam eartips
5. User's manual
6. Charging cable
7. Cord minder

Thank you for choosing TREBLAB XR700!
The earphones provide superior sound quality and
mobility. combined with light-weight construction and
the convenience of hands-free wireless operation
Before using this product, please read this manual

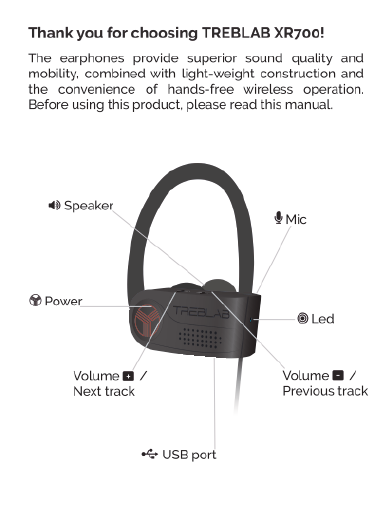

“ Speaker
Mic
@ Power
®Led
Volume @ / Volume @ /
Next track Previous track
& USB port

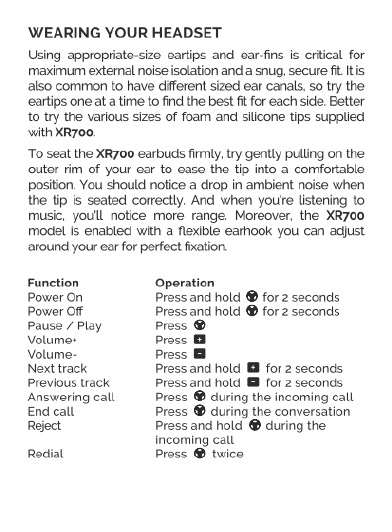

WEARING YOUR HEADSET
Using appropriate-size eartips and ear-fins is critical for
maximum extemal noise isolation and a snug, secure ft Itis
also common to have different sized ear canals. so try the
‘eartips one at a time to find the best fit for each side. Better
to try the various sizes of foam and silicone tips supplied
with XR700.
To seat the XR700 earbuds firmly, try gently pulling on the
outer rim of your ear to ease the tip into a comfortable
position. You should notice a drop in ambient noise when
the tip is seated correctly. And when youre listening to
music, you'll notice more range. Moreover, the XR700
model is enabled with a flexible earhook you can adjust
around your ear for perfect fixation.
Function Operation
Power On Press and hold @ for 2 seconds
Power Off Press and hold @ for 2 seconds
Pause / Play Press @
Volume+ Press B
Volume- Press B
Next track Press and hold & for 2 seconds
Previous track Press and hold 8 for 2 seconds
Answering call Press @ during the incoming call
End call Press ® during the conversation
Reject Press and hold @ during the
incoming call
Redial Press @ twice

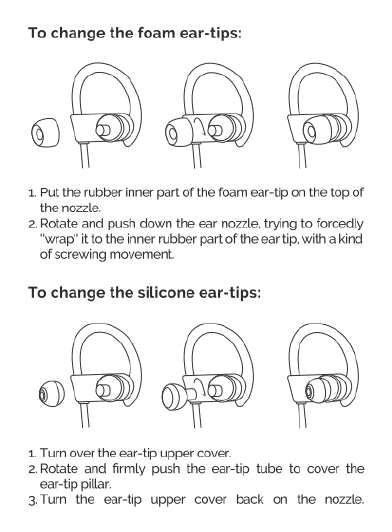

To change the foam ear-tips:
ol &) (o)
1. Put the rubber inner part of the foam ear-tip on the top of
the nozzle.
2. Rotate and push down the ear nozzle, trying to forcedly
"wrap" it o the inner rubber part of the ear tip, with a kind
of screwing movement
To change the silicone ear-tips:
el 4l (o
1 Tum over the ear-tip upper cover.
2 Rotate and firmly push the ear-tip tube to cover the
ear-tip pilla.
3Tum the ear-tip upper cover back on the nozzle.

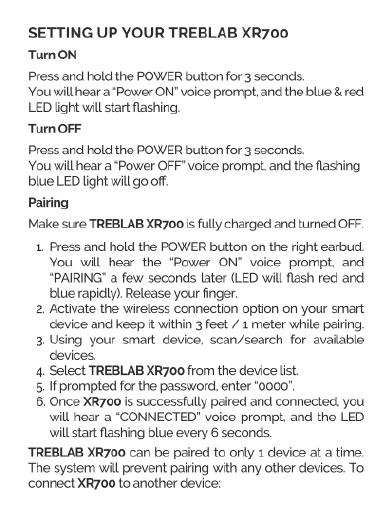

SETTING UP YOUR TREBLAB XR700
TumON
Press and hold the POWER button for 3 seconds.
Youwill heara ‘Power ON" voice prompt, and the blue & red
LED light will start flashing
Turn OFF
Press and hold the POWER button for 3 seconds.
You wil hear a ‘Power OFF" voice prompt. and the flashing
blue LED light will go off.
Pairing
Make sure TREBLAB XR700 s fully charged and turned OFF.
Press and hold the POWER button on the right earbud
You will_hear the "Power ON" voice prompt. and
*PAIRING' a few seconds later (LED will flash red and
blue rapidly). Release your finger.
2. Activate the wireless connection option on your smart
device and keep it within 3 feet / 1 meter while pairing.
Using your smart device, scan/search for available
devices.
4. Select TREBLAB XR700 from the device list.
5. If prompted for the password, enter 000",
6. 0nce XR700 is successfully paired and connected. you
will hear a *CONNECTED" voice prompt. and the LED
will start lashing blue every 6 seconds
TREBLAB XR700 can be paired to only 1 device at a time.
The system will prevent pairing with any other devices. To
‘connect XR700 to another device:

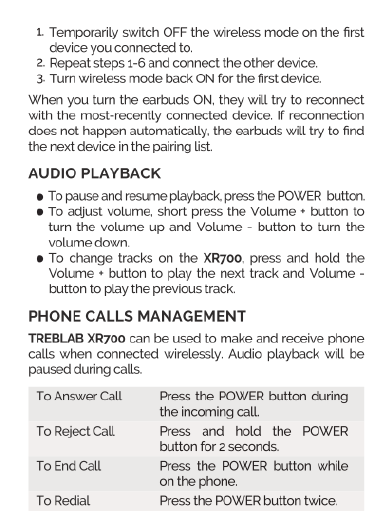

1 Temporarlly switch OFF the wireless mode on the first
device you connected to,
2 Repeat steps 1-6 and connect the other device.
3 Turn wireless mode back ON for the first device.
When you tum the earbuds ON, they will try to reconnect
with the most-recently connected device. If reconnection
does not happen automatically. the earbuds will try to find
the next device in the pairing list.
AUDIO PLAYBACK
@ To pause and resume playback. press the POWER bution.
To adjust volume, short press the Volume * button to
tum the volume up and Volume - button to tum the
volume down.
To change tracks on the XR700, press and hold the
Volume + button to play the next track and Volume -
button to play the previous track.
PHONE CALLS MANAGEMENT
TREBLAB XR700 can be used to make and receive phone
calls when connected wirelessly. Audio playback will be
paused during calls.
To Answer Call Press the POWER button during
the incoming call
To Reject Call Press and hold the POWER
button for 2 seconds.
ToEnd Call Press the POWER button while
onthe phone.
To Redial Press the POWER btton twice.

TROUBLESHOOTING
Problem
© Not powering on
© Not pairing
@ Notfindinga
wireless driver on
yourlaptop
Solution
Make sure the headset is fully
charged. Charge for 2 hours. if
necessary.
Reset the earphones press and
hold the POWER bution for 3
seconds whie charging. until the
LED flashes blue 3 times
Make sure the speaker is not paired
with any other device, as it can only
pair with one device at a time.
Press and hold the POWER button
for about 3 seconds while charging,
until the LED flashes blue 3 times.
This will force the headset to forget
previously paired devices. Repeat
the steps for pairing as previously
described.
Alteratively. disconnect the device
from your headset and remove
‘TREBLAB XR700 from your device's
pairing list. Try to pair again.
Make sure your laptop supports
wireless connections. If it doesnt,
you will need an extemal wireless
UsB adapter compatible with your
laptop. For further detals, consult
with your laptop manufacturer.

© Frequent Ensure that the distance between
disconnection your device and the headset is less
and noise than 30 feet / 10 meters.
Ensure that nothing is blocking the
signal between your device and the
XR700.
Check fthe music is paused.
Check ifthe volume level s set both
on the source device and on the
speaker.
Check if the headset is running out
of poweer.
RESTORE FACTORY SETTINGS
To restore the earphones back to factory settings:
1 Putthe headset to charging.
2 Press and hold the POWER button for 3 seconds while
charging, unti the LED flashes blue 3 times.
3 Now the earphones are restored back to factory
settings and ready to be paired again.
CHARGING
One full battery charge provides up to 4 hours of playing
time at maximum volume, and up to 8 hours at medium
volume. When the battery is running low. you will hear a
“BATTERY LOW" voice prompt.
To charge the earbuds, plug one end of the supplied cable
into the Micro-USB charging port under the ruibber cover of
the right earbud. Plug the other end of the charging cable
intoa standard USB port It takes up to 3 hours tofully charge.

The LED light will tumn on red while charging, The red light
‘will tum blue when the earbuds are fully charged
Be sure to use a 5V DC. 05-2 A adapter or charger. Using a
power source with lower power will increase the overall
charging time. Maximize the battery lifespan by charging
your speaker through a computer's USB port.
Unplug XR700 from the charging cable and the cable itself
from the power source when ot in use.
Ifthe headset i left unused, even the fully charged battery
wil lose its charge over time. We recommend fully
charging the TREBLAB XR700 at least twice a month to
maintain sufficient battery lfe.
SAFETY RULES
©Dont disassemble or modify your earbuds for any
reason. Doing this may cause the earbuds to malfunc-
tion or become combustible. The damage to your
device can void the manufacturer's warranty.
©Make sure the headset is completely dry before
charging. Charging a wet device may cause serious
damage.
© Clean only witha iy cloth,
© Avoid exposing TREBLAB XR700 to extreme tempera-
tures (below 37°F / 3°C or above 112°F / 45°C). Extreme.
temperatures can cause deformation of XR700
components and reduce battery life and the lifespan of
your headset.
© Don't put the device's LED lights close to humans’ or
animals’eyes.

©Do not use XR700 during a thunderstorm. Thunder-
storms can cause serious malfunction and increase the
risk of electric shock.

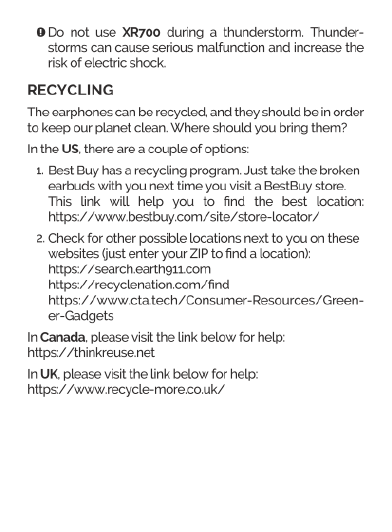

RECYCLING
The earphones can be recycled, and they should be in order
tokeep our planet clean. Where should you bring them?
Inthe US, there are a couple of options:
1. Best Buy has a recycling program. Just take the broken
‘earbuds with you next time you visit a BestBuy store.
This link will help you to find the best location
hitps:/ /wnuw bestbuy.com/site/ store-locator/
2 Check for other possible locations next to you on these
‘websites (ust enter your ZIP to find a location)
htips.//search.earthgiicom
hitps://recyclenation.com/find
https://www.ctatech/Consumer-Resources/Green-
er-Gadgets
In Canada, please visit the link below for help:
In UK. please visit the ink below for help:
hitps:/ /www.recycle-more couk/

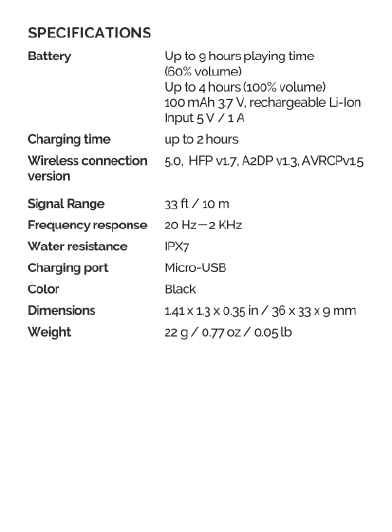

SPECIFICATIONS
Battery
Charging time
Wireless connection
version
signal Range
Frequency response
Water resistance
Charging port
Color
Dimensions
Weight
Uptoghours playing time
(60% volume)
Upto 4 hours (100% volume)
100 mAh 37 V. rechargeable Li-lon
Input5V /1A
uptozhours
50, HFPv17,A2DP V13, AVRCPVLS
Bft/10m
20Hz—2KHz
1PX7
Micro-USB
Black
141%13%035in /36X 33X 9mm
229/07702/0051b

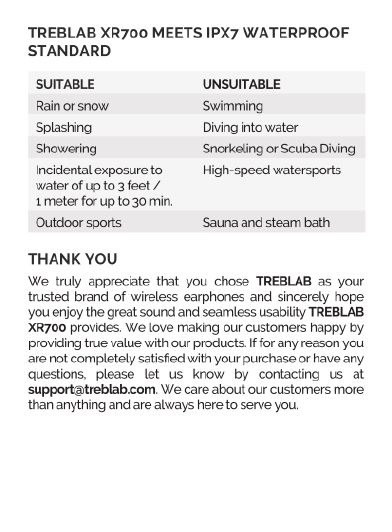

TREBLAB XR700 MEETS IPX7 WATERPROOF
STANDARD
SUITABLE UNSUITABLE
Rain or snow Swimming
Splashing Diving into water
Showering Snorkeling or Scuba Diving
Incidental exposure to High-speed watersports
water of up to 3 feet /
1meter for up 10 30 min
Outdoor sports Sauna and steam bath
THANK YOU
We truly appreciate that you chose TREBLAB as your
trusted brand of wireless earphones and sincerely hope
youenjoy the great sound and seamless usability TREBLAB
XR700 provides, We love making our customers happy by
providing true value with our products. If for any reason you
arenot completely satisfied with your purchase or have any
questions, please let us know by contacting us at
supportatreblab.com. We care about our customers more
than anything and are always here to serve you.

1YEAR WARRANTY
Parts and Labor Warranty.
Please visit wwiw reblab com
to register YOUR warranty.
Manufactured by:
Productech Corp wwwtreblab.com
Contact us: suppor
[phone]
