Dear Customer,
Thank you for having chosen a Treesse product and welcome to our world of total well-
being.
We remind you that all our products are manufactured from top quality materials and
are fully tested in accordance with safety regulations.
Added to this guarantee of quality and comfort are the product's strong innovation and
sought-after design.
Now all we have to say is ... enjoy your relaxation.
Tre S Group S.p.A.

treesse
Pg. 4
treesse
CONTENTS
INTRODUCTION 5
－USER AND MAINTENANCE MANUAL
－SAFETY MEASURES
INSTRUCTIONS FOR USE 6
－GENERAL FUNCTIONS
－COMPONENTS DESCRIPTION
- FILL FUNCTION
－SPA FUNCTION
－SKIMMER BORDER OPERATION
- LED CHROMOTHERAPY FUNCTION
- DRAIN FUNCTION
－STREAM SHOWER FUNCTION
- DISINFECTION FUNCTION
－CONTROL PANEL OPERATION
MAINTENANCE 18
- SURFACE CLEANING
GUARANTEE 19
- TERMS OF GUARANTEE
- CERTIFICATE OF GUARANTEE
-TEAR-OFFS TO BE RETURNED

treesse
Pg. 5
treesse
?USER AND MAINTENANCE MANUAL
This manual is a guide on how to safely use Treesse products, and it is therefore important to read the
manual carefully before using the product.
This manual is particularly important and should therefore be carefully preserved, also for future
consultation.
Treesse reserves the right to make appropriate changes to the product or to replace the product without
notice.
?SAFETY MEASURES
MAKE SURE THAT THE AREA USED TO INSTALL THE PRODUCT CAN SUPPORT THE WEIGHT
OF THE PRODUCT, i.e. ITS WEIGHT PLUS ITS MAXIMUM WATER CONTENT, AS INDICATED IN
THE PRODUCT TECHNICAL SHEET.
For correct use of the product please read all the instructions provided in this manual. The manufacturer
cannot be held liable for damage caused due to improper use of the product.
It is important to check that all parts comply with the indications given in the product technical sheet and
installation manual. The manufacturer cannot be held liable for any damage caused due to tampering or
to improper product repairs.
In the event of product malfunction and if still under guarantee, please contact our authorised technical
staff only.

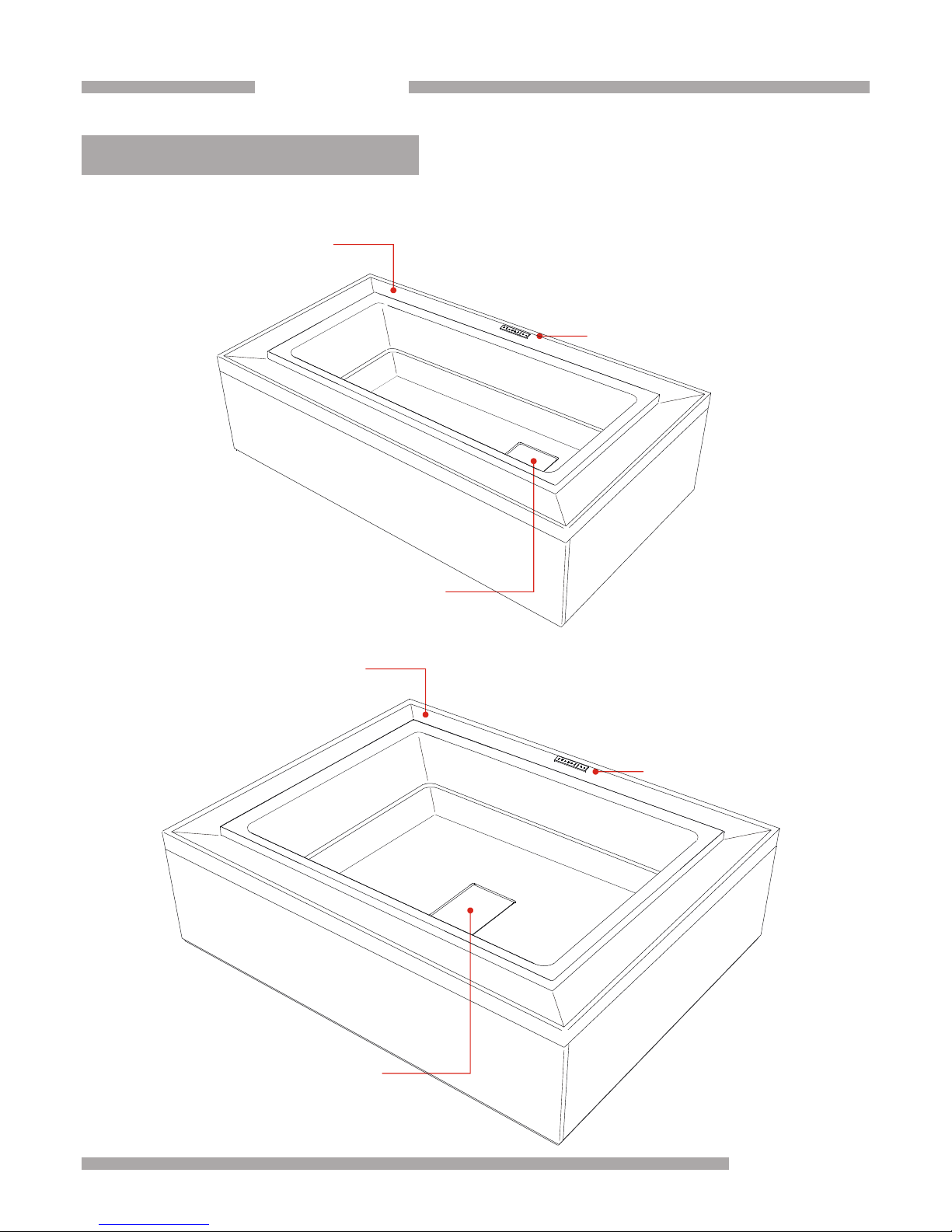

INTRODUCTION

CONTROL PANEL
CONTROL PANEL
DRAIN
DRAIN
SKIMMER BORDER
SKIMMER BORDER
treesse
Pg. 6
treesse
?GENERAL FUNCTIONS
INSTRUCTIONS FOR USE

treesse
Pg. 7
treesse
?GENERAL FUNCTIONS
CONTROL PANEL
CONTROL PANEL
DRAIN
DRAIN
SKIMMER BORDER
SKIMMER BORDER

?COMPONENTS DESCRIPTION
treesse
Pg. 8
treesse
FILLING
The tub is filled via the intake grid and is
managed via the control panel (see page 13).

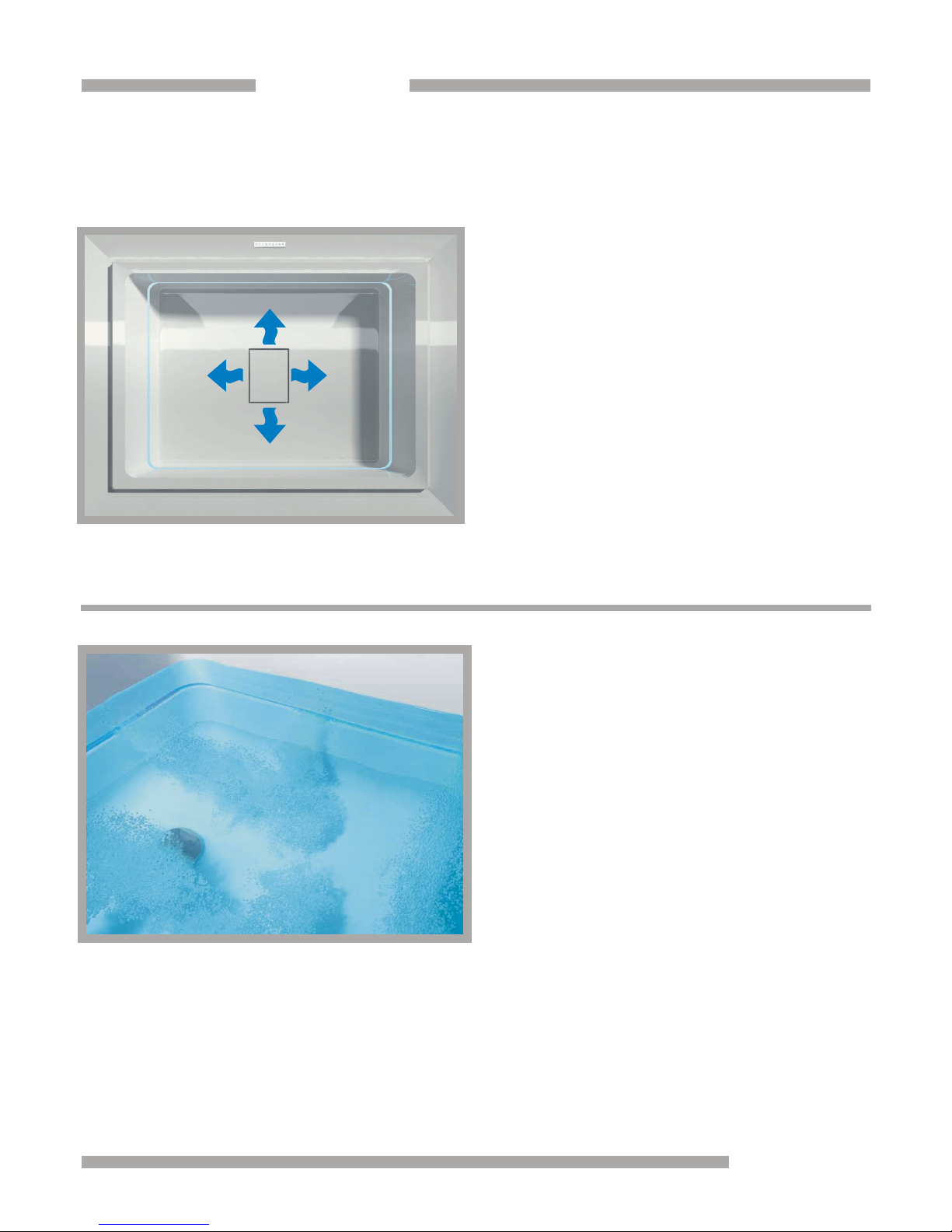

SPA
The FUSION SPA TUB has the patented spa
system known as GHOST SYSTEM©.
This device means that the spa quality can be
used without the actual presence in the tub of
a spa generating mechanism, distinctly
improving the product's ergonomics.
For how this system works, see the details
under “control panel” (page 14).

treesse
Pg. 9
treesse
SKIMMER BORDER
The FUSION SPA TUB has a skimmer border
feature that offers a total relaxation and well-
being experience.
The extra border collects the excess water
and channels it to the collection tanks fitted
underneath the tub.
The water recovered is re-introduced to the
tub through the intake grid.
This system is fully automatic.
IMPORTANT
The product only works when the tub and
tanks are full.
IMPORTANT
The skimmer border is designed to collect
overflow, not for anomalous movement of the
water caused by improper use of the spa tub.
In this respect it is strongly recommended
that you enter the tub and immerse
yourself with caution.
While the overflow recycling is in operation,
the heater switches on automatically.
This device helps to keep the water at a
constant temperature.
?COMPONENTS DESCRIPTION

treesse
Pg. 10
treesse
The tub's drain is located in a chamber in the
base, hidden by the flat cover in the surface
coating.
This means that entering and remaining in the
tub is safer and more comfortable.
To clean the grid on the drain, just lift the cover
by hand as it only rests on the base.

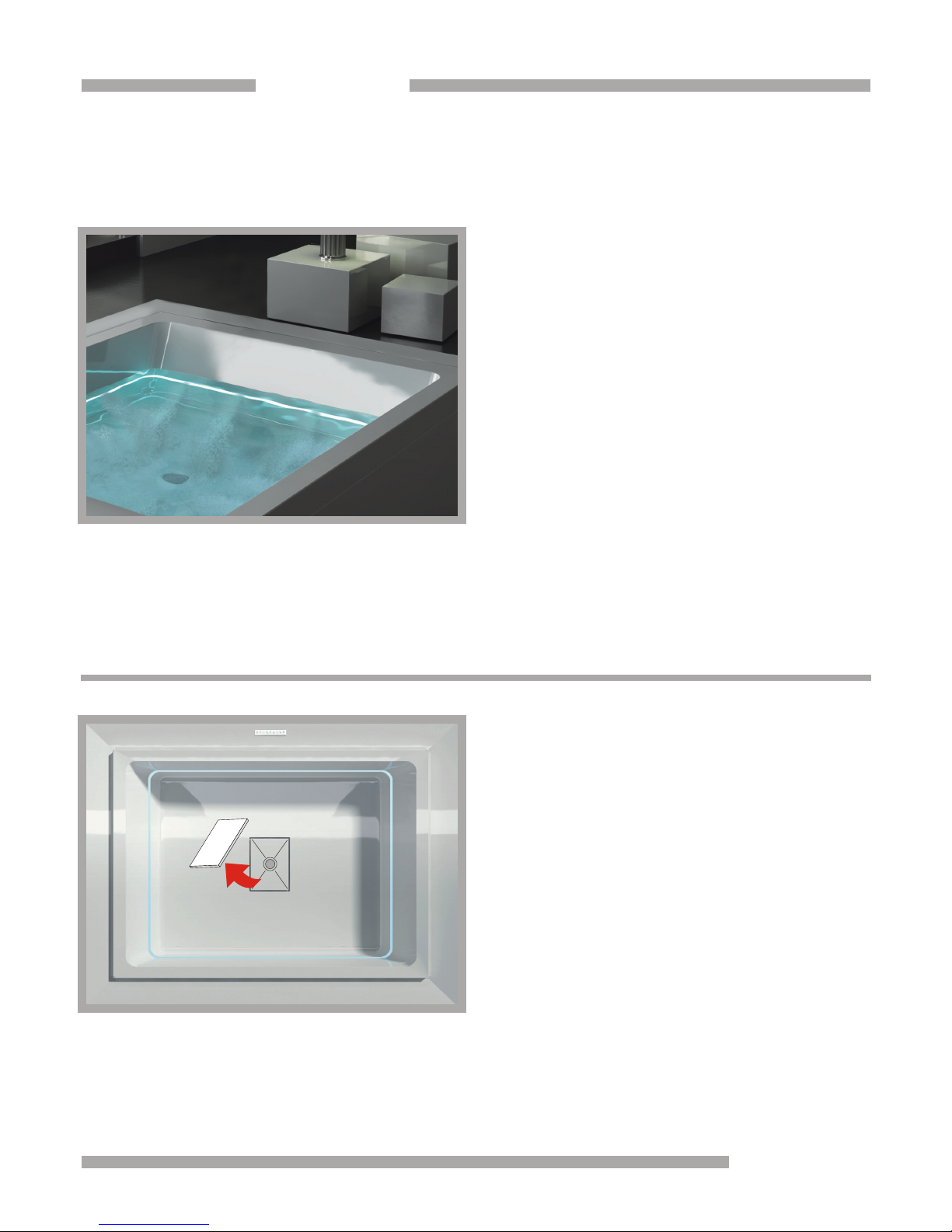

DRAIN CLEANING
LED CHROMOTHERAPY (optional)
The product's LED chromotherapy feature is
located in the outer wall and the transparency
of part of the tub allows diffusion of the light.
The absence of a light generation device inside the
tub itself strongly improves the product's
ergonomics and the risk of its breakage.
For how this system works, see the details
under “control panel” (page 15).
?COMPONENTS DESCRIPTION

treesse
treesse
Pg. 11
CONTROL PANEL
BUTTON description
SPA On/Off button
LIGHT/CHROMOTERAPY button
Scroll UP button
Scroll DOWN button
Manual FILL button combinations
Manual DRAIN button combinations
On/Off STANDBY button combinations
+
+
+
?COMPONENTS DESCRIPTION

treesse
treesse
Pg. 12

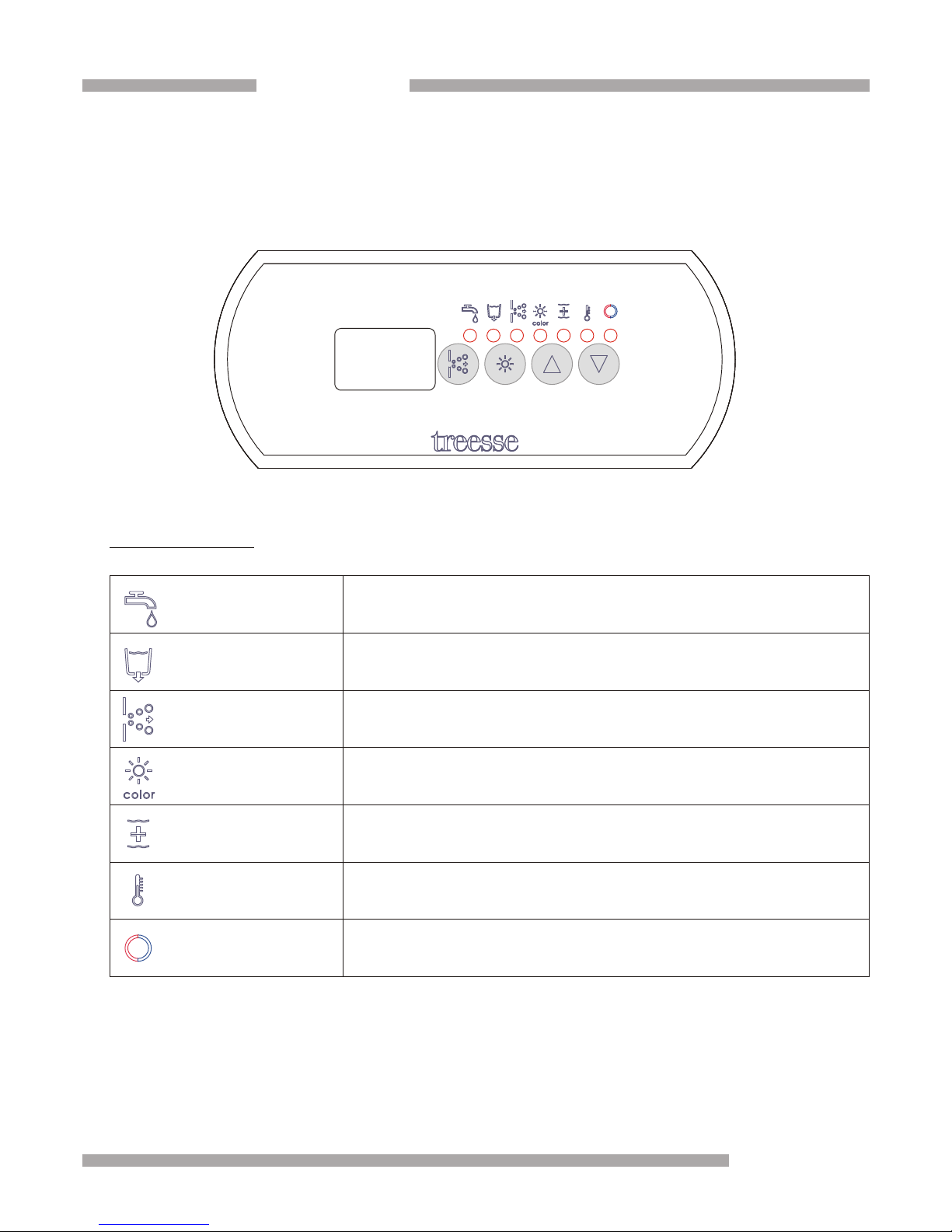

LED descriptions
FILL on
DRAIN on
SPA on
CHROMOTHERAPY/LIGHT on
CLEAN/DISINFECT on
HEATING on
TEMPERATURE adjustment
CONTROL PANEL
?COMPONENTS DESCRIPTION

treesse
treesse
Pg. 13
Start-up
On start-up, all LEDs light up for 3 seconds after displaying the software version and build.
+Filling
Functions
The fill mechanism is triggered by pressing SPA and scroll DOWN
together.
The function is confirmed when the FILLING LED is on.
When filling is complete and all necessary conditions for the product
to function are satisfied, the system stops automatically and makes
the SPA, RECIRCULATE, OZONE and HEATER functions
available.
During filling, if the time to reach minimum level (90 mins) and
maximum level (15 mins) of water in the tub's expansion tank is not
satisfied, the system will display a warning message "AL1"
(minimum level) or "AL2" (maximum level), blocking all functions as a
result.
In this case the tub will have to be shut down, then started up again
after waiting 30 seconds, using the product's main switch.
While the spa is in use, the system automatically keeps the water level
at the edge of the tub.
+Draining
T h e d r a i n i n g m e c h a n i s m i s t r i g g e r e d b y p r e s s i n g
CHROMOTHERAPY and scroll DOWN together.
The function is confirmed when the DRAINING LED is on.
This function can be activated at any time.
When DRAINING is on, all other functions are disabled.
During draining, if the time to reach minimum level (60 mins) of water
in the tub's expansion tank is not satisfied, the system will display a
warning message "AL3", blocking all functions as a result.
In this case the tub will have to be shut down, then started up again
after waiting 30 seconds, using the product's main switch.
CONTROL PANEL
?COMPONENTS DESCRIPTION

treesse
treesse
Pg. 14
ON mode
In ON mode the spa is kept ready for use by the user.
If there is not water level warning, the recirculation pump remains on to filter the water.
On start-up, the control panel goes to the same status as before the last shutdown.
The change to ON from STANDBY mode is made by pressing the scroll DOWN and UP buttons
together.
STANDBY mode
STANDBY mode is used when the spa is not expected to be used for some time, and maintains a
temperature (chosen by the user) lower than the product's normal usage temperature.
The default value is 25° C.
In this mode the functions are disabled and the recirculation pump becomes active, provided there are
no water level warnings, to maintain the temperature or filter the water.
To enter and exit STANDBY mode, the scroll UP and DOWN buttons have to be pressed together.
STANDBY mode is also maintained in the event of blackouts or power surges.
When the spa is in STANDBY mode the "SBY" message is displayed.
If the heater is in operation, the related LED is on.
To change the temperature in STANDBY mode press the scroll UP and DOWN buttons.
The minimum temperature that can be set is 13° C.
For filtering with disinfection while in STANDBY mode, the pump and the ozonizer are activated twice a
day (every 12 hours).
During filtering the related LED is on.
Spa
The spa function is activated by pressing the SPA button.
The function is confirmed when the SPA LED is on.
This function can be activated only when the water has reached the
required level.
The spa function is disabled when DRAINING is on.
If not stopped via the control panel, the function switches off
automatically after 20 minutes.
CONTROL PANEL
?COMPONENTS DESCRIPTION

treesse
treesse
Pg. 15
/

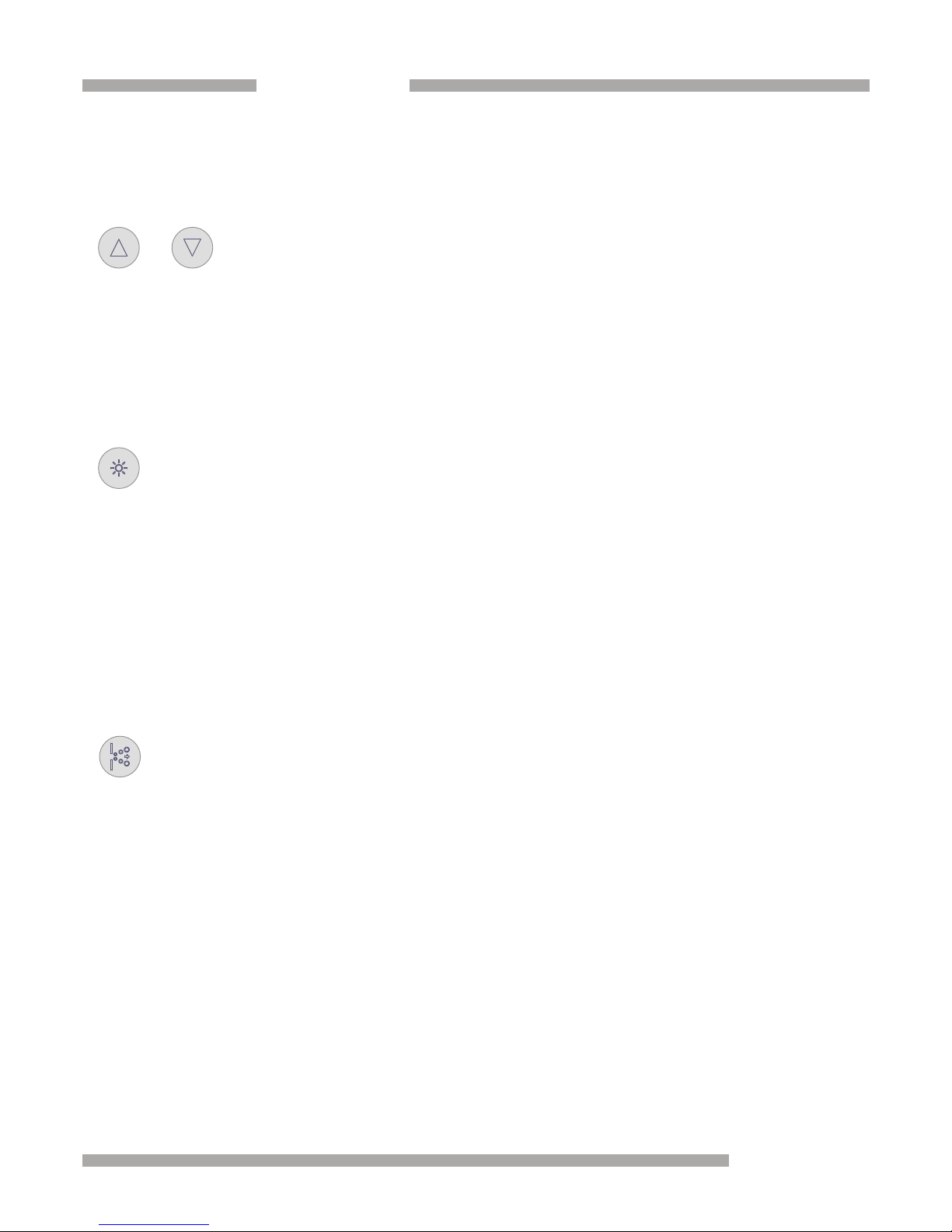

Temperature
The temperature setting is adjusted +/- 5° C by pressing one of the
two scroll buttons.
During temperature adjustment the related LED is on.
After 3 seconds of inactivity, the display returns to standby and the
related LED goes off.
The temperature setting options range from 10° C to 40° C.
On start-up the last temperature setting is used.
The default temperature on initial start-up is 35° C.
Light/Chromotherapy
Pressing the LIGHT/CHROMOTHERAPY button activates the
chromotherapy colour sequence.
This function can be activated at any time, even without the usual
water level in the spa.
The 16-colour sequence changes automatically every 15 seconds.
Pressing the LIGHT/CHROMOTHERAPY button again stops the
sequence at the current colour. Pressing the button repeatedly
manually changes the colours.
Pressing the LIGHT/CHROMOTHERAPY button for 2 seconds
switches off the function.
If not turned off manually, the function stops automatically after 3
hours.
Sand filter cleaning
Water filtration is by means of a sand filter attached to the recirculation
pump.
Cleaning of the filter helps to keep its filtering capacity efficient.
The function can be activated manually, automatically and after a “no
water flow” warning.
This cleaning is independent of the filling, draining, spa or warning
functions, and during cleaning the recirculation pump, heater and
ozonizer are disabled.
During the cleaning cycle the SPA LED flashes.
IMPORTANT
It is recommended that the sand be changed every 5 years by
contacting the company's support centre.
CONTROL PANEL
?COMPONENTS DESCRIPTION

treesse
treesse
Pg. 16
?DESCRIZIONE DEI COMPONENTI
PANNELLO CONTROLLO
Automatic cleaning - Begins automatically after every 350 hours of
recirculation pump operations.
If the filter is blocked a cleaning cycle is triggered automatically.
If the problem persists, the system blocks all functions and the
message “FL" is displayed.
In this case the tub will have to be shut down, then started up again
after waiting 30 seconds, using the product's main switch.
The cleaning cycle can only be stopped by turning off the product at
the mains.
Manual cleaning - The function is activated manually by pressing the
SPA button for 10 seconds.
There is no limit to the number of cycles activated.
Heater
The heater switches on automatically when the spa water temperature is one degree Centigrade lower
than the value set on the control panel.
If not already in operation, the recirculation pump is activated automatically.
Ozonizer
The ozonizer is activated by the recirculation pump and is disabled automatically when the SPA
function is on.
When the ozonizer is in operation, the related LED is on.
Warnings
Temperature warning - If the water temperature in the spa exceeds 42° C all functions are disabled
and the message “HI“ and the temperature are displayed alternately.
The warning and the system reset automatically when the temperature falls to below 40° C.
Temperature sensor warning - The sensor measures the water temperature in the spa and ensures it
is maintained.
The temperature ranges from 5° C to 45° C. Outside this range the system is blocked and the message
“ER" is displayed.
In this case the tub will have to be shut down, then started up again after waiting 30 seconds, using the
product's main switch.
The message “ER can also indicate a fault in the temperature sensor.
No flow warning - The flow alarm serves to protect the heater and the recirculation pump.
There are two warning types: no flow and flow sensor fault.
If there is no water flow the heater is disabled, the recirculation pump remains active and the message
“FL" and the temperature are displayed alternately.
The warning and the system reset automatically when normal working conditions are restored.
The message “FL" can also indicate a fault in the temperature sensor.

treesse
treesse
Pg. 17
?DESCRIZIONE DEI COMPONENTI
PANNELLO CONTROLLO
Warnings
Filter blocked warning - If the filter is blocked, a cleaning cycle is triggered automatically.
If the problem persists, the system blocks all functions and the message “FL” is displayed.
In this case the tub will have to be shut down, then started up again after waiting 30 seconds, using the
product's main switch.
Lighting control warning -If there is no communication with the control unit, the system disables the
function and the message “CO" and the temperature are displayed alternately.
The other functions remain available.
Water level warning - In ON and STANDBY modes, if the water level should fail to reach minimum
level for more than 3 seconds a warning is triggered, the message “LL“ and the temperature are
displayed alternately, and the recirculation pump, heater and ozonizer are disabled.
The warning and the system reset automatically when normal working conditions are restored.
Water level sensor warning - If there is any malfunction in the water level sensors, a warning is
triggered, the message “FER” is displayed and the functions are disabled.
In this case the tub will have to be shut down, then started up again after waiting 30 seconds, using the
product's main switch.

treesse
Pg. 18
treesse
MAINTENANCE

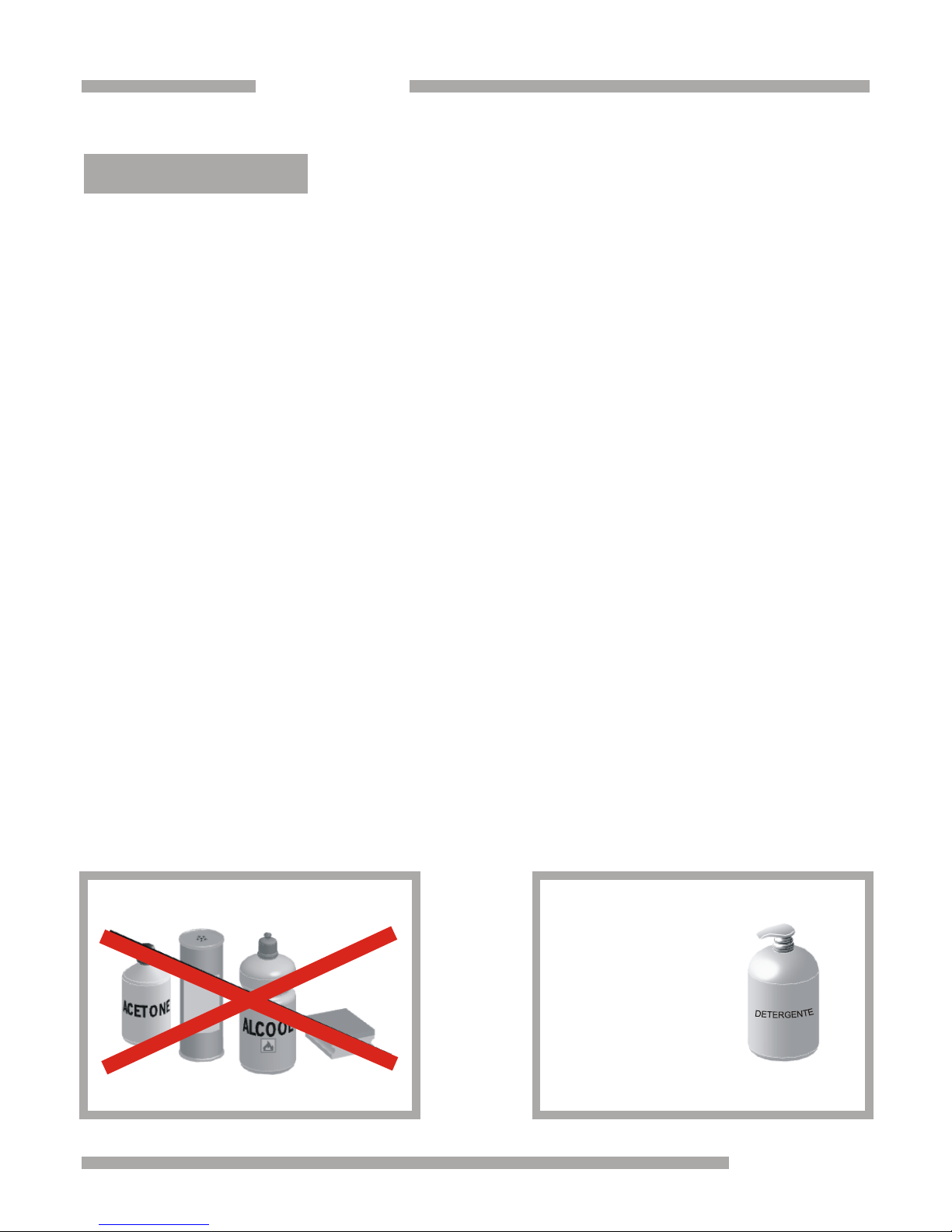

?GENERAL SURFACE CLEANING
Generic products, such as neutral detergents, can be used for normal surface cleaning. It is
recommended that the product is applied with a soft cloth, then rinsed thoroughly with water.
All products to remove limescale should be avoided. Their alkaline composition can damage product
surfaces such as taps or other metal finishes.
Achamois cloth is recommended for drying.
To keep the surfaces polished use a common polishing product occasionally.
ABRASIVES, ALCOHOL-BASED PRODUCTS, ACETONE AND OTHER SOLVENTS MUST NOT BE
USED.
SPONGES WITH AMETALLIC ORABRASIVE MESH MUST NOT BE USED.
?TAP CLEANING
For all the chrome, brass and gilt finish surfaces, cloths or sponges soaked in clean water can be used.
ABRASIVES, ALCOHOL-BASED PRODUCTS, ACETONE AND OTHER SOLVENTS MUST NOT BE
USED.
SPONGES WITH AMETALLIC ORABRASIVE MESH MUST NOT BE USED.
L
O
IQ
U
I
D
ok

treesse
Pg. 19
treesse
GUARANTEE
?TERMS OF GUARANTEE
Under the terms of the guarantee, Treesse will repair or replace faulty parts free of charge. However, for
purchasers wishing to make use of the guarantee, note that the right to request cancellation of the
contract, to claim compensation for damages or to request full replacement of the product is excluded.
After lapse of the guarantee, a charge will apply in the event of requests for support and repairs. The
Authorised Technical Support Centre called by the customer will apply the current charges approved by
Treesse.
Mirrors, lamps, safety fuses and all parts that could become faulty through negligent use, incorrect
installation or maintenance, transportation and in general terms due to reasons not directly
attributable to product manufacturing defects, are not covered by the guarantee.
Treesse declines all liability for any damage to persons, animals or effects deriving from failure to
comply with the provisions of the product installation and maintenance manual.
For any repairs implemented for which there is no sign of justified product defect, or likewise if due to
incorrect installation, all costs will be borne by the customer.
?IMPORTANT NOTICE
Servicing under guarantee will only be performed if:
- The purchaser is in possession of a document that proves the actual date of purchase.
- Tear-off «A» of the guarantee certificate has been stamped by the dealer, duly completed and mailed to
our offices within 10 days of the date of purchase. Tear-off «B» has been retained by the customer for the
entire period covered by the guarantee.
- All current regulations, the instructions provided and the manufacturer's recommended precautions
have been applied in the product's installation, use and maintenance.
?CERTIFICATE OF GUARANTEE
Through this tear-off Treesse guarantees the purchased product for a period of:
5 years for acrylic parts of bathtubs and box showers. All taps, electrical and plumbing equipment
fitted to guarantee product function are therefore excluded, even if sold with the product.
2 years on all remaining parts supplied with the product.
The guarantee period will commence from the date of purchase. This date will be confirmed by the
payment receipt, other receipt or any other document to prove purchase of the goods.

treesse
treesse
TEAR-OFF «A» ( )MAIL TO THE TRE S S.P.A. GROUP WITHIN 10 DAYS OF THE DATE OF PURCHASE
------------------------------------------------------------------
SURNAME
------------------------------------------------------------------
NAME
------------------------------------------------------------------
AGE
------------------------------------------------------------------
PROFESSION
------------------------------------------------------------------
STREET ADDRESS
------------------------------------------------------------------
LOCATION
------------------------------------------------------------------
POST CODE
------------------------------------------------------------------
TELEPHONE
THE PURCHASER DECLARES ACCEPTANCE OF THE
TERMS OF THE GUARANTEE AND CONFIRMS THAT THE
PRODUCT IS IN WORKING ORDER
------------------------------------------------------------------
GUARANTEE START DATE
------------------------------------------------------------------
PURCHASER’S SIGNATURE
------------------------------------------------------------------
RETAILER
TEAR-OFF «B» ( )TO BE RETAINED WITH THE PAYMENT RECEIPT
Pg. 20
------------------------------------------------------------------
SURNAME
------------------------------------------------------------------
NAME
------------------------------------------------------------------
AGE
------------------------------------------------------------------
PROFESSION
------------------------------------------------------------------
STREET ADDRESS
------------------------------------------------------------------
LOCATION
------------------------------------------------------------------
POST CODE
------------------------------------------------------------------
TELEPHONE
THE PURCHASER DECLARES ACCEPTANCE OF THE
TERMS OF THE GUARANTEE AND CONFIRMS THAT THE
PRODUCT IS IN WORKING ORDER
------------------------------------------------------------------
GUARANTEE START DATE
------------------------------------------------------------------
PURCHASER’S SIGNATURE
------------------------------------------------------------------
RETAILER
