Trelawny TCG 250 User manual
www.trelawny.co.ukwww.trelawny.co.uk
OPERATION AND
MAINTENANCE MANUAL
PAGE 2

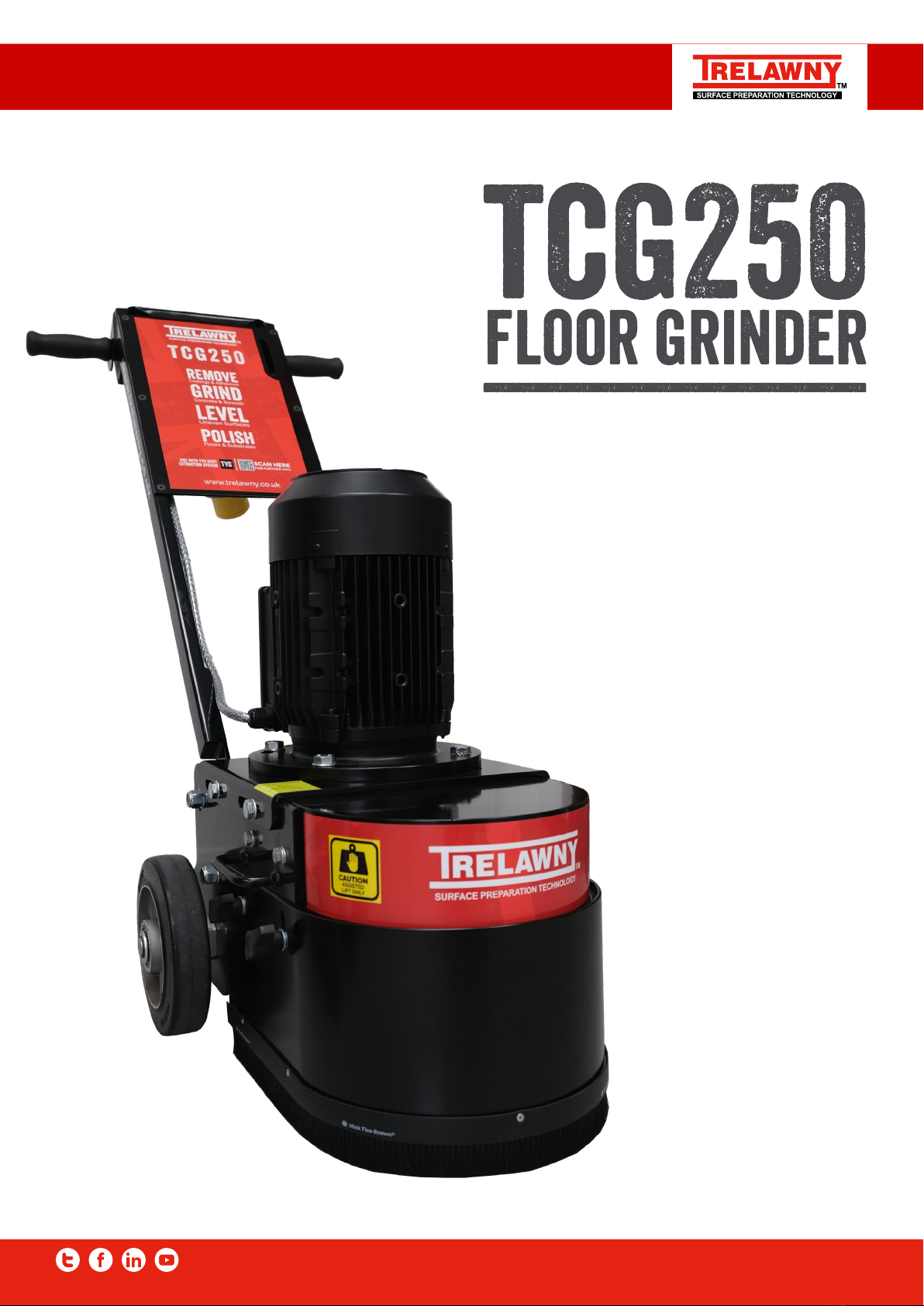

TCG250 Floor Grinder
CONTENTS
Introduction ................................................................................................................................................................ 2
Declaration of Conformity..................................................................................................................................... 3
Foreword ...................................................................................................................................................................... 6
General Information ................................................................................................................................................ 6
Safety ............................................................................................................................................................................. 6
Risk of Hand Arm Vibration .................................................................................................................................. 7
Air Supply ..................................................................................................................................................................... 7
Starting Work ............................................................................................................................................................. 7
Maintenance ............................................................................................................................................................... 8
Assembly ...................................................................................................................................................................... 9
Disposal ........................................................................................................................................................................ 9
Exploded ...................................................................................................................................................................... 10
Parts List ....................................................................................................................................................................... 12
Technical Specication........................................................................................................................................... 13
INTRODUCTION
Your new Trelawny SPT power tool will more than satisfy your expectations. It has been manufactured under
stringent Trelawny SPT Quality Standards to meet superior performance criteria. You will nd your new tool easy
and safe to operate, and, with proper care, it will give you many years of dependable service.
WARNING
Carefully read through these original instructions before using your new TRELAWNY power
tool. Take special care to read the warnings. Your TRELAWNY power tool has many features
that will make your job faster and easier. Safety, performance, and dependability have been
given top priority in the development of this tool, making it easy to maintain and operate.
ENVIRONMENTAL PROTECTION
The machine, accessories and packaging should be sorted for environmentally friendly
recycling. The plastic components are labelled for categorised recycling.
DISPOSAL
Waste products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your local authority or retailer for recycling advice.
www.trelawny.co.uk
Introduction ................................................................................................................................................................ 2
Declaration of Conformity..................................................................................................................................... 3
Foreword ...................................................................................................................................................................... 6
General Information ................................................................................................................................................ 6
Safety ............................................................................................................................................................................. 6
Risk of Hand Arm Vibration .................................................................................................................................. 7
Air Supply ..................................................................................................................................................................... 7
Starting Work ............................................................................................................................................................. 7
Maintenance ............................................................................................................................................................... 8
Assembly ...................................................................................................................................................................... 9
Disposal ........................................................................................................................................................................ 9
Exploded ...................................................................................................................................................................... 10
Parts List ....................................................................................................................................................................... 12
Technical Specication........................................................................................................................................... 13
Declaration of Conformity No. 2021/3/01
1. Product: Floor Preparation Machine
Series reference: TCG (electric, air & petrol)
Models: TCG250 & TCG500
2. Manufacturer / Authorised Representative
Name: Trelawny SPT Ltd.
Address: 13 Highdown road, Sydenham Ind. Est, Leamington Spa. Warwickshire. United Kingdom CV31 1XT.
3. This declaration is issued under the sole responsibility of the manufacturer.
4. Object of the declaration:
Product: Floor preparation machine.
Specication:Electrical110v,240v,415v/Pneumatic/Petrol
5. The object of the declaration described above is in conformity with the relevant Union harmonised
legislation (and their amendments):
2006/42/EC The Machinery Directive
2011/65/EU The Restriction of Hazardous Substances Directive
2006/95/EC Low Voltage Directive
6. Referencestotherelevantdesignatedstandardsusedorreferencestotheothertechnicalspecicationsin
relation to which conformity is declared.
Reference: EN ISO 12100 / 2010 EN ISO 20643:2008+A1:2012 EN ISO 4871:2009
EN 60204-1:2018
7. Approved Body: N/A
Description:
Reference:
8. Technical documentation for the machinery is available from:
Trelawny SPT Ltd.
13 Highdown road, Sydenham Ind. Est, Leamington Spa. Warwickshire. United Kingdom CV31 1XT.
Signed for and on behalf of:
Place of issue:
Date of issue:
Name:
Function:
Signature:
_______________
RegisteredOce:TrelawnySPTLtd,TrelawnyHouse,13HighdownRoad,SydenhamIndustrialEstate,LeamingtonSpa,Warwickshire,CV311XT,UnitedKingdom
________________________________________________________________________________________________________
Trelawny SPT Ltd.
Leamington Spa
5th March 2021
Mr Adam Dickinson
Managing Director
PAGE 4
TCG250 Floor Grinder
Declaration of Conformity No. 2021/3/01
1. Product: Floor Preparation Machine
Series reference: TCG (electric, air & petrol)
Models: TCG250 & TCG500
2. Manufacturer / Authorised Representative
Name: Trelawny SPT Ltd.
Address: 13 Highdown road, Sydenham Ind. Est, Leamington Spa. Warwickshire. United Kingdom CV31 1XT.
3. This declaration is issued under the sole responsibility of the manufacturer.
4. Object of the declaration:
Product:
Specication:
5. The object of the declaration described above is in conformity with the relevant Union harmonised
legislation (and their amendments):
2008 No. 1597 The Supply of Machinery (Safety) Regulations 2008
2012 No. 3032 The Restriction of the use of certain hazardous substances in
Electrical and Electronic Equipment Regulations 2012
2016 No. 1101 The Electrical Equipment (Safety) Regulations 2016
6. Referencestotherelevantdesignatedstandardsusedorreferencestotheothertechnicalspecicationsin
relation to which conformity is declared.
Reference: BS EN ISO 12100 / 2010 BS EN ISO 20643:2008+A1:2012 BS EN ISO 4871:2009
BS EN 60204-1:2018
7. Approved Body: N/A
Description:
Reference:
8. Technical documentation for the machinery is available from:
Trelawny SPT Ltd.
13 Highdown road, Sydenham Ind. Est, Leamington Spa. Warwickshire. United Kingdom CV31 1XT.
Signed for and on behalf of:
Place of issue:
Date of issue:
Name:
Function:
Signature:
_______________
RegisteredOce:TrelawnySPTLtd,TrelawnyHouse,13HighdownRoad,SydenhamIndustrialEstate,LeamingtonSpa,Warwickshire,CV311XT,UnitedKingdom
________________________________________________________________________________________________________
Trelawny SPT Ltd.
Leamington Spa
5th March 2021
Mr Adam Dickinson
Managing Director
www.trelawny.co.uk
www.trelawny.co.uk 5
TFP200
DECLARATION OF CONFORMITY
CZ Prohlášenl o přizpüsobení
My, společnost Trelawny SPT Limited
podajemy daňové přiznáni. že výrobek a dodávka výrobku
název výrobku
Model, výrobni čislo
Rok výroby
Pro které se průkaz týkajici, je přizpůsobeni s zásoby od následujici přikazov a jejich pohotovostni:
98/37/EC Přikaz soustroji
73/23/EC Přikaz nizkého napéti (upotřebitelne jediné do výrobku použiti elektnckej energie)
LT ATITIKTIES DEKLARACIJA’
Mes, Trelawny SPT Limite
Prisiimdami visą atsakomybę deklaruojame, kad tiekiamas / gaminamas produktas
Produkto pavadinimas
Modelis, serijos numeris
Pagaminimo
Kuriam taikoma ši deklaracija, atitinka šių direktyvų, norminių aktų ir su jais susijusių. standartų reikalavimus:
98/37/EC ļtrangos direktyva
73/23/EC Zemos įtampos direktyva (taikoma tik elektriniams įrengimams)
DE Ubereinstimmungserklarung
Wir, Trelawny SPT Limited
erklaren, dass unter unserer alleinigen Verantwortung fur die Lieferung und Herstellung des Produktes
Name des Produktes
Model, Seriennummer
Jahr der Herstellung
auf welches sich dieses Dokument bezieht. stimmt mit den Vorgaben der folgenden Direktive, normativen Dokumente und deren
jeweiligen Masstabe ein:
98/71/EC Maschineriedirektive
73/23/EC Niederspannungsdirektive (nur zutreffend auf Produkte, die Strom benutzen)
MT DIKJARAZZJONI TA KONFORMITA
Aħna, Trelawny SPT Limited
Niddikjaraw li aħna responsabbli kompletament għal provista / manifattura tal-prodott hawn 1msemmi:
lsem ll-Prodott
Mudell, Serial number
Sena Ia 'produzzjoni
Dan id-dokument magħmul għal prodott imsemmi hawn fuq, li huwa skond il-provizjonijiet imsemmija d-dokumenti tal-klassi tax-
xogħol:
98/37/EC Machinery Directive
73/23/EC Low Voltage Directive (tapplika biss għal prodotti li jaħdmu bl-eletrkiu)
DK Erklæring om overensstemmelse
Vi, Trelawny SPT Limited
Erklærer hermed at under vores ene forhandling ansvar for vores forhandling/produktion af produktet
Produkt navn
Model, serie nummer
Produktionsár
For hvilket delle dokument referer, at deler i overensstemmelse med bestemmelser af følgende direktiver, normative dokumenter
og deres relevante standart:
98/37/EC Machinery directive
73/23/EC Low voltage directive
NL EENVORMIGHEIDSVERKLARING
Wij. Trelawny SPT Limited
Verklaren dat wij de volledige verantwoordelijkheid dragen voor het leveren/fabriceren van het volgende product:
Naam van het product
Type, Serienummer
Productiejaar
En verklaren dat het product waarnaar dit document verwijst eenvormig is met de voorzieningen van de volgende Richtlijn(en),
Normatieve Documenten en hun relevante Standaarden:
98/37/CE MACHINERICHTLIJN
73/23/CE LAAGSPANNINGSRICHTLIJN (uitsluitend van toepassing bij producten die elektrische stroom gebruiken)
EE TOOTE VASTAVUSE DEKLARATSIOON
Meie, Trelawny SPT Limited
Deklareerime, et vastutame jägmise varustuse/toote müügi eest
Toote nimetus
Mudel, Seeria number
Aasta toodangu
Antud dokument töendab toote vastavust järgmistele direktiivi(de)le, normatiivaktidele ja nendega samaväärsetele standarditele:
98/37/EC MASINA DIREKTIIVID
73/23/EC MADALPINGE DIREKTIIVID (Kohandatakse vaid toodetele, mis kasutavad elektrivoolu
PL Deklaracja Zgodnosci
My, Firma Trelawny SPT Limited.
oświadczamy w naszej odpowiedzialności, ze produkcja i dostawa urzctdzenia
Nazwa produkta
Model, numer seryjny
Rok produkcji
do którego ten dokument należy, jest zgodne z klauzulami nastąpujacych zarządzen i ich istotnych standartów:
98/37/EC Zarządzenie mechaniczne
73/23/EC Zarządzenie niskiego napięcia elektrycznego (Zastosowanie tylko przy urządzeniach elektrycznoych)
ES Declaración de Conformidad
Nosotros, Trelawny SPT Limited
Declaramos que bajo nuestra completa responsabilidad de Ia fabricación/suministro del producto
Nombre del Producto
Modelo, No de Serie
Año de producción
A quién este documento se refiere, está de acuerdo con lo relacionado en Ia Directriz, Normativa Documentada y sus relevantes
standards:
98/37/EC Directorio de Maquinaria
73/23/EC Directorio de Bajo Voltaje (Aplicable solamente a productos que funcionen con electricidad)
PT DECLARAÇÄO DE CONFORMIDADE CE
A empresa TRELAWNY SPT LIMITED
Declara, sob sua inteira responsabilidade, que o fornecimento/fabrico do seguinte produto:
Designaçáo do produto
Modelo, Nümero de Série
Ano de produçáo
a que esta declaraçáo se refere. está em conformidade com o preceituado nas Directivas e Normas Comunitárias abaixo indicadas:
98/37/EC DIRECTIVA DE MÁQUINAS
73/23/EC DIRECTIVA DE BAIXA VOLTAGEM (Aplicável apenas a produtos que utilzi am energia eléctrica)
FI ILMOITUSVAHVISTUS
Me. Trelawny SPT Limited
Vahvistamme tuotteiden toimittamisesta/valmistamisesta
Tuotenimi
Malli, sarjanumero
Valmisttusvuosi
Tällä todistuksella vahvistamme säädökset seuraviin ohje/ohjesiin, Yleisiin papereihin ja niihin liittyvät vaatimukset:
98/37/EC KONEISTON OHJEET
73/23/EC PIENJÄNNITE OHJEET (tarvitaan ainoastaan tuotteille jotka käyttävät sähkovoimaa)
RU CBИдETEПЬCTBO O COOTBETCTBИИ
Mьι, Trelawny SPT Limited
3aявляем, что несем полную ответственость эа поставκу/производство нижеукаэанной
продуκцим
Hаименоване изделия
Mодель, серийньιй номер
Год вьιлуска
на котоеую вьιдано настящее Cвидетельство, и которая соответствует положениям слдующей(иx) директив(ьι),
нормативньιм доκументам и относящимся к ним стандартам:
98/37/EC ДИРЕКТИВА ПО MEXAHИ3MAM
73/23/EC ДИРЕКТИВА ПО HИ3KOBOЛЬTHOMУ OЪOPУДOBAHИЮ (распространяется только на изделия с
злектропитанием)
FR DÉCLARATION DE CONFORMITÉ
Nous, soussignés Trelawny SPT Limited
déclarons que le produit sous-nommé
Nom du produit
Modèle et Numéro de Serié
Année de production
et pour lequelnous prenons entière responsabilité pour sa fourniture et manufacture, est conforme aux clauses des directives
suivantes documents norminatifs et normes qui s'y appliquent:
98/37/EC DIRECTIVE POUR LA MACHINERIE
73/23/EC DIRECTIVE POUR BAS VOLTAGE (n'est applicable qu'aux produits utilisant l'énergie électrique)
SE FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
VI, TRELAWNY SPT LIMITED
FÖRKLARAR ATT VI MED ENSAMT ANSVAR ANSKAFFAT / TILLVERKAT PRODUKTEN PRODUKTNAMN
MODELL och SERlE NUMMER
Tillverkningsár
TILL VILKEN DETTA DOKUMENT HÄNVISAR ÄR I ÖVERENSSTÄMMELSE MED FÖLJANDE DIREKTIV, NORMATIVA
DOKUMENT OCH DERAS RELEVANTA STANDARDER
98/37/EC MASKINDIREKTIV
73/23/EC LÄGSTRÖMSDIREKTIV (TILLÄMPLIG PÄ ELEKTRISK DRIVNA PRODUKTER)
GR ΔΗΛΩΣΗ ΠΙΣΤΟΤΗΤΑΣ
Η εταιρεια Trelawny Spt Limited
Δηλωνει ότι έχει τη μονδικη ευθυνη ως κατασκευαστρια / προμηθευτρια του παρακατω προιοντος περιγραφη προιοντος
μοντελο, αριθμος σειρας
έτος παραγωγής
και στο οποιο αναφερεται αυτη η δηλωση, ειναι συμβατο με τις προδιαγαφες που οριϚονται στιϚ ακολουθεϚ Koινοτικες
OδηγιεϚ EλεγκτικεϚ ΔιαταξειϚ κι αλλεϚ σχετικες προδιαγραφεϚ
98/37/EC OΔHΓΙΑ ΠΕΡΙ ΜΗΧANHMATΩN
73/23/EC OΔHΓΙΑ ΠΕΡΙ XAMHΛHΣ TAΣHΣ (αφορα μονον προιοντα που λειτουργουν με ηλεκτρικο ρευμα)
SI IZJAVA O SKLADNOSTI
Trelawny SPT Limited
pod polno odgovornostjo izjavljamo, da so spodaj navedeni proizvodi, ki jih dobavljamolproizvajamo:
lme proizvoda
Model. serijska številka
Leto proizvodnje
na katere se ta dokument nanaša. proizvedeni v skladu z določili naslednjih direktiv, normativnih dokumentov in njihovih relevant-
nih standardov:
98/37/EC DIREKTIVA O STROJIH
73/23/EC DIREKTIVA O STROJIH Z NIZKO VOLTAŽO (nanaša se samo na proizvode na električni pogon)
HU MEGFELELŐSÉGI NYILATKOZAT
Mi. A "Trelawny SPT Limited" cég
Felelösségünk tudatában kijelentjük, hogy mint a termék szállitója/gyartója
Termék neve
Tipus, Sorozatszáma
Gyártási év
amelyre jelen dokumentum vonatkozik, megfelel az alábbi lrányelv(ek), lrányadó Dokumentumok elöirásainak, és az azokat
meghatározó szabvanyoknak:
98/37/EC GÉPÉSZETI IRÁNYELVEK
73/23/EC KISFESZÜLTSÉGÜ IRÁNYELVEK (Csak az elektromos meghajtásů gepeknél)
TR UYGUNLUK BEYANI
Trelawny SPT Limited
AÞaöýdaki, üretim ve tedarikinden tek baÞýna sorumlu olduöu ürünün
Ürün ady
Modei/Seri no
Üretim yili
bu belgenin ilgili olduöu apaöýdaki yönetmeliklerin, norm belgelerinin ve ilgili standartlarýnýn koÞullarýna uygun olduöunu beyan
eder:
98/37/EC MAKŶNALAR YÖNETMELŶDŶ
73/23/EC DÜÞÜK GERŶLŶM YÖNETMELŶDŶ (Yalnýýz elektrikle çalyÞan ürünlerde geçerlidir)
IT DICHIARAZIONE Dl CONFORMITA
La Società Trelawny SPT Limited
Dichiara, sotto Ia propria responsabilità, che Ia fornitura / produzione del prodotto
Nome prodotto
Modello, codice
Anno di produzione
a cui si riferisce tale documento è conforme aile seguenti Direttive, ai documenti della Normativa ed ai relativi standard:
98/37/EC DIRETTIVA SULLE APPARECCHIATURE
73/23/EC DIRETTIVA SUL BASSO VOLTAGGIO (applicabile esclusivamente peri prodotti che utilizzano energia elettrica)
DECLARATION OF CONFORMITY
PAGE 6
TCG250 Floor Grinder
FOREWORD
GENERAL INFORMation
Thank you for your purchase of the TCG250 Floor Grinder. This
manual contains the necessary maintenance information for
you to ensure proper operation and care for this machine. Also
see the manual that is supplied by the engine manufacturer.
It is essential for you to read through this manual thoroughly.
In the unlikely event that you experience problems with your
TCG250 Floor Grinder, please do not hesitate to contact your
local Trelawny dealer or agent. We always welcome feedback
and comments from our valued customers.
Before operating, performing maintenance or repairing
the TCG250 Floor Grinder this manual must be read and
fully understood by the operator, if in any doubt, ask your
supervisor before using this equipment. Local safety
regulations must be followed at all times.
Failure to follow these instructions could result in damage
to the TCG250 and/or personal injury. Trelawny SPT Limited
disclaims all responsibility for damage to persons or objects
arising as a consequence of incorrect handling of the
machine, failure to inspect the machine for damage or other
faults that may inuence the operation prior to starting work,
or failure to follow the safety regulations listed or applicable
to the job site.
This machine is primarily designed for the smoothing of
concrete, marble and terrazzo surfaces. It can be used both
indoors and out.
Electric models are recommended for indoor use because of
the toxic exhaust gases that are produced by petrol engines.
WARNING! Before operating, performing maintenance
or repairing the TCG250 this manual must be read and
understood. If in any doubt, ask your supervisor before
using this equipment.

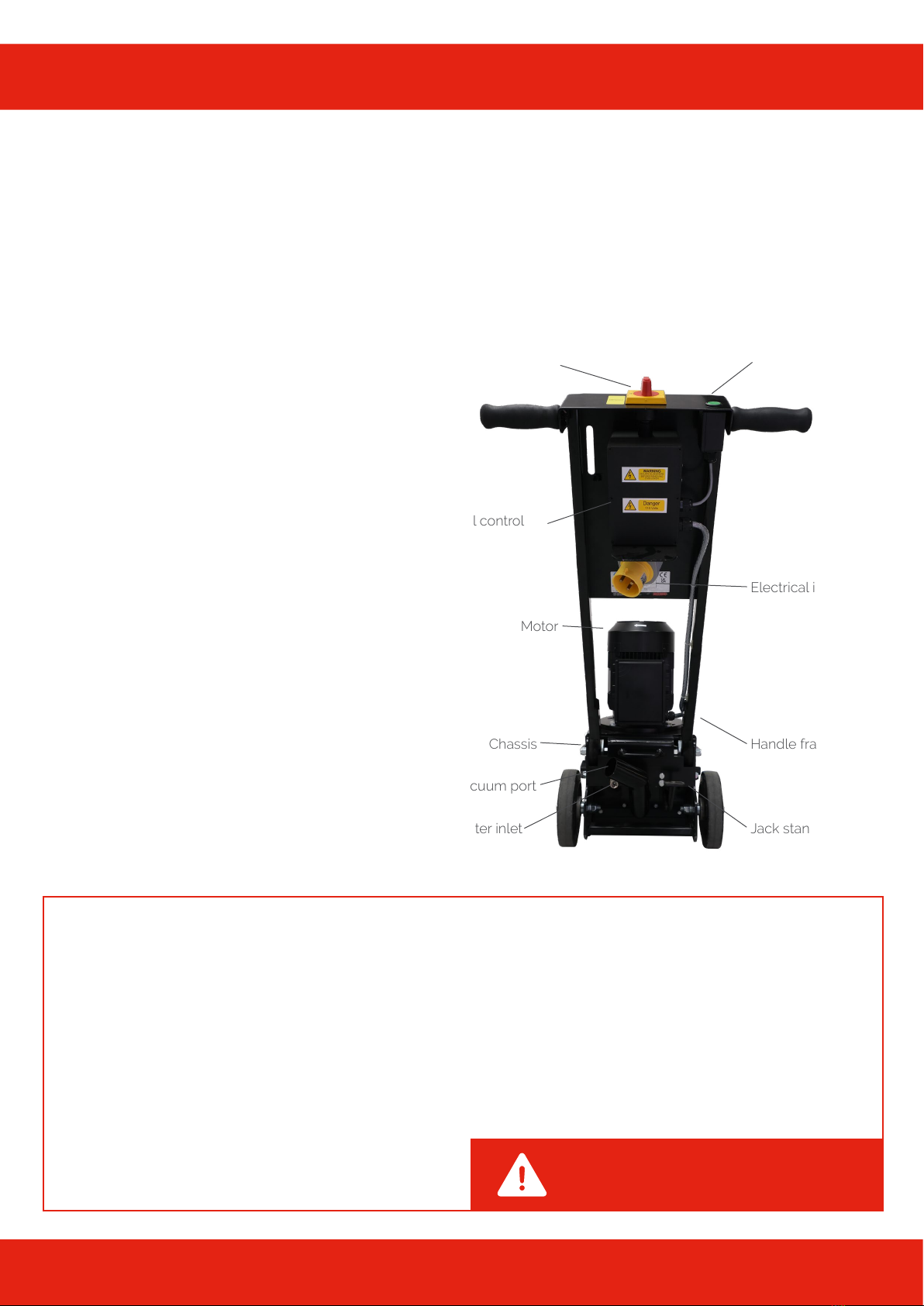

MAIN PARTS DIAGRAM
The following image of a typical electrical
version TCG250, the image and operation are
suitable to all 110V, 230V 415V variants.
The TCG250 comprises of a fabricated steel
chassis to which all other components are
mounted. Several dierent power units
are available including electric, petrol and
pneumatic options.

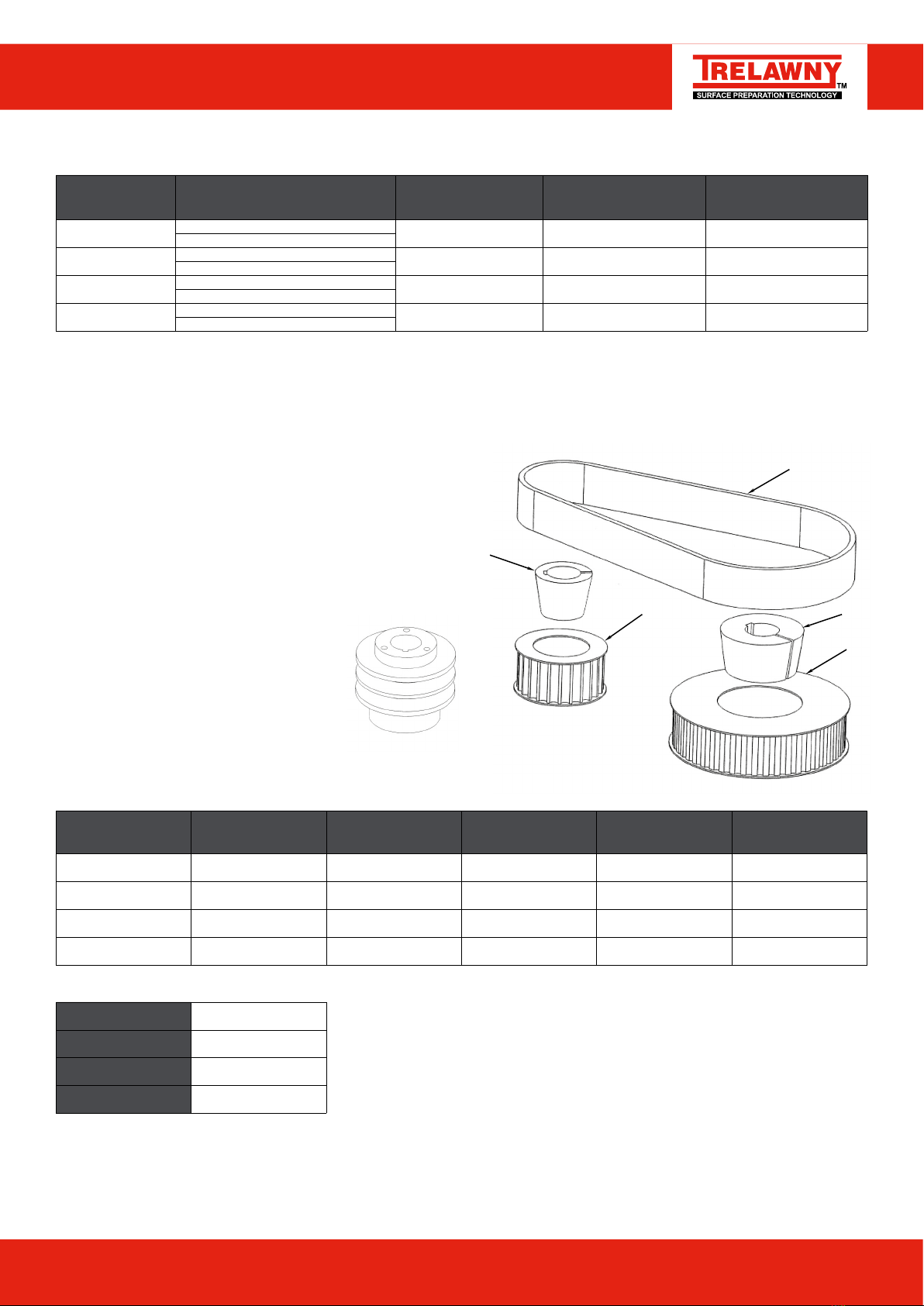

The power unit drives the heavy-duty cutter
drum via a pulley and belt enclosed within the
belt guard.
The handlebar can be adjusted to suit the
operator. For electric models power is connected
via a chassis mounted socket and supplied
commando (IEC number) plug.
Deadman’s handle and switch must be held
to allow the machine to start. The machine is
started via the starter switch box.. A spring-
loaded ‘jacking stand’ is built into the machine for
the purposes of taking the head out of contact
with the working surface to start, or store the
machine.
A separate industrial dust collector should be
connected to the vacuum port).
The chassis features an integrated
counterweight to ensure the machine remains
controllable while in operation.
Motor
Electrical control
Chassis Handle frame
Electrical inlet plug
Electrical isolator Deadman’s button
Water inlet Jack stand pedal
Vacuum port
www.trelawny.co.uk
SAFETY
Wear safety boots, face mask, shatterproof glasses, helmet,
gloves and any other personal protective equipment required
for the working conditions. Avoid loose clothing; this may
become trapped in moving parts and cause serious injury.
To avoid nuisance dust, connect an industrial vacuum cleaner
(minimum 3000watts or equivalent) to the 50mm (2”) vacuum
port situated at the rear of the machine.
Ensure that the workplace is well ventilated. Avoid operating
engine-powered machines in an enclosed area, since engine
exhaust gases are poisonous.
Be very careful with hot components. The exhaust and other
parts of the engine are hot during operation and can remain
hot for some time after shutdown.
Do not refuel the engine while the engine is hot or running,
there is a very real danger from explosion – always refuel
when the engine is cold, and in the open air.
During transportation fasten fuel cap tightly and close fuel tap.
Do not operate electric versions in wet conditions.
Caution this machine is heavy. It weighs between
(92kg/202lbs) and (144kg /317 lbs) dependent on power unit.
Do not lift this machine manually.
WARNING! Always observe safe-working practices at
all times.
Technical data
Machinery Directive Information
This tool has been designed and produced in accordance with the following directives:
2006/42/EC Machinery Directive
If your company has any problem with our products or would like to discuss the possibility of an improvement being made
to them, then please do not hesitate to contact us. Your comments are both important and appreciated.
Length x Width x Height (inc handle and wheels) 1100mm x 450mm x 980mm 43.3” x 17.7” x 38.6”
Cutting width 254mm 10 inch
Average depth of cut (dependent on concrete) 1 mm 0.040 inch
Electric motors 400v 230v 110v
Power 5.5kW (7.5hp) 2.2kW (3.0hp) 1.8kW (2.4hp)
Voltage 400v (3ph) 230v (1ph) 110v (1ph)
Supply 11amp 16amp 32amp
Disc speed - rpm approximately 1600 1425 860
Petrol engines: Honda GXV160 Unleaded petrol - disc speed variable dependant on throttle opening
Electric Motor Weight 90kg (198lbs)
5.5hp Petrol engine 87kg (192lbs)
Working distance from wall 25mm side / 20mm front 1.0” side / 3/4” front
Electric motor Noise LwA SWL 86.04dB (A)
Honda Engine 5.5hp 91.5dB (A)
Declared Noise emissions in accordance with EN ISO 15744: 2008
Carborundum Blocks Diamond Disc
Vibration(AEQ)attheHandleBar(110vElectric) Aeq = 2.36 m/s2(k=0.67m/s²) Aeq = 1.25 m/s2(k=0.18m/s²)
Vibration(AEQ)attheHandleBar(230vElectric) Aeq = 1.17 m/s2(k=0.62m/s²) Aeq = 0.913m/s2(k=0.64m/s²)
Vibration(AEQ)attheHandleBar(415vElectric) Aeq = 2.75 m/s2(k=0.75m/s²) Aeq = 2.34 m/s2(k=0.82m/s²)
Vibration(AEQ)attheHandleBar(PetrolModels) Aeq = 5.61 m/s2(k=1.14m/s²) Aeq = 6.35 m/s2(k=1.59m/s²)
(K= +40% -0%)
Noise level measured in accordance with EN ISO 15744: 2008
Vibration measured in accordance with EN ISO 28927:2012 & EN ISO 20643:2005
PAGE 8
TCG250 Floor Grinder
This operating manual must always be at hand at the place
of use of the machine and must be accessible to the person
operating the machine. It is recommended that only persons
that have received appropriate training or read this manual
should operate equipment.
In addition to this operating manual, all other generally
applicable legal and other mandatory regulations relevant to
accident prevention and environmental protection must be
observed. Such obligations may also comprise the handling of
hazardous materials, provisioning and/or wearing of personal
protective equipment, or road trac regulations.
This operating manual must be supplemented by instructions
covering the duties involved in supervising and notifying
special organizational features, such as job organization,
work ows or the persons entrusted with the work. Persons
entrusted with work on the machine must have read the
operating manual prior to taking up work. This applies
especially to persons working only occasionally on the
machine, e.g. during set-up or maintenance activities.
Check - at least from time to time - whether the personnel
is carrying out the work in compliance with the operating
manual and paying attention to risks and safety-relevant
factors. For reasons of safety, long hair must be tied back or
otherwise secured, garments must be close-tting and no
jewellery - including rings - may be worn.
Severe injury may result from being caught by moving parts
of the machine. Personal protective equipment must be
used wherever required by the identied by the work risk
assessment or by law (e.g. safety glasses, ear protectors,
safety boots, suitable safety clothing). Observe the regulations
for prevention of accidents. Observe all safety precautions and
warnings attached to the machine and always keep them in
good and perfectly legible condition.
The personal protection equipment should consist of
the following parts:
1) Hard hat with ear mu
2) Visor or safety glasses
3) Dust mask
4) Protective gloves
5) Safety clothes
6) Safety boots
In the event of safety-relevant modications or changes in the
behaviour of the machine, stop the machine immediately and
report the malfunction to the competent authority/ person.
Do not remove or make inoperative any safety devices the
machine is equipped with.
Never make any modications, additions or conversions which
might aect safety. This also applies to the installation and
adjustment of safety devices as well as to welding and cutting
work on supporting structures.
Damaged or worn parts of the product must be replaced
immediately. Use genuine Golz spare parts only.
All spare parts and tools must comply with the technical
requirements specied by the manufacturer/distributor.
Adhere to the legally prescribed preventive maintenance
and inspection intervals or those specied in this operating
manual.
All maintenance and repair activities must be performed by
qualied personnel using suitable tools and other suitable
workshop equipment. Observe the re alarm and re ghting
measures. The personnel must be made familiar with the
location and handling of re extinguishers.
Organisational measures
Wear Safety
Glasses
Wear Hard
Hat
Wear Safety
Boots
Wear
Protective
Gloves
Wear Safety
Clothes
Read Ops
Manual
Wear Ear
Protection
Wear Dust
Protection
www.trelawny.co.uk
RISK OF HAND-ARM VIBRATION INJURY
Media types and applications
These tools may cause Hand-arm Vibration Syndrome injury
if their use is not adequately managed. We advise you to
carry out a risk assessment and to implement measures
such as; limiting exposure time [i.e. actual trigger time, not
total time at work], job rotation, ensuring the tools are used
correctly, ensuring the tools are maintained according to
our recommendations, and ensuring that the operators wear
personal protective equipment [PPE] particularly gloves and
clothing to keep them warm. Employers should consider
setting up a programme of health surveillance to establish
a benchmark for each operator and to detect any early
symptoms of vibration injury.
We are not aware of any PPE that provides protection
against vibration injury by attenuating vibration emissions.
See ‘Specications’ section for vibration emission data.
Further advice is available from our Technical Department.
We strongly advise you to visit the Health & Safety
Executive website http://www.hse.gov.uk/vibration
This site provides excellent advice and information on HAV
and currently, includes a Hand-arm Vibration Exposure
Calculator that is easy to use to work out the daily vibration
exposure for each of your operators.
Trelawny Grinders are supplied with either a single grinding
disc incorporating 20 “segments” or the versatile grinding
“quick change” grinding blocks. Use of either from course
through to Hard will eectively address all hard or soft
concrete oor types. For more information contact your
Trelawny agent or Trelawny direct.
Grinding blocks
All can be used wet or dry.
Coarse grinding blocks
These are tted as standard on machines tted with the
grinding block option. These are designed for the rapid
removal of material. They produce a surface nish suitable
for directly laying oor coverings or for two part epoxy paint
coatings and for the rst grind of terrazzo oor surfaces.
Medium grinding blocks
These are less aggressive than the coarse blocks, they should
provide a surface nish suitable for painting or used as the
next stage to the coarse grinding blocks, when achieving
a polished surface on terrazzo tiles or other marble type
surfaces.
Fine grinding blocks
These are the least aggressive of all the grinding media. These
are generally only used for nal nishing to provide a surface
suitable for nal polishing.
In addition, scarifying blocks and wire brushes are available
which can be tted in place of the grinding blocks.
Diamond disc machine
The machine is tted with a 20 segment diamond disc for
medium concrete as standard (see below for specication).
There are also 10 segment discs for very aggressive grinding
and 16 segment discs for aggressive grinding available. The 20
segment disc are the most economical and least aggressive.
All discs can be used wet or dry.
Grinding disc 20 segment (blue)
(soft bonded diamond)
Premium disc.
For medium to hard material, granite, cured concrete
or terrazzo.
Grinding disc 20 segment (black)
(medium bonded diamond)
Premium disc.
For medium or general abrasive materials - medium strength
concrete or adhesives.
Grinding disc 20 segment (red)
(hard bonded diamond)
Premium disc.
For softer or abrasive materials - green (less than 48hrs old) or
medium strength concrete, or adhesives.
PAGE 10
TCG250 Floor Grinder
starting
Machines tted with electric motors
Inspect the supply cable; Check that no damage has been
caused to the outer casing and that there are no exposed or
loose wires. Obtain the assistance of an electrician if a fault
is found. Do not use the machine until it has been rectied.
Check that the cable is not running across sharp or jagged
edges and that it is not in contact with any liquid.
It is recommended that the ‘jacking stand’ is employed to
start the machine. To engage the stand, tilt the machine to lift
the grinding head(s) and, whilst tilted, depress the foot pedal
(at the rear of the machine, between the wheels), keeping
it depressed whilst lowering the machine back towards its
normal working position. This action will result in the front
of the machine appearing slightly raised. To disengage the
stand ready for use, tilt the machine rearwards slightly and the
stand will be heard to retract. The grinding head(s) will now be
engaged with the working surface.
Turn red isolator knob to the “ON” position. The machine
is now energised. To start the machine, depress button
(“Deadman’s handle”) and keep depressed. As soon as the
button is released, the machine will stop.
PRE-START CHECK
ALL VERSIONS
Check all bolts and screws for tightness. Ensure that all ttings
are secure. Check the drive belts for correct tightness. There
should normally be approximately 13mm (1/2”) of free play
when the belt is depressed in the middle position between
the two pulleys. To check and set the belt tension, refer to the
Belt installation & Adjustment section.
The TCG250 is supplied with a specially commissioned
electric motors and starter switch assembly.
Each unit is fully tested and the overload relays have
been calibrated and set according to the manufacturer’s
specications.
In the event of malfunction on a new machine, the owner
should rst check that the power supply on site is suitable and
adequate.
All cables should be fully uncoiled and never left wrapped
around cable reels or tied in loops. The starter box is tted with
a safety feature to protect the motor and relays from damage.
Should an overload condition occur which triggers the thermal
overload within the starter, rotate the isolator switch to the
“OFF” position.
Note that the circuitry may have to cool down for a period
before the overload switch can reset itself upon depressing
the stop button.
The starter boxes are preset and under no circumstances
should they be tampered with, stripped down or adjusted,
otherwise it will invalidate the warranty.
110v Motor
The motor requires the minimum of a 32amp, 110v power
supply. Always use the shortest possible length of extension
cable. The 110v machine requires the use of 4mm2
extension cable up to a maximum of 20 metres, as it draws
a signicant operating current. The use of 2.5mm2 for 110v
machines is not recommended and can cause operating
problems, particularly in conjunction with poor supplies,
where excessive voltage drops will be encountered and
damage to the machine may occur. Use a centre tap
transformer with a continuous rated output of at least 3.0KVA.
In practice this means that a 5.0KVA transformer must be
used. Manufacturers have dierent methods of rating their
equipment. All transformers and cables should be tted
with 32amp plugs and sockets. The 230v supply to the 110v
transformers ideally should be rated to at least 20amp if
supply problems are to be avoided.
230v and 415v Motors
Take particular care when using 230v or 415v machines,
ensure that the electrical supply is earthed and that breakers
and fuses are correct for the loading. The 230v motor requires
the minimum of a 13amp, 220v power supply. The 415v motor
requires the minimum of a 10amp, 380v power supply. Always
use the shortest possible length of extension cable. To avoid
voltage drop the cable must have a minimum core wire size
of 2.5mm2cross-section area. Maximum length of cable 50
meters.
CAUTION! Beware of poisonous fumes coming from
engine versions. Start and operate only in well-ventilated
areas.
BE CAREFUL! The exhaust and other engine parts are hot
during and for some time after operation. Do not touch
them.
IMPORTANT! 415v 3 phase versions only: Ensure the supply
cable is of a 5 core construction and that all contacts
within the plug and socket are wired in accordance with
regulations. The control electronics require the neutral
circuit to be functional. If 4 core cable is used, where no
functioning neutral is present, the machine will not start
or run.
www.trelawny.co.uk
starting
Machine Operation and Dust Suppression
Machines tted with petrol engines
Check that there is sucient fuel in the fuel tank.
(See manufacturer’s hand book for type.) Check that the
engine oil level is correct. (See pre-start check.) Ensure that
the machine is started on a level surface. Open the engine
fuel tap. For cold engine starting, the 5.5hp engines have an
automatic choke, apply full throttle to operate. Set the start
switch to the “on” position on Honda supplied engines.
To engage the stand, tilt the machine to lift the grinding
head(s) and, whilst tilted, depress the foot pedal (at the rear
of the machine, between the wheels), keeping it depressed
whilst lowering the machine back towards its normal working
position. This action will result in the front of the machine
appearing slightly raised. To disengage the stand ready for
use, tilt the machine rearwards slightly and the stand will be
heard to retract. The grinding head(s) will now be engaged
with the working surface.
Check that the machine has been raised on its stand. Pull the
‘hold to run’ lever against the handle bar. Pull the recoil starter
cord handle. After the engine starts, move the throttle lever
towards the idle/tick-over position until the engine
runs smoothly.
After a minute or two reduce to a quarter open throttle setting
and warm up the engine for a further 2~3 minutes before
setting to tick over. The warm up procedure is particularly
important during cold weather.
(Please refer to manual handling recommendations when
lifting.) Connect a suitable commercial vacuum which has
been designed for the collection of concrete dust and
possibly toxic paint particles, or for use in the pharmaceutical
or food industries, Trelawny can supply special HEPA ltered
vacuums which are suitable for these applications.
Or if suitable for the area being worked, connect a water hose
to the supplied connection at the rear of the machine.
On engine-powered machines, once the engine has reached
operating temperature and you are ready to start work, set
the throttle lever to the full throttle position, pull back on
the handle bars to retract the machines stand and slowly
lower the disc to the surface. The machine may oscillate
slightly during use, which is normal. Move the machine slowly
backwards and forwards, slightly swinging the grinding head
right and left; this will ensure that a uniform nish is achieved.
Complete a small area noting the performance; on engine
versions reduce the throttle to tick over and release the ‘hold
to run’ lever. Then on both engine and electric motor versions
release the ‘hold to run’ lever to stop the machine, inspect the
nish produced. If necessary change the grade of grinding
blocks or diamond discs and recheck performance and
surface nish.
IMPORTANT! Do not pull the recoil starter cord to the
end of its travel as it may cause damage to the engine
or injury to the operator. When the engine starts, recoil
the cord slowly. Do not allow the cord to snap back to its
start position.
EMERGENCY SHUTDOWN: Release the “hold to run
lever” on the handle bar and/or switch o the ignition
switch on Honda engine versions.
PAGE 12
TCG250 Floor Grinder
maintenance
machine storage
Belt Installation & Adjustment
Removal
Remove the top cover by unscrewing the two 8mm bolts
either side of the chassis. Loosen the engine/motor mounting
plate bolts and slide the engine/motor forward. Slide the belt
o the drive pulley and then remove it from the engine/motor
pulley.
Installation
Slide the new belt onto the engine/motor pulley rst, locating
the belt in the pulley’s teeth. Then slide onto into the teeth of
the drive pulleys.
Slide the engine/motor backwards until the slack in the belt is
taken up, gently nip the four bolts and ensure the slack in the
belt is correct (see note below). If the tension needs adjusting
move the motor mounting plate in the desired direction until
the correct tension is achieved. (see P.10, Pre-Start Check for
detail) Tighten all engine/motor mounting plate bolts fully,
ret the top cover and tighten the 8mm bolts.
Drive system maintenance
The drive system on the TCG250 is virtually maintenance free
and will give a long service life without attention providing the
belt tension is set correctly.
The belt may need changing occasionally, the bearings (29)
will require greasing after any lay up period and/or every 6
months or occasionally during heavy use.
Long period storage: over 3 months
Clean outside of machine, inspect the grinding blocks for
wear; replace any worn parts as required.
Remove any build up of material from inside of grinding disc
area following step in start of “Grinding Block Replacement”
Section. Cover the machine to protect it. Store the machine
in a dry place. Be sure to check security of wooden wedges
after any lay up period.
shut down
On electric-powered machines, simply release the “deadman’s
handle” button. On engine-powered machines, move the
engine’s throttle lever to the slow speed position. (This
avoids the engine becoming washed internally by neat fuel if
switched o from high engine revolutions.) Release the ‘hold
to run’ lever and on Honda engines, switch o the engine’s
start switch.
On both electric and engine-powered machines, use the
stand (operation of which is described on page 10, Starting)
to raise the disc o the ground to prevent any built up heat
deforming the rubber coupling if it is left under load whilst hot
and stationary. The machine can be stored whilst on its stand.
After the engine or motor has completely cooled, clean o
any concrete dust from external components and remove
any heavy build up of concrete dust from inside the front dust
skirt, (see start of “Grinding Block Replacement” section for
safe method of gaining access to inside of front dust skirt).
Take care when using hoses or pressure washers and clean
within the dust skirt area only.
Do not to allow water to be directed at or splashed onto the
engine, electric motor or any electrical components. Once
clean and dry, cover the machine to protect it and store the
grinder in a dry place.
IMPORTANT! Close the engine fuel tap
IMPORTANT! Normal slack should be approximately
13mm (1/2”) when the belts are depressed in the middle
position between the engine pulley and driveshaft
pulley.
This machine is specically produced for use on concrete and
steel oors. Do not modify, add components to or retrot the
unit in a way which could aect its safety and do not use
non-ocial accessories. This is not allowed. A full range of
genuine parts are available to purchase. Do not use machine
in water.
operating range
www.trelawny.co.uk
maintenance
Grinding Block Replacement
Switch o the engine-powered versions and allow the
engine to cool completely, disconnect electric-motor-
powered versions from its power supply. Place the machine
on a at and level surface. Raise the front skirt by loosening
the four 10mm guard retaining bolts on either side of the
machine and slide the guard up to the top of the slots, tighten
the bolts temporarily.
Electric Machines
Tilt the machine backwards to rest on its handle bar.
Place a heavy object (10kg sand bag, etc.) across the upper
part of the handle bar or tie down for additional security.
Take note how the grinding blocks and wedges have been
assembled, using a suitable wooden drift, knock out the
grinding block, not the wooden wedge. Dispose of the used
grinding blocks according to local legislation.
Fit each new grinding block squarely into the grinding plate
location corner at the outer at face of the grinding disc.
Secure with a new wooden wedge, between the block and
the inner face of the grinding block, knock the wedge into
position using a suitable drift.
Note:
Do not use a mix of old and new grinding blocks, this will
cause rapid wear of the new blocks and could cause the
machine to become uncontrollable, unstable and dangerous
in use. Re-adjust the lower guard and tighten the bolts.
Petrol/Gasoline Machines
Switch o the engine-powered versions and allow the engine
to cool completely, disconnect electric-motor-powered
versions from its power supply.
Place the machine on a at and level surface.
Raise the front skirt by loosening the four 10mm guard
retaining bolts on either side of the machine and slide the
guard up to the top of the slots, tighten the bolts temporarily.
It is not recommended that petrol/gasoline-powered
machines are tilted back such that they rest on their handles.
This may cause leakage of fuel and is therefore a hazardous
operation.
Remove the four countersunk M12 screws from the disc,
ensuring that the disc is supported as the last two are
removed. The disc now will come away from the drive plate.
Dispose of the used item according to local legislation.
Oer the new disc up to the drive plate and align the holes.
Loosely t the four bolts and then tighten in a diagonal
sequence to 40lb/ft. Re-adjust the lower guard and tighten
the bolts
Brush Seal Replacement
The machine is tted with a exible brush seal which will
need replacement from time to time to maintain the eciency
of the dust control system. Follow the rst ve steps from the
above procedure for changing discs. Drill out rivets and to
remove the brush simply grasp one end and pull, the brush
will come o the guard. To t the new brush, align one end of
the brush with the end of the guard and use a suitable drift to
knock the brush onto the metal guard, working along until it
is securely tted.
operating range
PAGE 14
TCG250 Floor Grinder
Checking chart
Before Operation After Operation Monthly Every 3 Months Every Year If Damaged/Worn
Complete Machine
Check X
Clean X
Pulleys & Belt
Check (Damage & Tension) X X
Tension X
Replace X X
Vacuum Ports
& Accesories
Check X
Clean X
Replace X X
Dust Seals
Check X
Clean X
Replace X X
Grinding Tools &
Accesories
Check X
Clean X
Replace X
Bearings & Seals
Check X X
Replace X X
Height Adjusting
Rod &
Connections
Check X
Lubricate X
Replace X
Honda Engine
Check Fuel Level X
Check Oil Level X
Operational Check (No Load) X
Review Manufacturer’s Manual X
Pneumatic Engine
Check Lubricant Oil Level X
Operational Check (No Load) X
Review Manufacturer’s Manual X
Electrical Motors
Visual Inspection X
Clean Air Passages X
Operational Check (No Load) X X
Based on normal & safe operating procedures and hours
www.trelawny.co.uk
transport
export checking
Use only suitable means of transport and lifting gear of
sucient capacity when loading or transporting the machine.
Appoint an experienced instructor for the lifting operation.
Always observe the instructions given in the operating manual
when lifting the machine.
Use only suitable transport vehicles with sucient load
capacity. Secure the load carefully. Use suitable fastening
points for securing. Before loading the machine or parts of it,
secure the machine against inadvertent movement. Attach
a suitable warning sign. Even in case of a minor change of
location, the machine engine must be stopped.
Before using the machine again, make sure that such
protection material or devices are properly removed. Parts
which had to be removed for transportation of the machine
must be retted and secured carefully before the machine
is used again. Before setting the machine in motion always
check that all accessories are safely stowed.
The recommissioning procedure must be strictly in
accordance with the operating instruction. Observe
the instructions given in the operating instruction when
reassembling and operating the machine.
The unit is now tted with suitable lifting points for slinged lift.
Please refer to the annotated image on Page 6 for locations on
the machine. Only use suitable lifting equipment as described
or undertake a full risk assessment before proceeding.
Remove the transport packaging and dispose of it in an
environmentally responsible way, recycle where possible.
Check the machine for completeness and any visual signs
of damage, incurred during transit. Report any issues
immediately to your supervisor, who should inform Trelawny
straight away. Secure the machine against accidental start-up
and rolling away.
The machine is supplied with engine oil but without fuel.
See our terms and conditions of sale on our website for more
information.
PAGE 16
TCG250 Floor Grinder
troubleshooting
Troubleshooting Cause Action
Engine stops suddenly or does
not run correctly
No fuel in the fuel tank. Refuel fuel tank. (see safety section)
Spark plug faulty. Replace spark plug.
Fuel blockage. Check fuel line and strainer.
Air lter partially blocked. Replace air cleaner element.
Low oil level. (Engine cut o switch is tted) Rectify leaks and replenish oil.
Motor stops suddenly or does not
run correctly Loose wiring, incorrect voltage or blown fuse Check connections and power supply or replace fuse.
Engine/motor runs but the grinding
heads do not move.
Drive belts slack or failed. Replace belt or adjust tension
Centrifugal clutch faulty on engine versions. Replace clutch assembly
No grinding blocks tted. Check grinding discs for any damage, replace if necessary.
Fit new grinding blocks
Grinder is slow or erratic
Loose or a failed drive belts. Adjust drive belt, or replace.
Surface too rough.
Use Trelawny TFP200/250 Surface Planer to produce a
smoother surface or to remove bulk of material prior to
grinding. Change grinding blocks to a coarser grade.
Engine will not start
No fuel in the fuel tank Refuel fuel tank, see safety precautions.
Low oil level Rectify oil leaks and replenish oil.
Water in fuel Drain fuel tank, oat chamber, and refuel.
Incorrect fuel in tank, i.e. diesel in petrol tank Clean out fuel tank, all fuel lines and carburettor oat
chamber. Refuel with correct fuel.
Spark plug faulty Replace spark plug.
Motor will not start Power supply is not switched on, blown fuse,
voltage incorrect, loose wiring, or faulty motor.
Conrm that the power supply is switched on.
Rectify loose wiring, replace blown fuse or replace motor.
Use above information in conjunction with the Honda Operation and Maintenance Manual.
If problem has not been cured by any of the above actions, contact your local Trelawny SPT dealership for assistance.
All rights reserved. Any unauthorised use or copying of the contents or part thereof is prohibited.
This applies to trademarks, model denominations, part numbers and drawings.
Use only genuine Trelawny spares. E & O E
The use of non-Trelawny spare parts invalidates the warranty.
www.trelawny.co.uk
EXPLODED DIAGRAM
EXPLODED VIEW
PAGE 18
TCG250 Floor Grinder
Item NO. PART NO. DESCRIPTION Item NO. PART NO. DESCRIPTION
1 822.2000 Rubber grip (x2) 44 831.0820 M8 x 20 hex bolt
2 345.9220 Vacuum takeo tube 45 811.1008 M8 shake proof washer
3 828.0138/ 826.0138/ 819.0385 3/8” ball valve/bulkhead
connector/hose tail 46 345.9223 Belt guard
4 350.9121 Wheel (x2) 47 345.2012 Weight
5 812.1001 20mm plain washer (x2) 48 345.2011 Removable section
6 814.1020 External circlip (x2) 49 345.9221 Dust skirt
7 345.9241 Stub axle (x2) 50 345.2010 Chassis
8 812.1016 M16 washer (x2) 54 350.5660 6 Segment Quick Fit Plate
9 824.1600 M16 Nyloc nut (x2) 55 See Page 17 Quick Fit Plate Tooling
10 345.9222 Rear dust skirt 56 350.9180, 350.9186 Throttle lever (petrol only)
11 831.0620 M6 x 20 hex bolt
12 811.1006 M6 shake proof washer Items not shown on exploded view
13 843.0808 Water hose grommet See page 17 Motor/engine
14 831.0820/ 811.1008 M8 x 20 hex bolt / M8 shake proof
washer 345.9560A 230v Motor extension
15 992.0002 Starter box/throttle mounting plate 350.9175 Throttle cable (petrol only)
16 992.0001 Handle Assembly (excluding Starter
Box Mounting Plate) 719.3000 Water hose (request 0.4M)
17 834.0500 1/2” UNF nyloc nut (x8) 345.9800 Deadman’s switch box (No lever)
18 812.0500 1/2” plain washer (x4) 731.3154 Front brush seal
19 830.2000 Rubber mount 1/2” UNF 731.3155 Rear brush seal
20 345.9231 Handle clamping plate 713.5060 Stand return spring
21 831.1030/ 811.1010 M10 x 30 hex bolt
M10 shake proof washer (x12) 350.9141 M12 x 25 c/sunk socket screw x4
22 350.9150 Drive key 8 x 7 x 25 345.9150 Woodru Key N1 Shaft
23 See page 13 Motor pulley
24 See page 13 Taper lock bush (motor)
25 See page 13 Drive belt
26 See page 13 Drive shaft pulley Lafert Motor Components (see exploded view page 22)
27 See page 13 Taper lock bush (drive shaft) 14 841.2650 Icar or Ducati start capacitor (Black)
28 345.9224
345.9225
Motor mounting plate for all other
models Motor mounting plate for
345.2400D/QR, 345.2402D/QR,
345.2404D/QR and 345.2406D/QR
14 841.2660 Facon or Ducati run capacitor (White)
29 350.9116 25mm bearing assembly (x2) 5 841.2670
841.2672
SE01 Electronic starter switch
SE02 Electronic starter switch
30 824.1000 M10 nyloc nut (x6) 24 841.2680 Fan
31 806.1060 M10x60 cap head bolt (x6)
32 345.9235 Drive shaft 22 841.2690 Fan Cover 230v
33 345.9207A Pedal operated stand assembly 22 841.2692 Fan Cover 110v & 400v
34 345.9208 Shaft bush (x2) 9/11 841.2694 Terminal box and lid
35 345.9204 Connecting rod 14 841.2650 Icar or Ducati start capacitor (Black)
36 813.0420 4mm roll pin 14 841.2660 Facon or Ducati run capacitor (White)
37 345.9201 Pedal 5 841.2670
841.2672
SE01 Electronic starter switch
SE02 Electronic starter switch
38 345.9203 Pivot pin 24 841.2680 Fan
39 345.9202 Pedal bracket 22 841.2690 Fan Cover 230v
40 350.9146 Rubber coupling 22 841.2692 Fan Cover 110v & 400v
41 350.9143A Diamond plate adapter 9/11 841.2694 Terminal box and lid
41a 809.3005 O-ring
42 350.5620B 20 Segment diamond disc
43 857.1020 Wing Knob M10 x 20
parts list
www.trelawny.co.uk
Drive components by model
Taperlockbushesincludenewgrubscrews(Notillustrated)fortting.Also
supplied with data sheet with torque setting and method.
TheTCG250isavailableinarangeofcongurations.Theappropriatedrive
components for each variant are listed in the table below.
Note:
Honda N1 type shaft has a s v-belt pulley arrangement and is not a taper lock
pulley, this item has to be purchased as an assembly.
These are not user-serviceable parts. In the event of failure,
new assemblies will be need to be obtained from Trelawny.
Model Variant
D = Diamond Disc
QR = Quick Release Segment Disc
Model variant by part
number
Motor/engine/starter
N4 shaft prior to 2014 Motor bolts Motor nuts Motor washers
345.2400D/345.2400QR 350.9500 Honda N4 Shaft 806.5610 (x2) 824.0800 (x2) 811.1008 (x4)
345.9500 N1 Shaft
345.2402D/345.2402QR 345.9550 Motor 831.1240 (x4) 824.1200 (x4) 812.0712 (x8)
861.2002 Starter
345.2404D/345.2404QR 345.9560 Motor 831.1040 (x4) 824.1000 (x4) 811.0710 (x8)
861.2004 Starter
345.2406D/345.2406QR 350.9575 Motor 831.1240 (x4) 824.1200 (x4) 812.0712 (x8)
861.2007 Starter
MODEL VARIANT BY PART
NUMBER (23) PULLEY (MOTOR) (24) TAPER LOCK BUSH
(MOTOR) (25) BELT (26) PULLEY (DRIVESHAFT) (27) TAPER LOCK
BUSH(DRIVESHAFT)
345.2400D/QR 345.9130 Honda N4
345.9126A Honda N1
345.9129A N4
See (23) N1
345.9136 Honda N4
345.9126V Honda N1
345.9134 Honda N4
345.9126D Honda N1 345.9126M Honda
345.2402D/QR 345.9130 345.9129B 345.9135 345.9123 345.9125
345.2404D/QR 345.9130 345.9127A 345.9135 345.9124 345.9124A
345.2406D/QR 345.9143 345.9142 345.9138 345.9132 345.9126M
110v control system part no: 861.2005
230v control system part no: 861.2007
415v control system part no: 861.2009
Button assy Part no: 861.2018
Parts list model specic
PARTS LIST model specific
Model variant by part
number
(D=Diamond Disc)
Motor/engine/starter
N4 shaft prior to 2014
Motor bolts Motor nuts Motor washers
345.2000
5.5HP petrol
350.9500 Honda N4
shaft
345.9500 Honda N1
shaft
806.5610 (x2) 824.0810 (x2) 811.1008 (x8)
345.2000D
5.5HP petrol
350.9500 Honda N4
shaft
345.9500 Honda N1
shaft
806.5610 (x2) 824.0810 (x2) 811.1008 (x8)
345.2002
110V 1ph 1.8Kw
345.9550 motor
320.9144 starter 831.1240 (x4) 824.1200 (x4) 811.1012 (x8)
345.2002D
110V 1ph 1.8Kw
345.9550 motor
320.9144 starter 831.1240 (x4) 824.1200 (x4) 811.1012 (x8)
345.2004
230V 1ph 2.2kW
345.9567 motor
320.9145 starter 831.1240 (x4) 824.1200 (x4) 811.1012 (x8)
345.2004D
230V 1ph 2.2Kw
350.9560 motor
320.9145 starter 831.1040 (x4) 824.1000 (x4) 811.1010 (x8)
345.2006D
415V 3ph 5.5kW
350.9575 motor
325.9162 starter 831.1240 (x4) 824.1200 (x4) 811.1012 (x8)
Model variant by part
number
(23) PULLEY (MOTOR) (24) TAPER LOCK
BUSH (MOTOR)
(25) BELT (26) PULLEY
(DRIVESHAFT)
(27) TAPER LOCK
BUSH
(DRIVESHAFT)
345.2000D/QR 345.9130 Honda N4
345.9126A Honda N1
345.9129A N4
See (23) N1
345.9136 Honda N4
345.9126V Honda N1
345.9134 Honda N4
345.9126D Honda N1 345.9126M Honda
345.2002D/QR 345.9130 345.9129B 345.9135 345.9123 345.9125
345.2004D/QR 345.9130 345.9127A 345.9135 345.9124 345.9124A
345.2006D/QR 345.9143 345.9142 345.9138 345.9132 345.9126M
Taper Lock bushes include new grub
screws (Not illustrated) for fitting
Also supplied with data sheet with torque
setting and method.
Drive components by model 25
24
27
26
23 The TCG250 is available in a range of
configurations.
The appropriate drive components for each
variant are listed in the table below.
Note:
Honda N1 type shaft has a v-belt pulley
arrangement and is not a taper lock pulley,
this item has to be purchased as an
assembly. HONDA N1 PULLEY
PAGE 20
TCG250 Floor Grinder
Media Types - Metal Bond Tools
IMAGE PART NO. DESCRIPTION
365.5495L PCD Removal Diamond Anti-clockwise
For removal of coatings, adhesives & toppings
365.5495R PCD Removal Diamond Clockwise
For removal of coatings, adhesives & toppings
365.5500 16 Grit Single (Quick Release) Soft Bond
For very course grinding and thin coating removal
365.5500/2 16 Grit Double (Quick Release) Soft Bond
For very course grinding and thin coating removal
365.5501 30 Grit Single (Quick Release) Soft Bond
For Hard Concrete
365.5502 30 Grit Single (Quick Release) Medium Bond
For Medium Hardness concrete
365.5503 30 Grit Single (Quick Release) Hard Bond
For Soft Concrete or for very rough concrete
365.5501/2 30 Grit Double (Quick Release) Soft Bond
For Hard Concrete
365.5502/2 30 Grit Double (Quick Release) Medium Bond
For Medium Hardness concrete
365.5503/2 30 Grit Double (Quick Release) Hard Bond
For Soft Concrete or for very rough concrete
365.5504/2 70 Grit Double (Quick Release) Medium Bond
For Light Grinding and Scratch Removal
365.5506/2 120 Grit Double (Quick Release) Medium Bond
For Light Grinding and Scratch Removal
Guidance Notes
1. Only use parts with equal levels of wear. Mixing new and
old blocks will cause oor damage and or rapid wear on the
new blocks.
2. If the result of the grinding causes uneven oor wear or
rapid block wear check the hardness / coarseness of the
blocks v’s target oor surface.
3. Keep the machine moving at all times during operation for
the best results.
