Trend Micro TippingPoint 2200T User manual

Threat Protection System
Hardware Specification and Installation Guide
5900-4108
December 2016

Legal and notice information
© Copyright 2016 Trend Micro Incorporated. All rights reserved.
Trend Micro Incorporated makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Trend Micro Incorporated shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or
translated into another language without the prior written consent of Trend Micro Incorporated. The information is provided “as is” without warranty
of any kind and is subject to change without notice. The only warranties for Trend Micro Incorporated products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
Trend Micro Incorporated shall not be liable for technical or editorial errors or omissions contained herein.
TippingPoint, the TippingPoint logo, and Digital Vaccine are trademarks or registered trademarks of Trend Micro Incorporated. All other company
and/or product names may be trademarks or registered trademarks of their respective owners. This document contains confidential information, trade
secrets or both, which are the property of Trend Micro Incorporated. No part of this documentation may be reproduced in any form or by any means
or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from Trend Micro Incorporated or
one of its subsidiaries.
All other company and product names may be trademarks of their respective holders.
TippingPoint Threat Protection System Hardware Specification and Installation Guide
Publication Part Number: 5900-4108

Threat Protection System Hardware Specification and Installation Guide i
Contents
About this guide......................................................................................................................................1
Target audience...................................................................................................................................... 1
Related documentation...........................................................................................................................1
Conventions............................................................................................................................................ 1
Product support...................................................................................................................................... 2
Overview...................................................................................................................................................4
TPS devices............................................................................................................................................4
Core hardware features..........................................................................................................................4
440T device..........................................................................................................................................4
2200T device........................................................................................................................................6
TippingPoint 440T hardware description............................................................................................. 8
Device overview......................................................................................................................................8
Chassis Front Panel............................................................................................................................ 8

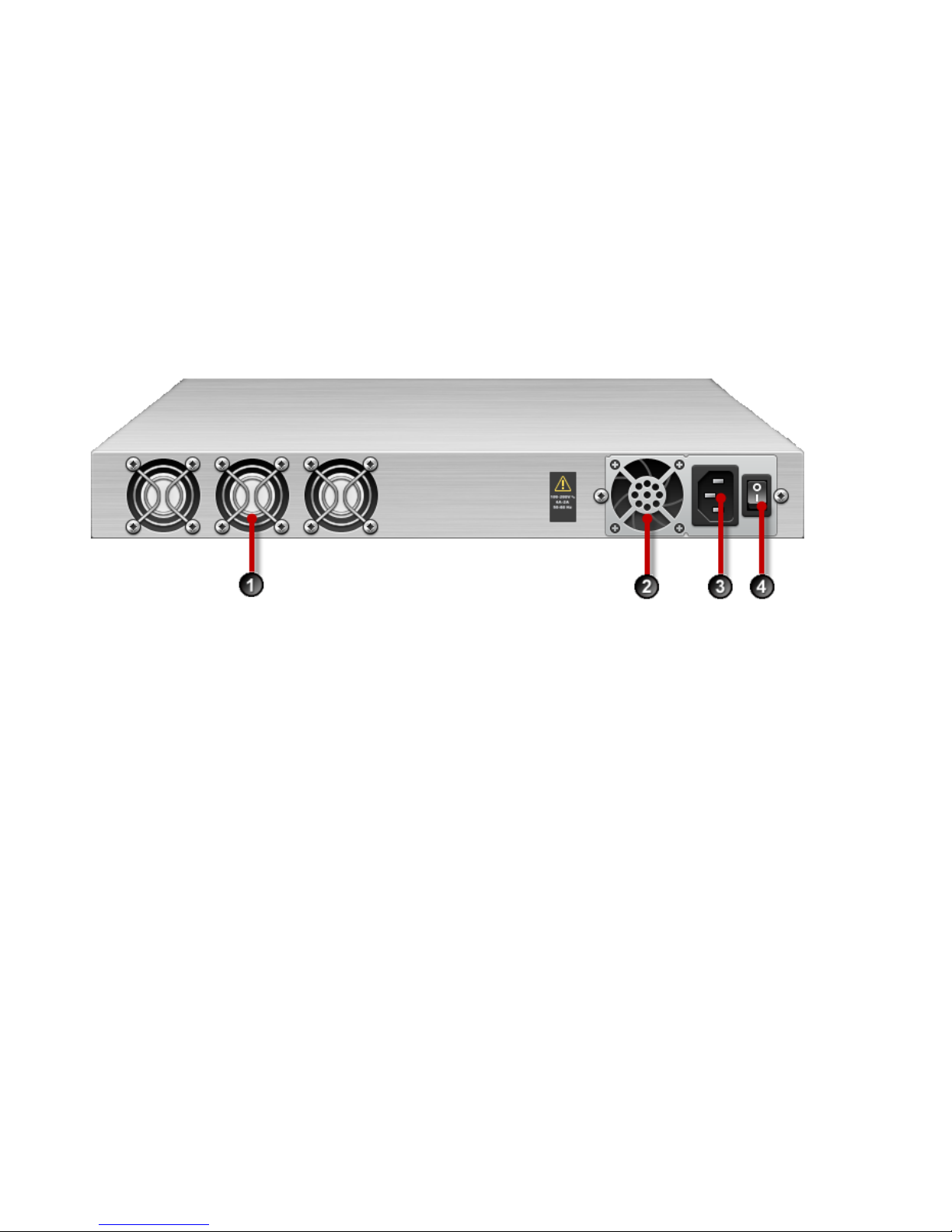

Chassis back panel..............................................................................................................................9
Chassis features.................................................................................................................................. 9
Power switch and power indicator.................................................................................................. 10
System status indicator................................................................................................................... 10
Alert indicator...................................................................................................................................10
Fans and power supplies................................................................................................................10
External storage card...................................................................................................................... 10
Ports.................................................................................................................................................11
Model requirements.............................................................................................................................. 12
Power requirements........................................................................................................................... 12
Cabling requirements......................................................................................................................... 12

ii Threat Protection System Hardware Specification and Installation Guide
Technical specifications........................................................................................................................ 12
Installing the device..............................................................................................................................13
TippingPoint 2200T hardware description......................................................................................... 14
2200T device overview.........................................................................................................................14
Chassis front panel............................................................................................................................ 14
2200T chassis back panel.................................................................................................................15
2200T chassis features......................................................................................................................16
Power button................................................................................................................................... 16
System status indicator................................................................................................................... 17
Alert indicator...................................................................................................................................17
Fans and power supplies................................................................................................................17
External storage card...................................................................................................................... 17
Ports.................................................................................................................................................17
Model requirements.............................................................................................................................. 19
Power requirements........................................................................................................................... 19
Cabling requirements......................................................................................................................... 19
Technical specifications........................................................................................................................ 19
Hardware installation and configuration............................................................................................... 20
Installing the TPS device..................................................................................................................... 21
Install the chassis................................................................................................................................. 21
Determine total rack space................................................................................................................21
Attach the device to the rack............................................................................................................ 22
Rack-mounting the TPS 440T device.............................................................................................22
Two-post rack mount.................................................................................................................... 22
Four-post rack mount................................................................................................................... 24
Rack-mounting the TPS 2200T device...........................................................................................25
Two-post rack mount for 2U chassis............................................................................................25
Four-post rack mount for 2U chassis...........................................................................................27
Connect the power supply.................................................................................................................28

Threat Protection System Hardware Specification and Installation Guide iii
Attach cables........................................................................................................................................ 28
Attach the Console port connection.................................................................................................. 28
Attach the management processor connection................................................................................. 28
Attach network connections...............................................................................................................28
Check LEDs..........................................................................................................................................29
Run the setup wizard........................................................................................................................... 29
Connector and cable pinout specifications....................................................................................... 30
RJ-45 (COM) console...........................................................................................................................30
RJ-45 Ethernet connectors...................................................................................................................31
Pluggable transceivers......................................................................................................................... 31
Power supply and fan modules...........................................................................................................33
The 2200T AC power supply............................................................................................................... 33
Connect the AC power supply...........................................................................................................34
The 2200T DC power supply............................................................................................................... 34
Connect the DC power supply.......................................................................................................... 34
TPS fans................................................................................................................................................. 36
Replace the fan.................................................................................................................................... 36
Installing the power cord retention bracket.......................................................................................38
Power cord retention bracket............................................................................................................... 38
Installing and using the bracket........................................................................................................... 38
Installing the bracket..........................................................................................................................39
Using the power cord retention bracket............................................................................................ 39
Removing the bracket.......................................................................................................................... 39
Using the external CFast storage card...............................................................................................40
About the external CFast storage card................................................................................................40

iv Threat Protection System Hardware Specification and Installation Guide
CFast card commands......................................................................................................................... 40

Threat Protection System Hardware Specification and Installation Guide 1
About this guide
Welcome to the installation and specification guidelines for your Threat Protection System (TPS) device.
This section covers the following topics:
•Target audience on page 1
•Related documentation on page 1
•Conventions on page 1
•Product support on page 2
Target audience
The intended audience includes technicians and maintenance personnel responsible for installing,
configuring, and maintaining TippingPoint security systems and associated devices.
• Basic networking
• Network security
• Routing
Related documentation
A complete set of documentation for your product is available on the TippingPoint Threat Management
Center (TMC) at: https://tmc.tippingpoint.com. The documentation generally includes installation and user
guides, command-line interface (CLI) references, safety and compliance information, and release notes.
Conventions
This information uses the following conventions.
Typefaces
TippingPoint uses the following typographic conventions for structuring information.
Convention Element
Bold font • Key names
• Text typed into a GUI element, such as into a box

2Threat Protection System Hardware Specification and Installation Guide
Convention Element
• GUI elements that are clicked or selected, such as menu and list items,
buttons, and check boxes. Example: Click OK to accept.
Italics font Text emphasis, important terms, variables, and publication titles
Monospace font • File and directory names
• System output
• Code
• Text typed at the command-line
Monospace, italic
font
• Code variables
• Command-line variables
Monospace, bold
font
Emphasis of file and directory names, system output, code, and text typed
at the command line
Messages
Messages are special text that is emphasized by font, format, and icons.
Warning! Alerts you to potential danger of bodily harm or other potential harmful consequences.
Caution: Provides information to help minimize risk, for example, when a failure to follow directions
could result in damage to equipment or loss of data.
Note: Provides additional information to explain a concept or complete a task.
Important: Provides significant information or specific instructions.
Tip: Provides helpful hints and shortcuts, such as suggestions about how to perform a task more easily or
more efficiently.
Product support
Get support for your product by using any of the following options:
Email support

Threat Protection System Hardware Specification and Installation Guide 3
[e-mail]
Phone support
North America: [phone]
International: See https://tmc.tippingpoint.com

4Threat Protection System Hardware Specification and Installation Guide
Overview
The TippingPoint Threat Protection System (TPS) is a high-performance, enterprise-class solution that
protects your network by scanning, detecting, and responding to network traffic according to the filters,
action sets, and global settings maintained on each device by a client.
The TPS offers higher throughput and improved technology that is optimized for high resiliency, high
availability, and network segment protection from both external and internal attacks.
The following topics are covered:
•TPS devices on page 4
•Core hardware features on page 4
TPS devices
The TPS device delivers world-class defense against network intrusion and provides application control.
• The Threat Suppression Engine (TSE) scans, detects, and responds to network traffic according to the
filters, action sets, and global settings maintained on each device by a client.
• Built-in intrinsic high-availability features guarantee that the network keeps running in the event of a
system failure.
You can install as many TippingPoint security devices as you need to strategically protect your network
enterprise zones. A local client on the device monitors and manages activity. Alternatively, you can manage
devices by using the Security Management System (SMS) console.
Core hardware features
The TPS family includes the 440T device and the 2200T device.
These robust, high-performance security devices offer a scalable solution to support all types of
organizations and network environments.
440T device
Figure 1. 440T device

Threat Protection System Hardware Specification and Installation Guide 5
The 440T device has the following hardware features:
Feature 440T device
Copper ports 8
1GbE SFP ports None
10GbE SFP+ ports None
Power supply One 350W (built-in)
System memory 16GB
External CFast card 1 (8GB)
Replaceable fans No
High Availability (HA) Yes
Zero Power High Availability (ZPHA) Built-in ZPHA on the 8 copper ports
In addition, the device includes:
• Built-in intrinsic high-availability features, guaranteeing continuity in the event of system failure
• Up to 500 Mbps aggregate across all four segments
• Encryption for VPN service

6Threat Protection System Hardware Specification and Installation Guide
• Device management through the Local Security Manager (LSM) or centralized management through the
Security Management System (SMS).
2200T device
Figure 2. 2200T device
The 2200T device has the following hardware features:
Feature 2200T device
Copper ports 8
1GbE SFP ports 8
10GbE SFP+ ports 4
Power supply Two 750W (removeable)
System memory 64GB
External CFast card 1 (8GB)
Replaceable fans Yes

Threat Protection System Hardware Specification and Installation Guide 7
Feature 2200T device
High Availability (HA) Yes
Zero Power High Availability (ZPHA)* Built-in ZPHA for copper segments
External ZPHA port for SFP and SFP+ segments
*For information on installing and operating a ZPHA module, refer to TippingPoint Modular Fiber/Copper
ZPHA Installation Guide available on the TMC (http://tmc.tippingpoint.com).
In addition, the device includes:
• Built-in intrinsic high-availability features for copper segments, guaranteeing continuity in the event of
system failure
• Up to 2Gbps aggregate across all 10 segments
• Encryption for VPN service
• Device management through the Local Security Manager (LSM) or centralized management through the
Security Management System (SMS).

8Threat Protection System Hardware Specification and Installation Guide
TippingPoint 440T hardware description
This information describes the components, chassis, requirements, and installation specifics of the
TippingPoint 440T device. The following topics are discussed:
•Device overview on page 8
•Model requirements on page 12
•Technical specifications on page 12
•Installing the device on page 13
For information about installing the device, see Installing the TPS device on page 21. Prior to installation,
have the CLI Reference available for configuration information.
Device overview
The 440T device is a small form-factor device designed for smaller network environments in which traffic
throughput requirements are 500Mbps or less. This model provides the same high-level security protection
as the higher-capacity models.
Chassis Front Panel
The 440T device is a 1U form-factor device that is rack-mountable in a 19-inch rack (or 23-inch rack, with
appropriate conversion parts available from rack accessory vendors).
The following image is a front panel view of a 440T device:
Figure 3. 440T device front panel
1. CFast card
2. 1GB copper ports
3. Dedicated HA port

Threat Protection System Hardware Specification and Installation Guide 9
4. Serial console port/Management port
5. Alert indicator
6. System status indicator
7. Power indicator
Chassis back panel
The following illustration shows a rear-panel view of a 440T device.
Figure 4. 440T device back panel
1. Fans (3)
2. AC power supply
3. AC power connector
4. Power switch
Chassis features
The chassis features include the following elements:
•Power switch and power indicator on page 10
•System status indicator on page 10
•Alert indicator on page 10
•Fans and power supplies on page 10
•External storage card on page 10
•Ports on page 11

10 Threat Protection System Hardware Specification and Installation Guide
Power switch and power indicator
The power switch is located on the right side of the back panel. The power indicator on the front panel
indicates the current power status of the device.
•No light — Device is powered off.
•Green — Device is powered on.
System status indicator
The System Status indicator is located on the right side of the front panel and indicates the current operating
status of the device.
•Flashing Green — Device is booting and is not yet ready to inspect traffic.
•Flashing Green/Yellow — Device is booting and BIOS or software is updating.
•Solid Green — Device is running in a healthy state.
•Solid Yellow — Device is running but has a health rating below the acceptable threshold.
Alert indicator
The Alert indicator is located on the right side of the front panel and indicates the current status of the
software processes and the hardware.
•Solid Green — Both the hardware and the software processes are running normally.
•Solid Yellow — System is booting. If the solid yellow indicator remains after startup, a software
problem has been detected. Hardware status is undefined.
•Flashing Yellow — Hardware problem detected. Software running normally.
•Off — Device power is off.
Fans and power supplies
The 440T device includes one power supply and five cooling fans (two of them are internal). These
components are not customer-replaceable. For more information about these components, see Power supply
and fan modules on page 33.
External storage card
The 440T device includes a CFast card slot. The external storage card stores traffic logs, snapshots, and
other system data. The card can be removed and inserted while the device is running; however, to do so,
you must issue the appropriate unmounting, mounting, and preparation commands in the command line
interface (CLI).
For more information about the procedure, refer to Using the external CFast storage card on page 40.

Threat Protection System Hardware Specification and Installation Guide 11
Ports
The device is equipped with eight copper ports. In addition, the device includes the console and
management ports shown in the following figure:
Figure 5. Management and Console ports
1. 1 RJ-45 serial console port
2. 1GbE copper management port
3. Activity LED
4. Link LED
The management port LEDs indicate link and activity state, as described in the following table.
LED Type Color Description
Green Link is active at 1000Mbps.Link
Off Link is inactive, or is active at 10Mbps or 100Mbps.
Activity Blinking amber Data traffic is passing.

12 Threat Protection System Hardware Specification and Installation Guide
LED Type Color Description
Off No traffic is passing.
Model requirements
The following topics describe the power and cabling requirements for the 440T device.
•Power requirements on page 12
•Cabling requirements on page 12
Power requirements
The 440T device requires one input of Alternating Current (AC) that must meet the following requirements:
• AC: Voltage 100V – 240V; 4 – 2 amp; 50 – 60 Hz
Cabling requirements
The 440T device ships with the following cables:
• One AC power cable
• Null modem cable for the serial console management port (DB-9 to RJ-45) shown in Figure 5 on page
11
Technical specifications
The 440T device has the following specifications.
Specification Description
Dimensions
(unpackaged)
1.73 in (H) x 16.78 in (W) x 17.72 in (D) (4.40 cm x 42.62 cm x 45.00 cm)
Weight 15.28 lbs (6.93 kg)
Power Requirements AC: Voltage 100 – 240; Current 4 – 2 A; Frequency 50– 60 Hz
The device’s maximum power consumption is 142 W.

Threat Protection System Hardware Specification and Installation Guide 13
Specification Description
Service Provider
operating
requirements
Temperature: 32 – 104° F (0 – 40° C) — Operating
Temperature: -4 – 158° F (-20 – 70° C) — Storage
Altitude: No degradation up to 10,000 feet (3048 m)
Humidity: 5% to 95% (non-condensing)
External interfaces • 1 – 1GbE copper management port
• 1 – RJ-45 console port
• 8 – 1GbE copper ports
• 1 external storage card drive
Installing the device
To install and complete installation setup of the device, see Installing the TPS device on page 21.

14 Threat Protection System Hardware Specification and Installation Guide
TippingPoint 2200T hardware description
This information describes the components, chassis, requirements, and installation specifics of the
TippingPoint 2200T device. The following topics are discussed:
•2200T device overview on page 14
•Model requirements on page 19
•Technical specifications on page 19
•Hardware installation and configuration on page 20
For information about installing the device, see Installing the TPS device on page 21. Prior to installation,
have the CLI Reference available for configuration information.
2200T device overview
The 2200T device is a mid-range system that has a larger form factor than the 440T device and is designed
for network environments requiring inspection of inbound Secure Socket Layer (SSL) traffic throughput
rates between 1Gbps and 2Gbps. These models provide the same high-level of security protection as the
highest-capacity models.
Chassis front panel
The 2200T device is a 2U form-factor devices that are rack-mountable in a 19-inch rack (or 23-inch rack,
with appropriate conversion parts available from rack accessory vendors). These appliances support
throughput across multiple copper and fiber ports.
The following illustration shows a front panel view of the 2200T device:
Figure 6. 2200T device front panel
