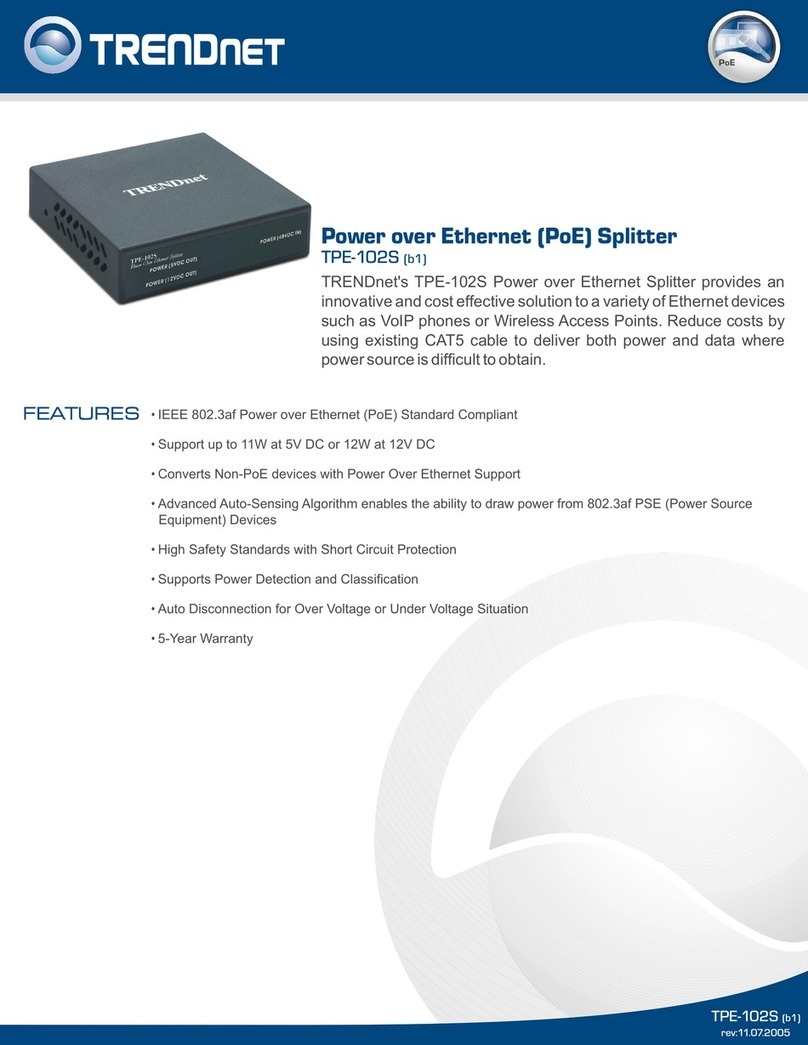

TRENDnet TPE-102S User manual

The Power over Ethernet Splitter provides an innovative and cost
effective solution to a variety of Ethernet devices such as VoIP
phones or Wireless Access Points. Reduce costs by using existing
CAT5 cable to deliver both power and data where power source is
difficult to obtain.
TPE-102S (V2.0R)
TEW-503PI (07-28-2005) TPE-102S (V2.0R)
rev:09.17.2007
• IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
• Converts Non-PoE devices with Power Over Ethernet Support
• Supports Adjustable Output 5V, 7.5V, 9V, 12V
• Automatically detecting PoE Terminals and supplying inline power
• Advanced Auto-Sensing Algorithm enables the ability to draw power from 802.3af PSE (Power Source
Equipment) Devices
• Supports Power Detection and Classification
• Includes 2 Different Size of Jumper Cable
• 5-Year Warranty
FEATURES
Power over Ethernet (PoE) Splitter

Network Media
Diagnostic LEDs
Protocol
Topology
Ports
Switch
Power Consumption
Temperature
Humidity
Weights
Certification
Dimensions (LxWxH)
• IEEE 802.3 10Base-T • IEEE802.3u 100Base-TX • IEEE 802.3af Power over Ethernet
• Plug Dimension: 5.5 x 2.0mm and 5.5 x 2.5mm
• 10Mbps: UTP/STP Cat. 3, 4, 5; Up to 100 Meters
• Power: Green
• Storage: -40°~ 70°C (40°F~ 158°F)
• 80 x 54 x 24 mm (3.2 x 2.13 x 0.9 inches) (L x W x H)
• 100Mbps: UTP/STP Cat. 5; Up to 100 Meters
• CSMA/CD
• Star
• 1 x PoE-IN Port (Data + Power): data pin: 1,2,3,6 power in: 4,5(V+), 7,8(V-) and 1,2(V+), 3,6(V-)
• 10 Watts
• 1 x Data-OUT Port (Data) Pin 1,2,3,6
• Adjustable Switch between 5V, 7.5V, 9V and 12V
• Power In: 48VDC 0.3A
• Operating: 0°~ 45°C (32°F~ 113°F)
• 10%- 90% (non-condensing)
• FCC, CE
• 120g (4.23 lb)
Power
Jumper Cable
Standards
Hardware
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.trendnet.com.
©
Copyright TRENDnet. All Rights Reserved.
Power over Ethernet (PoE) Splitter
TPE-102S (V2.0R)
RELATED PRODUCTS
PACKAGE CONTENTS
TPE-S88

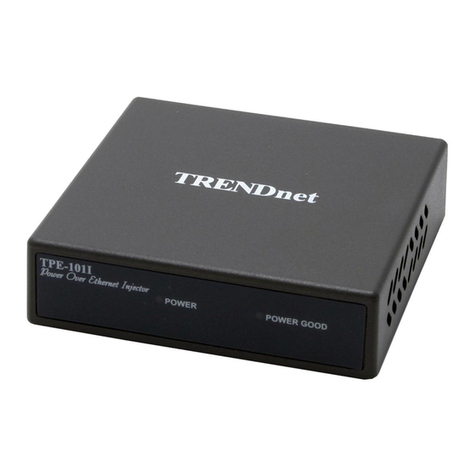

TPE-101I Power over Ethernet (PoE) Injector
• Power Jumper Cable
• Cat.5 Cable (60cm/23.6inches)
16-Port 10/100Mbps Web Smart PoE Switch
• TPE-102S
• Multi-Language User's Guide
ORDERING INFORMATION
To Order Please Call:
1-888-326-6061
NETWORKING SOLUTIONS
SPECIFICATIONS
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.trendnet.com
Power over Ethernet Injector
(TPE-101I)
Power +
Ethernet Data
5V/12V Power
Ethernet Data
Power + Ethernet Data
48V DC Power
48V DC Power
5V/12V Power
Ethernet Data
Power + Ethernet Data
Ethernet Data
Power
Jack
5V/12V Power
Ethernet Data
Power + Ethernet Data
5V/12V Power
Non-PoE Device which
uses 5V/12V Power Input
Ethernet Data
Power over Ethernet Splitter
(TPE-102S)
Power over Ethernet Splitter
(TPE-102S)
8-Port 10/100Mbps
Ethernet Switch
(TE100-S88Eplus)
16-Port PoE and 10/100Mbps
Web Smart Switch
(TPE-S88)
PoE Ports
Non-PoE Device which
uses 5V/12V Power Input
• Power Out: 5V(2A), 7.5V(1.33A), 9V(1.11A), 12V(0.86A)
