TRENDnet TE100-PCIFC User manual

MicheM

2
Table of Contents
PRODUCT OVERVIEW 3
PACKAGE CONTENTS..............................................................................3
PRODUCT FEATURES ............................................................................. 4
Driver Support 4
Utilities (Windows only, Vista is not supported) 5
LEDs 5
DRIVER/HARDWRE INSTALLATION 6
INSTALLING DRIVER/HARDWARE............................................................. 6
CONNECTING REMOTE WAKE-UP CABLE ...............................................10
CONNECTING TO YOUR NETWORK .........................................................11
Fiber Adapter 11
Cabling Requirements 12
NIC CONTROL SET UTILITY 13
MY COMPUTER.....................................................................................13
NIC 13
Protocol 13
Service 14
Client 14
GENERAL .............................................................................................15
SETTING...............................................................................................16
STATISTICS...........................................................................................16
DIAGNOSTICS .......................................................................................17
WAKE-UP PACKET.................................................................................17
VLAN SETTINGS...................................................................................18
Add/Remove VLAN 18
Setting for add/remove VLAN 18
VLAN01 (VLAN ID =1) added 18
Driver setting changed by NIC Control Set 19
Remove VLAN/Change VLAN property 20
DOS DIAGNOSTIC UTILITY 21
DIAG UTILITY.......................................................................................21
MAIN MENU..........................................................................................21
FUNCTIONS KEY ...................................................................................21
LOADING NETWORK DRIVERS................................................................22
SPECIFICATIONS 23

3
Product Overview
Package Contents
When you unpack the product package, you shall find the items listed below.
Please inspect the contents, and report any apparent damage or missing items
immediately to our authorized reseller.
•TE100-PCIFC
•Multi-Language Quick Installation Guide
•CD-ROM (Driver & User’s Guide)

4
Product Features
zProvide
One 100Base-FX port
zfiber connections:
SC type multi-mode connector
Compliant with IEEE 802.3u 100Base-FX
PCI 2.1, 2.2 Specification compliant
zSeparate 2K Bytes FIFO for receive and transmit controllers
zFlow Control:
Support IEEE 802.3x for full duplex
Multiple pause frame XON/XOFF
zACPI (Advanced Configuration and Power Interface):
Support PC99, PC2001 and Net PC hardware system requirements
Support PCI Bus Power Management Interface Specification
Version 1.0/1.1
Support ACPI Specification 1.0
Support Network Device Class Power Management Specification
Version 1.0a
Support Wake-on-LAN magic packet
zMAC Enhancement Function:
IEEE 802.1q multiple VLAN with VLAN ID auto
insertion/extraction
UDP, TCP/IP checksum offload for Ipv4 frames
zTwo LEDs: LNK/ACT (link/activity), 100 (100Mbps speed)
Driver Support
The Adapter supports a wide range of drivers for commonly used network
operating systems:
zWindows 95 (including OSR2), Windows 98, Windows 98 (including SE),
Windows ME, Win2000, Windows 2003, Windows XP, Workgroups 3.11,
Windows NT 3.51 and 4.0
zLAN Manager, LANtastic, PC-NFS
zNovell Netware 3.11,3.12, 4.x, 5.x, 6.0, Client 32
zLinux Kernel 2.2.x/2.4.x/2.6.x
zFreeBSD 3.2, 4.0, 4.11, 4.2, 5.x
zSCO UnixWare 7.x/OpenUnix 8, SCO UNIX 5.0

5
Utilities (Windows only, Vista is not supported)
zNIC Control Set
zDos Diagnostic Utility
LEDs
cLNK/ACT Link/Activity
d100 100Mbps
LEDs Status Indication
LNK/ACT
Steady A valid network connection established.
LNK stands for LINK.
Flashing Transmitting or receiving data.
ACT stands for ACTIVITY.
Off Neither connection nor activity.
100 Steady 100Mbps.
Off 10Mbps.

6
Driver/Hardwre Installation
Installing Driver/Hardware
Windows Vista/2003 Server/XP/2000
Step 1: Insert the Drive CD-ROM into your computer’s CD-ROM drive.
Step 2: Click Install Driver, and then click your operating system.
Step 3: Click OK to finish the installation
Step 5: Turn off the power to the PC.
Step 6: Remove any metal decorations from your hands and wrists.
Step 7: Remove the cover from your PC.
Step 8: Locate an empty, non-shared bus mastering PCI slot and remove the corresponding
backplate. Save the screw for use in Step 10.

7
<Note>
i. Do not install the TE100-PCIFC in a shared PCI slot. Avoid any PCI slot next to an ISA slot because this
is often a shared slot and does not support bus mastering.
ii. If you are going to install the Remote Wake-Up cable, choose an available PCI slot most close to the 3-
pin Remote Wake-Up connector on the PC motherboard.
iii. If you have problems in identifying a suitable slot, check your PC documentation or ask your system
administrator for help.
Step 9: Carefully insert the TE100-PCIFC into the chosen slot and press firmly with proper push
to ensure it is fully seated in the slot.
Step 10: Secure the TE100-PCIFC with the screw you saved in step 8.
<Note> If you wish to use the Remote Wake-Up function, please complete the installation in next section
“Connecting the Remote Wake-Up Cable” before proceeding to step 10.
Step 11: Replace the PC cover.
Step 12: Proceed to “Connecting to Your Network” section.
Install the TE100-PCIFC into the PCI slot and screw it onto the backplate.
Windows 98/ME
Step 1: Insert the Drive CD-ROM into your computer’s CD-ROM drive. Then click Exit.
Step 2: Turn off the power to the PC.
Step 3: Remove any metal decorations from your hands and wrists.
Step 4: Remove the cover from your PC.

8
Step 5: Locate an empty, non-shared bus mastering PCI slot and remove the corresponding
backplate. Save the screw for use in Step 6.
<Note>
i. Do not install the TE100-PCIFC in a shared PCI slot. Avoid any PCI slot next to an ISA slot because this
is often a shared slot and does not support bus mastering.
ii. If you are going to install the Remote Wake-Up cable, choose an available PCI slot most close to the 3-
pin Remote Wake-Up connector on the PC motherboard.
iii. If you have problems in identifying a suitable slot, check your PC documentation or ask your system
administrator for help.
Step 6: Carefully insert the TE100-PCIFC into the chosen slot and press firmly with proper push
to ensure it is fully seated in the slot.
Step 7: Secure the TE100-PCIFC with the screw you saved in step 4.
<Note> If you wish to use the Remote Wake-Up function, please complete the installation in next section
“Connecting the Remote Wake-Up Cable” before proceeding to step 7.
Step 8: Replace the PC cover.
Step 9: Turn the PC on again.

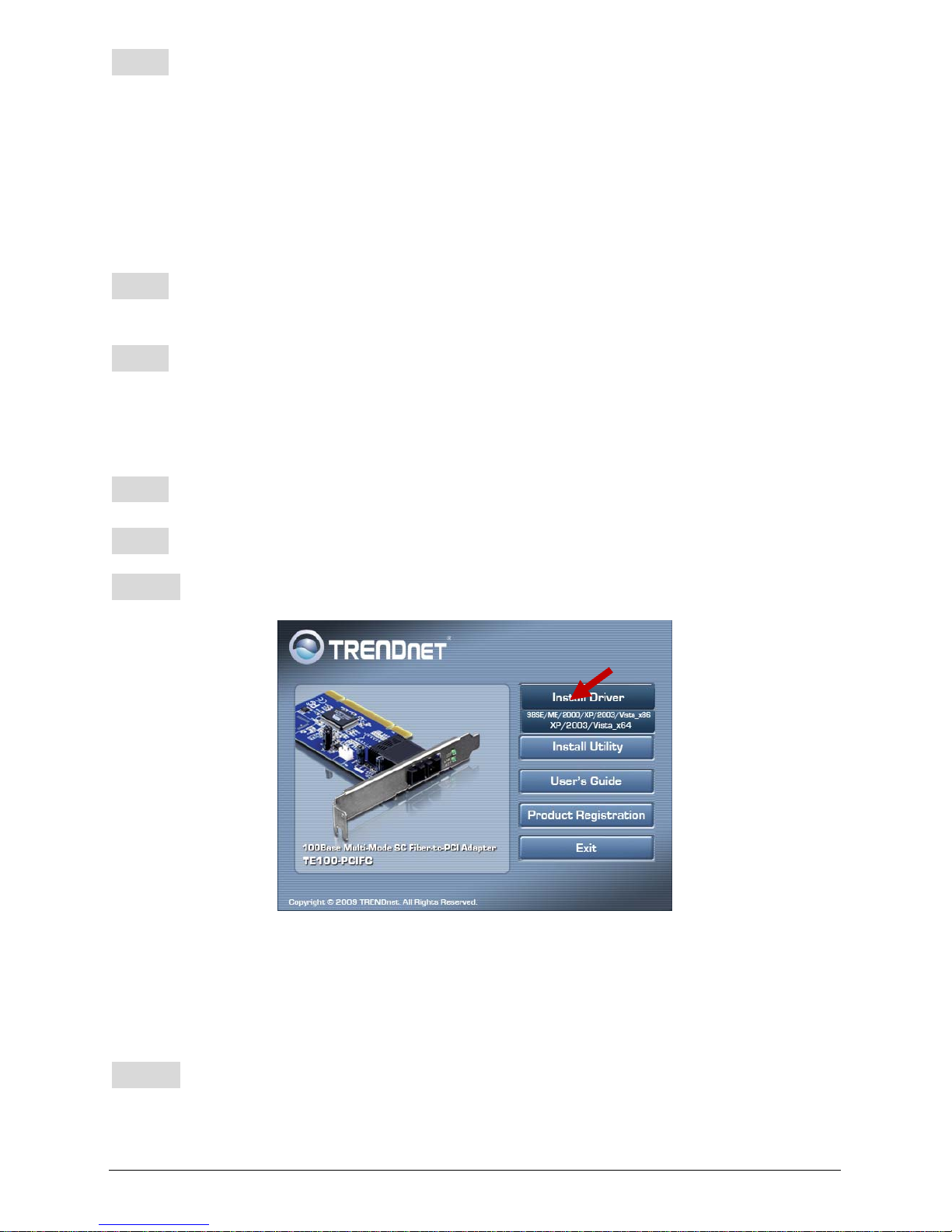

Step 10: When the autorun pop up, click Install Driver, and then click your operating system.
<Note>If the autorun did not appear, please go to the disk driver, right click on the explorer. In the
Driver folder, click the the driver of
Windows 98SE_ME_2K_XP_Srv2003_Vista x86 Edition, then click WinSep.exe to
execute the program.
Step 11:Wait until the TE100-PCIFC finishes the installing.

9
Step 12: If the following screen pop up, insert the Windows 98SE CD-ROM into CD-ROM driver.
(For Windows 98SE only)
Step 13: Click OK to reboot your computer.

10
Connecting Remote Wake-Up Cable
The unit support optional Wake-on-Lan magic packet feature. Proceed with the
installation only when your PC supports this remote wake-up and you wish to
use this function. If your PCI bus supports version 2.2 or higher, there is no
Wake-Up cable required. The feature can be enabled without using the cable.
For more detail information, please check the User’s Guide of your Motherboard.
Wake-on-LAN magic packet
Step 1: Make sure the power to the PC is off.
Step 2: Check if the TE100-PCIFC is properly installed in a PCI slot.
Step 3: Prepare a Remote Wake-Up cable. Connect the cable from TE100-PCIFC to motherboard
connector.
Step 4: Replace the PC cover.
Step 5: Proceed to “Connecting to Your Network” Section.
Connect Remote Wake-Up cable from TE100-PCIFC to motherboard connector.
Plug in Remote Wake-Up cable to connector on Ethernet Adapter.

11
Connecting to Your Network
Fiber Adapter
This section describes how to connect the Fiber Adapter to a 100 Mbps fiber-
based Ethernet network, which contributes to its optimal performance.
<Note>
You must connect the Fiber Adapter to the network before installing the network driver.
Step 1: Remove the protective cover from the TE100-PCIFC fiber connector.
Step 2: Prepare a network cable with corresponding connectors for the two end devices, one end
to the Fiber Adapter and the other to a 100Mbps fiber port on the network hub or switch.
Step 3: Connect the network cable to the connector on the Fiber Adapter. This network cable
consists of two individual cables: one for ‘transmission (TX)’, and the other for ‘reception
(RX)’.
Step 4: Connect the other end of the network cable to a 100Base-FX hub or a switch.
<Note>
i. Insert the cable that is connected to the transmit (TX) connector on the Fiber Adapter into the receive (RX)
connector on the network hub or switch.
ii. Insert the cable that is connected to the receive (RX) connector on the Fiber Adapter into the transmit (TX)
connector on the network hub or switch.
Step 5: When the cable is properly connected to two end devices, turn on the power to the PC.
Step 6: Check the LNK (Link) LED. The LED will come on when the Fiber Adapter is receiving
a good link signal from the connected device, a hub or switch.

12
Cabling Requirements
For connector type, cabling requirements, and maximum segment distance when
connecting the TE100-PCIFC to your network, please refer to the following
table.
Fiber
Connections Type Wavelength of 1300nm Fiber Optic required Max. Distance
(* full-duplex)
SC Multi-mode, 62.5/125 µm 2 km
<Note> The maximum node-to-node network distance is in full-duplex operation.

13
NIC Control Set Utility
The NIC Control Set is a Windows-based application. It provides Network
Interface Card information, setting, statistics and diagnostic function. Also, it
provides multiple VLAN function.
My Computer
NIC
All NIC drivers are currently installed in this computer.
Protocol
All network protocols are currently installed in this computer.

14

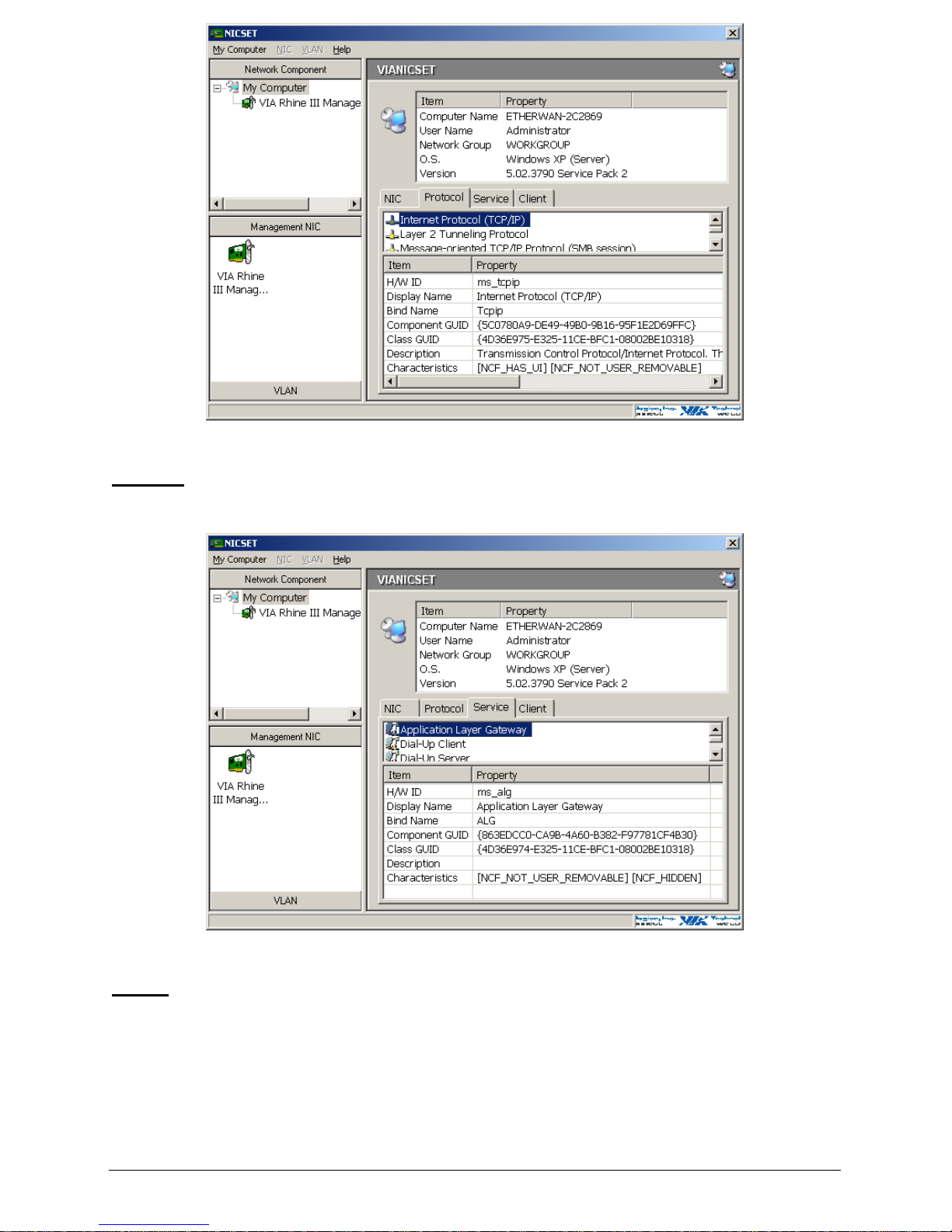

Service
All network services are currently installed in this computer.
Client
All network clients are currently installed in this computer.

15
General
Display the basic information of the adapter, such as MAC Address, IP Address,
Link Speed, and Duplex Mode.

16
Setting
Display and set the parameters of the adapter by disable & enable the function.
Statistics
Display all the statistics information of the NIC.

17
Diagnostics
Diagnose the hardware functionality: MAC Registers, PHY Registers, Loopback
and Cable Link. The continuous option can be set as an infinite loop of testing.
Please be award that perform this task will temporary disable the adapter. Once
the adapter has finished the test, it will enable again.
Wake-up Packet
Configure the Wake-up packet type for Wake-On-LAN.

18

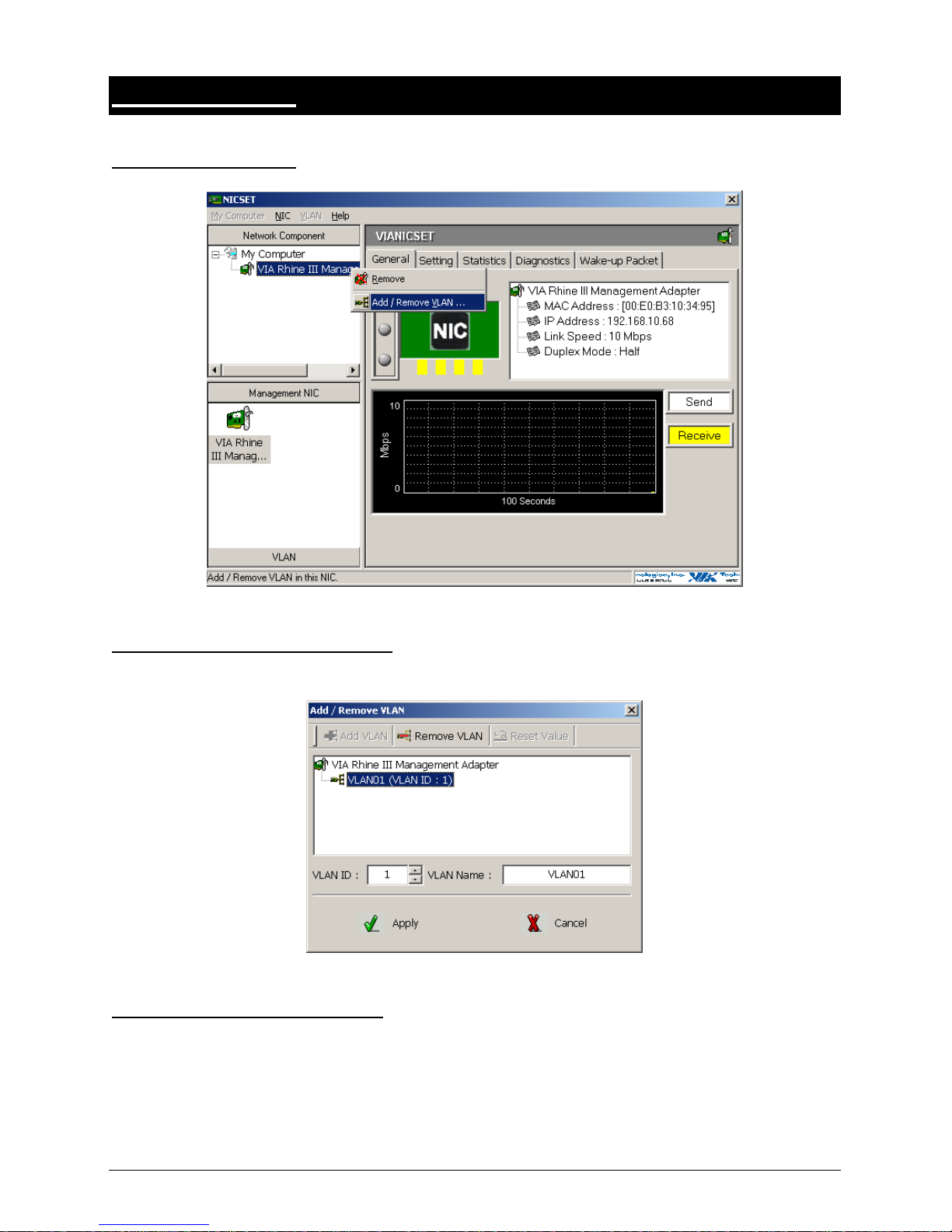

VLAN settings
Add/Remove VLAN
Setting for add/remove VLAN
User should specify VLAN ID and VLAN name in the dialog box.

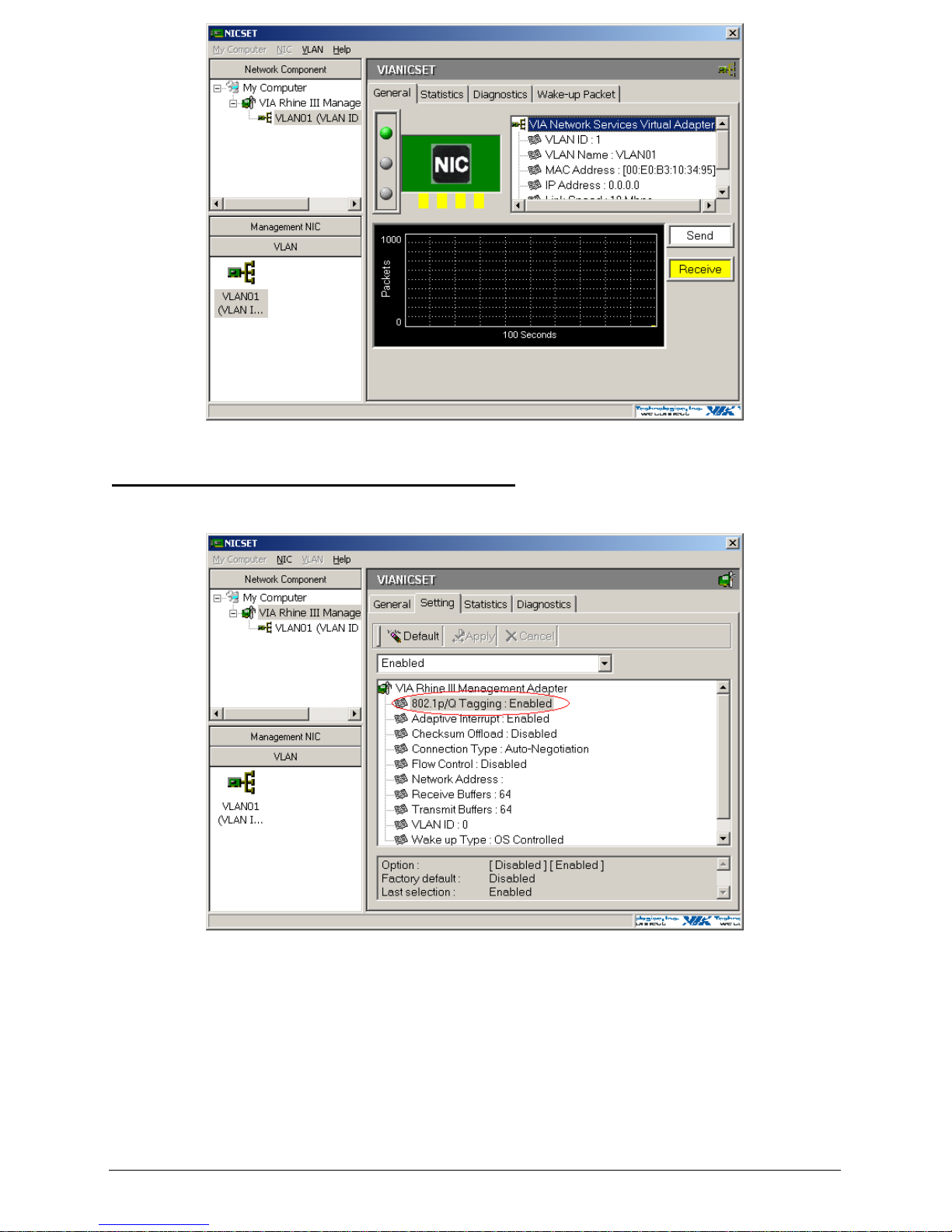

VLAN01 (VLAN ID =1) added
VLAN01 (VID = 1) will be displayed in VLAN area in NIC Control Set.

19
Driver setting changed by NIC Control Set
NIC Control Set will enable 802.1Q Tagging automatically if VLAN is created.

20
Remove VLAN/Change VLAN property
