TRENDnet TV-IP201P User manual

1
TABLE OF CONTENTS
ABOUT THIS GUIDE...................................................3
INTRODUCTION............................................................5
FEATURES AND BENEFITS..................................................6
UNPACKING THE PACKAGE................................................8
SYSTEM REQUIREMENT .....................................................9
PHYSICAL DESCRIPTION ..................................................11
HARDWARE INSTALLATION ................................16
A TTACHING THE C AMERA TO THE S TAND ........................16

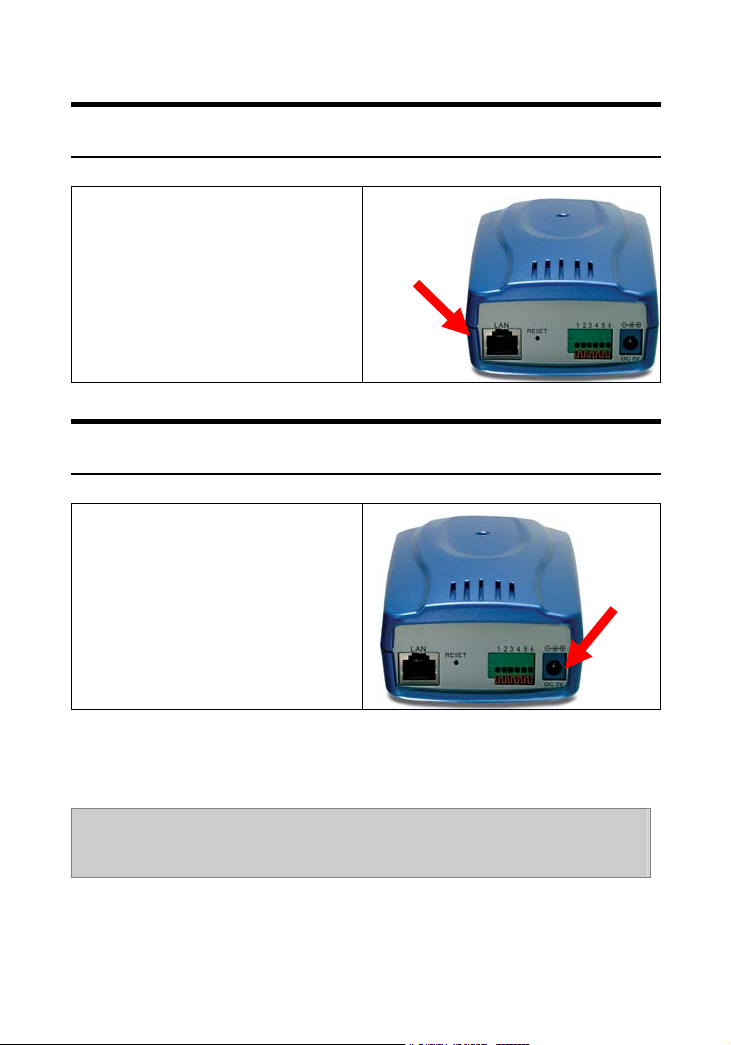

CONNECTING THE ETHERNET CABLE ...............................17
ATTACHING THE POWER SUPPLY.....................................17
POWER OVER ETHERNET .....................................18
C ONNECT TO P OWER OVER E THERNET S WITCH ................18
C ONNECT TO TPE-101I ....................................................19
SECURITY......................................................................21
APPLICATION OF THE CAMERA........................22
USING THE UTILITY................................................25
AUTO-RUN INSTALLATION ..............................................25
SETUP WIZARD................................................................27
USING THE CAMERA ...............................................34
WEB CONFIGURATION UTILITY .......................................34

2
SYSTEM ADMINISTRATION...............................................36
VIEW IMAGE –ACTIVEXMODE ......................................52
VIEW IMAGE –JAVA MODE .............................................55
IPVIEW PRO..................................................................57
INSTALLATION.................................................................57
GETTING STARTED...........................................................61
USING IPVIEW PRO .........................................................64
CONFIGURING THE SYSTEM .............................................70
APPENDIX .....................................................................85
A. FREQUENTLY ASKED QUESTIONS ...............................85
B. PING YOUR IP ADDRESS............................................87
C. TROUBLESHOOTING.....................................................88
D. TIME ZONE TABLE ......................................................91
E. ADJUST INTERNET CAMERA FOCUS.............................93
F. I/O TERMINAL APPLICATION .......................................94
G. SPECIFICATION............................................................96
H. GLOSSARY OF TERMS..................................................99
F....................................................................................102
G ...................................................................................102

3
ABOUT THIS GUIDE
This manual provides instructions and illustrations on how to use
your Internet Camera.
zChapter 1, Introduction, provides the general information
on the camera.
zChapter 2, Hardware Installation, describes the hardware
installation procedure for the camera.
zChapter 3, Power Over Ethernet, explains the Power over
Ethernet features.
zChapter 4, Security, explains the security features of the
camera.
zChapter 5, Application of the Camera, provides
illustrations of the camera’s applications.
zChapter 6, Using the Utility, helps you to install and use the
setup wizard.
zChapter 7, Using the Camera, guides you through the
configuration using the web browser.
zChapter 8, IPView Pro, helps you to install and use the
software.
zChapter 9, Appendix.
Please note that the illustrations or setting values in this manual
are FOR YOUR REFERENCE ONLY. The actual settings and

4
values depend on your system and network. If you are not sure
about the respective information, please ask your network
administrator or MIS staff for help.

5
1
INTRODUCTION
Thank you for purchasing the Internet Camera, a camera device
that can be connected directly to an Ethernet or Fast Ethernet
network. Compared to the conventional PC Camera, the Internet
Camera features a built-in CPU and web-based solutions that can
provide a cost-effective solution to transmit real-time high-quality
video images and sounds for monitoring. The Internet Camera
can be managed remotely, accessed and controlled from any
PC/Notebook over the Intranet or Internet via a web browser.
The simple installation procedures and web-based interface allow
you to integrate it into your network easily. With comprehensive
applications supported, the Internet Camera is your best solution
for remote monitor, high quality, and high performance video
images.

6
Features and Benefits
Simple to Use
The Internet Camera is a standalone system with built-in CPU
requiring no special hardware or software such as PC frame
grabber cards. The Internet Camera supports both ActiveX mode
(for Internet Explorer users) and Java mode (for Internet Explorer
and Mozilla Firefox users). Therefore, all that is required is a web
browser software such as Internet Explorer 5.0 or above or
Mozilla Firefox. Just plug and view the picture from your Internet
Camera with a valid IP Address.
Support Variety of Platforms
The Internet Camera supports TCP/IP networking, SMTP e-mail,
HTTP and other Internet related protocols, and can be utilized in
a mixed operating system environment such as Windows, Unix,
and Mac. It can be integrated easily into other www/Intranet
applications.
Web Configuration
Applying a standard web browser, the administrator can configure
and manage the Internet Camera directly from its own web page
via the Intranet or Internet. Up to 32 users name and password are
permitted with privilege setting controlled by the administrator.
RS-485 Support
The pin 1 & 2 of the I/O connectors are used for RS-485 data
transmission. You can connect a special featured device (such as
an external camera stand with rotation function) to meet your

7
needs. When the external device is connected, you could
configure the settings and control the device from the RS485
window of Web Configuration Utility.
Remote Utility
The powerful IPView Pro application assigns the administrator
with a pre-defined user ID and password, allowing the
administrator to modify the Internet Camera settings from the
remote site via Intranet or Internet. When new firmware is
available, you can also upgrade remotely over the network for
added convenience. Users are also allowed to monitor the image,
and take snapshots.
Broad Range of Applications
With today’s high-speed Internet services, the Internet Camera
can provide the ideal solution for live video images over the
Intranet and Internet for remote monitoring. The Internet Camera
allows remote access from a web browser for live image viewing
and allows administrator to manage and control the Internet
Camera anywhere and any time in the world. Apply the Internet
Camera to monitor various objects and places such as homes,
offices, banks, hospitals, child-care centers, amusement parks and
other varieties of industrial and public monitoring. The Internet
Camera can also be used for intruder detection; in addition, it can
capture still images for archiving and many more applications.

8
Unpacking the Package
Unpack the package and check all the items carefully. In addition
to this User’s Guide, be certain that you have:
One TV-IP201P
One Utility and User Guide CD-ROM
One Quick Installation Guide
One AC power adapter suitable for your country’s electric
power
One Camera Stand
One RJ-45 Ethernet Cable
If there is any content is damaged or missing, please contact your
local dealer immediately. Also, keep the box and packing
materials in case you need to ship the unit in the future.

9
System Requirement
Networking
10Base-T Ethernet or 100Base-TX Fast Ethernet.
Power over Ethernet Switch (e.g. TPE-S88)
Injector (e.g. TPE-101I )
Note: The TV-IP201P only supports Power over Ethernet
(PoE) devices that follow the IEEE 802.3af standard.
Accessing the Camera
For Web Browser Users
Operating System: Microsoft® Windows® 98SE/ME/2000/
XP/Vista
CPU: 1.1GHz or above (Intel Pentium 4 is preferred)
Memory Size: 256MB or above /512MB or above
(Windows Vista)
Resolution: 800x600 or above
Microsoft® Internet Explorer 5.0 or above
A network switch or hub with an available network LAN
port
A RJ-45 network cable
For IPView Pro Application Users
Operating System: Microsoft® Windows® 98SE/ME/
2000/XP/Vista
CPU: 1.1GHz or above (Intel Pentium 4 is preferred)

10
Memory Size: 256MB or above / 512MB or above
(Windows Vista)
Resolution: 800x600 or above
A network switch or hub with an available network LAN
port
A RJ-45 network cable

11
Physical Description
This section describes the externally visible features of the
Internet Camera.

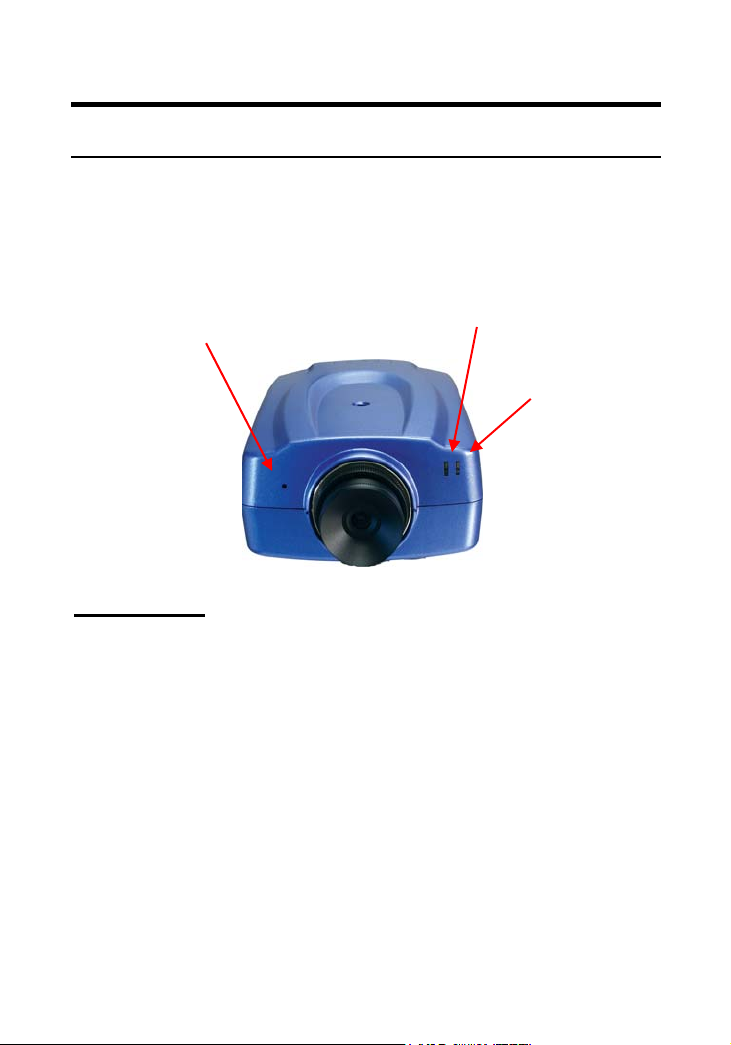

Front Panel
1. Link LED
The Link LED is positioned on the right side of the Internet
Camera’s lens while facing the Internet Camera.
It is located to the left of the Power LED
A steady RED light confirms that the camera has good
connection to LAN connectivity.
Dependent on the data traffic the LED will begin to flash to
indicate that the Internet Camera is receiving/sending data
from/to the network.
2. Power LED
1. Link LED
3. Internal MIC

12
2. Power LED
The Power LED is positioned on the right side of the Internet
Camera’s lens while facing the Internet Camera.
A steady BLUE light confirms that the Internet Camera is
powered on.
3. Internal MIC
The built-in omni-directional microphone allows the camera to
receive sound and voice.

13
Rear Panel
1. Network Cable Connector
The Internet Camera’s rear panel features an RJ-45 connector for
connections to 10Base-T Ethernet cabling or 100Base-TX Fast
Ethernet cabling (which should be Category 5 twisted-pair cable).
The port supports Auto-MDIX, allowing the Internet Camera to
automatically detect or negotiate the transmission speed of the
network.
2. Reset Button
Reset will be initiated when the reset button is pressed once. The
Power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed
continuously for three seconds or when Power LED begins to
light up. Release the reset button and the Power LED will begin
1. Network Cable Connector 4. DC Power Connector
2. Reset Button 3. I/O Connector

14
to flash, indicating the Internet Camera is changing to factory
reset. When factory reset is completed, the Internet Camera will
default to channel 11. This default setting will let the Internet
Camera connect to ANY access point on the infrastructure
network. The IP address will also return to the default setting
(192.168.0.30).
3. I/O Connector
The camera provides the I/O connectors on the rear panel (pin 1/2
are for RS485, pin 3/4 are for input, pin 5/6 are for output), which
provide the physical interface to send and receive digital signals
to a variety of external alarm devices. For more information, refer
to Appendix F, I/O Terminal Application.
4. DC Power Connector
The DC power input connector is located on the Internet
Camera’s rear panel, and is labeled DC5V with a single jack
socket to supply power to the Internet Camera. Power will be
generated when the power supply is connected to a wall outlet.

15

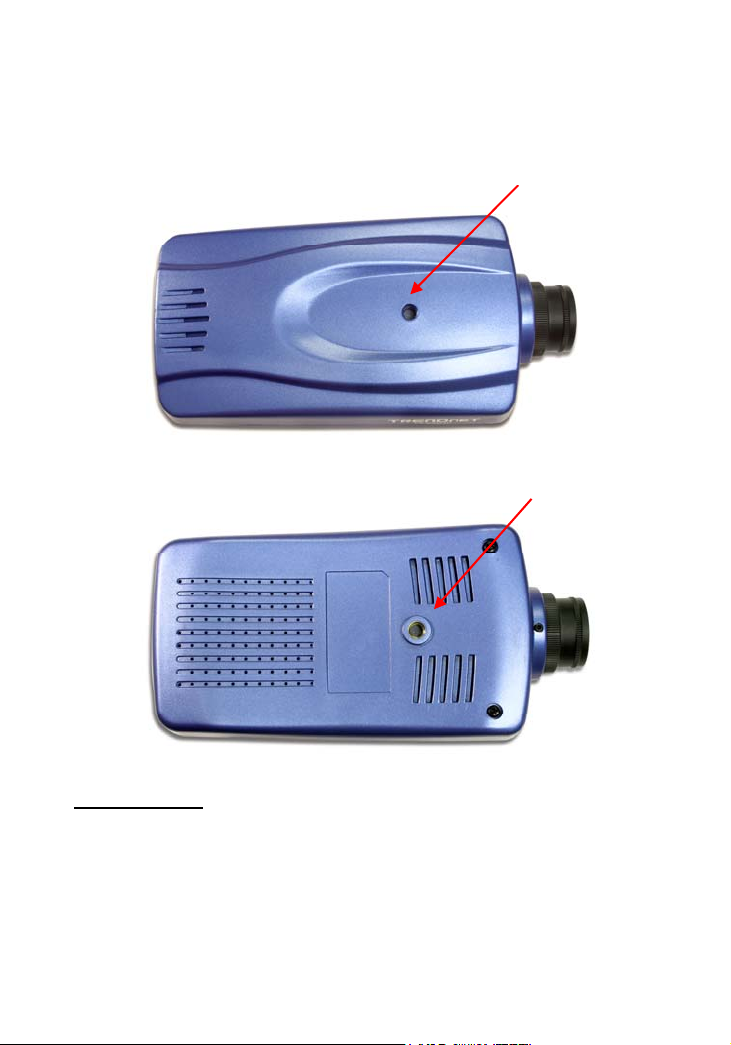

Top/Bottom Panel
Top Panel
Bottom Panel
Screw Hole
Located on the top/bottom panel of the camera, the screw hole is
used to connect the camera stand onto the camera by attaching the
screw head on the camera stand into the screw hole of the camera.
Screw Hole
Screw Hole

16
2
HARDWARE
INSTALLATION
Attaching the Camera to the Stand
The Internet Camera comes with
a camera stand (optional), which
is equipped with a swivel ball
screw head that can be attached
to the Internet Camera's bottom
screw hole. Attach the camera
stand to the Internet Camera and
station it for your application.
There are three holes located in
the base of the camera stand
allowing the Internet Camera to
b
e mounted on the ceiling or
any wall securely.

17
Connecting the Ethernet cable
Connect an Ethernet cable to
the network cable connector
located on the Internet
Camera’s rear panel, and then
attach it to the network.
Attaching the Power Supply
Attach the external power
supply to the DC power input
connector located on Internet
Camera’s rear panel, and then
connect it to your local power
supply.
TIP: You can confirm power source is supplied from the LED indicators
label Power on the Internet Camera is illuminated.

18
3
POWER OVER
ETHERNET
Connect to Power over Ethernet
Switch
Step 1:
Connect an Ethernet cable to
the LAN port located on the
Internet Camera’s rear panel.

19
Step 2:
Connect the opposite end of the
Ethernet cable to the network
cable connector on the Power
over Ethernet switch
Step 3:
Verify that the Power and Link
LEDs are on.
Connect to TPE-101I
Step 1:
Connect the Power Cord to the
Injector. Then connect the
Power Cord to an outlet.
Step 2:
Connect a CAT-5 cable from a
switch to the TPE-101I’s Data
In port.
