TRENDnet TV-IP322P User manual

- 1 -
PREFACE
Thank you for purchasing the TV-IP322P SecurView™ Outdoor PoE
Megapixel Day/Night Internet Camera, a standalone system that can be
connected directly to an Ethernet or Fast Ethernet network.
The camera is equipped with a 2-megapixel CMOS sensor, allowing you
to capture high quality image with the resolution of up to 1280 x 1024.
Additionally, the camera features the IR (Infrared) LEDs and ICR function
(IR Cut Filter). The ICR function enables the camera to capture the clear
image under sunlight and increase the amount of light for IR LEDs in the
dark by changing the filter automatically. The camera also provides the
audio and microphone ports, allowing you to transfer sound from/to the
camera.
Compared to the conventional PC Camera, this camera features a built-in
CPU and web-based solutions that can provide a cost-effective solution
to transmit the real-time high-quality video images and sounds
synchronously for monitoring. The camera can be managed remotely, so
that you can use a web browser to access and control it from any
desktop/notebook computer over the Intranet or Internet.
Compliant with IEEE802.3af PoE (Power over Ethernet) standard, the
camera provides you with more flexibility of camera installation
according to your application. The camera can be powered by the
Ethernet, so that you can place the camera anywhere without a power
outlet supported.
The trouble-free installation procedures and web-based interface allow
you to integrate it into your network fast and easy. With comprehensive
applications supported, the Internet camera is your best solution for
remote monitor, high quality, and high performance video images.

- 2 -
This Advanced Installation Guide provides you with the instructions and
illustrations on how to use your camera, which includes:
Chapter 1 Introduction to Your Camera describes the features of the
camera. You will also know the components and functions
of the camera.
Chapter 2 Hardware Installation helps you install the camera
according to your application environment. You can use
this camera at home, at work, at any where you want.
Chapter 3 Accessing the Camera lets you start using your camera
without problem. The camera can be set up easily and work
within your network environment instantly.
Chapter 4 Configuring the Camera guides you through the
configuration of the camera using the Web browser on
your PC.
Chapter 5 Using SecurView™ Pro shows you the detail instructions on
operating SecurView™ Pro software.
Chapter 6 How to Access the Camera Behind a Router provides the
instruction how to setup your DDNS.
Chapter 7 Appendix provides the specification of the camera and
some useful information for using your camera.
NOTE The illustrations and configuration values in this guide are for reference
only. The actual settings depend on your practical application of the
camera.
NOTE All trademarks and logos are the property of the respective trademark
owners.

- 3 -
Contents
PR E F A C E
CH A P T E R 1
IN T R O D U C T IO N TO YO U R CA M E R A
1.1 CHECKING THE PACKAGE CONTENTS .............................................5
1.2 GETTING TO KNOW THE CAMERA.................................................6
1.3 FEATURES AND BENEFITS ............................................................9
1.4 SYSTEM REQUIREMENT ............................................................12
CH A P T E R 2
HA R D W A R E IN S T A L L AT I O N
2.1 ASSEMBLING THE CAMERA MOUNTING BRACKET..........................14
2.2 MOUNTING THE CAMERA .........................................................14
2.3 INSTALLING THE MEMORY CARD ................................................15
2.4 APPLICATIONS OF THE CAMERA..................................................16
CH A P T E R 3
AC C E S S I N G TH E CA M E R A
3.1 USING IP SETUP......................................................................17
3.2 ACCESSING TO THE CAMERA......................................................22
3.3 CONFIGURING THE IP ADDRESS OF THE COMPUTER .......................25
CH A P T E R 4
CO N F I G U RI N G TH E CA M E R A
4.1 USING THE WEB CONFIGURATION..............................................26
4.2 USING SMART WIZARD ............................................................27
4.3 BASIC SETUP ..........................................................................30
4.4 NETWORK SETTINGS ................................................................35
4.5 SETTING UP VIDEO &AUDIO .....................................................41
4.6 EVENT SERVER CONFIGURATION ................................................49
4.7 MOTION DETECT.....................................................................57

- 4 -
4.8 EVENT CONFIGURATION ...........................................................58
4.9 TOOLS...................................................................................64
4.10 RS-485.................................................................................66
4.11 SETTING UP THE SD CARD.........................................................70
4.12 INFORMATION ........................................................................72
CH A P T E R 5
SE C U R VI E W ™PR O SO F T W A RE
5.1 INSTALLATION.........................................................................75
5.2 USING SECURVIEW™PRO ........................................................78
CH A P T E R 6
H o w t o a c c es s t h e c a mer a b eh i n d a R ou ter
App en d i x
A.1 SPECIFICATION......................................................................117
A.2 GPIO TERMINAL APPLICATION ................................................119
A.3 BANDWIDTH REFERENCE GUIDE...............................................120
A.4 GLOSSARY OF TERMS .............................................................121
Li mi t ed W ar r an ty

- 5 -
CHAPTER 1
INTRODUCTION TO YOUR CAMERA
1.1 Checking the Package Contents
Unpack the package and check the items contained in the package
carefully. You should have the following:
1 x TV-IP322P
1 x Multi-Language Quick Installation Guide
1 x CD-ROM (Utility & User’s Guide)
1 x Desiccant **
2 x GPIO Connector
1 x Spiral Cable Wrap
1 x Camera Mounting Bracket Kit*
1 x Power Adapter (12V DC, 1.5A)
NOTE Once any item contained is damaged or missing, contact the authorized
dealer of your locale.
*The provided screws included: (1) screws and washers for assembling the camera
shield; (2) expansion screws for mounting the camera to the wall.
** The camera provides two packs of desiccant: one pack is pre-installed inside the
camera compartment before shipment; the extra pack is provided for replacement
while you open the back cover in the future.

- 6 -
1.2 Getting to Know the Camera

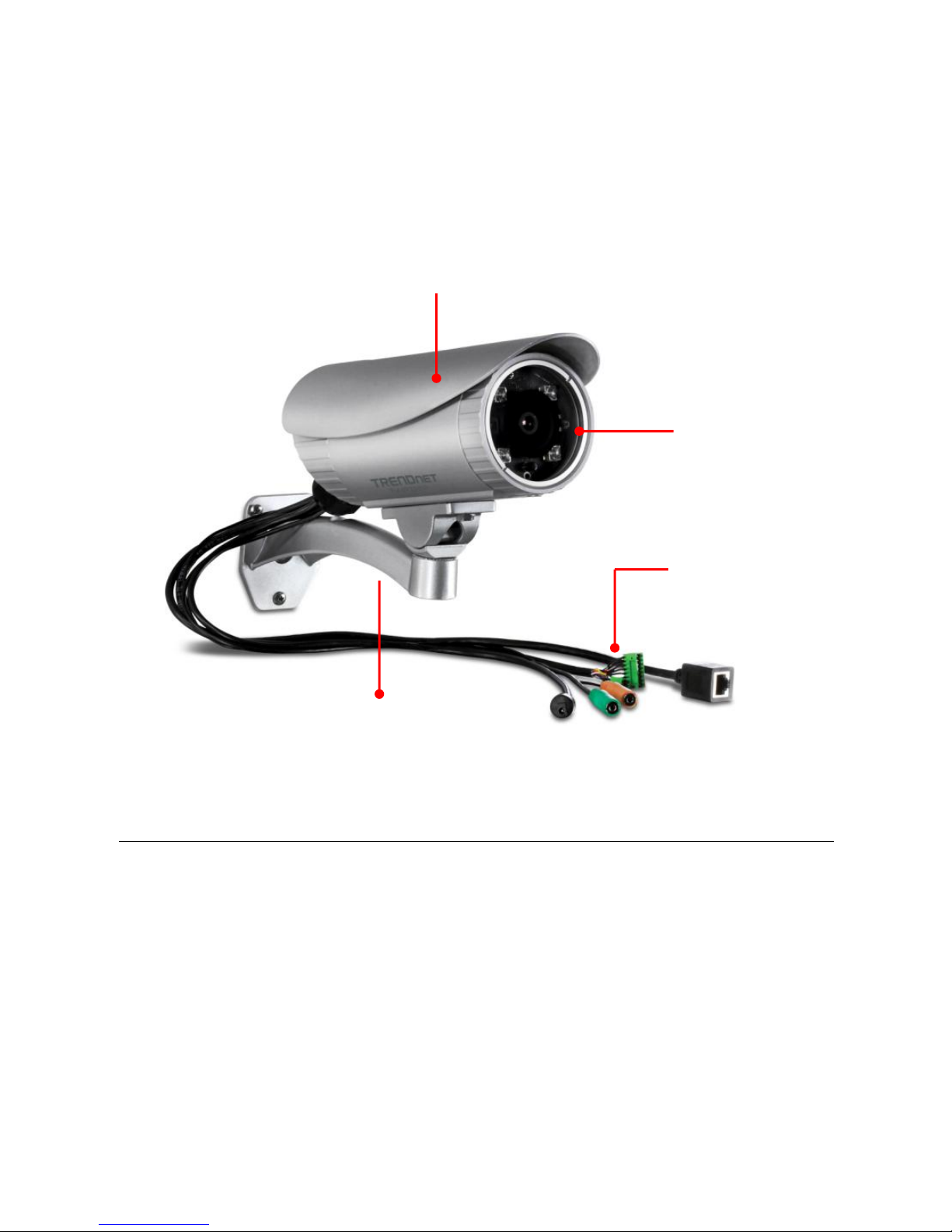

The Camera and the Shield
*There are various positions of screw hole on the shield, allowing you to move the shield
forward/backward according to your needs. For example, it will protect the camera lens
well during rainy day by adjusting the shield forward.
Lens Assembly
with IR LEDs
Shield* is used to protect the
camera during inclement weather.
Camera Stand
Connectors
Power, Audio, Mic,
GPIO, LAN

- 7 -
The Connectors
The camera's connectors are collected into a bundle of cable on the back
panel of the camera, allowing you to connect the external devices in a
well-ordered way while you are installing the camera onto the wall (or
ceiling).
Power: Connects the power adapter to supply power to the
camera.
GPIO: Connects the external device that features additional
controlling function, such as motion detection, event triggering,
alarm notification, and a variety of external control functions.
NOTE Before connecting the external device for GPIO function, you
have to attach the provided external GPIO connectors to the
device.
Audio Out: Connects an external audio device (such as the active
speaker) to deliver sound via the camera.
Mic In: Connects an external microphone to receive the on-the-
spot sound where the camera is installed.

- 8 -
LAN: Plugs the provided Ethernet cable to connect to your local
area network (LAN). The LAN port of the camera supports the
NWay protocol so that the camera can detect the network speed
automatically.

- 9 -
1.3 Features and Benefits
H.264/MPEG4/MJPEG Multi-codec Supported
The camera provides you with excellent images by the
H.264/MPEG4/ MJPEG multi-codec selectable technology,
allowing you to adjust image size and quality, and bit rate
according to the networking environment.
High Resolution Surveillance
Equipped with a megapixel CMOS sensor, the high performance
camera is designed for your professional surveillance and security
applications. The image resolution is up to 1280 x 1024. In
addition, the minimum illumination of the sensor is 0 lux,
providing a truly day & night functions that allows you to capture
image even in low-light conditions.
Multiple Profiles Supported
The camera supports multiple profiles simultaneously, so that you
can separately set up different image settings (such as image
quality and frame rate) for the video types of the camera: H.264,
MPEG4, MJPEG, and 3GPP.
Flexible Audio Capability
The camera allows you to connect the external microphone to
receive on-the-spot audio via the Internet, allowing you to
monitor the on-site voice. In addition, you can connect an external
active speaker to the camera to speak through the camera
(supporting mono audio only).
Supports RTSP
The camera supports RTSP (Real Time Streaming Protocol), which
is a technology that allows you to view streaming media via the
network. You can view the real-time video with the Quick Time
player or RealPlayer. To view the real-time streaming image on
your computer, open the Web browser and enter the RTSP link:
rtsp://(IP address of the camera)/mpeg4

- 10 -
Remote Control Supported
By using a standard Web browser or the bundled SecurView™ Pro
software application, the administrator can easily change the
configuration of the camera via Intranet or Internet.
In addition, the camera can be upgraded remotely when a new
firmware is available. The users are also allowed to monitor the
image and take snapshots via the network.
I/O Connectors and RS-485 Provided
The I/O connectors (IN/OUT) of the camera provide the physical
interface to send and receive digital signals to a variety of external
alarm devices (such as motion detection, event triggering, alarm
notification, and a variety of external control functions).
The pins TX+ & TX- of the I/O connectors are used for RS-485 data
transmission, which allow you to connect a special featured
device (such as an external camera stand with rotation function)
and then configure the settings and control the device from the
GPIO Trigger window of Web Configuration.
Multiple Platforms Supported
The camera supports multiple network protocols, including TCP/IP,
SMTP e-mail, HTTP, and other Internet related protocols.
Therefore, you can use the camera in a mixed operating system
environment, such as Windows 7, Vista and XP.
Multiple Applications Supported
Through the remote access technology, you can use the cameras
to monitor various objects and places for your own purposes. For
example, babies at home, patients in the hospital, offices and
banks, and more. The camera can capture both still images and
video clips, so that you can keep the archives and restore them at
any time.
IR LEDs and IR CUT Filter Supported
The IR LEDs around the lens assembly enables the camera capture
image even in the dark environment. The night vision distance of
the IR LEDs is up to 20M. The IR CUT Filter helps the camera
increase the amount of light for IR LEDs by changing the filter

- 11 -
automatically. This allows the camera to capture clear image
whenever the environment light changed.
PoE Supported
PoE (Power over Ethernet) standard enables the camera to be
powered by the Ethernet, which simplifies your surveillance
system by eliminating the need of power outlet. The PoE camera
features both stability and security, providing a cost-saving
solution to your application of Internet camera.
Please make sure that you remove the power adapter when the
camera power is supplied through PoE.

- 12 -
1.4 System Requirement
Networking
LAN 10 Base-T Ethernet or 100Base-TX Fast
Ethernet; Auto-MDIX.
PoE IEEE 802.3af PoE
Accessing the Camera using Web Browser
Platform Microsoft® Windows® 7/Vista/XP
CPU Intel Pentium III 800MHz or above
RAM 512MB
Resolution 800x600 or above
User Interface Microsoft® Internet Explorer® 6.0 or above
Accessing the Camera using SecurView™ Pro
Platform Microsoft® Windows® 7/Vista/XP
Resolution 1024 x 768 or above
Hardware Requirement:
1 ~ 8 cameras Intel Core 2 Duo; 2GB RAM
9 ~ 32 cameras Intel Core 2 Quad; 4GB RAM
NOTE: It is higher recommended that using a high performance
computer to monitor multiple cameras.

- 13 -
CHAPTER 2
HARDWARE INSTALLATION

- 14 -
2.1 Assembling the Camera Mounting Bracket
Assemble the sun visor and camera mounting bracket to the camera by
using the provided screws and washers, and then the camera can be
mounted on the wall (or ceiling) securely through the three screw holes
on the base of the holder.
Adjust the camera position
Once you have mounted the camera to the wall (or ceiling), you need to
adjust the camera position to focus on the location where you want to
monitor. You can adjust the camera position easily by using the swivel
ball on the camera holder.
2.2 Mounting the Camera
The expansion screws in the package are used to mount the camera on
the wall (or ceiling). The following illustration provides one example of
the camera installation. You can mount the camera flexibly according to
your outdoor surveillance application.
a. Place the bracket against the wall. Mark the three holes
with a pencil.
b. Drill holes for the provided screws anchors at each marked
position.
c. Align the mounting bracket with the screw anchors, and
then use the provided screws to secure it.
d. Secure the camera to the mounting bracket.
e. Adjust the swivel on the mounting bracket to desired
position.
Waterproofing
The camera is designed featuring waterproof. However, you need to
protect the connectors from water soak. For example, you can tape the

- 15 -
junction points of the connectors while you connect the cables or
purchase a weatherproof cable/power cord protector.

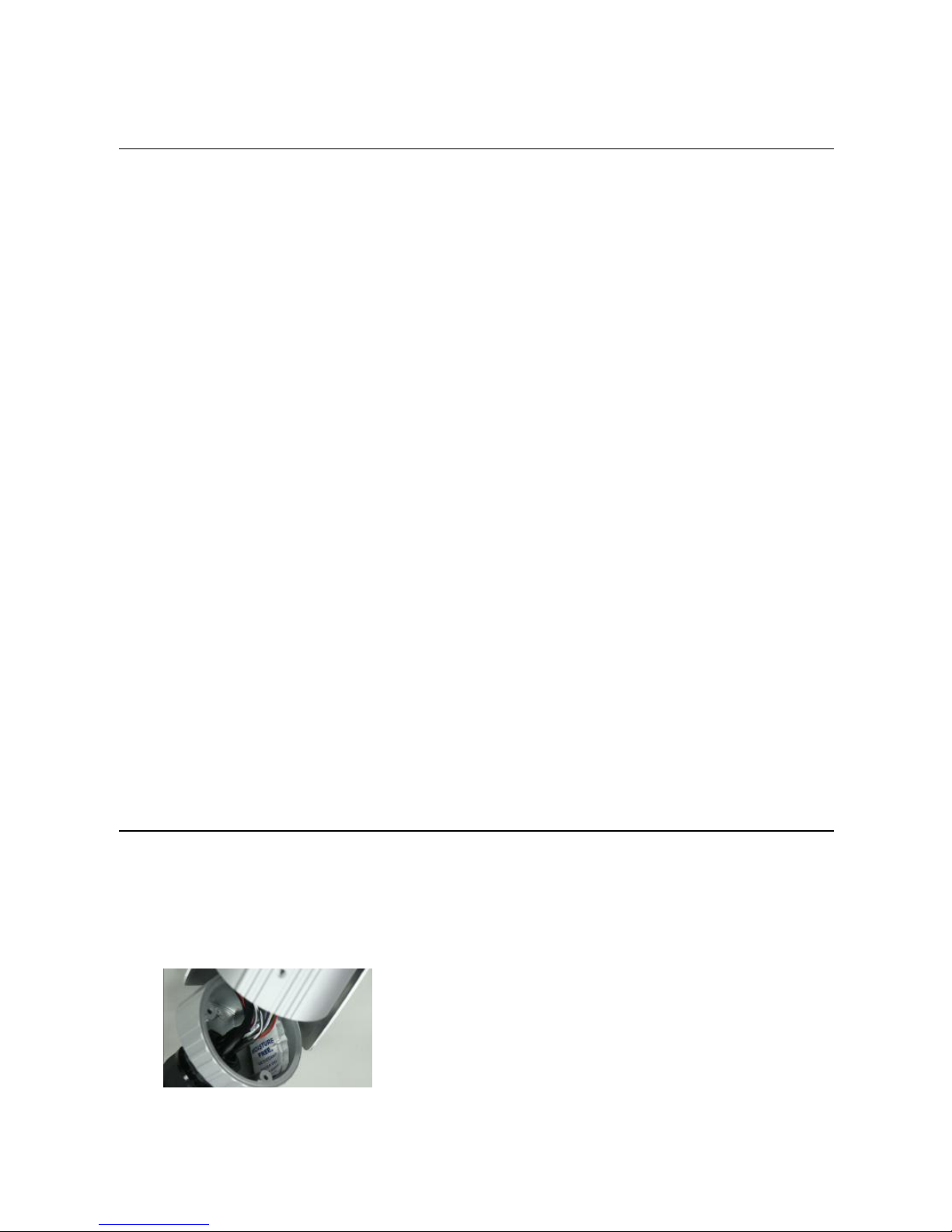

2.3 Installing the Memory Card
The camera provides a SD card slot that allows you to install the memory
card (not included in the package) to store files.
To install the memory card:
1. Remove the back cover of the camera by unscrewing the three
screws.
2. Locate the SD card slot inside the camera, and then insert the
memory card into the slot.
3. Replace the back cover and then screw the three screws.

- 16 -
2.4 Applications of the Camera
The camera can be applied in multiple applications, including:
Monitor local and remote places and objects via Internet or
Intranet.
Capture still images and video clips remotely.
Upload images or send email messages with the still images
attached.
The following diagram explains one of the typical applications for your
camera and provides a basic example for installing the camera.
NOTE The camera’s connectors are not waterproof. Please have the
connectors protected by waterproof housing.

- 17 -
CHAPTER 3
ACCESSING THE CAMERA
3.1 Using IP Setup
The camera comes with a conveniently utility, IP Setup, which is included
in the Installation CD-ROM, allowing you to search the camera on your
network easily.
1. Insert the Installation CD-ROM into your computer’s CD-ROM drive
to initiate the Auto-Run program.

- 18 -
2. Click the IP Setup from the Auto-Run menu screen. Then IP Setup
Wizard will appear. Click “Next” when the Welcome to the IPSetup
Setup Wizard appears.
3. Click “Browse” to choose the desired destination location. By
default, the destination location is C:\Program
Files\TRENDnet\IPSetup. Then Click “Next”.

- 19 -
4. Click “Next” to confirm the IPSetup software to be installed to the
computer.
5. When the Installation Complete window appears, click “Finish”.
