ŸOutdoor 1.3 MP HD PoE IR Network Camera
ŸQuick Installation Guide (1)

1
Package Contents
1. Before You Start
ŸTV-IP320PI
ŸCD-ROM (Utility and User's Guide)
ŸMulti-Language Quick Installation Guide
ŸMounting kit
Minimum Requirements
ŸPower over Ethernet (PoE) switch (e.g. TPE-S44) (Optional) or PoE
Injector (e.g. TPE-105I optional)
ŸA computer with an Ethernet port and web browser
ŸCD-ROM Drive
ŸWired network
ŸNetwork cable
Note:
ŸThe TV-IP320PI works with Power over Ethernet (PoE) devices that follow
the IEEE 802.3af standard.
ŸThe TV-IP320PI has a 5.5 mm barrel connector for an optional 12 V DC 1A
power adapter (model 12VDC1A sold separately).
Supported Operating
Systems
1-8 Cameras
CPU CPU
9-32 Cameras
Memory Memory
Windows 8.1 (32/64-bit) /
Windows 8 (32/64-bit) /
Windows 7 (32/64-bit) /
Windows Server 2008 /
Windows Vista (32/64-bit) /
Windows Server 2003 /
Windows XP (32/64-bit)
2GHz 2GHz2GB RAM
or above
4GB RAM
or above
Free Management Software: TRENDnetVIEW Pro Requirements
Supported Operating Systems
Android (version 2.3 or above)
iOS (version 6.1 or above)
Free Mobile App: TRENDnetVIEW Pro Requirements

2
2. Hardware Installation and Configuration
1. Do not install or mount the IP camera until after you complete the
installation steps below. Temporarily place the IP camera next to your
computer.
2. Connect network cable from your computer to a LAN port on your network.
3. Insert the Utility CD-ROM into your CD-ROM drive.
4. Select language from the drop down menu.
5. Click Install Camera.
6. Write down the MAC address of your camera. Then click Next.
Note: To download the latest version of the Setup Wizard utility, please go to
http://www.trendnet.com/support and select the TV-IP320PI within the
Products Download dropdown list.

3
7. Connect a network cable to the camera's network port to your PoE Switch.
The IR LEDs will turn on and show a dim visible red light. Allow 60 seconds
for the camera to boot up. Then click Next.

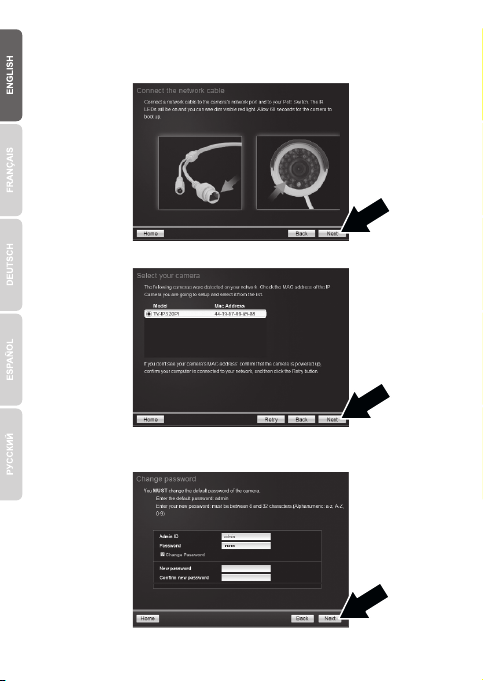

8. Select your camera. Click Next and follow the instructions.
9. Select Change Password. Enter a new password, confirm the new
password and then click Next.

4
10. Initial Setup is complete! Your camera is now connected to your network.
Click the hyperlink to confirm access to the management page. This will
open up a web browser. To resume installation, minimize the web browser
and then click Next.
11. Congratulations! Your camera is now ready to be installed in its final
location. Scan the QR code to download a free mobile app to view the
camera from your mobile device. Click Finish to exit the installation wizard.
12. To manage multiple cameras and for more advanced features, please
install the TRENDnetVIEW Pro software. Install the software by clicking
Install TRENDnetVIEW Pro Software in the Autorun window and refer to
the TRENDnetVIEW Pro User's Guide on the CD for more information.

5
Note
ŸSee User's Guide for advanced management functions.
ŸWhen viewing live video, you may be required to install plug-ins.
ŸIt is recommended that you setup a dynamic DNS service in order to view
your cameras remotely. See your router and IP camera user's guide for
instructions.
13. Install the camera in your desired location. To connect the IP camera to your
network with PoE, please use either of the following methods:

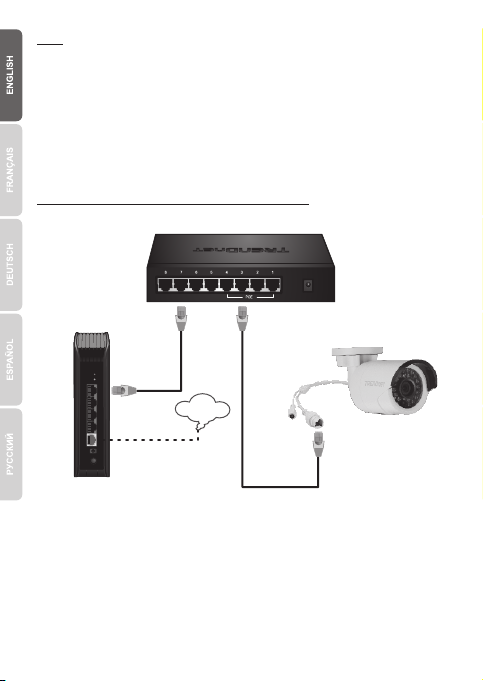

Using the TV-IP320PI with a PoE switch (TPE-S44)
ŸConnect the provided network cable from the Power over Ethernet switch
(e.g. TPE-S44) to the network port on the IP Camera.
ŸConnect the switch to your network.
TPE-S44
TV-IP320PI
PoE
Internet
Router
Non PoE

6

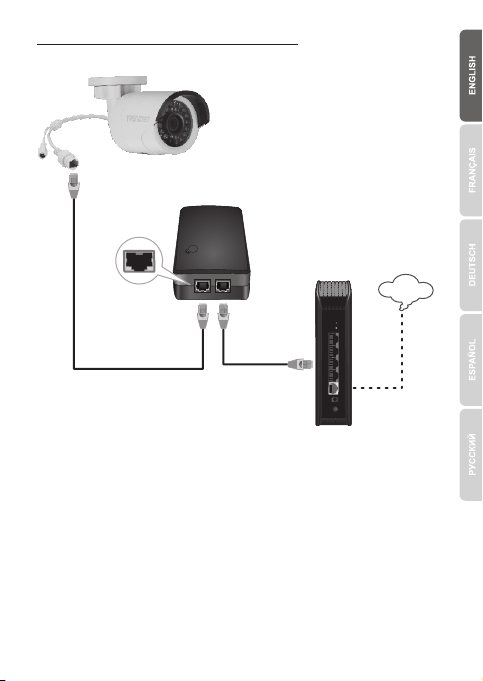

Using the TV-IP320PI with an Injector (TPE-105I)
TV-IP320PI
TPE-105I
DATA
IN
P+DATA
OUT
Router
PoE
ŸConnect the power adapter to the TPE-105I and then to a power outlet
ŸConnect a network cable from the TV-IP320PI to the TPE-105I's P+DATA
OUT (PoE) port
ŸConnect a network cable from a switch or router (e.g. TEW-818DRU) to the
TPE-105I's DATA IN (Non-PoE) port.
Non-PoE
Internet

7
Note:
For tips on capturing appropriate camera viewing angle, please refer to the
User's Guide.
Mounting the camera

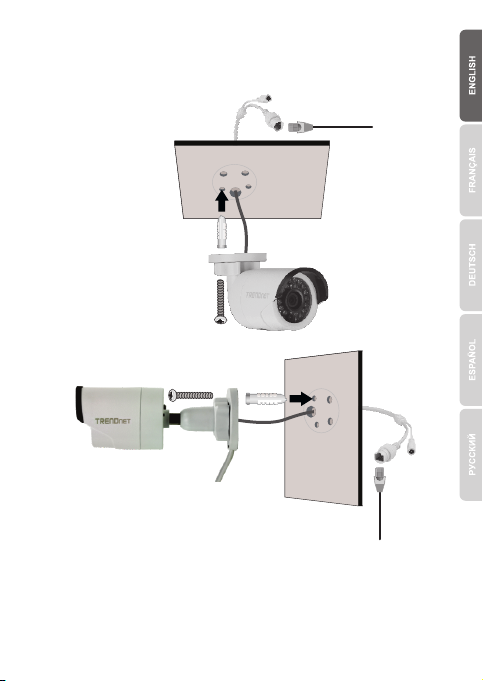

1. Loosen the adjustable nut and manually position the camera as desired.

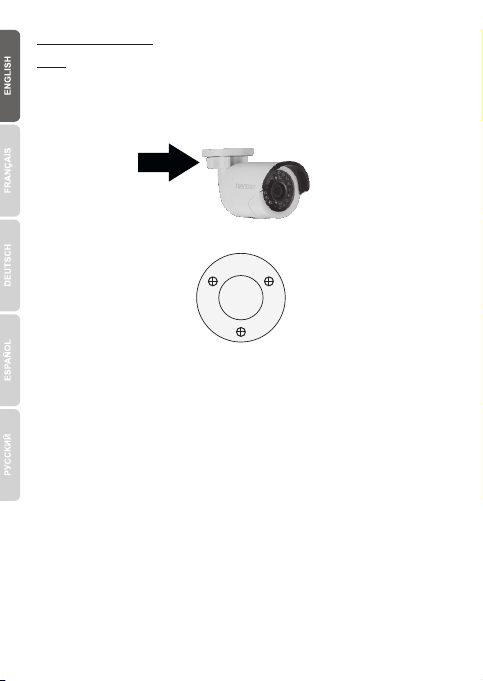

2. Place the provided template label on the wall or ceiling.
Ceiling Mounting
Hole Hole
Hole
3. Drill holes for the provided screw anchors at each marked position on the
template. Make sure the drill bit matches the size of the provided screw
anchors.
4. You can run your cable from back of the camera, or route it through the side
of the base. Skip to step 6 if you are doing so.
6. Connect the network ethernet cable to the camera. Ensure the camera is not
powered.
5. Drill a hole in the wall for the cable.

8
9. Power up the camera by connected the other end of the cable to a PoE
switch or injector on your network.
10. Seal edge of camera base with exterior grade caulking.
11. Loosen the lock ring to adjust the angle and tighten it to hold the position
after adjustment.
7. Insert the provided screw anchors into the holes.
8. Align the mounting bracket with the screw anchors, and then use the
provided screws to secure the camera to the mounting surface.

Company Information:
Company Name:
TRENDnet, Inc.
Company Address:
20675 Manhattan Place
Torrance, CA 90501
USA
Product Information:
Product Description:
Outdoor 1.3 MP HD PoE IR Network Camera
Model Number:
TV-IP320PI
Brand Name:
TRENDnet
Technical Standards:
EN 55022: 2010 Class A
EN 61000-3-2: 2006 + A1: 2009 + A2: 2009
EN 61000-3-3: 2008
EN 50130-4: 2011
EN 60950-1: 2006+ A11: 2009 + A1: 2010 + A12: 2011
Declaration:
I hereby declare that the products and devices mentioned above are consistent with the
standards and provisions of the guidelines.
This product is herewith confirmed to comply with the Directive of 2004/108/EC and
2006/95/EC.
Sonny Su
Name
Date
Director of Technology
Title
Signature
July 08, 2014
