ICI 8000 Series User manual

8000 SERIES
USER MANUAL
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
IMPORTANT SAFETY INFORMATION INSIDE.
2105 W. Cardinal Dr. Beaumont, TX 77705
ICI cameras fall under US Federal Law and Export Control.

Edit Text Outlines
IndustryIndustry

8000 SERIES IR CAMERA USER MANUAL
2
©Copyright 2021, Infrared Cameras, Inc. - All rights reserved. The
contents of this document may not be reproduced in whole or in parts
without the written consent of the copyright owner.
Printed in the United States of America.
2105 W. Cardinal Dr.
Beaumont, TX 77705
[phone]
www.infraredcameras.com

THE MANUFACTURER RESERVES THE RIGHT TO ALTER THE
SPECIFICATIONS OF THE PRODUCT WITHOUT PRIOR NOTIFICATION. THE
MANUFACTURER ALLOWS HIMSELF THE RIGHT TO MODIFY WITHOUT
ANY PRELIMINARY OPINION THE TECHNICAL SPECIFICATIONS OF THE
PRODUCT. THIS MANUAL MAY CONTAIN TECHNICAL INACCURACIES OR
TYPOGRAPHICAL ERRORS.
NOTICE ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN
THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND. NOTWITHSTANDING ANY OTHER
WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE ARE
PROVIDED “AS IS” WITH ALL FAULTS. ICI DISCLAIMS ALL WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE,
OR TRADE PRACTICE.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE
ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION
PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED
HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE
SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR ICI
REPRESENTATIVE FOR A COPY.
IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING
OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

8000 SERIES IR CAMERA USER MANUAL
3
1. General Description
2. User Notice
3. Intended Use
4. Safety Information
5. Technical Specifications
6. Structure
7. Package Contents
8. Installation Instructions
9. Computer Setup
10. Cleaning and Maintenance
11. Troubleshooting
12. About ICI
Contents
4
4
4
5
6
8
9
10
13
14
15
16

8000 SERIES IR CAMERA USER MANUAL
4
1. General Description
8000 Series devices are designed for surface temperature measurement. These compact
devices are a winning combination of pixel resolution and accuracy. The unbeatable design
is capable of meeting the non-contact thermography needs of inspectors in a wide
array of fields.
3. Intended Use
8000 Series are used for surface temperature assessment of energy emitted from the first
1/1000th of an inch of a subject.
Environment of use: industrial and petrochemical buildings, electrical plants, security
rooms, science labs, animal reserves as well as environmental conservatories, and
aerial integrations, among others.
2. User Notice

Annual calibration to the thermal camera is recommended. Contact customer service to
schedule maintenance.

Our user manual will be updated from time to time. Please contact us to get the latest
version of the manual.

This manual is applicable to multiple 8000 series devices, which means that some content
in this manual may not be applicable to a specific model. This manual may contain technical
inaccuracies or typographical errors.

8000 SERIES IR CAMERA USER MANUAL
5
4. Safety Information
• This device must be installed by qualified service personnel or system installation
personnel.
• Do take precautions to prevent the lens from being worn, scratched or broken. Avoid
touching the lens to prevent it from being damaged or getting dirty.
• Given that the uncooled thermal infrared image camera uses a very sensitive thermal
sensor, under no circumstances (powered on or off) should the lens be pointed directly
at a strong radiation source (such as sun, direct or reflected laser beam, etc.), otherwise
permanent damage will be caused to the uncooled thermal imager.
• Do not use the imager in an ambient temperature outside of the operation range. High/
low temperatures can cause damage to the device.
• This product is a precise electronic device that must be handled with care during use,
storage, and transportation to prevent dangerous actions such as the device being hit
by external force, or falling from heights.
• During transportation and storage the original packaging box must be used.
• Prior to start of the device, make sure that the power supply is properly connected. If
the power supply is connected incorrectly, the device may be damaged.
• Do not place any objects on any attached power cords, and do not place the device
where the power cord can be easily touched.
• Do not submerge the device in water or salt water or leave the device in intense
weather environments.
• Do not put holes in the device with objects.
• Do not hit the device with a hammer.
• Do not step on the device or apply strong impacts or shocks to it.
• Do not put the device in or near a fire.
• Do not drop or throw the device.
• Do not disassemble or modify the thermal imager.
• Avoid condensation. Taking the imager from cold to hot will cause condensation in
thermal imager. To protect the imager, power on the device and wait until it becomes
warm enough for the condensation to evaporate.
• Clean the case with a damp cloth and a weak soap solution. Do not use abrasives,
isopropyl alcohol, or solvents to clean the case or lens/screen.
• Be careful when cleaning the infrared lens. Do not clean the infrared lens too vigorously.
This can damage the anti-reflective coating.
• It is recommended to calibrate the device(s) annually.
• If the device operates abnormally, please contact the supplier and do not dismantle the
device on your own.
• Storage: If you do not use the imager for a long period of time, put the device in a cool
and dry environment.

8000 SERIES IR CAMERA USER MANUAL
6
5. Technical Specifications
 
Detector Array UFPA (VOx)
 
FOV Lens dependent
Measurement Distance Lens dependent
 336 x 256 
 
 < (30 mK) 0.03 °C at 30 °C (86°F)
 60 Hz 30 Hz
 14-bit
 Standard: -20 °C to 120 °C (-4 °F to 248 °F)
Hi-Temp (optional): 0 °C to 500 °C (32 °F to 932 °F)
 -40 °C to 80 °C (-40 °F to 176 °F)
 -40 °C to 80 °C (-40 °F to 176 °F)
 5% to 95% non-condensing
Accuracy Standard: ± 1°C (± 1.8 °F) or ±1%
Hi-Temp: ± 5°C (± 9 °F) or ± 5%
 > 99 %
 75 G/4.3 G
 44.5 mm x 44.5 mm x 46.5 mm (L x W x D ± 0.5 mm)
(1.75” x 1.75” x 1.83” (L x W x H ± 0.02”))
 5 V DC 500 mA, < 1 W 5 V DC 500 mA, < 1.2 W
 < 72 g (2.5 oz)
Interface USB Mini-B/USB 2.0
 Raw
 0.01 to 1.0
 IP 54
 Built-in shutter


8000 SERIES IR CAMERA USER MANUAL
7
 
Detector Array UFPA (VOx)
 
FOV Lens dependent
Measurement Distance Lens dependent
 336 x 256 
 
 < (30 mK) 0.03 °C at 30 °C (86°F)
 7.5 Hz
 14-bit
 Standard: -20 °C to 120 °C (-4 °F to 248 °F)
Hi-Temp (optional): 0 °C to 500 °C (32 °F to 932 °F)
 -40 °C to 80 °C (-40 °F to 176 °F)
 -40 °C to 80 °C (-40 °F to 176 °F)
 5% to 95% non-condensing
Accuracy Standard: ± 1°C (± 1.8 °F) or ±1%
Hi-Temp: ± 5°C (± 9 °F) or ± 5%
 > 99 %
 75 G/4.3 G
 44.5 mm x 44.5 mm x 46.5 mm (L x W x D ± 0.5 mm)
(1.75” x 1.75” x 1.83” (L x W x H ± 0.02”))
 5 V DC 500 mA, < 1 W 5 V DC 500 mA, < 1.2 W
 < 72 g (2.5 oz)
Interface USB Mini-B/USB 2.0
 Raw
 0.01 to 1.0
 IP 54
 Built-in shutter


8000 SERIES IR CAMERA USER MANUAL
8
1. Focus Ring
2. Germanium Lens
3. Mini-USB interface
3.
2.
1.
6. Structure



8000 SERIES IR CAMERA USER MANUAL
9
7. Package Contents


Software USB Drive
8000 Series IR Camera
Mini-USB to USB Cable

8000 SERIES IR CAMERA USER MANUAL
10
8. Installation Instructions

A.
Plug the Mini-USB end of the
USB cable into the back of the
8000 Series Camera.
B.
Plug the other end of the USB
cable into your computer.
3.
Power on computer.

8000 SERIES IR CAMERA USER MANUAL
11

Mount the 8000 Series Camera to a
tripod using the ¼-20 mount.
A.
B.
Plug the Mini-USB end of the
USB cable into the back of the
8000 Series Camera.

    
        


8000 SERIES IR CAMERA USER MANUAL
12


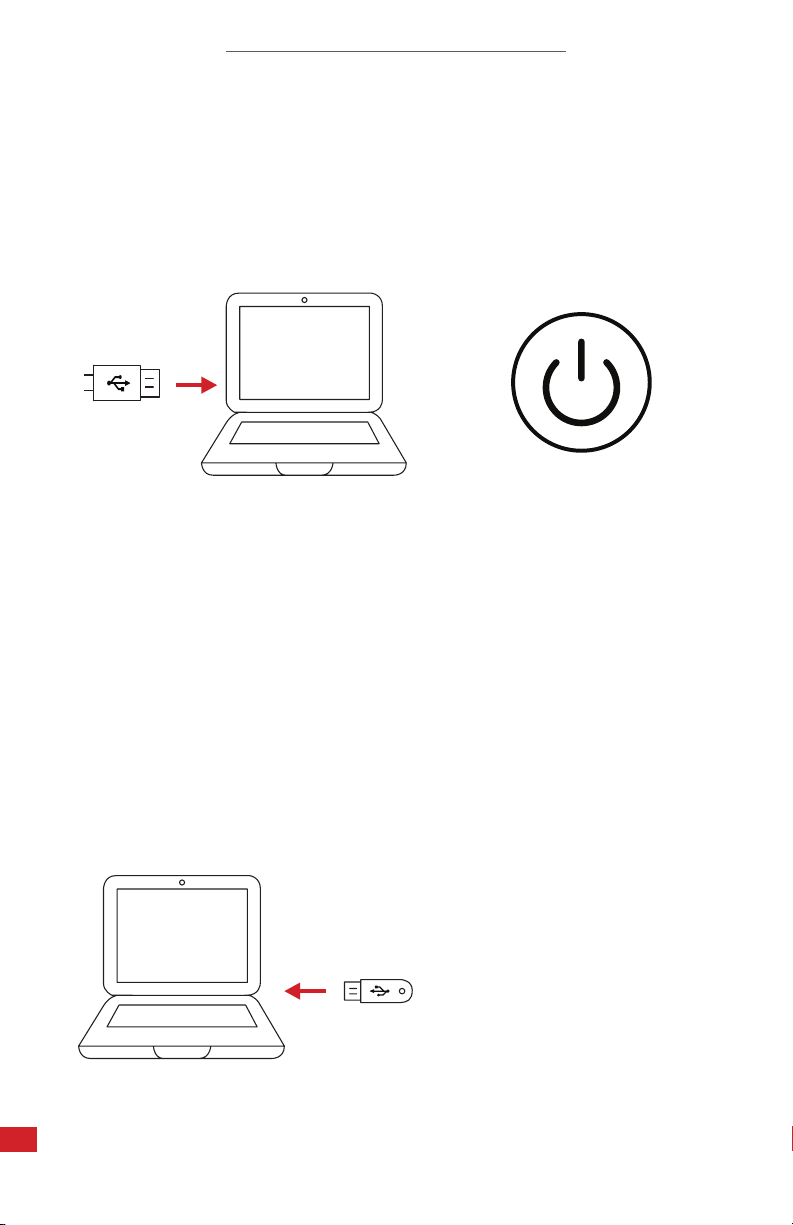

D.
Power on computer.
C.
Plug the other end of the USB
cable into your computer.
A. B.
Install IR Flash software using the
software USB drive. Refer to the IR
Flash User Manual for instructions.
Once installed, launch IR Flash
software by double-clicking the
associated desktop icon.

8000 SERIES IR CAMERA USER MANUAL
13
9. Computer Setup
Software arrives installed on computers and tablets purchased from ICI as complete systems
and it will launch automatically on startup. A copy of the software is provided on the
Software USB Drive. Documentation can be found online on the IR Flash Pro web page under
the Downloads section or at this address:

• i5 or above (Quad Core or better)
• 4 GB or above
• OS: Windows 8/8.1/10
• 256 GB or above
•  1920 x 1080


Any computer supplied with a complete system is provided with the Windows Operating
System. IR Flash Pro software is preinstalled and the system has been checked for viruses
and malware prior to shipping. To further decrease the possibility of introducing malware,
Infrared Cameras Inc. recommends you take steps to reduce the likelihood that the system
be compromised, which include:
• Prior to connecting the system’s computer to the Internet or your secure internal
           

updates as necessary.
• If connecting the system’s computer to the Internet be sure to locate the computer
behind a firewall.
• Install security updates to the computer’s operating system in accordance with your
organization’s policies
• Do not use the system’s computer for other uses.
• Install software updates via instructions provided by Infrared Cameras Inc. only. Do not
install software from unknown entities.
• Don’t connect unknown hardware devices, e.g. USB devices, external hard drives, etc.
to the system computer.
• If you suspect that the system computer has been infected with malware, contact your
organization’s IT department or Infrared Cameras Inc. for further assistance.
If your device does not require usage of the e-mail alert function using the device off a
network is preferred.
Windows 10™ Operating System updates are evaluated by Infrared Cameras Inc. as they
are released by Microsoft. Please contact Infrared Cameras Inc. Technical Support for
compatibility information.

8000 SERIES IR CAMERA USER MANUAL
14

Do not use corrosive chemicals on the optical glass components. The germanium window
surface is coated with anti-reflection coating. Dust, grease, and fingerprints will produce
harmful substances and lead to a decline in performance, or cause scratches. If dirt is found,
please use the following methods:
1. Use a blown balloon or a soft brush to clean the lens surface to avoid dust particles
scratching the anti-reflection film on lens surface during the wiping process.
2. Use a soft cotton or microfiber cloth or lens wiping paper and dip in distilled water.
Gently wipe the lens surface from the middle to the edge, paying attention to not crack
the lens, or use too much liquid. If the lens is still not clean, replace the cloth and repeat
the wiping process.
10. Cleaning and Maintenance

Do not use corrosive cleaning solutions on the optical glass components. It is recommended
to disinfect the camera surface regularly with a non-corrosive sanitizing product. Follow the
directions provided by the manufacturer of the cleaning solution. Adhere to the sanitation
protocols and cleaning schedule set forth by the employer.

It is recommended to have device(s) re-calibrated annually. Contact customer service to
schedule maintenance.

When the equipment is not in use, the device(s) should be placed in a dust-free and moisture-
free environment with a stable temperature and humidity.

8000 SERIES IR CAMERA USER MANUAL
15
If the user encounters any problems while using the imager, refer to the following known
issues. If the problem persists, disconnect the power and contact customer support.

• Ensure that camera has been powered on for a few minutes
• Verify that firewall is not blocking software
• Close and reopen software
• Verify that correct software is installed
• Uninstall & reinstall software, running as administrator
• Try IR Flash Pro software. If already using, try a newer version.
• Restart computer

• Close and reopen software
• Camera is proper distance from subject
• Camera is at proper height
• Camera is off center from subject
• Reconnect the camera to the computer and restart the computer
• Camera powered on for several minutes
• Camera is away from direct sunlight or reflective light
• Try IR Flash Pro software. If already using, try a newer version.

• Take off the lens cover
• Ensure device is receiving power

• Charge the device
• Ensure device is within the safe operating temperature range
11. Troubleshooting

8000 SERIES IR CAMERA USER MANUAL
16
12. About ICI
Infrared Cameras, Inc.
2105 W. Cardinal Dr.
Beaumont, TX 77705

General Inquiry: suppor[email protected]
Website: www.infraredcameras.com

ICI manufactures complete systems and software. We can provide complete engineering,
software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and
thermography training (which we offer through the Infrared Training Institute).
In addition to providing custom germanium, silica, and sapphire optics, we also build windows
for enclosures, as well as custom pan and tilt units. We can even provide customizable
explosion-proof systems.
Our knowledge and experience stems from years of using infrared imaging and temperature
measurement instruments to provide solutions to: managers, engineers, scientists, inspectors
and operators in space, power companies, medical, pulp and paper, food industry, research
and development, and various process industries. You can see our products and services
used in industrial, commercial, and government applications worldwide. Originally named

Thank you for your dedicated and continued support.
