TRENDnet TEG-MGBS40D5 Manual

TEG-MGBS40D5
rev: 12.04.2012

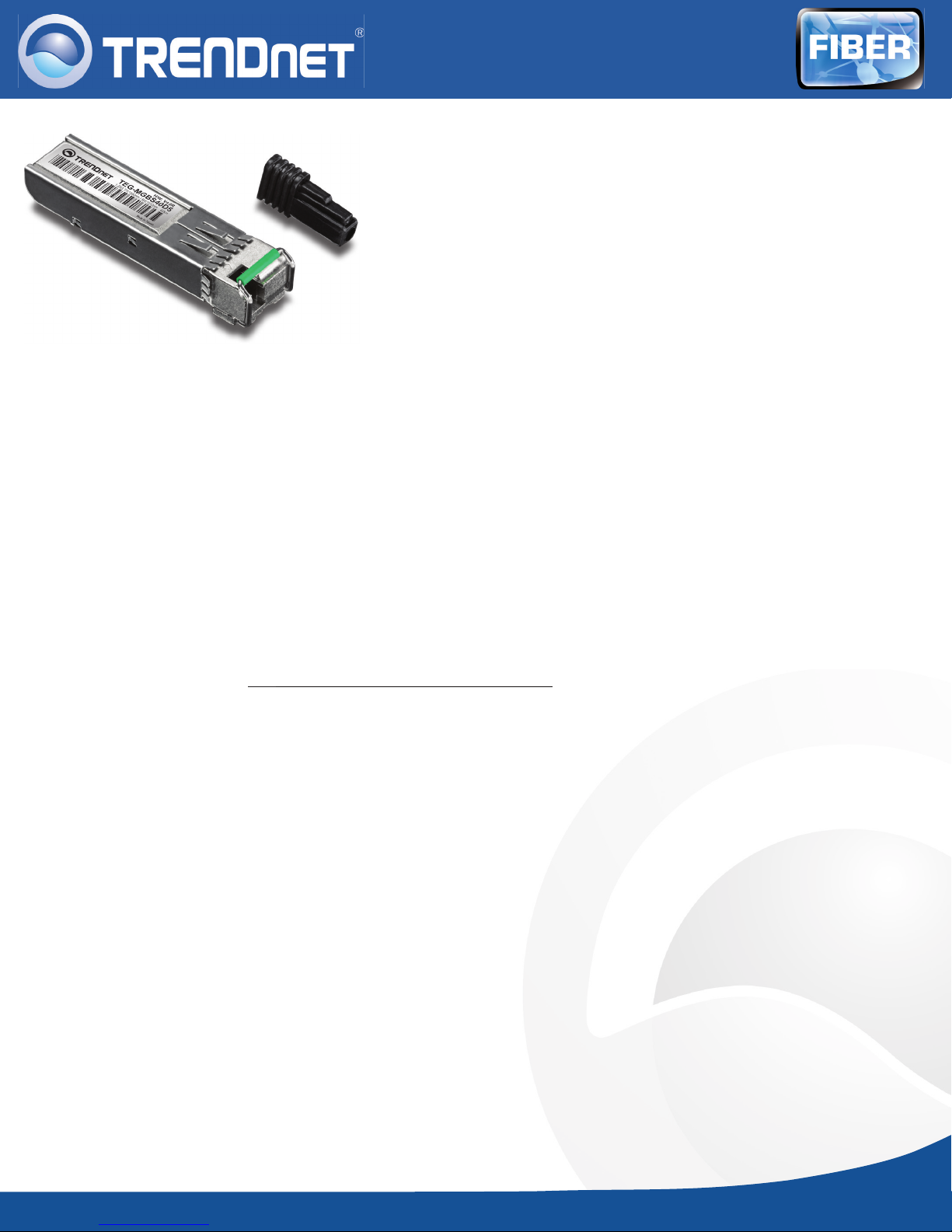

SFP Dual Wavelength Single-Mode LC Module
TEG-MGBS40D5 (v4.0R)
The hot pluggable TEG-MGBS40D5 must be paired with the
TEG-MGBS40D3 or other compatible module. This SFP Dual
Wavelength Single Mode LC Type module spans distances of up to 40
kilometers (24.9 miles). The SFP interface is compatible with standard
SFP slots and offers a 1000Mbps-LX SFP interface.
FEATURES
• Must pair with TEG-MGBS40D3 or other compatible module
• Compliant with IEEE 802.3z Gigabit Ethernet
• ANSI Fiber Channel compliant
• Compliant with Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) ports
• Supports data rate of up to 1.25 Gbps
• Transmission distance of up to 40 km (24.9 miles)
• Metal Enclosure with low Electromagnetic Interference (EMI) design
• Simplex LC optical interface
• Hot pluggable
• Low power consumption
• 3-year limited warranty
PRODUCT OVERVIEW
• Must pair with TEG-MGBS40D3 or other compatible module
• LC Simplex connector-type
• Dual wavelength fi ber mode
• Spans distances up to 40 km (24.9 miles)
• Compatible with standard SFP slots

TEG-MGBS40D5
rev: 07.27.2012
SFP Dual Wavelength Single-Mode LC Module
TEG-MGBS40D5 (v4.0R)
SPECIFICATIONS
HARDWARE
Standards • IEEE 802.3z Gigabit Ethernet
• ANSI Fiber Channel compliant
• Class 1 Laser
Interface • SFP MSA Compliant
• Simplex LC optical interface
Power Consumption • Max. 0.8 Watts
Dimension • 57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)
Weight • 18g (0.6 oz.)
Temperature • Operating: 0°C ~ 70°C (32°F ~ 158°F)
• Storage: -40°C ~ 85°C (-40°F ~ 185°F)
Humidity • Max. 85% (non-condensing)
Certifi cations • CE, FCC
Model Wavelength
Optical Output Power
(dBm)
Optical Intput Power
(dBm) Power Budget Distance
Min Max Min (Sensitivity) Max
TEG-MGBSX 850 nm -9 -3 -20 -3 -11 550 m
TEG-MGBS10 1310 nm -9 -3 -22 -3 -13 10 km
TEG-MGBS40 1310 nm -3 2 -23 -3 -20 40 km
TEG-MGBS80 1550 nm -3 3 -26 -3 -23 80 km
TEG-MGBS10D3 TX: 1310 nm -9 -3 -23 -3
-14
10 km
RX: 1550 nm
TEG-MGBS10D5 TX: 1550 nm -9 -3 -23 -3 10 km
RX: 1310 nm
TEG-MGBS40D3 TX: 1310 nm -3 3 -25 -3
-22
40 km
RX: 1550 nm
TEG-MGBS40D5 TX: 1550 nm -3 3 -25 -3 40 km
RX: 1310 nm

SFP Dual Wavelength Single-Mode LC Module
TEG-MGBS40D5 (v4.0R)
CONTACT INFORMATION
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: [phone]
Fax: [phone]
Web: www.trendnet.com
Email: [email protected]
1-888-326-6061
PACKAGE CONTENTS
TEG-MGBS40D5
Quick Installation Guide
RELATED PRODUCTS
TEG-MGBS40D3 SFP Dual Wavelength Single-Mode LC Module
TL2-G244 24-Port Gigabit Layer 2 Switch w/ 4 Shared
Mini-GBIC Slots
TL2-E284 24-Port 10/100 Mbps Layer 2 Switch w/ 4 Gigabit
Ports and 2 Shared Mini-GBIC Slots
