ABOUT THIS GUIDE
This manual provides instructions and illustrations on how to use
your Wireless Internet Camera, includes:
zChapter 1, Introduction, provides the general information
on the camera.
zChapter 2, Hardware Installation, describes the hardware
installation procedure for the camera.
zChapter 3, Security, explains the security feature of the
camera.
zChapter 4, Application of the Camera, provides the
illustrations of the camera’s applications.
zChapter 5, Using the Camera, guides you through the
configuration using the web browser.
zChapter 6, IPView Pro, helps you to install and use the
software.
zChapter 7, Appendix.
Please note that the illustrations or setting values in this manual
are FOR YOUR REFERENCE ONLY. The actual settings and
values depend on your system and network. If you are not sure
about the respective information, please ask your network
administrator or MIS staff for help.

4
1
INTRODUCTION
Thank you for purchasing the Wireless Internet Camera, a camera
device that can be connected directly to an Ethernet or Fast
Ethernet network and also supported by the wireless transmission
based on the IEEE 802.11g standard. Compared to the
conventional PC Camera, the Wireless Internet Camera features a
built-in CPU and web-based solutions that can provide a cost-
effective solution to transmit real-time high-quality video images
and sounds for monitoring. The Wireless Internet Camera can be
managed remotely, accessed and controlled from any
PC/Notebook over the Intranet or Internet via a web browser. The
simple installation procedures and web-based interface allow you
to integrate it into your network easily. With comprehensive
applications supported, the Wireless Internet Camera is your best
solution for remote monitor, high quality, and high performance
video images.

5
Features and Benefits
Simple to Use
The Wireless Internet Camera is a standalone system with built-in
CPU requiring no special hardware or software such as PC frame
grabber cards. The Wireless Internet Camera supports both
ActiveX mode (for Internet Explorer users) and Java mode (for
Internet Explorer and Netscape Navigator users). Therefore, all
that is required is a web browser software such as Internet
Explorer 5.0 or above or Netscape 6.0 or above. Just plug and
view the picture from your Wireless Internet Camera with a valid
IP Address.
Support Variety of Platforms
The Wireless Internet Camera supports TCP/IP networking,
SMTP e-mail, HTTP and other Internet related protocols, and can
be utilized in a mixed operating system environment such as
Windows, Unix, and Mac. It can be integrated easily into other
www/Intranet applications.
Web Configuration
Applying a standard web browser, the administrator can configure
and manage the Wireless Internet Camera directly from its own
web page via the Intranet or Internet. Up to 32 users name and
password are permitted with privilege setting controlled by the
administrator.

6
RS-485 Support
The pin 1 & 2 of the I/O connectors are used for RS-485 data
transmission. You can connect a special featured device (such as
an external camera stand with rotation function) to meet you
needs. When the external device is connected, you could
configure the settings and control the device from the RS485
window of Web Configuration Utility.
Remote Utility
The powerful IPView Pro application assigns the administrator
with a pre-defined user ID and password, allowing the
administrator to modify the Wireless Internet Camera settings
from the remote site via Intranet or Internet. When new firmware
is available, you can also upgrade remotely over the network for
added convenience. Users are also allowed to monitor the image,
and take snapshots.
Broad Range of Applications
With today’s high-speed Internet services, the Wireless Internet
Camera can provide the ideal solution for live video images over
the Intranet and Internet for remote monitoring. The Wireless
Internet Camera allows remote access from a web browser for
live image viewing and allows administrator to manage and
control the Wireless Internet Camera anywhere and any time in
the world. Apply the Wireless Internet Camera to monitor various
objects and places such as homes, offices, banks, hospitals, child-
care centers, amusement parks and other varieties of industrial
and public monitoring. The Wireless Internet Camera can also be
used for intruder detection; in addition, it can capture still images
for archiving and many more applications.

7
Unpacking the Package
Unpack the package and check all the items carefully. In addition
to this User’s Guide, be certain that you have:
One TV-IP201W Wireless Internet Camera ( with
Detachable Antenna)
One Installation CD-ROM
One Quick Installation Guide
One AC power adapter suitable for your country’s electric
power
One Camera Stand
One RJ-45 Ethernet Cable
If any item contained is damaged or missing, please contact your
local dealer immediately. Also, keep the box and packing
materials in case you need to ship the unit in the future.

8
System Requirement
Networking
Local Area Network:
10Base-T Ethernet or 100Base-TX Fast Ethernet.
Wireless Local Area Network:
IEEE 802.11g Wireless LAN.
Accessing the Camera
For Web Browser Users
Operating System: Microsoft® Windows® 98SE/ME/2000/
XP
CPU: Intel Celeron 1.1GHz or above (Intel Pentium 4 is
preferred)
Memory Size: 128MB or above
Resolution: 800x600 or above
Microsoft® Internet Explorer 5.0 or above
For IPView Pro Application Users
Operating System: Microsoft® Windows® 98SE/ME/
2000/XP.
CPU: Intel Celeron 1.1GHz or above (Intel Pentium 4 is
preferred)
Memory Size: 128 MB or above
Resolution: 800x600 or above

9
Physical Description
This section describes the externally visible features of the
Wireless Internet Camera.
Front Panel

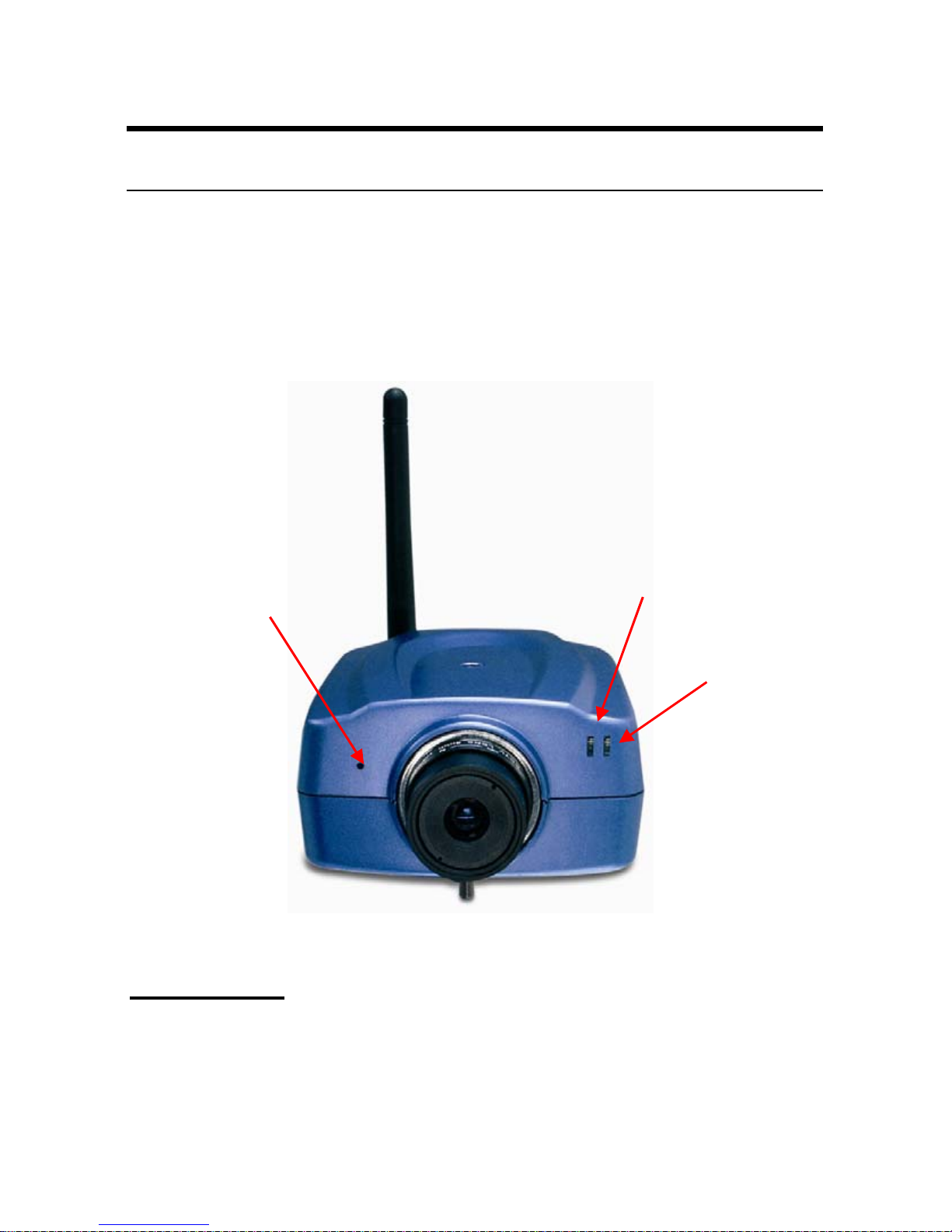

1. Link LED
The Link LED is positioned on the right side of the Wireless
Internet Camera’s lens while facing the Wireless Internet Camera.
It is located to the left of the Power LED
2.Power LED
1. Link LED
3. Internal MIC

10
A steady ORANGE light confirms that the camera has good
connection to LAN connectivity.
Dependent on the data traffic the LED will begin to flash to
indicate that the Wireless Internet Camera is receiving/sending
data from/to the network.
2. Power LED
The Power LED is positioned on the right side of the Wireless
Internet Camera’s lens while facing the Wireless Internet Camera.
A steady BLUE light confirms that the Wireless Internet Camera
is powered on.
3. Internal MIC
The built-in omni-directional microphone allows the camera to
receive sound and voice.

11
Rear Panel

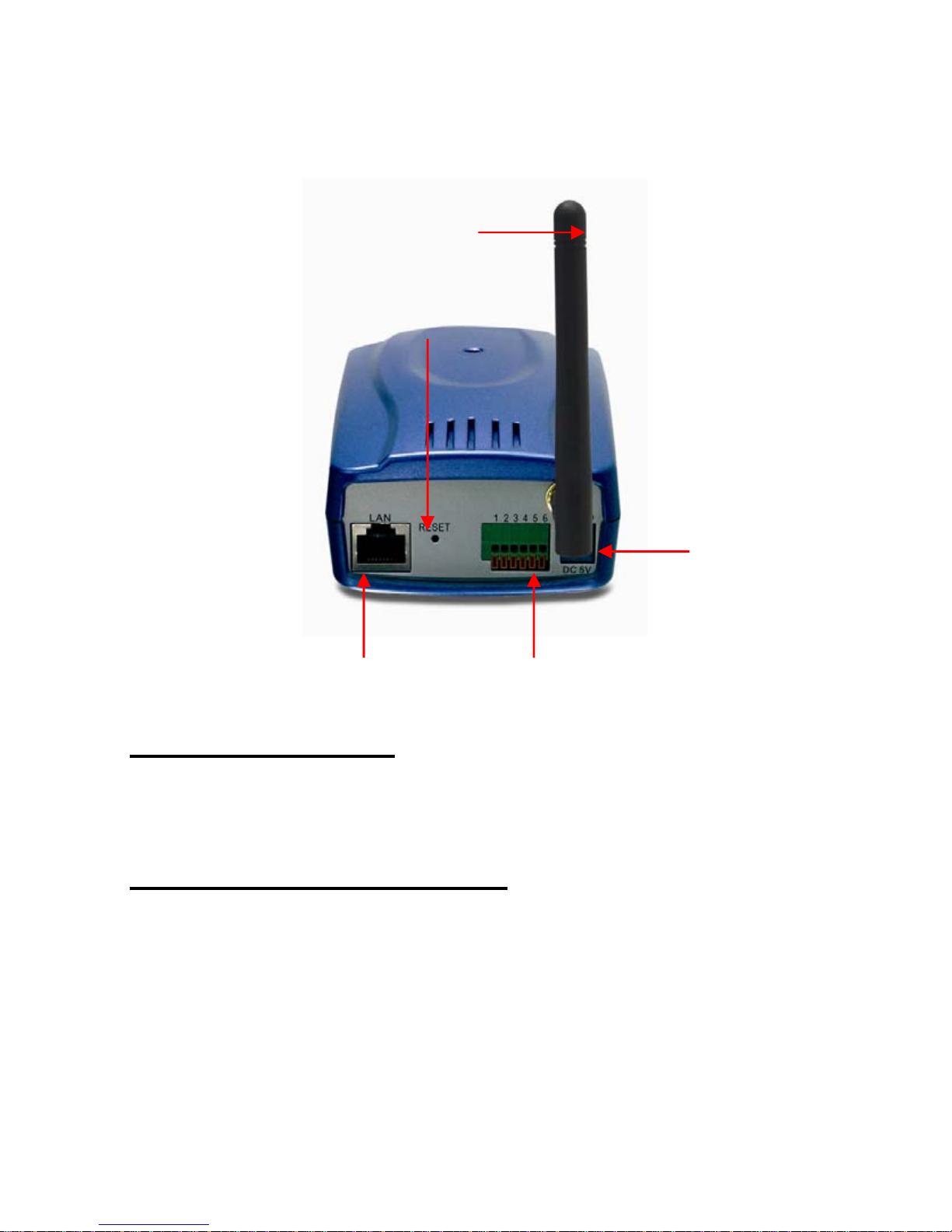

1. External Antenna
The adjustable external antenna allows you to adjust its position
to obtain the maximum signal.
2. Network Cable Connector
The Wireless Internet Camera’s rear panel features an RJ-45
connector for connections to 10Base-T Ethernet cabling or
100Base-TX Fast Ethernet cabling (which should be Category 5
twisted-pair cable). The port supports the N-Way protocol and
“Auto-MDIX” function, allowing the Wireless Internet Camera to
automatically detect or negotiate the transmission speed of the
network.
2. Network Cable Connector
1. External Antenna
4. I/O Connector
3. Reset Button
5. DC Power
Connecto
r

12
3. Reset Button
Reset will be initiated when the reset button is pressed once, and
Power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed
continuously for three seconds or when Power LED begins to
light up. Release the reset button and the Power LED will begin
to flash, indicating the Wireless Internet Camera is changing to
factory reset. When factory reset is completed, the Wireless
Internet Camera will be set to default on channel 11 and SSID is
set as “NULL String” (This default setting will let the Wireless
Internet Camera connect to ANY access point on the
infrastructure network). The IP address will also return to the
default setting as 192.168.0.30.
4. I/O Connector
The camera provides the I/O connectors on the rear panel (pin 1/2
are for RS485, pin 3/4 are for input, pin 5/6 are for output), which
provide the physical interface to send and receive digital signals
to a variety of external alarm devices. For more information, refer
to Appendix F, I/O Terminal Application.
5. DC Power Connector
The DC power input connector is located on the Wireless Internet
Camera’s rear panel, and is labeled DC5V with a single jack
socket to supply power to the Wireless Internet Camera. Power
will be generated when the power supply is connected to a wall
outlet.

13
Top/Bottom Panel
Top Panel
Bottom Panel

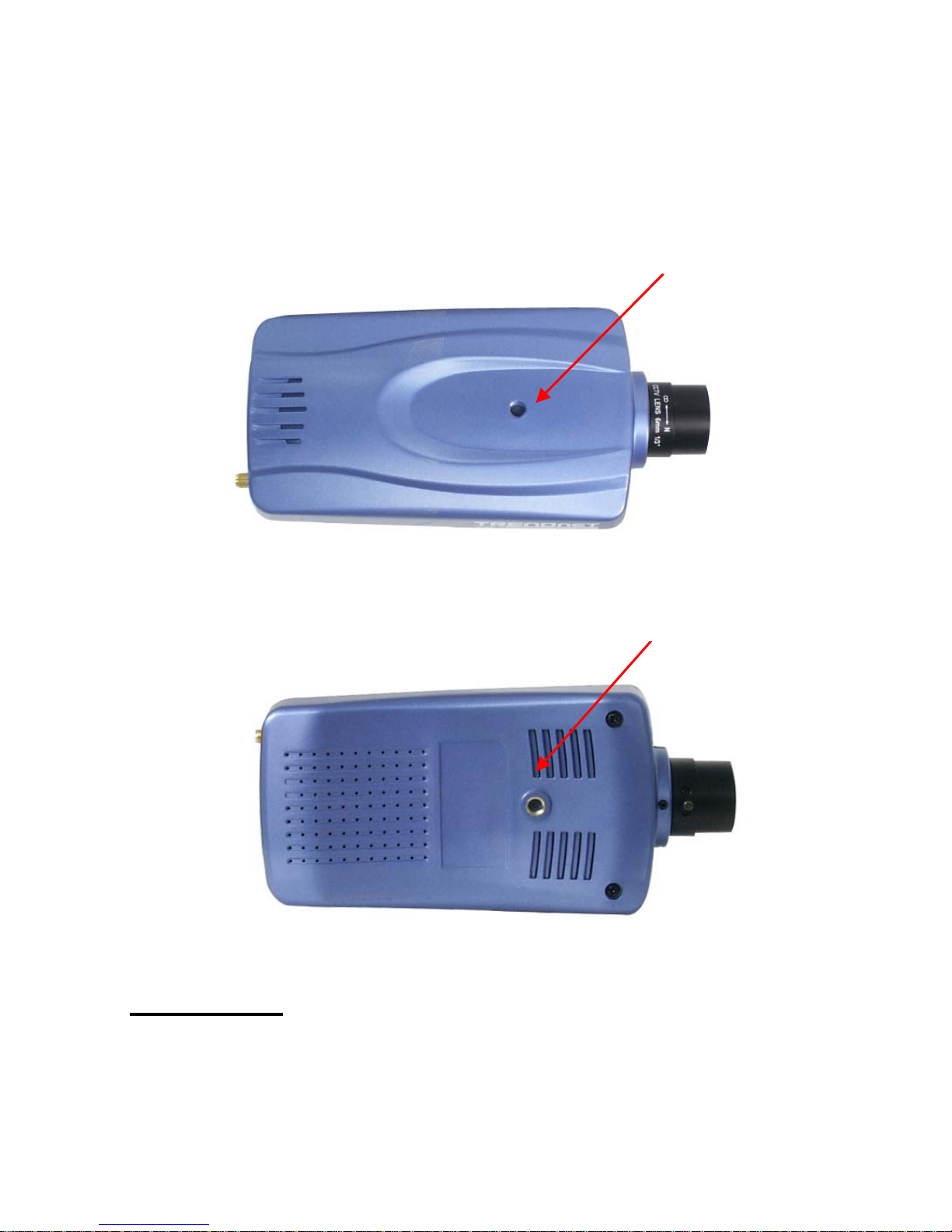

Screw Hole
Located on the top/bottom panel of the camera, the screw hole is
used to connect the camera stand onto the camera by attaching the
screw head on the camera stand into the screw hole of the camera.
Screw Hole
Screw Hole

14
2
HARDWARE
INSTALLATION
Attaching the Camera to the Stand
The Wireless Internet Camera
comes with a camera stand
(optional), which is equipped
with a swivel ball screw head
that can be attached to the
Wireless Internet Camera's
bottom screw hole. Attach the
camera stand to the Wireless
Internet Camera and station it
for your application. There are
three holes located in the base of
the camera stand allowing the
Wireless Internet Camera to be
mounted on the ceiling or any
wall securely.

15
Connecting the Ethernet cable
Connect an Ethernet cable to
the network cable connector
located on the Wireless Internet
Camera’s rear panel, and then
attach it to the network.
Attaching the Power Supply
Attach the external power
supply to the DC power input
connector located on Wireless
Internet Camera’s rear panel,
and then connect it to your local
power supply.
TIP: You can confirm power source is supplied from the LED indicators
label Power onthe Wireless Internet Camera is illuminated.

16
3
SECURITY
To ensure the highest security and prevent unauthorized usage of
the Wireless Internet Camera the Administrator has the exclusive
privilege to access the System Administration for settings and
control requirements to allow users the level of entry and
authorize the privileges for all users. The Wireless Internet
Camera supports multi-level password protection and access to
the Wireless Internet Camera is strictly restricted to define the
user who has a “User Name” and “User Password” that is
assigned by the Administrator.
The administrator can release a public user name and password so
when remote users access the Wireless Internet Camera they will
have the right to view the image transmitted by the Wireless
Internet Camera.
NOTE: Since the default settings are Null String, it is highly
recommended to set the "Admin ID" and "Admin Password" when you
are the first time to use the Wireless Internet Camera. Once the ID and
Password are defined, only the administrator has the access to
management the Wireless Internet Camera. This procedure should be
done as soon as possible since the security features with the Wireless
Internet Camera will not be enabled until the "Admin ID" and "Admin
Password" is defined.

17
4
APPLICATION OF
THE CAMERA
The Wireless Internet Camera can be applied in wide variety of
applications. With the built-in CPU, it can work as a standalone
system that provides a web-based solution transmitting high
quality video images and sounds for monitoring purposes. It can
be managed remotely, accessed and controlled from any PC
desktop over the Intranet or Internet via a web browser. With the
easy installation procedure, real-time live images will be
available. In addition, once the Wireless Internet Camera is
installed coupled with the IPView Pro application, you can
further expand the scope of the Wireless Internet Camera.
The following section will provide the typical applications for the
Wireless Internet Camera along with the IPView Pro application,
and also includes some basic knowledge to assist in the
installation and configuration of the Wireless Internet Camera.

18
Applications of the Camera
zMonitoring of local and remote places and objects such as
construction sites, hospitals, amusement parks, schools and
day-care centers through the use of a web browser.
zCapture single frame images from the IPView Pro
application.
zConfigure the camera to upload image or send mail
messages with a single frame image.
SOHO
Internet Camera
SOHO Wireless
Internet Camera
Home Applications Diagram

19
SOHO

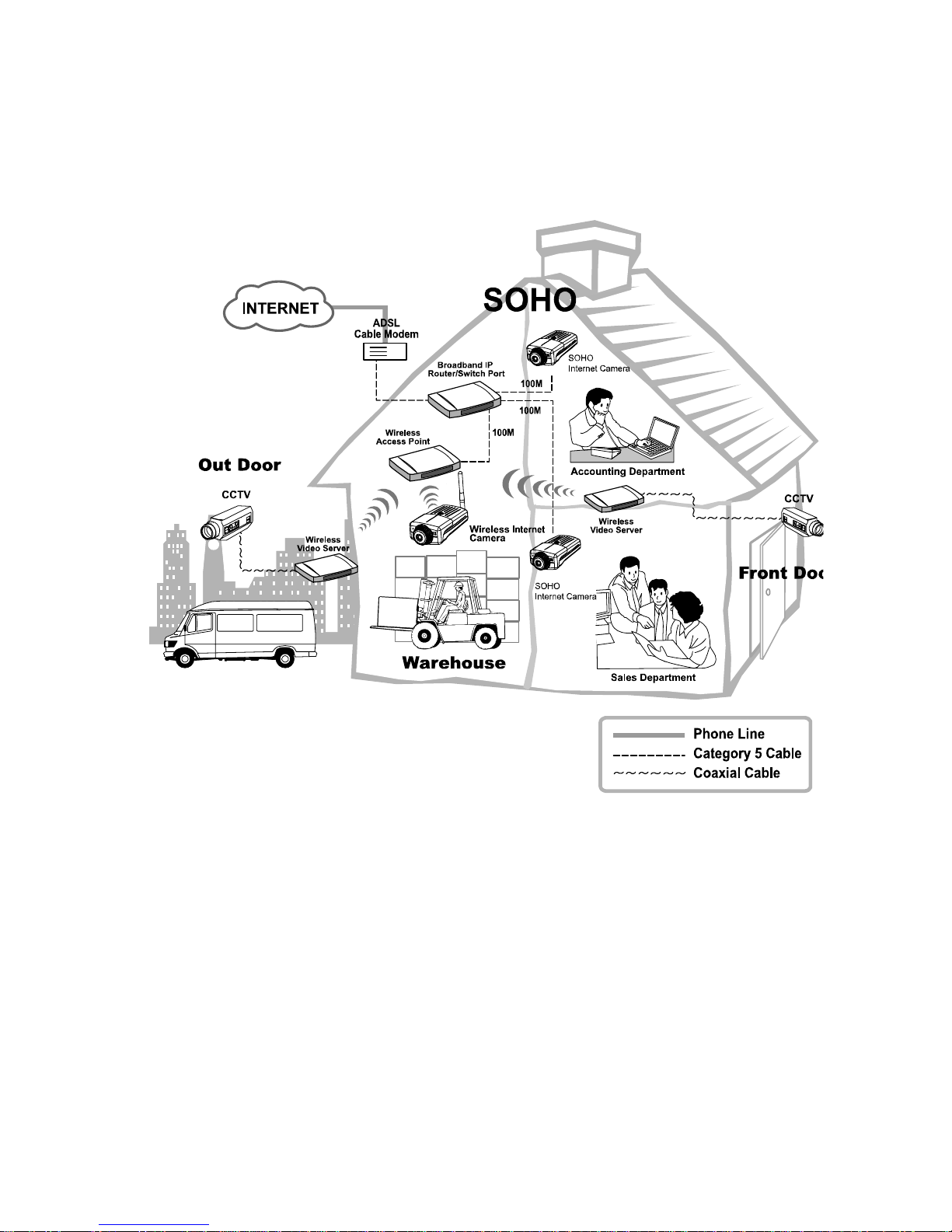

SOHO Applications Diagram
