TriBrer TB-700 User manual

OTDR Testing Platform
TB-700
User’s Manual
2020-10-01 THU 10:08
Mini OTDR OPM Loss Test
OLA SE
Distance Test Sequence Test
OLS System Settings

WARNING
Any undefined change or modification of this manual will deprive you of the right to operate t-
he equipment.
To reduce the risk of fire or electric shock, do not expose the equipment to rain or humidity.
To prevent electric shock, please do not open the shell, and it must be repaired by qualified p-
ersonnel.
Please ensure no signal in fiber before testing, active fiber may damage the device and not in
warranty range.
NOTE
As the laser is harmful to the eyes, don't look directly at the laser outlet and don't attempt to d-
isassemble the cabinet.
Using the battery:
The device can be recharged with a special battery, and cannot be mixed with
different types or capacity batteries.
Avoiding condensation:
Sudden changes in temperature should be avoided. Do not use the device immediately after
moving the device from the cold area to the hot area, or when the room suddenly heats up, b-
ecause the device may have condensation phenomenon. If the temperature changes abruptly ,
stop using it and take out the battery, and the power can be switched on after at least an hour.
Storage:
When the device is not used for a long time, please take out the battery to avoid
the damage caused by battery leakage.
※The manual is for reference only; All operations are subject to the physical device.
PRECAUTIONS FOR USE
CAUTION
DO NOT STARE INTO THE BEAM OR VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS
LASER RADIATION
635-650nm LASER
CLASS 1 LASER PRODUCT
INVISIBL E LASER RA DIATION
AVOID EYE OR SKIN EXPOSURE
TO DIRECT OR SCATTERED RADIATION
EXCIMER LA SER
10mW MAX PULSE at 800-1700nm
DANGER

1

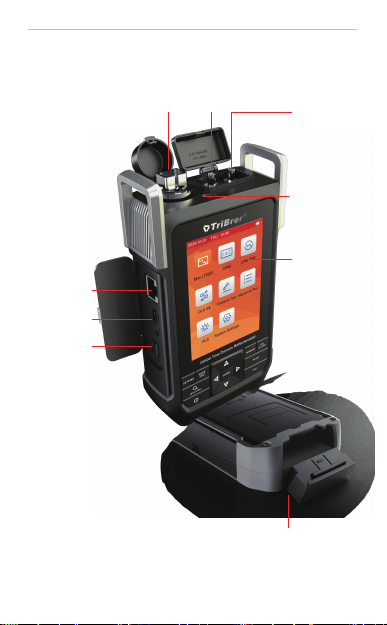

HOST
OPM
RJ-45 cable test module
VFL
LED light
3.5 inch LCD
RJ-45 test
Type-C
Power Bank
OTDR/OLS

S E T TI N G M A RK E R
+ E S C= F U L L
EN T E R SC A N
ES C
> 2s L E D
VFL
SA V E
F IL E
2

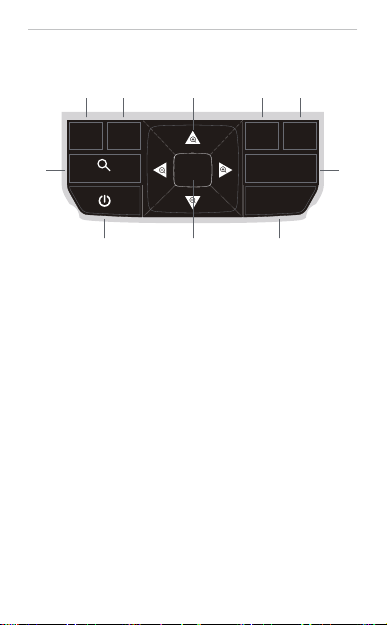

1 —— Press to enter the corresponding measurement setting interface.
2 —— Press to save current testing result or enter into the file list.
3 —— Select the cursor in OTDR testing interface.
4 —— Control VFL ON-GLINT-OFF, and press >2s to turn on/off LED light.
5 —— Zoom in/out the OTDR testing waveform combining with Navigation and ESC buttons
6 —— Long press to turn on/off the device. If OFF, it will pop up “Do you want to power off”
7 —— Press to start the measurement.
8 —— Press to back to previous menu.
9 —— Navigation buttons for selecting operation
10 —— Press to enter the next operation and confirm.
KEYS INTRODUCTION
1 2
5 7
9
106 8
3 4

2020-10-01 THU 10:08
Mini OTDR OPM Loss Test
OLA SE
Distance Test Sequence Test
OLS System Settings
EN T E R
3
Battery (charging status)VFLLED light
USB
After booting, main menu shows in default. Press Navigation buttons to
select the function module, then press “ ” button to enter into the
corresponding interface.
Title Bar: Highlight when the function module is selected.
Main Menu
2020-10-01 THU 10:08

4
Measurement
status
No. Dis. Loss Ref. dB/km C.Loss
A-B: 000.000km 0.000dB 0.000dB/km
A 0.000km
B 0.940km
4.00dB/div
X Y
0.200km/div
201001.sor
Measure Info: 1310nm 2.0km 10ns
1/6
3/6
4/6
5/6
0.000
4.301
5.589
18.712
0.00
0.12
-0.05
-.-- -.-- -.--
-.--
-.--
-51.74
-54.67
-41.03
0.28
0.22
0.00
1.18
4.07
2/6 0.940 0.08 -51.74 0.24 0.26
2020-10-01 THU 21:25
File name
Waveform
region
Scale
Event List
Measurement
info.
Distance and
Attenuation

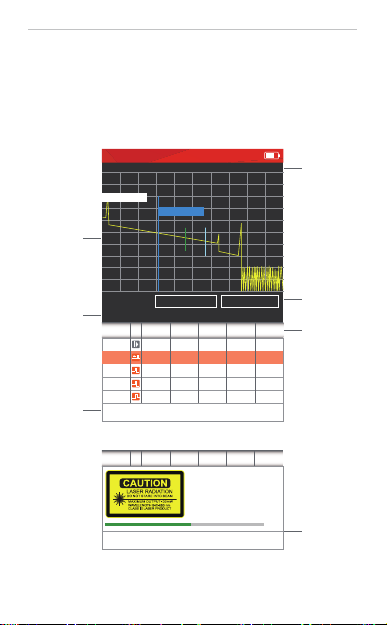

OTDR testing interface as following shows.
Mini OTDR
No. Dis. Loss Ref. dB/km C.Loss
Measure Info: 1310nm 2.0km 10ns
10s
Laser Radiation!
Do not look directly
to the laser!

Measure setting
Press key ENTER to edit settings.
Pulse Width
Average Time
Splice Loss
ReflectionThreshold
End Threshold
Refractive Rate
Scatter Coefficient
Manual
1000ns
120s
0.05dB
65.0dB
2.0dB
1.46832
52.1dB
Average
Optical detector
Real time analyse
Scan mode
Scan type
500m
Range
Wavelength 1550nm
2020-10-01 THU 21:25
S ET TIN G
SC A N
5

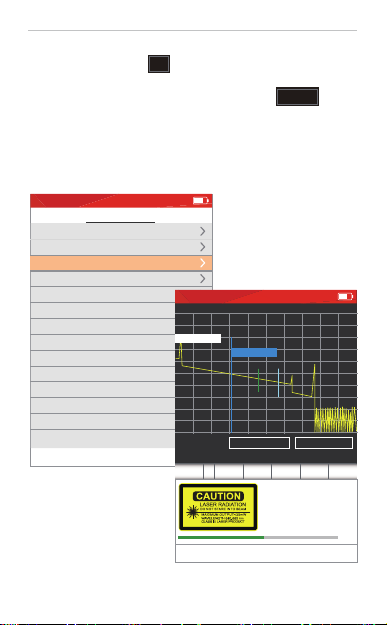

In OTDR interface, press “ ” button to enter into measurement setting
interface.
Under OTDR or measurement setting interface, press “ ” button
to start measurement. Press again to stop the testing during the measurement.
If “Real time analyse” is ON when Real time scan type is set, then it will
take average measurement again before stopping.
Mini OTDR--Measurement Settings
A-B: 000.000km 0.000dB 0.000dB/km
A 0.000km
B 0.940km
4.00dB/div
X Y
0.200km/div
201001.sor
2020-10-01 THU 21:25
No. Dis. Loss Ref. dB/km C.Loss
Measure Info: 1310nm 2.0km 10ns
10s
Laser Radiation!
Do not look directly
to the laser!

M A R K E R
6
No. Dis. Loss Ref. dB/km C.Loss
A-B: 000.000km 0.000dB 0.000dB/km
A 0.000km
B 0.940km
4.00dB/div
X Y
0.200km/div
201001.sor
Measure Info: 1310nm 2.0km 10ns
1/6
3/6
4/6
5/6
0.000
4.301
5.589
18.712
0.00
0.12
-0.05
-.-- -.-- -.--
-.--
-.--
-51.74
-54.67
-41.03
0.28
0.22
0.00
1.18
4.07
2/6 0.940 0.08 -51.74 0.24 0.26
2020-10-01 THU 21:25

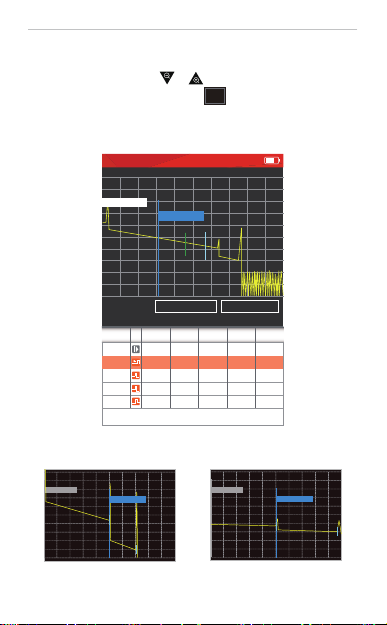

After testing or open the saved waveform, then event list shows, Max. 5
events listed, if more, press “ ”“ ” to view, and the cursor will be
located in selected event, short press “ ” to choose the cursor, and
scale current waveform by pressing combined buttons.
Mini OTDR--Waveform Analysis
X-axis zoom in
A
B
23
0.000km
10.057km
Y-axis zoom in
A0.000km
1
B 10.057km
23

PD_074#0002 Rev.210202

EN T E R
SA V
FI L E
SA V
FI L E
7
序号 距离 损耗 反射率 dB/km 累损
A-B: 000.000km 0.000dB 0.000dB/km
A 0.000km
B 0.940km
4.00dB/div
X Y
0.200km/div
201001.sor
测量信息: 1310nm 2.0km 10ns
1/6
3/6
4/6
5/6
0.000
4.301
5.589
18.712
0.00
0.12
-0.05
-.-- -.-- -.--
-.--
-.--
-51.74
-54.67
-41.03
0.28
0.22
0.00
1.18
4.07
2/6 0.940 0.08 -51.74 0.24 0.26
3/314.154--.---20.950.185.20
A-B: 10.057Km 1.81dB --.--dB/Km
2/310.0572.65-36.080.181.81
1
SORSave
2
w
-
3
e
#
4
r
5
t
6
y
7
u
8
i
9
o
0
p
as
z
d
x
f
c
g
v
h
b
j
n
k
m
l
1
q
.Space Enter
025404
20km

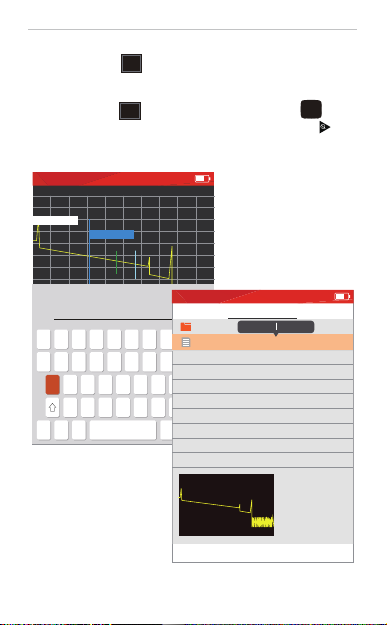

After testing, press “ ” to save the result, and will pop up soft keyboard
to edit the name. If “Auto name” is ON in system setting, then file will be
auto-named when saving.
If no testing, press “ ” button to the file list, then press “ ” button
to open the folder or file. If need to delete/rename the file, press “ ” button
to operate.
If select the target file, it will display the waveform thumbnail at the bottom.
Mini OTDR--File
...
2020-10-01 THU 10:08
P ress right key to select operation.
File
2020-10-01 THU 21:25
...
133210_0001.sor 2014-06-19
Delete Rename
Wavelength: 1550nm
Range: 2.0km
Pulse width: 10ns

100s
Loss
Ref.
Dis. 0.0007
-41.003 -41.003
-0.052 -0.052
4/5
B
A
Pass
201001.tor
WAVELENGTH 800-1700nm
MAXIMUM OUTPUT<1mW
CLASS II LASER PRODUCT
1310nm1550nm
9.464dB 9.464dB
10.0003km
OLA SE
120.20431km
120.20431km
120.20431km
120.20431km
EventList
2020-10-01 THU 21:25
8
1
2
5
3
6
4
1 —— Measurement overview
2 —— Details of selected event
3 —— Location of each event
4 —— Events and distance between events
5 —— Measurement Status
6 —— PASS/FAIL
OLA SE
55s
AWAVELENGTH 800-1700nm
MAXIMUM OUTPUT<1mW
CLASS II LASER PRODUCT
120.20431km

Settings
20.000dB
0.300dB
40.000dB
0.750dB
20.000dB
1.00dB
65.0dB
3.0dB
1.46770dB
49.6dB
Pass/Fail Settings
Total loss threshold
ORL threshold
Loss threshold
Reflection threshold
Reflection loss threshold
Measure Settings
Optical fiber param
Splice loss
Reflection threshold
End threshold
Refractive rate
1550nm
Wavelength
Scatter coefficient
15.000dB
Press key ENTER to edit settings.
2020-10-01 THU 21:25
S ET TIN G
EN T E R
SC A N
9

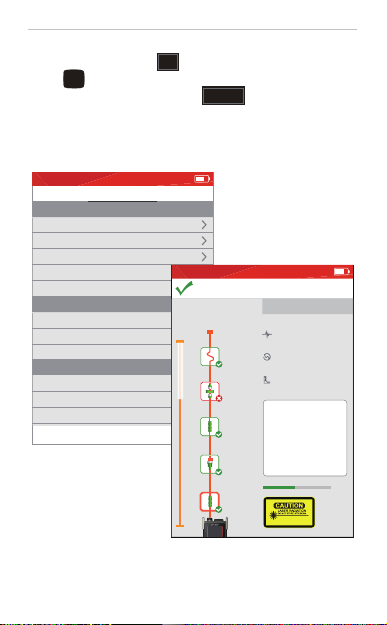

In OLA SE interface, press “ ” button to enter into “Settings”, and
press “ ” and Navigation buttons to set the parameters.
In OLA SE or Setting interface, press “ ”button to start
measurement.
OLA SE--Settings
100s
Loss
Ref.
Dis. 0.0007
-41.003 -41.003
-0.052 -0.052
4/5
B
A
Pass
201001.tor
WAVELENGTH 800-1700nm
MAXIMUM OUTPUT<1mW
CLASS II LASER PRODUCT
1310nm1550nm
9.464dB 9.464dB
10.0003km
OLA SE
120.20431km
120.20431km
120.20431km
120.20431km
EventList
2020-10-01 THU 21:25

EN T E R
SA V
FI L E
SA V
FI L E
10
Pass201001.tor
OLA SE EventList
2020-10-01 THU 21:25
0.04311
0.04311
0
0.08561
0.35688
0.35688
0.06211
-54.673
-41.033
-41.033
-46.023
-.--
-.--
-.--
-.--
-.--
-.--
-54.673
-41.033
-41.033
-46.023
1/5
1/6
3/6
4/6
5/6
6/6
2/6
No. Type Dis./Len Loss
Press “ ” button to check the event list, and press “ ” button to
save the data.
If no testing, press “ ” button to enter the file list, then press “ ”
button to open the folder or file.
Press “ ” button to delete or rename the folder or file.
OLA SE--Event List / File
P ress right key to select operation.
20140617
20140617
20140618
File
20140619
20140619
20140621
20140620
20140620
D elete R ename
2020-10-01 THU 21:25

OPM settings
Press key ENTER to edit setting.
Auto λ
Freq. ID
Offset settings
2020-10-01 THU 21:25
S ET TIN G
11
OPM
Connecting the fiber to the OPM port and press “ ”“ ”“ ”buttons
to switch the wavelength 850/1300/1310/1490/1550/1625nm, set reference
value, and check reference value.
Press “ ” to the OPM setting interface.
Auto λ: If ON, then OPM can identify the current wavelength in fiber
automatically.
Freq. ID: Set ON/OFF to identify the frequency or not.
Offset settings: If not too accurate testing, user can do manual calibration by
setting offset value of each wavelength.
Operate according to the prompts.
dBm
-50.000
dB
mW
82.790
-55.540
1310nm
REF:-70.00dBm
Switching
wavelength
View REF
REF setting
Freq:--.--
2020-10-01 THU 21:25

12
Connecting the fiber to OLS port, and press “ ”“ ” buttons to select
the wavelength 1310/1550nm and modulation among continuous signal:
270Hz, 1kHz, 2kHz, 1kHz+Blink, 2kHz+Blink.
OLS
Operate according to the prompts.
Change
modulation
WAVELENGTH 800-1700nm
MAXIMUM OUTPUT<1mW
CLASS II LASER PRODUCT
Switching
wavelength
Wavelength：1310nm
Modulation:CW
2020-10-01 THU 21:25

13
Loss Test
Loss test refers to testing the fiber loss of the passive network.
Inserting the standard fiber to OLS port and OPM port, turn on the OLS and
set the reference value, then connecting the under-test fiber and check its
loss value.
Laser radiation！Do not look directly to the laser!
Operate according to the prompts.
dB
mW
82.790
-55.540
1310nmREF:-70.00dBm
Switching
wavelengthOLS on/off
REF setting
WAVELENGTH 800-1700nm
MAXIMUM OUTPUT<1mW
CLASS II LASER PRODUCT
2020-10-01 THU 21:25

14
Standard
Unit switch
NO.
1
2
3
4
5
6
7
8
< 1.0m
< 1.0m
< 1.0m
< 1.0m
< 1.0m
< 1.0m
< 1.0m
< 1.0m
EIA/TIA568A Sta./Len
Tips: Test completed!
Press key ENTER to start measuring
2020-10-01 THU 21:25
Connecting the host and remote cable module with a RJ45 cable, and start
the measurement as prompts in the bottom.
Distance test: Support to test the length of common CAT5/6 cable
Sequence test: To check the connection quality of RJ45 terminations whether
in right sequence order or abnormal situations such as poor/wrong connection,
disconnection and so on.
RJ-45 Net Cable Testing
Standard
NO.(near)
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA/TIA568A NO.(far)
Tips: Test completed!
Press key ENTER to start measuring
2020-10-01 THU 21:25

15
System Settings
Set each parameter by Navigation and ENTER buttons.
· Auto Power Off：
Set the time for power-off or cancel the auto power-off function
· Auto Name：
Auto-name the file when saving, can be OFF
· Auto backlight off：
Set the LCD standby time: close or 15s~10min
· Buttons backlight：close or Low to High
Set backlight of buttons, convenient when working in dark condition
· Brightness：
Set LCD brightness(range 10~100)
· Format storage：
Delete all files in the device. If with TF card, delete all files in the SD card.
· USB Connection：
Connect the device to PC via USB cable to view internal or TF card saved
data
· OTG：
Set whether to view the data in TF card when connecting the device to PC
via USB cable
· Factory Settings：
Turn on when need to reset the device to factory settings, while device time
and saved data remain unchanged.
System settings
Auto Power Off
Auto Name
Auto backlight off
Beep
Format storage
USB connection
Date
Time
OTG
Factory settings
About
10min
Close
Buttons backlight Medium
Brightness 60
2020-03-28
21:57
Press key ENTER to edit setting.
2020-10-01 THU 21:25
