Tricity Bendix RE50GC User manual

SLIP IN ELECTRIC COOKER
RE50GC
PLEASE READ THIS INSTRUCTION BOOKLET BEFORE USING THE APPLIANCE
OPERATING & INSTALLATION
INSTRUCTIONS

2
MODEL NO. RE50GC
Voltage: 230-240 Volts AC 50Hz
Wattage: 9.4-10.3kW
Height: 900mm
Width: 500mm
Depth: 600mm
Weight: 55kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
TECHNICAL DETAILS

3
Technical Details .................................................................................................................................... 2
Contents .................................................................................................................................................. 3
Preface ..................................................................................................................................................... 5
Safety ....................................................................................................................................................... 6
Before Installation ........................................................................................................................... 6
During Operation ............................................................................................................................ 6
After Use ......................................................................................................................................... 7
General ........................................................................................................................................... 7
Introduction ............................................................................................................................................. 8
Rating Plate .................................................................................................................................... 8
Installation ....................................................................................................................................... 8
General Notes on Using Your Appliance ........................................................................................ 9
About Condensation and Steam ..................................................................................................... 9
Oven Indicator Neons ..................................................................................................................... 9
Grill and Oven Furniture ................................................................................................................. 9
Getting to Know Your Appliance .......................................................................................................... 10
The Control Panel ........................................................................................................................... 10
The Electronic Minute Minder ......................................................................................................... 11
The Ceramic Hob .................................................................................................................................... 14
Recommended Saucepans ............................................................................................................ 14
Hints and Tips ................................................................................................................................. 14
Deep Fat Frying ...................................................................................................................................... 15
Preserving ............................................................................................................................................... 15
The Grill ................................................................................................................................................... 16
Selecting the Grill ............................................................................................................................ 16
Things to Note ................................................................................................................................ 16
The Grill Pan and Handle ............................................................................................................... 16
Hints and Tips ................................................................................................................................. 17
Grilling Chart ................................................................................................................................... 17
The Top Oven ......................................................................................................................................... 18
Uses of the Top Oven ..................................................................................................................... 18
Selecting the Top Oven .................................................................................................................. 18
Things to Note ................................................................................................................................ 18
To Fit the Top Oven Shelf ............................................................................................................... 18
Hints and Tips ................................................................................................................................. 19
The Main Fan Oven ................................................................................................................................ 20
Selecting the Main Fan Oven ......................................................................................................... 20
Things to Note ................................................................................................................................ 20
To Fit the Main Fan Oven Shelves ................................................................................................. 20
Hints and Tips ................................................................................................................................. 21
Oven Cooking Chart ............................................................................................................................... 22
Roasting Chart ........................................................................................................................................ 23
CONTENTS

4
Defrost Feature ....................................................................................................................................... 24
Uses of Defrost Feature .................................................................................................................. 24
Selecting Defrost ............................................................................................................................ 24
Things to Note ................................................................................................................................ 24
Hints and Tips ................................................................................................................................. 24
Care and Cleaning .................................................................................................................................. 25
Cleaning Materials .......................................................................................................................... 25
Cleaning the Ceramic Hob .............................................................................................................. 25
Hints and Tips ................................................................................................................................. 26
Cleaning the Outside of the Appliance ........................................................................................... 26
Cleaning the Grill and Oven Furniture ............................................................................................ 26
Cleaning Inside the Oven/Grill Compartments ............................................................................... 27
Care of Stayclean Surfaces ............................................................................................................ 27
Hints and Tips ................................................................................................................................. 27
Cleaning the Door Glass ................................................................................................................. 28
Something Not Working? ...................................................................................................................... 29
Service and Spare Parts ........................................................................................................................ 30
Guarantee Conditions ............................................................................................................................ 31
CONTENTS

5
Dear Customer,
Thank you for buying a Tricity Bendix appliance. With our 80 years experience in
developing and manufacturing the very best in U.K. appliances, you can be assured that
you have purchased a hard working, reliable, quality product.
Tricity Bendix appliances comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical Approvals
Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix appliance, we ask that you PLEASE READ
THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking
times and temperatures, which may differ, from your previous appliance.
It is most important that this instruction book is retained with the appliance for future
reference. Should the appliance be sold, or if you move house and leave the appliance,
always ensure that the book remains with the appliance. This will enable the new
owner to be acquainted with the functioning of the appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance ensuring
you follow the recommendations given.
PREFACE

6

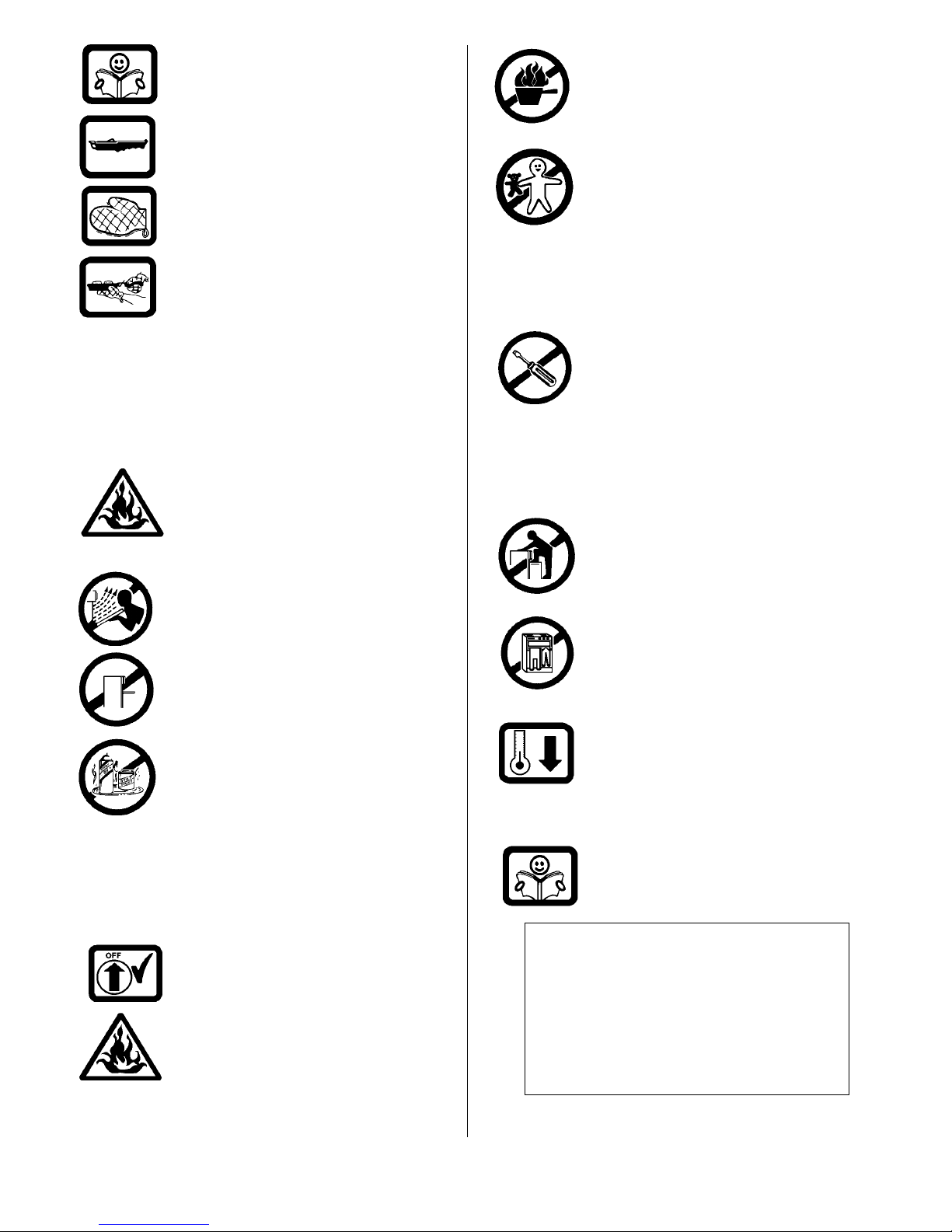

THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE APPLIANCE.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance has
been removed before the appliance
is used.
If the appliance is to be placed on a
base, measures must be taken to
prevent the appliance slipping from
the base.
Do not try to lift or move the
appliance by pulling the door
handles.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify the
specifications of the appliance in any
way.
Do not use the appliance if the
ceramic glass is damaged. If a fault
or crack becomes visible during
cooking, disconnect the appliance
immediately from the electricity
supply and contact your local Service
Force Centre.
Do not place foil or plastic containers
on ceramic glass.
Do not allow young children to play
with any part of the packaging.
After installation, please dispose of
the packaging with due regard to
safety and the environment, your
local authority can arrange this.
DURING OPERATION
This appliance is not intended to be
operated by means of an external
timer or separate remote control
system.
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the appliance or play with the
controls.
During use the appliance becomes
Hot. Care should be taken to avoid
touching the heating elements inside
the oven.
CAUTION: Accessible parts may
be hot when the grill is in use.
Young children should be kept
away.
Take great care when heating fats
and oils, as they will ignite if they
become too hot.
This appliance has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
SAFET
Y

7
Take care to follow the
recommendations given for tending
the food when grilling.
Do not leave the handle in position
when grilling as it will become hot.
Always use oven gloves to remove
and replace the grill pan handle when
grilling.
Recommendations given on page 16
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure the anti-tilt shelves are put in
place correctly. Refer to instructions
on pages 18 and 20.
Never line any part of the appliance
with foil. Do not allow heatproof
cooking materials e.g. roasting bags,
to come into contact with oven
elements.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam or
heat to release.
Never leave the appliance
unattended when the oven doors
are open.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Do not leave the hotplates switched
on for long periods when not covered
by a saucepan. The controls and
cabinets may overheat.
AFTER USE
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons
this appliance should be kept
clean at all times. A build-up of
fats or other foodstuffs could
result in a fire, especially in the
grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
GENERAL
Under no circumstances should
any repairs be carried out by an
inexperienced person as this may
cause injury or serious malfunction.
This appliance should be serviced by
an authorised service Engineer and
only genuine-approved spare parts
should be used. Details of repair and
servicing arrangements are supplied
on page 30 of this book.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
Always switch OFF the appliance at
its power point and allow the
appliance to cool before any
maintenance or cleaning work is
carried out.
Only clean this appliance in
accordance with the instructions
given this book.
Your safety is of paramount importance.
Therefore, if you are unsure about any of
the meanings of these WARNINGS contact
the:
Customer Care Department
Telephone [phone]

8
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
This is situated on the front frame of the appliance
and can be seen upon opening the door. Alternatively
the rating plate may also be found on the back or top
of some models (where applicable).
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the appliance
as this may invalidate the guarantee.
INSTALLATION
If your appliance has been damaged in transit,
contact your supplier immediately. DO NOT attempt
to install it.
Your appliance left the factory fully packaged to
protect it from damage. If it is delivered without
packaging and damage has occurred, the
manufacturer cannot accept responsibility. Contact
your supplier for advice.
Once the packaging has been removed the appliance
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the appliance as
damage may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation in all poles. The cable
must have conductors of sufficiently high cross-
sectional area to prevent overheating and
deterioration.
The recommended cross-section area is six square
millimetres (6.00mm2).

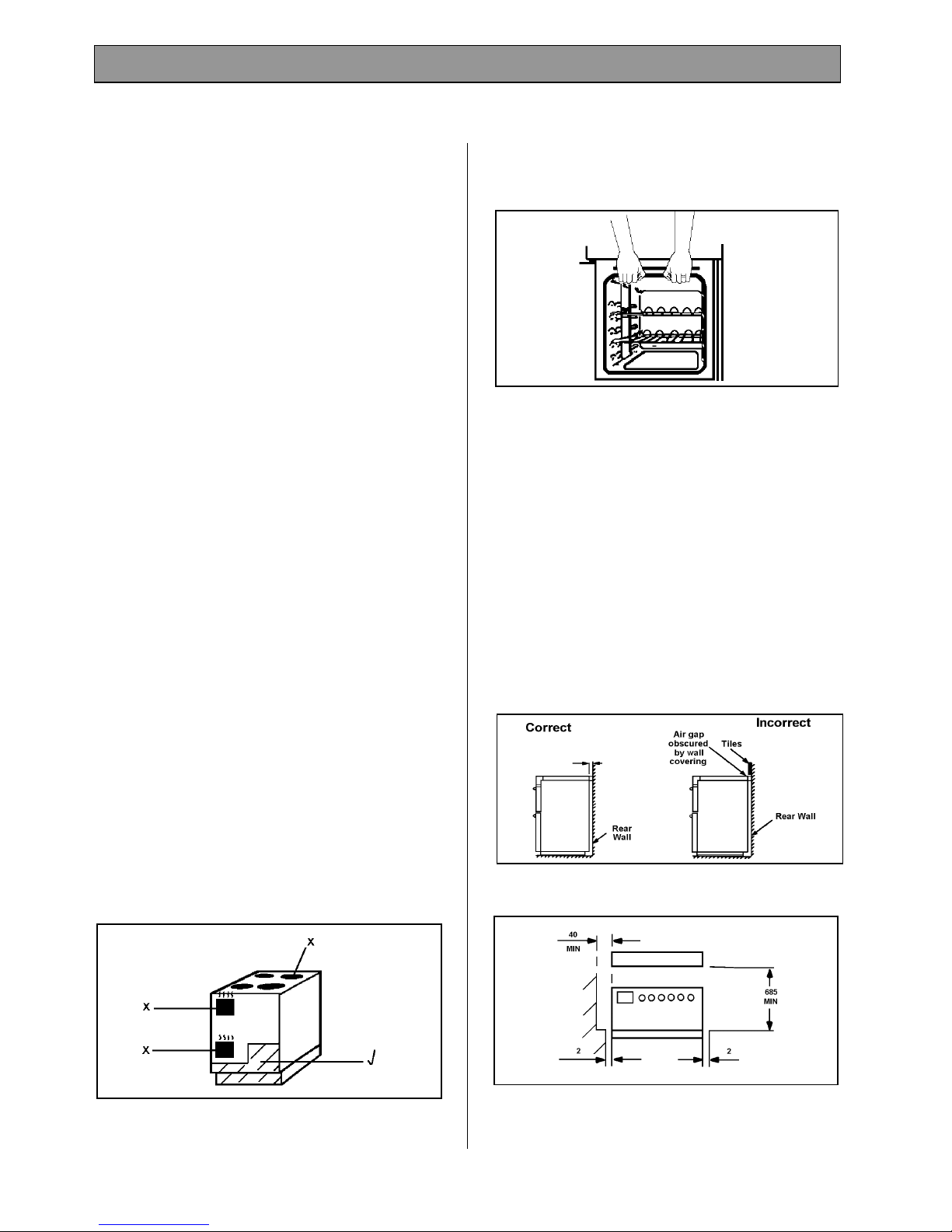

The cable should be routed away from potentially hot
areas marked by an ‘X’ in the diagram below.
To move the appliance, open the main oven door,
and lift the appliance by holding inside the top of the
oven compartment.
This is a type X appliance, which means it is free-
standing and can be fitted with cabinets on one or
both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm at the sides of the
appliance is required to enable the appliance to be
moved into position. It is recommended that
proprietary trims are fitted to protect the worktops of
either side of the appliance. These are available
from most DIY stores.
Always ensure an air gap is maintained at hotplate
level. Tiles or other forms of deep wall covering
should not obscure this gap.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
INTRODUCTION
A
ir gap

9
GENERAL NOTES ON USING YOUR
APPLIANCE
We suggest that you run the oven elements for 10 –
15 minutes at 220oC to burn off any residue from
their surfaces. The procedure should be repeated
with the grill for approximately 5 – 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wall coverings at the rear of the
appliance should be securely fixed to the wall.
OVEN INDICATOR NEONS
These lights indicate whether the ovens are switched
on.
The neons also indicate when the set temperature
has been reached. They will turn on and off during
use to show that the temperature is being
maintained.
If the neons do not operate as the instructions
indicate the controls have been incorrectly set.
Return all controls to zero and re-set following the
instructions for the required setting.
THE COOLING FAN FOR THE CONTROLS
The cooling fan will always come on when the grill
and the top oven are switched on. If they are only
used for a short period of time the fan will switch off
when the controls are turned off. If the grill or the top
oven are used for a longer period of time the fan will
run on depending on the temperature, and may turn
on and off until the appliance has cooled.
In the case of the main oven the cooling fan may not
switch on except when used for a longer period of
time. The cooling fan may run on, and turn on and
off after the control knobs have been switched off,
until the appliance has cooled. Do not switch the
appliance off at its power point until the fan has
cooled the appliance down.

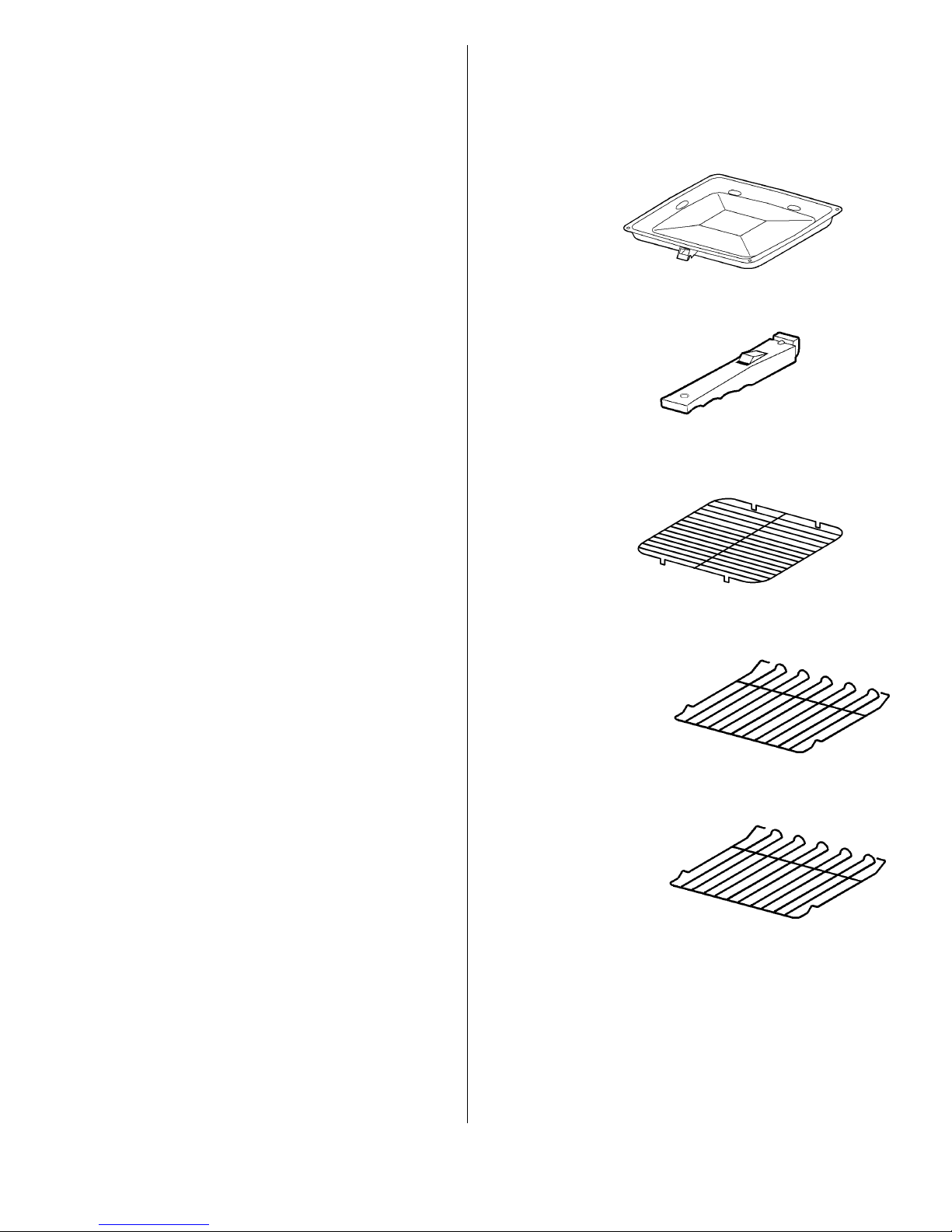

GRILL AND OVEN FURNITURE
The following items of grill/oven furniture have been
supplied with the appliance:
1 grill pan
1 grill pan handle
1 grill pan grid
1 straight shelf
for grilling and
top oven cooking only
2 straight shelves
for main oven cooking

10
E

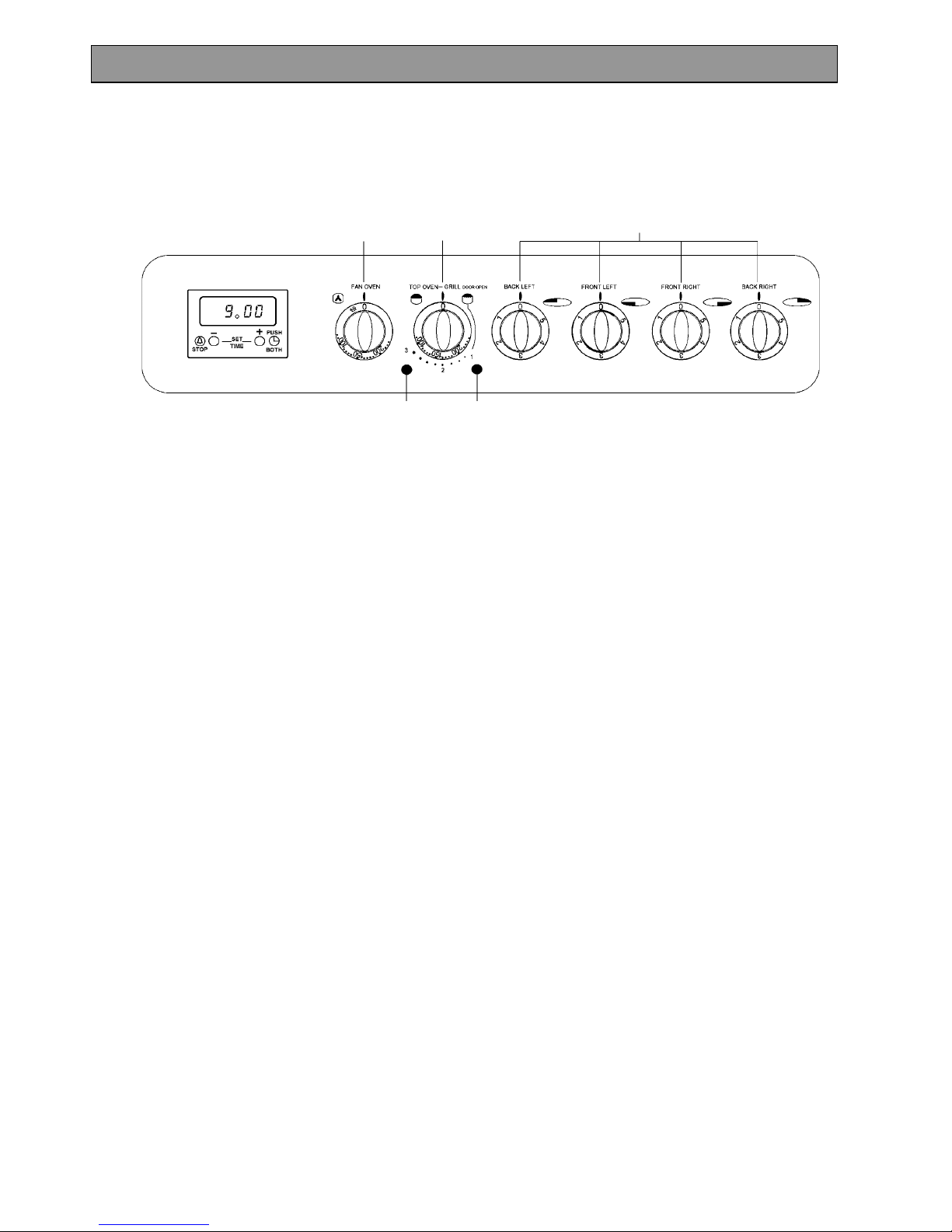

THE CONTROL PANEL
FEATURES
A - Main Oven Temperature Control
B - Main Oven Indicator Neon
C - Top Oven/Grill Control
D - Top Oven Indicator Neon
E Hotplate Controls
GETTING TO KNOW YOUR APPLIANCE
A
C
BD

11
1 = (-) DECREASE CONTROL & MINUTE
MINDER
2 = (+) INCREASE CONTROL
( ) COOKPOT SYMBOL
The electronic minute minder can indicate the time of
day, operate as a minute minder and it can be used
to time and switch off the main oven.
Please note that this is a 24 hour clock, for example
2.00pm is shown as 14.00.
In the following pages we explain how to use the
minute minder and set the time of day. Read through
them until you are familiar with the procedure.

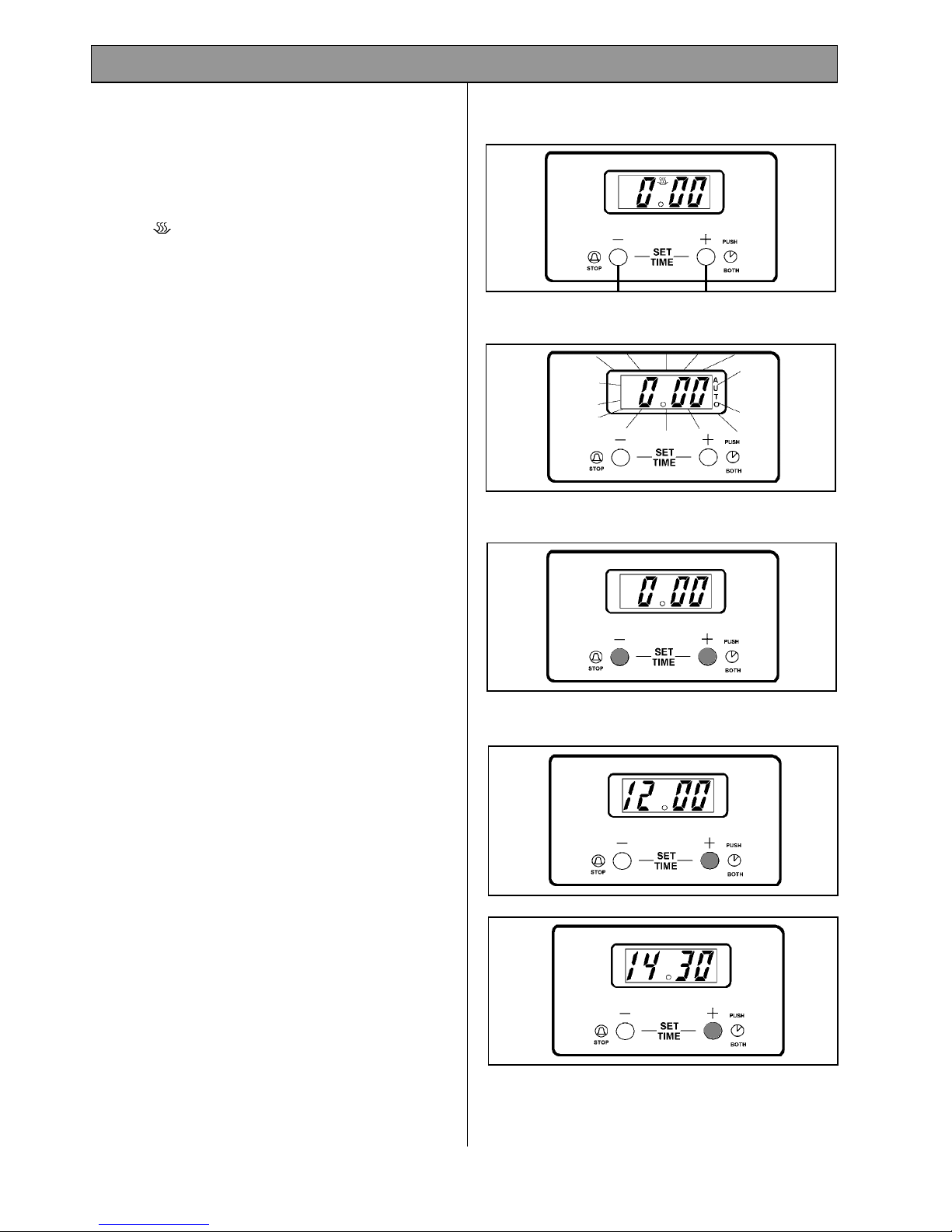

1. SET THE TIME OF DAY
When the electricity supply is first switched ON, the
display will flash 0.00. See Fig.1.
Press buttons (1) and (2) together. Release buttons,
0.00 will appear in the display as Fig. 2. Within 5
seconds press button (2), 12.00 will show in the
display as Fig. 3.
Within 5 seconds press and hold either button (1) to
decrease or button (2) to increase the time until the
correct time of day on the 24 hour clock is reached,
e.g. 14.30. See Fig. 4.
Note: The increase and decrease control buttons
operate slowly at first, and then more rapidly.
They should be pressed separately.
ELECTRONIC MINUTE MINDERELECTRONIC MINUTE MINDER
(
SIE340 WHITE ONLY
)
ELECTRONIC MINUTE MINDER
12
Fig.1
Fig.2
Fig.3
Fig.4

12
2. THE MINUTE MINDER
IMPORTANT
The minute minder can be used to time a set cooking
period. At the end of the cook time the minute
minder will automatically switch off the main oven if in
use.
The minute minder gives an audible reminder at the
end of any period of cooking up to 23 hours and 59
minutes.
To set press button (1) and the display will read
0.00, see Fig. 5.
Release button (1) and press and hold button (2).
The display will count up in one minute intervals until
the interval to be timed is reached e.g. 30 minutes,
see Fig. 6. If necessary press and hold button (1) to
achieve the correct time interval.
The minute minder will begin to count down once set.
The time of day will show in the display. To show the
remainder of the cook time. Press button (1).
At the end of the timed period the minute minder will
click, switching the main oven OFF if in use.
An audible signal will sound for up to 2 minutes. The
Auto symbol will flash and the cookpot symbol will go
out. The time of day will show in the display. See
Fig. 7.
To stop the sound press button (1). The display will
stop flashing and show the time of day, e.g. 15.00.
To return the timer to manual press button (1) again.
See Fig. 8. If using the main oven it will come on
again once button (1) has been depressed. When
cooking is complete remove food and turn OFF oven
temperature control.
3. TO CANCEL THE MINUTE MINDER
If you change your mind and want to cancel the
minute minder. Press and release button (1). Press
and hold button (1) and the display will count down in
one minute intervals to 0.00. See Fig. 9. Release
button (1).
After a few seconds the time of day will show in the
display. See Fig. 10.
If the main oven is in use this will switch OFF after a
few seconds.
To reset, press buttons (1) and (2) together. See Fig.
11.
4. THINGS TO NOTE
1. The time of day must be set before the main
oven will operate. There will be a few seconds
delay before the oven switches on.
2. The minute minder function controls the main
oven and will switch the oven OFF at the end of a
timed period. This function is useful if you want
to begin cooking now and have the oven switch
OFF automatically.
3. If you have used the minute minder to time food
cooking in the main oven you will need to reset
the timer by pushing button (1) before the oven
can operate again.
Fig.7
Fig.10
Fig.6
Fig.8
Fig.9
Fig.11
Fig.5

13
5) LOCK FEATURE - MAIN OVEN ONLY
Please read the following information with care.
TO LOCK THE OVEN USING THE TIMER
Press and hold Buttons (1) and (2) on your timer for 3
- 8 seconds. See Fig. 12.
ON' will appear in the display. See Fig. 13.
Press Button (2) to change the display to 'Of'.
The key symbol ( ) appears in the display.
The oven will now not operate.
After a few seconds the time of day will show in the
display.
Wait 3 seconds before selecting another function.
TO UNLOCK THE OVEN
Press and hold Buttons (1) and (2) for 3 - 8 seconds.
'Of' will appear in the display. See Fig. 13.
Press Button (2) to change the display to 'On'.
The key symbol ( ) will go out.
After a few seconds the time of day will show in the
display.
The oven can now be operated normally.
12
Fig. 12
Fig. 13
Fig. 14

14
CAUTION: DO NOT USE THE APPLIANCE IF THE CERAMIC GLASS IS DAMAGED. IF A
FAULT OR CRACK BECOMES VISIBLE DURING COOKING, DISCONNECT THE
APPLIANCE IMMEDIATELY FROM THE ELECTRICITY SUPPLY AND CONTACT YOUR
LOCAL SERVICE FORCE CENTRE.
USING THE HOB
·To operate the hotplates, turn the control knobs
in either direction to vary the heat setting.
·The highest number represents the hottest
setting and the lowest number represents the
coolest setting. Choose a setting appropriate to
the quantity and type of food to be cooked.

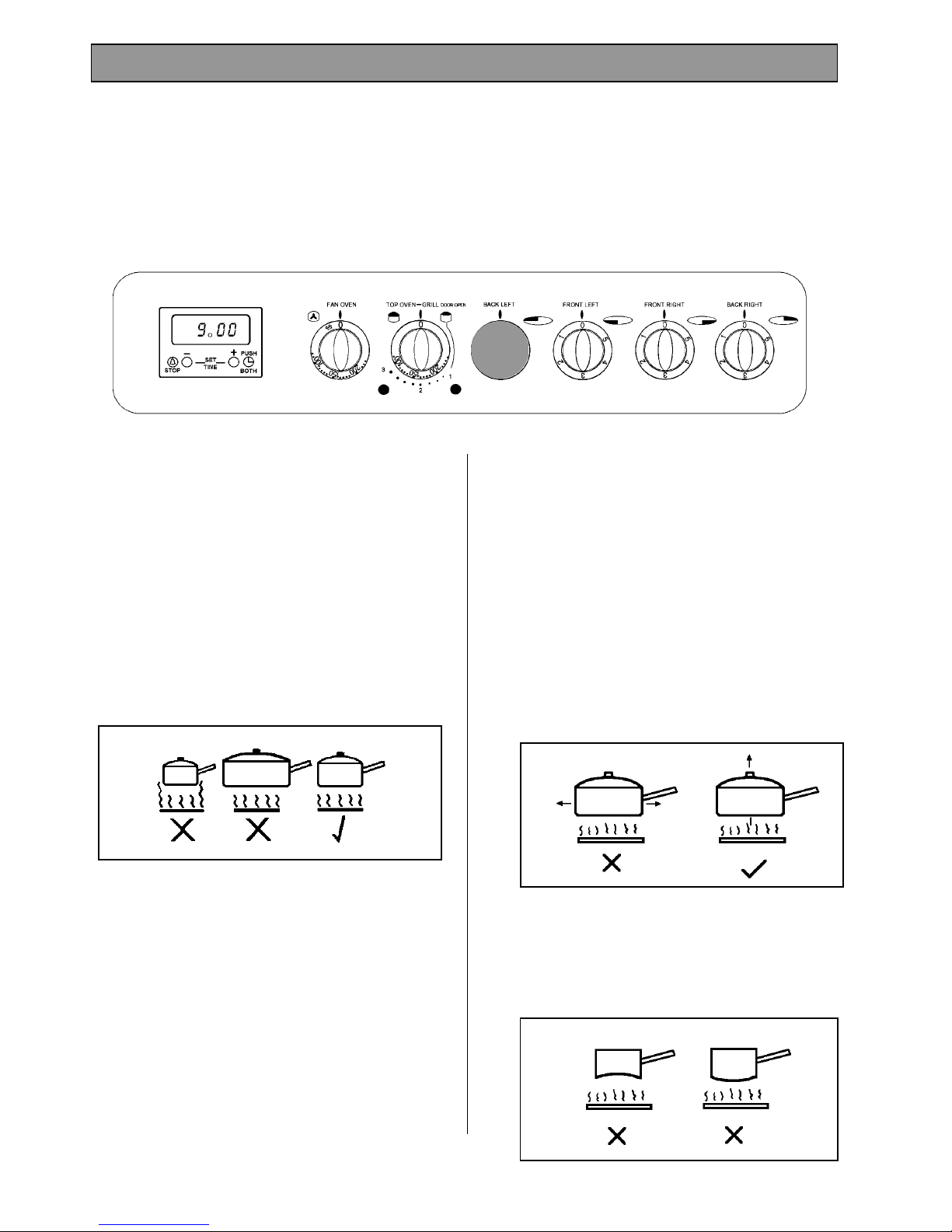

RECOMMENDED SAUCEPANS
For speed and economy only good quality saucepans
with flat bases and close fitting lids are
recommended. The saucepan base should be
approximately the same size as the cooking area, a
base diameter of up to 225mm (9”) may be used on a
180mm (7”) heated area.
Ensure that new saucepans are well scrubbed to
remove edges and take off any deposits left from
manufacture.
Pressure cookers, preserving pans, etc., should
comply with the recommendations given above.
Traditional round bottomed Woks must not be used
even with a stand. Woks with flat-bottomed bases
are available and do comply with the above
recommendations.
NOTE:
Occasionally the heated areas may be seen to switch
ON and OFF when higher heat settings are being
used. This is due to a safety device which prevents
the glass from overheating.
Some switching ON and OFF when cooking at high
temperatures, e.g. deep fat frying is quite normal,
causes no damage to the hob and little delay in
cooking times.
Excessive switching may however be caused by the
use of an unsuitable saucepan or a saucepan which
is smaller than the heated area. If excessive
switching occurs, discontinue use of the saucepan.
HINTS AND TIPS
·Lift, rather than slide saucepans on and off the
heated areas. This will reduce the risk of
scratches and metal marks from saucepans with
aluminium bases. Metal marks can be easily
cleaned off providing they are not allowed to burn
on.
·Follow any guidelines provided by the saucepan
manufacturer, particularly those relating to
recommended heat settings.
·Avoid using thin, badly dented or distorted
saucepans as they can lead to sticking and
burning of food.
THE CERAMIC HOB

15
·To prolong the life of the hotplates:-
·DO NOT place foil and plastic vessels on the
hot surface of the ceramic hob and DO NOT
use the surface for storage purposes.
·Never use utensils with a skirt, e.g. a bucket.
·Never use an asbestos mat.
·Never leave the hotplates ON when not
covered with a saucepan.
·Ensure that the hob and saucepans are clean
and dry before the start of cooking to reduce
cleaning.
·Follow the cleaning instructions very closely to
keep the hob looking like new.
·If spillage occurs with sugar solutions, e.g.
jams and syrups, it must be wiped from the
hob before it sets and becomes hard
otherwise damage to the hob will occur.
DEEP FAT FRYING
SPECIAL FRYING NOTE:
For safety purposes when deep fat frying, fill the pan
one third full of oil, DO NOT cover the pan with a lid
and DO NOT leave the pan unattended. In the
unfortunate event of a fire, switch the appliance OFF
at the electricity supply and cover the pan with a lid
or damp cloth to assist in smothering the flames.
DO NOT use water on the fire. Leave the pan to cool
for at least 30 minutes before moving it.
DO NOT leave the fat or oil in the frying pan on the
hob to store it in case the hob is inadvertently
switched ON.
1. Preparing the food.
Seal the food by coating with flour, egg and
breadcrumbs or batter. Do not use a basket with
batter coated foods as they will stick.
2. Amount of oil.
For safety purposes fill the pan only one-third full
of oil.
3. Testing the temperature of the oil.
It is advisable to use a thermometer to test the
temperature of the oil. Alternatively, drop a
small cube of bread into the oil which should
brown in just under a minute if the oil is at the
correct temperature of 190°C/375°F.
4. Cooking the food.
Lower the food gently into the oil. Do Not add
too much food at once or the temperature of the
oil will be reduced and may result in soggy,
greasy food.
Turn the food if necessary; doughnuts float to the
surface so will not brown on the upperside if not
turned. Once cooked, drain the food on
absorbent paper.
5. Double frying chips.
Double frying will ensure good chips. First fry the
chips for a few minutes at 170°C/340°F to seal
the outside. Remove the chips from the oil.
Increase the temperature of the oil to
190°C/375°F to finish cooking and brown the
chips.
Chips may be kept for several hours after the first
frying before finishing off with the second frying.
6. Frying temperatures
Celsius Fahrenheit
Scale (°C)
150
Scale (°F)
300
First frying of potatoes 170 340
175 350
180 360
Second frying of potatoes 190 375
Frying chicken and fish 195 380
200 390
PRESERVING
1. DO NOT use a pan that overlaps the perimeter of
the hob trim.
2. To allow for a full rolling boil, the pan should be
no more than one third full when all the
ingredients have been added. It is better to use
two pans rather than overfill one, or use half
quantities.
3. Use firm fruit or vegetables and wash well before
using.
4. Preserving sugar gives clear jam, however
granulated sugar is cheaper and gives equally
good flavour.
5. Crystallization may be caused if sugar is not
completely dissolved before bringing jam to the
boil. Over boiling will affect the flavour, setting
properties and colour of the jam.
6. To test jam for setting:
If a jam thermometer is available, boil jam to
104°C. Marmalade should be boiled to 106°C.
If a jam thermometer is not available, remove
pan from heat, place sample of jam on a cold
dish and cool quickly (i.e. in a freezer or frozen
food storage compartment of a refrigerator).
When cold, it will crinkle and hold the mark of a
finger run through it, if it is at setting point.
7. The scum should be removed as soon as
possible after setting point has been reached.
Marmalade should be allowed to cool before
potting to prevent the peel rising.

16
CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE.
CHILDREN SHOULD BE KEPT AWAY.
SELECTING THE GRILL
·To operate the grill, open the grill door and turn
the top oven/grill control clockwise so that ‘0’ on
the control knob lines up with setting 1, 2 or 3.
·Setting 3 represents the grill on Full.
At settings 1 and 2 the grill may turn on and off
over time and you may prefer to use these
settings for keeping food warm.
·The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will turn ON and OFF periodically
showing that the oven temperature is being
maintained.
NOTE
THE GRILL DOOR MUST BE LEFT OPEN DURING
GRILLING. IF THE DOOR IS CLOSED THE TOP
OVEN WILL OPERATE.
·The cooling fan will operate. For more details
about the cooling fan see page 9.
·Some smoke from fat splashes may be evident
as the grill cleans itself.
·The top oven cannot be operated when the grill
is in use.
·Only the inner element will operate when grilling.
THE GRILL PAN AND HANDLE

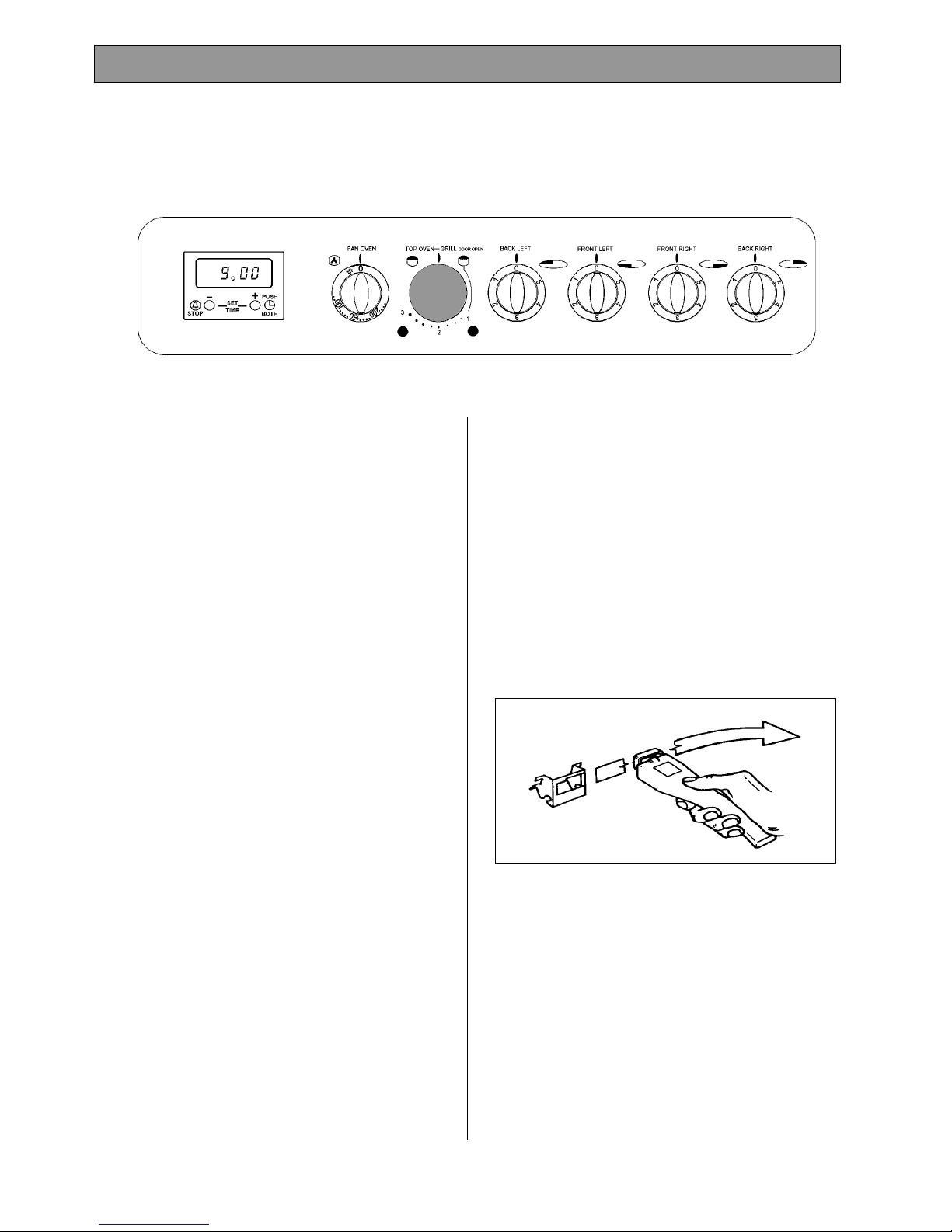

The grill pan is supplied with a removable handle.
To insert the handle, press the button on the handle
with the thumb and pivot the handle slightly upwards
inserting the lip into widest part of the bracket. Move
the handle towards the left, lower into position and
release the button.
Ensure the handle is positively located.
When removing the handle, press the button on the
handle with the thumb and pivot the handle slightly
upwards and towards the right to remove from the
bracket.
Ensure your hand is protected when inserting
and removing the grill pan handle as the control
panel trim and grill element can become very hot.
ALWAYS REMOVE THE GRILL PAN HANDLE
DURING GRILLING.
THE GRILL

17
To correctly locate the grill pan on the shelf, ensure
that the cut out on the underside of the handle
bracket locates over the front bar of the shelf.
To check the progress of the food being grilled, the
grill pan should be withdrawn on the shelf to tend the
food during cooking.
HINTS AND TIPS
·Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.
·Adjust the height of the grilling grid and grill pan
runner position to allow for different thicknesses
of food
·Place food on the grill pan or grid directly onto
the grill pan base.
·Accompaniments such as tomatoes and
mushrooms may be placed underneath the grid
when grilling meats.
·When toasting bread use the shelf in position 1
with the grid in the high position and placing the
bread in the centre of the grid.
·Preheat the grill on a full setting for five minutes
before cooking. Adjust the shelf as necessary
during cooking.
·The food should be turned over during cooking
as required.
GRILLING CHART
FOOD RUNNER
POSITION
GRILL TIME
(mins in total)
Bacon Rashers 1 2-3 each side
Beefburgers 1 6-10 each side
Chicken Joints 1 15-20 each side
Chops - Lamb 1 7-10 each side
Pork 1 10-15 each side
Fish – Whole
Trout/Mackerel 1 8-12 each side
Fillets – Plaice/Cod 1 4-6 each side
Kebabs 1 10-15 each side
Kidneys – Lamb/Pig 1 4-6 each side
Liver – Lamb/Pig 1 5-10 each side
Sausages 1 10-15 each side
Steaks - Rare 1 3-6 each side
Medium 1 6-8 each side
Well Done 1 7-10 each side
Toasted Sandwiches 1 1¼-1½ each
side
Shelf positions are counted from the bottom up.
The times quoted above are given as a guide and
should be adjusted to suit personal taste.

18
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is heated by elements in the top oven and bottom of the oven. It is
designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or
savoury flans or quiche.
The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use a
temperature setting of 90°C – 100°C on the top oven control dial.
SELECTING THE TOP OVEN

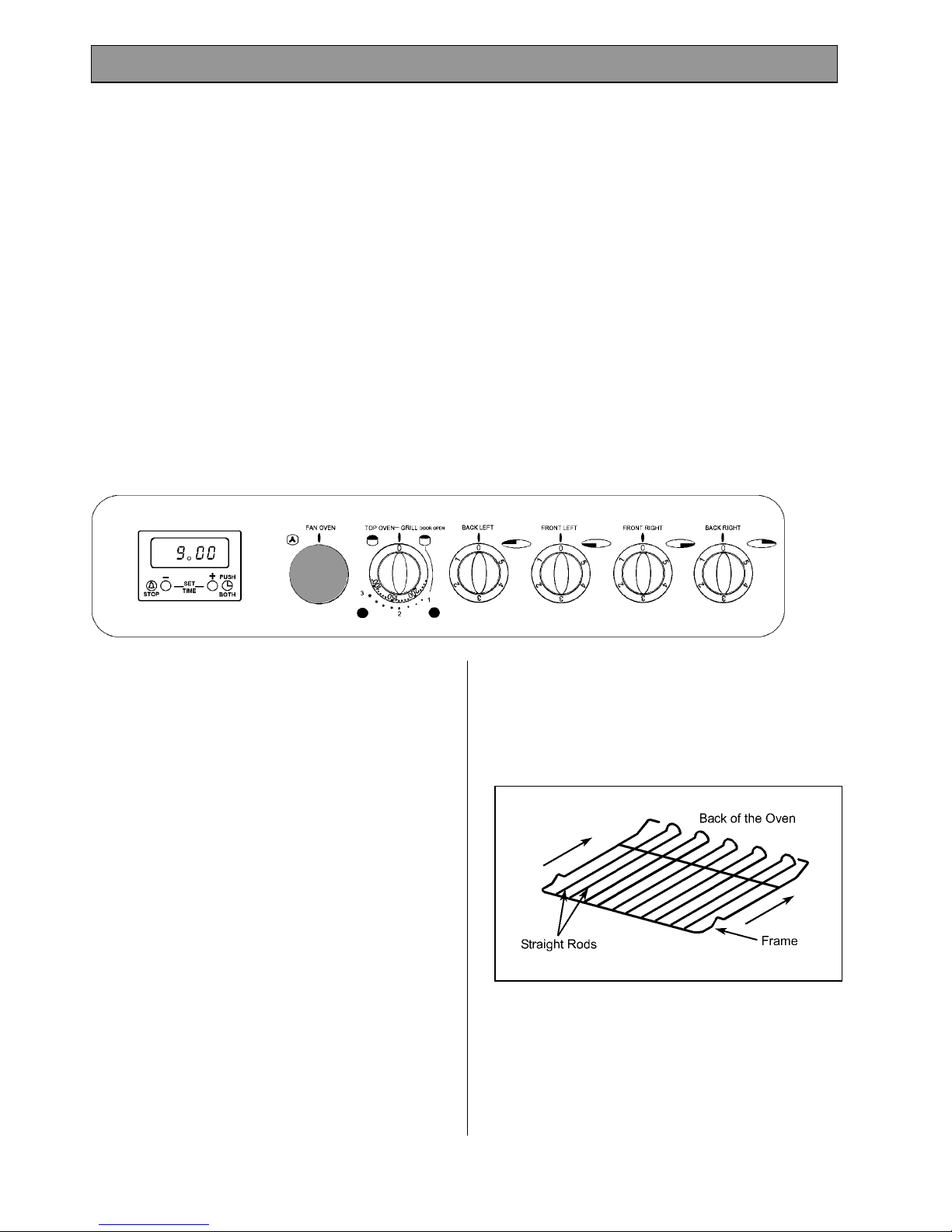

·To operate the top oven turn the temperature
control to the required setting. Our diagram
shows the oven set to 150°C. Close the oven
door.
THINGS TO NOTE
1. The grill cannot be operated when the top oven is
in use. Only the outer part of the top oven
element in conjunction with the base element will
operate when using the top oven.
2. The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will then turn ON and OFF
showing that the oven temperature is being
maintained.
3. The cooling fan will operate. For more details
about the cooling fan see page 9.
4. Always place plates on the oven shelf to warm.
Never place dishes directly on the top oven base
as it becomes very hot and damage may occur.

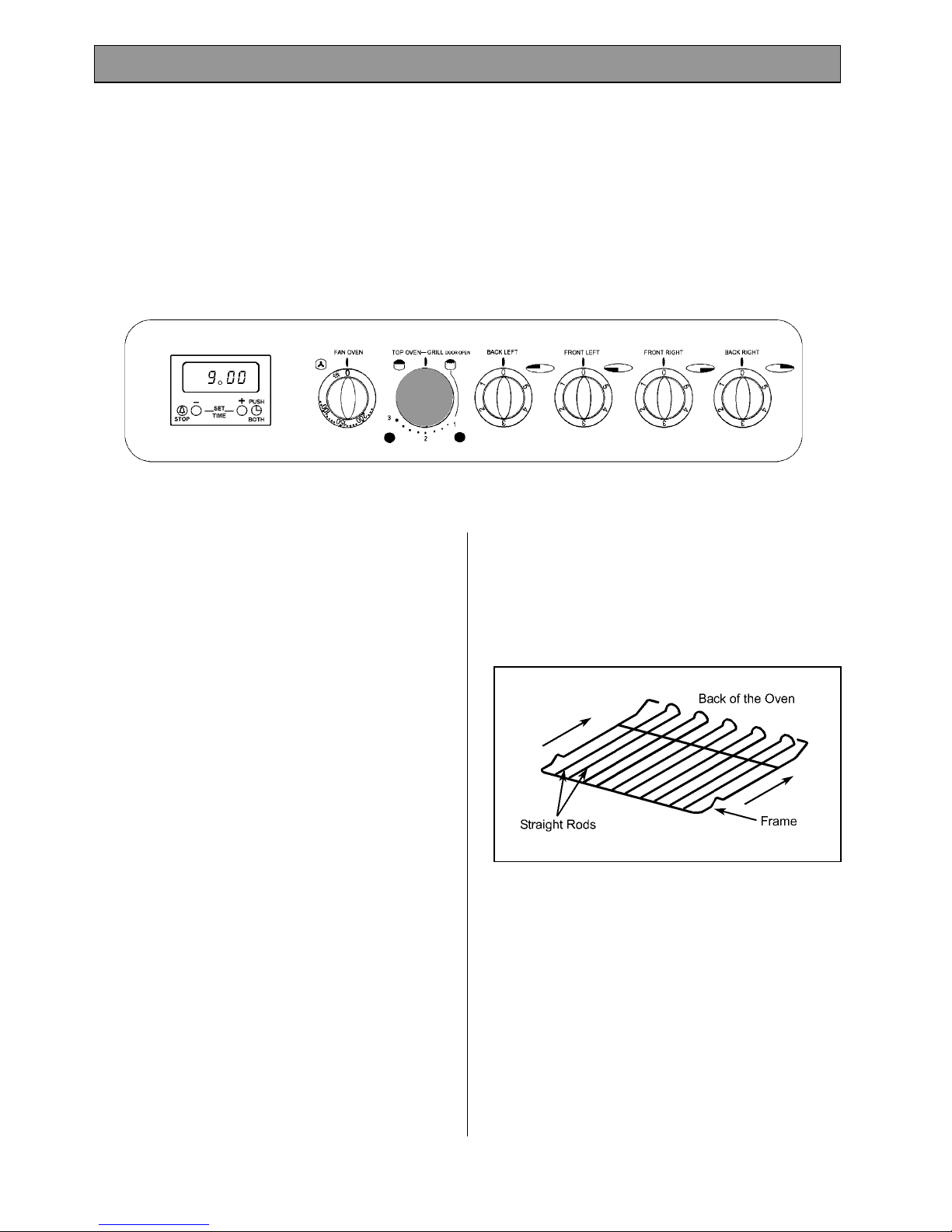

TO FIT THE TOP OVEN SHELF
The shelf should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
THE TOP OVEN

19
HINTS AND TIPS
·All cooking should be carried out using an oven
shelf positioned in one of the shelf runners.
·Stand dishes on a suitably sized baking tray on
the shelf to prevent spillage onto the oven base
and to help reduce cleaning.
·There should always be at least 2.5cm (1”)
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings,
etc.
·When cooking cakes, pastry, scones, bread, etc.,
place the tins or baking trays centrally on the
shelf directly below the element.
·DO NOT place dishes directly onto the oven
base as it becomes very hot and damage may
occur.
·The material and finish of the baking trays and
dishes will affect the degree of base browning of
the food. Enamelware, dark, heavy or non-stick
utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
·DO NOT use the grill pan as a baking tray as this
will increase base browning of the food.
·Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required. Be guided by the
recommendations on page 22.
·For economy leave the door open for the shortest
possible time, particularly when placing food into
a pre-heated oven.

20
USES OF THE FAN OVEN
PREHEATING
The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without
preheating however, you may find you need to add an extra 5 – 10 minutes on the recommended cooking times.
For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the
oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the
oven first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures
recommended in the chart on page 22. As a guide reduce temperatures by about 20°C – 25°C for your own
recipes, using a conventional oven.
BATCH BAKING
The fan oven cooks evenly on both shelf levels, especially useful when batch baking.
SELECTING THE FAN OVEN
·Turn the fan oven temperature control to the
required setting.
THINGS TO NOTE
1. The fan oven indicator neon will glow until the
oven has reached the required temperature and
then go out. It will turn ON and OFF periodically
during cooking showing that the temperature is
being maintained.
2. The cooling fan for the controls may switch in
after a time. See page 9 for more information on
the operation of the cooking fan.
TO FIT THE MAIN FAN OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
THE MAIN FAN OVEN
