Trident Dryspell 5 Instruction manual

MANUAL
INSTALLATION OPERATION MAINTENANCE
Regenerative Type Heatless Desiccant Dryer
Dryspell

Contents
1. Introduction 2
1.1 Design
1.2 Relevant Units
1.3 Statement of Conformity
1.4 Description
1.5 Adsorbant Material
1.6 Operating Principles
1.7 Safety
2. Installation 4
2.1 Caution
2.2 Storage
2.3 Installation Site and Connections
2.4 Electrical Connections
2.5 Running the Installation
3. Operation 6
3.1 Operator
3.2 Control Panel
3.3 Operating Cycles Time
3.4 How to Stop the Dryer
4. Maintenance 8
4.1 Monthly Inspections
4.2 Half-yearly Inspections
4.3 Annual Inspections
5. Changing the desiccant 9
5.1 Quantity of Desiccant in the Dryer
6. Repair work 9
6.1 LED’s not Glowing
6.2 Tower Status LED not Changing
6.3 LED’s Status Changes but Tower not Switching
6.4 No Purging
6.5 Continuous Purging at Tower 1
6.6 High Purge Loss
6.7 High Pressure Drop Across Dryer
7. Diagrams 11

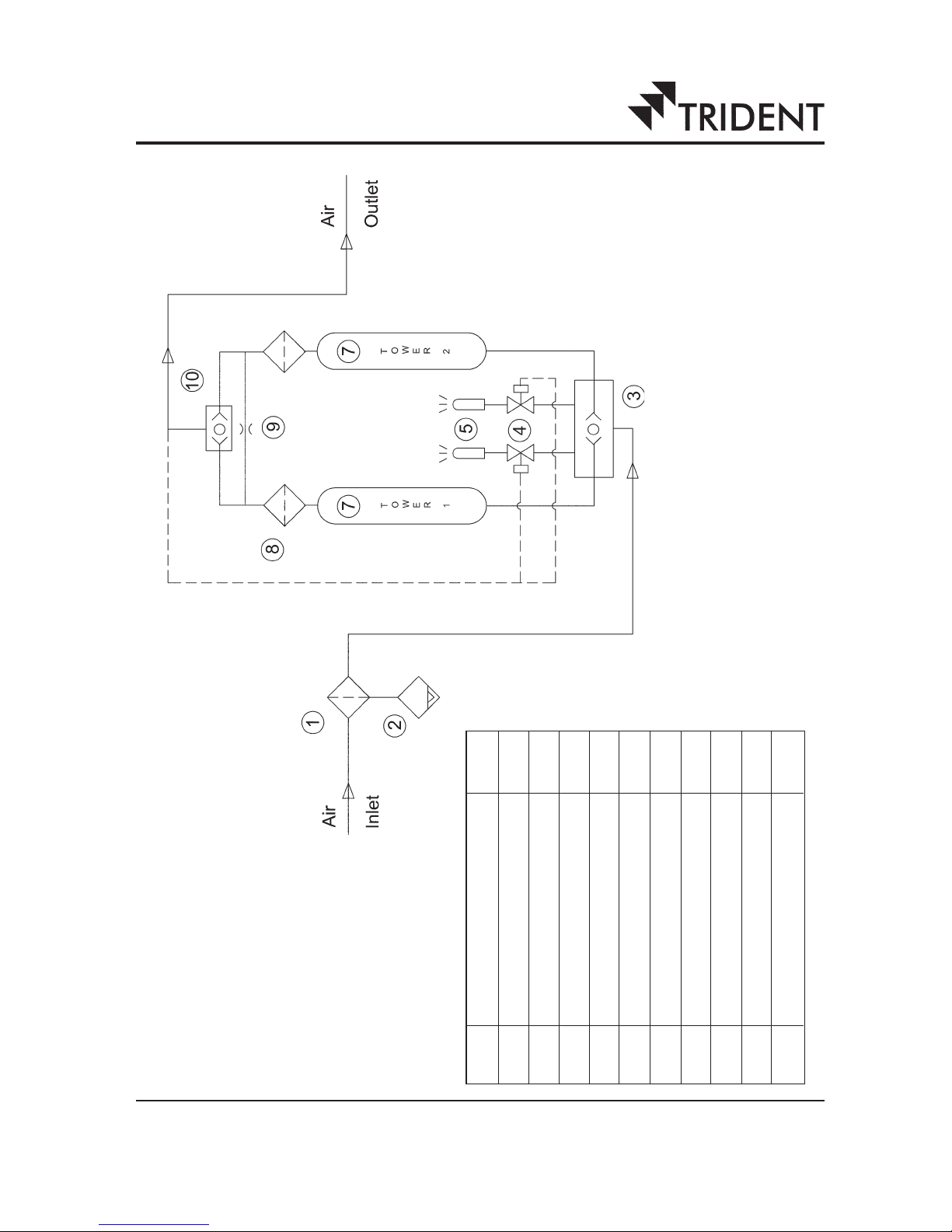

7.1 Operation Diagram
7.2 Overall Dimensions 12
7.3 How to Increase your Compressed Air Quality

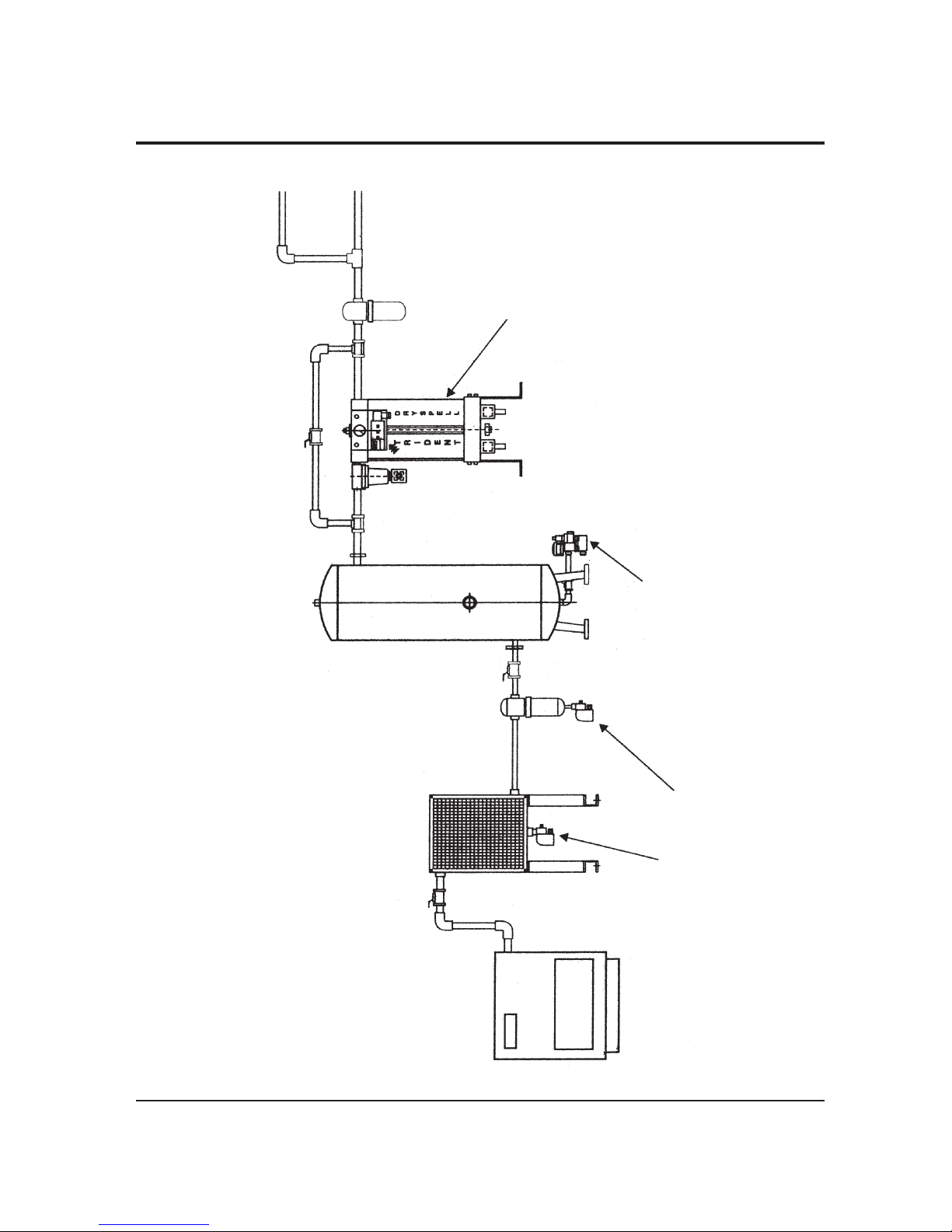

7.4 Typical Layout of Compressed Air System
1
Reference : Manual Version 2

READ THIS MANUAL CAREFULLY
BEFORE INSTALLING OR OPERATING THE EQUIPMENT
These symbols warn you of any dangers and the measures to be taken to prevent
them.
The most important points for the correct operation of your dryer are printed in bold type.
1. Introduction
Dryspell series is a heatless adsorption air dryer range especially made for small com-
pressed air flow treatment. Compact and easy to maintain, each dryer is equiped with
a pre-filter 0.3micron to protect the dessicant from the variety of air compressed pol-
lutant and with After filters.
1.1 DESIGN
Dryspell heatless regenerating adsorption dryers make it possible to eliminate any water
vapour remaining in the compressed air at the outlet of the compressor + final condenser
assembly. The dryers have been designed under nominal standard conditions in order to
obtain a dew point of -40oC.
1.2 RELEVANT UNITS
This manual describes the following models :
Dryspell
Model Nominal Flow cfm
5 5
10 10
1.3 STATEMENT OF CONFORMITY
The units listed above comply with the current legislation and, in particular, with the
following European directives :
l97/23/CE :Pressurised Equipments
l89/392/CEE :Machine Safety
l89/336/CEE :Electromagnetic Compatibility
l73/23/CEE :Low Voltage
!
2
INSTRUCTION MANUAL - Dryspell
This Document may be modified without notice
reproduction, even partial, forbidden without written Authentication

1.4 DESCRIPTION
The dryer consists of :
l2 aluminium tanks filled with desiccant
l2 solenoid valves
l2 exhaust silencers
l1 regeneration nozzle
l1 electronic control panel
l2 aluminium blocks including air seals and non return valve
l1 pressure gauge
l1 sub-micron pre-filter (0.3 to 0.6 micron)
l2 After filters
1.5 ADSORBANT MATERIAL
The desiccant takes the form of highly porous particles with surfaces which are able to
retain (adsorb) the water vapour present in the compressed air (drying phase) and
restore it when the air is at atmospheric pressure (regeneration phase). The desiccant
used is activated alumina (CD067A).
1.6 OPERATING PRINCIPLES
The two columns operate alternately in the drying and regeneration phases. Regenera-
tion in one tank results from the expansion to atmospheric pressure of part of the dry
compressed air in the other. The pressure reducer is responsible for this transfer. Under
nominal conditions (service pressure of 7 bars), 10% of the nominal flow is depressurised.
The regeneration phase is shorter than the drying phase in order to allow the regenerated
column to return to service pressure before a new cycle starts.
1.7 SAFETY
Pressurised tanks may explode if used improperly. It is therefore essential to
locate any equipment which contains one or more of such tanks in such a
way that the risks relating to incorrect use are reduced to the absolute
minimum.
The person responsible for the staff who is going to install, operate and maintain the
machines described in this manual must make sure that they have read and understood
these instructions.
In particular we draw your attention to the safety procedures which are described in this
manual and which must be scrupulously adhered to. Observing these measures will
allow you to install, operate and maintain your dryer without risk.
3
Reference : Manual Version 2
!

Dryspell dryers are intended for the drying of compressed air. Under no circumstances
should they be used to dry other gases before Trident has performed a preliminary study
and provided special instructions.
The desiccants used are non toxic. However, they may cause respiratory problems if they
are inhaled in dust form. The use of a dust mask is sufficient to protect personnel. If
dispersed in the environment, desiccants may represent a source of pollution the
consequences of which are uncontrollable. By the end of its lifetime, the desiccant will
have accumulated all the pollutants present in the compressed air. Use a non-polluting
method of disposal.
2. Installation
Various risks (crushing, explosion, projection, noise,…): The installation
operations described in this chapter should be performed only by personnel
qualified in the installation of electro-pneumatic systems. Follow the procedure
described below with care in order to prevent exposing personnel to danger.
2.1 CAUTION
(i) Ensure that the compressor drain port is provided with an automatic drain valve.
(ii) If the inlet temperature is more than specified (40oC) then install an after cooler with
moisture seperator between compressor and dryer.
(iii) Ensure that a microfilter of 0.01 micron is provided after the dryer as a precautionary
instrument.
2.2 STORAGE
If your dryer is about to be stored during a long time before installation and use, take care
to the following instructions :
lif possible, let the dryer in its original packing (In particular products fitted with marine
packing with plastic film and dessicant)
lchecking that air inlet and outlet are correctly blocked in order to protect the dessicant
against humidity and dust.
lcheck that the machine is correctly protected from atmospheric dust or water.
lcheck that the store is frost protected
lmake sure to archive correctly the attached documents.
!
4
INSTRUCTION MANUAL - Dryspell
This Document may be modified without notice
reproduction, even partial, forbidden without written Authentication

2.3 INSTALLATION SITE AND CONNECTIONS
1. Install the dryer in a closed clean, dry room protected from frost. Access to the room
should be restricted to personnel qualified in unit maintenance and operation. The room
must be adequately ventilated. The dryer must not be directly exposed to sources of heat.
The temperature of the room should not exceed 43oC.
2. Make sure that the dryer is not near any equipment which does not comply with the
electromagnetic compatibility directives and which may degrade dryer operation. There
must be a minimum distance of 1 m between the dryer and any other equipment which
uses electricity.
3. Ensure that the dryer is installed in vertical position.
4. Fix the anchor points if it's necessary.
5. Install a system of by-pass valves between the dryer inlet and outlet so as to be able to
service the installation without having to interrupt the compressed air supply from the
network (see diagram above). The upstream and downstream valves must be closed
during installation.
6. Connect the compressed air for processing to the dryer inlet (pre-filter connection) with
strain-free ducts.
7. Connect a drain pipe to the Pre-filter lower part connection (¼''F)
8. Connect the processed compressed air to the dryer output with strain-free ducts.
9. Check that all the connectors are airtight and that the fixings are tight.
5
Reference : Manual Version 2

2.4 ELECTRICAL CONNECTIONS
Connect the electrical power cable to a 220-240 V, single phase, 50 Hz grounded power
supply. The electrical connecting is done by the DIN connector located on the front face
of the dryer.
Risk of electrical shock: When connecting the machine, cut off the power at the
connecting point.
2.5 RUNNING THE INSTALLATION
Various risks (explosion, projection, noise, ...): Do not pressurise until the installation
procedure has been completed.
The valves upstream and downstream of the dryer must be closed and the by-pass valve open
before the compressor is started.
1. Close the isolated switch located upstream of the dryer.
2. Check if the LED of the tower in drying operation glows and if the automatic drain valve
at the bottom of the prefilter drains every 4 mins.
3. Open slowly the down stream valve and check the pressure on the dryer's pressure gauge.
4. Avoid any sudden variation in pressure as this may damage the dryer.
5. Slowly open the upstream valve and check the pressure at the dryer's pressure gauge.
6. Slowly close the by-pass valve.
3. Operation
3.1 OPERATOR
Only a minimum level of experience in handling compressed air is necessary to operate a
Dryspell dryer:
lPressure and bar unit
lFlow and m3/h unit
lDew points and oC unit
lComponents of a fluid network : compressor, valves, drains, taps, pressure
gauges, filters, tanks, ...
6
INSTRUCTION MANUAL - Dryspell
This Document may be modified without notice
reproduction, even partial, forbidden without written Authentication
!
!

3.2 CONTROL PANEL
The control panel presents all the instruments necessary to control and regulate the
dryer (see appendix) :
la machine diagram
ltwo LED’s indicating the tower in drying operation.
la LED indicating the prefilter drain operation.
3.3 OPERATING CYCLES TIME FROM 5 to 300
Drying time :2 min’s
Regeneration time :1 min 30s
Pressurization time :30s
FIRST CYCLE SECOND CYCLE
TOWER 1 TOWER 2
Regeneration Regeneration
Drying Drying
Pressurization Pressurization
When DL1 is lighted, the tower 1 is in drying operation and tower 2 is in regeneration one.
After tower 2 regeneration finished, DL2 is blinking to show that the tank is now in pressurization
stage. After 30 seconds of pressurization, the air dryer operating cycle is inversed that means
tower 1 is in regeneration stage and tower 2 in drying one.
The cycles permutation occurs every 2 minutes. Prefilter condensate drain discharge is
programmed every 4 minutes during 4 seconds. All these cycles times are fixed and not
adjustable by user.
7
Reference : Manual Version 2

3.4 HOW TO STOP THE DRYER
Various risks (projection, explosion, noise,...): Whenever working on the dryer,
it is essential to disconnect it from the network. Follow the procedure below:
1. Open the by-pass valve
2. Close the upstream valve
3. Close the downstream valve
4. Cut off and lock the isolating switch before the dryer
4. Maintenance
Adsorption dryers are robust, reliable machines. To ensure uninterrupted, problem-free
operation, regularly perform the inspections below.
4.1 MONTHLY INSPECTIONS
During the monthly routine inspection, check that :
lthe drying and regeneration cycle functions normally,
lthe silencers are not clogged.
4.2 HALF-YEARLY INSPECTIONS
lCheck that the drying and regeneration cycles functions normally
lCheck to see whether the silencers are clogged
lReplace the cartridge of the prefilter. Follow the following procedure:
1. Stop the dryer.
2. Use one hand to release the locking part and the other to turn the bottom
housing of the filter until its escape.
3. Descrew the satured filter element
4. Screw the new cartridge
5. Refit the bottom housing of the filter
6. Start the machine
4.3 ANNUAL INSPECTIONS
1. Check that the drying and regeneration cycles functions normally
2. Check to see whether the silencers are clogged
3. Replace the cartridge of the prefilter. Follow the following procedure
4. Check the state of the desiccant: if the desiccant is brown (oil pollution) or if there
is a lot of dust (disintegration), then change the desiccant (see next section).
8
INSTRUCTION MANUAL - Dryspell
This Document may be modified without notice
reproduction, even partial, forbidden without written Authentication
!

5. Check the state of block 'O' rings.
6. Replace after filters cartridge
5. Changing the desiccant
Various risks (explosion, projection, noise, ...) : This operation should be
performed by professionals of adsorption dryers. During the entire operation,
the compressor and the dryer must be shut down. It is obligatory for all
personnel who are in the presence of the desiccant to wear dust masks.
lLoosen the Tie rod and remove it
lReplace the old dessicant by the new one
lReplace the two after filter cartridge
lInstall and screw the Tie rod
5.1 QUANTITY OF DESICCANT IN THE DRYER
The replacement desiccant in your dryer must be absolutely identical to the initial
desiccant. The total quantities required for each model are as follows (weight in kg) :
Dryspell model Quantity
5 1
10 2
6. Repair work
The repair operations described in this section should be performed only by qualified
persons in electro-pneumatic systems installation.
6.1 LEDS NOT GLOWING
A - Check the power supply connection and tension
6.2 TOWER STATUS LED NOT CHANGING
A - Change the controller
6.3 LEDS STATUS CHANGES BUT TOWER NOT SWITCHING
A - Check coil connection at DIN and terminal connector in the controller
B - Check the solenoid valve
9
Reference : Manual Version 2
!
!

This Document may be modified without notice
reproduction, even partial, forbidden without written Authentication
6.4 NO PURGING
A - Check the solenoid valve
B - Check the exhaust valve
C - Clean the silencer (muffler)
6.5 CONTINUOUS PURGING AT TOWER 1
A - Shuttle not closing
B - Check pilot air for exhaust valve alimentation
C - Check exhaust valve piston struck
6.6 HIGH PURGE LOSS
A - Check outlet shuttle closing
B - Check for silencer chock
6.7 HIGH PRESSURE DROP ACROSS DRYER
A - Pre-filter may be chocked. Check and replace filter cartridge
B - Check whether the utilisation flow is more than inlet flow as per dryer spec.
7. Diagrams
7.1 OPERATION DIAGRAM
7.2 OVERALL DIMENSIONS
10
INSTRUCTION MANUAL - Dryspell

Reference : Manual Version 2

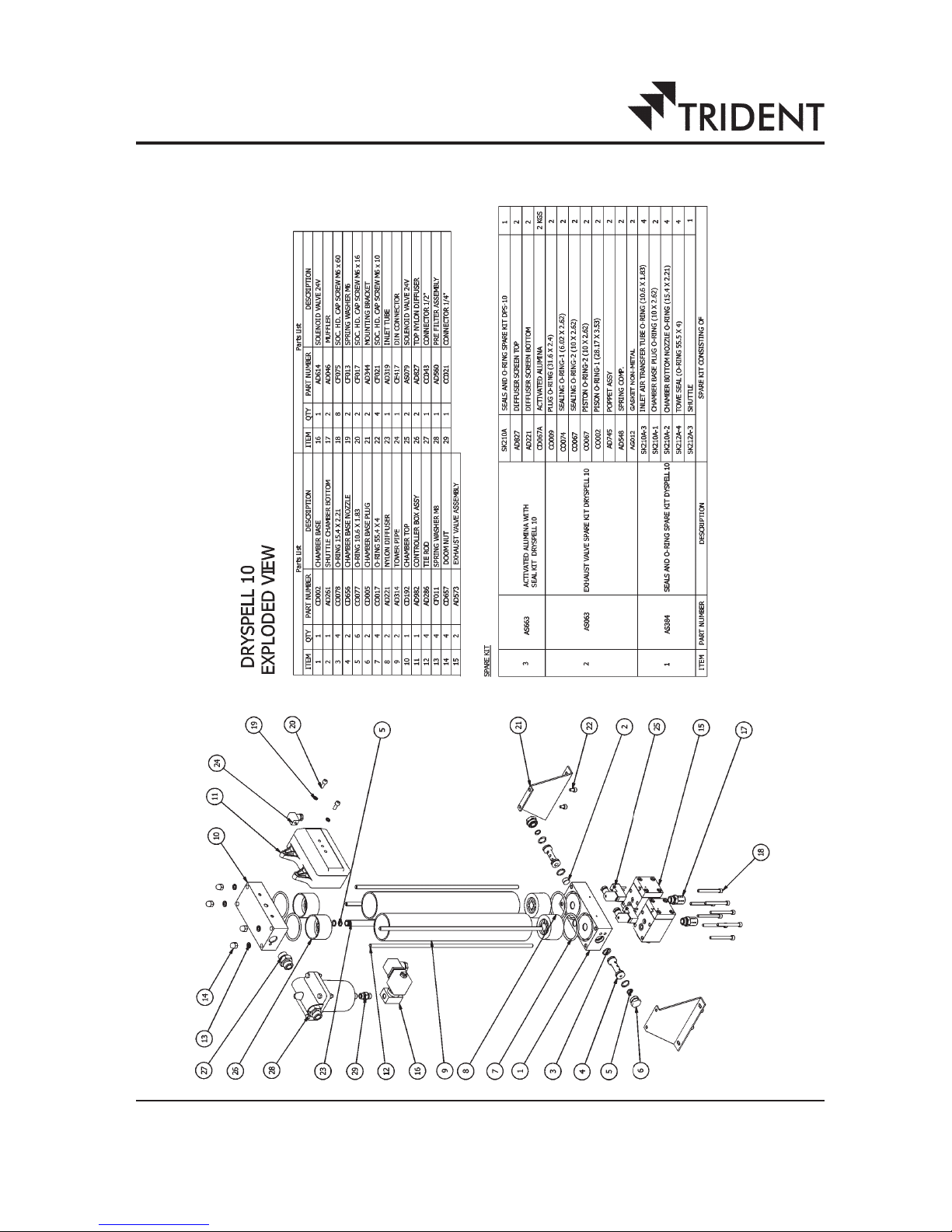

Rep. Part Name Qty.
1Pre-filter (0.3-0.6 microns) 1
2Pre-filter drain valve (¼” F) 1
3Inlet shuttle valve 1
4Solenoid valve 2
5Exhaust silencer 2
6Regulation (not shown) 1
7Desiccant tower 2
8After filter (In built) 2
9Regeneration nozzle 1
10 Outlet shuttle valve 1
11

This Document may be modified without notice
reproduction, even partial, forbidden without written Authentication
12
INSTRUCTION MANUAL - Dryspell
OVER ALL DIMENSIONS - DRYSPELL 5

OVER ALL DIMENSIONS - DRYSPELL 10
Reference : Manual Version 2 13

Compressor
Level Sensing Drain Valve
Air Cooled After Cooler
Moisture
Seperator
Automatic Drain Valve Heatless Type Dessicant Dryer
Dryspell
Micro Filter
Air Receiver
COMPRESSED AIR LAYOUT
This Document may be modified without notice
reproduction, even partial, forbidden without written Authentication
14
INSTRUCTION MANUAL - Dryspell

Products of Trident Pneumatics Pvt Ltd are guaranteed to be free from
defects in materials and workmanship when installed and operated in
accordance with the instructions outlined in the Instruction Manual.
Trident Pneumatics Pvt. Ltd.'s obligation under this warranty shall be
limited to repair or replacement (at the discretion of Trident) of defective
goods returned to Trident's plant within one (1) year from the date of
commissioning or 18 months from the date of invoicing which ever is
occurring earlier.
Product :
Model :Refer Name Plate
Serial No. :
:
WARRANTY
___________________________
Quality Assurance Dept.
Trident Pneumatics Pvt Ltd
5/232, K.N.G Pudur Road, Somayampalayam,
Coimbatore 641 108. Ph : 0422 2400492, 2401373
Fax : [phone] e-mail : [email protected]
Website : www.tridentpneumatics.com

INSTALLATION & COMMISSIONING REPORT
HEATLESS DESICCANT DRYER
Customer :Model :
Sl.No :
Contact person :Phone :
Designation :Fax :
(Please add any comments or remarks here found while unpacking)
1. INSTALLATION
a) Installation at :
Before / After Air Receiver LED Glowing Yes / No
b) Inlet Air :Normal / High Tower 1 and 2 Drying Yes / No
Temperature
c) Side clearance : Yes / No Depressurizing Yes / No
provided
d) Power Grounded : Yes / No Regeneration Yes / No
e) Air Flow Outlet :Normal / Faulty
f) Change over :Normal / Faulty
sequence
g) Change over :Normal / Faulty
sequence
2. COMMISSIONING
Installation Date of completion
Commissioning Date of completion
Comments :
Customer Installation Engineer
Signature & Name of Dealers Customer's
installing Engineer Signature & Seal Signature & Seal

INSTALLATION & COMMISSIONING REPORT
HEATLESS DESICCANT DRYER
Customer :Model :
Sl.No :
Contact person :Phone :
Designation :Fax :
(Please add any comments or remarks here found while unpacking)
1. INSTALLATION
a) Installation at :
Before / After Air Receiver LED Glowing Yes / No
b) Inlet Air :Normal / High Tower 1 and 2 Drying Yes / No
Temperature
c) Side clearance : Yes / No Depressurizing Yes / No
provided
d) Power Grounded : Yes / No Regeneration Yes / No
e) Air Flow Outlet :Normal / Faulty
f) Change over :Normal / Faulty
sequence
g) Change over :Normal / Faulty
sequence
2. COMMISSIONING
Installation Date of completion
Commissioning Date of completion
Comments :
Customer Installation Engineer
Signature & Name of Dealers Customer's
installing Engineer Signature & Seal Signature & Seal

Reference : Manual Version 2
Compressed Air Quality can be maximized through
Application :Power Coating & Spray Painting
Flow Taken :Example 20 cfm
Location Product
Condensate Drain Ports LDV 1000 / Equivalent
After the dryer G 100 Y / Equivalent
Desiccant Dryers Dryspell 20 / Equivalent
Application :Food Pharma & Hospital
Flow Taken :Example 10 cfm
Location Product
Condensate Drain Ports LDV 1000 / Equivalent
Before the dryer G 24 P / Equivalent
After the dryer G 24 Y / Equivalent
Desiccant Dryers Dryspell 10 / Equivalent
Application :Instrumentation
Flow Taken :Example 10 cfm
Location Product
Condensate Drain Ports LDV 1000 / Equivalent
Before the dryer G 24 P / Equivalent
After the dryer G 24 Y / Equivalent
Desiccant Dryers Dryspell 10 / Equivalent
Application :Engineering Industry
Flow Taken :Example 30 cfm
Location Product
Condensate Drain Ports LDV 1000 / Equivalent
Before the dryer G 100 P / Equivalent
After the dryer G 100 Y / Equivalent
Desiccant Dryers Dryspell 30 / Equivalent
Application :CNC M/C
Flow Taken :20 cfm
Model Name Model Code
Condensate Drain Ports LDV 1000 / Equivalent
Desiccant Dryers Dryspell 20 / Equivalent
Application :Cement Plant
Flow Taken :Example 45 cfm
Location Product
Condensate Drain Ports LDV 1000 / Equivalent
Before the dryer G 100 P / Equivalent
After the dryer G 100 Y / Equivalent
Desiccant Dryers Dryspell 45 / Equivalent
Application :Process & Chemical Industry
Flow Taken :Example 45 cfm
Location Product
Condensate Drain Ports LDV 1000 / Equivalent
Before the dryer G 100 P / Equivalent
After the dryer G 100 Y / Equivalent
Desiccant Dryers Dryspell 45 / Equivalent
Application :Packing M/c
Flow Taken :Example 20 cfm
Location Product
Condensate Drain Ports LDV 1000 / Equivalent
After the dryer G 100 Y / Equivalent
Desiccant Dryers Dryspell 20 / Equivalent
Application :Process & Chemical Industry
Flow Taken :Example 45 cfm
Location Product
Condensate Drain Ports LDV 1000 / Equivalent
Before the dryer G 100 P / Equivalent
After the dryer G 100 Y / Equivalent
Desiccant Dryers Dryspell 45 / Equivalent
Application :Printing Industry
Flow Taken :Example 45 cfm
Location Product
Condensate Drain Ports LDV 1000 / Equivalent
Before the dryer G 100 P / Equivalent
After the dryer G 100 Y / Equivalent
Desiccant Dryers Dryspell 45 / Equivalent

Trident Pneumatics Pvt. Ltd.,
5/232 KNG Pudur Road, Coimbatore 641 108, India.
Ph : [phone], Fax: [phone],
Email : [email protected] Website : www.tridentpneumatics.com
