User’s manual
V300+ / V600+ / V1000+
Version N°2.0 –E

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 2

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 3
Contents
Description Page
1. Description of the instrument 4-5
2. Display functions 5
3. Distintive characteristics 6
4. Specifications 6
5. Delivery 6
6. Unpacking and Installation 7
7. Getting started 8
8. Replacing the battery pack 9
9. Ajusting the measuring pressure 10
10. Ajustement of the floating probe suspension 10
11. Main functions 11
12. Secondary functions 12
13. How to start up 13
13.1 Setting the probe constant 13
13.2 Measuring heights 13
13.3 Measuring diameters and centerlines 14
13.4 Measuring with min. and max. mode 15
13.5 Measuring with delta mode 16
13.6 Measuring of squareness 16
13.7 Measuring with two references 17
14. Initialization of printing mode 18
15. Printer 19
16. AC adaptor, external contact 20
17. RS232C connector 20
18. Remote control of the instrument 21
19. Optional accessories 22-26
20. Maintenance 27
21. Transport 27
22. Complaints / Repairs 27
23. Distributors worldwide 28-30

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 4
35 34 33 32 44 31
38 39 45 40 41 42 43
36
37
17
18
19
20
21
22
23
30
29
28
27
26
25
24
6
10
9
8
7
6
5 4
14 15
13 15
12
11
3
2
1

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 5
1. Description of the instrument
1. Handwheel allowing the displacement of the measuring probe.
2. Locking device to activate the fine ajustment.
3. Fine adjustment screw.
4. Switch to acivate the air cushion. (Version C)
5. Handle allowing the displacement of the instrument.
6. Measuring probe.
7. Screw to adjust the measuring pressure (0.7N-1.6N, ajustable) (wrench /2mm)
8. Lever for fast displacement.
9. Screw for locking the measuring carriage (wrench 2mm) (Screw, chromium-
plated)
10. Control screw to ajust the floating probe suspension. (wrench 2mm)
11. Bracket for printer.
12. Printer RS 232.
13. RS 232 connector.
14. Green light = Indicates the trickle charge with AC adapter connected.
15. Red light = Indicates fast charging.
16. Connector for AC adaptor or data transmission foot pedal.
17. Green light = normal measuring mode.
18. Orange light = measuring diameters.
19. Yellow light = measuring centerlines.
20. NORMAL or DIAMETER/CENTERLINE mode key.
21. PRESET key = set the display at zero or memorizes preset values.
22. PRINT key = RS232 data output.
23. ON-OFF key = ON / OFF Switch.
24. Numerical keyboard.
25. CLEAR key = reinitialises the minimum/maximum/delta memories.
26. MIN/MAX/DELTA mode key.
27. MM/INCH key, true conversion Metric –Inch –Metric.
28. REF I / REF II selection key.
29. Resolution key. (0.010/0.001mm or .0005/.00005”)
30. Probe constant key.
2. Display functions
31. Indication of sending data.
32. Indication of DELTA mode.
33. Indication of MAX mode.
34. Indication of MIN mode.
35. Indication of REFII mode.
36. Indication of low battery level –connect the AC adaptor.
37. Indication of measuring values.
38. Indication of MM mode.
39. Indication of INCH mode.
40. Indication of measuring direction.
41. Indication of centerline mode.
42. Indication of diameter mode.
43. Indication of PRESET mode.
44. Indication of CONSTANT mode.
45. Indication of keyboard locked.

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 6
3. Distintive characteristics
The V300,V600 and V1000 are height measuring instruments, self-contained, controlled by a
microprocessor. oEasy to operate.
oSelf-contained operation for a period of: without air cushion : max.100h.
: with air cushion : max. 50h.
oRechargeable battery.
oBig display.
oAcceptance of measured values by an acoustic signal.
4. Specifications
Designation V300 V300C V600 V600C V1000 V1000C
Measuring range 300 mm or 12’’ 600 mm or 24’’ 1000 mm or 40’’
Application range 535 mm or 21’’ 835 mm or 32.8’’ 1235 mm or 48.6’’
Resolution 0.01 mm / 0.001 mm or .0005’’ / .00005’’
Overal measuring accuracy 3 µm + (L(mm)/300 = µm or .00012’’ + (L(inch)/300000) = inch
Repeatability ±2 s = ≥2 µm or .00008’’
Max. displacement speed
of the measuring carriage 3m/120’’ per second
Measuring pressure 0.7 N –1,6 N (adjustable)
Measuring system differencial capacitance Sylvac (patented)
Power supply Battery powered (rechargeable)
Operational time 100 h. 50 h. 100 h. 50 h. 100 h. 50 h.
Squareness deviation overal
(in measuring direction) 5µm or .0002’’ 8 µm or .0003’’ 12 µm or .00047’’
Data output RS 232 C
Operational temperature
limit + 10 °C to +40°C or 50° F to 104° F
Total height 565 mm or 22.2’’ 865 mm or 34’’ 1275 mm or 50’’
Weight 10 kg 12,3 kg 15,3 kg
5. Delivery
The TRIMOS V300, V600 and V1000 are supplied as follows :
oRuby ball probe dia. 4 mm (V-1)
oHex screwdriver wrench 2 mm (T016-INB.2), Hex screwdriver wrench 2,5 mm (T016-
INB.3)
oAC adaptor set 8.5V / 700mA sector, depending on country.
oDust cover.
oTest and guarantee certificates, user’s manual.
Vertical automatic Code number
without air cushion Code number with air cushion
Measuring range 300mm /12’’, 220 V V300/220 V300C/220
Measuring range 300mm /12’’, 240 V V300/240 V300C/240
Measuring range 300mm /12’’, 110 V V300/110 V300C/110
Measuring range 300mm /12’’, 100 V V300/100 V300C/100
Measuring range 600mm /24’’, 220 V V600/220 V600C/220
Measuring range 600mm /24’’, 240 V V600/240 V600C/240
Measuring range 600mm /24’’, 110 V V600/110 V600C/110
Measuring range 600mm /24’’, 100 V V600/100 V600C/100
Measuring range 1000mm /40’’, 220 V V1000/220 V1000C/220
Measuring range 1000mm /40’’, 240V V1000/240 V1000C/240
Measuring range 1000mm /40’’, 110 V V1000/110 V1000C/110
Measuring range 1000mm /40’’, 100 V V1000/100 V1000C/100

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 7
Options : see optional accessories (page 22-26)

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 8
6. Unpacking and installation
The V300, V600 and V1000 are supplied in a shock prof box.
The instrument itseff is surrounded with a protection cover.
-To unpack the instrument lay the box in a horizontal position,
Brand name visible on top, open it and take the instrument out carefully.
-Take off the protection cover.
-Insert the ruby ball (V-1).
-Unlock completely the transport safety screw (9), Screw, chromium-plated.
-Clean the instrument, especially the three point air bearings on the base.
DO NOT USE CHEMICAL PRODUCTS.
-Place the instrument on a granite surface table.
FOR FUTURE TRANSPORT KEEP THE ORIGINAL PACKING.
V.RE300/600/1000
V.REC300 (V300)
V.REC600 (V600)
V.REC1000 (V1000)
V.CA300 (V300)
TVA.CA600 (V600)
V.CA1000 (V1000)

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 9
7. Getting started
The instrument stands on a granite surface table
(or e.i. cast Iron table)
-Switch ON the instrument by pressing the key (ON).
-The display will show
-The reference of the column must be taken :
-Move the probe (A) slowly and cross
the two arrows to take the reference.
This operation will memorized this
reference point improve
the accuracy of the instrument.
-The display will begin to count.
If during this operation the display
doesn’t count.
restart the operation again.
-If the indicator (36) showing complete
battery discharge, connect the AC
adaptor. The instrument remains
opérational.
Complete recharging takes 15 hours.
-It will not do any harm by connecting the AC adaptor
continiously, because it will charge the instrument with
a maintenance power.
IT IS NOT NECESSARY TO WAIT FOR THE INSTRUMENT TO BE
FULLY CHARGED BEFORE USE :
INSTRUMENT CAN BE USED DURING CHARGE CYCLE.
A
rEF I
MM
0.125
MM
MM
0.125B

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 10
8. REPLACING THE BATTERY PACK
As sson as the autonomy of the instrument becomes unsufficient, the battery pack should
be changed.(Lifespan about 4 to 6 years)
1. Purchase a battery pack from your TRIMOS distributor.
2. Switch off the instrument.
3. Place the instrument in an horizontal position onto a table. (steady)
4. Unscrew the base plate. (5 screws)
5. Disconnect the battery pack (A)
6. Connect the new battery pack and refit the base plate. Take care not to damage
Any connecting cables.
7. Charge the new battery pack ~15 heures.
Battery pack
Code number
151-331.009

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 11
9. Adjusting the measuring pressure
DO NOT ADJUST UNLESS IT IS REQUIRED !
Tools to be used
-1 Hex screwdriver wrench ( 2 mm)
-1 Dynamomètre (force gage) 0 –300 grs
-The adjustment screw (7) is situated at the left side of
the column, inside on the measuring carriage.
-The measuring pressure is factory set at approx. 1 N.
-By turning this adjustment screw anticlockwise, the
measuring pressure will be decreased.(2 turns = ~0.1N)
-By turning this adjustment screw clockwise, the
measuring pressure will be increased. (2 turns = ~0.1N)
-The measuring pressure range is :
min : 0.7N –max : 1,6N.
How to adjust ?
-Measure the dynamometer until the acoustic signal ring.
-Read the dynamometer (e.i. : 100 grs).
To be more accurate, measure by using the fine adjustment.
10. Adjustment of the floating probe suspension
DO NOT ADJUST UNLESS IT IS REQUIRED !
Tools to be used
-1 Hex screwdriver wrench (2mm)
-1 Dynamometer (force gage) 0 –300 grs.
-The adjustment screw (10) is situated on the left side of
the column, inside on the measuring carriage.
-If the measuring pressure is higher in the upwards
direction (probe too heavy), turn the control screw
anticlockwise. (1 turn = ~10 grs.)
-If the measuring pressure is higher in the downwards
direction (probe too light), turn the control screw
clockwise. (1 turn = ~10grs.)
-The TRIMOS probes weights about ~25grs, the probe
suspension could be adjusted upto a probe of 150grs.
How to adjust ?
-Measure the dynamometer until the acoustic signal ring.
1. (from bottom to top)
-Read the dynamometer (e.i. : 100 grs)
2. (from top to bottom)
-Read the dynamometer (e.i. : 102 grs)
-The measuring pressure has to be equal in both directions.
7
T016-INB.2
10
T016-INB.2

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 12
11. Main functions
Switches the instrument ON or OFF.
Sending data RS232, only when measuring.
((See page 18) for other settings)
Set the display at zero or memorizes preset values.
Normal key mode, green light on, measuring heights of normal and
Reversed surfaces. (The probe constant must have been previously
entered to measure reversed surfaces.
ÆÆ, key mode, orange light on, measuring diameter (takes account of
probe constant).
Measures internal or ecternal diameters in any sequences.
⊕⊕, key mode, yellow light on, displays the centerline. Comes after the
diameter display, as soon as :
-the probe is released or
-the Normal, Æ, ⊕ key is pressed.
Displays the probe value. Return to measuring mode
without change : press any key.
-Measuring the constant : one measurement on each side of the
setting gauge (see page 13).
Changes the display resolution : 0.001mm <-> 0.01mm
or : .00005 ’’ <-> .0005 ’’
Direct conversion of mm <-> inches.
Reinitialises the maximum, minimum and delta memories.
Change of reference mode (REFI / REFII)
Modes : Minimum -> Maximum -> Delta

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 13
12. Secondary functions
Memorizing a preselected value :
Press Preset key (long pressure on the key ~2 sec.)
Introduce a preselected value from the numerical
Keyboard.
Confirm the preselected value by pressing again
The PRESET key. The preselected value
is memorized.
(A second preselected value can be memorized on
REF II mode.)
Initialization functions :
To lock or unlock the conversion : switch the instrument
On while pressing the mm/in key.
Instrument previously initialized in mm.
Locking the In conversion :
Instrument OFF, hold down mm/in key when switching ON
the instrument.
(To unlock the conversion repeat the opération).
Instrument previously initialized in Inch.
Locking the mm conversion :
Instrument OFF, hold down mm/in key when switching ON
the instrument.
(To unlock the conversion repeat the opération).
+
+
00000000
MM
PRESE
T
0123.000
MM
PRESE
T
0123.000
MM

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 14
13. How to start up ?
13.1 Setting the probe constant.
To measure reversed surfaces, or diameters.
the instrument takes account of the probe constant, i.e.
the diameter of the ball and its deflection.
The green light comes on when the probe comes into
contact with the part being measured.
1. Switch ON the instrument, then press
key
Move the probe across the two arrows to
initialize the column reference (see page 8)
2. Memorizing the constant : press
key
3. Touch surface (P1) (green light ON)
4. Touch surface (P2) (green light ON)
5. Release the probe. The probe constant is
memorized for future measures.
Attention :
The probe constant must be reset after changing
probe or after moving the probe position.
13.2 Measuring heights
Taking the reference : Touch the reference plane (P1), the
green light is ON.
1. Press PRESET key quickly (>1 sec.)
Set the display at zero,
or memorizes PRESET value.
Measuring height : Touch surface (P2), the green light
is ON. The value is displayed.
P1
P2
P1
P2
55.230mm
REF I
MM
0.123
MM
0.123
MM
3.983
MM
55.230
MM

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 15

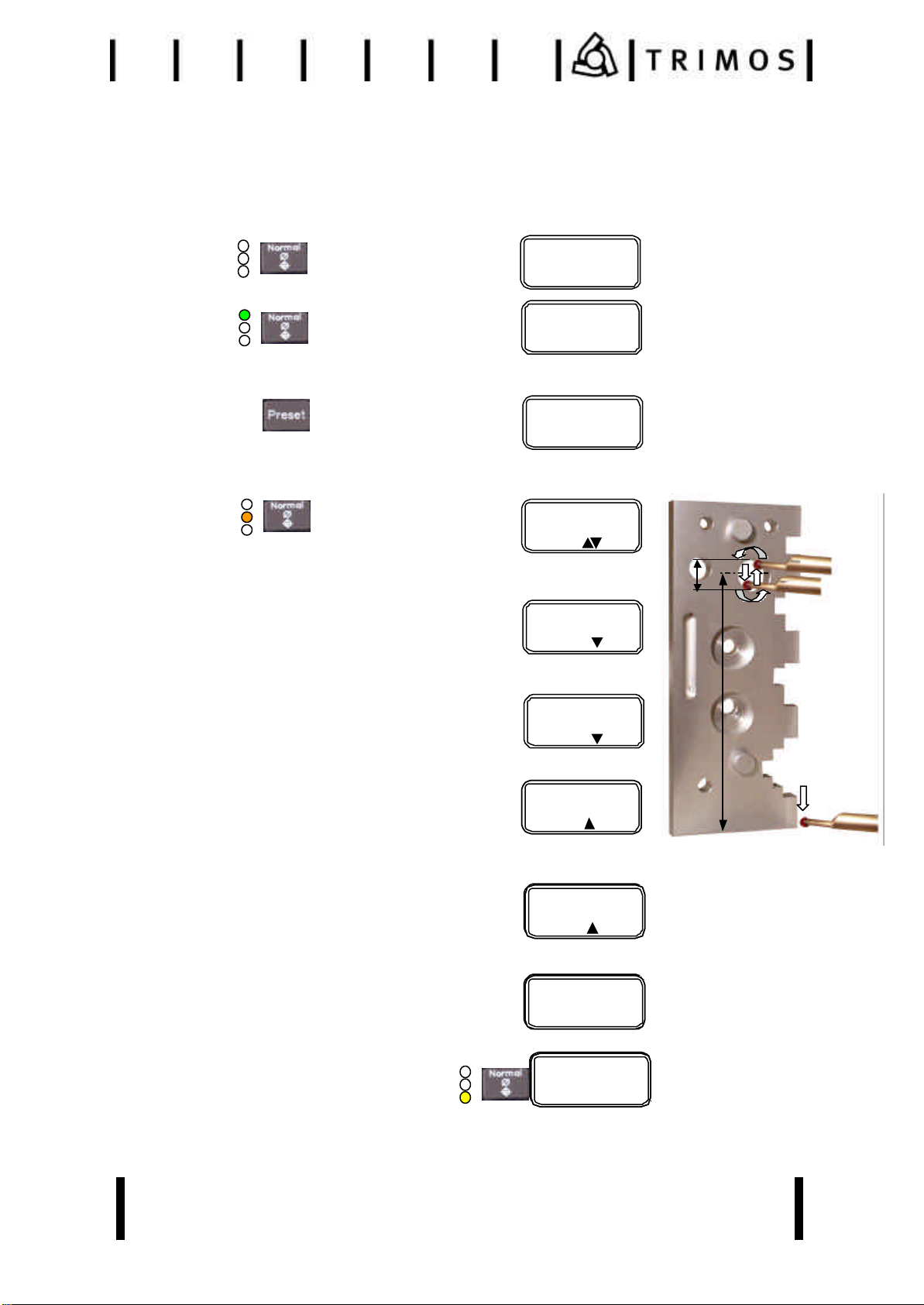

13.3 Measuring diameters and centerlines.
The probe constant value should already have been
memorized : (see page 13)
1. Normal mode, if necessary press
key, lights OFF
2. Touch the reference plane (P1)
green light ON
3. Press PRESET key quickly (>1 sec.),
to set the display at zero.
Realise the probe.
4. Change to Diameter/Centerline mode by pressing
key, orange light blink.
5. Place the probe inside the bore to be measured and
touch a point (P2) which is well away from the
reversal point.
6. Move the part or the instrument sideways to the
probe. The reversal point is memorized.
7. Touch a point (P3) well away from reversal point.
8. Move the part or the instrument sideways to the
probe. The diameter is displayed as well
as the ∅∅ symbol.
9. Displaying the centerline can be done in
2 ways :
1. by releasing the probe.
(no possibility to ask again measured diameter)
2. by pressing the key
(Yellow light ON)
The centerline is displayed, as well as the ⊕⊕ symbol.
169.936
31.003
P1
P2
P3
0.000
MM
21.000
M
M
0.000
MM
0.000
MM ∅∅
∅∅
90.213
M
M
∅∅
86.696
MM
∅∅
30.291
MM
∅∅
31.003
MM
⊕⊕
169.938
MM
⊕⊕
169.938
MM

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 16
13.4 Measuring with min and max mode.
1. Normal mode, if necessary press
Key (lights OFF)
2. Touch the reference plane (P1)
(green light ON)
3. Press PRESET key quickly (>1 sec.)
to set the display at zero.
key
4. Place the probe inside the groove to be measured
and touch a point (P2) which is well away from the
reversal point.
5. Press MIN/MAX key to MIN
6. Move the part or the instrument sideways to the
probe. The reversal point is memorized.
The first value is displayed.
7. Press PRESET key to set the reversal point at zero.
key
8. Press MIN/MAX key to MAX
9. Place the probe inside the groove to be measured
and touch a point (P3) which is well away from the
reversal point.
10. Move the part or the instrument sideways to the probe.
The reversal point is memorized.
The second value is displayed.
0.000
MM
24.456
M
M
0.000
MM
125.231
MM
MIN
124.043
MM
MIN
0.000
MM
MIN
0.320
MM
MAX
76.686
MM
MAX
76.993
MM
MAX
124.043
76.993
P1
P2
P3

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 17

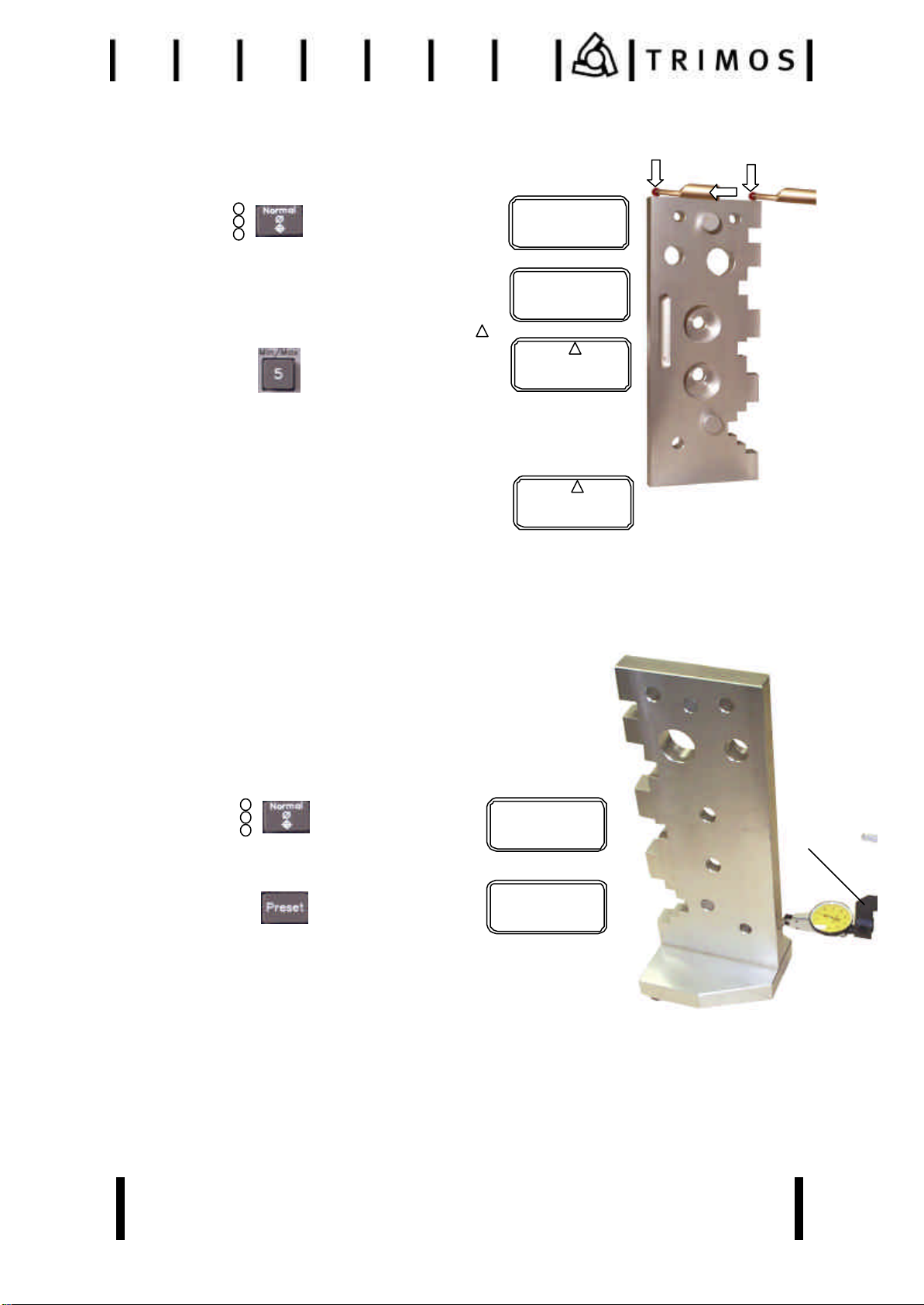

13.5 Measuring with Delta mode
1. Normal mode, if necessary
Key (lights OFF)
2. Touch the reference plane (P1)
3. Delta mode, press MIN/MAX key to
(Press 3 times the key)
(MIN,MAX,DELTA)
4. Move the part or the instrument sideways to the point
(P2).
Delta is memorized. (Delta = maximum-minimum)
13.6 Measuring of squareness.
1. Use a lever dial indicator and clamp it into the
holder (A).
2. Adjust the lever dial indicator against the surface to be
measured. Set the lever dial indicator to zero.
3. Normal mode, if necessary press
Key (lights OFF)
4. Press
Key, to set the display
at zero.
5. Move the lever dial indicator along the surface to be
measured.
6. Read the lever dial indicator for squareness value
and digital display for the height displacement value.
P1
P2
A
0.000
MM
102.678
MM
0.000
MM
0.022
MM
0.000
MM
12.567
MM

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 18
13.7 Measuring with two references
1. Normal mode, if necessary press
Key (lights OFF)
2. Touch the reference plane (P1(REF I))
3. Press the PRESET key
To set the REF I to zero.
4. Touch the reference plane (P2(REF II))
5. Press
Key to activate the REF II
6. Press the PRESET key
To set the REF II to zero
7. Touch surface (P3)
The display show the measurement
from REF II
8. Press
key to change from REF II to REF I
The display show the measured
value from REF I.
Note :
In REF I the display show the measured value only.
In REF II the display show the measured value and REF II.
0.000
MM
-12.456
MM
0.000
MM
299.985
MM
130.098
MM
REFII
0.000
MM
REFII
-184.912
MM
REFII
115.073
MM
115.073
-184.912
REF II
REF I
P1
P2
P3

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 19
+
14. Initialization of printing mode
Instrument OFF
Hold down the PRINT key when switching ON
by pressing PRINT key again.
by pressing PRINT key again.
When your choice of printing mode is done,
press any numerical key.
by pressing the PRINT key.
To exit of the initialization printing mode
press any numerical key.
Pri 1 = Print out of numerical value (manual)
Pri 2 = Print out of numerical value (manual) and
print out of measuring unit (mm or In.)
Pri 3 = Print out of numerical value (automatic) and
print out of measuring unit (mm or In.)
nr on =Print out with a sequencial numbering.
nr off =Print out without a sequential numbering.
Manual print out :
In manual print out mode, one of the green, orange or yellow
lights must be ON, and after every pressure of the PRINT key
the displayed value is printed.
Automatic print out :
In automatic mode, after every measurement the value is printed.
Zero setting of sequential numbering.
Pri 1
MM
Pri 3
MM
Pri 2
MM
nr oFF
MM
nr on
MM
123.000
MM
Pri 1
MM
nr oFF
MM
123.000
Pri 1
MM
nr on
MM
001 123.000
Pri 2
MM
nr oFF
MM
123.000 mm
Pri 2
MM
nr on
MM
001 123.000 mm
Pri 3
MM
nr oFF
MM
123.000 mm
Pri 3
MM
nr on
MM
001 123.000 mm

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 [email protected] http://www.trimos.ch
Page 20
15. Printer
Introduction
The thermal printer V-30 is compact and light weight, equiped with an RS232C serial
interface via a 9 –way D-type connector (female).
It is powered from internal Ni-Cd batteries.
Material required :
Printer with AC adaptor (V30/…), Bracket (V32), connecting cable (V-31),
paper rolls (V-30.7).
Assembling printer on V300,V600,V1000.
1. Lock the bracket (B) with the screw (C) into the thread (A),
Fixe the printer by two screws (D), connect the RS232 cable (V-31),
Switch ON the printer by the button. (E).
9-way D-type socket(female)
1. No connection
2.TXD (Transmit data to host)
3.RXD (Received data from host)
4. No connection
5. GND (Signal ground)
6. No connection
7. No connection
8. CTS (Clear to send)
9. No connection
Designation SW-1SW-2SW-3SW-4SW-5SW-6SW-7SW-8
24 characters per line ON
48 characters per line OFF
Software hanshake ON
Hardware hanshake OFF
7 Data bits, Even parity ON
8 Data bits, No parity OFF
1200 Baud ON
4800 Baud OFF
Normal height ON
Double height OFF
Normal width ON
Double width OFF
Normal/Dual ply ON
Labels OFF
Auto wake up disabled ON
Auto wake up enabled OFF
A
A
BCD
AC adaptor socket E
