Trinnov Audio ST2-HIFI User manual

ST2-HIFI
USER GUIDE V. 3.8
High Performance Digital Acoustics
since 2003.

Light version

15
6
7
8
9
10
2
INSTALLATION 11
2.1 TYPICAL CONNECTIONS
2.2 CONNECTING A SOURCE
2.3 CONNECTING SPEAKERS
2.4 CONNECTING THE MICROPHONE
12
13
14
15
3
GETTING STARTED 16
3.1 POWERING ON THE ST2-HIFI
3.2 REMOTE ACCESS TO THE GRAPHICAL USER INTERFACE (GUI)
3.3 USING THE ST2 HIFI AS A WIFI ACCESS POINT
3.4 USING THE ST2 HIFI AS A DHCP CLIENT
3.5 REMOTE ACCESS FROM A TABLET, LAPTOP OR SMARTPHONE
3.6 CONNECTING THE ST2 HIFI TO AN EXISTING WIFI NETWORK
17
18
19
22
23
26
5
BASIC OPTIMIZER SETUP 42
5.1 OVERVIEW
5.2 PRESETS SELECTION & OUTPUT CONNECTIONS
5.3 MICROPHONE SETUP
5.4 CALIBRATION LEVEL ADJUSTMENT
5.5 CROSSOVER CALIBRATION
5.6 SPEAKER CALIBRATION
5.7 AUTOMATIC PRESETS
45
46
48
50
51
55
58
THE ST2 HIFI
4
CONFIGURATION 29
4.1 OVERVIEW
4.2 SETTING UP THE AUDIO CLOCK
4.3 INPUTS CONFIGURATION
4.4 PRESETS MANAGEMENT
4.5 POWER-ON DEFAULT SETTINGS
4.6 USB BACKUP RESTORE
4.7 CHANNELS SETTINGS
30
32
33
35
36
37
38
6
ADVANCED OPTIMIZER SETUP 61
6.1 TRINNOV CERTIFIED INSTALLERS
6.2 ARBORESCENCE OF THE ADVANCED SETTINGS MENU
6.3 ITERATIVE PROCEDURE
6.4 OPTIMIZER GRAPHS
6.5 OPTIMIZER MODES
6.6 OPTIMIZER SETTINGS
6.7 TARGET CURVE / LIMITER CURVES
6.8 ABOUT LATENCY
62
62
63
65
67
71
73
76
7
MULTIPOINT CALIBRATION 77
7.1 PRINCIPLE
7.2 MEASUREMENT POSITIONS
7.3 MULTIPOINT ENGINE
78
78
79
8
MULTICHANNEL SETUPS 81
8.1 SOURCES CONFIGURATION
8.2 SOURCES ROUTING
8.3 SPEAKERS CONFIGURATION
8.4 SPEAKERS ROUTING
82
83
85
86
1.1 IMPORTANT SAFETY INSTRUCTIONS
1.2 WHAT'S IN YOUR BOX
1.3 CONCEPT
1.4 THE REAR PANEL
1.5 3D MEASUREMENT MICROPHONE

Trinnov is a registered trademark of Trinnov Audio. ©2003-2014 Trinnov Audio - All rights reserved.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Apple, iPad, iPhone and iPod Touch and iMac are trademarks of Apple Inc., registered in the U.S. and other countries.
All other trademarks remain the property of their respective owners.

5

6
2. Follow all warning and instructions.
3. TRINNOV Audio expressly forbids unauthorized modifi-
cation of this equipment.
4. Using the unit in the following locations can result in a
malfunction:
TO COMPLETELY DISCONNECT THIS APPARATUS FROM
THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD
PLUG FROM THE AC RECEPTACLE.
This symbol is intended to alert the
user to the presence of important
operation and maintenance (servicing)
instructions in the literature accom-
panying the appliance.
This symbol is intended to alert the
user to the presence of uninsulated
"dangerous voltage" within the
product's enclosure that may be sufficient
magnitude to constitute a risk of electric
shock to persons.
.In direct sunlight
.Locations of extreme temperature or humidity
.Excessively dusty or dirty locations
.Locations of excessive vibration
.Close to magnetic fields
1. Read the following instructions carefully.
Save all instructions for future reference.
5. Condensation can form on the inside of the apparatus if
it is suddenly moved from a cold environment to a
warmer location. Before switching the unit on, it is
recommended that the unit be allowed to reach room
temperature.
6. Clean only with a dry cloth. Do not use liquid solvent-
based cleaners.
7. Do not cover of bloc ventilation slots or openings. Never
push objects of any kind into ventilation slots on the
equipment casing.
8. Install in conformance with the manufacturer's instruc-
tions.
9. Maximum permissible operating conditions: 0°C to
40°C, 20-65% relative humidity.
10.Protect the powerchord frombeing walked on orpinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Always replace damaged fuses with the correct rating
and type: 3,15 AT.
12.Unplug this apparatus during lightning storms or when
unused for long periods of time.
13.Do not open the equipment case. There are no user
serviceable parts in this equipment. Refer all servicing
to qualified service personnel.
14.Please connect the designated AC/AC power supply to
an AC outlet of the correct voltage. Do not connect it
to an AC outlet of voltage other than that for which
your unit is intended.
1.1

7
THE ST2-HIFI
1 TRINNOV 3D MICROPHONE
1 POWER CABLE
1
2
3
1
2 3
(optional)
1.2

8
The weakest element of any high-fidelity system is the room. Typical rooms introduce up to 10dB of distortion
in the frequency response. Furthermore, loudspeakers with a perfect impulse response don’t exist.
Trinnov’s ST2-HiFi solves the acoustic equation. It takes your high-end system to a whole new level of
accuracy, from high-fidelity to acoustic-fidelity.
1.3 CONCEPT

9
Power section Audio section
PC section

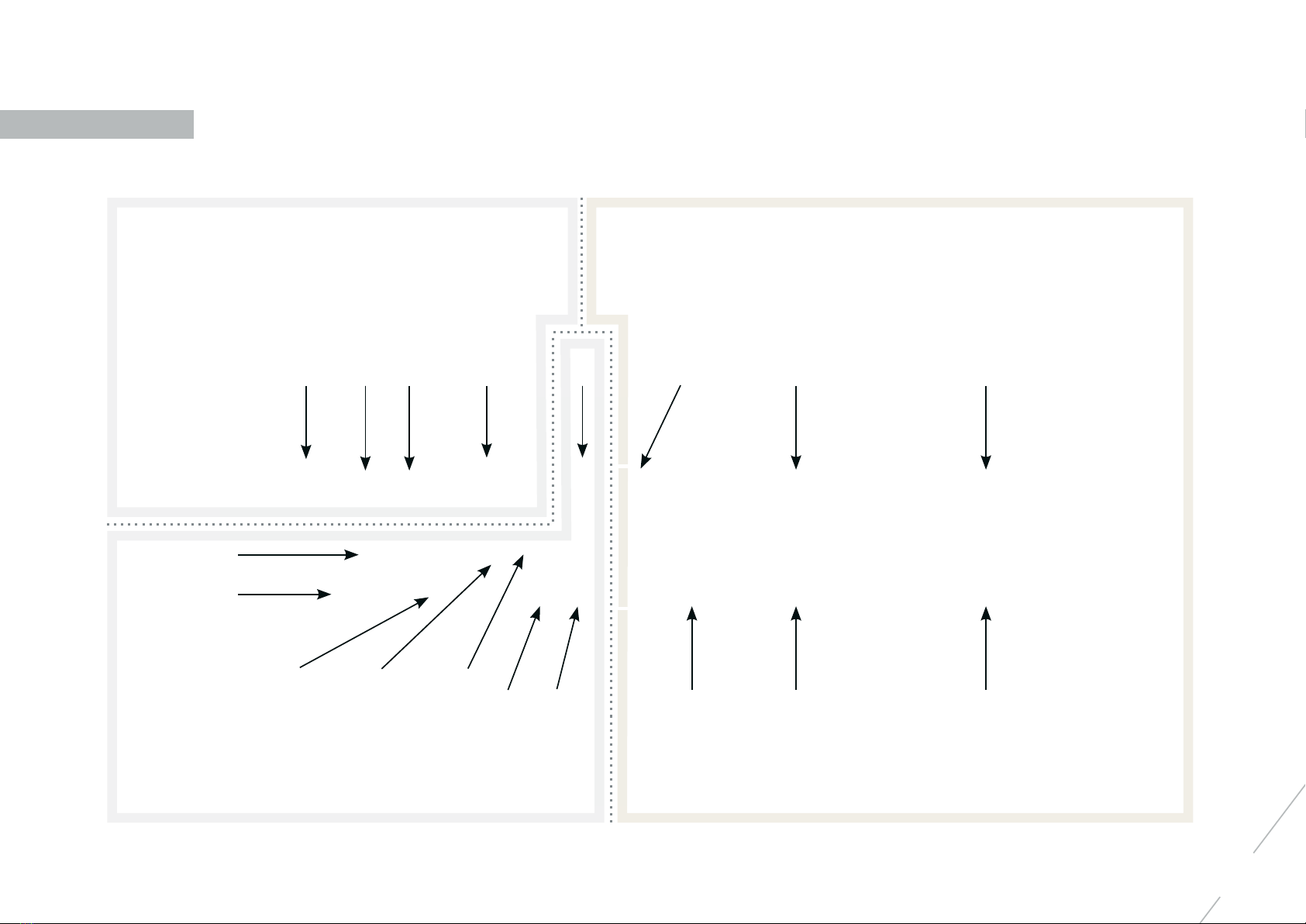

1.4 THE REAR PANEL
M15A
FUSE
POWER
SWITCH
SERIAL
NUMBER
1 IN & 1 OUT
AES/EBU
(XLR)
1 IN & 1 OUT
COAXIAL SPDIF
(RCA)
2 STEREO ANALOG
SINGLE-ENDED IN
(RCA)
2 STEREO ANALOG
BALANCED IN
(XLR)
4 ANALOG
BALANCED OUT
(XLR)
4 ANALOG
SINGLE-ENDED OUT
(RCA)
PARALLEL
PORT
VGA PORT ETHERNET
PORT
RS
232
BUILT-IN
AUDIO
(unused)
4 USB
PORTS
DVI PORT
PS2 FOR MOUSE
OR KEYBOARD
POWER
SOCKET

10
4
2
3
1
Switching off

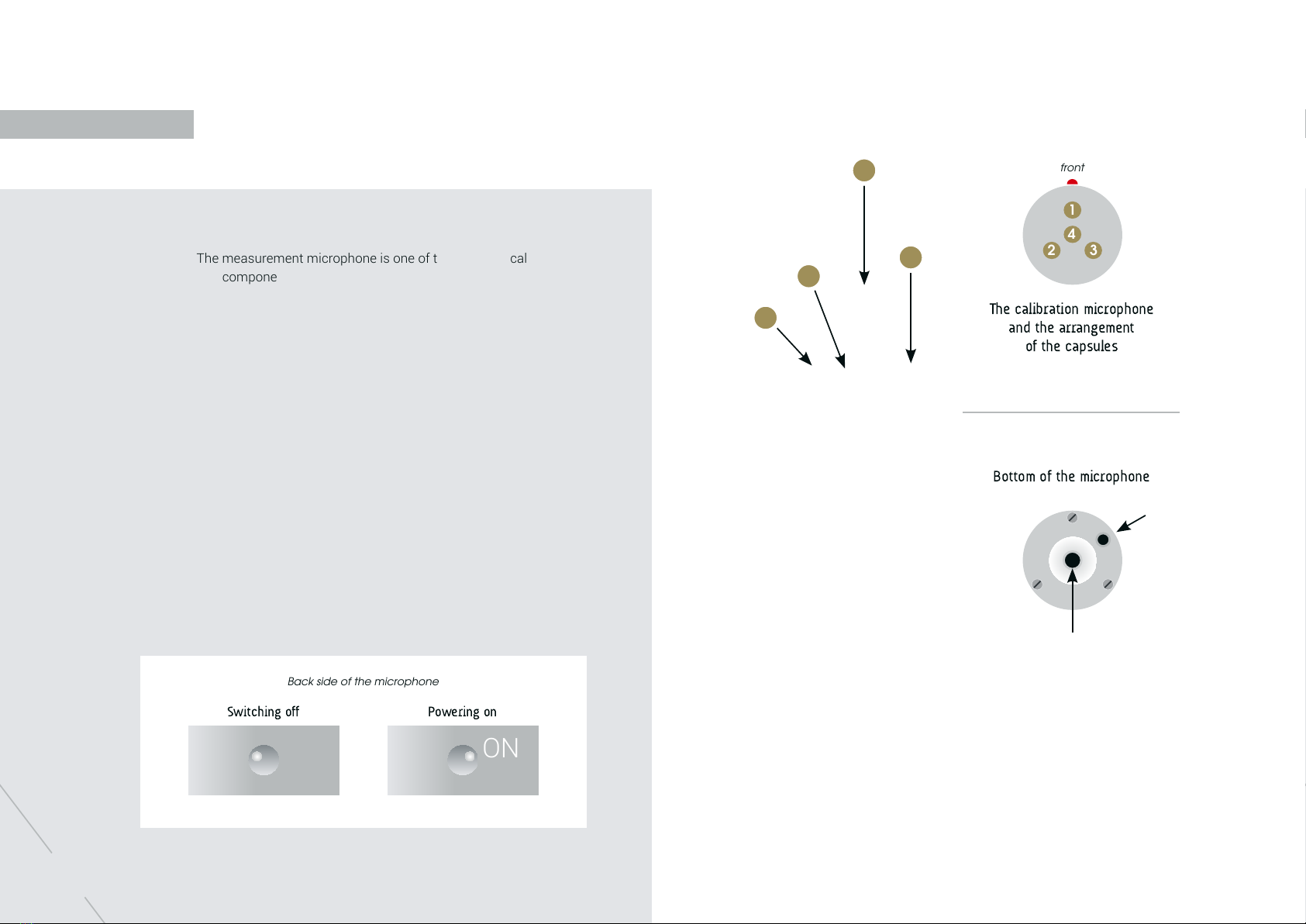

The calibration microphone
and the arrangement
of the capsules
1
front
4
23
ON
Powering on
Back side of the microphone
The measurement microphone is one of the most critical
component in the Trinnov calibration procedure.
The Optimizer’s sophisticated algorithms not only rely on very accurate acoustic
measurements but also on the ability to localize speakers positions and to detect early
reflection origin.
The microphone consists of 4 capsules mounted at the top of thin brass tubes to avoid
diffraction.
The capsules form a tetrahedron figure, ideal to identify distance, azimuth and elevation
altogether with a spatial resolution below +/-2° in every direction.
Consequently, capsules are identified from 1 to 4 and the microphone cables are labelled
accordingly.
A led incorporated in the body of the microphone indicates the front of the microphone that
should be pointed at the center of the soundstage before proceeding with a measurement.
Flat response (within +/- 0,1 dB across the 20Hz-24kHz frequency range) is guaranteed by
individual compensation filters.
The microphone uses a standard 9V PP3 LR61 battery to power capsules and electronic.
The second purpose of the frond led is to indicate the battery level.
CAMERA STAND
THREAD
MICROPHONE STAND
THREAD
Bottom of the microphone
10
1.5 THE TRINNOV 3D MEASUREMENT MICROPHONE
OFF

11

12
SOURCES
ST2-HIFI
POWER AMPS

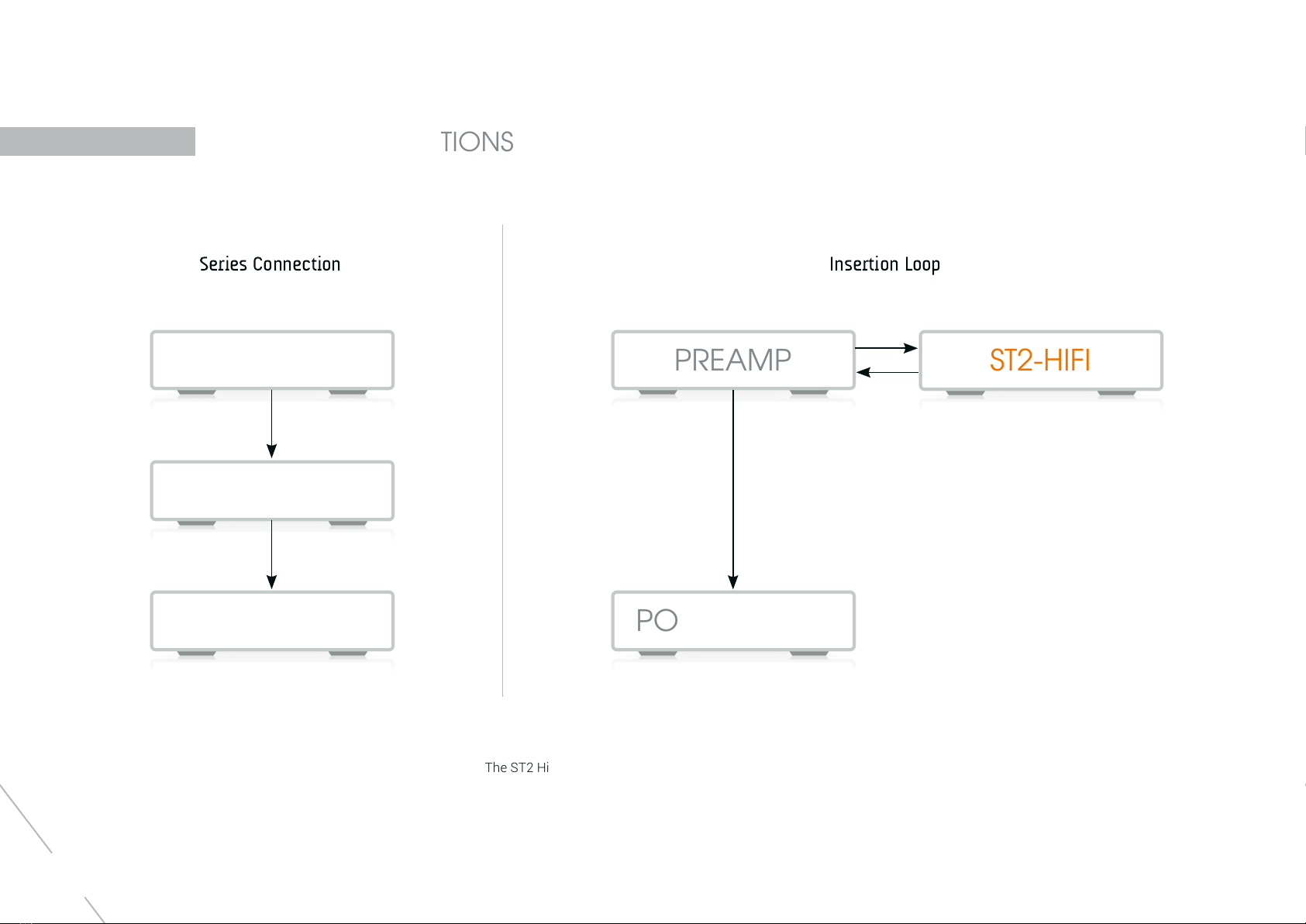

Series Connection
PREAMP ST2-HIFI
POWER AMPS
Insertion Loop
2.1 TYPICAL CONNECTIONS
The ST2 HiFi seamlessly integrates your hifi installation.
Whether your system allows for series connection and/or insertion loop, both analog and digital inputs/outputs of the ST2 HiFi can be used.
12

13
2.2 CONNECTING A SOURCE
The ST2 HiFi allows you to connect and play any stereo source without any configuration.
This example shows how to connect the AES output from a CD player to the ST2 HiFi.
CD
PLAYER
Connecting a CD Player
to the AES Input 1
13

14
STEREO POWER
AMPLIFIER
2.3 CONNECTING SPEAKERS
Default output connectors for a stereo system
This image shows the outputs that should be used as default stereo system output.
Please remind that these outputs play simultaneously.
Stereo System connection example
14

15
2.4 CONNECTING THE MICROPHONE

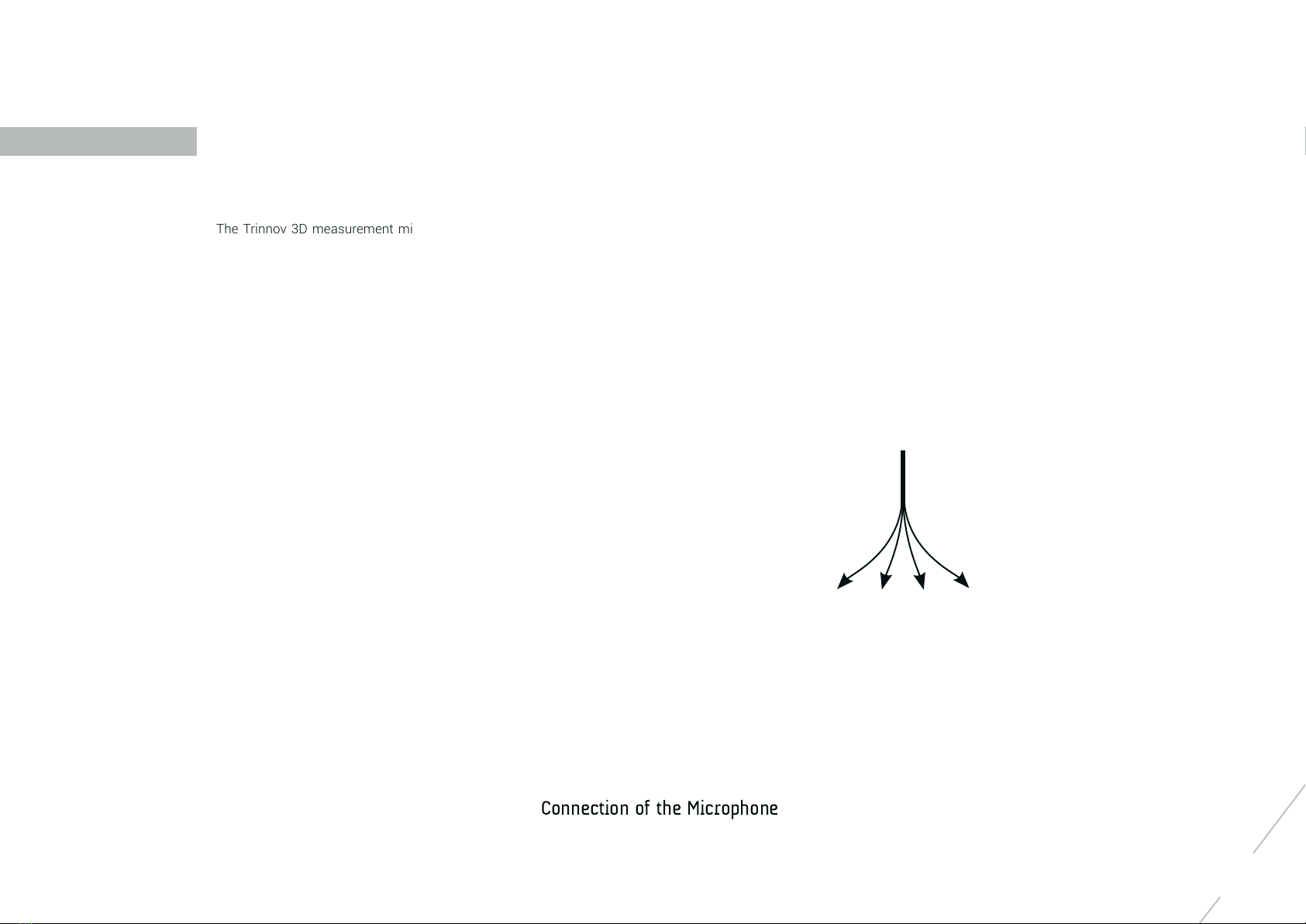

Connection of the Microphone
The Trinnov 3D measurement microphone must be connected to the balanced
analog inputs of the ST2 HiFi.
• Always make sure the microphone is turned off before you connect it to the ST2 HiFi.
• The microphone cables are labelled and numbered from 1 to 4.
• Please respect the connection order of the microphone, such as indicated in this figure
15
12 3 4


17

18
3.1 POWERING ON THE ST2 HIFI
To shut the ST2 HiFi down, press the front panel power button once.
The system will need approximately 10 seconds until complete stop.
NOTE It is not recommended to cut the AC Power,
as the system saves several “last-used” settings
while shutting-down.
Turn on the main power switch on the rear panel to supply the ST2 HiFi
with electricity, then press the front panel power button to start the ST2
HiFi. The system takes 45 seconds to initialize.
IMPORTANT NOTE Don't forget that the amplifier
should always be powered up last.

19
3.2 REMOTE ACCESS TO THE GRAPHICAL USER INTERFACE (GUI)
The ST2 HiFi allows several options for remote control: The ST2 HiFi has built-in Ethernet and optional WiFi.
It can simultaneously be part of a network as:
• a WiFi Access Point (AP) to create its own WiFi network;
• a hard-wired client to join an existing network through an Internet
Service Provider (ISP) Box/Router;
• a WiFi client to join an existing wireless network.
• Remote control from a tablet, laptop or smartphone over the network,
using VNC.
• Telnet command or automation system (Crestron, Savant...)
• Screen, mouse and keyboard directly connected to the PC
IMPORTANT NOTE
The optional WiFi USB dongle must be
connected to a USB 2.0 port (black) of the ST2
HiFi before ignition.

20
Wi-Fi : On
Turn Wi-Fi Off
ST2-1
Home - Wifi
Trinno _WiFi
Join Other Network...
Create Network...
Open Network Preferences...
WiFi Networks List - Mac S X
Once you've selected the ST2 HiFi Access Point, you must enter the default password "calibration"
to establish the connection.
3.3 USING THE ST2 HIFI AS A WIFI ACCESS POINT
Provided that the optional WiFi dongle has been inserted into one of the USB port of the ST2 HiFi before ignition,
a dedicated WiFi Access point should appear in the WiFi Networks list of your tablet/smartphone/computer under
the name "ST2-xx" where xx is the serial number of your ST2 HiFi.
20
