Triolight liniLED PCB RGB 160 User manual

LED strip manual
liniLED® PCB RGB 160/240
BEND RADIUS
R
20 mm
FRoHS
24
V D
C
IP20
CRI
80
+
MAC
ADAM
2
S D C M

General
Handling
Installation
Operation and use
Cleaning and maintenance
Environment and waste
Warning
Product information
Product specications
Product dimensions
Cable selection
Area advice
Product care and handling
Cutting instructions
Soldering
Power supply
Symbols
4
4
4
4
4
4
5
5
5
5
6/7
7
8
9
10
11
12
LED strip PCB RBG 160/240

4LED strip manual | liniLED® PCB RGB 160/240
Read the instructions and safety precautions before installation, usage and storage of the products to secure safety of the user and reliability of the product.
- Hand over the instructions to the end-user and those responsible for installation and usage.
- Triolight B.V. cannot be held responsible for improper handling, product installation, usage or storage.
Handling
- Handle with care.
- The product may not be modied or converted otherwise than prescribed.
- Products are transported in proper packaging. Products should remain packed until installation.
- Take ESD (Electrostatic Discharge) protection measures when handling liniLED® products.
- The products and their components may not be exposed to mechanical, static loads and other tension/compression other than from the product itself.
Installation
- Attention: The power has to be switched o the main power supply or the connection before installation. Not doing so may damage the product.
- Use a suitable LED power supply/driver: 24 V DC constant voltage. Do not drive the product on other voltages than described in their datasheet/products
specications.
- Installation has to be done by a certied professional with knowledge of electrical circuits or a specialised maintenance person known with valid directives.
- General and local construction-, safety- and installation regulations should be respected.
- Use only supplied parts, accessories and required tools as prescribed in the installation manual to guarantee a safe installation and use of the product.
- Products may solely be installed in the areas according to their prescribed IP-rating, IK-rating, temperature range and chemical resistances.
- Do not fasten anything on the product, same applies for hanging.
- Do not install the product in the following cases:
- Damage is visible on the product or its cables.
- The inside of the product is moistened or dirty.
- The product or its cables have been modied. It could lead to an electrical shock or a short circuit may occur.
- Children may not play unsupervised with electrical products as they cannot judge the dangers in dealing with electrical circuits correctly.
Operation and use
Solely use the product when its working correctly. If not, switch the power off immediately and advise an electrical specialist in the following cases:
- Damage is visible on the product.
- The product does not function.
- Smoke or steam rises from the product.
- Crackling sounds are noticeable.
- The product is overheating.
- Repairs on the installation may only be performed by qualied electricians. Product repairs may solely be done by Triolight B.V.
Cleaning and maintenance
- Attention: Disconnect the power before maintenance and cleaning.
- Dust and dirt accumulated over time should be removed from the light-emitting surface to assure optimal functioning of the product.
- Paints, solvents and corrosive cleaning chemicals may not contact and thus aect the product.
Environment and waste
- Exterior decorative lighting should only be used after sunset.
- This product may not be treated as household waste. Dispose of the material through the waste recycling of electrical and electronic equipment.
Warranty
This product comes with a 2 year warrant. Warranty void if:
- The installation guide has not been consulted (installation mistake).
- The installation is not done by a certied installer.
- Local rules and guidelines are not respected.
- The invoice cannot be shown and/or has been altered.
- Damage is caused by negligence, abnormal use or improper handling, use, maintenance and/or cleaning of the product.

5LED strip manual | liniLED® PCB RGB 160/240
Product information
LED strip top view
LED strip front view
Product dimensions
8
1/2.2
200
8
Warning
This product comes with a 2 year warranty.
Warranty void if:
1. The installation guide has not been consulted (installation mistake).
2. The installation is not done by a certied installer.
3. Local rules and guidelines are not respected.
4. The invoice cannot be shown and/or has been altered.
5. Damage is caused by negligence, abnormal use or improper handling, use, maintenance and/or cleaning of the product.
This product is intended for professional use only! This product must be installed by a qualied and certied installer according to local rules
and guidelines. Triolight BV cannot be held liable for (consequential) damage and/or injuries due to unintended use and/or installation errors.
The liniLED® PCB RGB 160/240 LED strip (IP20) is a high quality, exible LED strip with small dimensions. Therefore the PCB LED strip is ideal to
use in small spaces (indoor use only!). With 3M double sided tape on the back, the PCB LED strip is easy to mount.
Product specications
Colour
RGB 160
RGB 240
V DC
24
24
Temp ˚C
-30...55
-30...55
LED/m
35
35
W/m
4.8
7.2
Max. Length
10 m
5 m
lm/m
160
235
B50/L70
> 50.000 h
> 50.000 h
 Max. connection length between -20ºC and -30ºC is 7 metres (RGB 160) and 3.5 metres (RGB 240).

6LED strip manual | liniLED® PCB RGB 160/240
The liniLED® LED strips need a minimum voltage at the beginning of the LED strip to function according to the specications. The table below gives an indication
of the maximum cable length based on the cable thickness and power supply voltage. The connection between the cable and LED strip is with
a liniLED® Connector.
In case the required length is larger than the length mentioned in this table, the supply voltage is dierent or if a detailed wire plan with
branches is planned, please contact your distributor for a detailed cable calculation.
1 m
2 m
5 m
10 m
1 m
3 m
5 m
10 m
1 m
2 m
5 m
10 m
1 m
2 m
5 m
10 m
1 m
2 m
5 m
10 m
1 m
2 m
5 m
10 m
1 m
3 m
5 m
10 m
1 m
2 m
5 m
10 m
1 m
2 m
5 m
10 m
62.82 m
30.81 m
11.61 m
5.20 m
134.54 m
43.14 m
24.85 m
11.14 m
178.88 m
87.74 m
33.05 m
14.81 m
269.09 m
131.98 m
49.71 m
22.29 m
447.85 m
219.65 m
82.73 m
37.09 m
207.93 m
101.98 m
38.41 m
17.22 m
276.46 m
135.59 m
51.07 m
22.90 m
415.87 m
203.97 m
76.82 m
34.44 m
692.14 m
339.46 m
127.86 m
57.32 m
402.89 m
199.46 m
77.40 m
36.72 m
535.66 m
265.19 m
102.91 m
48.82 m
805.79 m
398.93 m
154.81 m
73.43 m
1341.07 m
663.93 m
257.64 m
122.21 m
121.73 m
60.27 m
23.39 m
11.09 m
260.69 m
85.19 m
50.08 m
23.76 m
346.60 m
171.60 m
66.59 m
31.59 m
521.39 m
258.13 m
100.17 m
47.52 m
867.75 m
429.60 m
166.71 m
79.08 m
cable (4 x 0.50 mm)
0.086 Ω/m
0.035 Ω/m
cable (4 x 0.75 mm)
0.023 Ω/m
0.023 Ω/m
cable (4 x 1.00 mm)
0.018 Ω/m
0.018 Ω/m
cable (4 x 1.50 mm)
0.012 Ω/m
0.012 Ω/m
cable (4 x 2.50 mm)
0.007 Ω/m
0.007 Ω/m
liniLED® cable (5 x 0.75 mm)
0.023 Ω/m
0.012 Ω/m
liniLED® cable (5 x 1.00 mm)
0.018 Ω/m
0.009 Ω/m
liniLED® cable (5 x 1.50 mm)
0.012 Ω/m
0.006 Ω/m
liniLED® cable (5 x 2.50 mm)
0.007 Ω/m
0.004 Ω/m
Cable X information Cable X informationLED strip LED stripMax. cable length Max. cable length
@ 24 V DC @ 24 V DC@ 25V DC @ 25V DC
Cable selection RGB 160

7LED strip manual | liniLED® PCB RGB 160/240
The liniLED® LED strips need a minimum voltage at the beginning of the LED strip to function according to the specications. The table below gives an indication
of the maximum cable length based on the cable thickness and power supply voltage. The connection between the cable and LED strip is with
a liniLED® Connector.
In case the required length is larger than the length mentioned in this table, the supply voltage is dierent or if a detailed wire plan with
branches is planned, please contact your distributor for a detailed cable calculation.
1 m
2 m
5 m
1 m
2 m
5 m
1 m
2 m
5 m
1 m
2 m
5 m
1 m
2 m
5 m
1 m
2 m
5 m
1 m
2 m
5 m
1 m
2 m
5 m
1 m
2 m
5 m
41.02 m
19.91 m
7.24 m
86.27 m
27.07 m
15.23 m
114.69 m
55.67 m
20.25 m
172.54 m
83.74 m
30.46 m
287.15 m
139.37 m
50.69 m
135.19 m
65.62 m
23.87 m
179.75 m
87.24 m
31.73 m
270.39 m
131.23 m
47.74 m
450.02 m
218.41 m
79.45 m
263.23 m
129.63 m
49.47 m
349.97 m
172.35 m
65.78 m
526.46 m
259.27 m
98.95 m
876.18 m
431.49 m
164.68 m
79.88 m
39.34 m
15.01 m
167.96 m
54.30 m
31.57 m
223.31 m
109.98 m
41.97 m
335.93 m
165.44 m
63.14 m
559.09 m
275.33 m
105.08 m
liniLED® cable (4X 0.50 mm)
0.086 Ω/m
0.035 Ω/m
liniLED® cable (4 x 0.75 mm)
0.023 Ω/m
0.023 Ω/m
liniLED® cable (4 x 1.00 mm)
0.018 Ω/m
0.018 Ω/m
liniLED® cable (4 x 1.50 mm)
0.012 Ω/m
0.012 Ω/m
liniLED® cable (4 x 2.50 mm)
0.007 Ω/m
0.007 Ω/m
liniLED® cable (5 x 0.75 mm)
0.023 Ω/m
0.012 Ω/m
liniLED® cable (5 x 1.00 mm)
0.018 Ω/m
0.009 Ω/m
liniLED® cable (5 x 1.50 mm)
0.012 Ω/m
0.006 Ω/m
liniLED® cable (5 x 2.50 mm)
0.007 Ω/m
0.004 Ω/m
Cable X information Cable X informationLED strip LED stripMax. cable length Max. cable length
@ 24 V DC @ 24 V DC@ 25V DC @ 25V DC
Area advice
Indoor environment (IP20) | Solder
Depending on the area where the liniLED® LED strip is installed we oer a range of solutions to cope with external factors. The liniLED® PCB RGB
can only be soldered.
Cable selection RGB 240

8LED strip manual | liniLED® PCB RGB 160/240
Do not bend the LED strip sidewards. Do not twist the LED strip.
The LED strip has to be unreeled on a horizontal surface at the time of installation. Do not unreel the spool of LED strip before installation.
Product care and handling
20 mm
20 mm
Do not compress or stretch the LED strip.
Maximum bending radius is 20 mm. Solely bend up or downward.

9LED strip manual | liniLED® PCB RGB 160/240
+
_

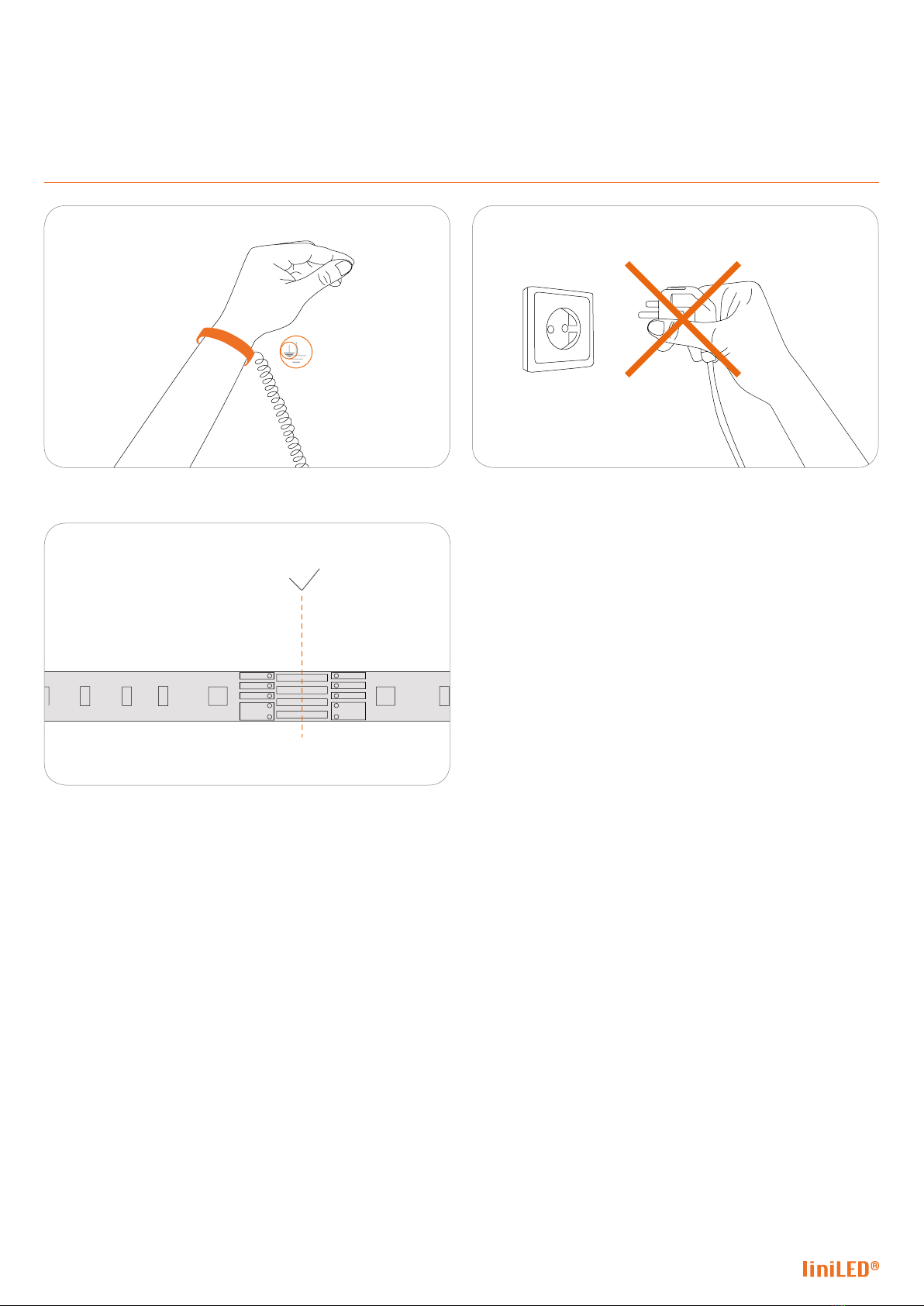

Cutting instructions
Turn o the power before cutting the LED strip.
Work in an ESD protected environment. Make use of an anti-static
strap.
Top view | Only cut vertical and on the dotted line, in the middle of
the pantaex to be able to connect properly.

10 LED strip manual | liniLED® PCB RGB 160/240
0.5 mm
2
8 mm 0.34 mm
Solder
Work in an ESD protected environment. Make use of an anti-static
strap and use lead-free solder.
Turn o the power. Make sure the wires are not under electric
current.
Solder the wires to the PCB. We advise to use a cable with an area not
bigger then 0.5 mm
+
B
G
R
Pre-solder the wires.
Pre-solder the connector pads.
Solder the wires to the connector pads.
350 C
350 C
350 C

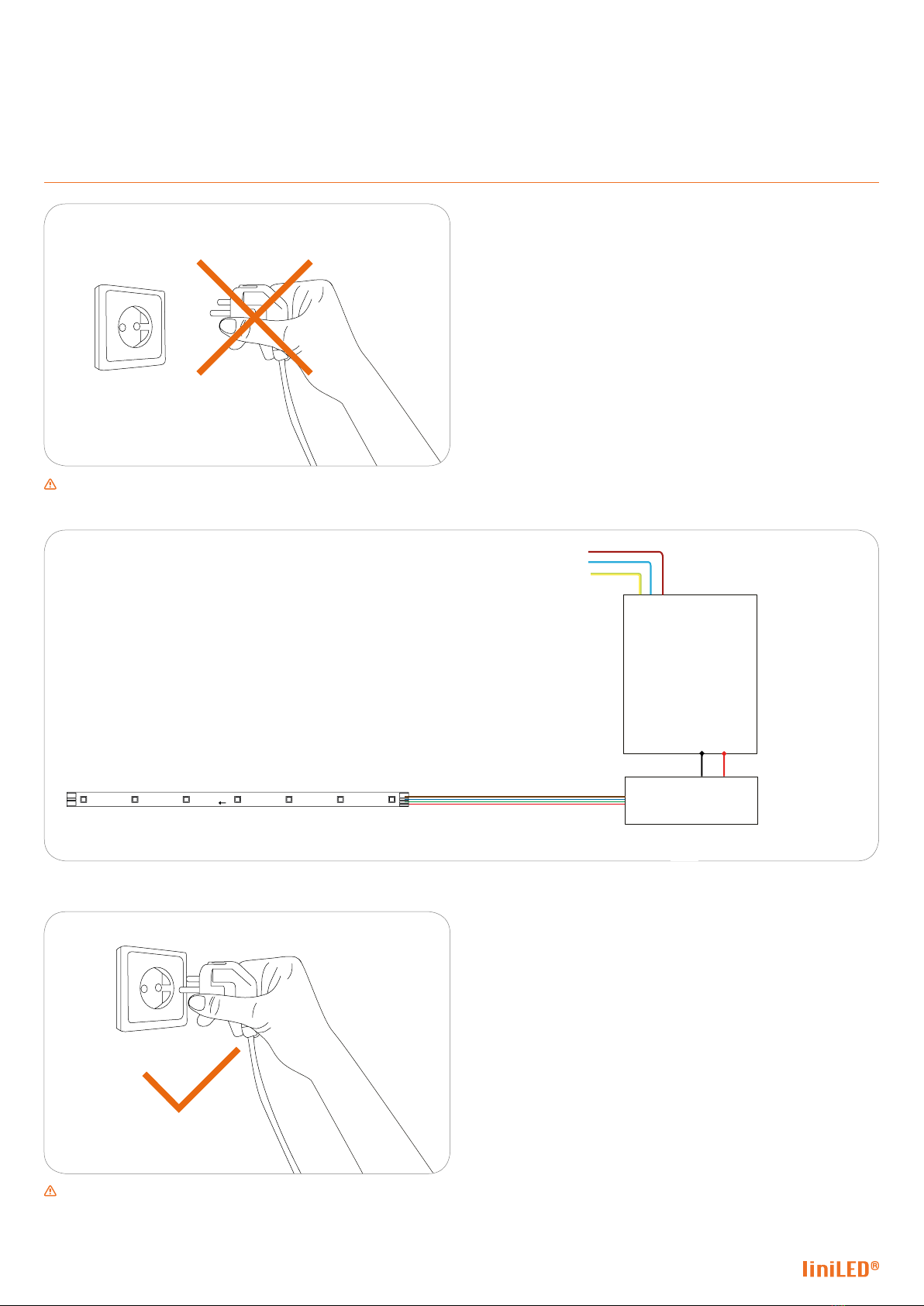

11 LED strip manual | liniLED® PCB RGB 160/240
liniLED® Cable RGB 1 m
L
N
Power Supply
24 V DC
-+
230 V AC
Cable X
RGB Control
IP20
Power supply
Connect the LED strip as indicated in the gure above. The wires should be connected as follows: Red (+) and Black (-).
Turn o the power before connecting the LED strip to the power
supply.
Insert the power plug.

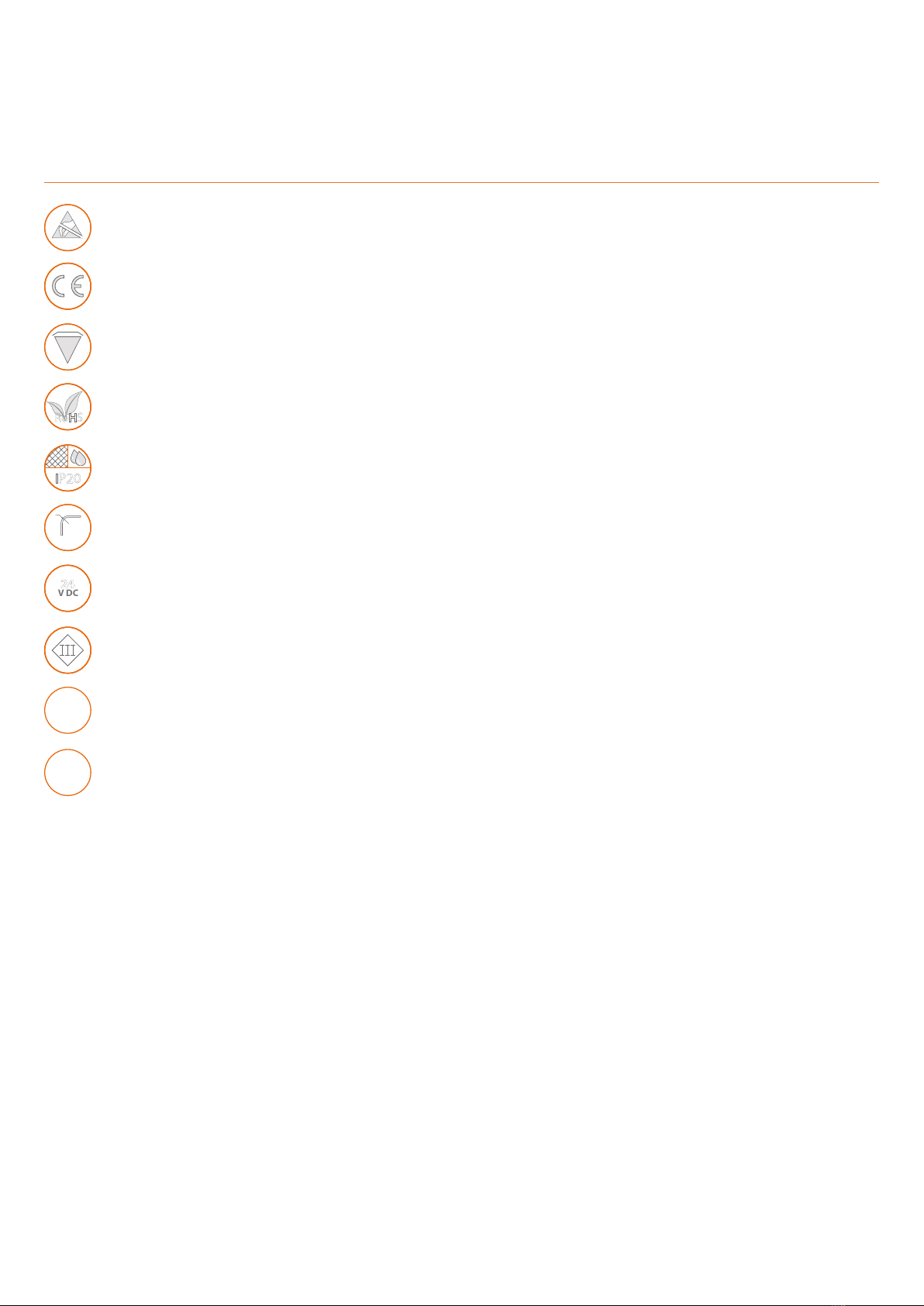

Symbols
F
RoHS
IP20
BEND RADIUS
R
20 mm
24
V DC
Manufacturer’s declaration that the product meets the applicable EC directives.
Electro Static Discharge (ESD) sensitive device, apply standard ESD precautions when handling the product
Restriction of Hazardous Substances (RoHS): product complies with the RoHS directive and each homogeneous material does
not exceed the limits for the materials mentioned under the RoHS directive (Pb, Hg, Cd, Cr6+, PBB and PBDE).
This product can be both IP40 and IP68 depending on the conguration and application.
See the documentation for the exact IP rating.
Suitable for mounting on all surfaces and suitable to cover with insulating material.
Current Voltage. 24 Volt.
Bending of the LED strip is possible with a radius of ≥ 20millimetres in the specied direction.
Electrical appliance class III: this product is designed to be supplied from an extra-low voltage
(≤ 60.0 V DC or ≤ 42.4 V AC).
CRI
80
+
MAC
ADAM
2
S D C M
The binning tolerance of this product is 2 MacAdam.
The CRI value of this product is 80 or higher.

liniLED® is a registered trademark of Triolight B.V.
Subject to misprints, errors and modications. No legal rights can be derived from this document. V0618
