Quick Start Guide
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR®surge protector in our monthly drawing!
tripplite.com/warranty
USB-C to Hi-Res 3.5 mm
Audio Adapter with
PD Charging
Model: U437-001-C-V2
USB Type-C®and USB-C®are registered trademarks
of USB Implementers Forum.
Español 9 • Français 17
Русский 25 • Deutsch 33
21-08-167 93-3FBF.indb 121-08-167 93-3FBF.indb 1 11/29/2021 3:50:07 PM11/29/2021 3:50:07 PM

2
• Connect speakers or a headset to the USB-C port
on your smartphone, tablet, laptop or desktop
computer
• Charge the host device at the same time with up to
20V/3A (60W) of power
• Bypass a defective audio port by using a USB-C
port instead
• Supports Digital-to-Analog conversion with 93dB
SNR for audio output
• DAC supports 44.1/48/96 Sample Rate, 16/24-Bit
• ADC input supports 41/48KHz Sample Rate, 16-Bit
• Supports Power Delivery (PD) 3.0 and Quick Charge
(QC) 2.0 up to 9V/2A (18W)
• Plug and play – no software or drivers required
• Supports macOS 8.6 or above, Linux, Chrome OS,
Windows 10 and Android operating systems
• U437-001-C-V2 USB-C to Hi-Res 3.5 mm Audio
Adapter with PD Charging
• Quick Start Guide
Product Features
Package Contents
21-08-167 93-3FBF.indb 221-08-167 93-3FBF.indb 2 11/29/2021 3:50:07 PM11/29/2021 3:50:07 PM

3
1. Connect the adapter’s USB Type-C connector to
the USB Type-C port on your smartphone, tablet,
laptop or desktop computer.
2. Connect a set of headphones or a speaker to the
adapter’s 3.5 mm jack.
3. Optionally, connect a USB-C power adapter to the
adapter’s USB-C port to charge the host device.

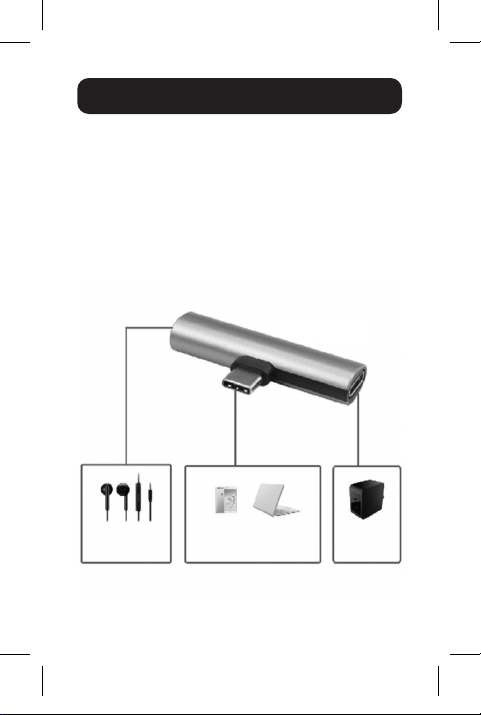

Operation

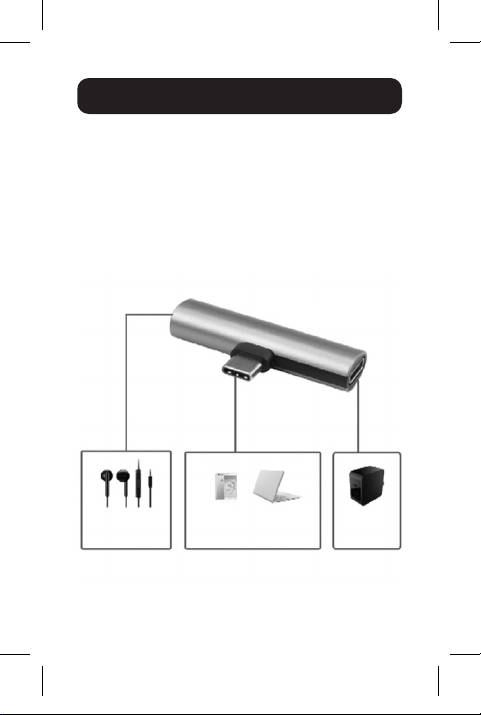

3.5 mm
Headphones
or Speaker
USB-C Smartphone,
Tablet or Computer USB-C
Power Adapter
(Optional)
U437-001-C-V2
21-08-167 93-3FBF.indb 321-08-167 93-3FBF.indb 3 11/29/2021 3:50:07 PM11/29/2021 3:50:07 PM

4
Specifications
Connectors
USB (Input) USB Type-C (Male)
USB (Output) USB Type-C (Female)
Audio 3.5 mm (Female)
Charging
Power Delivery (PD) 3.0 20V/3A (60W)
Quick Charging (QC) 2.0 9V/2A (18W)
Power Source USB Bus or
PD Power Adapter (Up to 60W)
Audio
Channel Dual-Channel 2.0
SNR 93dB
Sampling Frequency 96KHz
Environmental
Operating Temperature Range 32 to 113F (0 to 45C)
Storage Temperature Range 14 to 158F (-10 to 70C)
Operating Humidity Range 10% to 85% RH (No Condensation)
Storage Humidity Range 5% to 90% RH (No Condensation)
Power Consumption
Standby Power Consumption <5V/10mA
Operating Power Consumption <5V/85mA
Physical
Unit Dimensions (HxWxD) 0.35 x 1.96 x 0.50 in.
(0.9 x 4.99 x 1.28 cm)
21-08-167 93-3FBF.indb 421-08-167 93-3FBF.indb 4 11/29/2021 3:50:07 PM11/29/2021 3:50:07 PM

5
Warranty and Product Registration
3-Year Limited Warranty
Seller warrants this product, if used in accordance with all
applicable instructions, to be free from original defects in
material and workmanship for a period of three (3) years
from the date of initial purchase. If the product should prove
defective in material or workmanship within that period, Seller
will repair or replace the product, at its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR
TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE
OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES
OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW,
ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF
MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION
TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS
WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND
CONSEQUENTIAL DAMAGES. (Some states do not allow
limitations on how long an implied warranty lasts, and some
states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal
rights, and you may have other rights which vary from
jurisdiction to jurisdiction.)
WARNING: The individual user should take care to determine
prior to use whether this device is suitable, adequate or safe
for the use intended. Since individual applications are subject
to great variation, the manufacturer makes no representation
or warranty as to the suitability or fitness of these devices for
any specific application.
21-08-167 93-3FBF.indb 521-08-167 93-3FBF.indb 5 11/29/2021 3:50:07 PM11/29/2021 3:50:07 PM

6
Warranty and Product Registration
Product Registration
Visit tripplite.com/warranty today to register your new Tripp Lite
product. You’ll be automatically entered into a drawing for a
chance to win a FREE Tripp Lite product!*
*No purchase necessary. Void where prohibited. Some
restrictions apply. See website for details.
WEEE Compliance Information for Tripp Lite Customers
and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment
(WEEE) Directive and implementing regulations,
when customers buy new electrical and electronic
equipment from Tripp Lite, they are entitled to:
• Send old equipment for recycling on a one-for-one,
like-for-like basis (this varies depending on the
country)
• Send the new equipment back for recycling when
this ultimately becomes waste
Use of this equipment in life support applications where failure
of this equipment can reasonably be expected to cause the
failure of the life support equipment or to significantly affect its
safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos
and illustrations may differ slightly from actual products.
21-08-167 93-3FBF.indb 621-08-167 93-3FBF.indb 6 11/29/2021 3:50:07 PM11/29/2021 3:50:07 PM

7
21-08-167 93-3FBF.indb 721-08-167 93-3FBF.indb 7 11/29/2021 3:50:07 PM11/29/2021 3:50:07 PM
