Owner’s Manual
USB-C™Triple Display
Docking Station
4K HDMI & Mini DP, VGA, GbE, 60W PD 3.0
Model: U442-DOCK16-B
USB Type-C and USB-C are trademarks of USB Implementers Forum
Español 13 • Français 24 • Русский 35

2
Product Features
• Multi-Stream Transport (MST) lets you connect up to three
displays simultaneously and extend across all displays (up to
three)
• Supports HDMI and DisplayPort video resolutions up to
4096 x 2160 @ 30 Hz
• Supports VGA video resolutions up to 1920 x 1080 @ 60 Hz
• Ethernet port supports true 10/100/1000 Mbps network
speeds
• USB-C PD/Data port supports power input up to 20V/3A (60W
PD 3.0) and data transfer rates up to 5 Gbps
• Built-in USB-C cable stores safely and conveniently underneath
the unit
• Plug-and-play design – no external power or drives are needed

3
Optional Accessories
Package Includes
• N201-Series Cat6 Gigabit Snagless Patch Cables
• P502-Series High Resolution VGA Cables
• P569-Series High Speed HDMI Cables
• U322-Series USB 3.0 A/B Device Cables
• U428-Series USB 3.1 Gen 1 A/C Cables
• U420-Series USB 3.1 Gen 1 Type-C Cable
• P584-Series Mini DisplayPort Cables
• U442-DOCK16-B
• Owner’s Manual

4

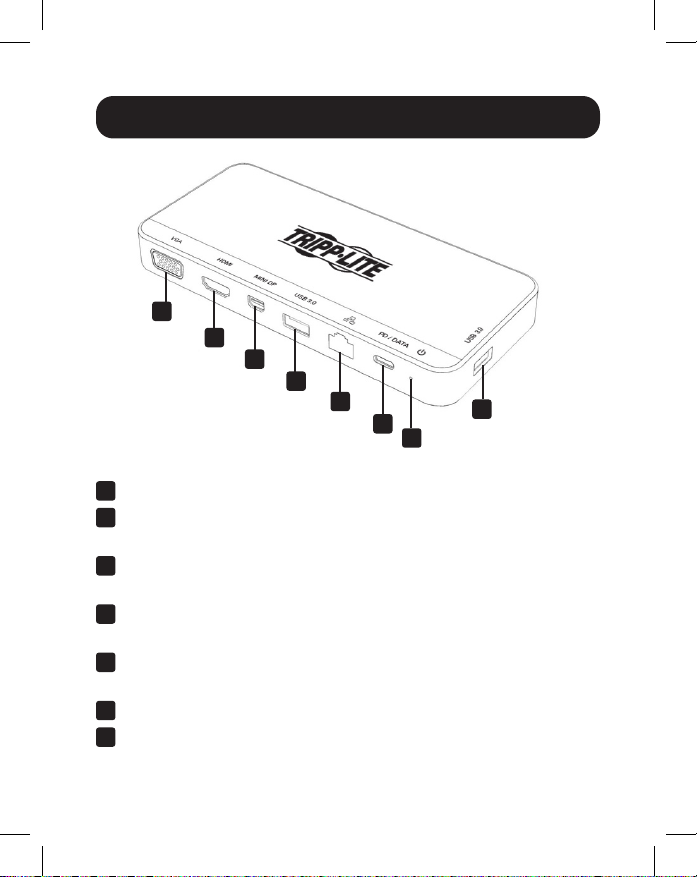

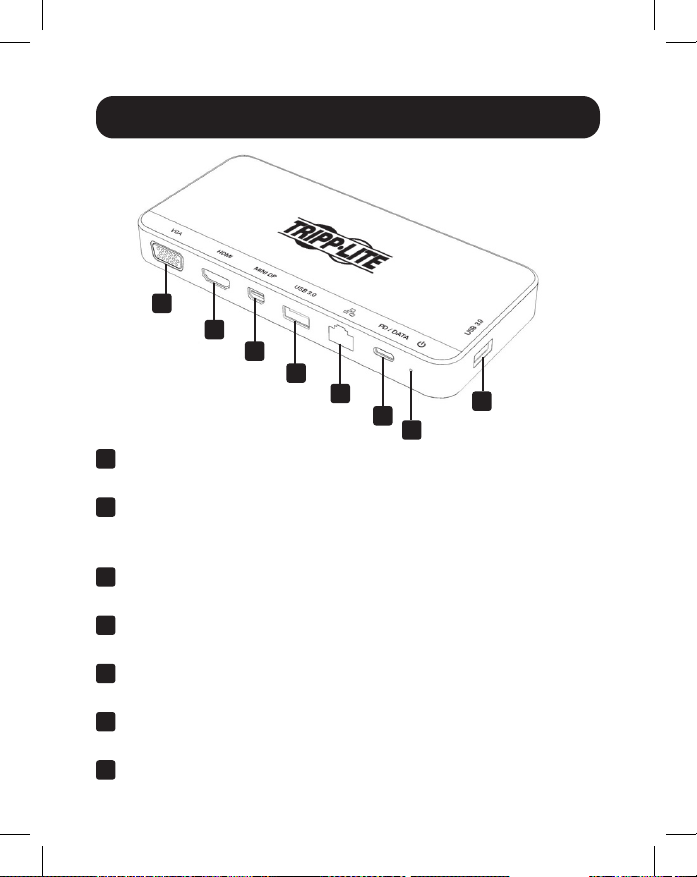

Product Overview
1USB 3.0 Type-A: Supports data transfer rates up to 5 Gbps
2USB 3.1 Gen1 Type-C: Supports PD 3.0 charging up to 60W
(20V/3A) and data transfer speeds up to 5 Gbps
3Mini DisplayPort: Supports video resolutions up to 4K x 2K
(4096 x 2160) @ 30 Hz
4HDMI: Supports video resolutions up to 4K x 2K
(4096 x 2160) @ 30 Hz
5VGA: Supports video resolutions up to 1920 x 1080 @
60 HZ
6RJ45: Provides 10/100/1000 Mbps Ethernet speeds
7LED: Illuminates white to indicate power
1
1
4
3
6
5
7
2

5
Installation
1. Pull out the self-storing cable beneath the docking station and
connect it to a laptop, tablet or any other USB-C compatible
device.
2. Connect an HDMI-compliant display to the docking station
with a user-supplied HDMI cable, such as Tripp Lite’s P569-
Series (sold separately).
3. Repeat Step 2 for the Mini DisplayPort and VGA ports
compatible user-supplied cables.
Note: The following Table depicts the maximum resolution achieved on
each video port based on the connected displays.
• Mac sources allow only one monitor to be extended while the other
one or two displays will always be mirrored
• Windows sources allow you to extend across all three screens.
• Only one 4K display @ 30 Hz can be extended in an application.
If both HDMI and Mini DisplayPort are being extended, the HDMI
resolution will automatically drop to 1080p.
Windows Source
(4K @ 30 Hz)
VGA
(1080p @ 60 Hz)
HDMI
(4K @ 30 Hz)
Mini DP
(4K @ 30 Hz)
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz)
3
(4K @ 30 Hz) *
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz) *3 (4K @ 30 Hz)
1
(4K @ 30 Hz) *2 (4K @ 30 Hz)
3
(4K @ 30 Hz)
No image 1
(1080p @ 60 Hz)
2
(4K @ 30 Hz)
3
(4K @ 30 Hz)
* = Port not in use

6
Installation
Mac Source
(4K @ 30 Hz)
VGA
(1080p @ 60 Hz)
HDMI
(4K @ 30 Hz)
Mini DP
(4K @ 30 Hz)
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz)
3
(4K @ 30 Hz) *
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz) *3 (4K @ 30 Hz)
1
(4K @ 30 Hz) *2 (4K @ 30 Hz)
3
(4K @ 30 Hz)
1
(1080p @ 60 Hz)
2
(1080p @ 60 Hz)
3
(1080p @ 60 Hz)
4
(1080p @ 60 Hz)
* = Port not in use
4. Connect Ethernet through the RJ45 port to achieve speeds up
to 10/100/1000 Mbps.
5. Connect up to two USB 3.0 peripherals or devices.
6. Charge your source, up to 60W, using the available USB-C
port or transfer data up to 5 Gbps.

7
Specifications
Input Connector
USB USB Type-C (x1)
Output Connectors
USB USB 3.0 Type-A (x2)
USB-C Data/Charge (x1)
USB-A
Ethernet RJ45
Video HDMI
Mini DisplayPort
VGA
Environmental
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C)
Relative Humidity 10% to 90% RH,
Non-Condensing
Physical
Unit Dimensions 6.5 x 3 x 0.81 in.
(165 x 75 x 20.5 mm)
Unit Weight 0.33 lb. (0.15 kg)

8
Specifications
Specifications
HDMI Specification 1.4
HDCP Specification 1.4
DisplayPort Specification 1.2
Max. Supported
Video Resolutions
HDMI (4096 x 2160 @ 30 Hz)
Mini DisplayPort
(4096 x 2160 @ 30 Hz)
VGA (1920 x 1200 @ 60 Hz)
Network Speed 10/100/1000 Mbps or 1 Gbps
Supported Color Depth (HDMI) 36 bit (12 bits per channel)
Chroma Subsampling (HDMI) YCbCr: 4:4:4, 4:2:2, 4:2:0
PD Charging Specification PD 3.0 (60W)

9
Troubleshooting
Why am I not able to display resolutions of 4096 x 2160 @
30 Hz?
A. Click [Display Setting] > [Advanced Display Settings], then
choose the desired resolution manually.
B. Ensure the device, display and cable all support 4096 x 2160
@ 30 Hz HD.
Why does my PD charging time vary?
The upstream device (laptop) will auto-adjust the power input
based on the battery level at that current time.
Why won’t my HDMI, Mini DisplayPort and VGA displays
show different screens?
Most MacBook laptops do not support MST, allowing you to
extend only one screen and mirror the other.

10
Warranty and
Product Registration
3-Year Limited Warranty
Tripp Lite warrants its products to be free from defects in materials
and workmanship for a period of three (3) years from the date of
initial purchase. Tripp Lite’s obligation under this warranty is limited to
repairing or replacing (at its sole option) any such defective products. To
obtain service under this warranty, you must obtain a Returned Material
Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite
service center. Products must be returned to Tripp Lite or an authorized
Tripp Lite service center with transportation charges prepaid and must
be accompanied by a brief description of the problem encountered
and proof of date and place of purchase. This warranty does not apply
to equipment, which has been damaged by accident, negligence or
misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit
limitation or exclusion of implied warranties; therefore, the aforesaid
limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE
FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp
Lite is not liable for any costs, such as lost profits or revenue, loss of
equipment, loss of use of equipment, loss of software, loss of data, costs
of substitutes, claims by third parties, or otherwise.

11
Warranty and
Product Registration
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product.
You’ll be automatically entered into a drawing for a chance to win a FREE
Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. Open to
U.S. residents only. See tripplite.com for details.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

12
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
20-01-044 93-3BC9_RevA
Warranty and
Product Registration
Any changes or modifications to this equipment not expressly approved by
Tripp Lite could void the user’s authority to operate this equipment.
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE)
Directive and implementing regulations, when customers buy
new electrical and electronic equipment from Tripp Lite they are
entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like
basis (this varies depending on the country)
• Send the new equipment back for recycling when this
ultimately becomes waste
Use of this equipment in life support applications where failure of this
equipment can reasonably be expected to cause the failure of the life
support equipment or to significantly affect its safety or effectiveness is
not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are
subject to change without notice. Photos and illustrations may differ
slightly from actual products.

13
1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support
Copyright © 2020 Tripp Lite. Todos los derechos reservados.
Manual del Propietario
Estación de Conexión
USB C™para Tres Pantallas
4K HDMI y Mini DP, VGA, GbE, 60W PD 3.0
Modelo: U442-DOCK16-B
USB Type-C y USB C son marcas comerciales registradas del
USB Implementers Forum
English 1 • Français 24 • Русский 35

14
Características del Producto
• Multi-Stream Transport [MST] le permite conectar hasta tres
pantallas simultáneamente y amplíe a todas las pantallas
(hasta tres)
• Soporta resoluciones de video HDMI y DisplayPort hasta
4096 x 2160 @ 30 Hz.
• Suporta resoluciones de video VGA de hasta 1920 x 1080 @
60 Hz.
• El puerto Ethernet soporta velocidades reales de red de
10Mbos / 100Mbps / 1000Mbps
• El puerto USB C PD y Datos soporta entrada de energía de
20V 3A (PD 3.0 de 60W) y velocidades de transferencia de
datos de hasta 5 Gbps
• El cable USB C incorporado se guarda en forma segura y
conveniente debajo de la unidad
• Diseño para Conectar y Usar – no se necesitan controladores o
alimentación externa.

15
Accesorios Opcionales
El Paquete Incluye
•Cables Patch Snagless Cat6 Gigabit Serie N201
•Cables VGA de Alta Resolución de la Serie P502
•Cables HDMI de Alta Velocidad de la Serie P569
•Cables para Dispositivo USB 3.0 A/B Serie U322
•Cables USB 3.1 Gen 1 A/C Serie U428
•Cable USB 3.1 Gen 1 Type-C Serie U420
•Cables Mini DisplayPort de la Serie P584
•U442-DOCK16-B
•Manual del Propietario

16
Vista General del Producto
1USB 3.0 Type-A: Soporta tasas de transferencia de datos
hasta 5 Gbps
2USB 3.1 Gen1 Type-C: Soporta carga PD 3.0 hasta 60W
(20V / 3A) y velocidades de transferencia de datos de hasta
5 Gbps
3Mini DisplayPort: Compatible con resoluciones de video de
hasta 4K x 2K (4096 x 2160) @ 30 Hz
4HDMI: Compatible con resoluciones de video de hasta
4K x 2K (4096 x 2160) @ 30 Hz
5VGA: Suporta resoluciones de video de hasta 1920 x 1080
@ 60 Hz
6RJ45: Proporciona velocidades de Ethernet de 10Mbps /
100Mbps / 1000Mbps
7LED: Se ilumina en blanco para indicar alimentación
1
1
4
3
6
5
7
2

17
Instalación
1. Jale el cable de auto almacenamiento debajo de la estación
de conexión y conéctelo a una laptop, tableta u otro
dispositivo compatible con USB C.
2. Conecte una pantalla compatible con HDMI a la estación de
conexión con un cable HDMI suministrado por el usuario,
como la Serie P569 de Tripp Lite (vendido por separado).
3. Repita el paso 2 para los cables suministrados por el usuario
compatibles con los puertos Mini DisplayPort y VGA.
Nota: La siguiente tabla muestra la resolución máxima alcanzada en
cada puerto de video en base a las pantallas conectadas.
• Las fuentes de Mac permiten extender solo un monitor mientras que
las otras, una o dos pantallas, siempre se reproducirán en espejo
• Las fuentes de Windows le permiten extenderse a través de las tres
pantallas.
• Sólo una pantalla 4K @ 30 Hz puede extenderse en una aplicación.
Si se están extendiendo HDMI y Mini DisplayPort, la resolución de
HDMI caerá automáticamente a 1080p.
Fuente Windows
(4K @ 30 Hz)
VGA
(1080p @ 60 Hz)
HDMI
(4K @ 30 Hz)
Mini DP
(4K @ 30 Hz)
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz)
3
(4K @ 30 Hz) *
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz) *3 (4K @ 30 Hz)
1
(4K @ 30 Hz) *2 (4K @ 30 Hz)
3
(4K @ 30 Hz)
Sin imagen 1
(1080p @ 60 Hz)
2
(4K @ 30 Hz)
3
(4K @ 30 Hz)
* = Puerto no en uso

18
Instalación
Fuente de Mac
(4K @ 30 Hz)
VGA
(1080p @ 60 Hz)
HDMI
(4K @ 30 Hz)
Mini DP
(4K @ 30 Hz)
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz)
3
(4K @ 30 Hz) *
1
(4K @ 30 Hz)
2
(1080p @ 60 Hz) *3 (4K @ 30 Hz)
1
(4K @ 30 Hz) *2 (4K @ 30 Hz)
3
(4K @ 30 Hz)
1
(1080p @ 60 Hz)
2
(1080p @ 60 Hz)
3
(1080p @ 60 Hz)
4
(1080p @ 60 Hz)
* = Puerto no en uso
4. Conecte Ethernet a través del puerto RJ45 para alcanzar
velocidades hasta 10Mbps / 100Mbps / 100 Mbps.
5. Conecte hasta dos periféricos o dispositivos USB 3.0.
6. Cargue su fuente, hasta 60W, usando el puerto USB C
disponible o transfiera datos hasta a 5 Gbps.

19
Especificaciones
Conector de Entrada
USB USB Type-C (x1)
Conectores de Salida
USB USB 3.0 Type-A (x2)
USB C Datos y Carga (x1)
USB A
Ethernet RJ45
Video HDMI
Mini DisplayPort
VGA
Ambiental
Temperatura de Operación 0 °C a 50 °C [32 °F a 122 °F]
Temperatura de
Almacenamiento
-20 °C a 70 °C [-4 °F a 158 °F]
Humedad Relativa De 10% a 90% de HR,
Sin Condensación
Físicas
Dimensiones de la Unidad 165 x 75 x 20.5 mm
[6.5" x 3" x 0.81"]
Peso de la Unidad 0.15 kg [0.33 lb]

20
Especificaciones
Especificaciones
Especificación HDMI 1.4
Especificación HDCP 1.4
Especificación DisplayPort 1.2
Máximas Resoluciones de
Video Soportadas
HDMI (4096 x 2160 @ 30 Hz)
Mini DisplayPort
(4096 x 2160 @ 30 Hz)
VGA (1920 x 1200 @ 60 Hz)
Velocidad de la Red 10Mbps / 100Mbps / 1000Mbps
o 1 Gbps
Profundidad de Color
Soportada (HDMI)
36 bits (12 bits por canal)
Submuestreo Cromático
(HDMI)
YCbCr: 4:4:4, 4:2:2, 4:2:0
Especificación de Carga PD PD 3.0 (60W)
