Tripp Lite U442-DOCK6-GY User manual

1
Owner’s Manual
USB-C™3.1 Gen 1 Portable
Docking Station, Gray
Model: U442-DOCK6-GY
USB Type-C and USB-C are trademarks of
USB Implementers Forum
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
Copyright © 2019 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR surge protector in our monthly drawing!
www.tripplite.com/warranty
Español 13 • Français 25 • Русский 37

2
Product Features
• Supports DisplayPort Alternate Mode for
connecting an HDMI monitor via USB-C or
Thunderbolt™3 port
• Supports connection of DVI monitor
via HDMI to DVI adapter (see Optional
Accessories for more information)
• Mirror Mode allows HDMI and VGA ports to
work simultaneously with a max resolution of
1080p for both ports*
• HDMI port supports 4096 x 2160 30 Hz
4:4:4 video resolutions
• VGA port supports video resolutions up to
1920 x 1200, including 1080p @ 60Hz
• Ethernet port supports true
10/100/1000 Mbps network speeds
• USB-A and Type-C data ports support data
transfer rates up to 5 Gbps
• All USB-A 3.0 ports support data and
charging
• Dedicated BC 1.2-compliant USB port
provides up to 1.5A of fast charging power
to mobile devices (when connected to
power)

3
Product Features
• USB-C device port supports data and Power
Delivery (PD) charging with power input up
to 20V 5A (100W)
• 5V 1.6A (8W) of power dedicated to the
USB-A ports when connected to a
PD 3.0-compliant charger**
• Supports PD 3.0 Fast Role Swap to maintain
data and power connection upon removal of
charging power
• Automatically resumes operation from
hibernation and suspend mode
• IEEE 802.3az (Energy Efficient Ethernet)
compliant
• Supports full-duplex and half-duplex
operations
• Supports Wake-On LAN
• Compact design fits easily into your laptop bag
• Plug-and-play—no software or drivers
required
*If connecting two monitors simultaneously, the VGA
port becomes the main extended monitor and the
HDMI monitor mirrors the VGA monitor
** When no power supply is connected, the output
of the USB-A ports are dependent on the connected
source

4
System Requirements
Package Includes
Optional Accessories
• Computer with USB-C or Thunderbolt 3 port
that supports DisplayPort Alternate Mode
• VGA, DVI*** or HDMI monitor
• Ethernet Network with speeds up to
10/100/1000 Mbps
***Requires an adapter (see Optional Accessories
for more information)
• U442-DOCK6-GY
• Owner’s Manual
• N201-Series Cat6 Gigabit Snagless Patch
Cables
• P502-Series VGA Coaxial Monitor Cables
• P566-Series HDMI to DVI Adapter Cables
• P568-Series High-Speed HDMI Cables
• U322-Series USB 3.0 A/B Device Cables
• U326-Series USB 3.0 Micro-B Device
Cables
• U420-006-5A USB 3.1 Gen 1 USB-C Cable
(M/M), 3 ft. (0.9 m)

5

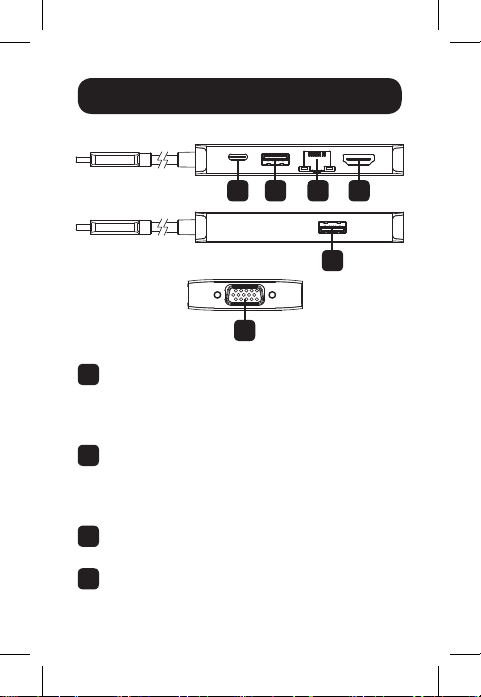

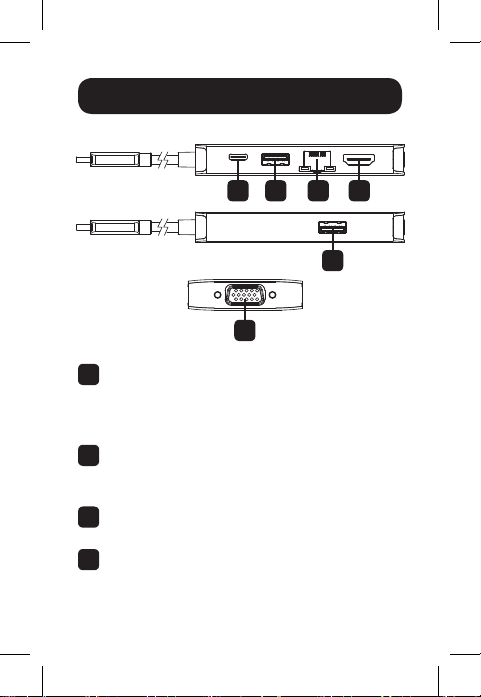

Product Overview
1USB-C Charging and Data Port
(Female) – Connects your device to a
USB-C PD charger for charging or data
transfer.
2USB-A 3.0 BC 1.2 Port (Female) –
Provides up to 1.5A of fast charging power
to mobile devices.
3RJ45 Port (Female) – Connects to a
10/100/1000 Mbps network.
4HDMI Port (Female) – Connects an HDMI
monitor.
4321
6
5
Side 1
Side 2
Rear

6
Product Overview
5USB-A 3.0 Port (Female) – Connects to
USB peripherals/devices for charging or
data transfer.
6VGA Port (Female) – Connects a VGA
monitor.

7
Installation
Notes:
• If connecting two monitors, the maximum
resolution will automatically be renegotiated to the
lowest video format, in this case 1080p.
• When connected to power via USB-C charging
port, 8W is dedicated to the docking station and
other devices. The remainder is used to charge the
connected device.
• See Optional Accessories section for suggested
cables.
• When the unit is connected to the USB-C port
on your computer and to a network via Cat5e/6
cabling, a network connection will be automatically
established. If no connection is made, you can
manually establish one by going to your computer’s
network settings page. For example, on a Mac you
would navigate to the Network section found in
System Preferences, click the “Assist Me” button to
get to the Network Setup Assistant, then follow the
prompts to establish a connection.
1. Connect the dock’s USB Type-C connector
to the USB-C or Thunderbolt 3 port on your
laptop, tablet or other device.
2. Using a VGA cable, connect the dock’s VGA
port to the VGA port on a monitor.

8
Installation
3. Using an HDMI cable (such as Tripp Lite
P568-Series High-Speed HDMI cables),
connect the dock’s HDMI port to the HDMI
port on a monitor.
4. Connect up to two USB devices to the
dock’s USB-A hub ports for data or
charging.
5. Connect a USB Type-C device to the dock’s
Type-C port for data or charging.
6. Using Cat5e/6 UTP cable, connect the
adapter’s RJ45 port to a network.

9
Specifications
Connectors-Input
USB USB-C (Male)
Connectors-Output
USB-A (x2) USB 3.0 A
(Female)
USB PD Charging
and Data
USB-C (Female)
10/100/1000
Ethernet
RJ45 (Female)
HDMI HDMI (Female)
VGA VGA (Female)
Environmental
Operating
Temperature
32°F to 113°F
(0°C to 45°C)
Operating Humidity 10% to 85% RH,
Non-Condensing
Storage Temperature 14°F to 158°F
(-10°C to 70°C)
Storage Humidity 5% to 90% RH,
Non-Condensing
Power Requirements
USB-C Charging Port Supports up to 20V 5A
(100W) Input

10
Warranty and
Product Registration
3-Year Limited Warranty
Tripp Lite warrants its products to be free from defects in
materials and workmanship for a period of three (3) years from
the date of initial purchase. Tripp Lite’s obligation under this
warranty is limited to repairing or replacing (at its sole option)
any such defective products. To obtain service under this
warranty, you must obtain a Returned Material Authorization
(RMA) number from Tripp Lite or an authorized Tripp Lite
service center. Products must be returned to Tripp Lite or an
authorized Tripp Lite service center with transportation charges
prepaid and must be accompanied by a brief description of the
problem encountered and proof of date and place of purchase.
This warranty does not apply to equipment, which has been
damaged by accident, negligence or misapplication or has
been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. Some states do not permit limitation or exclusion
of implied warranties; therefore, the aforesaid limitation(s) or
exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite
BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS
PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. Specifically, Tripp Lite is not liable for any costs, such
as lost profits or revenue, loss of equipment, loss of use of
equipment, loss of software, loss of data, costs of substitutes,
claims by third parties, or otherwise.

11
Warranty and
Product Registration
Product Registration
Visit www.tripplite.com/warranty today to register your new
Tripp Lite product. You’ll be automatically entered into a
drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some
restrictions apply. See website for details.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

12
• Consult the dealer or an experienced radio/TV technician for
help.
Any changes or modifications to this equipment not expressly
approved by Tripp Lite could void the user’s authority to operate
this equipment.
WEEE Compliance Information for Tripp Lite Customers
and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment
(WEEE) Directive and implementing regulations, when
customers buy new electrical and electronic equipment
from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-
for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this
ultimately becomes waste
Use of this equipment in life support applications where failure
of this equipment can reasonably be expected to cause the
failure of the life support equipment or to significantly affect its
safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos
and illustrations may differ slightly from actual products.
Warranty and
Product Registration
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
19-05-136 93-3955_RevA

13
Manual del Propietario
Estación de Conexión Portátil
USB C™3.1 Gen 1 - Gris
Modelo: U442-DOCK6-GY
USB Tipo C y USB C son marcas comerciales registradas del
USB Implementers Forum
1111 W. 35th Street, Chicago, IL 60609, EE. UU.
www.tripplite.com/support
Copyright © 2019 Tripp Lite. Todos los derechos reservados.
English 1 • Français 25 • Русский 37

14
Características del Producto
• Soporta DisplayPort de Modo Alterno para
conectar un monitor HDMI mediante un
puerto USB C™o Thunderbolt 3
• Soporta la conexión de un monitor DVI
mediante un adaptador HDMI a DVI (Vea
Accesories Opcionales para información
adicional)
• El Modo Espejo permite a los puertos HDMI
y VGA trabajar simultáneamente con una
resolución máxima de 1080p para ambos
puertos *
• El puerto HDMI soporta resoluciones de
video 4096 x 2160 30 Hz 4:4:4
• El puerto VGA soporta resoluciones de video
hasta 1920 x 1200, incluyendo 1080p @
60Hz
• El puerto Ethernet soporta velocidades
reales de red de 10Mbos / 100Mbps /
1000Mbps
• Los puertos de datos USB A y Tipo C
soportan tasas de transferencia de datos
hasta 5 Gbps
• Todos los puertos USB A 3.0 permiten carga
y transferencia de datos

15
Características del Producto
• Un puerto USB dedicado compatible
con BC 1.2 proporciona hasta 1.5A
de alimentación de carga rápida a los
dispositivos conectados (cuando se conecta
a la energía)
• El puerto USB C soporta transferencia de
datos y carga USB PD [Power Delivery] con
alimentación de hasta 20V 5A (100W).
• 5V 1.6A (8W) de potencia están dedicados
a los puertos USB A cuando se conecta un
cargador compatible con PD 3.0**
• Permite Intercambio Rápido de Roles [FRS]
PD 3.0 para mantener la conexión de datos
y energía una vez retirada la energía de
carga
• Restablece automáticamente la operación
desde el modo de hibernación y suspensión
• Compatible con IEEE 802.3az (Ethernet
Eficiente con la Energía)
• Soporta operaciones Dúplex y Semi-dúplex
• Soporta Wake-on LAN
• El diseño compacto cabe fácilmente en una
bolsa de su laptop

16
Requisitos del Sistema
El Paquete Incluye
• Computadora con puerto USB C o
Thunderbolt 3 que soporte DisplayPort Modo
Alterno
• Monitor VGA, DVI*** o HDMI
• Red Ethernet con velocidades hasta 10Mbps
/ 100Mbps / 1000Mbps
***Requiere de un adaptador (Vea Accesorios
Opcionales para mayor información)
• U442-DOCK6-GY
• Manual del Propietario
Características del Producto
• Conectar y Usar—No requiere software ni
controladores
*Si conecta dos monitores al mismo tiempo, el puerto
VGA se convierte en el principal monitor extendido y el
monitor HDMI refleja a espejo el monitor VGA
**Cuando no está conectado un suministro de
energía, la salida de los puertos USB A dependen de
la fuente conectada.

17
Accesorios Opcionales
• Cables Patch Snagless Cat6 Gigabit Serie
N201
• Cables Coaxiales de la Serie P502 para
Monitor VGA
• Cables Adaptadores de HDMI a DVI Serie
P566
• Cables HDMI de Alta Velocidad Serie P568
• Cables para Dispositivo USB 3.0 A/B Serie
U322
• Cables para Dispositivo USB 3.0 Micro-B
Serie U326
• U420-006-5A – Cable USB 3.1 Gen 2
USB C (M/M), 91 cm [3 pies]

18
Vista General del Producto
1Puerto USB C para Carga y Datos
(Hembra) – Conecta su dispositivo a
un cargador USB C PD para cargar o
transferencia de datos.
2, Puerto USB-A 3.0 BC 1.2 (Hembra) –
Proporciona hasta 1.5A de alimentación
para carga rápida a los dispositivos
conectados.
3Puerto RJ45 (Hembra) - Se conecta a
una red 10Mbps / 100Mbps /1000Mbps
4Puerto HDMI (Hembra) – Conecta un
monitor HDMI
4321
6
5
Lado 1
Lado 2
Atrás

19
Vista General del Producto
5Puerto USB A 3.0 (Hembra) – Se conecta
a periféricos o dispositivos para carga o
transferencia de datos USB.
6Puerto VGA (Hembra) – Se conecta a un
monitor VGA

20
Instalación
Notas:
• Si conecta dos monitores, la resolución máxima se
renegociará automáticamente al formato de vídeo
más bajo, en este caso 1080p.
• Cuando se conecta a la energía a través del puerto
USB C de carga, 8W se dedican a la estación de
conexión y otros dispositivos. El resto se usa para
cargar el dispositivo conectado.
• Para ver los cables sugeridos, consulte la sección
de Accesorios Opcionales.
• Cuando la unidad esté conectada al puerto USB C
en su computadora y a una red mediante cableado
Cat5e o Cat6, se establecerá automáticamente
una conexión de red. Si no se realiza conexión,
se puede establecer una manualmente yendo
a la página de configuración de red de su
computadora. Por ejemplo, en una Mac
tendría que desplazarse a la sección de red en
preferencias del sistema, hacer clic en "Ayúdame"
para llegar al asistente de configuración de red,
luego seguir las instrucciones para establecer una
conexión.
1. Conecte el conector USB Tipo C de la
estación de conexión al puerto USB C o
Thunderbolt 3 en su laptop, tableta u otro
dispositivo.
