Tripp Lite U442-DOCK5D-GY User manual

1
Owner’s Manual
USB-C Portable Docking
Station with Detachable
Cable, Gray
Model: U442-DOCK5D-GY
USB Type-C
®
and USB-C
®
are registered trademarks of USB Implementers Forum .
1111 W. 35th Street, Chicago, IL 60609 USA
tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be automatically entered
to win an ISOBAR surge protector in our monthly drawing!
tripplite.com/warranty
Este manual esta disponible en español en la página
de Tripp Lite: tripplite.com/support
Ce manuel est disponible en français sur le site Web
de Tripp Lite : tripplite.com/support
Русскоязычная версия настоящего руководства
представлена на веб-сайте компании Tripp Lite по
адресу: tripplite.com/support
21-05-132-933990-EN_revB.indd 121-05-132-933990-EN_revB.indd 1 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

2
Product Features
• Supports DisplayPort Alternate Mode for
connecting an HDMI monitor via USB-C or
Thunderbolt™3 port
• Supports connection of DVI monitor via HDMI to
DVI adapter (see Optional Accessories for more
information)
• HDMI port supports 4096 x 2160 30 Hz 4:4:4
video resolutions
• Ethernet port supports true 10/100/1000 Mbps
network speeds
• USB-A and Type-C data ports support data
transfer rates up to 5 Gbps
• All USB 3.2 Gen 1 ports support data and charging
• Dedicated 5V/1.5A USB port provides fast
charging power to mobile devices (when
connected to power)
• USB-C device port supports data and Power
Delivery (PD) charging with power input up to
20V 5A (100W)
• 5V 2A (10W) of power dedicated to the USB-A
ports when connected to a PD 3.0-compliant
charger*
• Micro SD and SD/MMC Memory Card Slots allow
external memory access via USB-C or Thunderbolt
3 port
21-05-132-933990-EN_revB.indd 221-05-132-933990-EN_revB.indd 2 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

3
Product Features
System Requirements
• Supports PD 3.0 Fast Role Swap to maintain data
and power connection upon removal of charging
power
• Automatically resumes operation from hibernation
and suspend mode
• IEEE 802.3az (Energy Efficient Ethernet) compliant
• Supports full-duplex and half-duplex operations
• Supports Wake-On LAN
• Portable, bus-powered design with built-in storage
for detachable cable (included)
• Plug-and-play—no software or drivers required
*When no power supply is connected, the output of the USB-A
ports are dependent on the connected source.
• Computer with USB-C or Thunderbolt 3 port that
supports DisplayPort Alternate Mode
• DVI** or HDMI monitor
• Ethernet Network with speeds up to
10/100/1000 Mbps
**Requires an adapter (see Optional Accessories for more
information)
21-05-132-933990-EN_revB.indd 321-05-132-933990-EN_revB.indd 3 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

4
Package Includes
Optional Accessories
• U442-DOCK5D-GY
• USB 3.2 Gen 1 USB-C Cable (M/M), 3 ft.
• Owner’s Manual
• N201-Series Cat6 Gigabit Snagless Patch Cables
• P566-Series HDMI to DVI Adapter Cables
• P568-Series High-Speed HDMI Cables
• U322-Series USB 3.2 A/B Device Cables
• U326-Series USB 3.2 Micro-B Device Cables
• U420-003-5A USB 3.2 Gen 1 USB-C Cable (M/M),
3 ft. (0.9 m)
• U420-003-G2-5A USB 3.2 Gen 2 USB-C
Cable (M/M), 3 ft. (0.9 m)
• U420-C03-G2-5A USB 3.2 Gen 2 IF-Certified
USB-C Cable (M/M), 3 ft. (0.9 m)
21-05-132-933990-EN_revB.indd 421-05-132-933990-EN_revB.indd 4 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

5

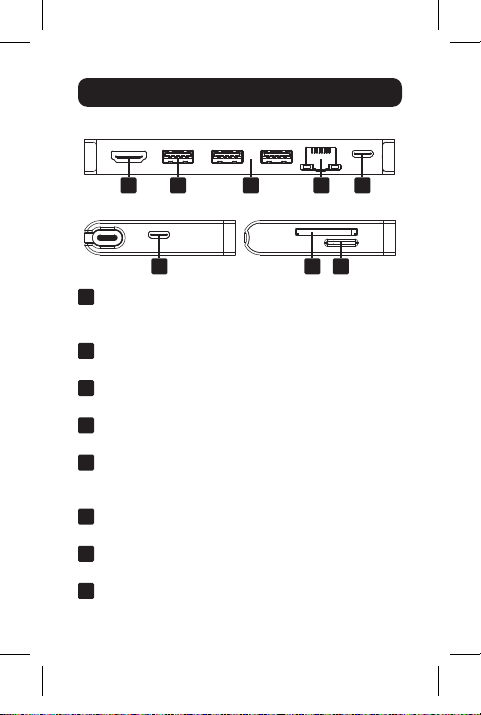

Product Overview
1USB 3.2 Gen 1 Ports (Female) – Connect up
to 2 USB peripherals/devices for charging or data
transfer.
2USB 3.2 Gen 1 Port (Female) – Supports up to
5V/1.5A charging for power-hungry devices.
3HDMI Port (Female) – Connects an HDMI
monitor.
4RJ45 Port (Female) – Connects to a
10/100/1000 Mbps network.
5USB-C Charging and Data Port (Female) –
Connects your device to a USB-C PD charger
for charging or data transfer.
6USB-C Host Port (Female) – Connects to your
USB Type-C enabled laptop or computer.
7SD/MMC Memory Card Slot – Connects an
SD/MMC Memory Card.
8Micro SD Memory Card Slot – Connects a
Micro SD Memory Card.
3
6 87
2 1 4 5
Front
Side 1 Side 2
21-05-132-933990-EN_revB.indd 521-05-132-933990-EN_revB.indd 5 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

6
Installation
Note:
• When the USB-C port is connected to a power source,
15W of power is dedicated to the docking station and other
devices. The remainder is used to charge the connected
device.
• See Optional Accessories section for suggested cables.
• In the event the detachable USB cable is lost or misplaced, a
USB-C to USB-C 5A 3-foot cable (such as Tripp Lite’s U420-
003-5A, U420-003-G2-5A or U420-C03-G2-5A cables) can
be found at tripplite.com.
• When the unit is connected to the USB-C port on your
computer and to a network via Cat5e/6 cabling, a network
connection will be automatically established. If no connection
is made, you can manually establish one by going to your
computer’s network settings. For example, when using a
Mac, you would navigate to the “Network” icon found in
System Preferences, click the “Assist Me” button to access
the Network Setup Assistant, then follow the prompts to
establish a connection.
1. Using the included USB 3.2 Gen 1 USB-C 5A
cable, connect the docking station’s USB-C host
port to the USB-C or Thunderbolt 3 port on your
laptop, tablet or other device.
2. Using an HDMI cable (such as Tripp Lite P568-
Series High-Speed HDMI cables), connect the
dock’s HDMI port to the HDMI port on a monitor.
3. Connect up to three USB devices to the dock’s
USB-A hub ports for data or charging.
4. Connect a USB Type-C device to the dock’s Type-C
port for data or charging.
21-05-132-933990-EN_revB.indd 621-05-132-933990-EN_revB.indd 6 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

7
Installation
5. Using UTP cable, connect the adapter’s RJ45 port
to a network.
6. Insert a Micro SD and/or SD/MMC card into the
corresponding memory card slot to access external
memory.
21-05-132-933990-EN_revB.indd 721-05-132-933990-EN_revB.indd 7 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

8
Specifications
Connectors-Input
USB USB-C (Female)
Connectors-Output
USB-A (x3) USB 3.2 Gen 1
(Female)
USB PD Charging and
Data
USB-C (Female)
10/100/1000 Ethernet RJ45 (Female)
HDMI HDMI (Female)
Memory Card Slots Micro SD and SD/MMC
Environmental
Operating Temperature 32°F to 113°F
(0°C to 45°C)
Operating Humidity 10% to 85% RH,
Non-Condensing
Storage Temperature 14°F to 158°F
(-10°C to 70°C)
Storage Humidity 5% to 90% RH,
Non-Condensing
Power Requirements
USB-C Charging Port Supports up to 20V 5A
(100W) Input
21-05-132-933990-EN_revB.indd 821-05-132-933990-EN_revB.indd 8 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

9
Warranty and
Product Registration
3-Year Limited Warranty
Tripp Lite warrants its products to be free from defects in
materials and workmanship for a period of three (3) years from
the date of initial purchase. Tripp Lite’s obligation under this
warranty is limited to repairing or replacing (at its sole option)
any such defective products. To obtain service under this
warranty, you must obtain a Returned Material Authorization
(RMA) number from Tripp Lite or an authorized Tripp Lite
service center. Products must be returned to Tripp Lite or an
authorized Tripp Lite service center with transportation charges
prepaid and must be accompanied by a brief description of the
problem encountered and proof of date and place of purchase.
This warranty does not apply to equipment, which has been
damaged by accident, negligence or misapplication or has
been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. Some states do not permit limitation or exclusion
of implied warranties; therefore, the aforesaid limitation(s) or
exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite
BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS
PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. Specifically, Tripp Lite is not liable for any costs, such
as lost profits or revenue, loss of equipment, loss of use of
equipment, loss of software, loss of data, costs of substitutes,
claims by third parties, or otherwise.
21-05-132-933990-EN_revB.indd 921-05-132-933990-EN_revB.indd 9 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

10
Warranty and
Product Registration
Product Registration
Visit tripplite.com/warranty today to register your new
Tripp Lite product. You’ll be automatically entered into a
drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply.
See website for details.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
21-05-132-933990-EN_revB.indd 1021-05-132-933990-EN_revB.indd 10 10/4/2021 10:58:34 AM10/4/2021 10:58:34 AM

11
Warranty and
Product Registration
• Consult the dealer or an experienced radio/TV technician
for help.
Any changes or modifications to this equipment not expressly
approved by Tripp Lite could void the user’s authority to operate
this equipment.
WEEE Compliance Information for Tripp Lite
Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment
(WEEE) Directive and implementing regulations,
when customers buy new electrical and electronic
equipment from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one,
like-for-like basis (this varies depending on the
country)
• Send the new equipment back for recycling when
this ultimately becomes waste
Use of this equipment in life support applications where failure
of this equipment can reasonably be expected to cause the
failure of the life support equipment or to significantly affect its
safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos
and illustrations may differ slightly from actual products.
21-05-132-933990-EN_revB.indd 1121-05-132-933990-EN_revB.indd 11 10/4/2021 10:58:35 AM10/4/2021 10:58:35 AM

12
1111 W. 35th Street, Chicago, IL 60609 USA
tripplite.com/support
21-09-340 93-3990_RevC
21-05-132-933990-EN_revB.indd 1221-05-132-933990-EN_revB.indd 12 10/4/2021 10:58:35 AM10/4/2021 10:58:35 AM
