j5 create NEWPORT STATION User manual

JUD200 V4.0
Newport Station
User Manual

2
Table of Contents
INTRODUCTION ........................................................................................................................................................... 3
Benefits................................................................................................................................................................ 3
Highlighted Features......................................................................................................................................... 3
Required Environments .................................................................................................................................... 4
Physical Specifications..................................................................................................................................... 5
Package Contents............................................................................................................................................ 6
GETTING STARTED........................................................................................................................................................ 7
INSTALLATION FOR WINDOWS.................................................................................................................................. 8
Device Driver Installation ................................................................................................................................. 8
Verify Device Driver Installation.................................................................................................................... 10
Setup The Sound.............................................................................................................................................. 10
Device Driver Un-installation ......................................................................................................................... 12
INSTALLATION FOR MAC ......................................................................................................................................... 13

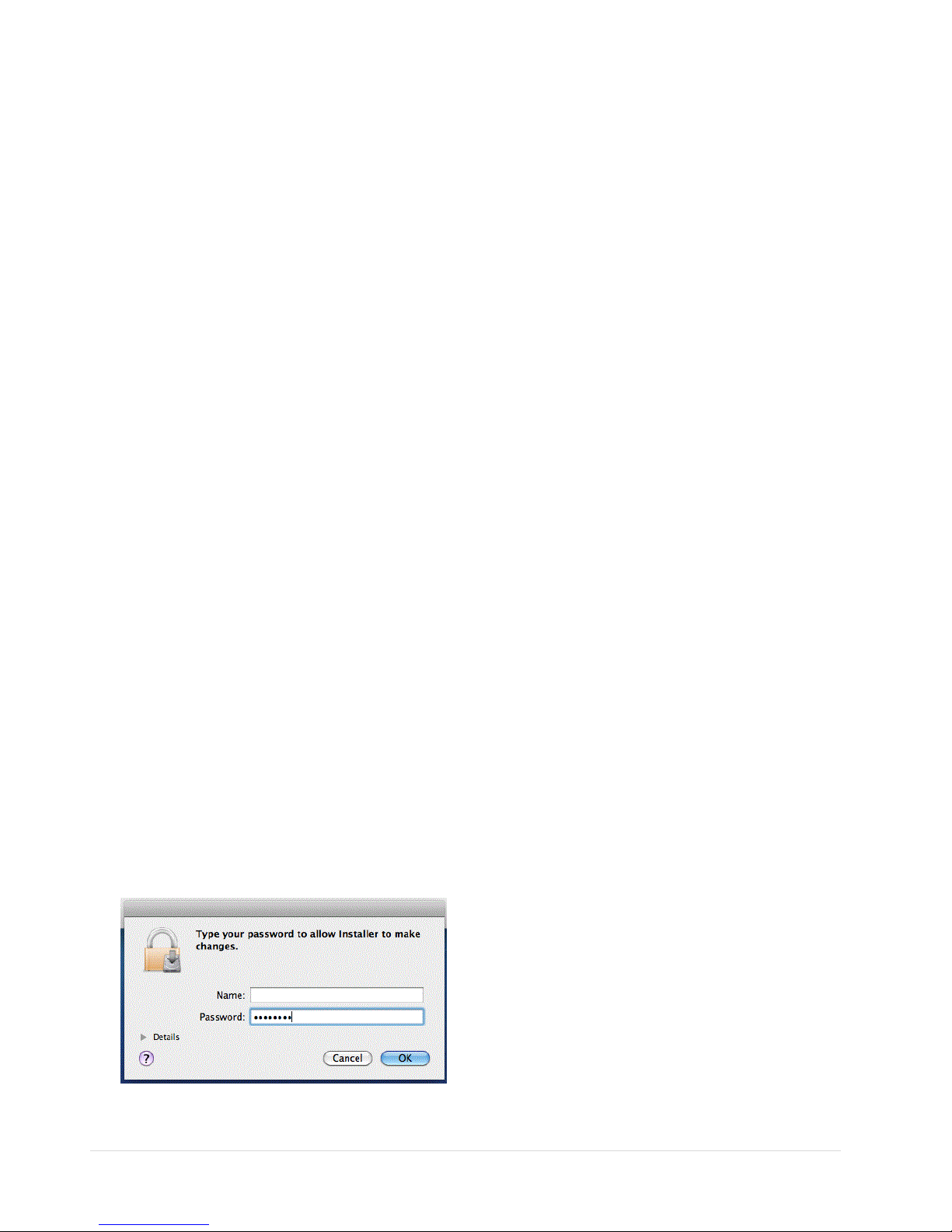

Device Driver Installation ............................................................................................................................... 13
Setup The Sound.............................................................................................................................................. 16
Verify Device Driver Installation.................................................................................................................... 17
Device Driver Un-installation ......................................................................................................................... 18
Display ID .......................................................................................................................................................... 18
Display Resolution ........................................................................................................................................... 19
Display Orientation ......................................................................................................................................... 21
Identify Monitors .............................................................................................................................................. 26
Multi-Display Control Panel ........................................................................................................................... 26
Display Setting.................................................................................................................................................. 27
Display Location & Fix Position...................................................................................................................... 27
FUNCTIONS INSTRUCTIONS: WINDOWS VISTA/XP ................................................................................................ 28
Display ID .......................................................................................................................................................... 28
Display Resolution ........................................................................................................................................... 29
Display Rotation............................................................................................................................................... 30
Display Mode................................................................................................................................................... 30
Identify Monitors .............................................................................................................................................. 32
Multi-Display Control Panel ........................................................................................................................... 32
Display Setting.................................................................................................................................................. 33
Fast access to the system “Display Settings”............................................................................................. 33
FUNCTIONS INSTRUTIONS: MAC SNOW LEOPARD............................................................................................... 35
Display Resolution ........................................................................................................................................... 35
Display Mode................................................................................................................................................... 35
Windows Arrangement .................................................................................................................................. 36
TECHNICAL SUPPORT ............................................................................................................................................... 41
REGULATORY COMPLIANCE................................................................................................................................... 42
WARRANTY OF j5 create ......................................................................................................................................... 43

NEWPORT STATION USER MANUAL
3
INTRODUCTION
Thank you for purchasing the j5 create (JUD200) Newport Station! This universal
docking station can be used for both MAC and Windows compatible laptop
computers. Simply connect your monitor, keyboard, mouse, Ethernet, speakers,
microphone or any other USB peripheral to your laptop with one USB cable. The
JUD200 supports resolutions up to1920 x 1200 and widescreen resolutions to optimize
viewing capability. It’s the perfect solution for expanding your MacBook Air ® and
Windows® notebook into a full-size workstation with an additional monitor.
The j5 JUD200 Newport Station comes with a slim, Flute-Shape form-factor. It is
intended for placing your laptop on top of for improved cooling of your computer as
well as providing an improved angle for your vision and keyboard. It takes up
minimum desk space and allows for easy access to all the connections of your
computer peripherals. More laptops today are being used as primary computers; the
JUD200 Newport Station provides simplicity for using your laptop in your home and
office.
Benefits
 Cost effective
 Turn your MacBook or Windows laptop into a full sized desktop configuration
with Full Sized Keyboard, Monitor, Mouse, Speakers, etc, with one USB
connection
 Use a 2nd Monitor without adding a new video card, avoiding complicated
technical issues
 Hot plug USB enables you to add or remove monitors without rebooting your
system
 Move and view large spreadsheets across two screens without overlapping
windows
 Type documents on one screen while viewing reference material on the
other
 Use a second display for pallets/tools in the Photoshop®or illustrator®
 Read and reply to emails on one screen and open email attachments on the
other
 Efficient for editing between multi-panoramic graphics
 Great for monitoring stock exchange information on multiple windows
simultaneously
 The compact form of the JUD200 Newport Station enables easy traveling
Highlighted Features
 Plug & Play USB connectivity
 Compatible with Windows® PC and Notebook
 Compatible with Mac OS X v10.6/10.7 (Snow Leopard/Lion)

4
 10/100 Ethernet for internet connecting
 Integrated VGA port supports display resolution up to1920 x 1200 @ 32 bit
 Supports Display Mode: Primary, Extended, Mirror
 Display Rotation: 0°, 90°, 180°, 270°
 Aluminum housing none toxins and highly recyclable
 Power On/ Off LED lighting
 Friendly software:
o Identify Monitors
o Multi-Display Control Panel
o Shortcut to access Windows
o Display setting dialog
Usage
Tablet PC/ Netbook:
 Some notebooks like MacBook Air® don’t come with VGA & Ethernet Ports. It
helps user with limited ports to easily connect with other computer
peripherals.
Meeting Room:
• Conveniently connect all the hardware equipment in the meeting room:
projector( second or third display device), microphone, Internet , speakers,
and USB memory pen driver to create memorable presentations
Office/ Home:
• When you’re leaving from home or the office with your notebook computer,
simply unplug the USB cable, and you’re ready to go
• Work from a full sized desktop configuration
Required Environments
 Microsoft Windows 7, Vista, XP (32-bit or 64-bit) Compatible
 Mac OS X 10.6 Snow Leopard /10.7 LionCompatible
 Available USB 2.0 port
 Temperature: Operating: -50°F~131°F
Non- Operating: -25°F~75°F
 Minimum System Requirements
CPU: Intel / AMD Dual core2.0 GHz or Higher
RAM: 2 GB or Higher
**This device is intended for ‘Office Applications’ and not for ‘Home
Entertainment’& ‘Video Playback‘.
note:
Due to constant advancements in technology we, at j5 create, make it a priority
to give you the latest drivers available for our products. To ensure that your
device is equipped with the most current driver, please visit our website at
www.j5create.com and install the latest driver for this model.

NEWPORT STATION USER MANUAL
5
Physical Specifications
Power
Power Button
Blue Light when power is supplied to the docking station.
Power Mode
Self-powered
Power Adapter
Input: AC 100-240V, 50~60 Hz
Output: DC 5V/3A
Host (2)
Upstream Port
USB 2.0 port( Mini-B Female Connector)
Hub (3.5.6)
Downstream Port
USB 2.0 Type-A Female Connector
Video(4)
VGA Port
DB 15pin Female Connector
Support Modes
Extended, Mirror, Primary Display
Display Rotation: 0°, 90°, 180°, 270°
Resolutions and Color
Depth
Aspect Ratio
Resolution
Color Depth
Wide Screen Display
16:10
1920 x 1200
16,32 bits
16:9
1920 x 1080
16,32 bits
16:10
1680 x 1050
16,32 bits
16:9
1600 x 900
16,32 bits
16:10
1440 x 900
16,32 bits
16:9
1360 x 768
16,32 bits
16:10
1280 x 800
16,32 bits
15:9
1280 x 768
16,32 bits
16:9
1280 x 720
16,32 bits

6
Standard Display
4:3
1600 x 1200
16,32 bits
4:3
1400 x 1050
16,32 bits
5:4
1280 x 1024
16,32 bits
4:3
1280 x 960
16,32 bits
4:3
1152 x 864
16,32 bits
4:3
1024 x 768
16,32 bits
4:3
800 x 600
16,32 bits
Ethernet (7)
Ethernet Port
10/100 Base-T Ethernet RJ-45 connector
Audio(8.9)
Microphone
3.5 mm stereo audio in
Speaker
3.5 mm stereo audio out
Physical Specification
Housing Material
Aluminum
Dimensions
Main body: 386.4(W)x 28.5(H)x22(D) mm
Package Contents
 Newport Station (JUD200)
 USB 2.0 cable(Type-A to Mini-B) 1Meter
 Power Adapter (5V/3A)
 Driver CD with E-manual
 Quick Installation Guide

NEWPORT STATION USER MANUAL
7
GETTING STARTED
Notes for Before Installation
 Install the driver completely before inserting the USB cable into your computer
 Run the setup program as an administrator to avoid errors in installation
 Connect the VGA of Display device to the VGA port of Newport Station first
before connecting the USB cable to the computer
 Un-install the previous driver first before installing the latest driver
Enjoy the Newport Station
1. Start Device Driver Installation (please refer to your PC system OS installation in next
section)
*Note: install driver completely before following steps.
2. Plug the Power Adapter to Port 1
3. Connect USB 2.0 Cable Micro-B connector to Port2, Type-A connector to host laptop
4. Connect VGA Cable of Display device to Port 4
5. Connect Ethernet Cable to Port 7
6. Connect Audio Cable(audio out, audio in)to Port 8 & 9
7. Lay your laptop on the top of the j5 Newport Station
8. Push the “j5”power button
9. USB 2.0 HUB port 3,5,6 are now ready to use

8
INSTALLATION FOR WINDOWS
Device Driver Installation
This section illustrates the simple device driver installation guide for Windows 7 operating
system. When your computer is ready to use insert the Driver CD into CD-ROM drive. The
setup program should be launched automatically; if it doesn’t, go to “Computer,” click
on your optical drive, and manually run the setup CD. Double Click on “Setup.exe” to
start.
※Make sure the USB cable is unplugged from your PC or Notebook before executing
the installation program.
1. The installation page will be launched. To
start click on “ Install the Latest Driver”. Please
make sure the network is available or press
“Install Driver” to start the installation
2. After pressing the installation option, the
InstallShield Wizard will launch, click
Next> to continue
3. Read the license agreement, check “I
accept the terms of the license
agreement,” click Next >
4. When Install Shield Wizard is complete,
select “Yes, I want to restart my
computer now.” Click Finish to restart.
5. After restarting your computer connect the
NEWPORT STATION USB Cable to your PC or
Notebook. The “Installing device driver
software” message will pop-up.
6. Windows 7:
When the driver software has been
installed successfully the message below
will appear on your computer.
Windows XP :An icon ( ) will be seen
on the lower right toolbar.Driver software
was installed successfully when the below

NEWPORT STATION USER MANUAL
9
message is shown
The Display functions of the NEWPORT STATION will be activated after the computer
restarted. You might see the mirror display is shown on the display device.
Windows 7:
You can modify the corresponding
position of each extend display via
display settings. Go to “START” →
“Control Panel” →“Appearance and
Personalization” →“Adjust screen
resolution”
※or Right click on the desktop and go
to “Screen Resolution”
When the Screen Resolution Window
pops up, you can identify each
monitor’s number by clicking
“Identify.” You can drag the Monitor
to the location you want.
Windows XP:
You can modify the corresponsive
position of each extend display via
display settings.
Go to “START” →“Control Panel” →
“Display Properties”→“Settings”
When Display Properties windows
appears, each monitor‟s number can
be identified by clicking “ “ identify”
Drag the monitor to the location you
want.
Note:

10
If your internal graphics card is Dual Display Ports…..
When using one NEWPORT STATION
The display device which connected to the 2nd VGA port will be numbered 3rd monitor,
the display device which connected to the NEWPORT STATION will be numbered 2nd
monitor.
Verify Device Driver Installation
The following procedure is for verifying the driver installation status of the NEWPORT
STATION
Windows 7:
Right Click “My Computer” “Manager”
“Device Manager” click “+” sign of
“Network adapter” & “Sound, video and
game control” & “Universal Serial Bus
controllers”
Windows XP:
Right Click “My Computer”, “Manager” → “Device Manager” click “+” sign of “Display
Adapter” & “Network adapter” & “Sound, video and game controllers” &“Universal Serial Bus
controllers”
Setup The Sound
Microsoft’s audio system restricts the audio function to one output at a time; therefore,
when using the USB HDMI display Device only one output will receive audio.
The following explains how to set-up and change the default sound output from the
display device connected with the USB 3.0 NEWPORT STATION.
