Tripp Lite SRIN418186 User manual

1
Installation Guide
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Español 7 • Français 13 • Русский 19
NEMA-4 Dual-Lock
Metal Enclosure
Models:
SRIN418186, SRIN4181810
Series Numbers: AC0044, AC0045
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
20-12-304-933DB5.indb 120-12-304-933DB5.indb 1 8/25/2021 9:17:27 AM8/25/2021 9:17:27 AM

2
Components List
Installation
IMPORTANT:
Ensure you have received all parts according to the component checklist prior to installing. If any parts are
missing or faulty, visit tripplite.com/support for service.
x1
x4 x8 x1 x2
x1 (Metal)
x1 (Plastic)

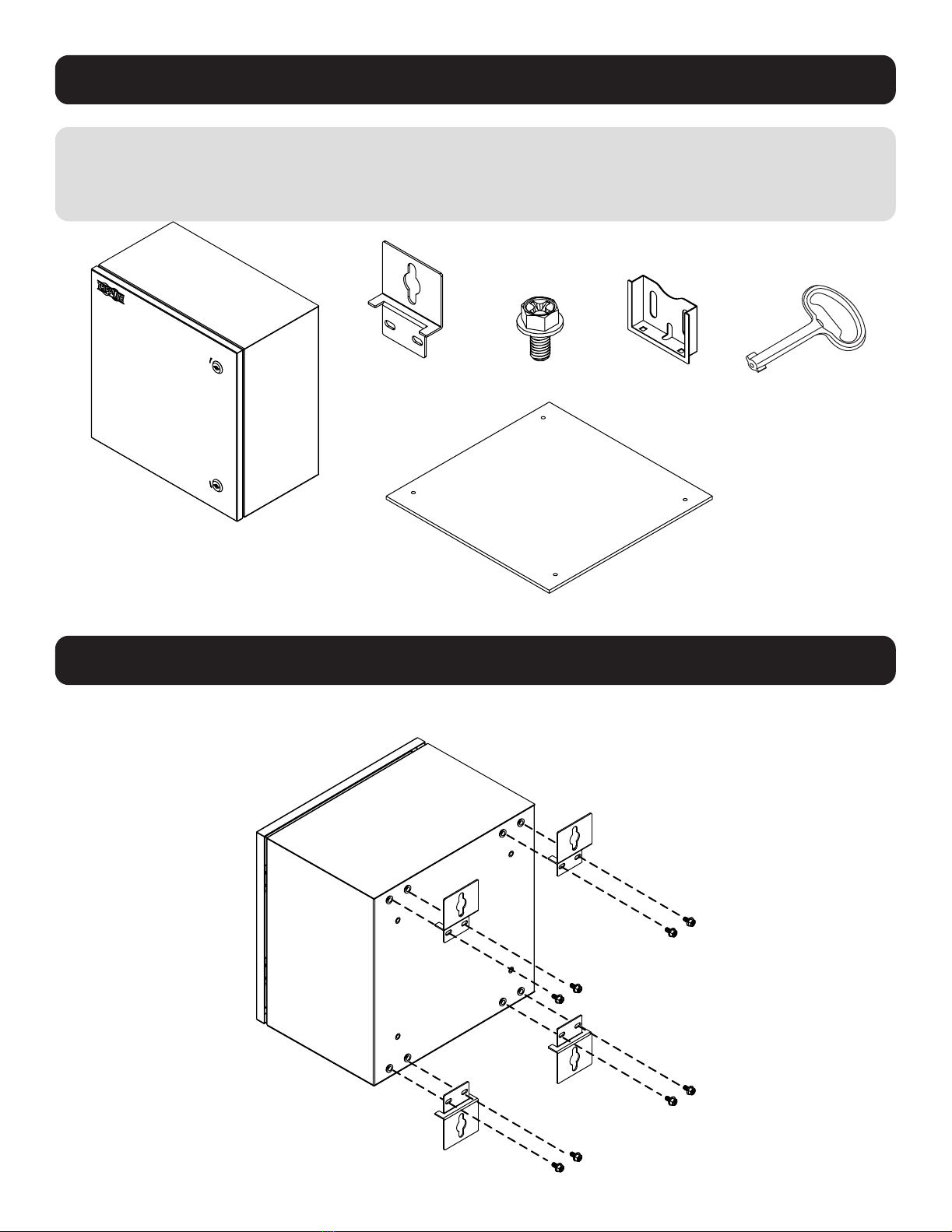

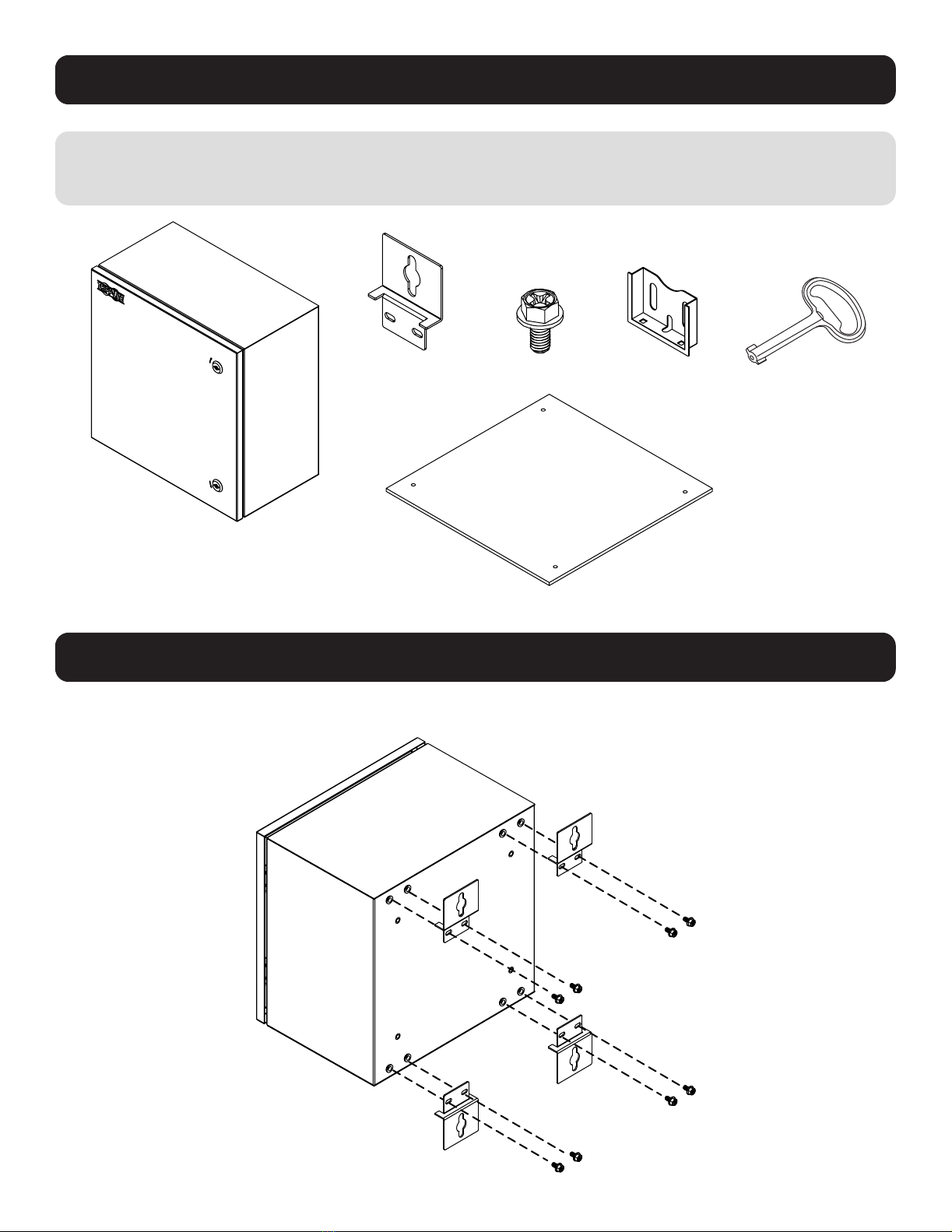

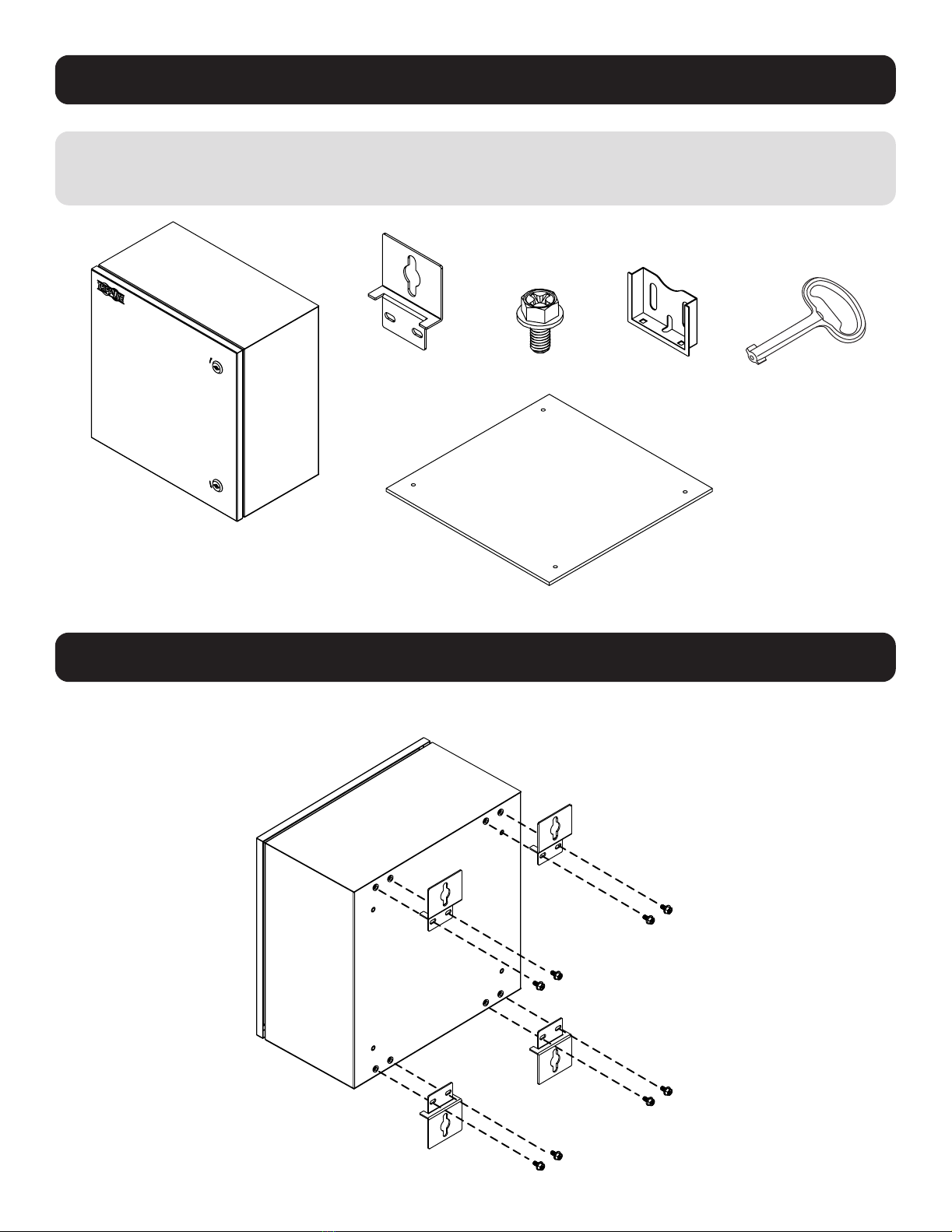

1. Attach Mounting Feet to the Enclosure’s Rear Panel
Note: SRIN4181810 model shown. Enclosure
size and dimensions will differ by model.
20-12-304-933DB5.indb 220-12-304-933DB5.indb 2 8/25/2021 9:17:27 AM8/25/2021 9:17:27 AM

3
Installation
• Installers are responsible for providing wall-mounting hardware. Use a minimum of two #10 x 2” or larger screws
(not included) to secure the enclosure in place.
• Make sure mounting screws are anchored into the center of the studs. Use of a stud finder is highly recommended.
• If there is no stud at the mounting location, it is recommended you use four anchors to secure the enclosure in place.
Due to the weight of the enclosure, plastic expansion wall anchors are not recommended for drywall installations.
Suitable anchors include: threaded drywall anchors, threaded drywall toggles, sleeve-type hollow wall anchors
(a.k.a. molly bolts) or toggle bolts.
• If placing the enclosure over a telecommunications receptacle, remove the wall plate, then fasten the enclosure to the
wall. Once secured, fasten the wall plate over the receptacle.
• If no telecommunications receptacle is available, a surface mount box (or biscuit jack) and equipment cord can be
mounted inside the unit.
• Use an adhesive-backed surface mount box.
2. Mount Enclosure to Wall
Mark the exact
location of the
mounting holes
Attach the
enclosure to
the wall
Drill pilot holes
Find a wood stud
location for mounting
the enclosure
(Mounting Hardware
Not Included)
20-12-304-933DB5.indb 320-12-304-933DB5.indb 3 8/25/2021 9:17:28 AM8/25/2021 9:17:28 AM

4
Installation

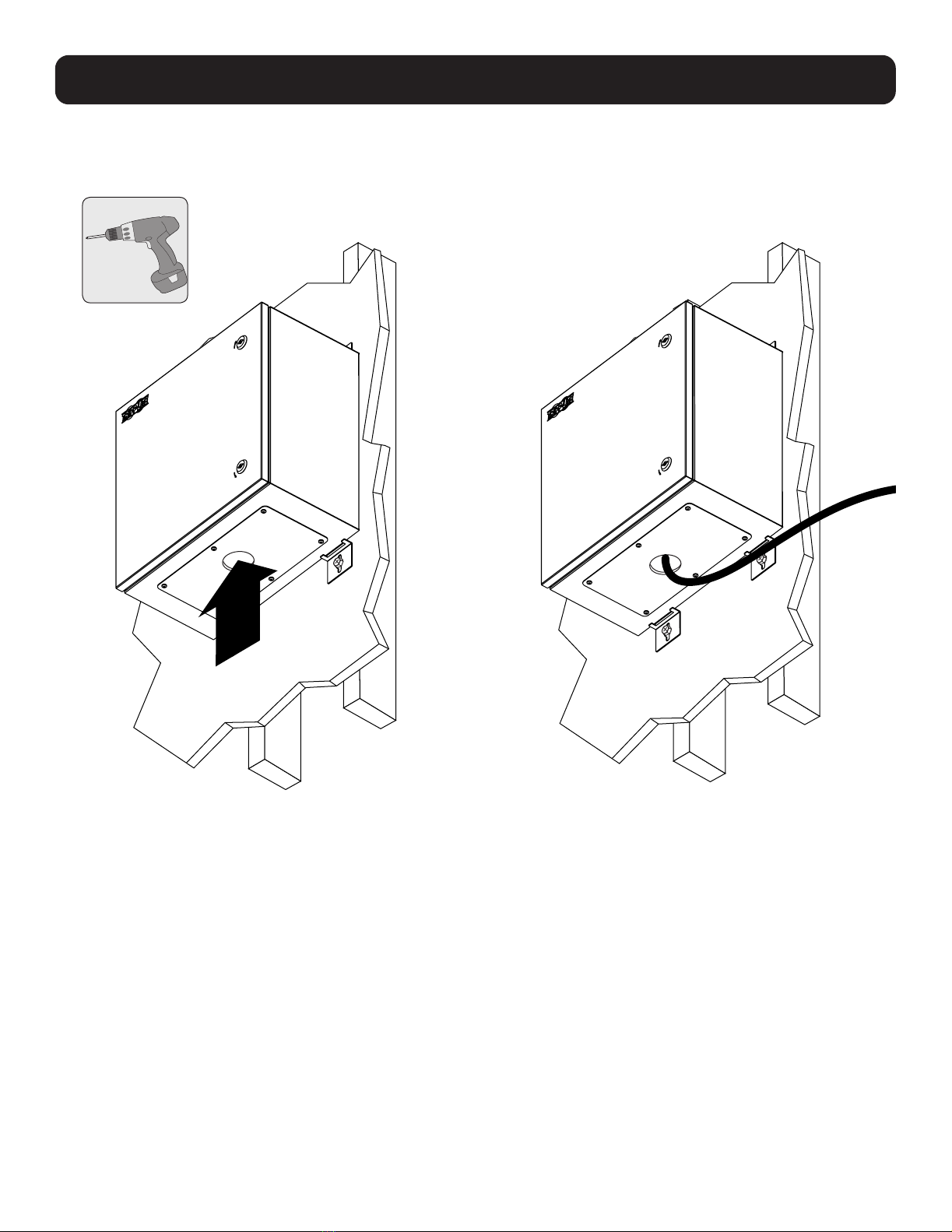

3. Use a Drill to Create a Bottom
Conduit Cutout
4. Run Data and Power Cable (If
Required) Through the Conduit
Cutout
Note: To maintain a NEMA rating, use sealed fit-
tings in the cutouts when connecting to conduit.
20-12-304-933DB5.indb 420-12-304-933DB5.indb 4 8/25/2021 9:17:28 AM8/25/2021 9:17:28 AM

5
Installation

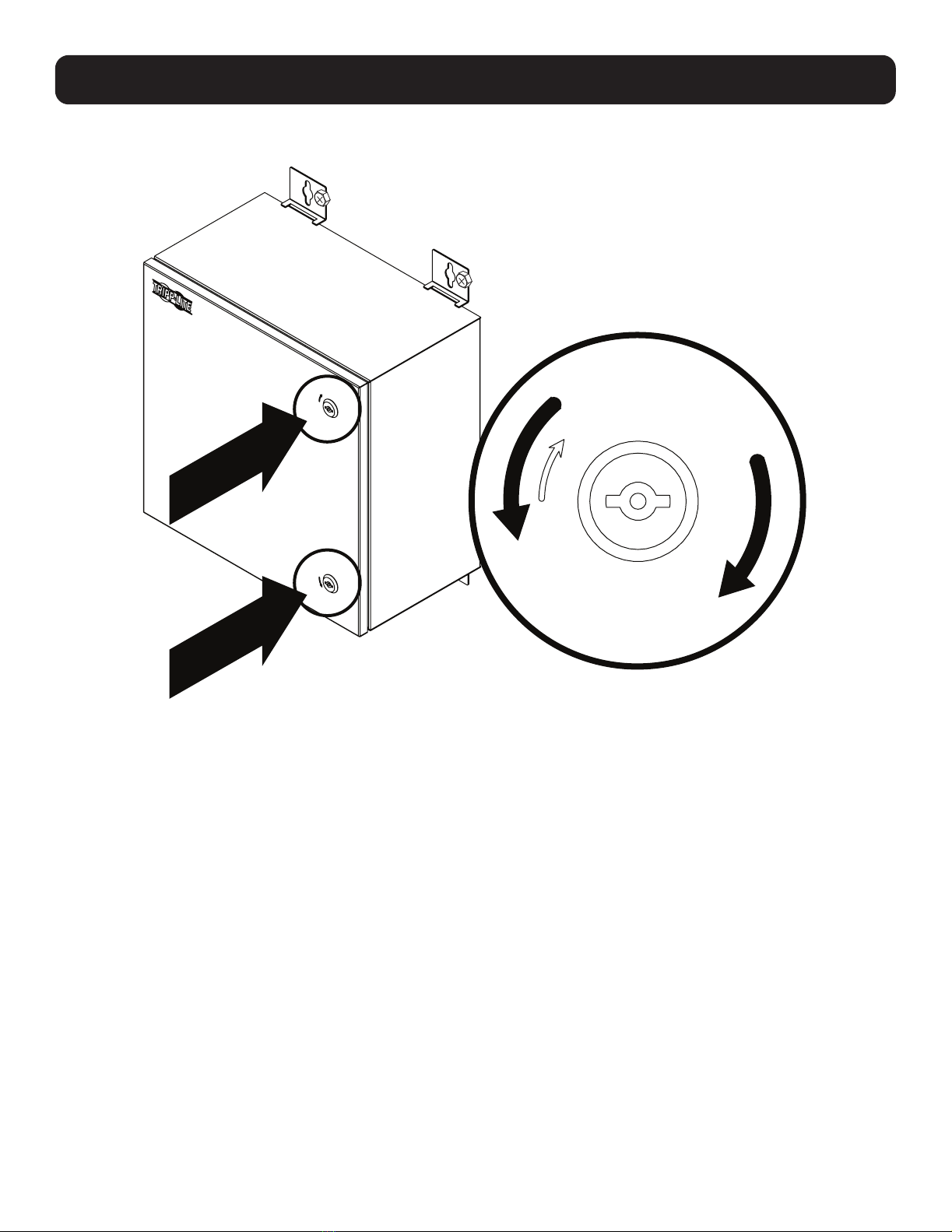

5. Secure the Enclosure Cover
LOCK
UNLOCK
20-12-304-933DB5.indb 520-12-304-933DB5.indb 5 8/25/2021 9:17:28 AM8/25/2021 9:17:28 AM

6
Warranty and Product Registration
5-year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and
workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within
that period, Seller will repair or replace the product, in its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER
MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION
TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL
DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use
intended. Since individual applications are subject to great variation , the manufacturer makes no representation or warranty as to the
suitability or fitness of these devices for any specific application.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a
FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ
slightly from actual products.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
20-12-304 933DB5_RevA
